Vehicle specifications
Manual transmission
Gear oil capacity
(reference)Gasoline engine2.4 L (2.5 qt., 2.1 Imp.qt.)
Diesel engine2.1 L (2.2 qt., 1.8 Imp.qt.)
Gear oil type
Use either of the following:• “TOYOTA Genuine
Manual Transmission
Gear Oil LV”
• Other gear oil that
meets API GL-4 and
SAE 75W specifications
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oi l LV” to achieve optimal perfor-
mance.
AVENSIS_OM_OM20C66E_(EE).book Page 621 Wednesday, June 15, 20 16 4:07 PM

6229-1. Specifications
AVENSIS_OM_OM20C66E_(EE)

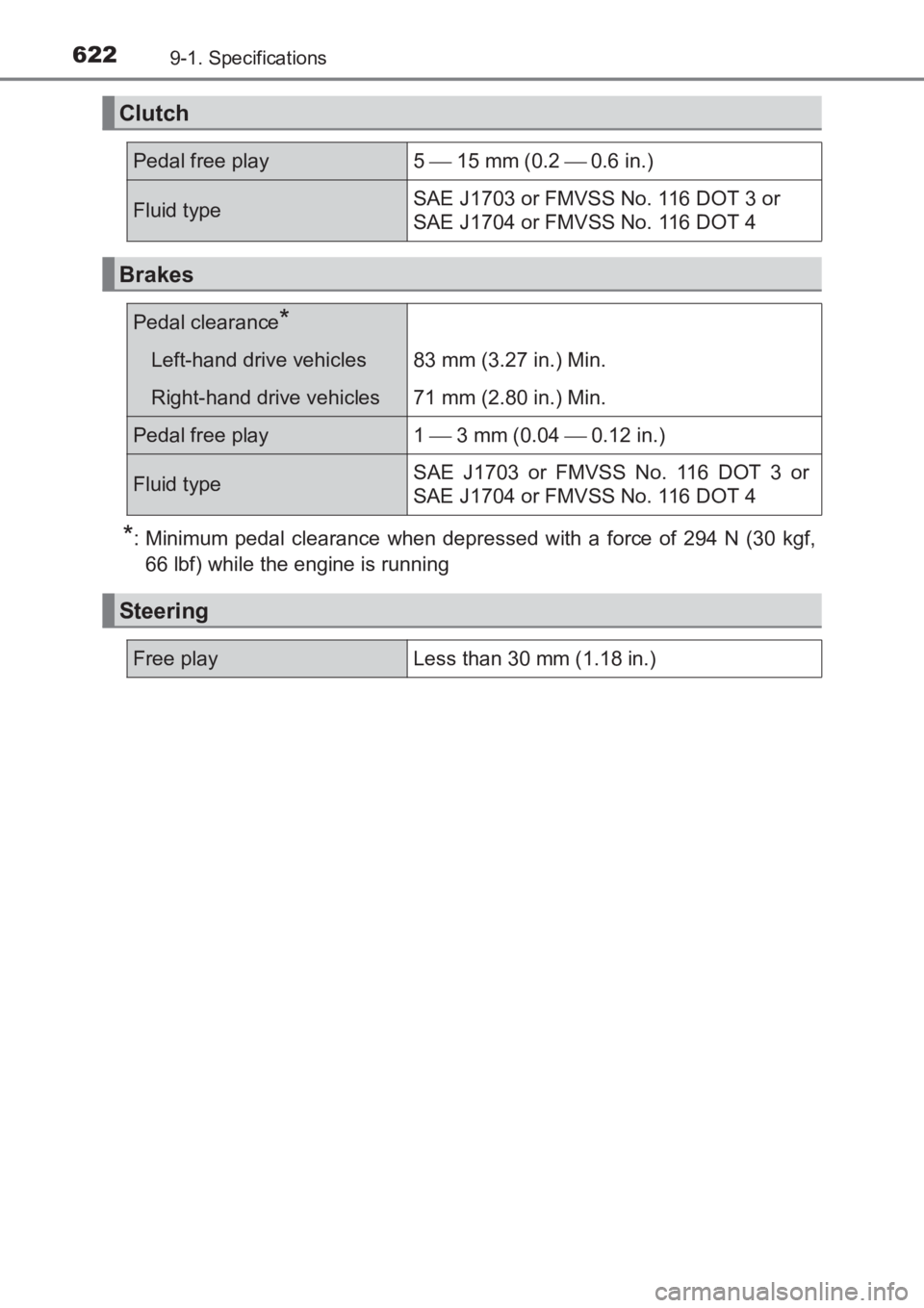

*: Minimum pedal clearance when depressed with a force of 294 N (30 kgf,66 lbf) while the engine is running
Clutch
Pedal free play5  15 mm (0.2  0.6 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Brakes
Pedal clearance*
Left-hand drive vehicles 83 mm (3.27 in.) Min.
Right-hand drive vehicles 71 mm (2.80 in.) Min.
Pedal free play 1  3 mm (0.04  0.12 in.)
Fluid type SAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.18 in.)
AVENSIS_OM_OM20C66E_(EE).book Page 622 Wednesday, June 15, 20
16 4:07 PM

6239-1. Specifications
AVENSIS_OM_OM20C66E_(EE)
9
Vehicle specifications

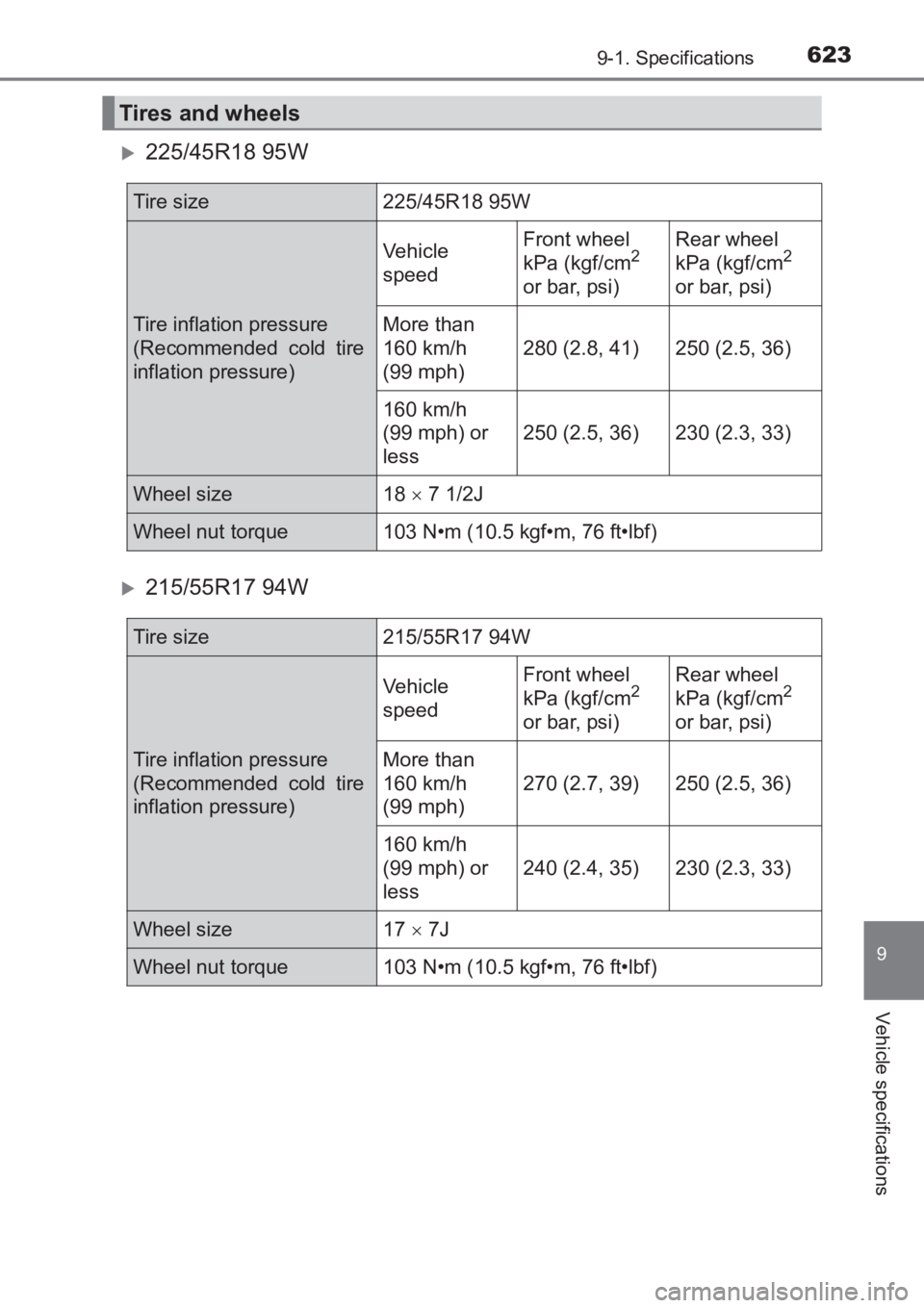

X225/45R18 95W
X215/55R17 94W
Tires and wheels
Tire size 225/45R18 95W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 280 (2.8, 41) 250 (2.5, 36)
160 km/h
(99 mph) or
less 250 (2.5, 36) 230 (2.3, 33)
Wheel size 18
× 7 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 215/55R17 94W
Tire inflation pressure
(Recommended cold tire
inflation pressure) Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less 240 (2.4, 35) 230 (2.3, 33)
Wheel size 17
× 7J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
AVENSIS_OM_OM20C66E_(EE).book Page 623 Wednesday, June 15, 20 16 4:07 PM

6249-1. Specifications
AVENSIS_OM_OM20C66E_(EE)

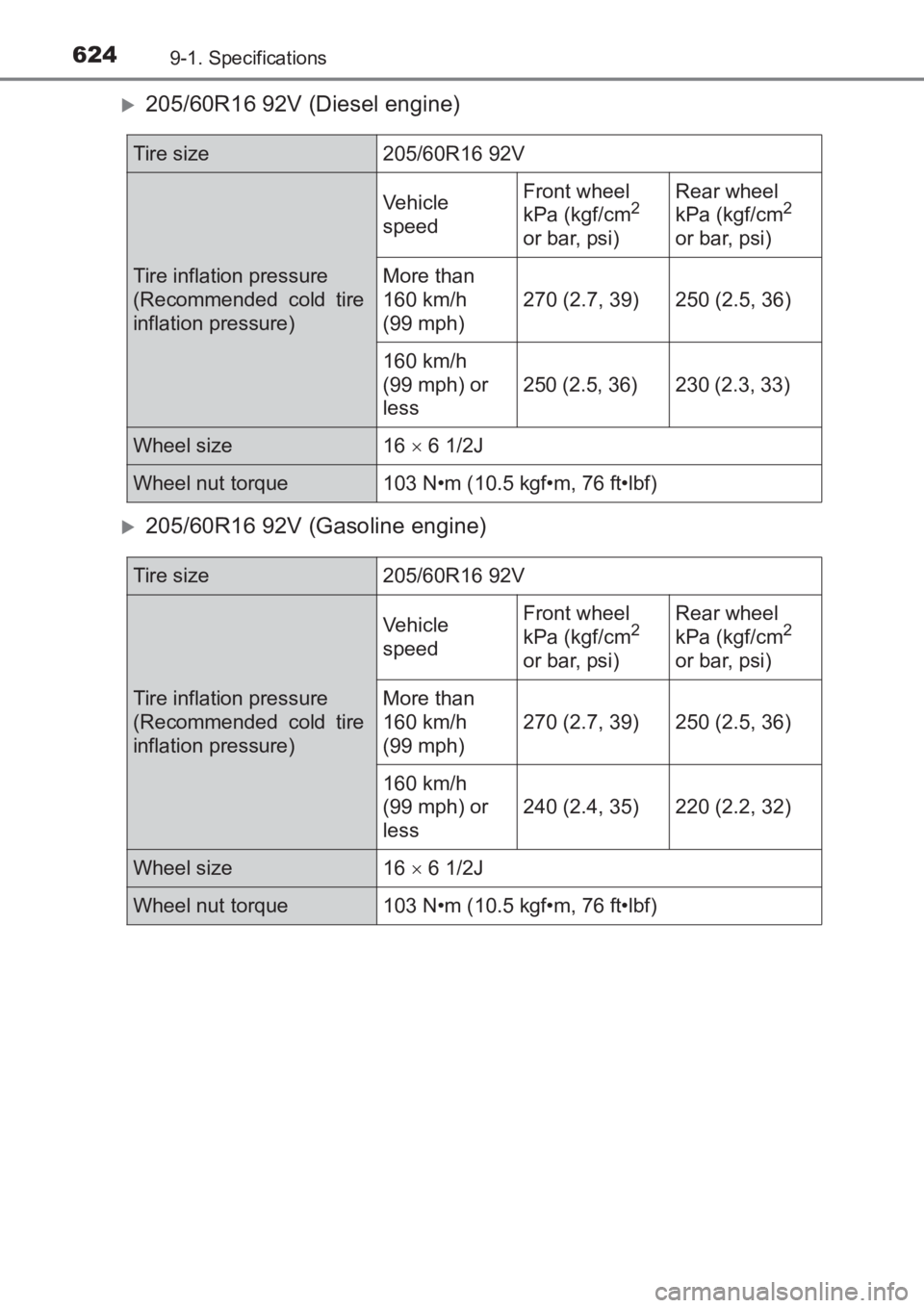

X205/60R16 92V (Diesel engine)
X205/60R16 92V (Gasoline engine)
Tire size 205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less
250 (2.5, 36) 230 (2.3, 33)
Wheel size 16 × 6 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure) Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less 240 (2.4, 35) 220 (2.2, 32)
Wheel size 16
× 6 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
AVENSIS_OM_OM20C66E_(EE).book Page 624 Wednesday, June 15, 20 16 4:07 PM

6259-1. Specifications
AVENSIS_OM_OM20C66E_(EE)
9
Vehicle specifications

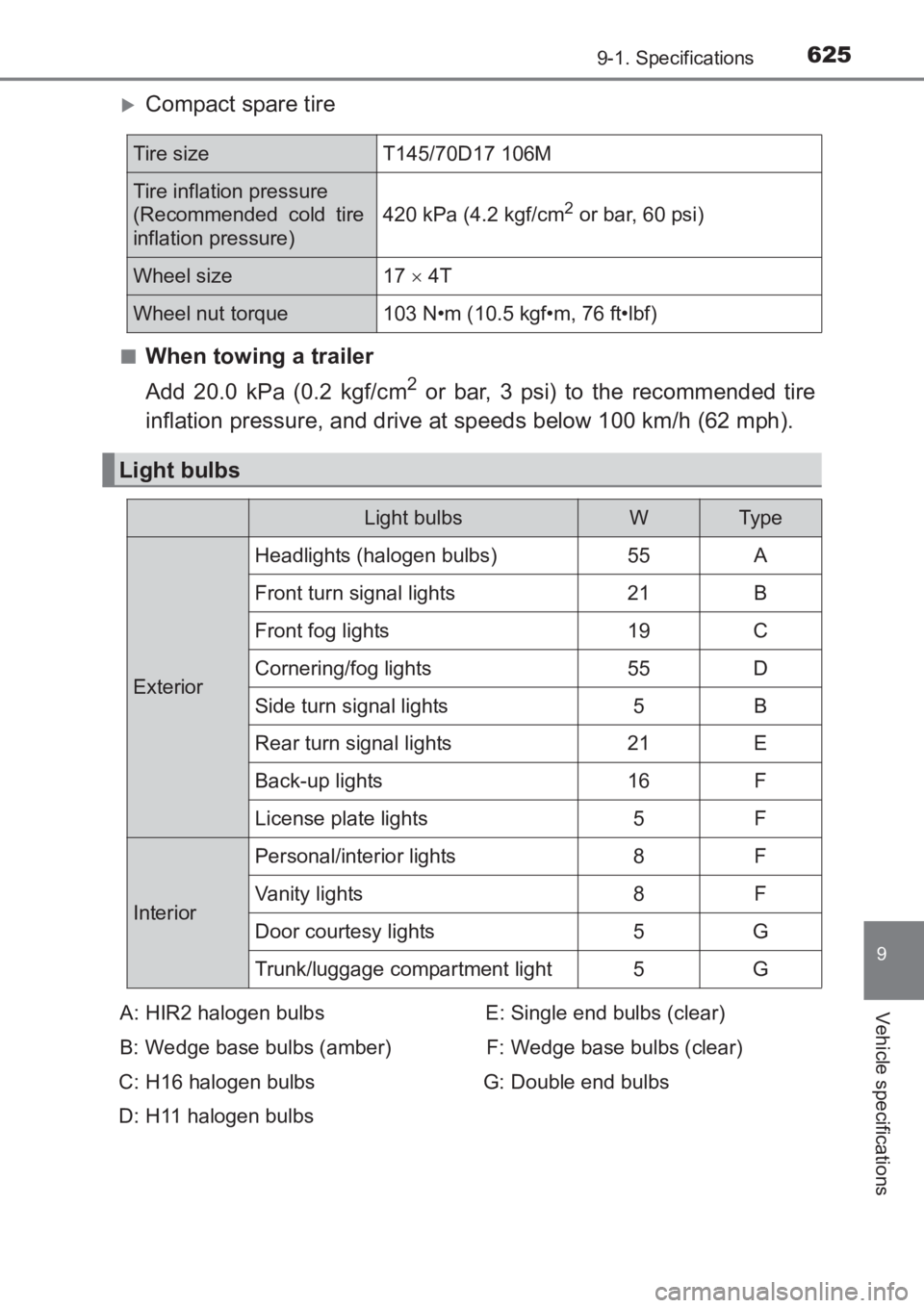

XCompact spare tire
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm
2 or bar, 3 psi) to the recommended tire
inflation pressure, and drive at speeds below 100 km/h (62 mph).
Tire size T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure) 420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17
× 4T
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
Exterior Headlights (halogen bulbs) 55 A
Front turn signal lights 21 B
Front fog lights 19 C
Cornering/fog lights 55 D
Side turn signal lights 5 B
Rear turn signal lights 21 E
Back-up lights 16 F
License plate lights 5 F
Interior
Personal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 G
Trunk/luggage compartment light 5 G
A: HIR2 halogen bulbs
B: Wedge base bulbs (amber)
C: H16 halogen bulbs
D: H11 halogen bulbs E: Single end bulbs (clear)
F: Wedge base bulbs (clear)
G: Double end bulbs
AVENSIS_OM_OM20C66E_(EE).book Page 625 Wednesday, June 15, 20 16 4:07 PM

6269-1. Specifications
AVENSIS_OM_OM20C66E_(EE)

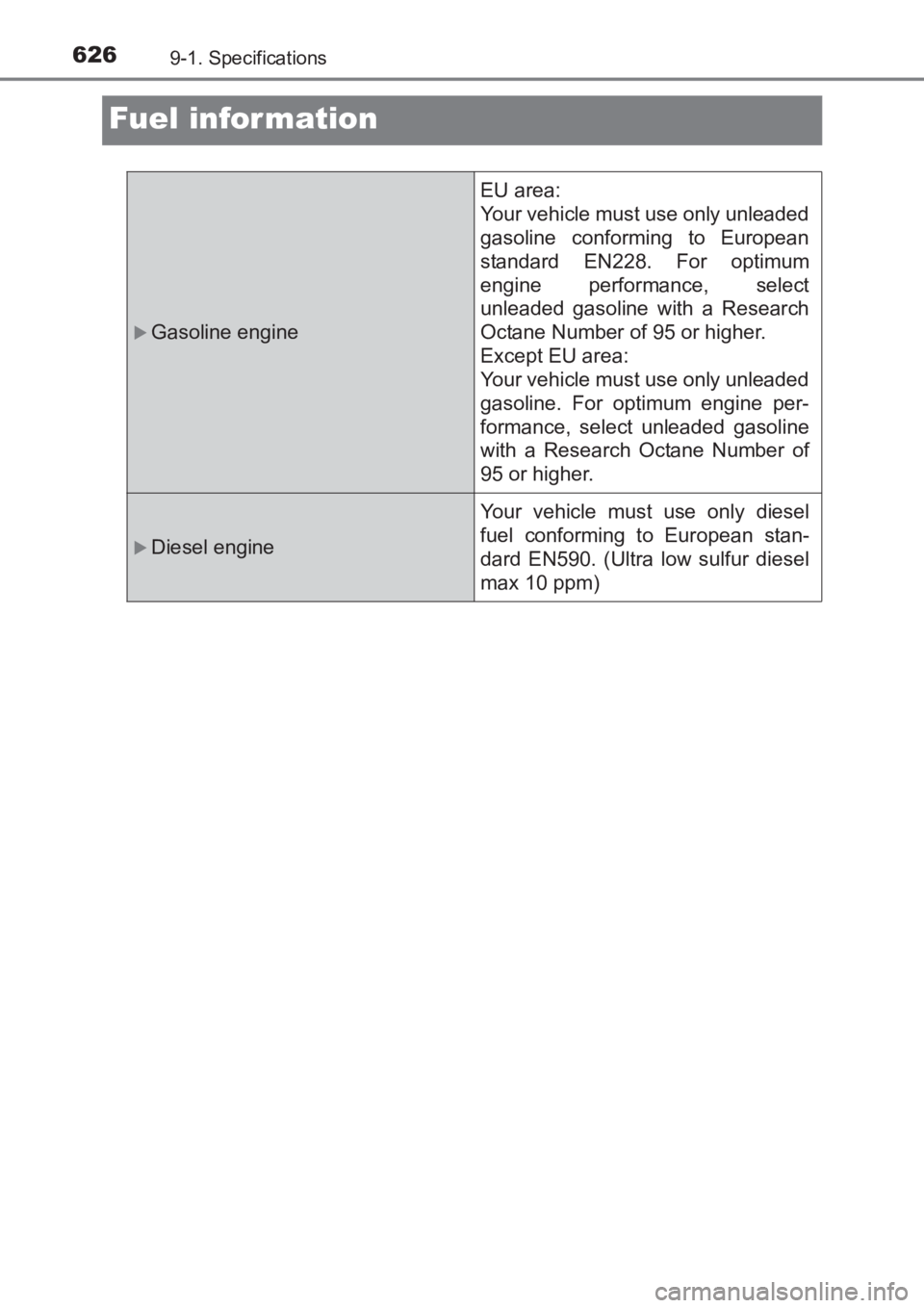

Fuel infor mation
XGasoline engine
EU area:
Your vehicle must use only unleaded
gasoline conforming to European
standard EN228. For optimum
engine performance, select
unleaded gasoline with a Research
Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded
gasoline. For optimum engine per-
formance, select unleaded gasoline
with a Research Octane Number of
95 or higher.
XDiesel engine
Your vehicle must use only diesel
fuel conforming to European stan-
dard EN590. (Ultra low sulfur diesel
max 10 ppm)
AVENSIS_OM_OM20C66E_(EE).book Page 626 Wednesday, June 15, 2016 4:07 PM

6279-1. Specifications
AVENSIS_OM_OM20C66E_(EE)
9
Vehicle specifications

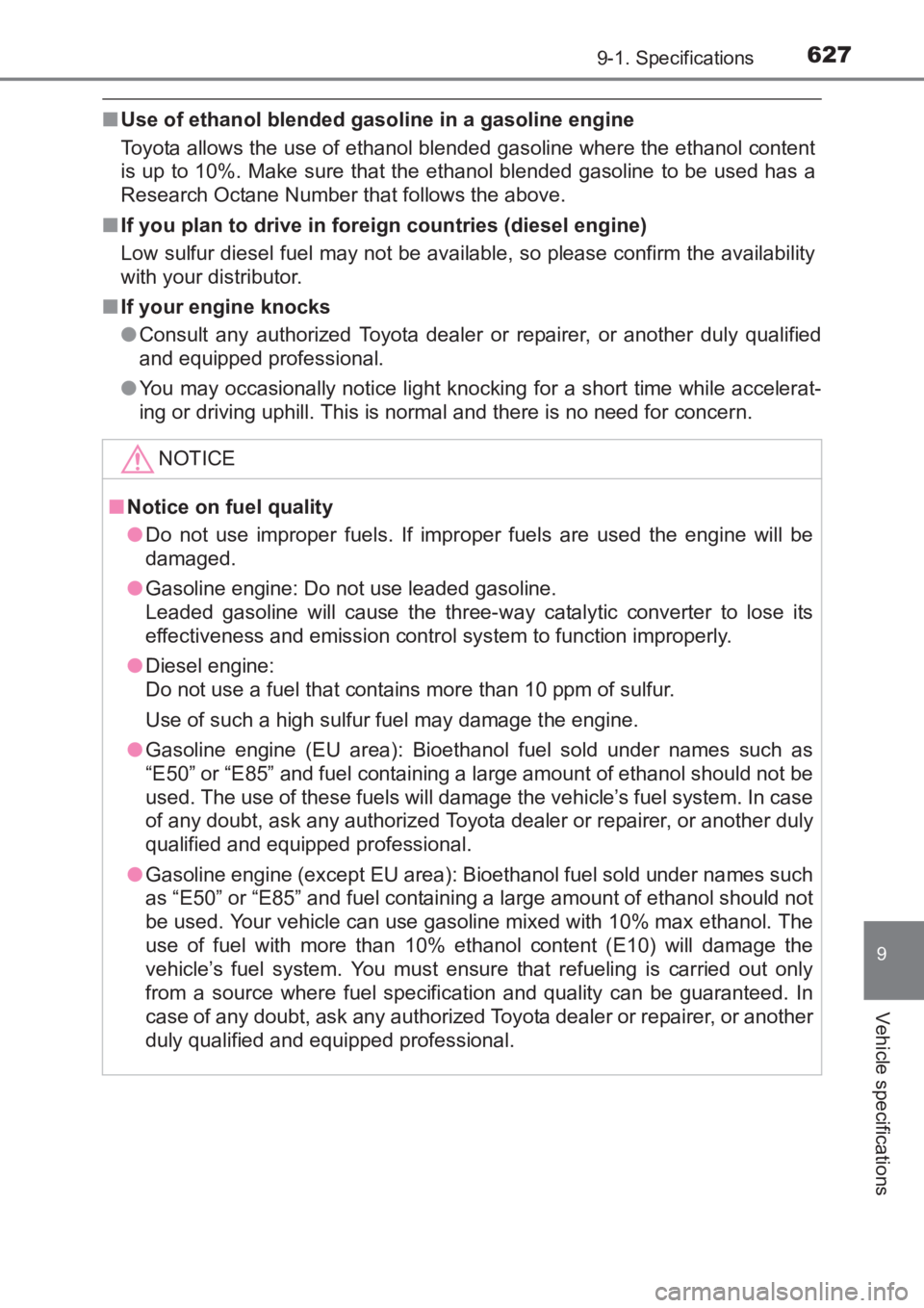

■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be available, so please confirm the availability
with your distributor.
■ If your engine knocks
●Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and emission control system to function improperly.
● Diesel engine:
Do not use a fuel that contains more than 10 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.
● Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
● Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
AVENSIS_OM_OM20C66E_(EE).book Page 627 Wednesday, June 15, 20 16 4:07 PM

6289-1. Specifications

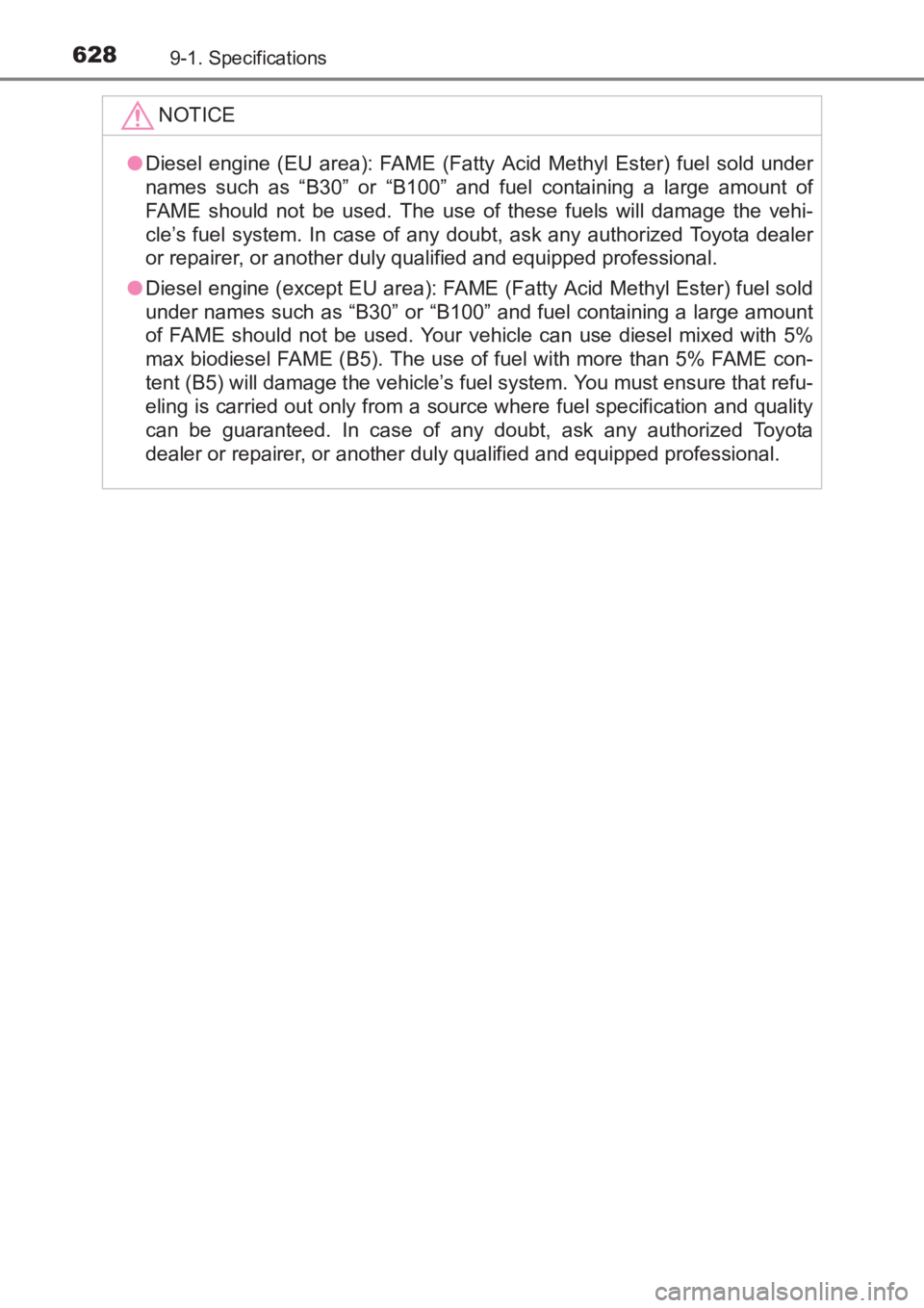

AVENSIS_OM_OM20C66E_(EE)NOTICE
●
Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle’s fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
● Diesel engine (except EU area): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your vehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that refu-
eling is carried out only from a source where fuel specification and quality
can be guaranteed. In case of any doubt, ask any authorized Toyota
dealer or repairer, or another dul y qualified and equipped professional.
