TOYOTA AYGO 2013 Owners Manual (in English)

231
3
Interior features
AYGO_WE_99G80E
3-6. Other interior features

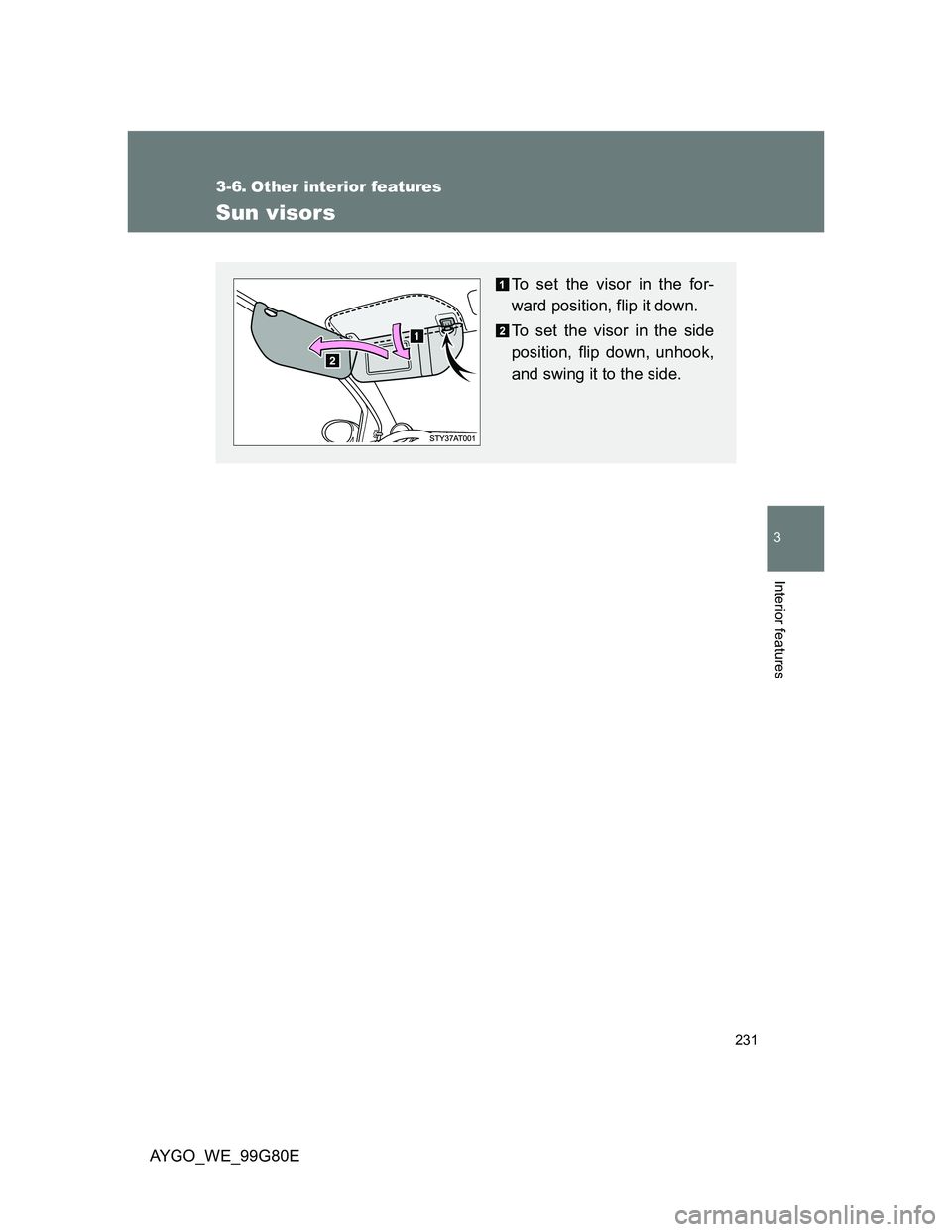

Sun visors
To set the visor in the for-
ward position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.

232
3-6. Other interior features
AYGO_WE_99G80E

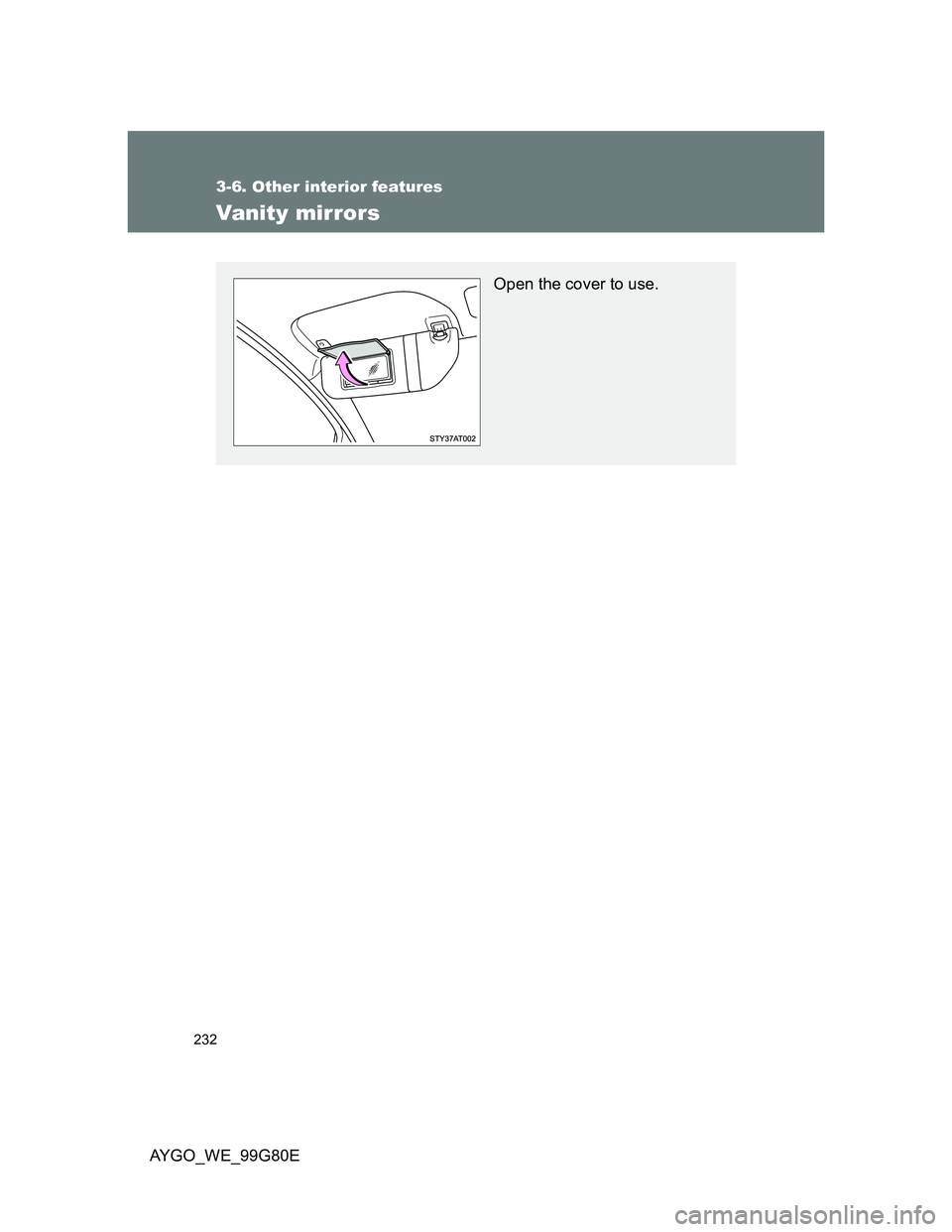

Vanity mirrors
Open the cover to use.

233
3-6. Other interior features
3
Interior features
AYGO_WE_99G80E
Clock
: If equipped
The clock can be adjusted by the following steps.
Ty p e A
Press and hold the “CLOCK”
button until you hear a beep.
Adjusts the hours
Adjusts the minutes
Ty p e B
Press the “MENU” button.

234 3-6. Other interior features
AYGO_WE_99G80E

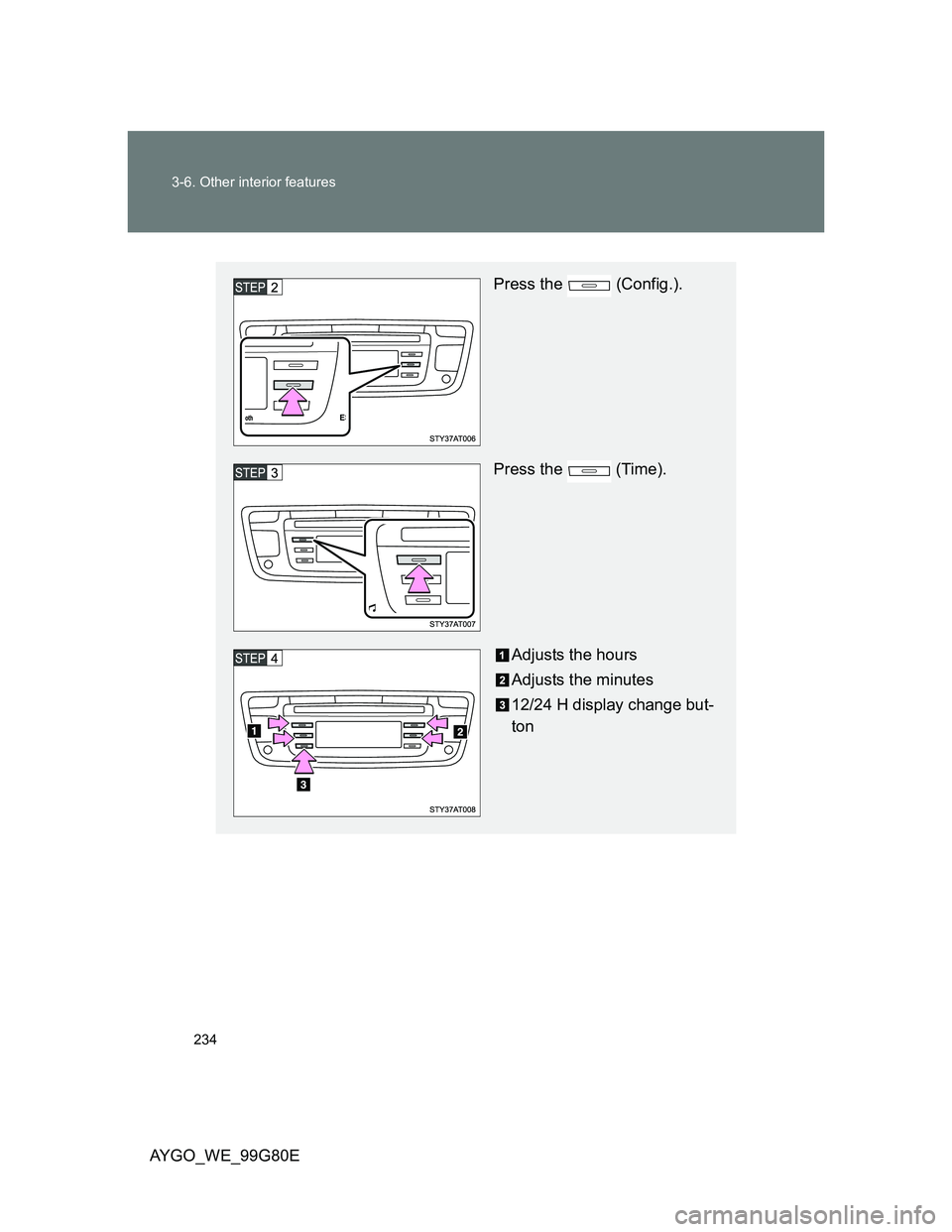

Press the (Config.).
Press the (Time).
Adjusts the hours
Adjusts the minutes
12/24 H display change but-
ton

235 3-6. Other interior features
3
Interior features
AYGO_WE_99G80E

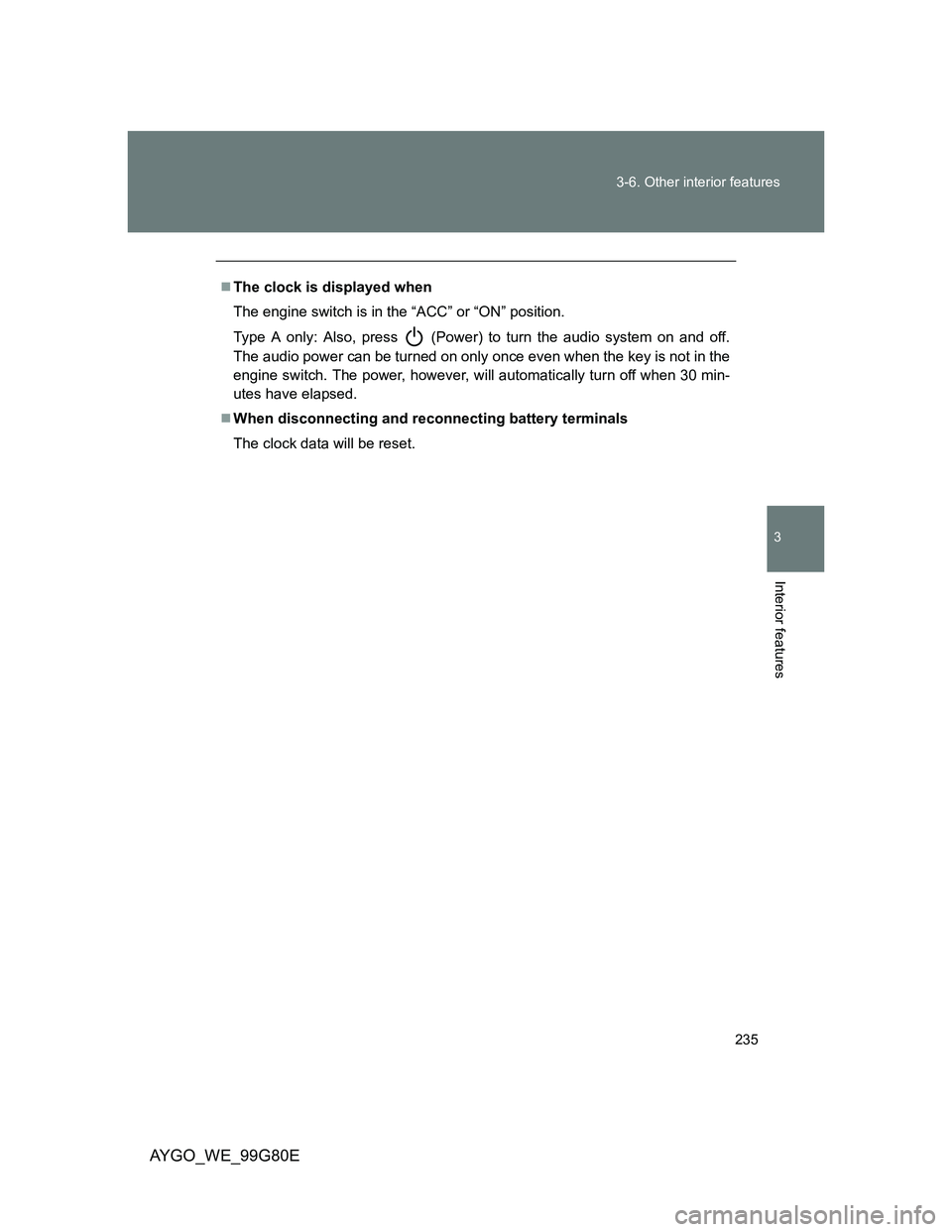

The clock is displayed when
The engine switch is in the “ACC” or “ON” position.
Type A only: Also, press (Power) to turn the audio system on and off.
The audio power can be turned on only once even when the key is not in the
engine switch. The power, however, will automatically turn off when 30 min-
utes have elapsed.
When disconnecting and reconnecting battery terminals
The clock data will be reset.

236
3-6. Other interior features
AYGO_WE_99G80E
Power outlet
The power outlet can be used when
The engine switch is in the “ACC” or “ON” position.
NOTICE
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
To prevent blown fuse
Do not use an accessory that uses more than 12 V 120 W.
To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
The power outlet can be used for 12 V accessories that run on less
than 120 W.

237
3-6. Other interior features
3
Interior features
AYGO_WE_99G80E

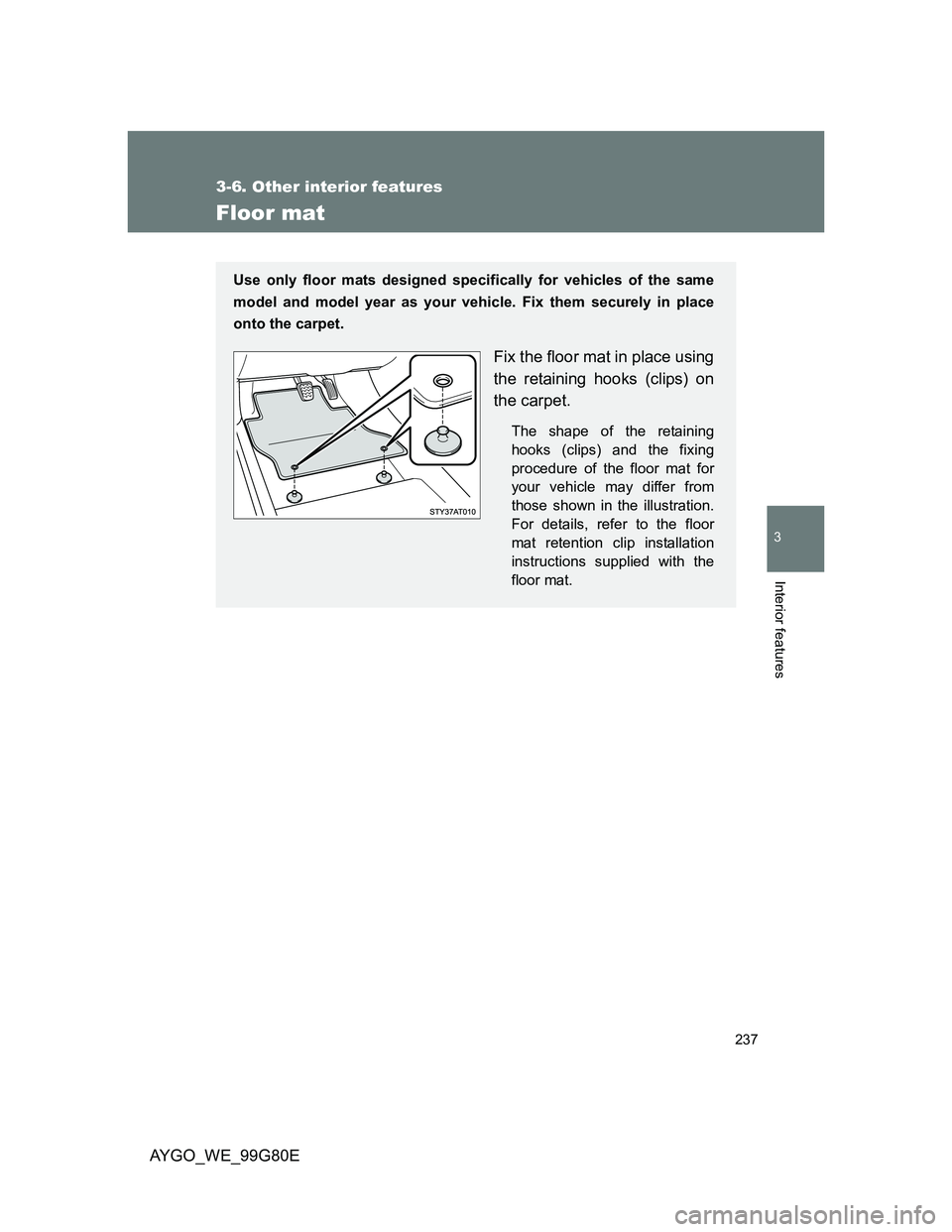

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) on
the carpet.
The shape of the retaining
hooks (clips) and the fixing
procedure of the floor mat for
your vehicle may differ from
those shown in the illustration.
For details, refer to the floor
mat retention clip installation
instructions supplied with the
floor mat.

238 3-6. Other interior features
AYGO_WE_99G80E

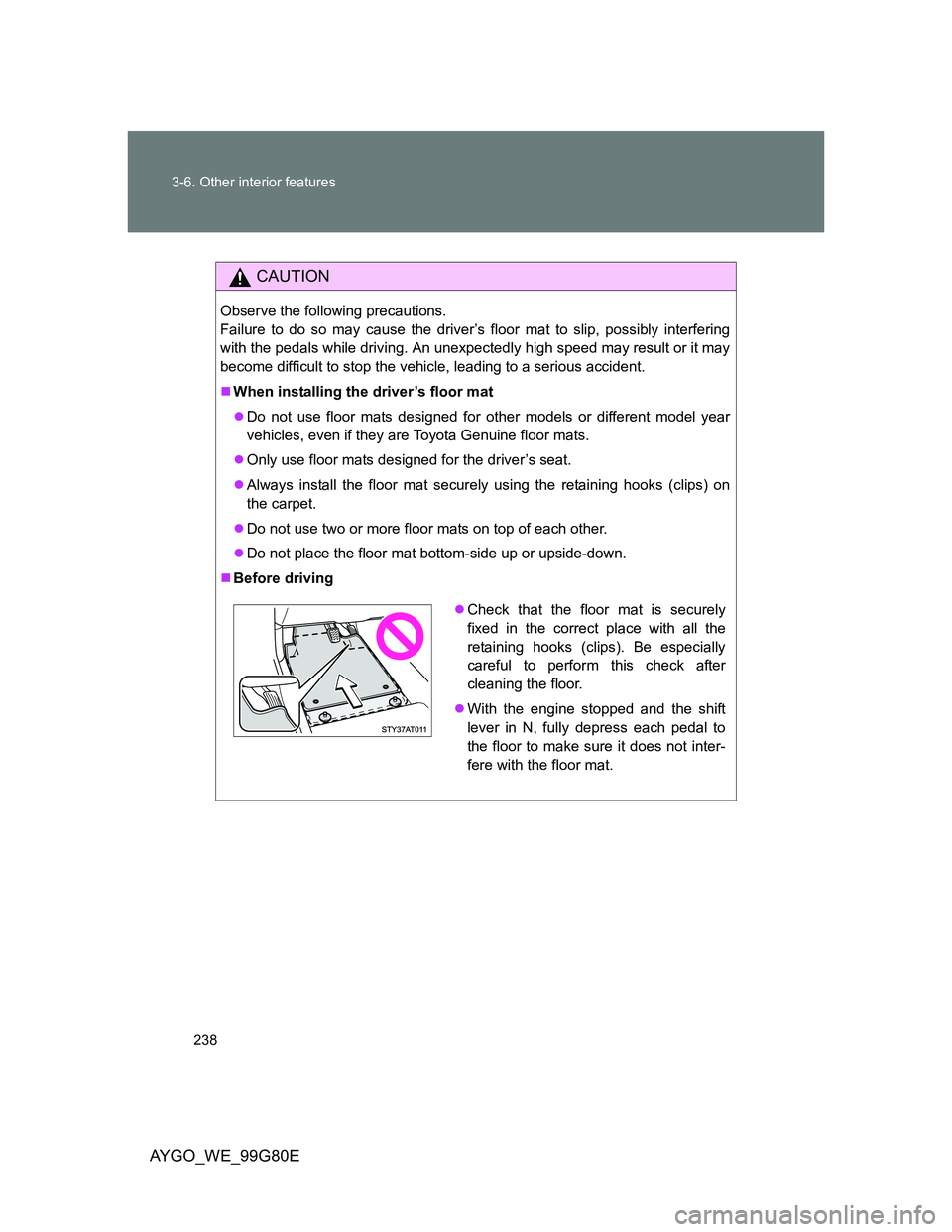

CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) on
the carpet.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
retaining hooks (clips). Be especially
careful to perform this check after
cleaning the floor.
With the engine stopped and the shift
lever in N, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

239
3-6. Other interior features
3
Interior features
AYGO_WE_99G80E

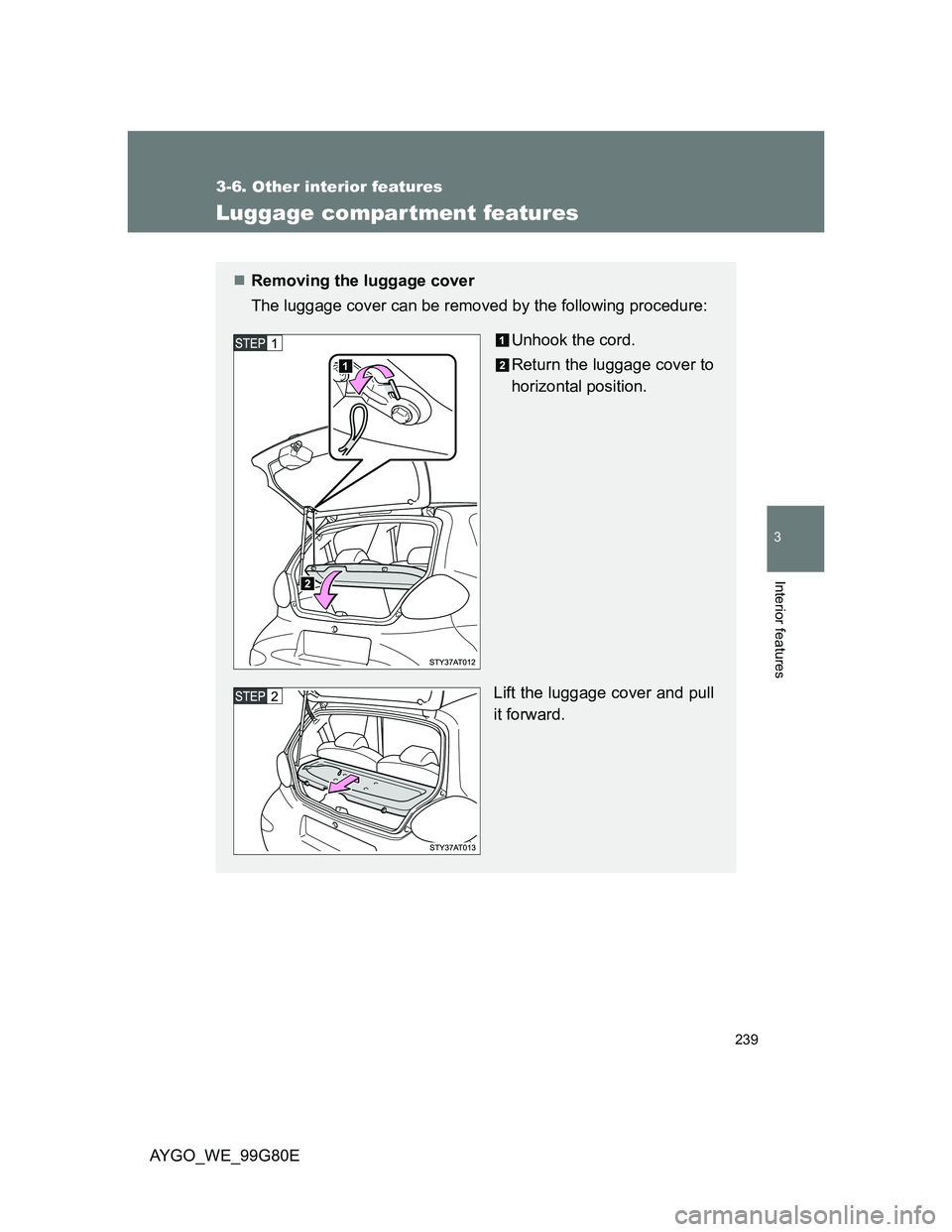

Luggage compar tment features
Removing the luggage cover
The luggage cover can be removed by the following procedure:
Unhook the cord.
Return the luggage cover to
horizontal position.
Lift the luggage cover and pull
it forward.

240 3-6. Other interior features
AYGO_WE_99G80E
