4118-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E
NOTICE
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
■ Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.

4128-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E

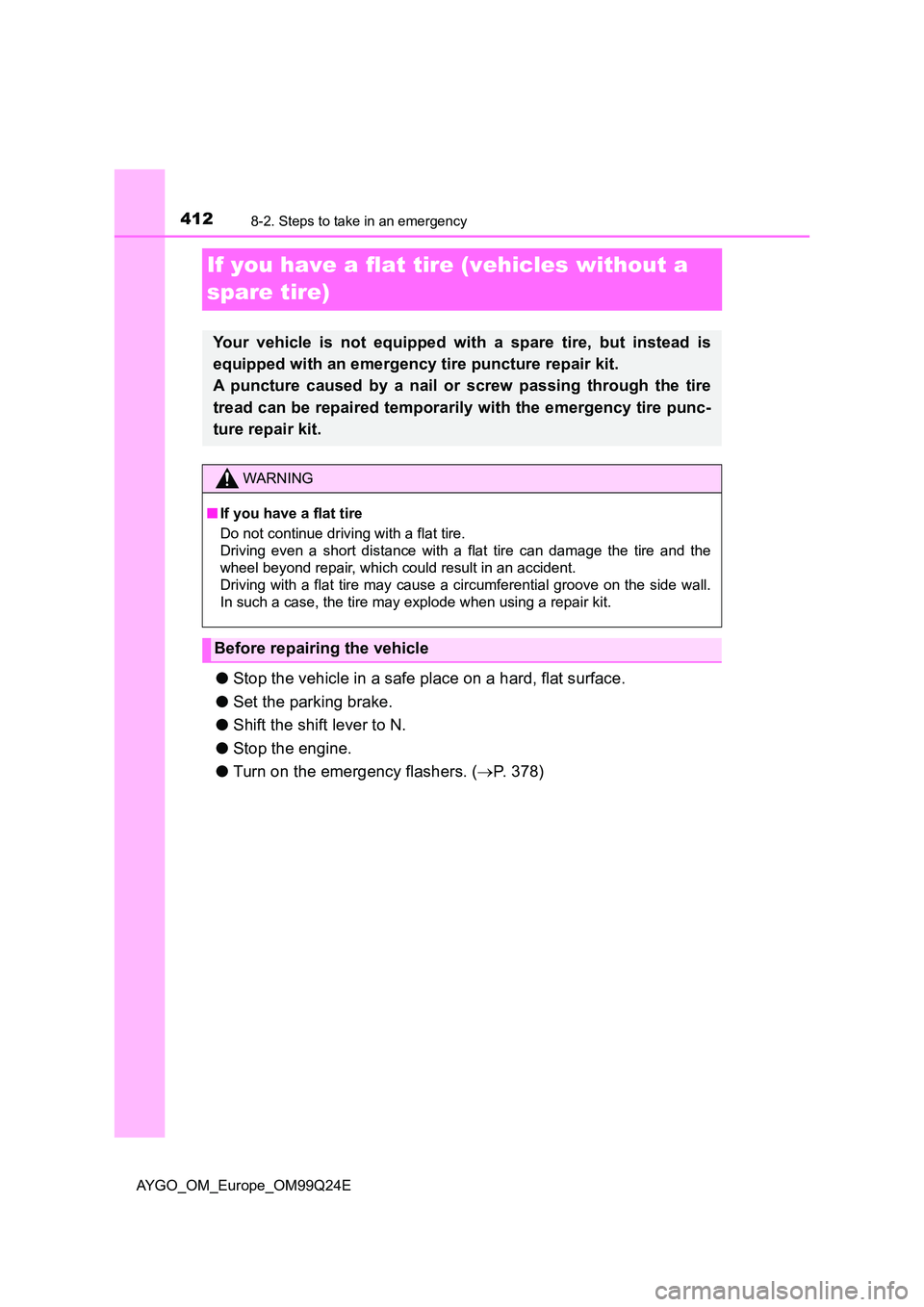

If you have a flat tire (vehicles without a
spare tire)
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to N.
● Stop the engine.
● Turn on the emergency flashers. (P. 378)
Your vehicle is not equipped with a spare tire, but instead is
equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire
tread can be repaired temporarily with the emergency tire punc-
ture repair kit.
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Driving with a flat tire may cause a circumferential groove on the side wall.
In such a case, the tire may explode when using a repair kit.
Before repairing the vehicle

4138-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E
*: Use of the jack and wheel bolt wrench (P. 404)
A jack and wheel bolt wrench can be purchased at any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.

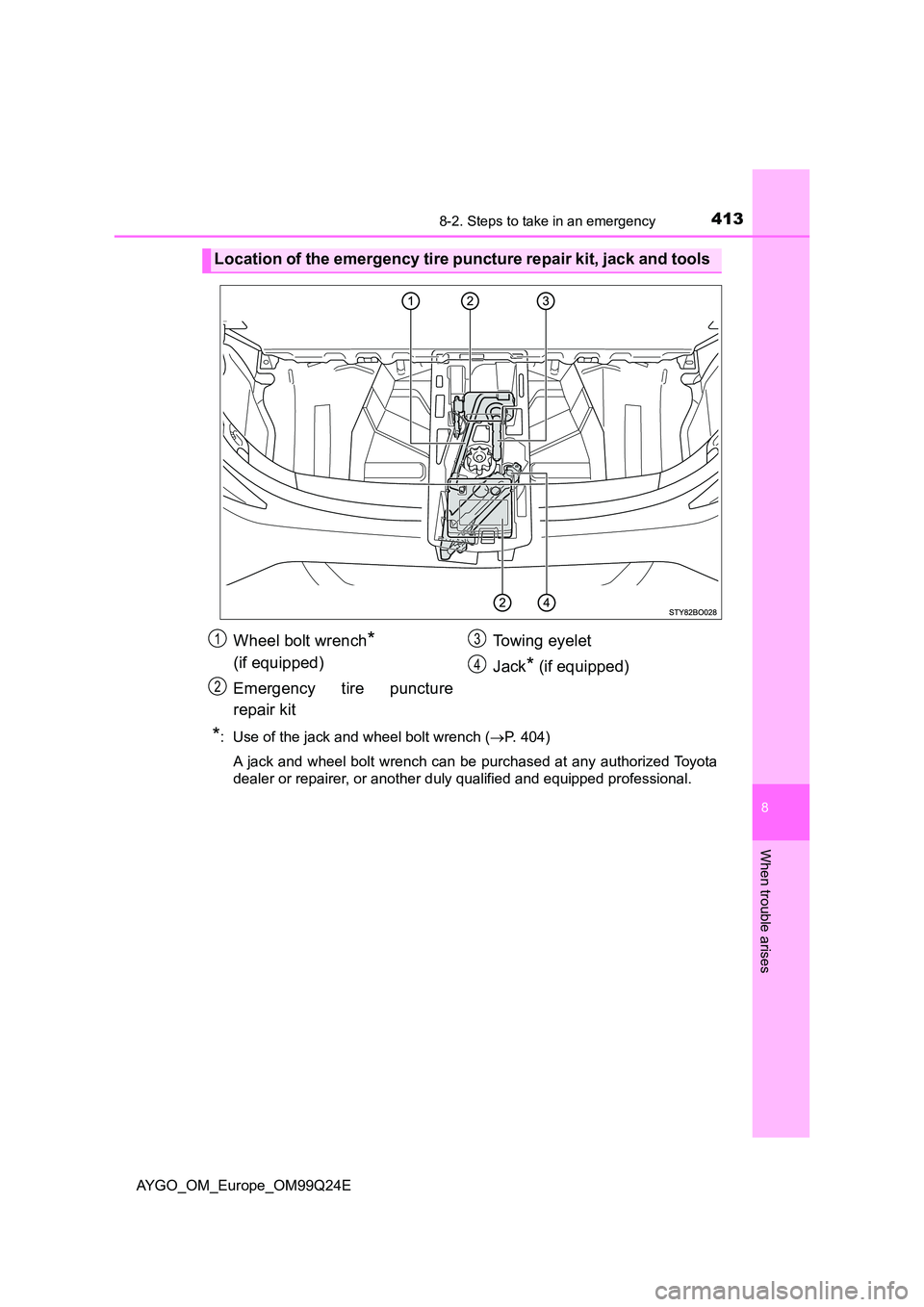

Location of the emergency tire puncture repair kit, jack and tools
Wheel bolt wrench*
(if equipped)
Emergency tire puncture
repair kit
Towing eyelet
Jack* (if equipped)
1
2
3
4

4148-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E

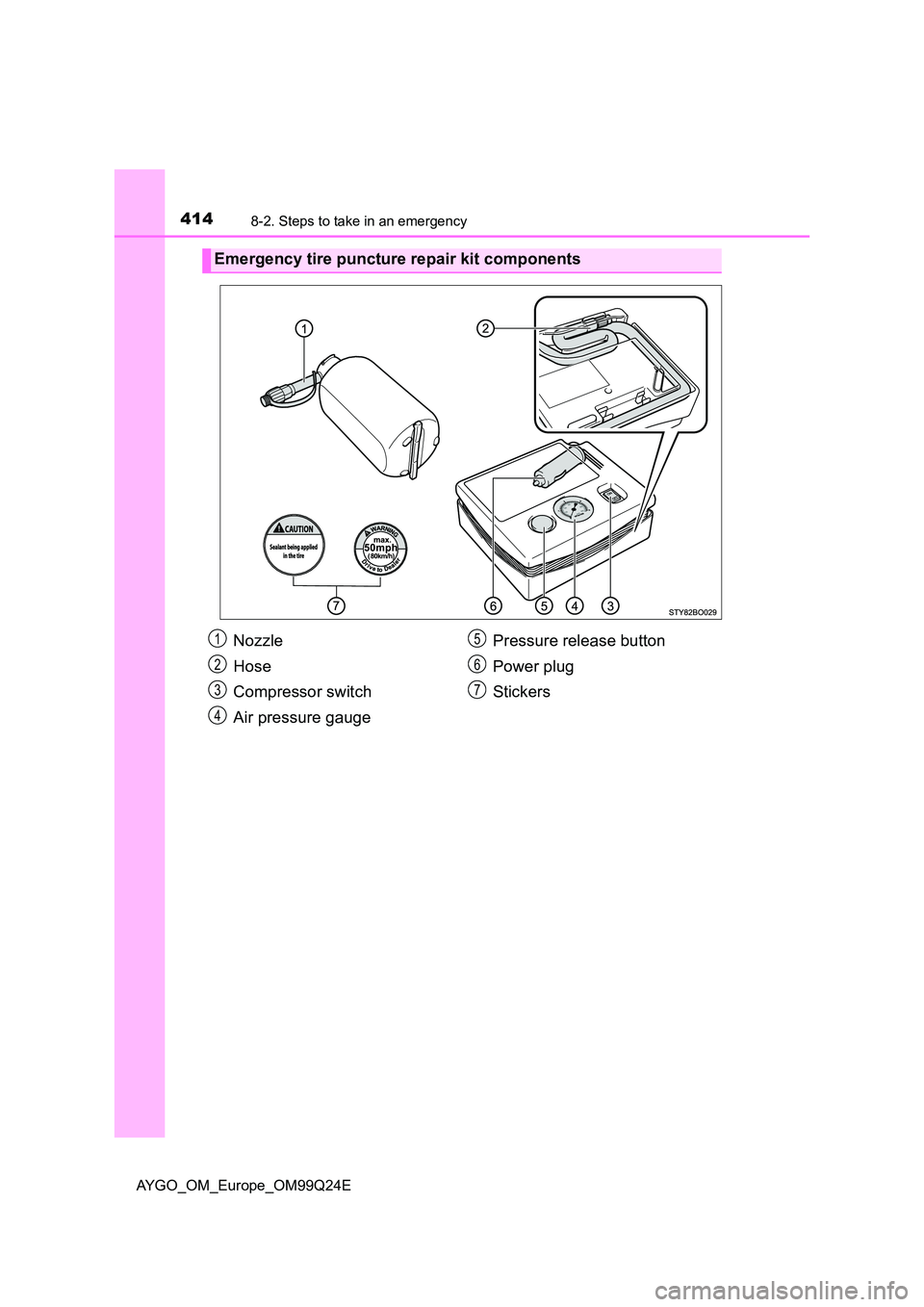

Emergency tire puncture repair kit components
Nozzle
Hose
Compressor switch
Air pressure gauge
Pressure release button
Power plug
Stickers
1
2
3
4
5
6
7

4158-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E

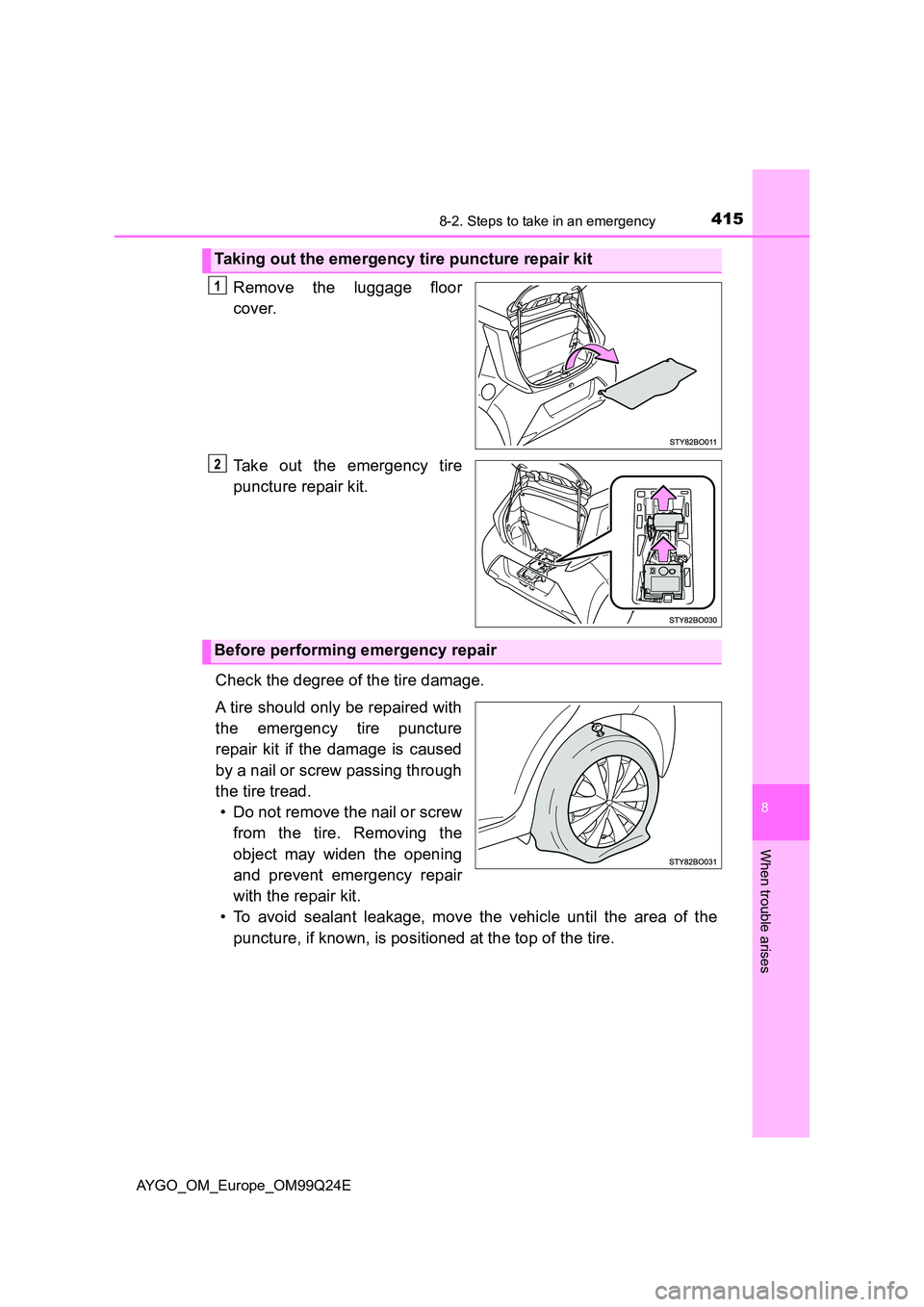

Remove the luggage floor
cover.
Take out the emergency tire
puncture repair kit.
Check the degree of the tire damage.
A tire should only be repaired with
the emergency tire puncture
repair kit if the damage is caused
by a nail or screw passing through
the tire tread.
• Do not remove the nail or screw
from the tire. Removing the
object may widen the opening
and prevent emergency repair
with the repair kit.
• To avoid sealant leakage, move the vehicle until the area of the
puncture, if known, is positioned at the top of the tire.
Taking out the emergency tire puncture repair kit
Before performing emergency repair

4168-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E

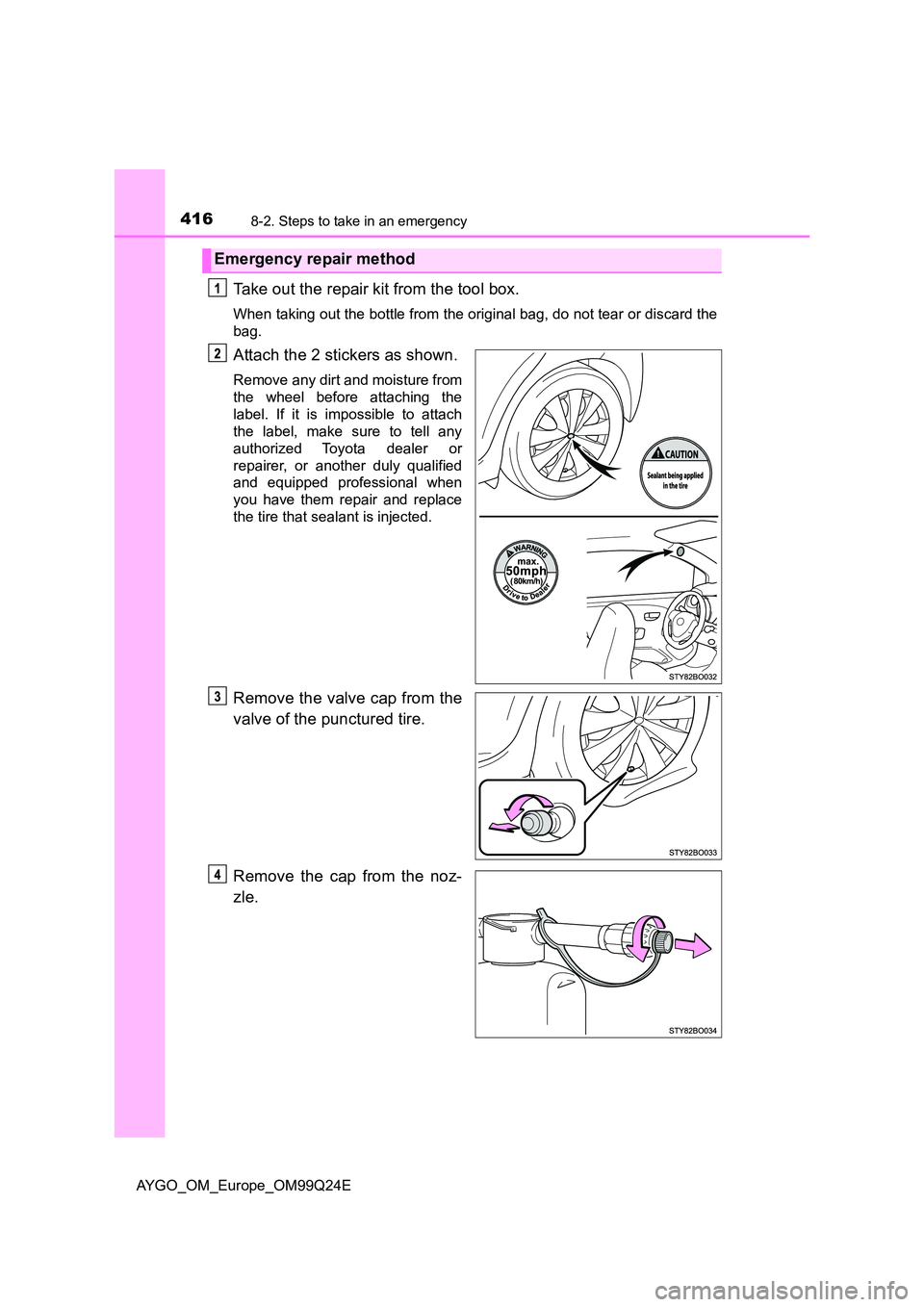

Take out the repair kit from the tool box.
When taking out the bottle from the original bag, do not tear or discard the
bag.
Attach the 2 stickers as shown.
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or another duly qualified
and equipped professional when
you have them repair and replace
the tire that sealant is injected.
Remove the valve cap from the
valve of the punctured tire.
Remove the cap from the noz-
zle.
Emergency repair method

4178-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E

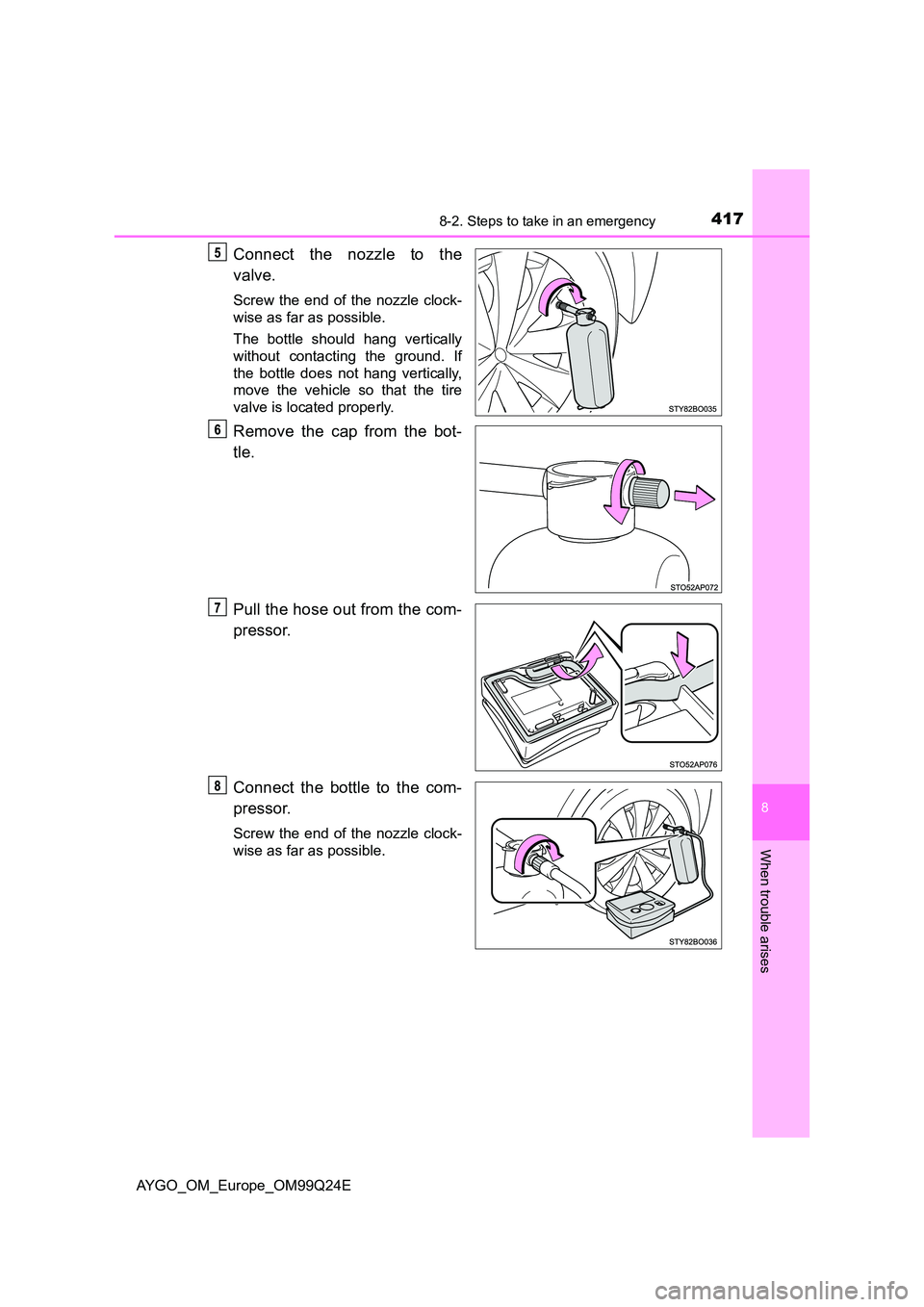

Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang vertically,
move the vehicle so that the tire
valve is located properly.
Remove the cap from the bot-
tle.
Pull the hose out from the com-
pressor.
Connect the bottle to the com-
pressor.
Screw the end of the nozzle clock-
wise as far as possible.

4188-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E
Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
Connect the power plug to the
power outlet socket. ( P. 314)
Check the specified tire inflation
pressure.
Tire inflation pressure is specified
on the label as shown. ( P. 454)
Start the engine. (P. 155, 158)

4198-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E

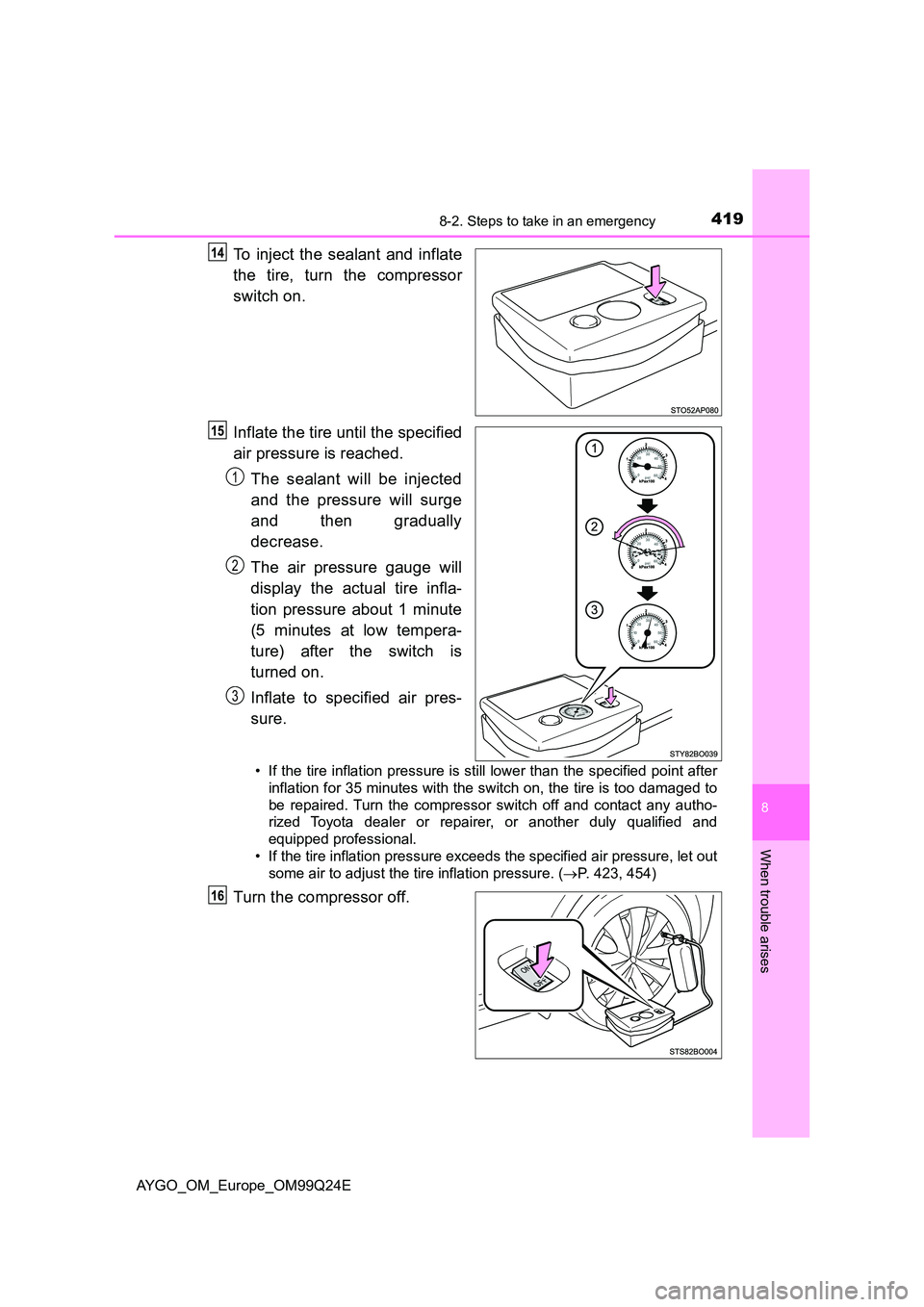

To inject the sealant and inflate
the tire, turn the compressor
switch on.
Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
and the pressure will surge
and then gradually
decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
Inflate to specified air pres-
sure.
• If the tire inflation pressure is still lower than the specified point after
inflation for 35 minutes with the switch on, the tire is too damaged to
be repaired. Turn the compressor switch off and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
• If the tire inflation pressure exceeds the specified air pressure, let out
some air to adjust the tire inflation pressure. ( P. 423, 454)
Turn the compressor off.
1
2
3

4208-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E

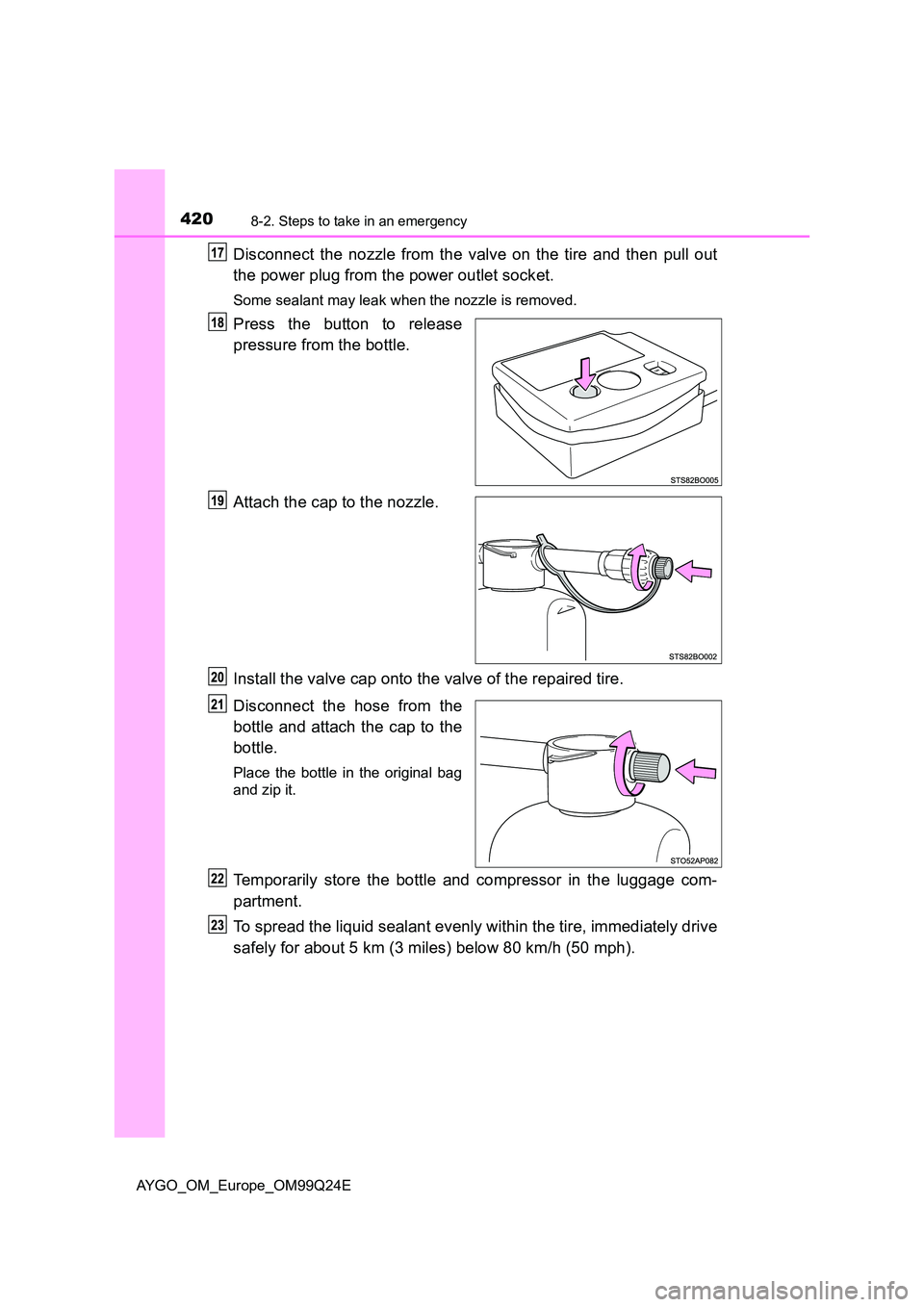

Disconnect the nozzle from the valve on the tire and then pull out
the power plug from the power outlet socket.
Some sealant may leak when the nozzle is removed.
Press the button to release
pressure from the bottle.
Attach the cap to the nozzle.
Install the valve cap onto the valve of the repaired tire.
Disconnect the hose from the
bottle and attach the cap to the
bottle.
Place the bottle in the original bag
and zip it.
Temporarily store the bottle and compressor in the luggage com-
partment.
To spread the liquid sealant evenly within the tire, immediately drive
safely for about 5 km (3 miles) below 80 km/h (50 mph).
