4418-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever (vehicles with a multi-mode manual trans-
mission)
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damaging the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

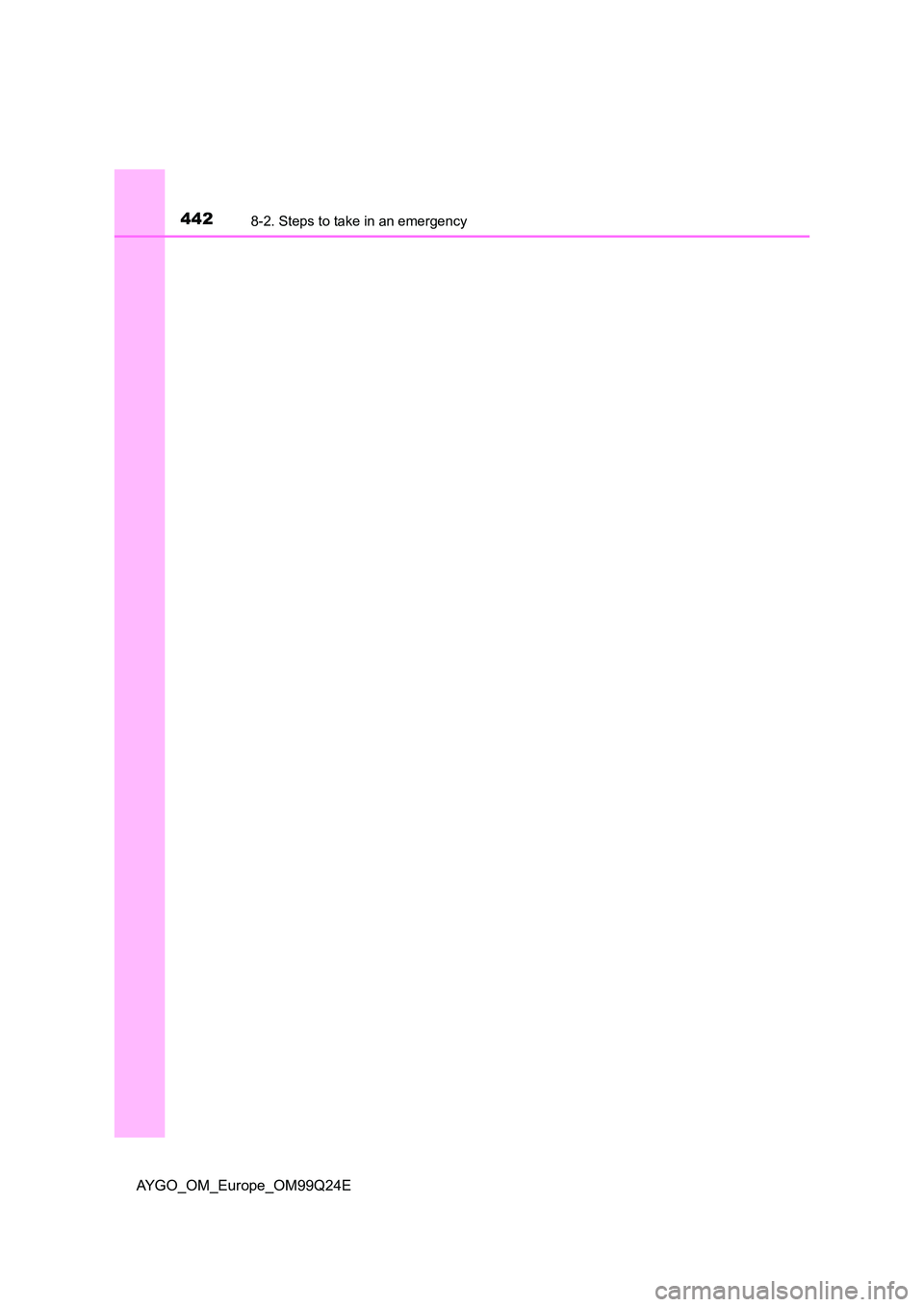

4428-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E

443
9Vehicle specifications
AYGO_OM_Europe_OM99Q24E
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 444
Fuel information ................. 457
9-2. Customization
Customizable features ....... 459
9-3. Items to initialize
Items to initialize ................ 460

4449-1. Specifications
AYGO_OM_Europe_OM99Q24E
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with raised vehicle height
Dimensions
Overall length3455 mm (136.0 in.)
Overall width1615 mm (63.6 in.)
Overall height*11460 mm (57.5 in.)
1480 mm (58.3 in.)*2
Wheelbase2340 mm (92.1 in.)
TreadFront1425 mm (56.1 in.)
1420 mm (55.9 in.)*2
Rear1420 mm (55.9 in.)
Gross vehicle mass1240 kg (2733 lb.)
Maximum permissible
axle capacity
Front695 kg (1532 lb.)Rear

4459-1. Specifications
9
Vehicle specifications
AYGO_OM_Europe_OM99Q24E

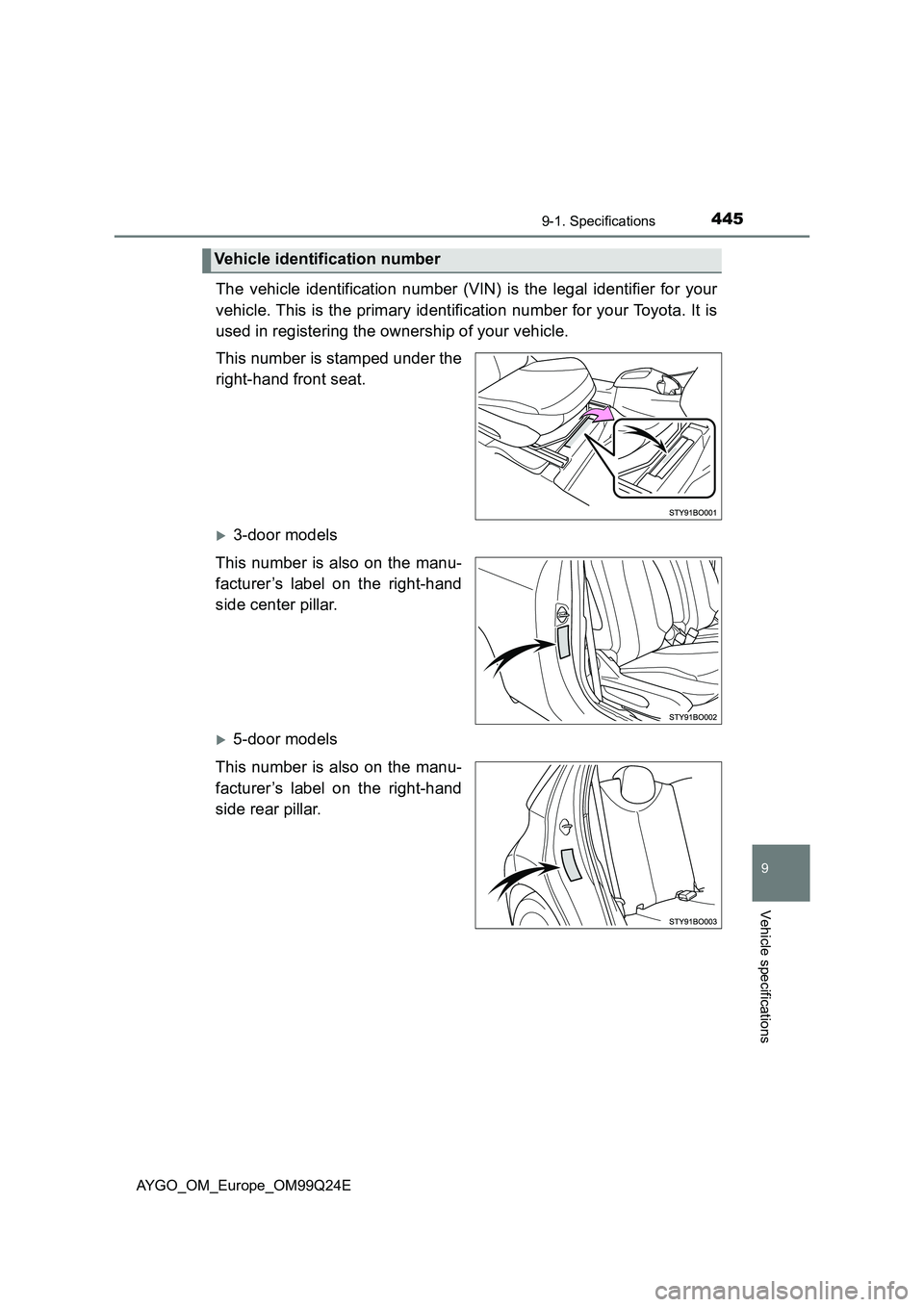

The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under the
right-hand front seat.
3-door models
This number is also on the manu-
facturer’s label on the right-hand
side center pillar.
5-door models
This number is also on the manu-
facturer’s label on the right-hand
side rear pillar.
Vehicle identification number

4469-1. Specifications
AYGO_OM_Europe_OM99Q24E
1KR engine
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Fuel
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number95 or higher
Fuel tank capacity
(Reference)35 L (9.2 gal., 7.7 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill  Reference*)
With filter2.8 L (3.0 qt., 2.5 Imp.qt.)
Without filter2.6 L (2.7 qt., 2.3 Imp.qt.)

4479-1. Specifications
9
Vehicle specifications
AYGO_OM_Europe_OM99Q24E
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Temperature range anticipated
before next oil change
Preferred

4489-1. Specifications
AYGO_OM_Europe_OM99Q24E
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

4499-1. Specifications
9
Vehicle specifications
AYGO_OM_Europe_OM99Q24E
HM01 engine
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“TOTAL ACTIVA 7000/9000” or “TOTAL QUARTZ 7000/9000”
engine oil is used in your Toyota vehicle. Toyota recommends the
use of approved “TOTAL ACTIVA 7000/9000” or “TOTAL QUARTZ
7000/9000” engine oil.
Another motor oil of matching quality can also be used.
Oil grade:
5W-40 and 10W-40:
API grade SL “Energy-Conserving” or SM “Energy-Conserving”
Recommended viscosity (SAE):
If you use SAE 10W-40 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-40 engine
oil is recommended.
Oil capacity
(Drain and refill  Reference*)
With filter3.25 L (3.43 qt., 2.86 Imp.qt.)
Without filter3.0 L (3.2 qt., 2.6 Imp.qt.)
Temperature range anticipated
before next oil change

4509-1. Specifications
AYGO_OM_Europe_OM99Q24E
Oil viscosity (5W-40 is explained here as an example):
• The 5W in 5W-40 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 40 in 5W-40 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
API registered mark is added to some oil containers to help you
select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SM”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 5W-40”
means the SAE viscosity grade.
Lower portion: “Energy-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
