4318-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E
■Stopping the engine
Shift the shift lever to N and press the engine switch as you normally do when
stopping the engine.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
( P. 354)
■ Changing engine switch modes
Release the brake pedal (multi-mode m anual transmission) or clutch pedal
(manual transmission) and press t he engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed. ( P. 160)
■ When the electronic key does not work properly
● Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features: P. 459)
● Check if battery-saving mode is set. If it is set, cancel the function.
( P. 121)

4338-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E
HM01 engine
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the battery of your vehicle.
Vehicles with a smart entry & start system only: Open and close
any of the doors of your vehicle with the engine switch off.
Vehicles without a smart entry & start system:
Maintain the engine speed of the second vehicle and start the
engine of your vehicle.
Vehicles with a smart entry & start system:
Maintain the engine speed of the second vehicle and start the
engine of your vehicle by turning the engine switch to IGNITION
ON mode.
1
2
3
4

4348-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
■ To prevent battery discharge
● Turn off the headlights and the audio system while the engine is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
■ Precautions when the battery is discharged (vehicles with a smart entry
& start system)
● In some cases, it may not be possible to unlock the doors using the smart
entry & start system when the battery is discharged. Use the wireless
remote control or the mechanical key to lock or unlock the doors.
● The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.
● The engine switch mode is memorized by the vehicle. When the battery is
reconnected, the system will return to the mode it was in before the battery
was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.

4408-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to N.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material to help provide traction
under the tires.
Restart the engine.
Shift the shift lever to E, M or R (multi-mode manual transmission)
or 1 or R (manual transmission) and release the parking brake.
Then, while exercising caution, depress the accelerator pedal.
■ When it is difficult to free the vehicle (vehicles with a VSC system)
Press to turn off TRC.
Turn off TRC and/or VSC if these functions are hampering your attempts to
free the vehicle. ( P. 224)
■ Emergency hooks
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your
vehicle to pull your vehicle out in an
emergency.
Your vehicle is not designed to tow
another vehicle.

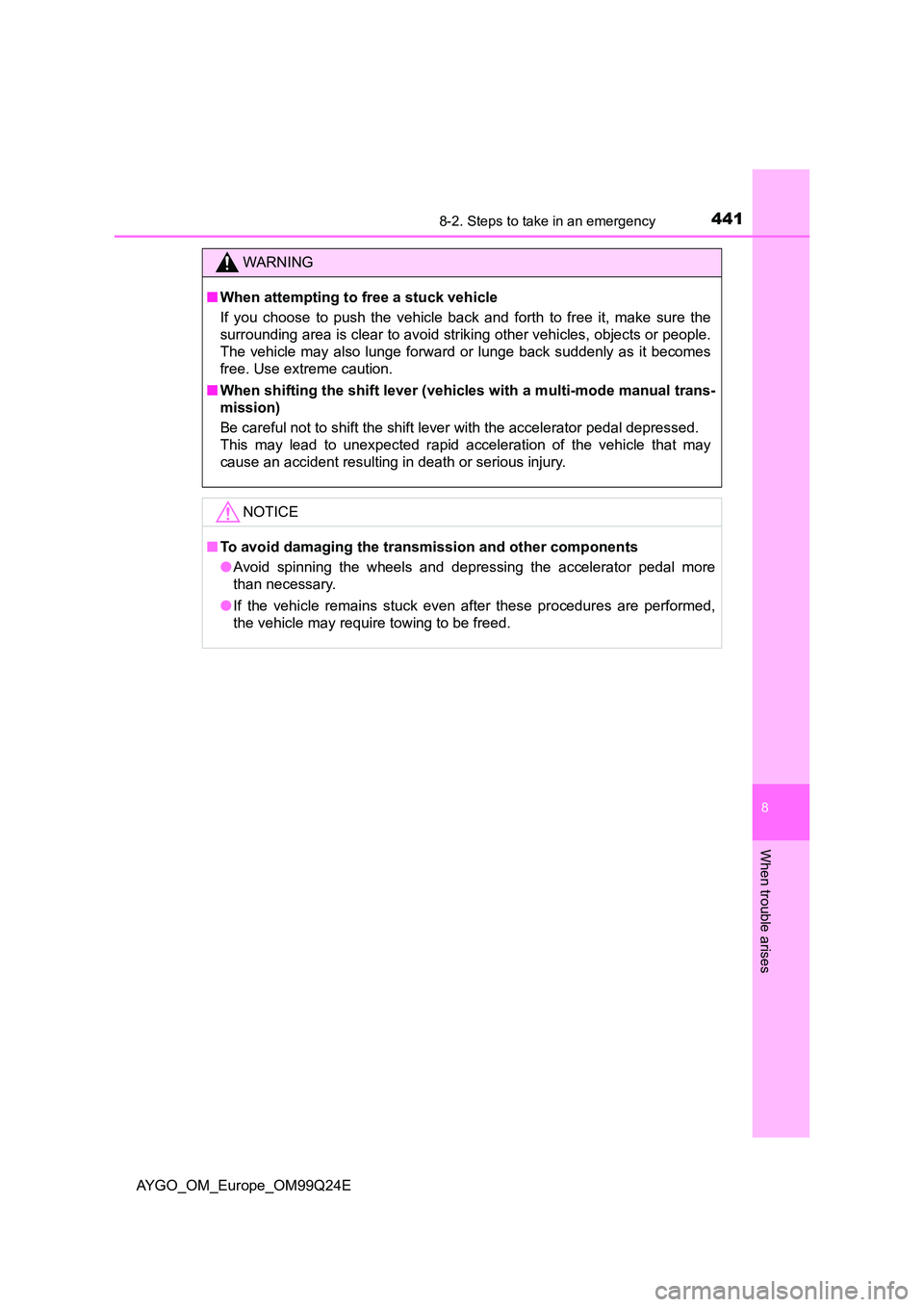

4418-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever (vehicles with a multi-mode manual trans-
mission)
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damaging the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

469Alphabetical index
AYGO_OM_Europe_OM99Q24E
Drive monitor display ................ 91
Switching the display .............. 91
Trip information ....................... 91
Driving ...................................... 144
Break-in tips .......................... 146
Correct posture ....................... 28
Procedures............................ 144
Winter drive tips .................... 229
Electric Power Steering
(EPS) ....................................... 223
Function ................................ 223
Warning light ......................... 391
Electronic key ............................ 98
Battery-saving function ......... 121
If the electronic key does not
operate properly ................. 429
Replacing the battery ............ 354
Emergency, in case of
If the electronic key does not
operate properly ................. 429
If the engine will not start ...... 426
If the shift lever cannot be
shifted ................................. 428
If the vehicle has discharged
battery................................. 432
If the warning buzzer
sounds ................................ 389
If the warning light
turns on............................... 389
If you have a flat tire...... 399, 412
If you lose your keys ............. 100
If you think something is
wrong .................................. 387
If your vehicle becomes
stuck ................................... 440
If your vehicle needs to be
towed .................................. 381
If your vehicle overheats ....... 436
Emergency brake signal ......... 223
Emergency flashers ................ 378
Emergency tire puncture
repair kit ................................. 412
Engine
“ACC” position ...................... 155
Accessory mode ................... 160
Compartment ........................ 331
Engine switch................ 155, 158
Hood ..................................... 328
How to start
the engine................... 155, 158
If the engine will not start ...... 426
Ignition switch
(engine switch) ........... 155, 158
Overheating .......................... 436
Engine coolant ......................... 336
Capacity ................................ 451
Checking ............................... 336
Preparing and checking
before winter....................... 229
Engine coolant
temperature
warning light .................. 389, 390
Engine immobilizer system ...... 76
Engine oil ................................. 333
Capacity ................................ 446
Checking ............................... 333
Preparing and checking
before winter....................... 229
Engine switch
(ignition switch)............. 155, 158
EPS (Electronic Power
Steering)................................. 223
Function ................................ 223
Warning light ......................... 391
