8-1. Essential information
Emergency flashers ...........378
If your vehicle has to
be stopped in an
emergency .......................379
8-2. Steps to take in
an emergency
If your vehicle needs
to be towed ......................381
If you think
something is wrong..........387
Fuel pump shut off
system ............................388
If a warning light turns
on or a warning buzzer
sounds .............................389
If you have a flat tire
(vehicles with
a spare tire) .....................399
If you have a flat tire
(vehicles without
a spare tire) .....................412
If the engine
will not start......................426
If the shift lever cannot
be shifted (vehicles
with a multi-mode
manual transmission) ......428
If the electronic key does
not operate properly
(vehicles with a smart
entry & start system) ....... 429
If the vehicle battery
is discharged ................... 432
If your vehicle overheats ... 436
If the vehicle becomes
stuck................................ 440
9-1. Specifications
Maintenance data
(fuel, oil level, etc.) .......... 444
Fuel information ................ 457
9-2. Customization
Customizable features ...... 459
9-3. Items to initialize
Items to initialize................ 460
What to do if...
(Troubleshooting) .................... 462
Alphabetical index...................... 466
8When trouble arises
9Vehicle specifications
Index
For vehicles with a multimedia system, refer to the “Multimedia
owner’s manual” for information regarding the equipment listed
below.
• Audio system• Rear view monitor system
Toyota Motor Europe NV/SA, Avenue du Bourget 60 - 1140 Brussels,
Belgium www.toyota-europe.com

852. Instrument cluster
2
Instrument cluster
AYGO_OM_Europe_OM99Q24E

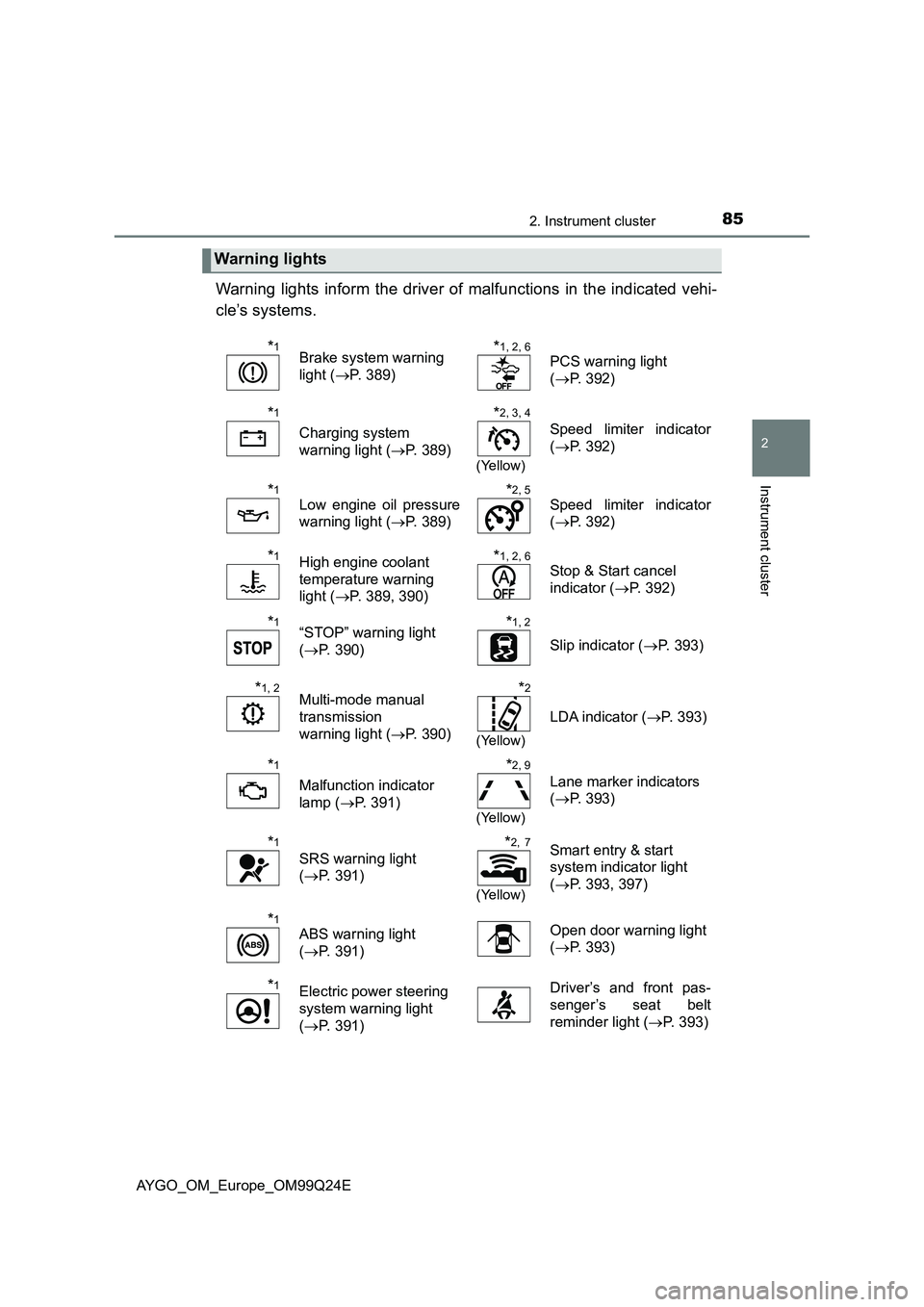

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light ( P. 389)
*1, 2, 6
PCS warning light
( P. 392)
*1
Charging system
warning light ( P. 389)
*2, 3, 4
(Yellow)
Speed limiter indicator
( P. 392)
*1
Low engine oil pressure
warning light ( P. 389)
*2, 5
Speed limiter indicator
( P. 392)
*1High engine coolant
temperature warning
light ( P. 389, 390)
*1, 2, 6
Stop & Start cancel
indicator ( P. 392)
*1“STOP” warning light
( P. 390)
*1, 2
Slip indicator (P. 393)
*1, 2Multi-mode manual
transmission
warning light ( P. 390)
*2
(Yellow)
LDA indicator (P. 393)
*1
Malfunction indicator
lamp ( P. 391)
*2, 9
(Yellow)
Lane marker indicators
( P. 393)
*1
SRS warning light
( P. 391)
*2, 7
(Yellow)
Smart entry & start
system indicator light
( P. 393, 397)
*1
ABS warning light
( P. 391)
Open door warning light
( P. 393)
*1Electric power steering
system warning light
( P. 391)
Driver’s and front pas-
senger’s seat belt
reminder light ( P. 393)

3908-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E
(Comes on)
High engine coolant temperature warning light (for
HM01 engine)
Indicates that the engine is overheating.
 P. 436
(Flashes)
“STOP” warning light
Indicates a malfunction in:
• Engine oil pressure is too low; or
• Engine is almost overheating.
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
(Comes on)
Multi-mode manual transmissi on warning light (vehicles
with a multi-mode manual transmission)
Indicates a malfunction in the multi-mode manual trans-
mission system.
 Have the system checked by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional.
Multi-mode manual transmission warning light (warning
buzzer) (vehicles with a multi-mode manual transmis-
sion)
Indicates a malfunction in the multi-mode manual trans-
mission system and that the clutch has become hot due to
excessive load.
 Pull over and shift the shift lever to N. Wait for about
15 minutes for the clutch to cool down. Have the sys-
tem checked by any authorized Toyota dealer or
repairer, or another duly qualified and equipped pro-
fessional.
(Flashes)
Heat clutch warning light (warning buzzer) (vehicles
with a multi-mode manual transmission)
Indicates that the clutch has become hot, but does not
indicate a malfunction in the multi-mode manual transmis-
sion system.
 Pull over and shift the shift lever to N. Wait for about
15 minutes for the clutch to cool down.
Warning lightWarning light/Details/Actions

4539-1. Specifications
9
Vehicle specifications
AYGO_OM_Europe_OM99Q24E

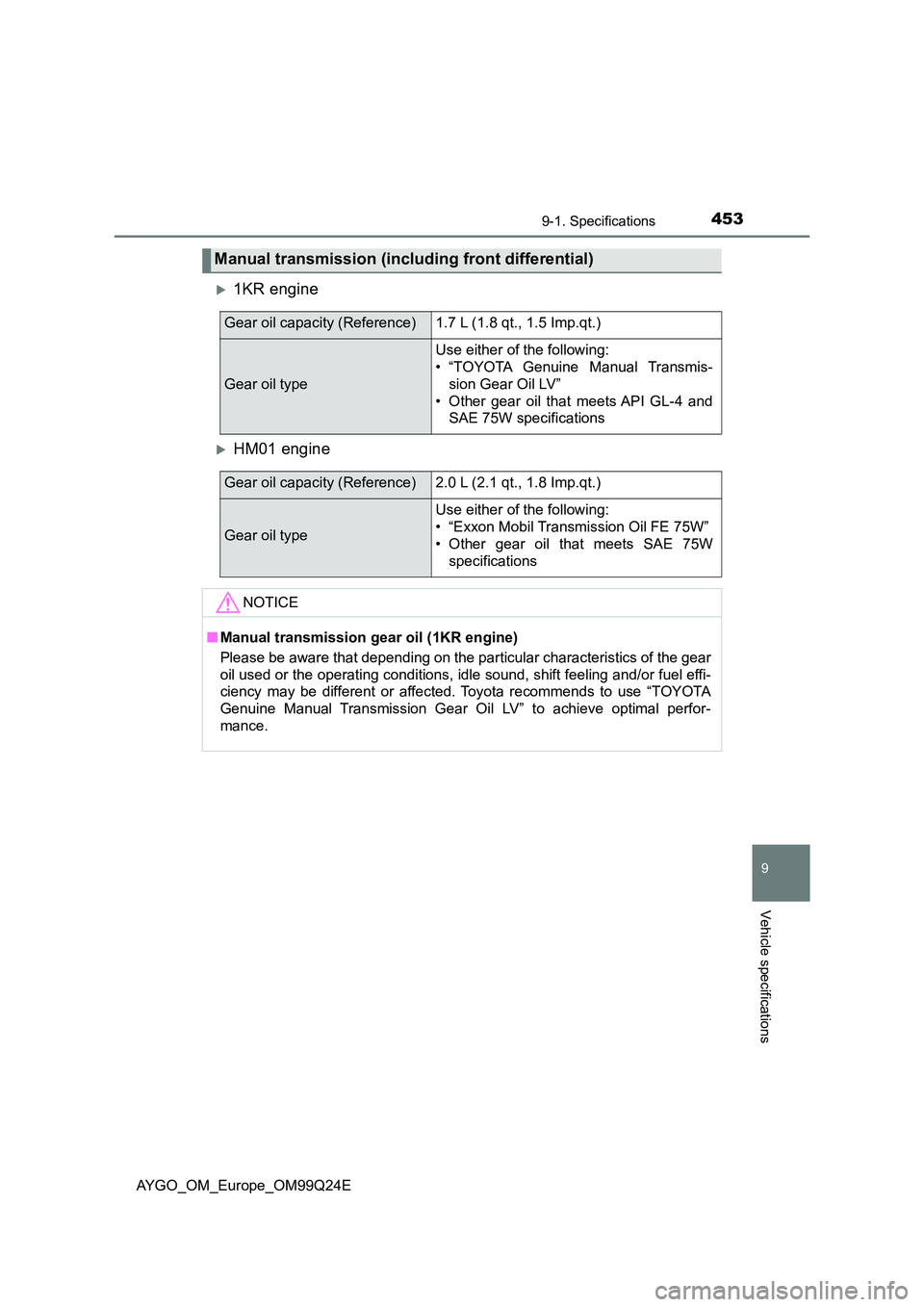

1KR engine
HM01 engine
Manual transmission (including front differential)
Gear oil capacity (Reference)1.7 L (1.8 qt., 1.5 Imp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual Transmis-
sion Gear Oil LV”
• Other gear oil that meets API GL-4 and
SAE 75W specifications
Gear oil capacity (Reference)2.0 L (2.1 qt., 1.8 Imp.qt.)
Gear oil type
Use either of the following:
• “Exxon Mobil Transmission Oil FE 75W”
• Other gear oil that meets SAE 75W
specifications
NOTICE
■ Manual transmission gear oil (1KR engine)
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal perfor-
mance.

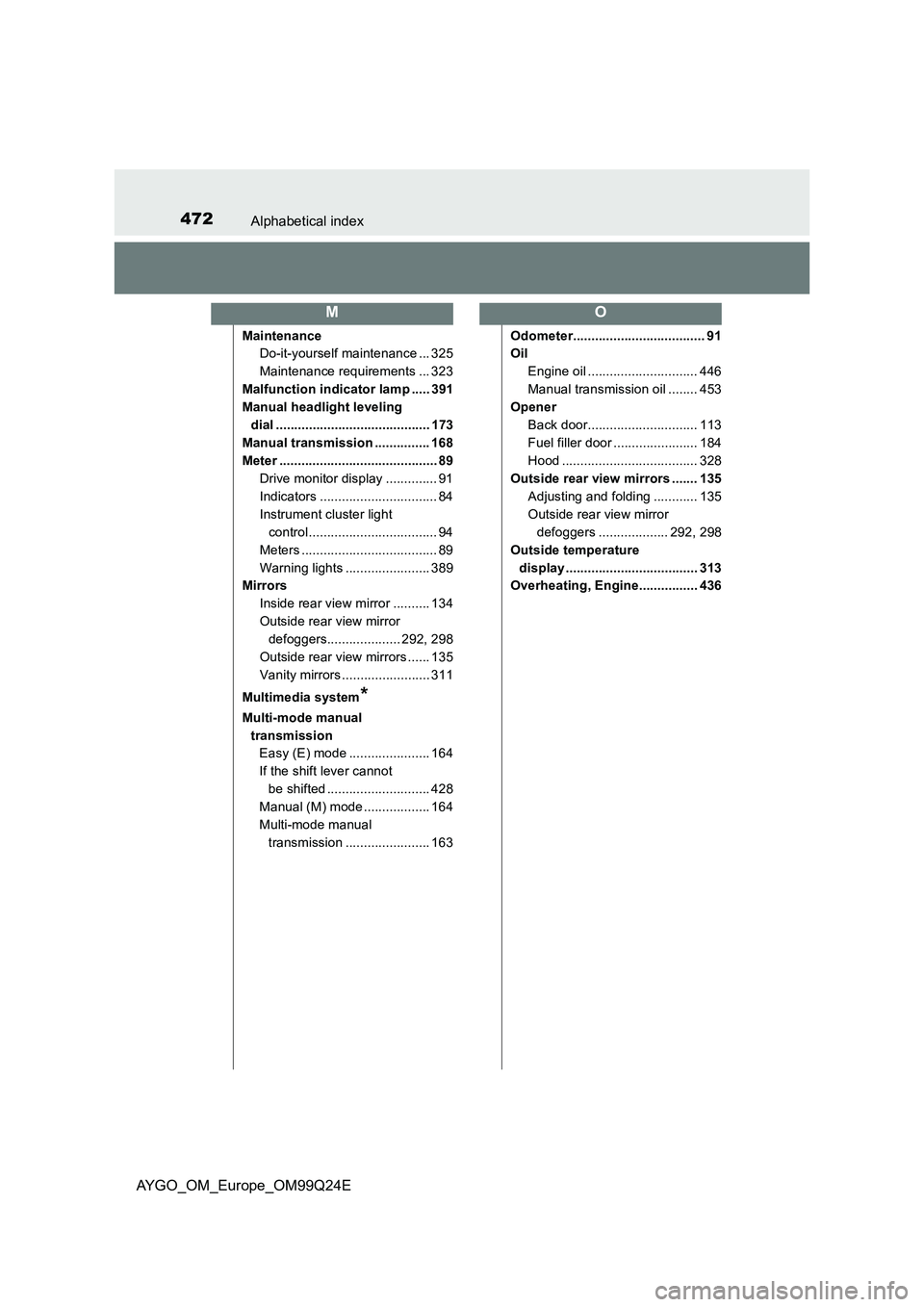

472Alphabetical index
AYGO_OM_Europe_OM99Q24E
Maintenance
Do-it-yourself maintenance ... 325
Maintenance requirements ... 323
Malfunction indicator lamp ..... 391
Manual headlight leveling
dial .......................................... 173
Manual transmission ............... 168
Meter ........................................... 89
Drive monitor display .............. 91
Indicators ................................ 84
Instrument cluster light
control................................... 94
Meters ..................................... 89
Warning lights ....................... 389
Mirrors
Inside rear view mirror .......... 134
Outside rear view mirror
defoggers.................... 292, 298
Outside rear view mirrors ...... 135
Vanity mirrors ........................ 311
Multimedia system*
Multi-mode manual
transmission
Easy (E) mode ...................... 164
If the shift lever cannot
be shifted ............................ 428
Manual (M) mode .................. 164
Multi-mode manual
transmission ....................... 163
Odometer.................................... 91
Oil
Engine oil .............................. 446
Manual transmission oil ........ 453
Opener
Back door.............................. 113
Fuel filler door ....................... 184
Hood ..................................... 328
Outside rear view mirrors ....... 135
Adjusting and folding ............ 135
Outside rear view mirror
defoggers ................... 292, 298
Outside temperature
display .................................... 313
Overheating, Engine................ 436
MO

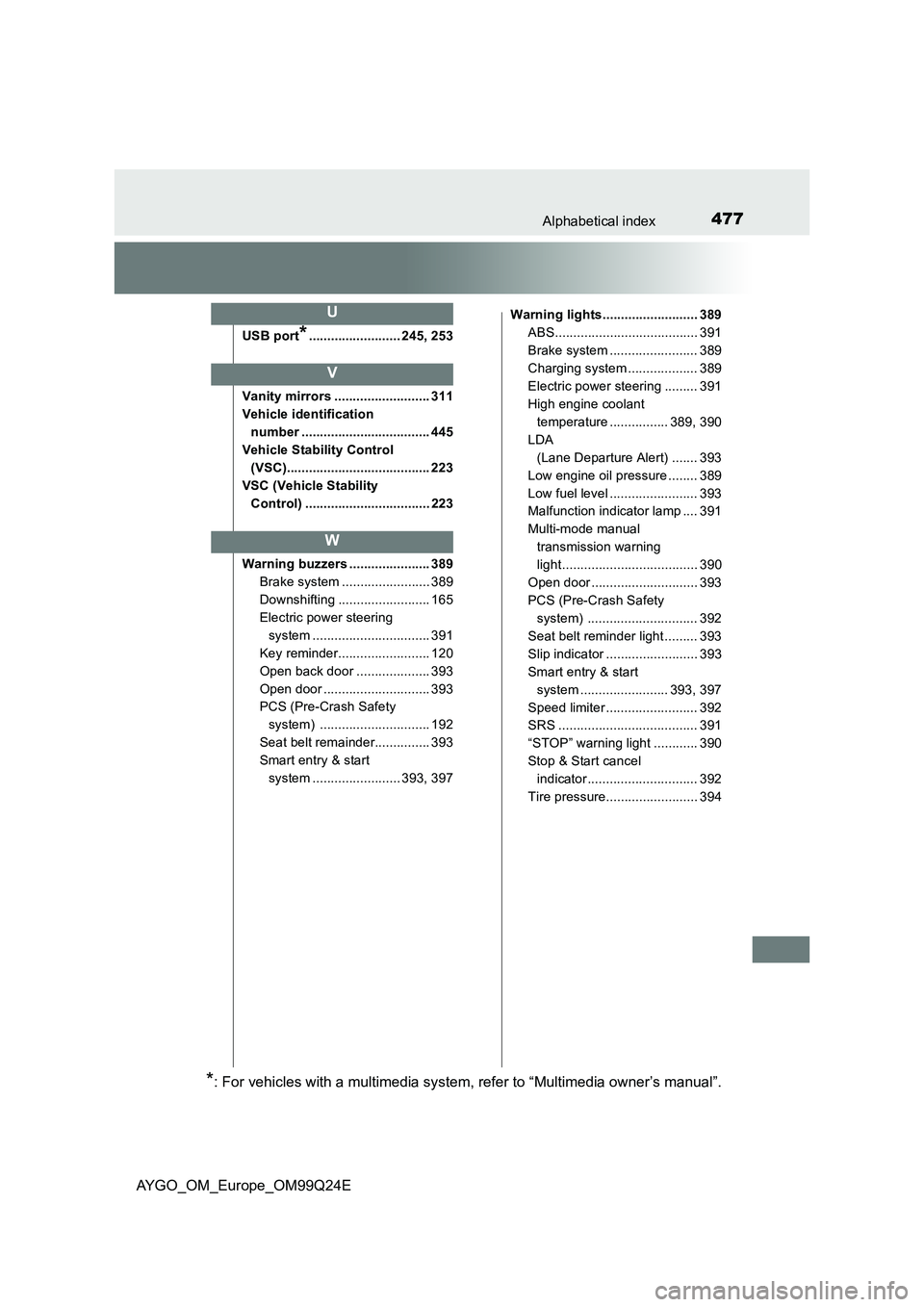

477Alphabetical index
AYGO_OM_Europe_OM99Q24E
USB port*......................... 245, 253
Vanity mirrors .......................... 311
Vehicle identification
number ................................... 445
Vehicle Stability Control
(VSC)....................................... 223
VSC (Vehicle Stability
Control) .................................. 223
Warning buzzers ...................... 389
Brake system ........................ 389
Downshifting ......................... 165
Electric power steering
system ................................ 391
Key reminder......................... 120
Open back door .................... 393
Open door ............................. 393
PCS (Pre-Crash Safety
system) .............................. 192
Seat belt remainder............... 393
Smart entry & start
system ........................ 393, 397
Warning lights.......................... 389
ABS....................................... 391
Brake system ........................ 389
Charging system ................... 389
Electric power steering ......... 391
High engine coolant
temperature ................ 389, 390
LDA
(Lane Departure Alert) ....... 393
Low engine oil pressure ........ 389
Low fuel level ........................ 393
Malfunction indicator lamp .... 391
Multi-mode manual
transmission warning
light..................................... 390
Open door ............................. 393
PCS (Pre-Crash Safety
system) .............................. 392
Seat belt reminder light ......... 393
Slip indicator ......................... 393
Smart entry & start
system ........................ 393, 397
Speed limiter ......................... 392
SRS ...................................... 391
“STOP” warning light ............ 390
Stop & Start cancel
indicator.............................. 392
Tire pressure......................... 394
U
V
W
