1113-1. Key information
3
Operation of each component
AYGO_OM_Europe_OM99R19E
Ty pe B
Lock the doors ( P. 118, 123)
Unlock the doors
( P. 118, 123)
Ty pe C
Lock the doors ( P. 118, 123)
Unlock the doors
( P. 118, 123)
Press the button to open the key.
To stow, press the button then fold
the key.

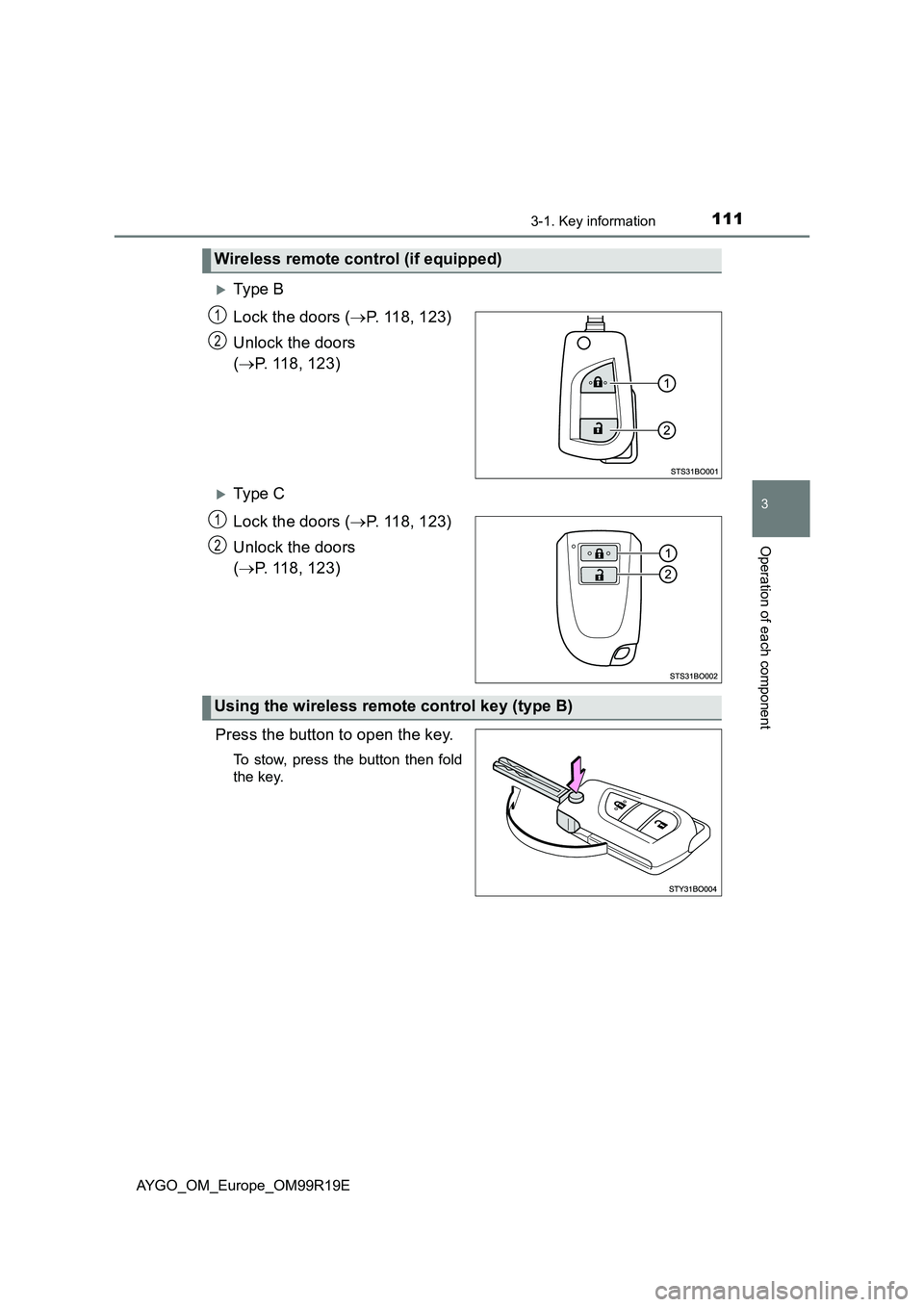

Wireless remote control (if equipped)
1
2
1
2
Using the wireless remote control key (type B)

1123-1. Key information
AYGO_OM_Europe_OM99R19E

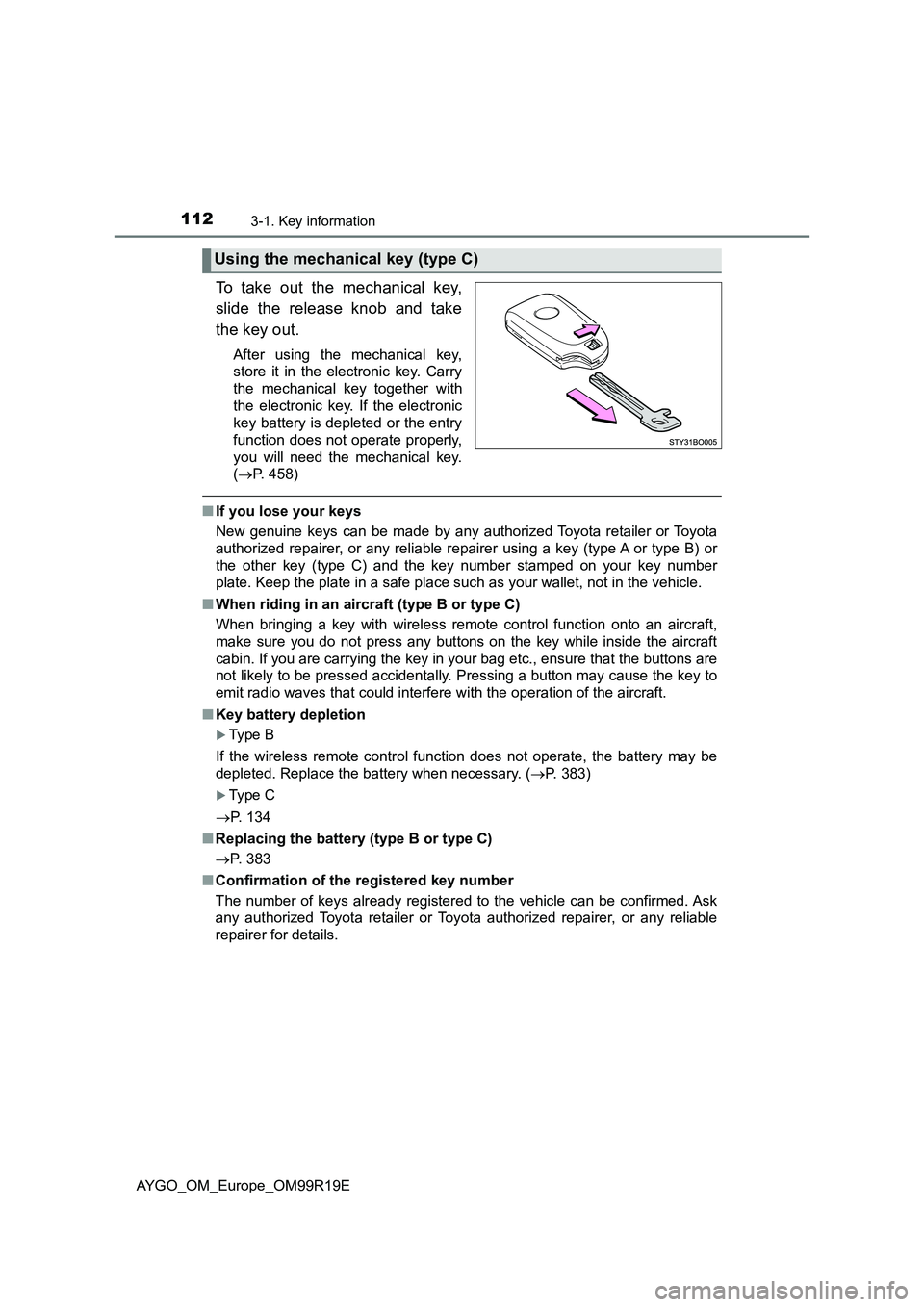

To take out the mechanical key,
slide the release knob and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
( P. 458)
■If you lose your keys
New genuine keys can be made by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer using a key (type A or type B) or
the other key (type C) and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft (type B or type C)
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■ Key battery depletion
Type B
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. ( P. 383)
Type C
 P. 134
■ Replacing the battery (type B or type C)
 P. 383
■ Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for details.
Using the mechanical key (type C)

1133-1. Key information
3
Operation of each component
AYGO_OM_Europe_OM99R19E
■ Certification for wireless remote control

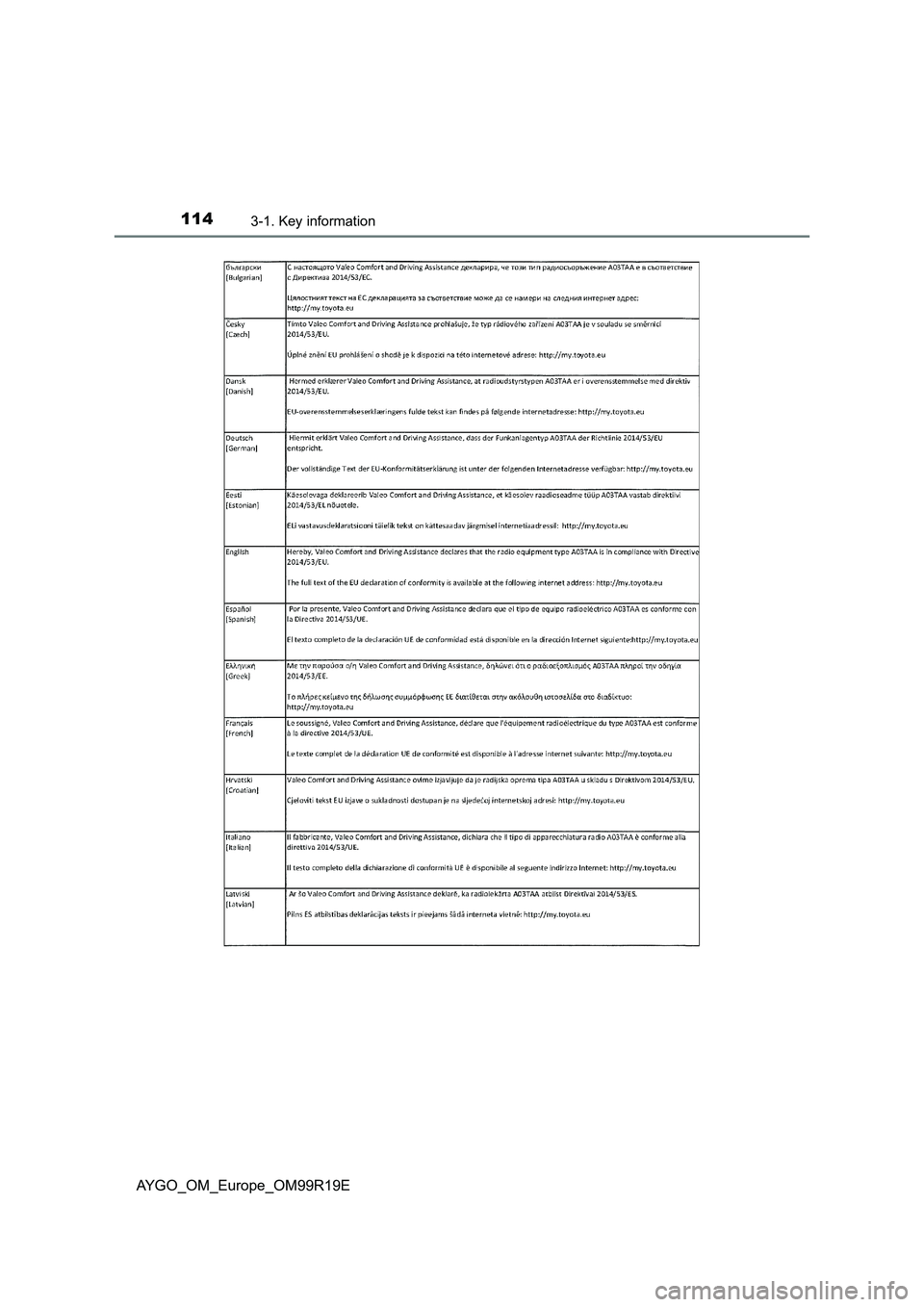

1143-1. Key information
AYGO_OM_Europe_OM99R19E

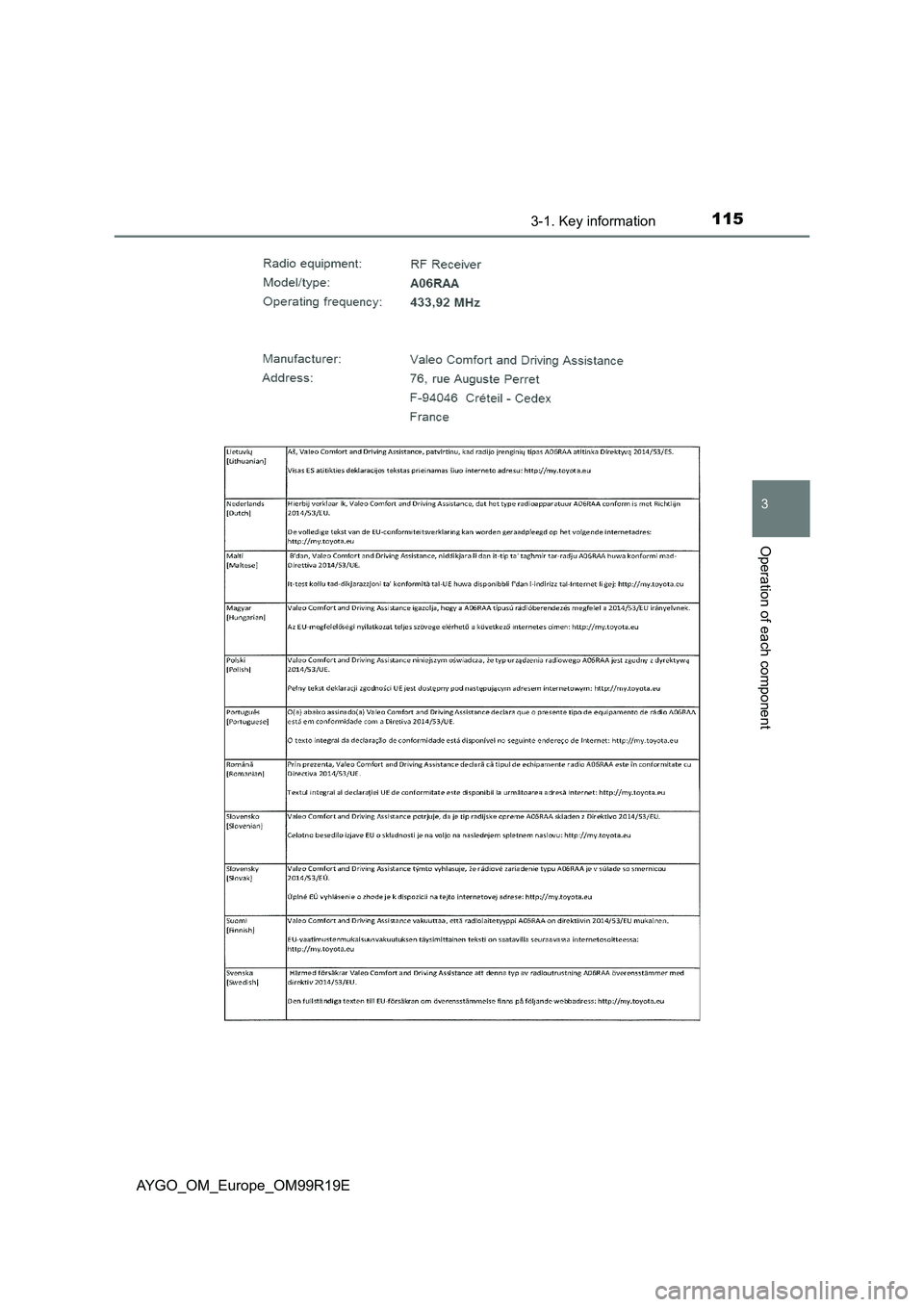

1153-1. Key information
3
Operation of each component
AYGO_OM_Europe_OM99R19E

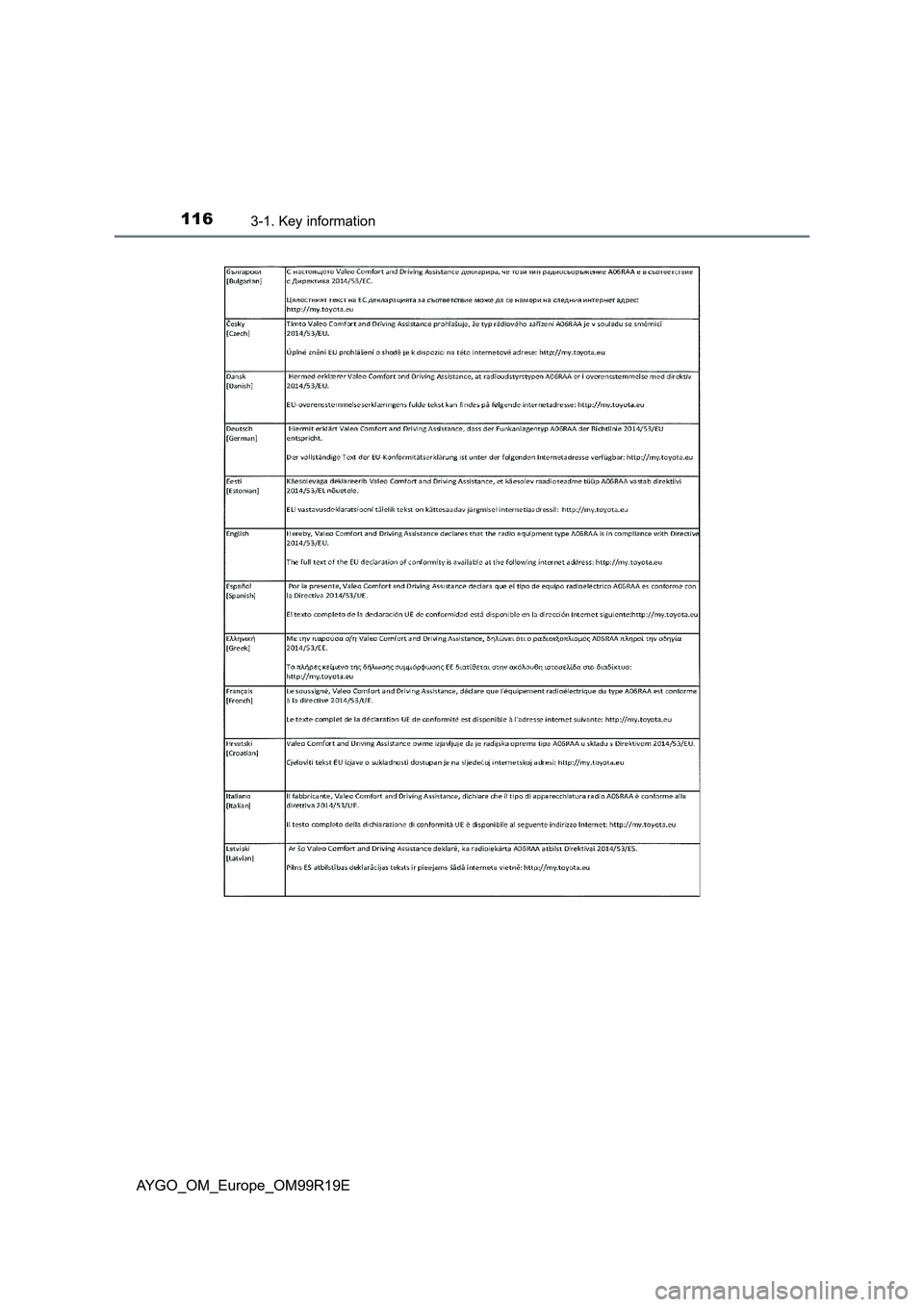

1163-1. Key information
AYGO_OM_Europe_OM99R19E

1173-1. Key information
3
Operation of each component
AYGO_OM_Europe_OM99R19E

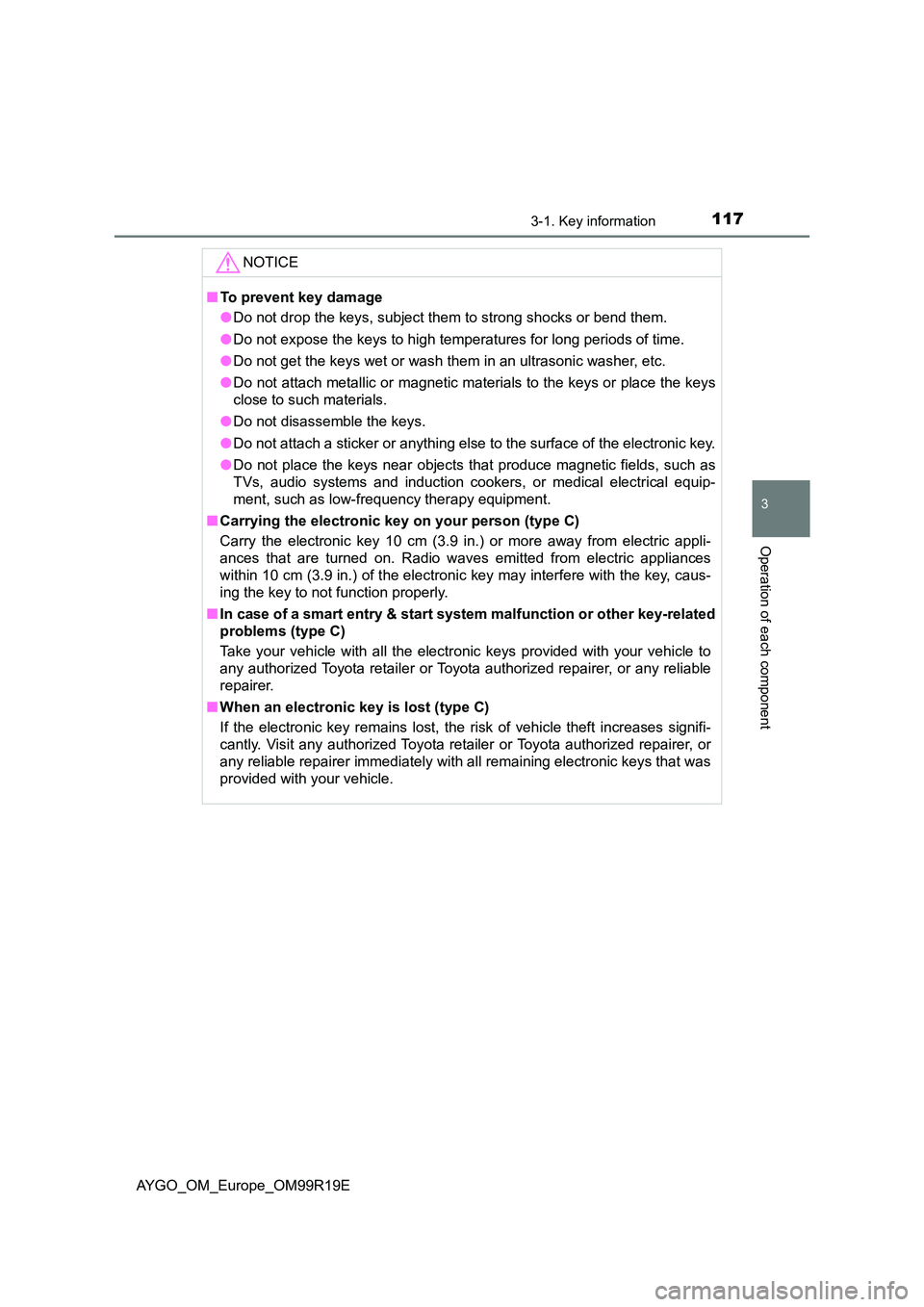

NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer, etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.
■ Carrying the electronic key on your person (type C)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio wave s emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart entry & start system malfunction or other key-related
problems (type C)
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■ When an electronic key is lost (type C)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota reta iler or Toyota authorized repairer, or
any reliable repairer immedi ately with all remaining electronic keys that was
provided with your vehicle.

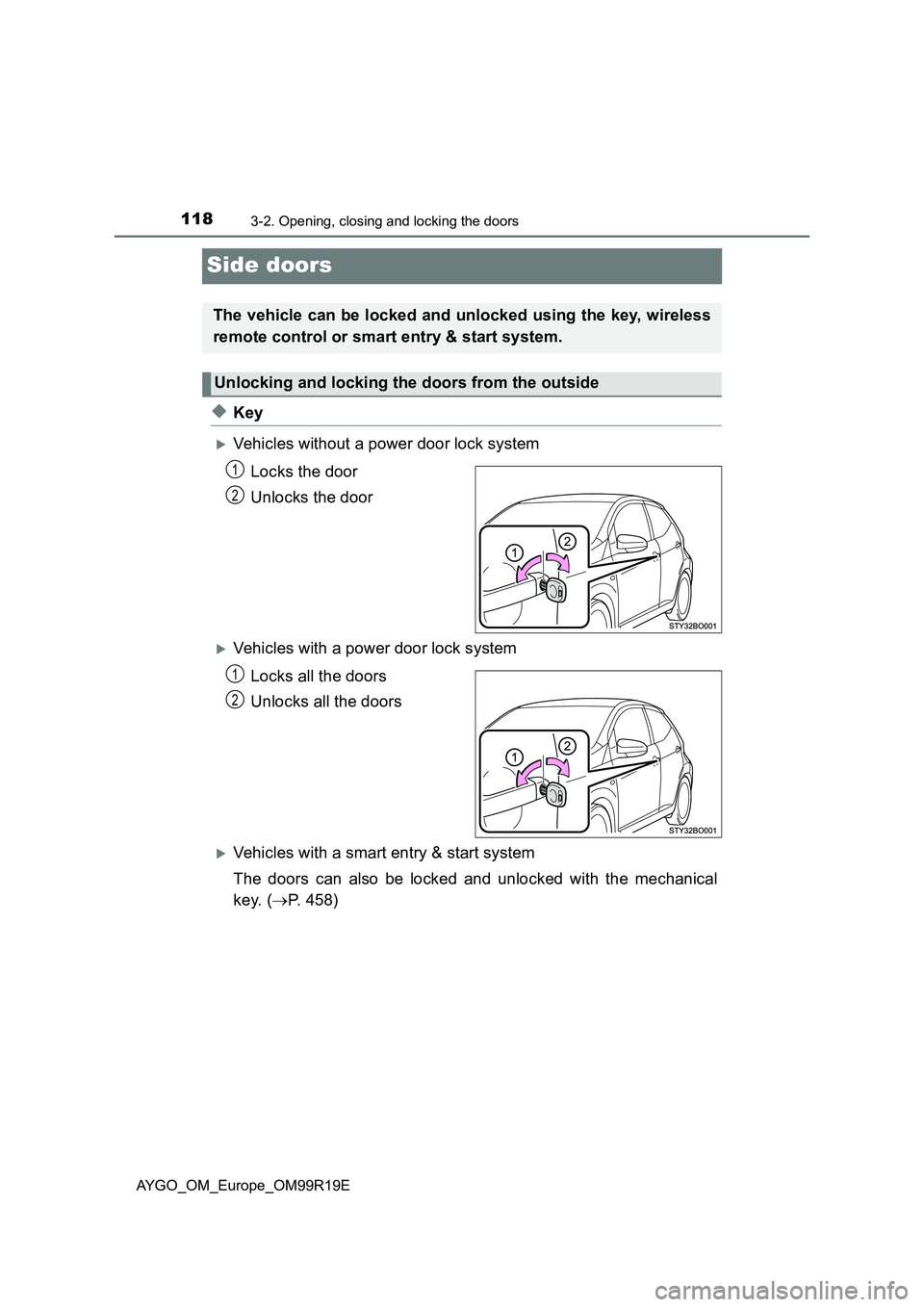

1183-2. Opening, closing and locking the doors
AYGO_OM_Europe_OM99R19E
Side doors
◆Key
Vehicles without a power door lock system
Locks the door
Unlocks the door
Vehicles with a power door lock system
Locks all the doors
Unlocks all the doors
Vehicles with a smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. ( P. 458)
The vehicle can be locked and unlocked using the key, wireless
remote control or smart entry & start system.
Unlocking and locking the doors from the outside
1
2
1
2

1193-2. Opening, closing and locking the doors
3
Operation of each component
AYGO_OM_Europe_OM99R19E

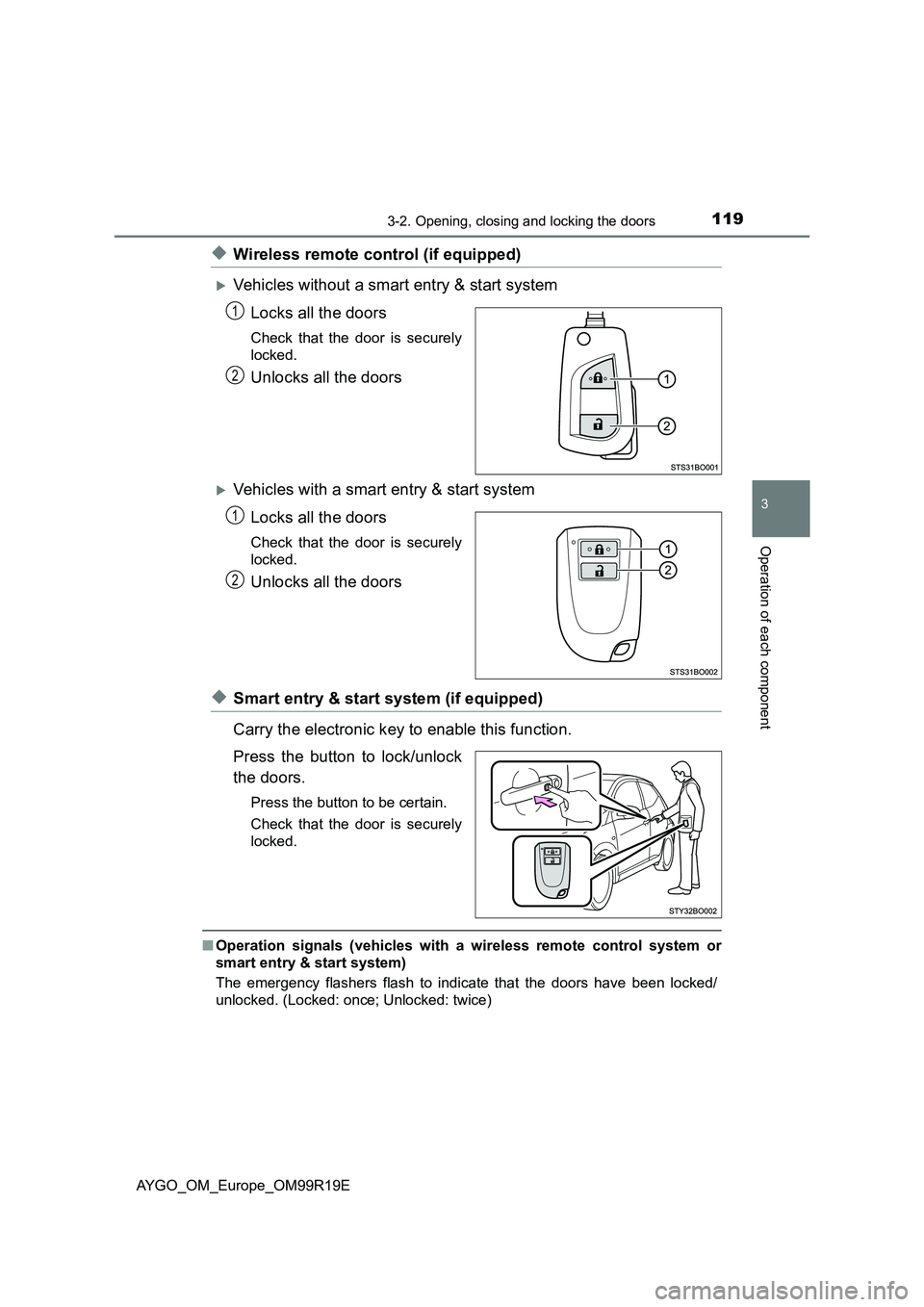

◆Wireless remote control (if equipped)
Vehicles without a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Vehicles with a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
◆Smart entry & start system (if equipped)
Carry the electronic key to enable this function.
Press the button to lock/unlock
the doors.
Press the button to be certain.
Check that the door is securely
locked.
■ Operation signals (vehicles with a wireless remote control system or
smart entry & start system)
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
1
2
1
2

1203-2. Opening, closing and locking the doors
AYGO_OM_Europe_OM99R19E■

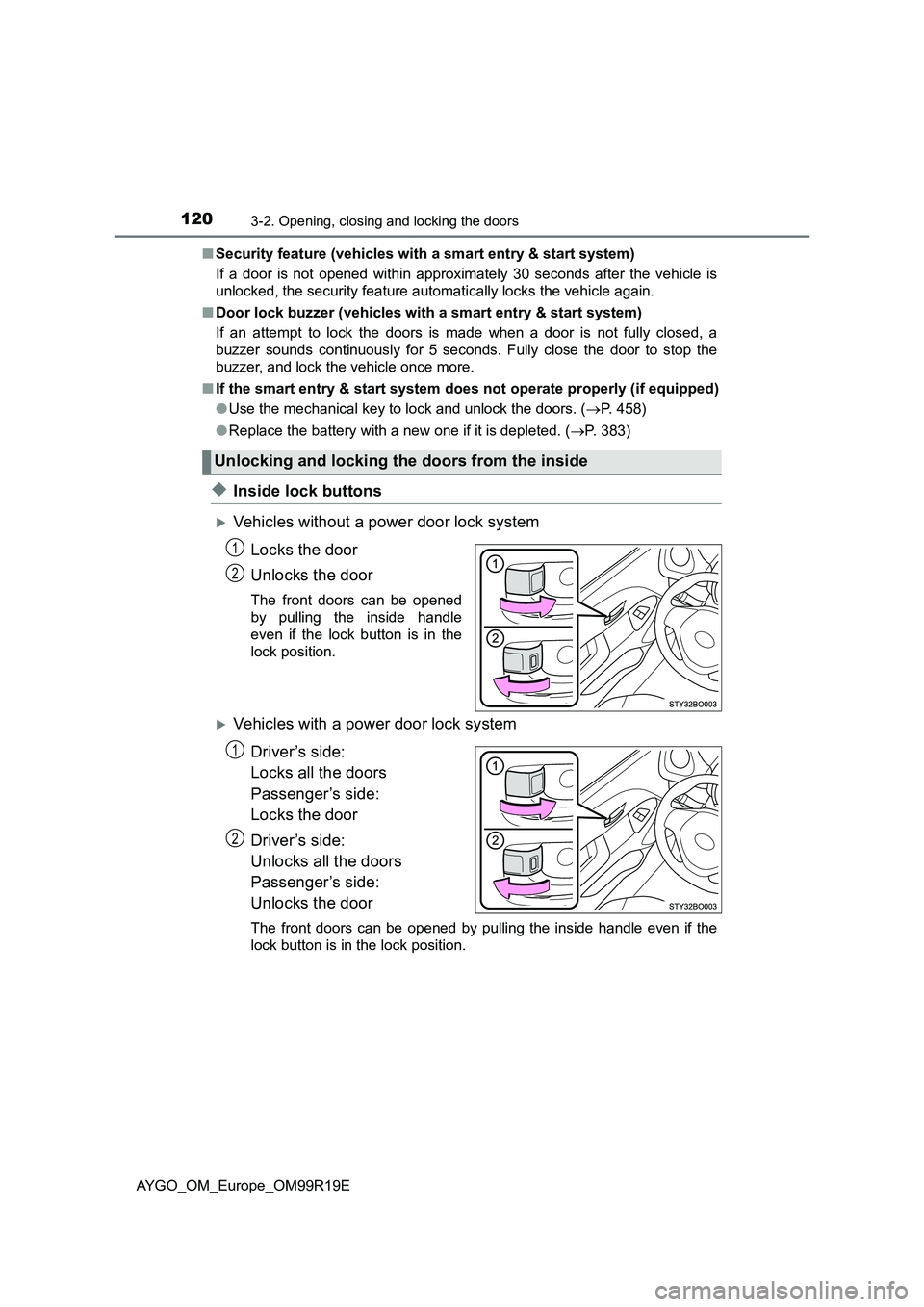

Security feature (vehicles with a smart entry & start system)
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Door lock buzzer (vehicles with a smart entry & start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
■ If the smart entry & start system do es not operate properly (if equipped)
● Use the mechanical key to lock and unlock the doors. ( P. 458)
● Replace the battery with a new one if it is depleted. ( P. 383)
◆Inside lock buttons
Vehicles without a power door lock system
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock button is in the
lock position.
Vehicles with a power door lock systemDriver’s side:
Locks all the doors
Passenger’s side:
Locks the door
Driver’s side:
Unlocks all the doors
Passenger’s side:
Unlocks the door
The front doors can be opened by pulling the inside handle even if the
lock button is in the lock position.
Unlocking and locking the doors from the inside
1
2
1
2
