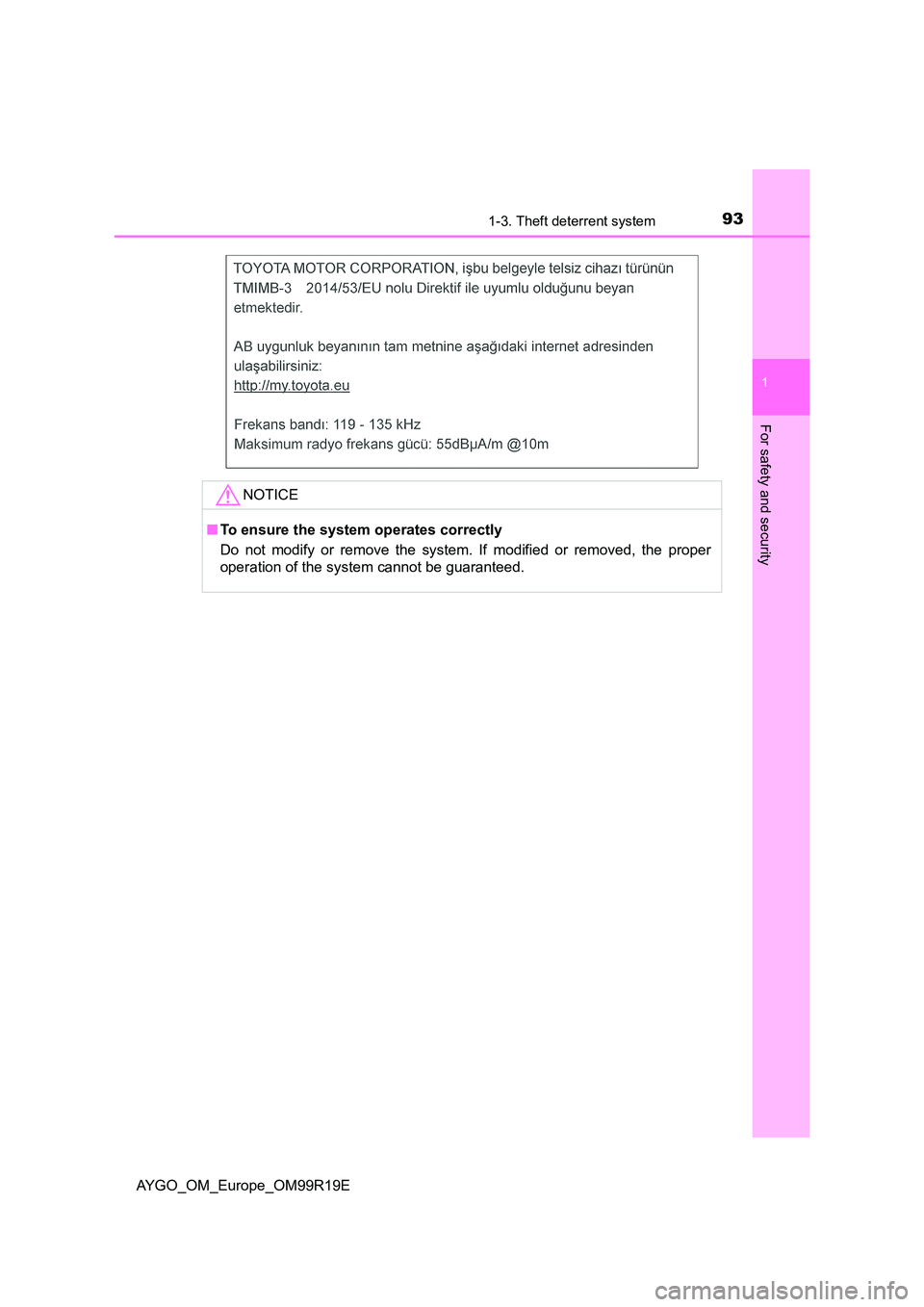

NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

941-3. Theft deterrent system
AYGO_OM_Europe_OM99R19E

95
2Instrument cluster
AYGO_OM_Europe_OM99R19E

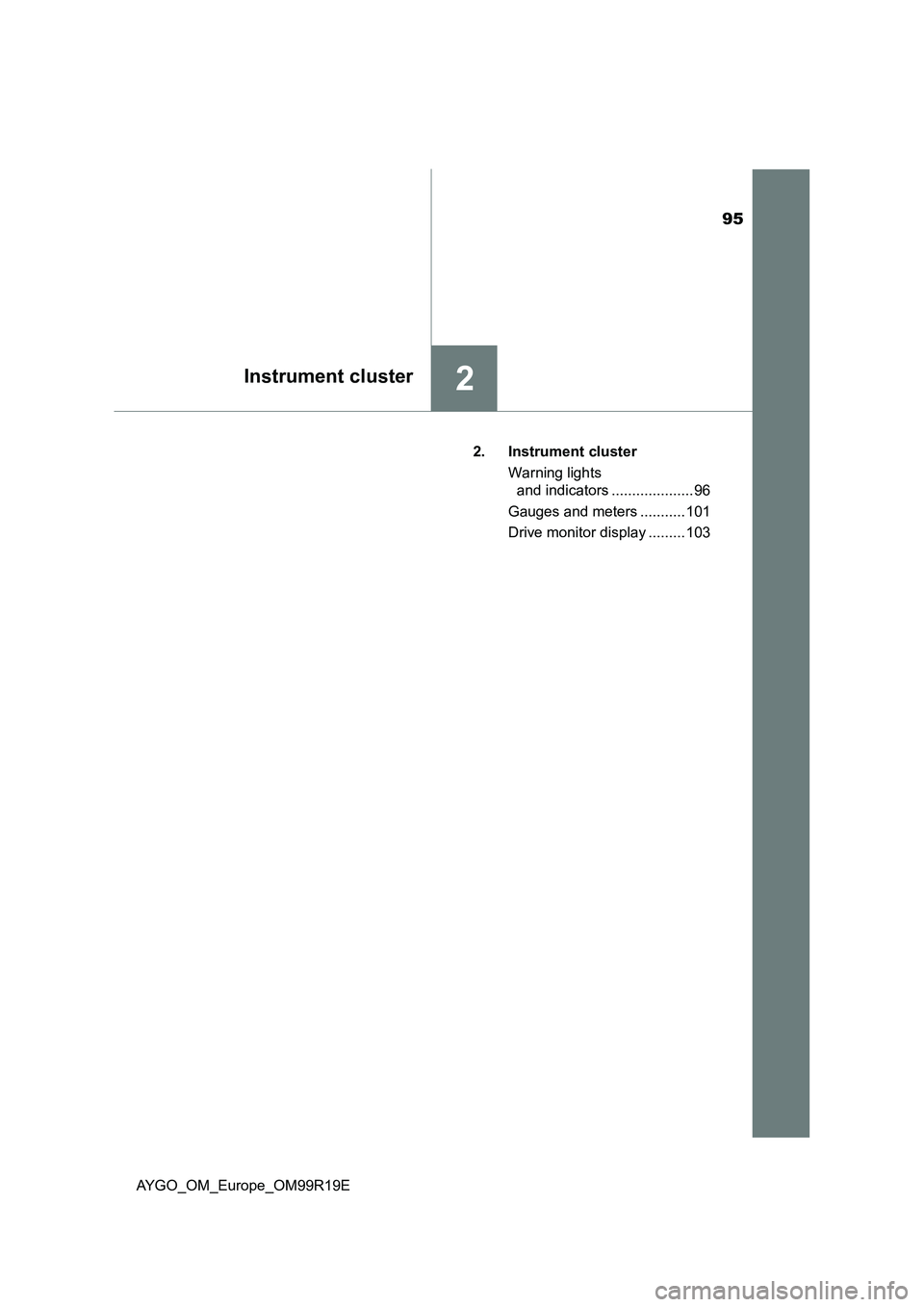

2. Instrument cluster
Warning lights
and indicators .................... 96
Gauges and meters ........... 101
Drive monitor display ......... 103

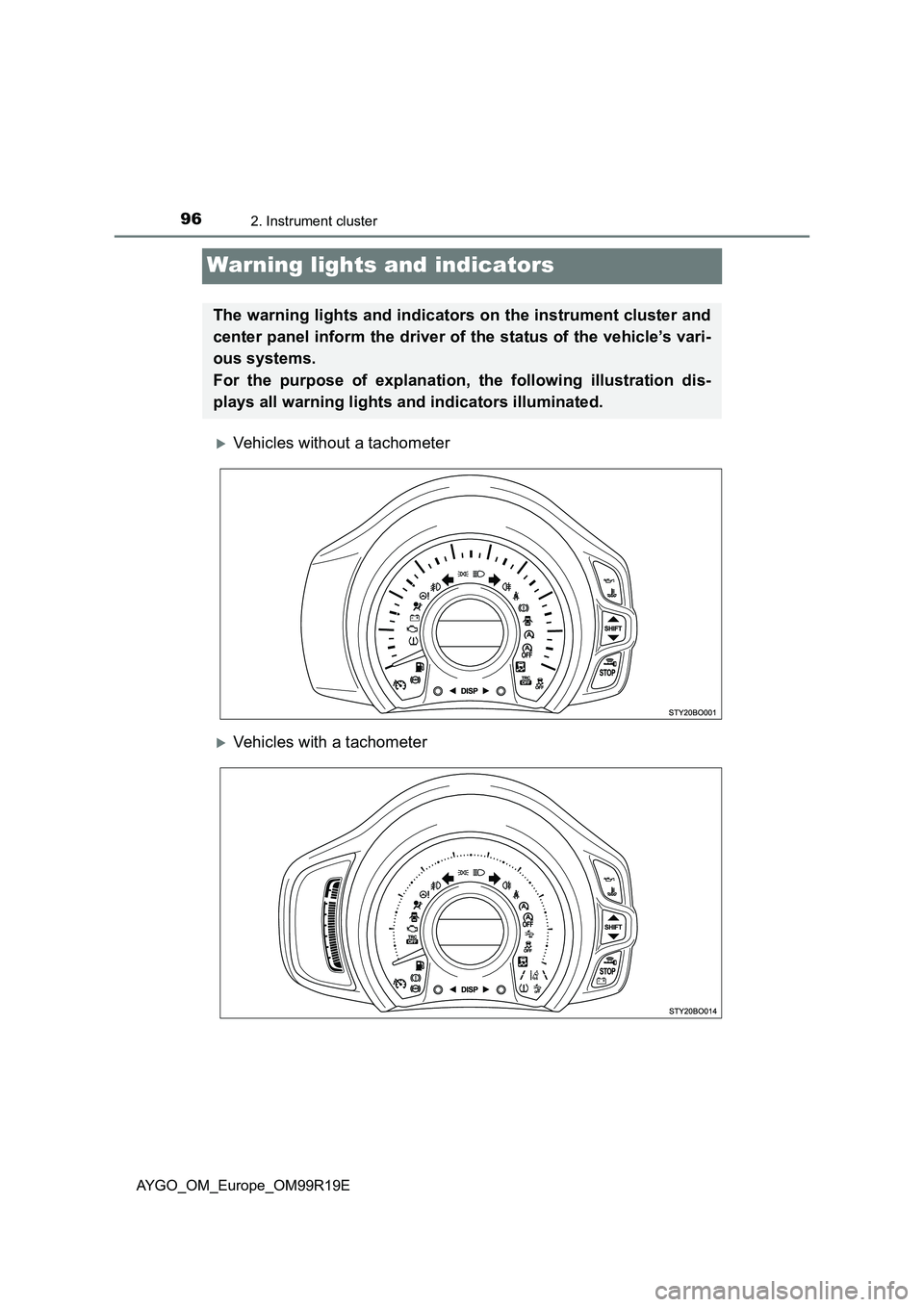

962. Instrument cluster
AYGO_OM_Europe_OM99R19E
Warning lights and indicators
Vehicles without a tachometer
Vehicles with a tachometer
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

972. Instrument cluster
2
Instrument cluster
AYGO_OM_Europe_OM99R19E

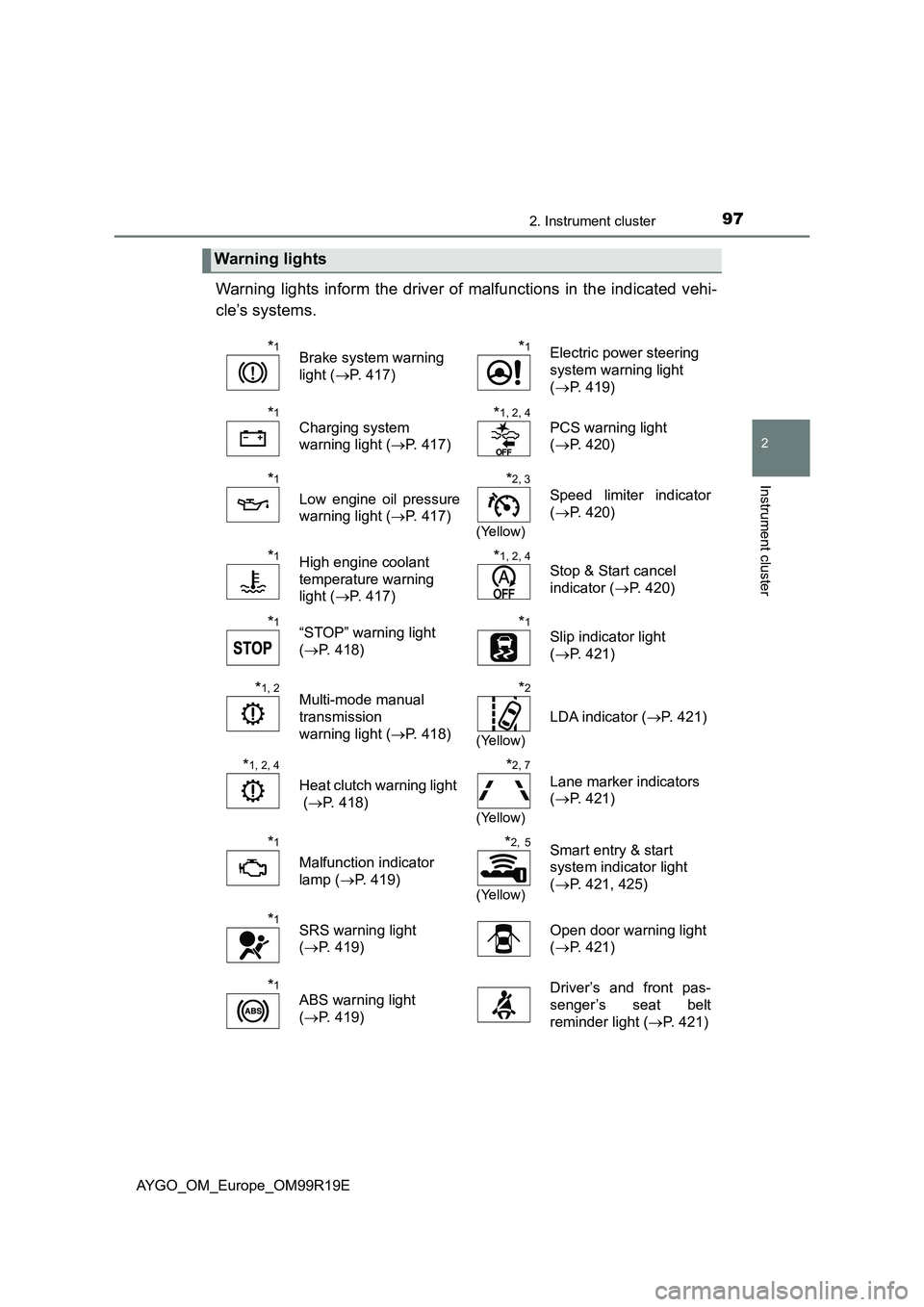

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light ( P. 417)
*1Electric power steering
system warning light
( P. 419)
*1
Charging system
warning light ( P. 417)
*1, 2, 4
PCS warning light
( P. 420)
*1
Low engine oil pressure
warning light ( P. 417)
*2, 3
(Yellow)
Speed limiter indicator
( P. 420)
*1High engine coolant
temperature warning
light ( P. 417)
*1, 2, 4
Stop & Start cancel
indicator ( P. 420)
*1“STOP” warning light
( P. 418)
*1
Slip indicator light
( P. 421)
*1, 2Multi-mode manual
transmission
warning light ( P. 418)
*2
(Yellow)
LDA indicator (P. 421)
*1, 2, 4
Heat clutch warning light
( P. 418)
*2, 7
(Yellow)
Lane marker indicators
( P. 421)
*1
Malfunction indicator
lamp ( P. 419)
*2, 5
(Yellow)
Smart entry & start
system indicator light
( P. 421, 425)
*1SRS warning light
( P. 419)
Open door warning light
( P. 421)
*1
ABS warning light
( P. 419)
Driver’s and front pas-
senger’s seat belt
reminder light ( P. 421)

982. Instrument cluster
AYGO_OM_Europe_OM99R19E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system), to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or turn off. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
*2: If equipped
*3: The light comes in yellow to indicate a malfunction.
*4: The light flashes to indicate a malfunction.
*5: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*6: This light illuminates on the center panel.
*7: The lights turn on with LDA indicator to indicate a malfunction.

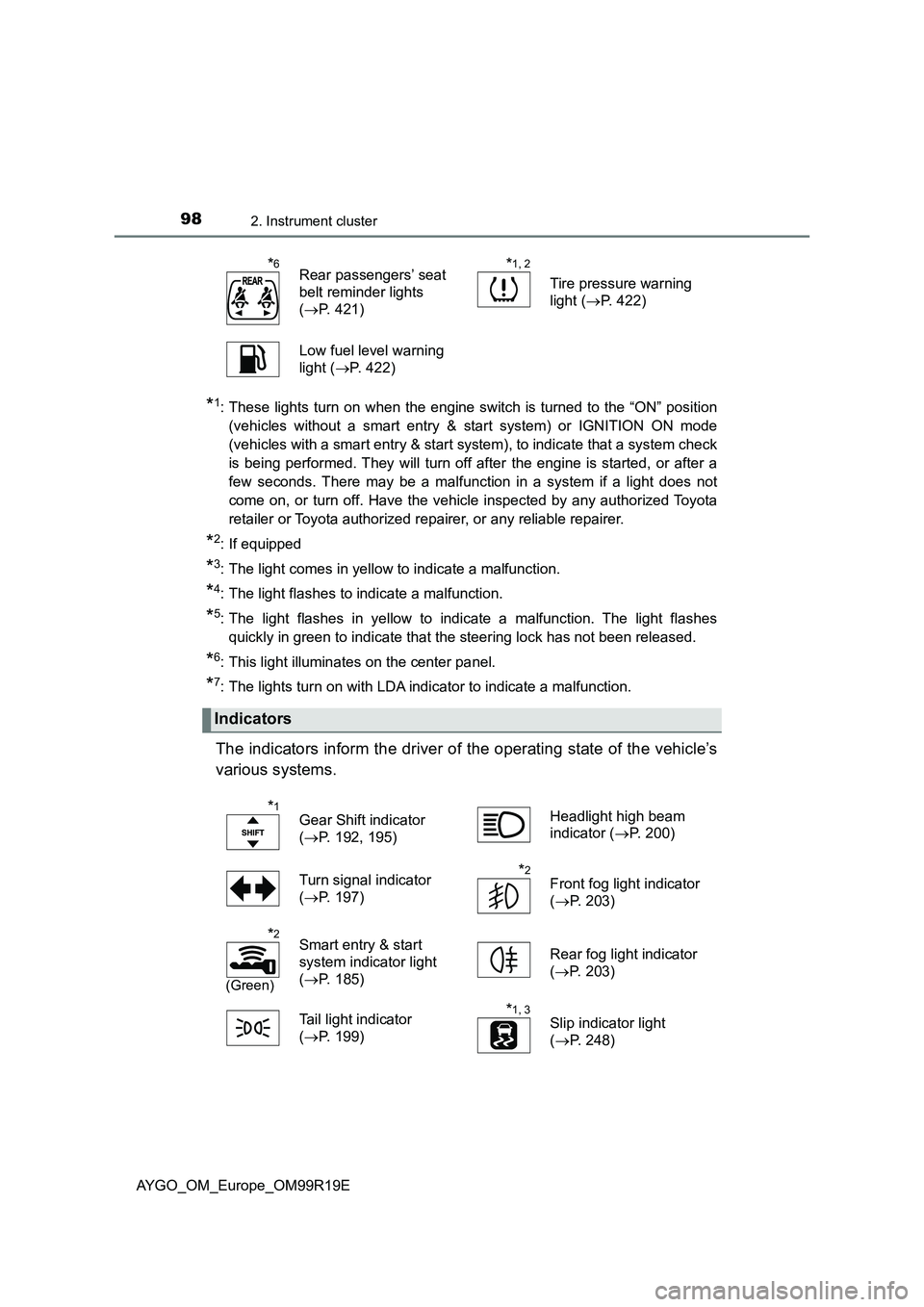

The indicators inform the driver of the operating state of the vehicle’s
various systems.
*6Rear passengers’ seat
belt reminder lights
( P. 421)
*1, 2
Tire pressure warning
light ( P. 422)
Low fuel level warning
light ( P. 422)
Indicators
*1Gear Shift indicator
( P. 192, 195)
Headlight high beam
indicator ( P. 200)
Turn signal indicator
( P. 197)
*2Front fog light indicator
( P. 203)
*2
(Green)
Smart entry & start
system indicator light
( P. 185)
Rear fog light indicator
( P. 203)
Tail light indicator
( P. 199)
*1, 3Slip indicator light
( P. 248)

992. Instrument cluster
2
Instrument cluster
AYGO_OM_Europe_OM99R19E

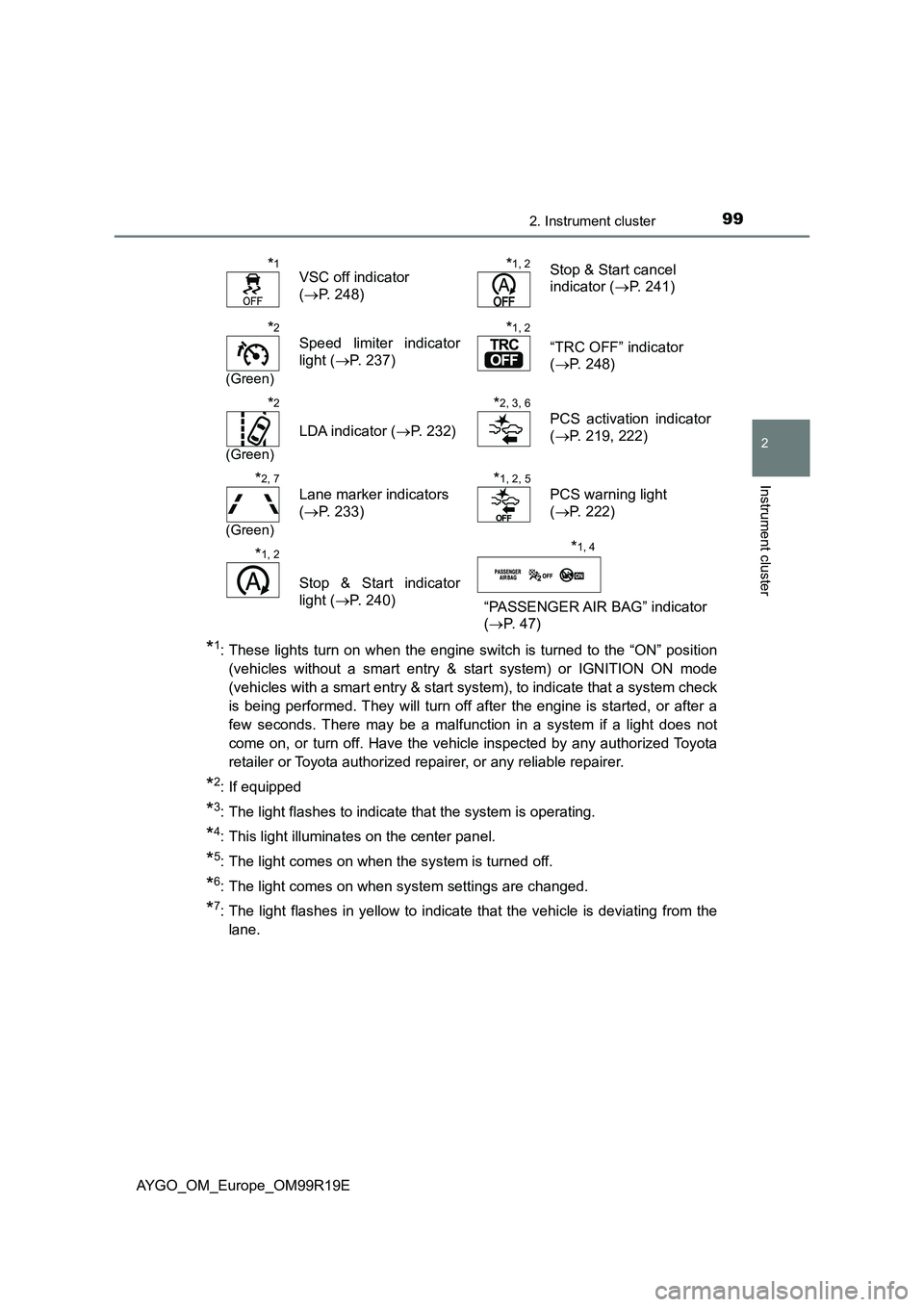

*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system), to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or turn off. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
*2: If equipped
*3: The light flashes to indicate that the system is operating.
*4: This light illuminates on the center panel.
*5: The light comes on when the system is turned off.
*6: The light comes on when system settings are changed.
*7: The light flashes in yellow to indicate that the vehicle is deviating from thelane.
*1VSC off indicator
(P. 248)*1, 2Stop & Start cancel
indicator ( P. 241)
*2
(Green)
Speed limiter indicator
light (P. 237)*1, 2
“TRC OFF” indicator
(P. 248)
*2
(Green)
LDA indicator ( P. 232)
*2, 3, 6
PCS activation indicator
(P. 219, 222)
*2, 7
(Green)
Lane marker indicators
(P. 233)*1, 2, 5
PCS warning light
( P. 222)
*1, 2
Stop & Start indicator
light ( P. 240)
“PASSENGER AIR BAG” indicator
( P. 4 7 )
*1, 4

1002. Instrument cluster
AYGO_OM_Europe_OM99R19E

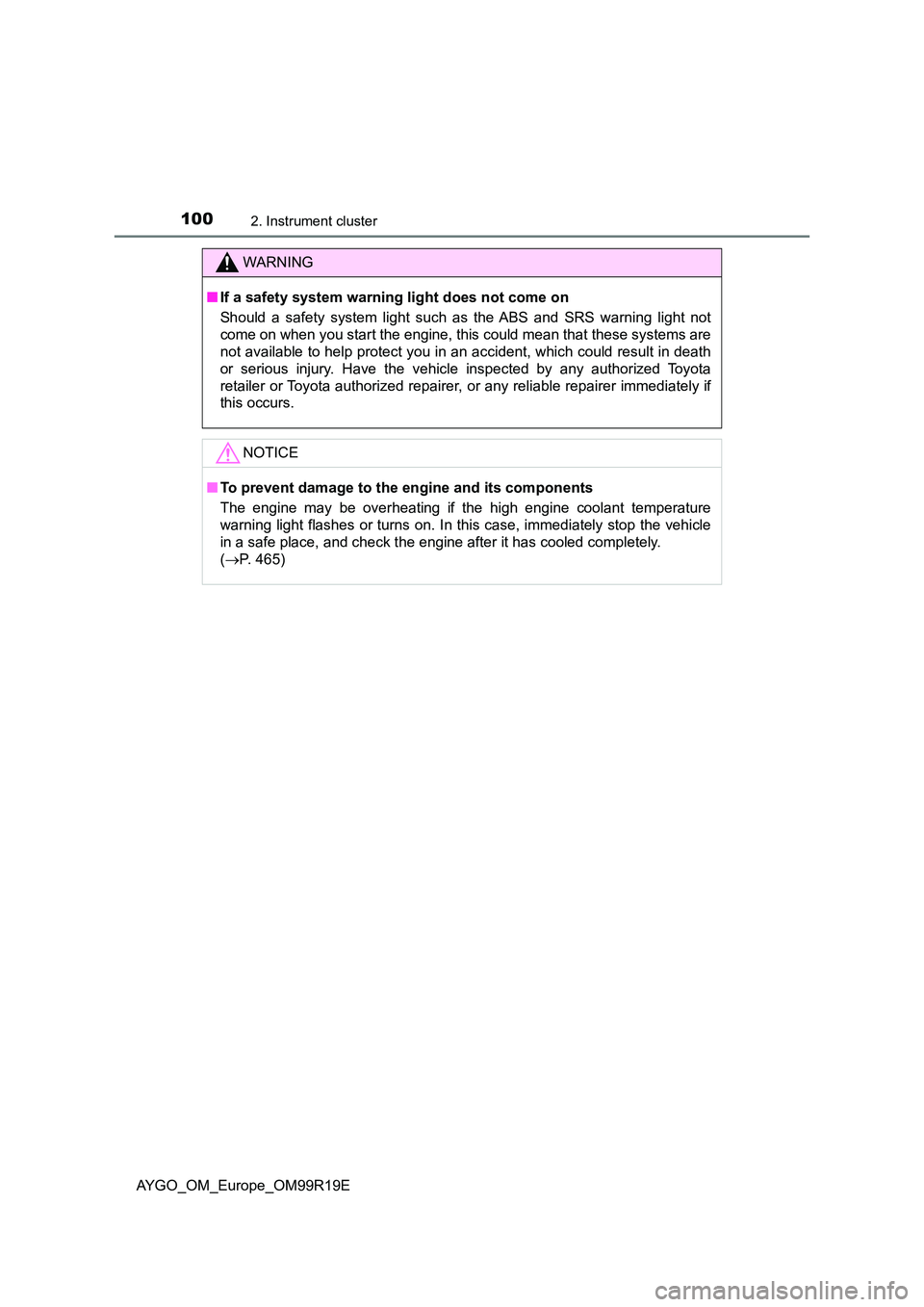

WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer immediately if
this occurs.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
( P. 4 6 5 )
