5-3. Operating the lights and wipers
Driving
5-3.Operating the lights and wipers
Operating the switch turns on
the lights as follows:
1 The front position, tail,
license plate and instrument
panel lights turn on.
2 The headlights and all the
lights listed above turn on.
3 The headlights, daytime
running lights ( P.259) and all
the lights listed above turn on
and off automatically.
■AUTO mode can be used when
The power switch is in ON.
■Daytime running light function
To make your vehicle more visible to
other drivers during daytime driving, the
daytime running lights turn on automati-
cally whenever the EV system is started
and the parking brake is released with
the headlight switch in the position.
(Illuminate brighter than the front posi-
tion lights.) Daytime running lights are
not designed for use at night.
■Headlight control sensor
The sensor may not function properly if an object is placed on the sensor, or
anything that blocks the sensor is affixed to the windshield. Doing so interferes with the sensor
detecting the level of ambient light and may cause the automatic headlight sys-tem to malfunction.
■Automatic light off system
●When the light switch is in or
: The headlights turn off automati-
cally if the power switch is turned to
ACC or OFF.
●When the light switch is in posi-
tion: The headlights and all the lights
turn off automatically if the power
switch is turned to ACC or OFF.
To turn the lights on again, turn the
power switch to ON, or turn the light
switch to position once and then
back to or .
Headlight switch
The headlights can be oper-
ated manually or automati-
cally.
Turning on the headlights

260
Owners Manual_Europe_M42D76_en
5-3. Operating the lights and wipers
■Light reminder buzzer
A buzzer sounds when the power switch is turned off or turned to ACC and the driver’s door is opened while the lights
are turned on.
■Automatic headlight leveling sys- tem (if equipped)
The level of the headlights is automati-
cally adjusted according to the number of passengers and the loading condition of the vehicle to ensure that the head-
lights do not interfere with other road users.
■12-volt battery-saving function
In order to prevent 12-volt the battery of
the vehicle from discharging, if the light
switch is in the or position
when the power switch is turned off, the
12-volt battery saving function will oper-
ate and automatically turn off all the
lights after approximately 20 minutes.
When the power switch is turned to ON, the 12-volt battery-saving function will be disabled.
When any of the following are per- formed, the 12-volt battery-saving func-tion is canceled once and then
reactivated. All the lights will turn off automatically 20 minutes after the 12-volt battery- saving function has been
reactivated:
●When the headlight switch is operated
●When a door is opened or closed
■Customization
Settings (e.g. light sensor sensitivity)
can be changed. (Customizable features: P.567)
1With the headlights on, push the
lever away from you to turn on
the high beams.
Pull the lever toward you to the center
position to turn the high beams off.
2 Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the
headlights on or off.
This system allows the headlights
and front position lights to be turned
on for 30 seconds when the power
switch is OFF.
Pull the lever toward you and
release it with the light switch is in
after turning the power switch
off.
Pull the lever toward you and release it
again to turn off the lights.
NOTICE
■To prevent 12-volt battery dis-
charge
Do not leave the lights on longer than necessary when the EV system is not
operating.
Turning on the high beam
headlights
Extended Headlight Lighting
system

261
5
Owners Manual_Europe_M42D76_en
5-3. Operating the lights and wipers
Driving
*: If equipped

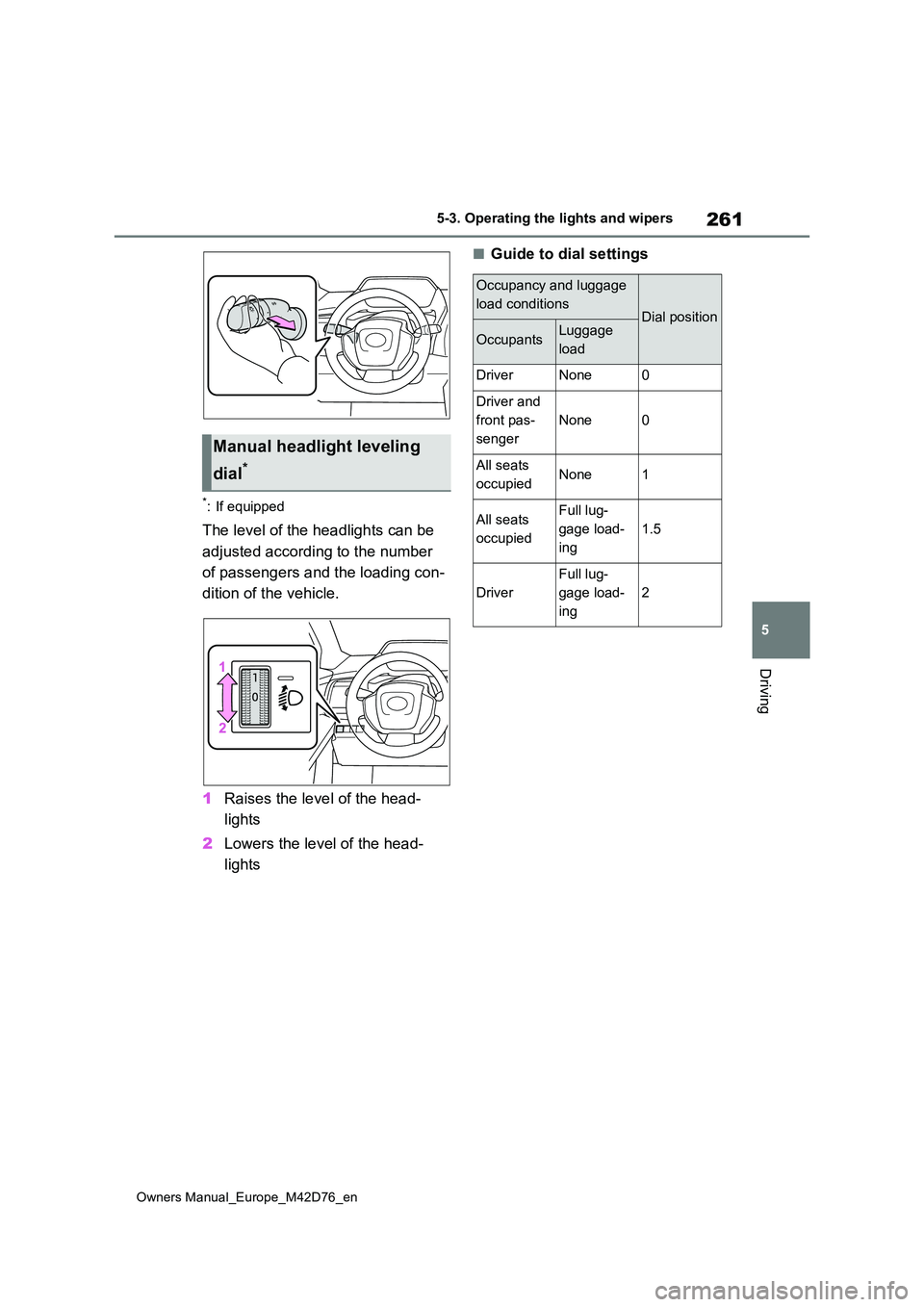

The level of the headlights can be
adjusted according to the number
of passengers and the loading con-
dition of the vehicle.
1 Raises the level of the head-
lights
2 Lowers the level of the head-
lights
■Guide to dial settings
Manual headlight leveling
dial*
Occupancy and luggage
load conditionsDial position
OccupantsLuggage
load
DriverNone0
Driver and
front pas-
senger
None0
All seats
occupiedNone1
All seats
occupied
Full lug-
gage load-
ing
1.5
Driver
Full lug-
gage load-
ing
2

262
Owners Manual_Europe_M42D76_en
5-3. Operating the lights and wipers
*: If equipped

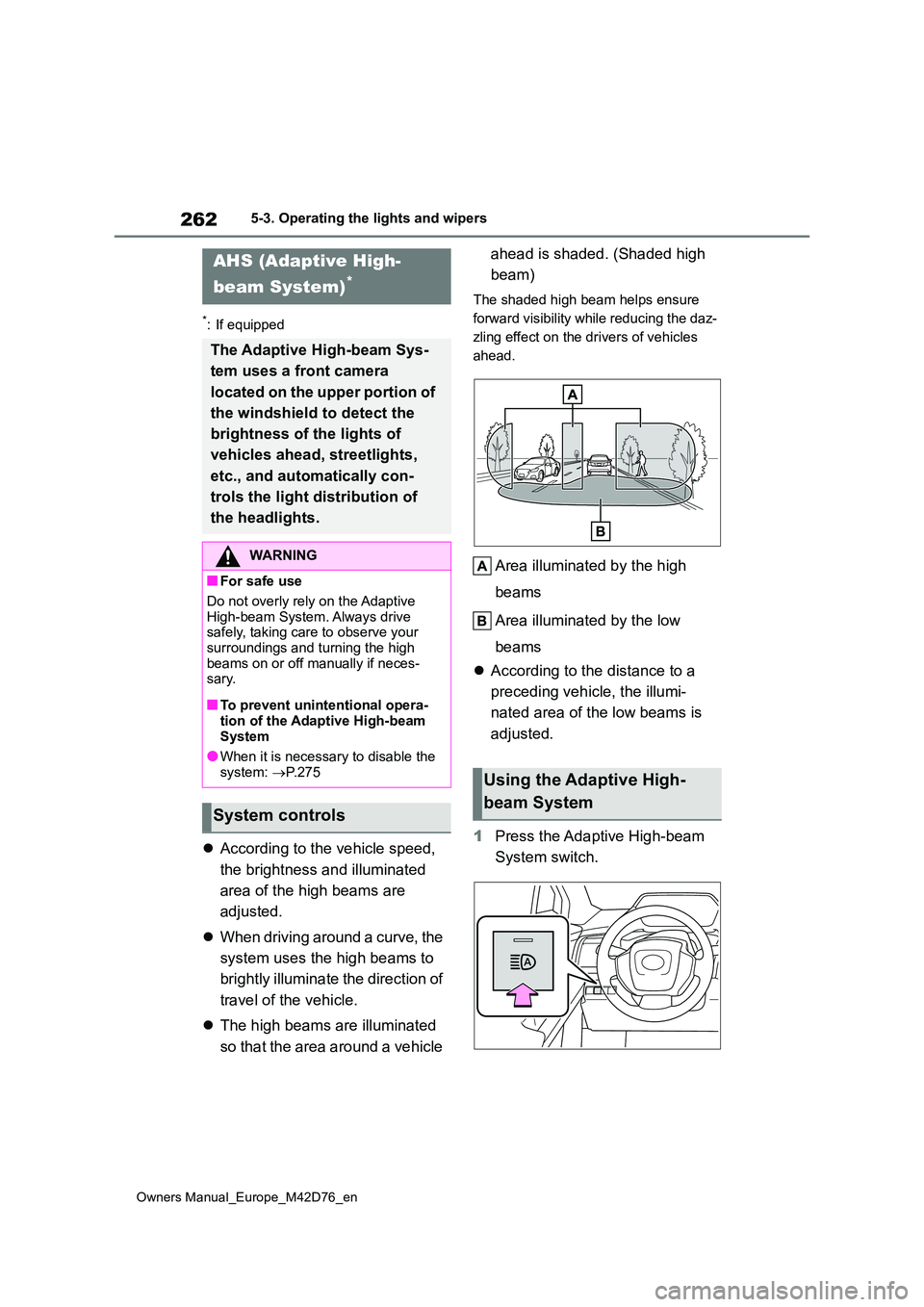

According to the vehicle speed,
the brightness and illuminated
area of the high beams are
adjusted.
 When driving around a curve, the
system uses the high beams to
brightly illuminate the direction of
travel of the vehicle.
 The high beams are illuminated
so that the area around a vehicle
ahead is shaded. (Shaded high
beam)
The shaded high beam helps ensure
forward visibility while reducing the daz-
zling effect on the drivers of vehicles
ahead.
Area illuminated by the high
beams
Area illuminated by the low
beams
 According to the distance to a
preceding vehicle, the illumi-
nated area of the low beams is
adjusted.
1 Press the Adaptive High-beam
System switch.
AHS (Adaptive High-
beam System)*
The Adaptive High-beam Sys-
tem uses a front camera
located on the upper portion of
the windshield to detect the
brightness of the lights of
vehicles ahead, streetlights,
etc., and automatically con-
trols the light distribution of
the headlights.
WARNING
■For safe use
Do not overly rely on the Adaptive High-beam System. Always drive safely, taking care to observe your
surroundings and turning the high beams on or off manually if neces-sary.
■To prevent unintentional opera-
tion of the Adaptive High-beam System
●When it is necessary to disable the
system: P.275
System controls
Using the Adaptive High-
beam System

263
5
Owners Manual_Europe_M42D76_en
5-3. Operating the lights and wipers
Driving
2Turn the headlight switch to the
or position.
When the headlight switch lever is in the low beam position, the AHS system
will be enabled and the AHS indicator will illuminate.
■System operating conditions
●When all of the following conditions
are met, the high beams will illuminate and the system will operate:• The vehicle speed is approximately 15
km/h (9 mph) or more.*
• The area ahead of the vehicle is dark.*: When driving around a curve at a
vehicle speed of approximately 30
km/h (19 mph) or more, the direction
of travel of the vehicle will be brightly
illuminated.
●When all of the following conditions are met, the headlights will change to the shaded high beams according to
the position of vehicles ahead: • The vehicle speed is approximately 15 km/h (9 mph) or more.
• The area ahead of the vehicle is dark. • There is a vehicle ahead with lights on.
• There are few streetlights or other lights on the road ahead.
●If any of the following conditions are met, the system will change to the low beams:
• The vehicle speed is approximately 12 km/h (7.5 mph) or lower.• The area ahead of the vehicle is not
dark.
• There are many vehicles ahead. • There are many streetlights or other lights on the road ahead.
■Front camera detection
●In the following situations, the high beams may not be automatically
changed to the shaded high beams: • When a vehicle cuts in front of your vehicle
• When another vehicle crosses in front of the vehicle• When vehicles ahead are repeatedly
detected and then hidden due to repeated curves, road dividers or roadside trees
• When a vehicle ahead approaches from a far lane• When a vehicle ahead is far away
• When a vehicle ahead has no lights • When the lights of a vehicle ahead are dim
• When a vehicle ahead is reflecting strong light, such as the headlights of your vehicle
• Situations in which the sensors may not operate properly: P. 2 7 9
●The high beams may change to the shaded high beams if a vehicle ahead that is using fog lights without its
headlights turned on is detected.
●House lights, street lights, traffic sig-
nals, and illuminated billboards or signs and other reflective objects may cause the high beams to change to
the shaded high beams, cause the high beams not to change to the shaded high beams, or change the
area that is not illuminated.
●The following may change the speed
at which the shaded areas change or the timing at which the headlights change to the low beams:
• The brightness of lights of vehicles ahead• The movement and direction of vehi-
cles ahead • The distance between the vehicle and a vehicle ahead
• When a vehicle ahead only has lights illuminated on one side

264
Owners Manual_Europe_M42D76_en
5-3. Operating the lights and wipers
• When a vehicle ahead is a two-
wheeled vehicle • The condition of the road (gradient, curve, condition of the road surface,
etc.) • The number of passengers and amount of luggage
●The light distribution control of the headlights may not match the driver’s
expectations
●Bicycles and other small vehicles may
not be detected.
●In the following situations, the system
may not be able to correctly detect the brightness of the surroundings. This may cause the low beams to remain
on or the high beams to flash or daz- zle pedestrians or vehicles ahead. In such a case, it is necessary to manu-
ally change between the high beams and low beams.• When there are lights similar to head-
lights or tail lights in the surrounding area• When headlights or tail lights of vehi-
cles ahead are turned off, dirty, chang- ing color, or not aimed properly• When the headlights are repeatedly
changing between the high beams and low beams.• When use of the high beams is inap-
propriate or when the high beams may be flashing or dazzling pedestri-ans or other drivers.
• When the vehicle is used in an area in which vehicles travel on the opposite side of the road of the country for
which the vehicle was designed, for example using a vehicle designed for right-hand traffic in a left-hand traffic
area, or vice versa • When it is necessary to disable the system: P. 2 7 5
• Situations in which the sensors may not operate properly: P. 2 7 9
■Customization
The settings of some functions can be
changed. ( P.567)
■Changing to the high beams
Push the lever forward.
The AHS indicator will turn off and the
high beam indicator will turn on.
Pull the lever to its original position to
enable the Adaptive High-beam Sys-
tem again.
■Changing to the low beams
Press the Adaptive High-beam Sys-
tem switch.
The AHS indicator will turn off.
Press the switch to enable the Adaptive
High-beam System again.
It is recommended to switch to the
Turning the high beams
on/off manually
Temporarily changing to the
low beams

265
5
Owners Manual_Europe_M42D76_en
5-3. Operating the lights and wipers
Driving

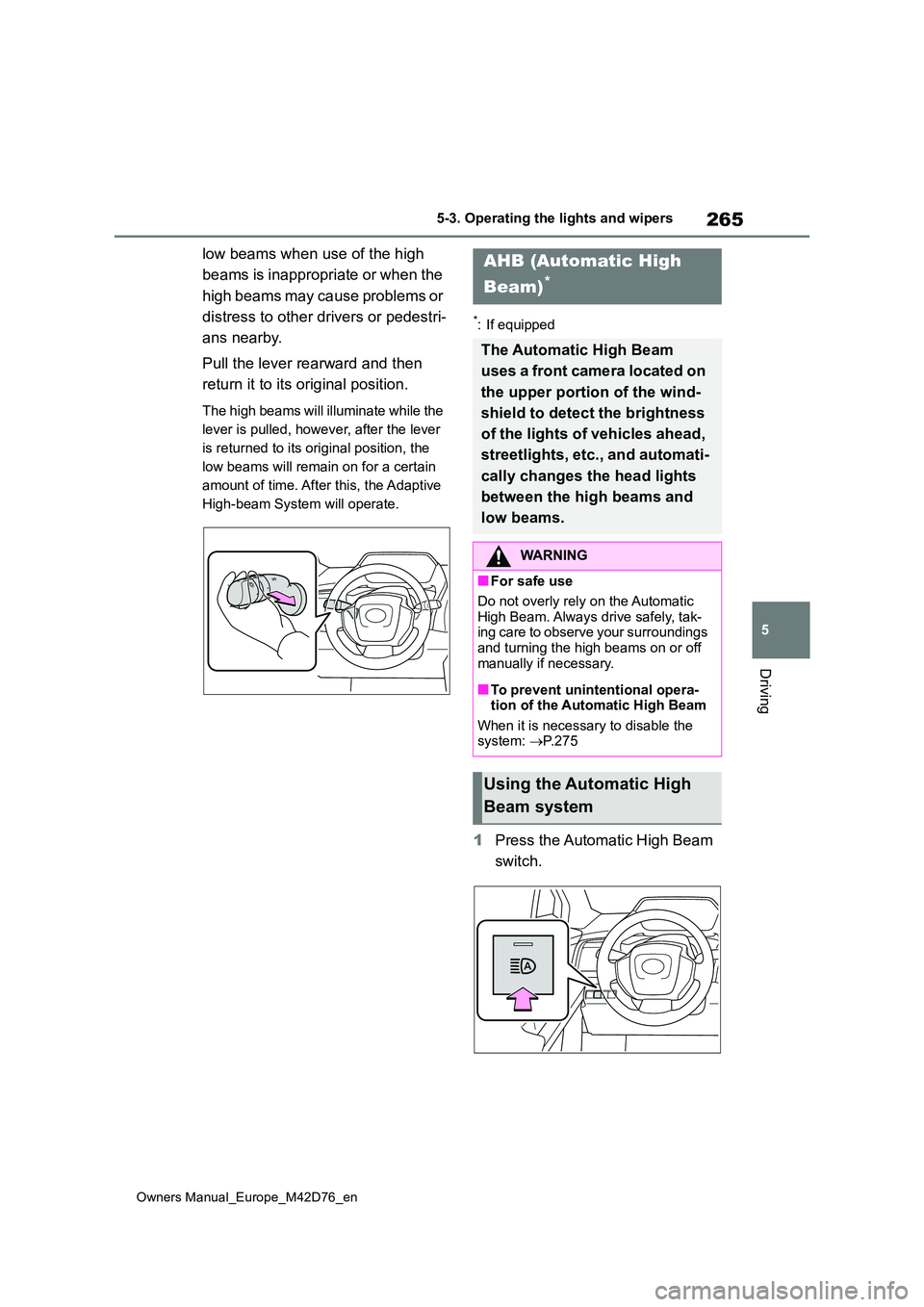

low beams when use of the high
beams is inappropriate or when the
high beams may cause problems or
distress to other drivers or pedestri-
ans nearby.
Pull the lever rearward and then
return it to its original position.
The high beams will illuminate while the
lever is pulled, however, after the lever
is returned to its original position, the
low beams will remain on for a certain
amount of time. After this, the Adaptive
High-beam System will operate.
*: If equipped
1 Press the Automatic High Beam
switch.
AHB (Automatic High
Beam)*
The Automatic High Beam
uses a front camera located on
the upper portion of the wind-
shield to detect the brightness
of the lights of vehicles ahead,
streetlights, etc., and automati-
cally changes the head lights
between the high beams and
low beams.
WARNING
■For safe use
Do not overly rely on the Automatic High Beam. Always drive safely, tak-ing care to observe your surroundings
and turning the high beams on or off manually if necessary.
■To prevent unintentional opera-tion of the Automatic High Beam
When it is necessary to disable the system: P.275
Using the Automatic High
Beam system

266
Owners Manual_Europe_M42D76_en
5-3. Operating the lights and wipers
2Turn the headlight switch to the
or position.
When the headlight switch lever is in the low beam position, the AHB system
will be enabled and the AHB indicator will illuminate.
■Automatic operating conditions of the high beams
●When all of the following conditions are met, the high beams will illuminate automatically:
• The vehicle speed is approximately 30 km/h (19 mph) or more.• The area ahead of the vehicle is dark.
• There are no vehicles ahead with lights on.• There are few streetlights or other
lights on the road ahead.
●If any of the following conditions are
met, the headlights will change to the low beams:• Vehicle speed drops below approxi-
mately 25 km/h (16 mph). • The area ahead of the vehicle is not dark.
• There is a vehicle ahead with lights on.• There are many streetlights or other
lights on the road ahead.
■Front camera detection
●In the following situations, the high
beams may not be automatically changed to the low beams:• When a vehicle cuts in front of your
vehicle • When another vehicle crosses in front
of the vehicle
• When vehicles ahead are repeatedly detected and then hidden due to repeated curves, road dividers or
roadside trees • When a vehicle ahead approaches from a far lane
• When a vehicle ahead is far away • When a vehicle ahead has no lights• When the lights of a vehicle ahead are
dim • When a vehicle ahead is reflecting strong light, such as own headlights
• Situations in which the sensors may not operate properly: P. 2 7 9
●The headlights may change to the low beams if a vehicle ahead that is using fog lights without its headlights turned
on is detected.
●House lights, street lights, traffic sig-
nals, and illuminated billboards or signs may cause the high beams to change to the low beams, or the low
beams to remain on.
●The following may change the timing
at which the headlights change to the low beams:• The brightness of lights of vehicles
ahead • The movement and direction of vehi-cles ahead
• The distance between the vehicle and a vehicle ahead• When a vehicle ahead only has lights
illuminated on one side • When a vehicle ahead is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface, etc.)
• The number of passengers and amount of luggage
●The headlights may change between the high beams and low beams unex-pectedly.
●Bicycles and other small vehicles may not be detected.
●In the following situations, the system may not be able to correctly detect the
brightness of the surroundings. This

267
5
Owners Manual_Europe_M42D76_en
5-3. Operating the lights and wipers
Driving
may cause the low beams to remain
on or the high beams to flash or daz- zle pedestrians or vehicles ahead. In such a case, it is necessary to manu-
ally change between the high beams and low beams.• When there are lights similar to head-
lights or tail lights in the surrounding area• When headlights or tail lights of vehi-
cles ahead are turned off, dirty, chang- ing color, or not aimed properly• When the headlights are repeatedly
changing between the high beams and low beams.• When use of the high beams is inap-
propriate or when the high beams may be flashing or dazzling pedestri-ans or other drivers.
• When the vehicle is used in an area in which vehicles travel on the opposite side of the road of the country for
which the vehicle was designed, for example using a vehicle designed for right-hand traffic in a left-hand traffic
area, or vice versa • When it is necessary to disable the system: P. 2 7 5
• Situations in which the sensors may not operate properly: P. 2 7 9
■Changing to the high beams
Push the lever forward.
The Automatic High Beam indicator will
turn off and the high beam indicator will
turn on.
Pull the lever to its original position to
enable the Automatic High Beam sys-
tem again.
■Changing to the low beams
Press the Automatic High Beam
switch.
The Automatic High Beam indicator will
turn off.
Press the switch to enable the Auto-
matic High Beam system again.
It is recommended to switch to the
low beams when use of the high
beams is inappropriate or when the
high beams may cause problems or
distress to other drivers or pedestri-
ans nearby.
Pull the lever rearward and then
return it to its original position.
The high beams will illuminate while the
lever is pulled, however, after the lever
is returned to its original position, the
Turning the high beams
on/off manually
Temporarily changing to the
low beams

268
Owners Manual_Europe_M42D76_en
5-3. Operating the lights and wipers

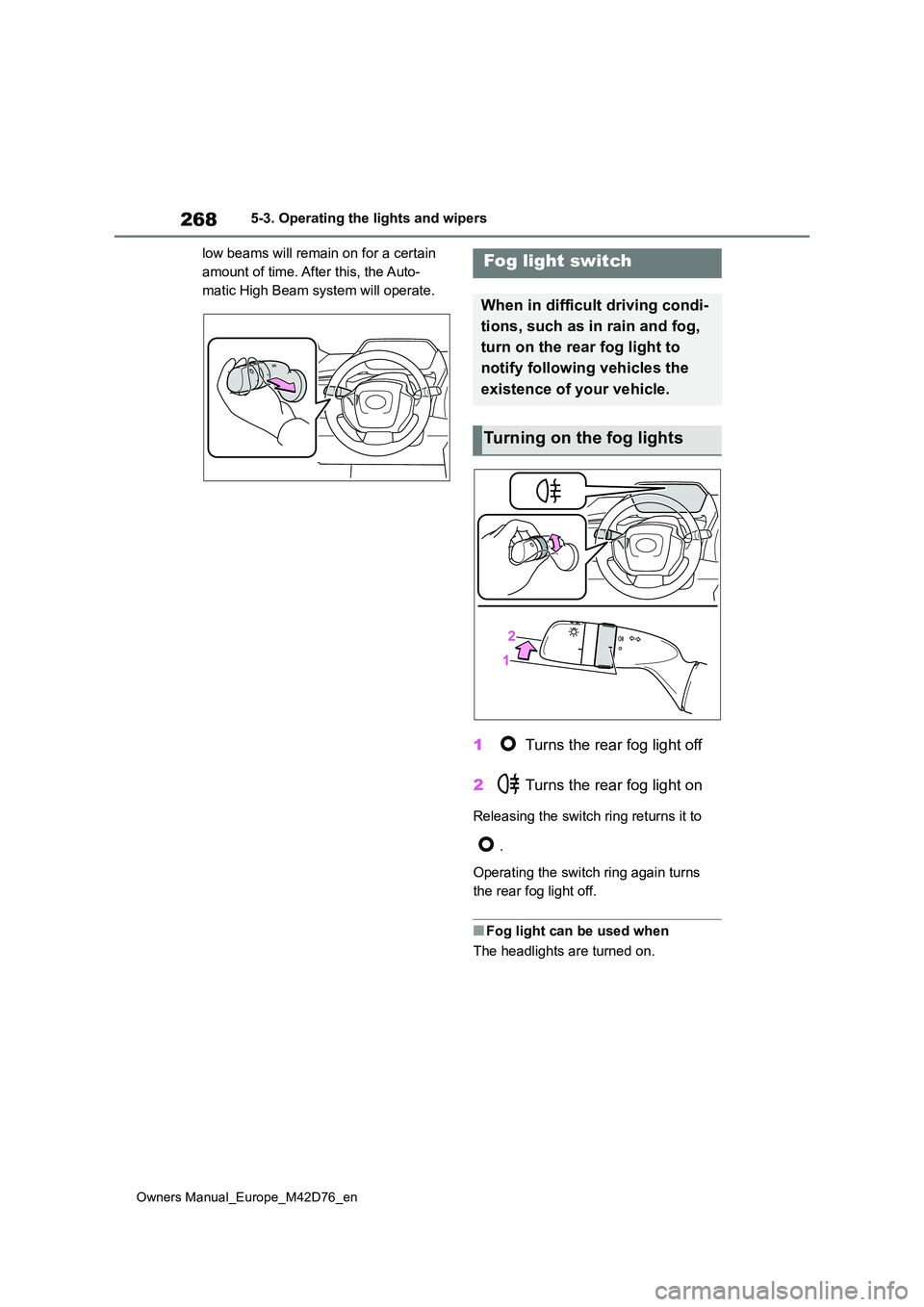

low beams will remain on for a certain
amount of time. After this, the Auto-
matic High Beam system will operate.
1 Turns the rear fog light off
2 Turns the rear fog light on
Releasing the switch ring returns it to
.
Operating the switch ring again turns
the rear fog light off.
■Fog light can be used when
The headlights are turned on.
Fog light switch
When in difficult driving condi-
tions, such as in rain and fog,
turn on the rear fog light to
notify following vehicles the
existence of your vehicle.
Turning on the fog lights
