TOYOTA BZ4X 2022 Owners Manual (in English)

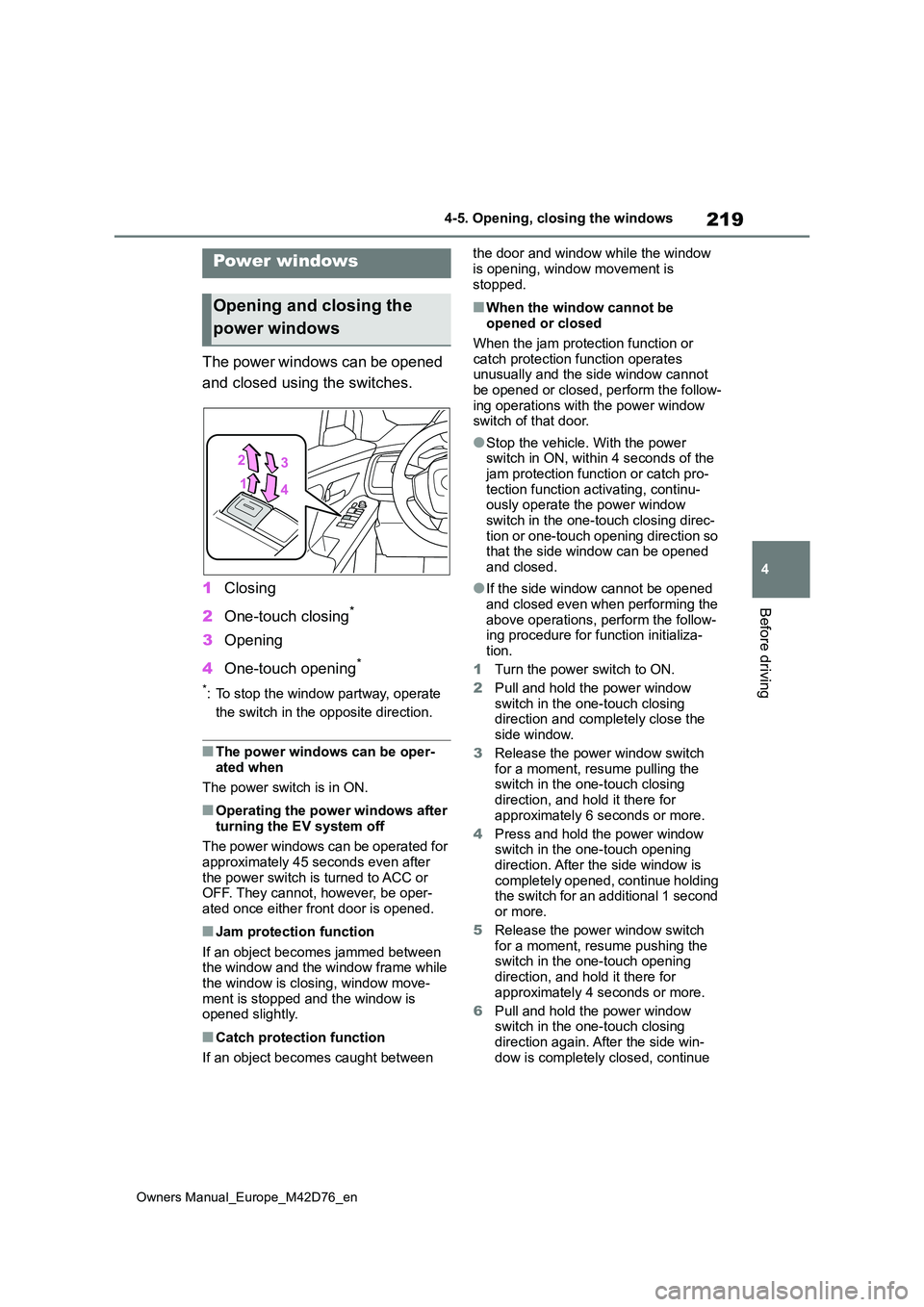

219
4
Owners Manual_Europe_M42D76_en
4-5. Opening, closing the windows
Before driving
4-5.Opening, closing the windows
The power windows can be opened
and closed using the switches.
1 Closing
2 One-touch closing*
3Opening
4 One-touch opening*
*: To stop the window partway, operate
the switch in the opposite direction.
■The power windows can be oper- ated when
The power switch is in ON.
■Operating the power windows after
turning the EV system off
The power windows can be operated for approximately 45 seconds even after
the power switch is turned to ACC or OFF. They cannot, however, be oper-ated once either front door is opened.
■Jam protection function
If an object becomes jammed between the window and the window frame while the window is closing, window move-
ment is stopped and the window is opened slightly.
■Catch protection function
If an object becomes caught between
the door and window while the window
is opening, window movement is stopped.
■When the window cannot be opened or closed
When the jam protection function or catch protection function operates unusually and the side window cannot
be opened or closed, perform the follow- ing operations with the power window switch of that door.
●Stop the vehicle. With the power switch in ON, within 4 seconds of the
jam protection function or catch pro- tection function activating, continu-ously operate the power window
switch in the one-touch closing direc- tion or one-touch opening direction so that the side window can be opened
and closed.
●If the side window cannot be opened
and closed even when performing the above operations, perform the follow-ing procedure for function initializa-
tion.
1 Turn the power switch to ON.
2 Pull and hold the power window switch in the one-touch closing direction and completely close the
side window.
3 Release the power window switch for a moment, resume pulling the switch in the one-touch closing
direction, and hold it there for approximately 6 seconds or more.
4 Press and hold the power window switch in the one-touch opening
direction. After the side window is completely opened, continue holding the switch for an additional 1 second
or more.
5 Release the power window switch for a moment, resume pushing the switch in the one-touch opening
direction, and hold it there for approximately 4 seconds or more.
6 Pull and hold the power window switch in the one-touch closing
direction again. After the side win- dow is completely closed, continue
Power windows
Opening and closing the
power windows

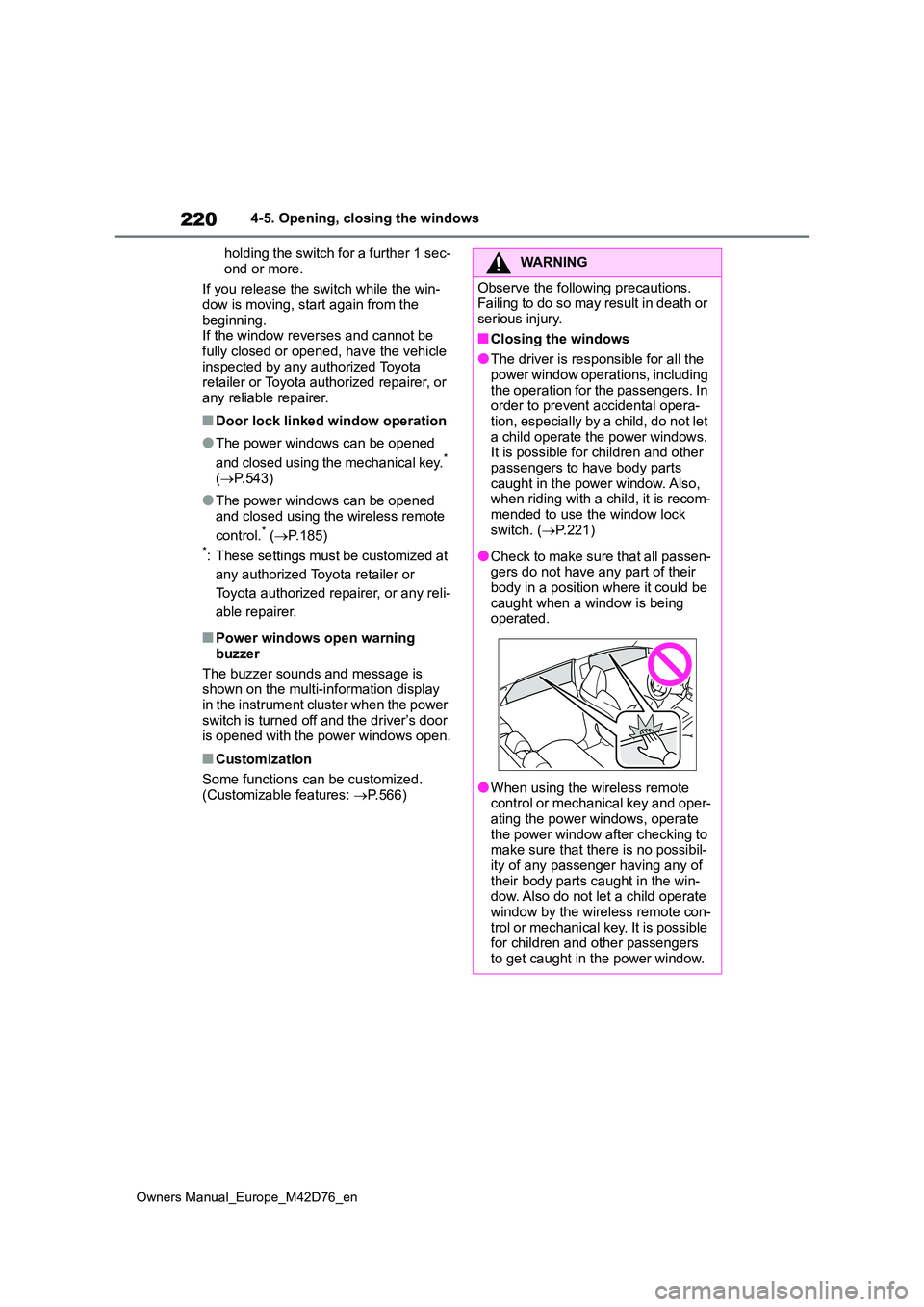

220
Owners Manual_Europe_M42D76_en
4-5. Opening, closing the windows
holding the switch for a further 1 sec-
ond or more.
If you release the switch while the win- dow is moving, start again from the
beginning. If the window reverses and cannot be fully closed or opened, have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■Door lock linked window operation
●The power windows can be opened
and closed using the mechanical key.*
( P.543)
●The power windows can be opened
and closed using the wireless remote
control.* ( P.185)*: These settings must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
■Power windows open warning
buzzer
The buzzer sounds and message is shown on the multi-information display
in the instrument cluster when the power switch is turned off and the driver’s door is opened with the power windows open.
■Customization
Some functions can be customized. (Customizable features: P.566)
WARNING
Observe the following precautions. Failing to do so may result in death or
serious injury.
■Closing the windows
●The driver is responsible for all the
power window operations, including the operation for the passengers. In order to prevent accidental opera-
tion, especially by a child, do not let a child operate the power windows. It is possible for children and other
passengers to have body parts caught in the power window. Also, when riding with a child, it is recom-
mended to use the window lock switch. ( P.221)
●Check to make sure that all passen- gers do not have any part of their body in a position where it could be
caught when a window is being operated.
●When using the wireless remote control or mechanical key and oper-ating the power windows, operate
the power window after checking to make sure that there is no possibil-ity of any passenger having any of
their body parts caught in the win- dow. Also do not let a child operate window by the wireless remote con-
trol or mechanical key. It is possible for children and other passengers to get caught in the power window.

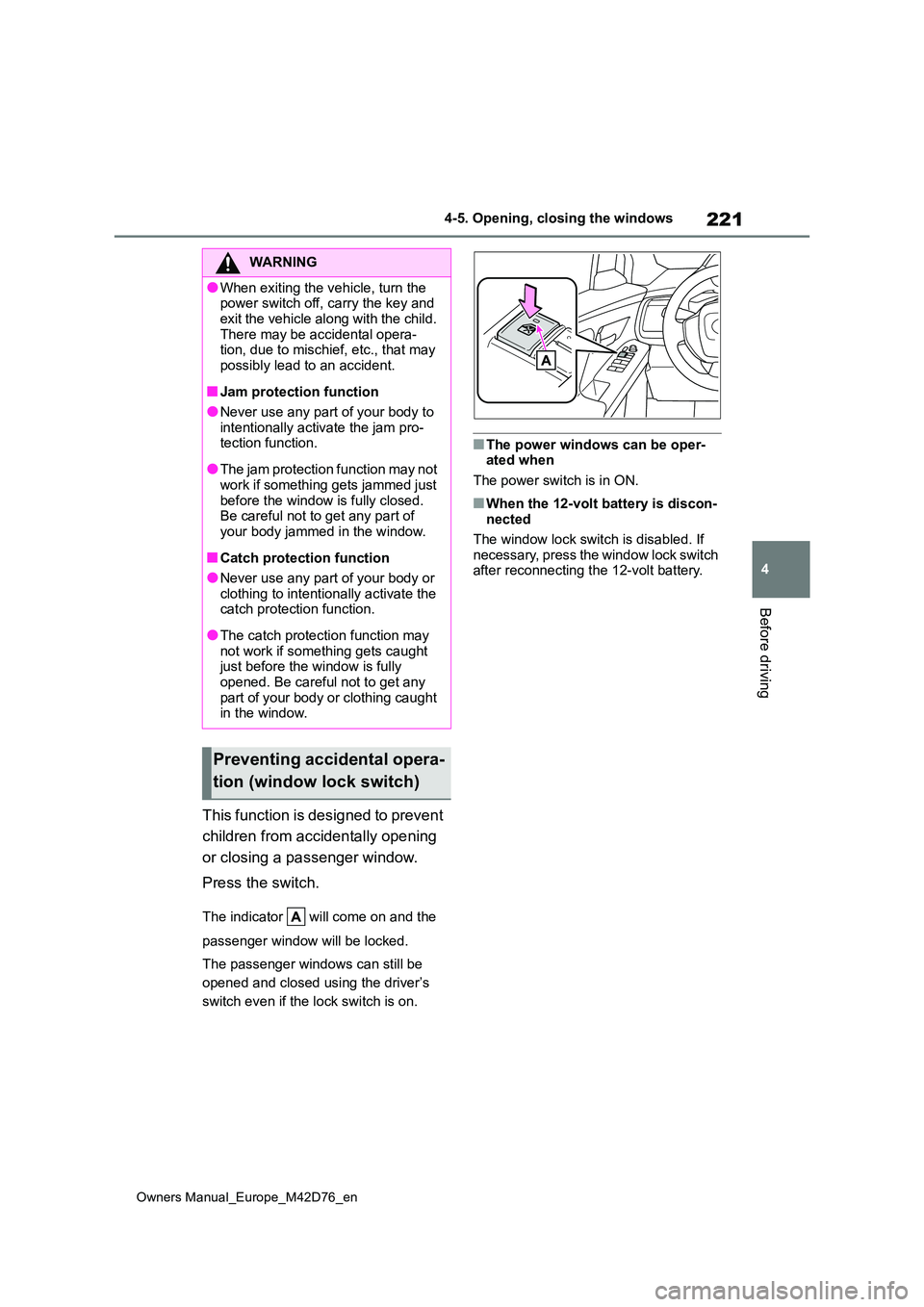

221
4
Owners Manual_Europe_M42D76_en
4-5. Opening, closing the windows
Before driving
This function is designed to prevent
children from accidentally opening
or closing a passenger window.
Press the switch.
The indicator will come on and the
passenger window will be locked.
The passenger windows can still be
opened and closed using the driver’s
switch even if the lock switch is on.
■The power windows can be oper- ated when
The power switch is in ON.
■When the 12-volt battery is discon- nected
The window lock switch is disabled. If
necessary, press the window lock switch after reconnecting the 12-volt battery.
WARNING
●When exiting the vehicle, turn the power switch off, carry the key and
exit the vehicle along with the child. There may be accidental opera-tion, due to mischief, etc., that may
possibly lead to an accident.
■Jam protection function
●Never use any part of your body to intentionally activate the jam pro-tection function.
●The jam protection function may not work if something gets jammed just
before the window is fully closed. Be careful not to get any part of your body jammed in the window.
■Catch protection function
●Never use any part of your body or
clothing to intentionally activate the catch protection function.
●The catch protection function may not work if something gets caught just before the window is fully
opened. Be careful not to get any part of your body or clothing caught in the window.
Preventing accidental opera-
tion (window lock switch)

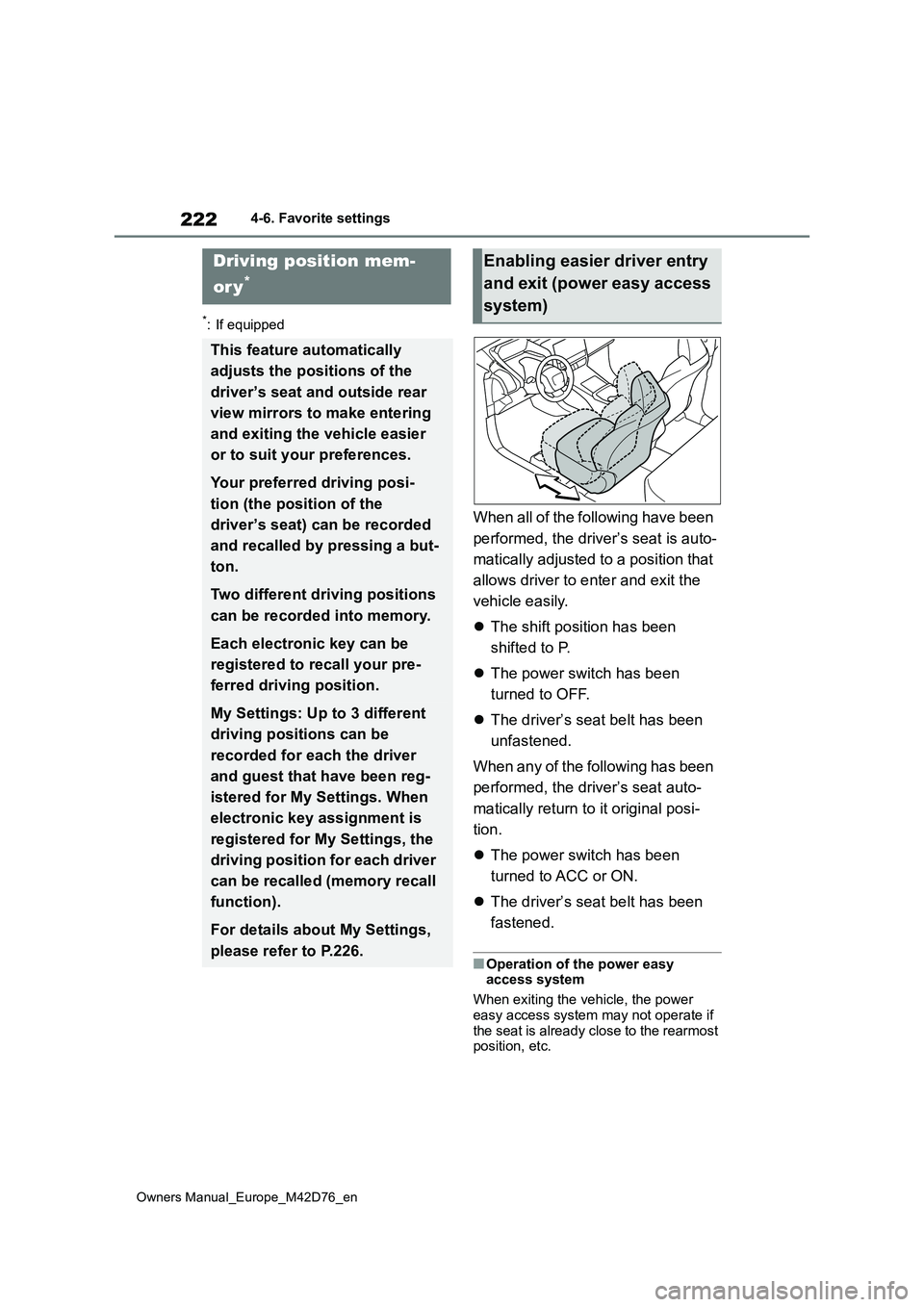

222
Owners Manual_Europe_M42D76_en
4-6. Favorite settings
4-6.Favo rite se ttin gs
*: If equipped
When all of the following have been
performed, the driver’s seat is auto-
matically adjusted to a position that
allows driver to enter and exit the
vehicle easily.
 The shift position has been
shifted to P.
 The power switch has been
turned to OFF.
 The driver’s seat belt has been
unfastened.
When any of the following has been
performed, the driver’s seat auto-
matically return to it original posi-
tion.
 The power switch has been
turned to ACC or ON.
 The driver’s seat belt has been
fastened.
■Operation of the power easy access system
When exiting the vehicle, the power
easy access system may not operate if the seat is already close to the rearmost position, etc.
Driving position mem-
or y*
This feature automatically
adjusts the positions of the
driver’s seat and outside rear
view mirrors to make entering
and exiting the vehicle easier
or to suit your preferences.
Your preferred driving posi-
tion (the position of the
driver’s seat) can be recorded
and recalled by pressing a but-
ton.
Two different driving positions
can be recorded into memory.
Each electronic key can be
registered to recall your pre-
ferred driving position.
My Settings: Up to 3 different
driving positions can be
recorded for each the driver
and guest that have been reg-
istered for My Settings. When
electronic key assignment is
registered for My Settings, the
driving position for each driver
can be recalled (memory recall
function).
For details about My Settings,
please refer to P.226.
Enabling easier driver entry
and exit (power easy access
system)

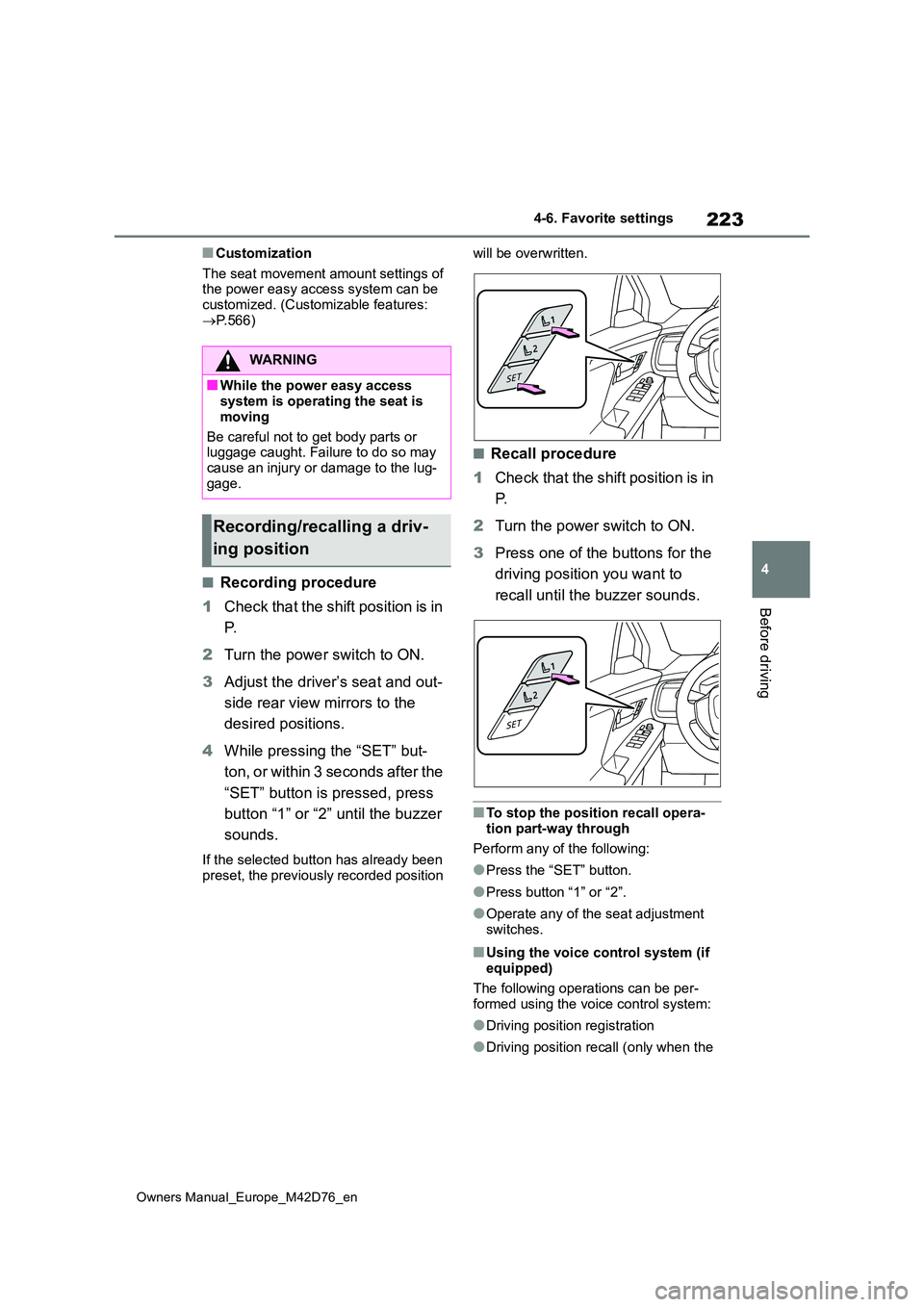

223
4
Owners Manual_Europe_M42D76_en
4-6. Favorite settings
Before driving
■Customization
The seat movement amount settings of the power easy access system can be customized. (Customizable features:
 P.566)
■Recording procedure
1 Check that the shift position is in
P.
2 Turn the power switch to ON.
3 Adjust the driver’s seat and out-
side rear view mirrors to the
desired positions.
4 While pressing the “SET” but-
t o n , o r w i t h i n 3 s e c o n d s a f t e r t h e
“SET” button is pressed, press
button “1” or “2” until the buzzer
sounds.
If the selected button has already been preset, the previously recorded position
will be overwritten.
■Recall procedure
1 Check that the shift position is in
P.
2 Turn the power switch to ON.
3 Press one of the buttons for the
driving position you want to
recall until the buzzer sounds.
■To stop the position recall opera- tion part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1” or “2”.
●Operate any of the seat adjustment switches.
■Using the voice control system (if equipped)
The following operations can be per- formed using the voice control system:
●Driving position registration
●Driving position recall (only when the
WARNING
■While the power easy access system is operating the seat is
moving
Be careful not to get body parts or luggage caught. Failure to do so may
cause an injury or damage to the lug- gage.
Recording/recalling a driv-
ing position

224
Owners Manual_Europe_M42D76_en
4-6. Favorite settings
shift position is in P)
For details, refer to the “Multimedia owner’s manual”.
■Seat positions that can be memo-rized ( P.208)
The adjusted positions other than the position adjusted by lumbar support switch can be recorded.
■Operating the driving position
memory after turning the power switch to OFF
Recorded seat positions can be acti-
vated up to 180 seconds after the driver’s door is opened and another 60 seconds after it is closed again.
■In order to correctly use the driving
position memory function
If a seat position is already in the fur- thest possible position and the seat is
operated in the same direction, the recorded position may be slightly differ-ent when it is recalled.
■When recalling the driving position
Take care so that a head restraint does not contact the ceiling or a sun visor.
■If the 12-volt battery is discon-nected
The memorized positions are erased.
■When the recorded seat position cannot be recalled
The seat position may not be recalled in
some situations when the seat position is recorded in a certain range. For details, contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
■Jam protection function
While the driving position is recalled or
the power easy access system is oper- ating, if an object is stuck behind the front seat, the front seat will stop and
then slightly move forward. When the jam protection function operates, the seat stops at a position other than the
set seat position. Check the seat posi- tion.
■Registering procedure
Record your driving position to but-
ton “1” or “2” before performing the
following:
Carry only the key you want to reg-
ister, and then close the driver’s
door.
If 2 or more keys are in the vehicle,
the driving position cannot be
recorded properly.
1 Check that the shift position is in
P.
2 Turn the power switch to ON.
3 Recall the driving position that
you want to record.
4 While pressing the recalled but-
ton, press and hold the door
lock switch (either lock or
unlock) until the buzzer sounds.
If the driving position could not be regis-
tered, the buzzer sounds continuously
WARNING
■Seat adjustment caution
Take care during seat adjustment so
that the seat does not strike the rear passenger or squeeze your body against the steering wheel.
Registering/recall/canceling
an electronic key to driving
position (memory recall
function)

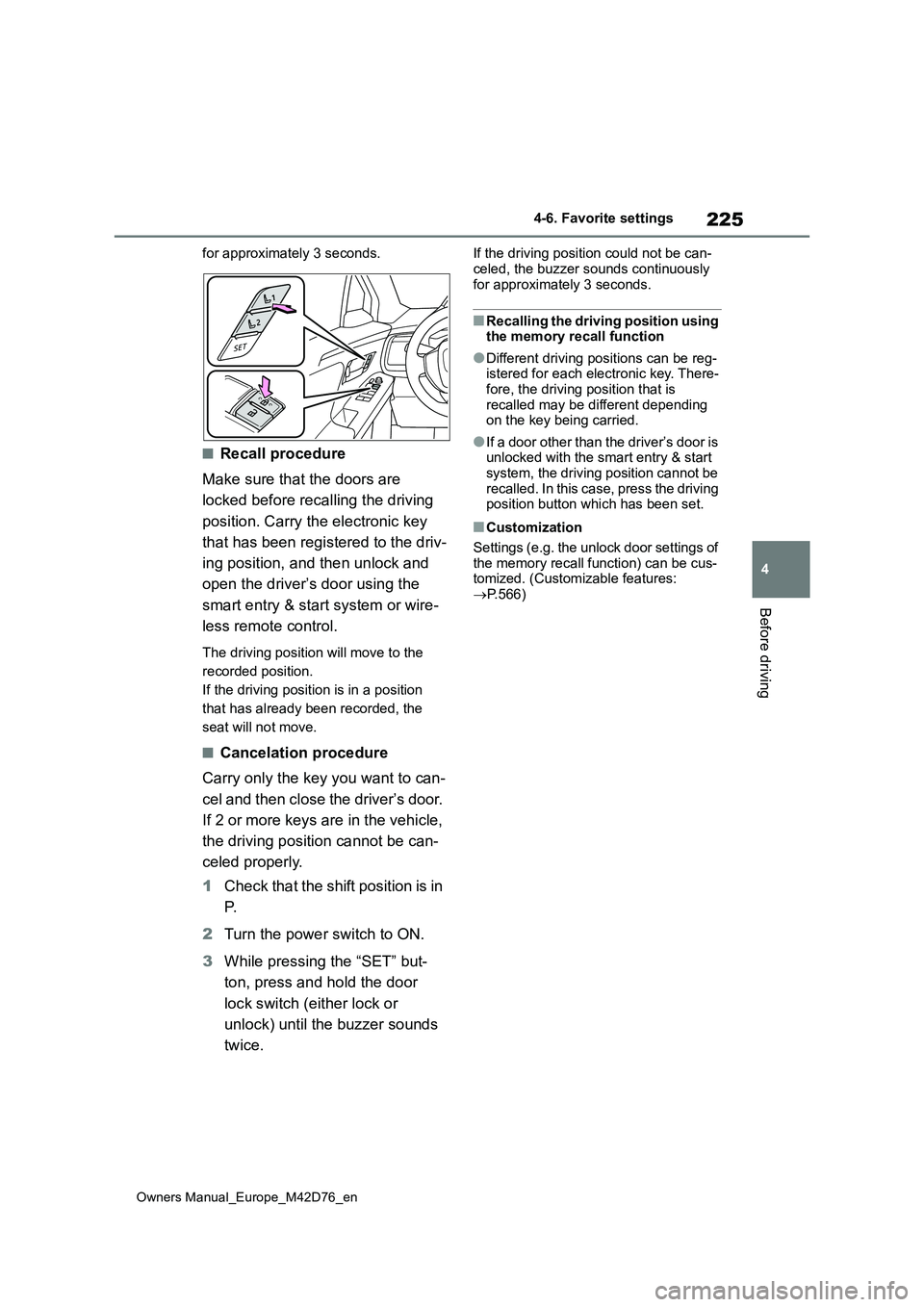

225
4
Owners Manual_Europe_M42D76_en
4-6. Favorite settings
Before driving
for approximately 3 seconds.
■Recall procedure
Make sure that the doors are
locked before recalling the driving
position. Carry the electronic key
that has been registered to the driv-
ing position, and then unlock and
open the driver’s door using the
smart entry & start system or wire-
less remote control.
The driving position will move to the
recorded position.
If the driving position is in a position
that has already been recorded, the
seat will not move.
■Cancelation procedure
Carry only the key you want to can-
cel and then close the driver’s door.
If 2 or more keys are in the vehicle,
the driving position cannot be can-
celed properly.
1 Check that the shift position is in
P.
2 Turn the power switch to ON.
3 While pressing the “SET” but-
ton, press and hold the door
lock switch (either lock or
unlock) until the buzzer sounds
twice.
If the driving position could not be can-
celed, the buzzer sounds continuously for approximately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be reg-istered for each electronic key. There-fore, the driving position that is
recalled may be different depending on the key being carried.
●If a door other than the driver’s door is unlocked with the smart entry & start system, the driving position cannot be
recalled. In this case, press the driving position button which has been set.
■Customization
Settings (e.g. the unlock door settings of
the memory recall function) can be cus- tomized. (Customizable features:  P.566)

226
Owners Manual_Europe_M42D76_en
4-6. Favorite settings
An individual can be identified
using the following authentication
devices.
 Electronic key
An individual is identified when the
smart entry & start system detects their
electronic key.
 Face identification
Individuals are identified by detecting
the face from the driver monitor.
 Bluetooth devices
An individual can be detected if the
same Bluetooth device that was used
as a handsfree phone the last time the
vehicle was entered is connected to the
audio system.
When an individual is identified
from an authentication device, set-
tings for the following functions are
recalled.
 Driving position (memory recall
function)*1
After an individual is identified, the driv-
ing position that was set when driving
was last completed is recalled when the
following operation is performed.
The door is unlocked and opened using
the smart entry & start system or wire-
less remote control.
 Meter display and multimedia
information*2
When an individual is identified, the
vehicle settings used when the power
switch was last turned off are recalled.
 Vehicle settings that can be set
using the multimedia display*2
When an individual is identified, the
vehicle settings used when the power
switch was last turned off are recalled.
 Safe driving support function*2
When an individual is identified, the
vehicle settings used when the power
switch was last turned off are recalled.
*1: If equipped
*2: Some settings are excluded
My Settings
By recognizing an individual
through a device, such as an
electronic key, the driving
position and vehicle settings
recorded for that driver can be
recalled when the vehicle is
entered. By assigning an
authentication device to a
driver in advance, the driver
can enter the vehicle with their
preferred settings. Settings for
u p t o 3 d riv ers c an be r ec or d ed
by My Settings. For details on
how to assign/delete electronic
keys, set driver names, per-
form initialization, change driv-
ers manually, or delete a driver,
refer to the “Multimedia
owner’s manual”.
Types of assigned authenti-
cation devices
Recalled functions

5
227
Owners Manual_Europe_M42D76_en
5
Driving
Driving
5-1. Before driving
Driving the vehicle ............ 229
Cargo and luggage ........... 235
Trailer towing .................... 237
5-2. Driving procedures
Power (ignition) switch ...... 243
Transmission .................... 247
Turn signal lever ............... 253
Parking brake ................... 254
Brake Hold ........................ 257
5-3. Operating the lights and wip-
ers
Headlight switch ............... 259
AHS (Adaptive High-beam
System) .......................... 262
AHB (Automatic High Beam)
....................................... 265
Fog light switch ................. 268
Windshield wipers and washer
....................................... 269
5-4. Using the driving support
systems
Software update................ 273
Toyota Safety Sense ......... 275
Driver monitor ................... 282
PCS (Pre-Collision System)
........................................ 283
LTA (Lane Tracing Assist) . 294
LDA (Lane Departure Alert)
........................................ 299
RSA (Road Sign Assist) .... 304
Dynamic radar cruise control
........................................ 307
Cruise control.................... 316
Speed limiter ..................... 318
Emergency Driving Stop Sys-
tem.................................. 321
BSM (Blind Spot Monitor) . 324
SEA (Safe Exit Assist)....... 328
Toyota parking assist-sensor
........................................ 333
RCTA (Rear Crossing Traffic
Alert) ............................... 343
RCD (Rear Camera Detection)
........................................ 348
PKSB (Parking Support Brake)
........................................ 352
Static Objects Front and Rear
of the Vehicle .................. 357
Moving Vehicle Rear of the
Vehicle ............................ 359
Pedestrians Rear of the Vehi-
cle ................................... 361

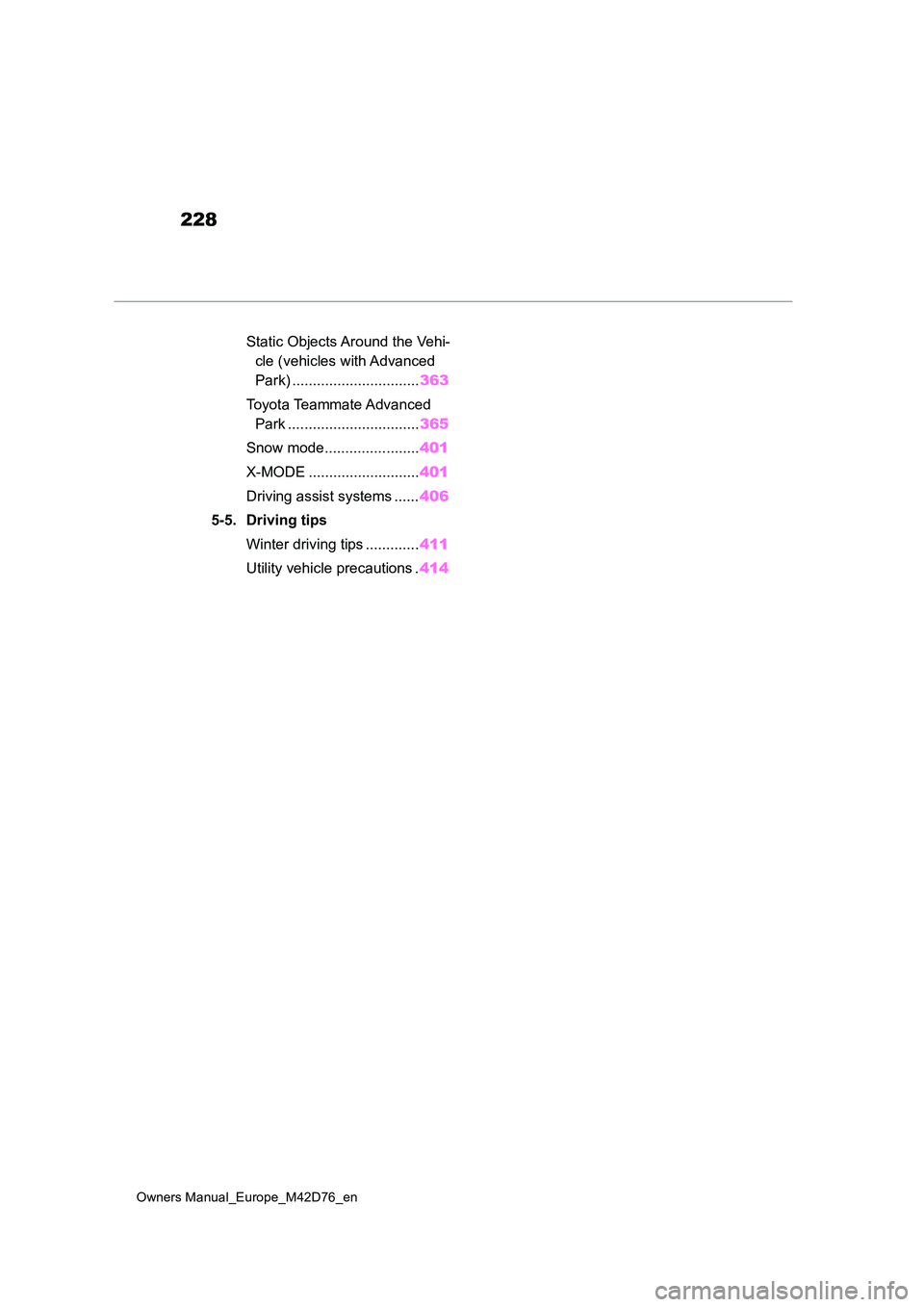

228
Owners Manual_Europe_M42D76_en
Static Objects Around the Vehi-
cle (vehicles with Advanced
Park) ............................... 363
Toyota Teammate Advanced
Park ................................ 365
Snow mode....................... 401
X-MODE ........................... 401
Driving assist systems ...... 406
5-5. Driving tips
Winter driving tips ............. 411
Utility vehicle precautions . 414
