5559-1. Specifications
Owners Manual_USA_M42C01_en
9
Vehicle specifications
*2: Make sure to confirm that the brake system warning light (yell ow) does
not illuminate. (If th e brake system warning light illuminates, refer to
P.513)
Vehicles with 18-inch wheels
Vehicles with 20-inch wheels
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire size235/60R18 103V
Tire inflation pressure
(Recommended cold tire infla-
tion pressure)
Front:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Rear:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Wheel size18 x 7 1/2J
Wheel bolt torque103 ft•lbf (140 N•m, 14.3 kgf•m)
Tire size235/50R20 100V
Tire inflation pressure
(Recommended cold tire infla-
tion pressure)
Front:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Rear:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Wheel size20 x 7 1/2J
Wheel bolt torque103 ft•lbf (140 N•m, 14.3 kgf•m)

5609-1. Specifications
Owners Manual_USA_M42C01_enheat buildup and possible tire fail- ure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked
for three hours or more, or has not been driven
more than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in
excess of those stan-
dard items which may be replaced) of transmis-
sion, power steering, power brakes, power
windows, power seats, radio and heater, to the
extent that these items are available as factory-
installed equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including th e maximum capacity of
traction battery and coolant, and if so equipped,
air conditioning and additional weight optional
traction motor
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight
150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
* that
follows
Occupant distributionDistribution of occupant s in a vehicle as speci-
fied in the third column of Table 1
* below

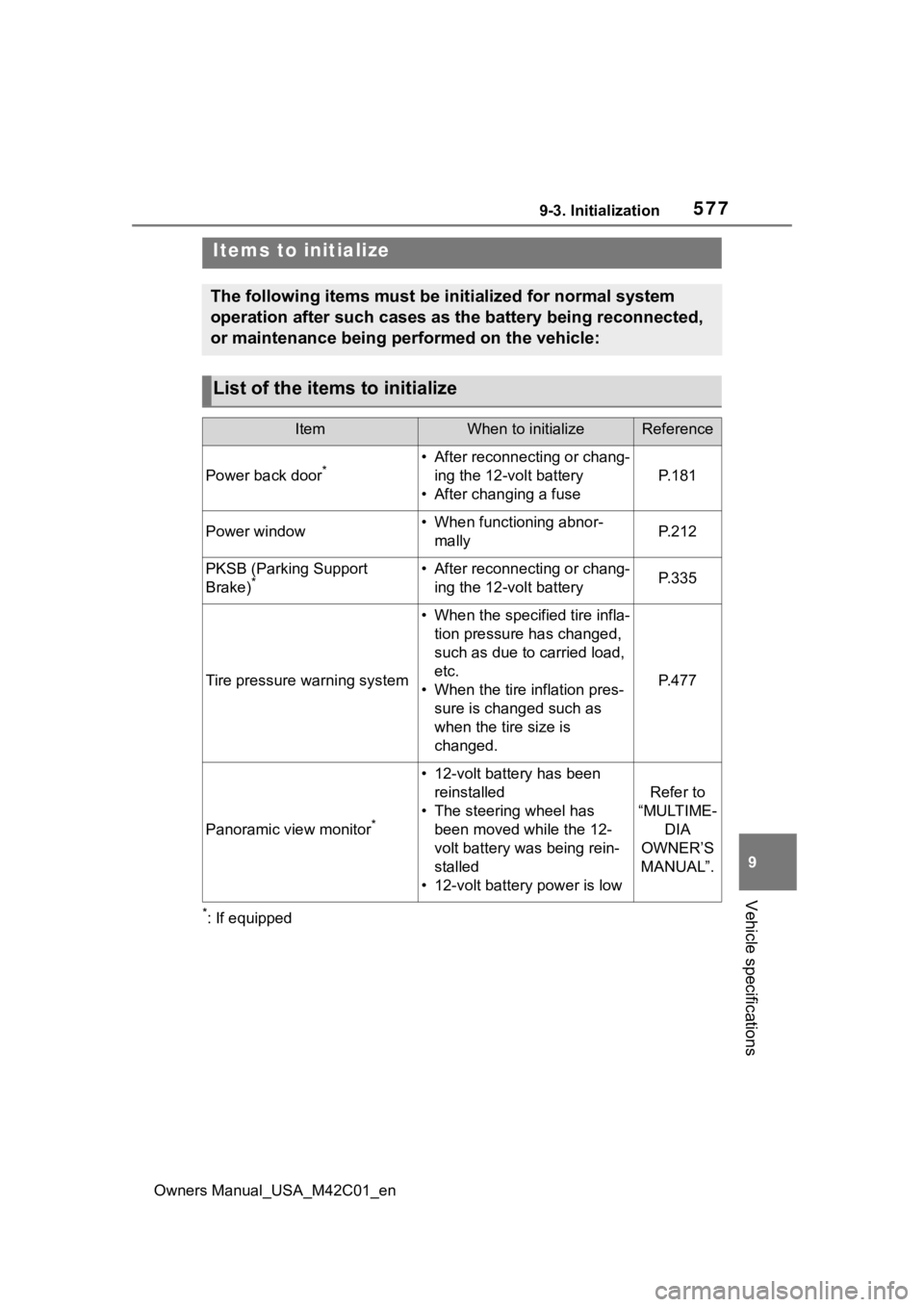

5779-3. Initialization
Owners Manual_USA_M42C01_en
9
Vehicle specifications
9-3.Initialization
*: If equipped
Items to initialize
The following items must be initialized for normal system
operation after such cases as the battery being reconnected,
or maintenance being performed on the vehicle:
List of the items to initialize
ItemWhen to initializeReference
Power back door*• After reconnecting or chang- ing the 12-volt battery
• After changing a fuse
P.181
Power window• When functioning abnor- mallyP.212
PKSB (Parking Support
Brake)*• After reconnecting or chang-ing the 12-volt batteryP.335
Tire pressure warning system
• When the specified tire infla-tion pressure has changed,
such as due to carried load,
etc.
• When the tire inflation pres- sure is changed such as
when the tire size is
changed.
P.477
Panoramic view monitor*
• 12-volt battery has been reinstalled
• The steering wheel has been moved while the 12-
volt battery was being rein-
stalled
• 12-volt battery power is low
Refer to
“MULTIME- DIA
OWNER’S
MANUAL”.

Owners Manual_USA_M42C01_en
Alphabetical Index601
Battery Electric Vehicle driving tips........................................ 81
Break-in tips ......................... 220
Correct posture ...................... 27
Procedures ........................... 219
Winter drive tips ................... 393
Driving assist information Warning light ........................ 517
Driving information display ... 157
Driving range .......................... 152
Driving support system informa- tion display ........................... 157
Dynamic radar cruise control ....................................... 288, 296Approach warning ................ 294
Curve speed redu ction function
........................................... 295
Warning lights....................... 518
E
ECB (Electronically Controlled Brake System) ...................... 387Warning light ........................ 513
Eco mode ................................ 241
EDR (Event data recorder)......... 9
Elapsed time ........................... 158
Electric motor (traction motor) Location.................................. 72
Electric motor(traction motor) Identification number ............ 551
Electric Power Steering (EPS) Function ............................... 387
Warning light ........................ 515
Electric Vehicle system features ................................................. 72
Electric Vehicle system precau-
tions......................................... 76
Electronic key Battery-saving function......... 188
If the electronic key does not operate properly ................. 539
Replacing the battery ........... 497 Electronic sunshade ..............426
Operation..............................426
Electronically Controlled Brake System (ECB) ........................387Warning light.........................513
Emergency Driving Stop System ...............................................299
Emergency flashers ...............504
Emergency tire puncture repair kit ...........................................527Storage location ...................528
Emergency, in case of If a warning buzzer sounds ..513
If a warning light turns on .....513
If a warning message is dis-played .................................522
If the 12-volt battery is dis- charged ..............................541
If the electronic key does not operate properly .................539
If the EV system will not start537
If the vehicle is submerged or water on the road is rising ..506
If you have a flat tire .............527
If you lose your keys.............539
If you think something is wrong ........................................... 511
If your vehicle becomes stuck ...........................................547
If your vehicle has to be stopped in an emergency .................505
If your vehicle needs to be towed ...........................................507
If your vehicle ove rheats ......545
Engine Hood .....................................462
EPS (Electric Po wer Steering)
Function................................387
Warning light.........................515
EV system .................................72 ACC ......................................234
