torque TOYOTA BZ4X 2023 Owners Manual

1583-1. Instrument cluster
Owners Manual_USA_M42C01_en
meter using the meter control
switches.
This menu icon can be set to be
displayed/not displayed in .
■Display items
 Drive information
 Torque distribution (if
equipped)
 Tire inflation pressure
■Drive information
2 items that are selected using
the “Drive Info. Items” setting
(average speed, distance and
total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive
Info. Type” setting (since the
system was started or between
resets). ( P.158)
Use the displayed information
as a reference only.
Following items will be dis-
played.
 “Trip”
• “Average Speed”: Displays the
average vehicle speed since EV
system start
*
• “Distance”: Displ ays the distance
driven since EV system start
*
• “Total Time”: Displays the elapsed time since EV system start
* *
: These items are r
eset each time
the EV system stops.
 “Total”
• “Average Speed”: Displays the
average vehicle speed since the
display was reset
*
• “Distance”: Displ ays the distance
driven since the display was
reset
*
• “Total Time”: Displays the elapsed
time since the display was reset
*
*
: To reset, display the desired item and press and hold the meter
control switch.
■Torque distribution (if
equipped)
Displays the drive status of each
wheel in 6 steps from 0 to 5.
■Tire inflation pressure
Displays inflation pressure of
each tire.
■Meter display settings that
can be changed
 Clock setting
P.154
 Language
Select to change the language dis-
played.
Units
Select to change the units of mea-
sure displayed.
Vehicle information dis-
play
Settings display

1593-1. Instrument cluster
Owners Manual_USA_M42C01_en
3
Vehicle status information and indicators

• Power consumption display
Select to change the average
power consumption display Trip
Average/Total Average. ( P.157)

Select to display/not display the
audio system linked display.

Select to change the displayed con-
tent of the following:
• Display contents (AWD models
only)
Select to display/not display the
torque distribution display.
• Drive information type
Select to change the drive informa-
tion type display between after
start/after reset.
• Drive information items
Select to set the first and second
items of the drive information dis-
play to any of the following: aver-
age vehicle
speed/distance/elapsed time.
 Closing Display
Select to set the i tems displayed
when the power switch is turned off.
 Pop-up display
Select to enable/disable pop-up
displays for each relevant system.
Calendar
The year, month, and day can be
set.
Default setting
Select to reset the meter display settings to the default setting.
■Vehicle functions and set-
tings that can be changed
 P.566
■Suspension of the settings dis-
play
●Some settings cannot be changed
while driving. When changing set-
tings, park the vehicle in a safe
place.
●If a warning message is displayed,
operation of the settings display
will be suspended.
Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.
■Suggestion to turn on the
headlights
If the headlight switch is in other
than or , and the vehicle
speed is 3 mph (5 km/h) or
higher for a certain amount of
time when the surroundings are
dark, a suggestion message will
be displayed.
NOTICE
■During setting up the display
To prevent 12-volt battery dis-
charge, ensure that the EV sys-
tem is operating while setting up
the display features.
Suggestion function

3875-4. Using the driving support systems
Owners Manual_USA_M42C01_en
5
Driving
■ECB (Electronically Con-
trolled Brake System)
The electronically controlled
system generates braking force
corresponding to the brake
operation
■ABS (Anti-lock Brake Sys-
tem)
Helps to prevent wheel lock
when the brakes are applied
suddenly, or if the brakes are
applied while driving on a slip-
pery road surface
■Brake assist
Generates an increased level of
braking force after the brake
pedal is depressed when the
system detects a panic stop sit-
uation
■VSC (Vehicle Stability Con-
trol)
Helps the driver to control skid-
ding when swerving suddenly or
turning on slippery road sur-
faces.
■Trailer Sway Control
Helps the driver to control trailer
sway by selectively applying
brake pressure for individual
wheels and reducing driving
torque when trailer sway is
detected.
■TRAC (Traction Control)
Helps to maintain drive power
and prevent the drive wheels
from spinning when starting the
vehicle or accelerating on slip-
pery roads
■Active Cornering Assist
(ACA)
Helps to prevent the vehicle
from drifting to the outer side by
performing inner wheel brake
control when attempting to
accelerate while turning
■Hill-start assist control
Helps to reduce the backward
movement of the vehicle when
starting on an uphill
■EPS (Electric Power Steer-
ing)
Employs an electric motor to
reduce the amount of effort
needed to turn the steering
wheel.
Driving assist systems
To keep driving safety and
performance, the following
systems operate automati-
cally in response to various
driving situations. Be
aware, however, that these
systems are supplementary
and should not be relied
upon too heavily when
operating the vehicle.
Summary of the driving
assist systems

4907-3. Do-it-yourself maintenance
Owners Manual_USA_M42C01_encontact surface, t
he wheel bolts
may loosen while the vehicle is in
motion, causing the tire to come off.

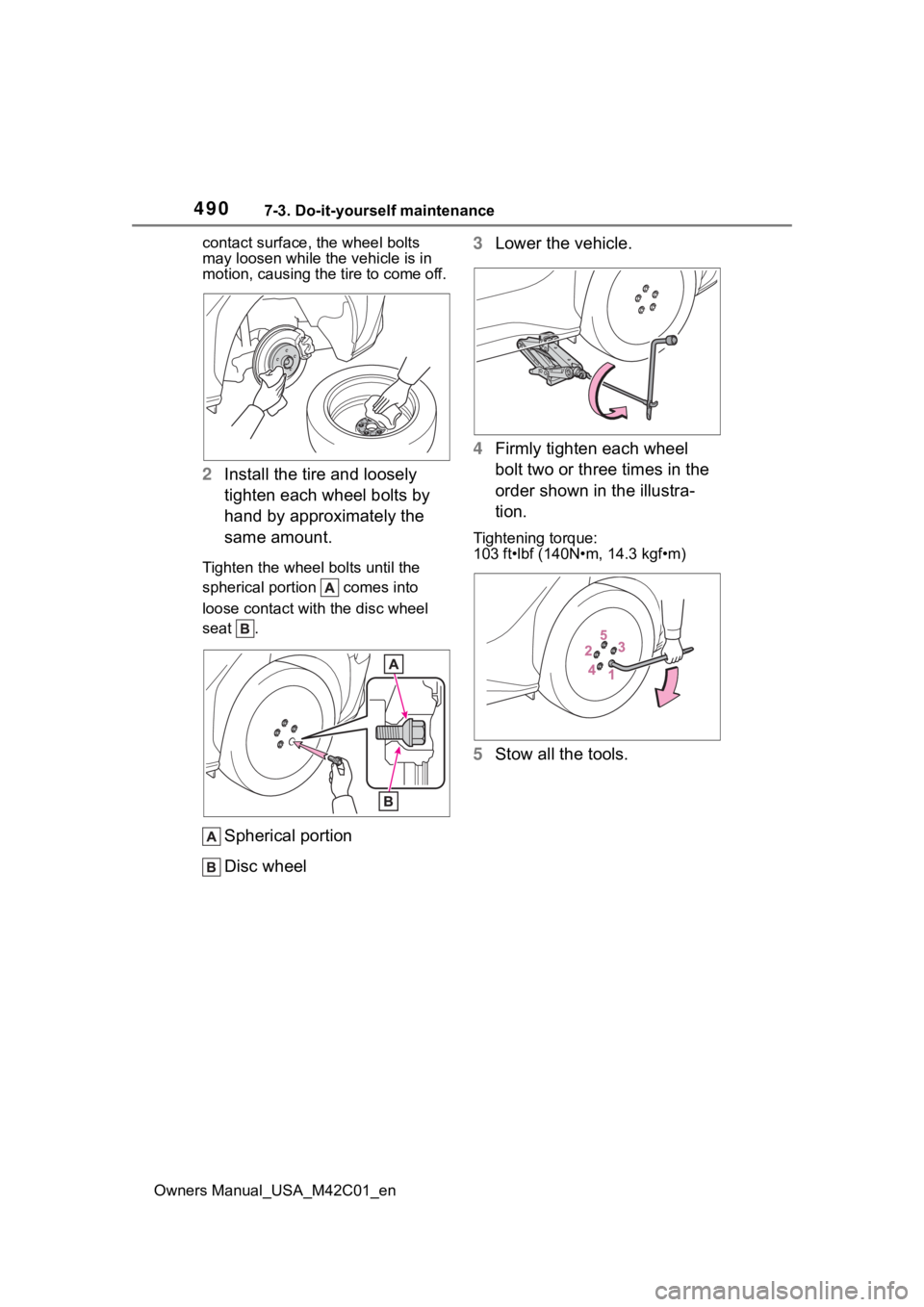

2 Install the tire and loosely
tighten each wheel bolts by
hand by approximately the
same amount.
Tighten the whee l bolts until the
spherical portion comes into
loose contact with the disc wheel
seat .
Spherical portion
Disc wheel 3
Lower the vehicle.
4 Firmly tighten each wheel
bolt two or three times in the
order shown in the illustra-
tion.
Tightening torque:
103 ft•lbf (140N•m, 14.3 kgf•m)
5Stow all the tools.

5519-1. Specifications
Owners Manual_USA_M42C01_en
9
Vehicle specifications
This number is also on the Certi-
fication Regulation Label.

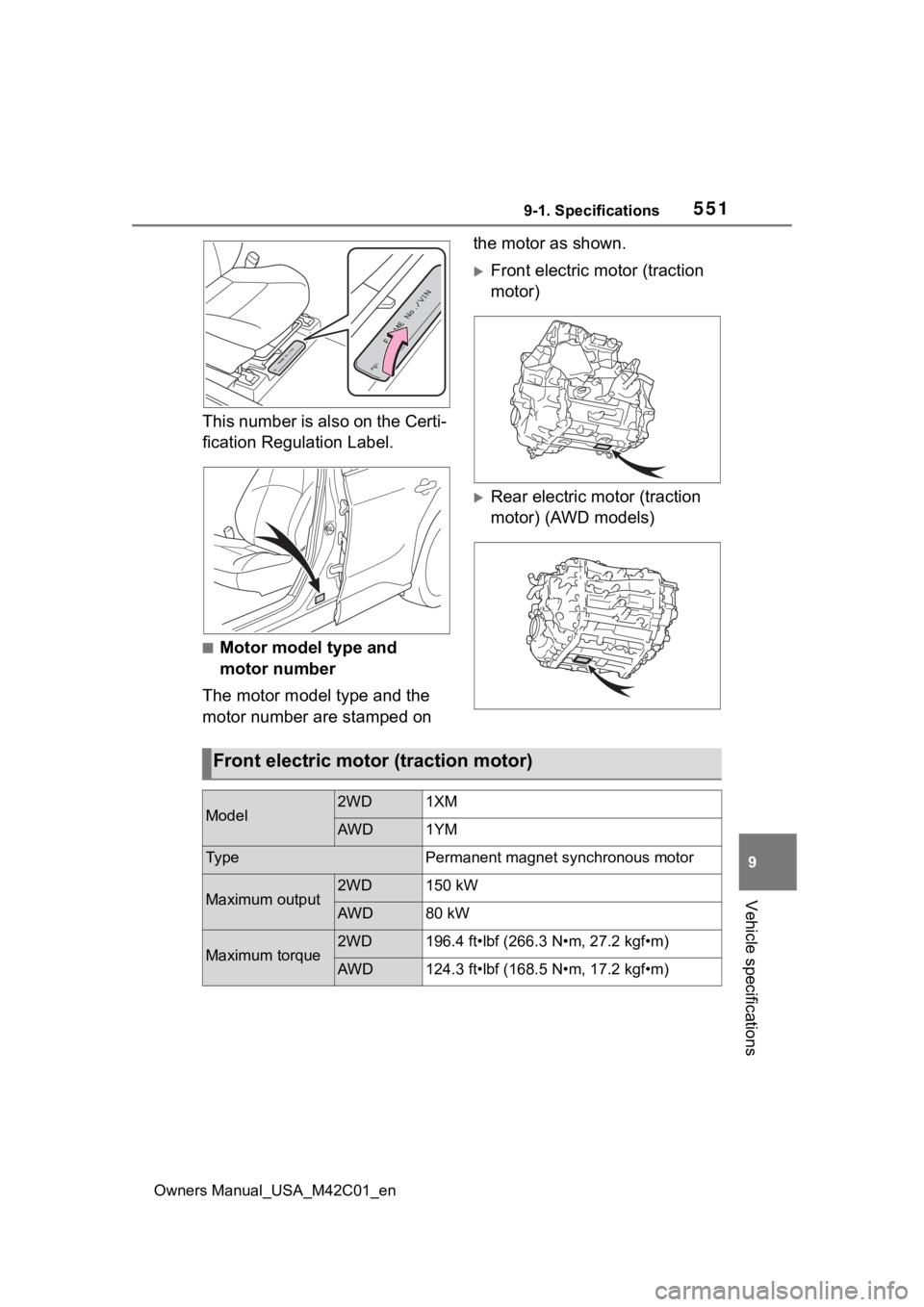

■Motor model type and
motor number
The motor model type and the
motor number are stamped on the motor as shown.
Front electric motor (traction
motor)
Rear electric motor (traction
motor) (AWD models)
Front electric mot
or (traction motor)
Model2WD1XM
AWD1YM
Ty p ePermanent magnet synchronous motor
Maximum output2WD150 kW
AWD80 kW
Maximum torque2WD196.4 ft•lbf (266.3 N•m, 27.2 kgf•m)
AWD124.3 ft•lbf (168.5 N•m, 17.2 kgf•m)

5529-1. Specifications
Owners Manual_USA_M42C01_en
*1: 2WD models
*2: AWD models
*1: The coolant capacity is the quantity of reference.
If replacement is ne cessary, contact your Toyota dealer.
*2: 2WD models
*3: AWD models

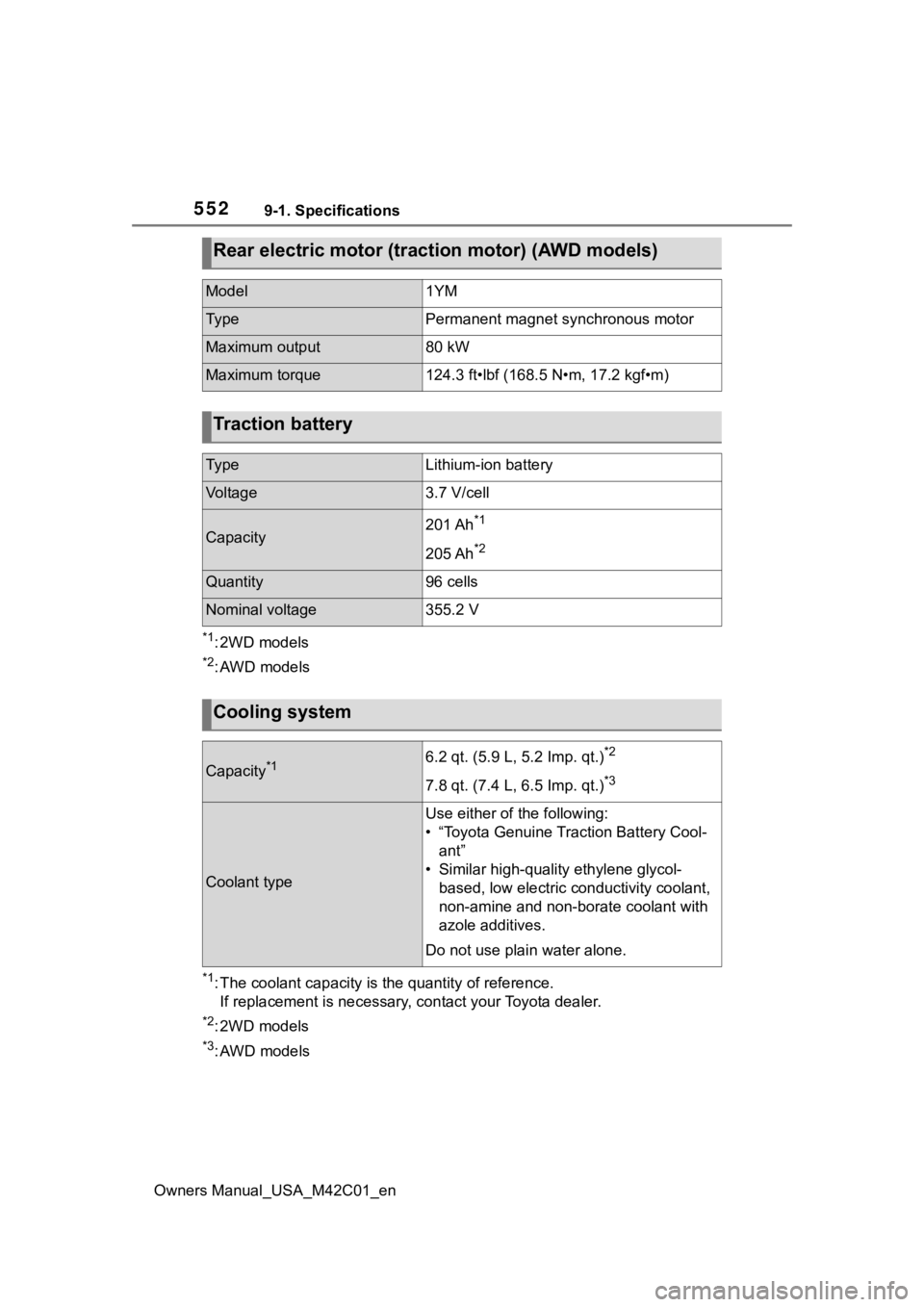

Rear electric motor (traction motor) (AWD models)
Model1YM
Ty p ePermanent magnet synchronous motor
Maximum output80 kW
Maximum torque124.3 ft•lbf (168.5 N•m, 17.2 kgf•m)
Traction battery
Ty p eLithium-ion battery
Voltage3.7 V/cell
Capacity201 Ah*1
205 Ah*2
Quantity96 cells
Nominal voltage355.2 V
Cooling system
Capacity*16.2 qt. (5.9 L, 5.2 Imp. qt.)*2
7.8 qt. (7.4 L, 6.5 Imp. qt.)*3
Coolant type
Use either of the following:
• “Toyota Genuine Tra ction Battery Cool-
ant”
• Similar high-quality ethylene glycol- based, low electric conductivity coolant,
non-amine and non-b orate coolant with
azole additives.
Do not use plain water alone.

5559-1. Specifications
Owners Manual_USA_M42C01_en
9
Vehicle specifications
*2: Make sure to confirm that the brake system warning light (yell ow) does
not illuminate. (If th e brake system warning light illuminates, refer to
P.513)
Vehicles with 18-inch wheels
Vehicles with 20-inch wheels

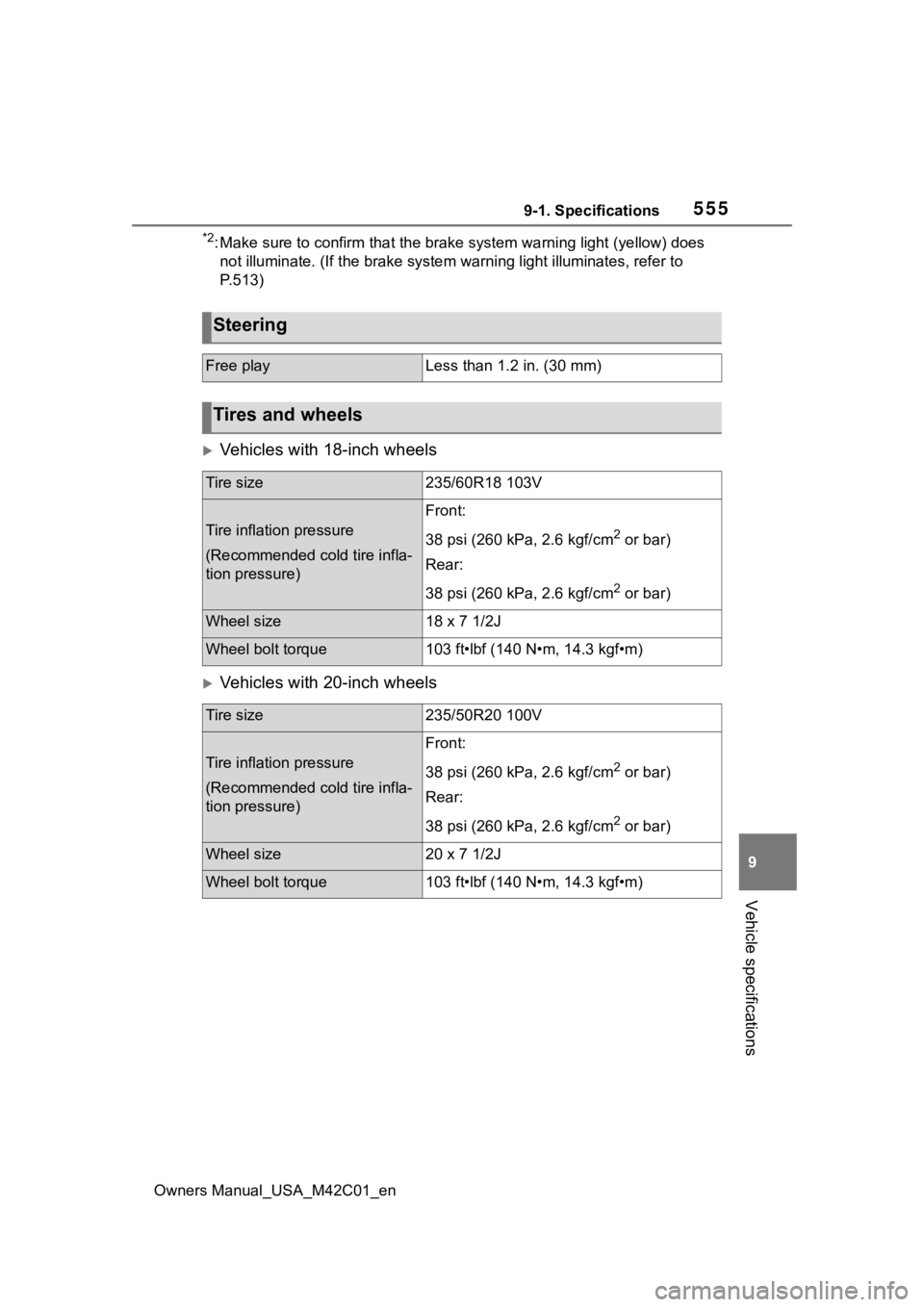

Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire size235/60R18 103V
Tire inflation pressure
(Recommended cold tire infla-
tion pressure)
Front:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Rear:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Wheel size18 x 7 1/2J
Wheel bolt torque103 ft•lbf (140 N•m, 14.3 kgf•m)
Tire size235/50R20 100V
Tire inflation pressure
(Recommended cold tire infla-
tion pressure)
Front:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Rear:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Wheel size20 x 7 1/2J
Wheel bolt torque103 ft•lbf (140 N•m, 14.3 kgf•m)
