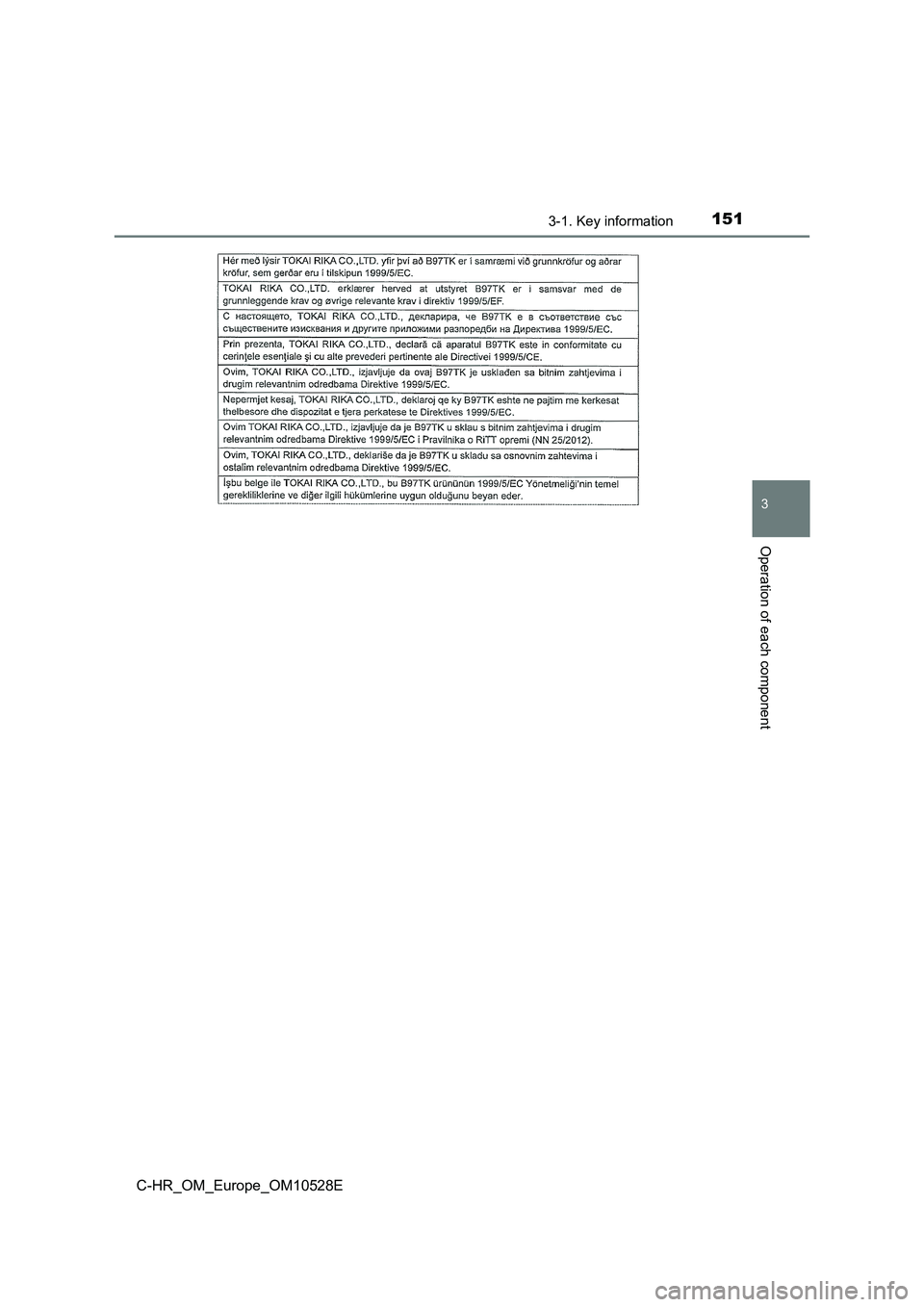

1513-1. Key information
3
Operation of each component
C-HR_OM_Europe_OM10528E

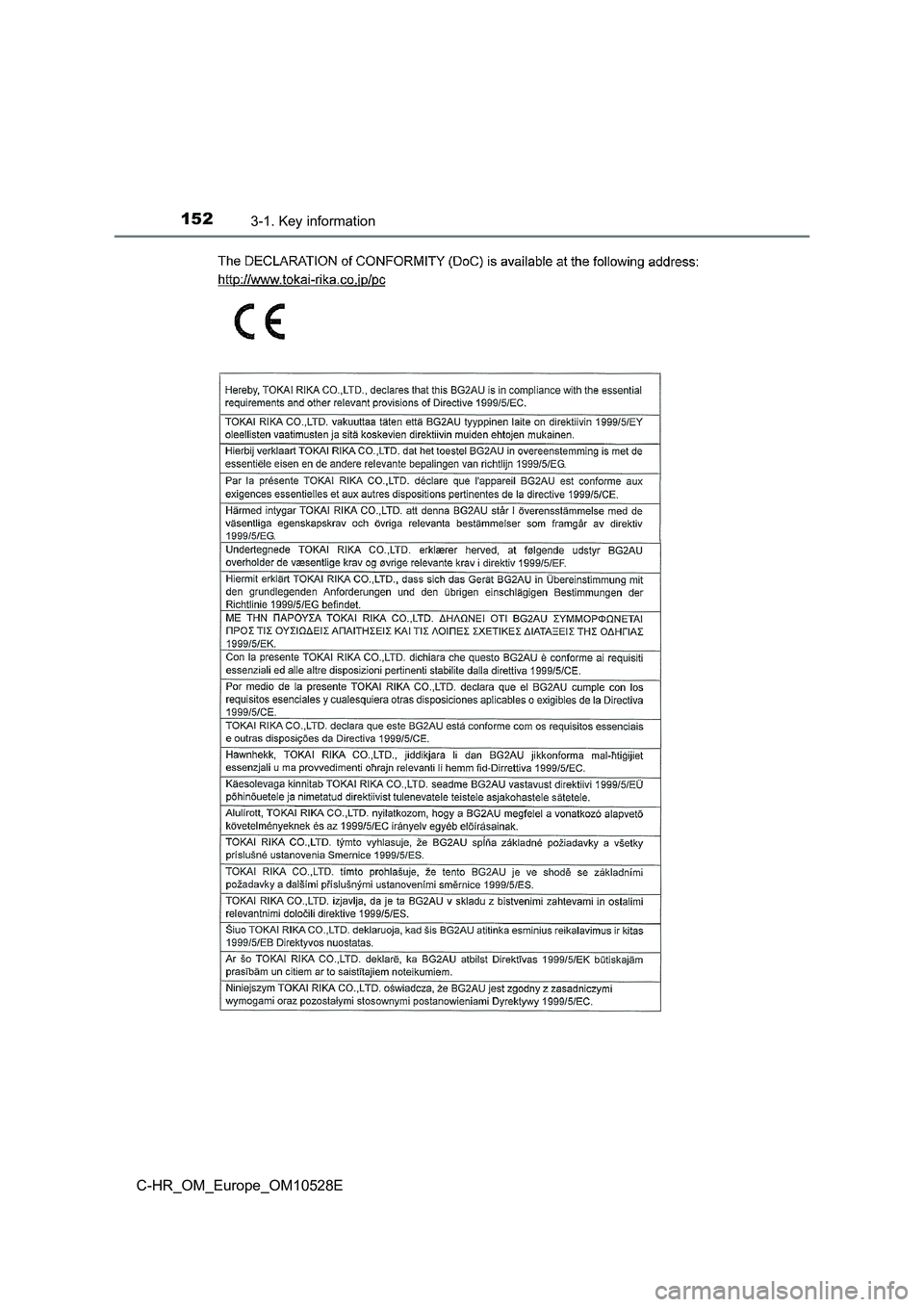

1523-1. Key information
C-HR_OM_Europe_OM10528E

1533-1. Key information
3
Operation of each component
C-HR_OM_Europe_OM10528E

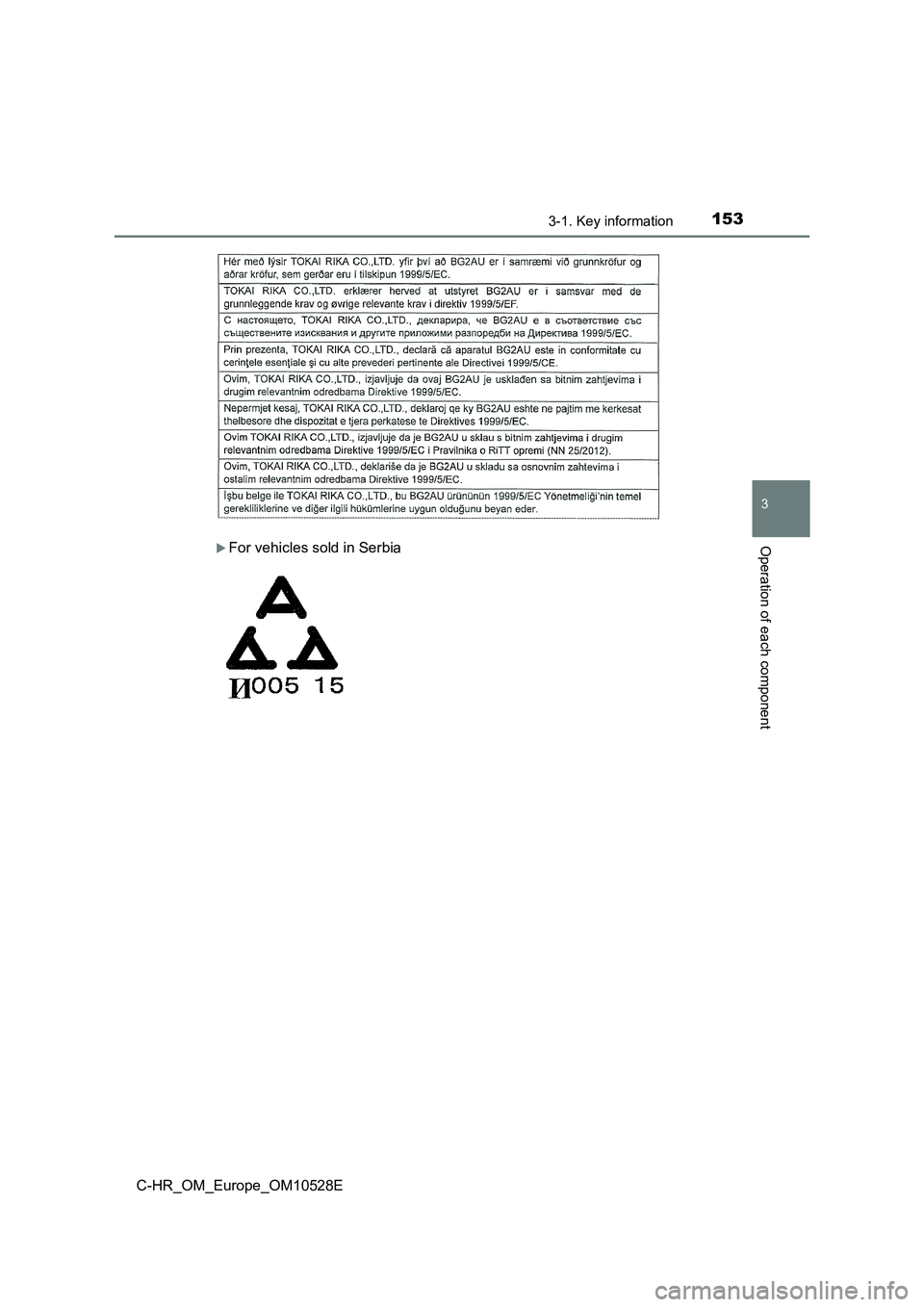

For vehicles sold in Serbia

1543-1. Key information
C-HR_OM_Europe_OM10528E

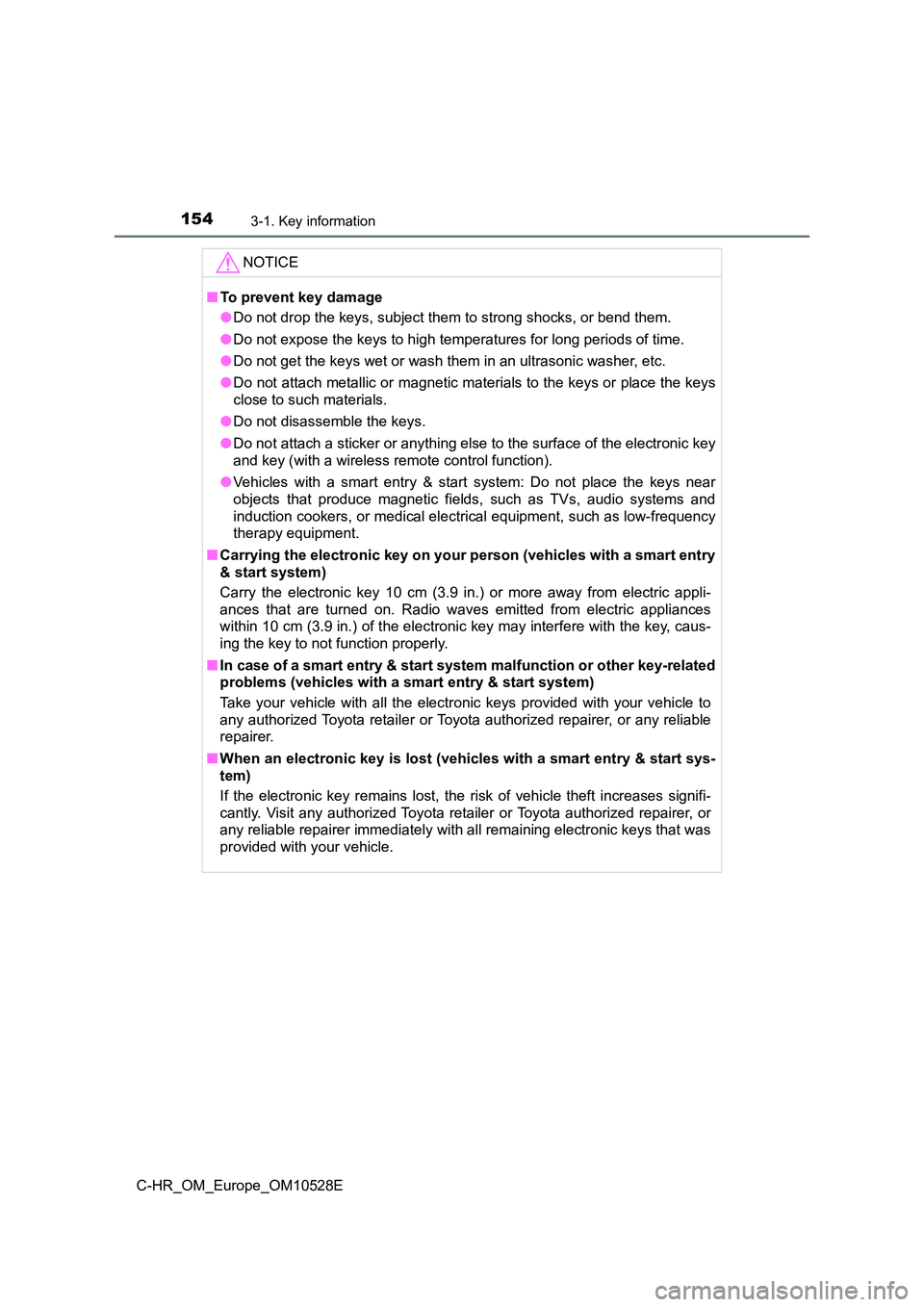

NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks, or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer, etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key
and key (with a wireless remote control function).
● Vehicles with a smart entry & start system: Do not place the keys near
objects that produce magnetic fields, such as TVs, audio systems and
induction cookers, or medical electr ical equipment, such as low-frequency
therapy equipment.
■ Carrying the electronic key on your person (vehicles with a smart entry
& start system)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio wave s emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart entry & start system malfunction or other key-related
problems (vehicles with a smart entry & start system)
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■ When an electronic key is lost (vehicles with a smart entry & start sys-
tem)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota reta iler or Toyota authorized repairer, or
any reliable repairer immedi ately with all remaining electronic keys that was
provided with your vehicle.

155
3
3-2. Opening, closing and locking the doors
Operation of each component
C-HR_OM_Europe_OM10528E
Side doors
◆Entry function (vehicles with a smart entry & start system)
Carry the electronic key to enable this function.
Grip the front door handle to
unlock all the doors.*
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the
indentation on the side of the
front door handle) to lock all
the doors.
Check that the door is securely locked.
*: The door unlock settings can be changed.( P. 162)
Unlocking and locking the doors from the outside
1
2

1563-2. Opening, closing and locking the doors
C-HR_OM_Europe_OM10528E

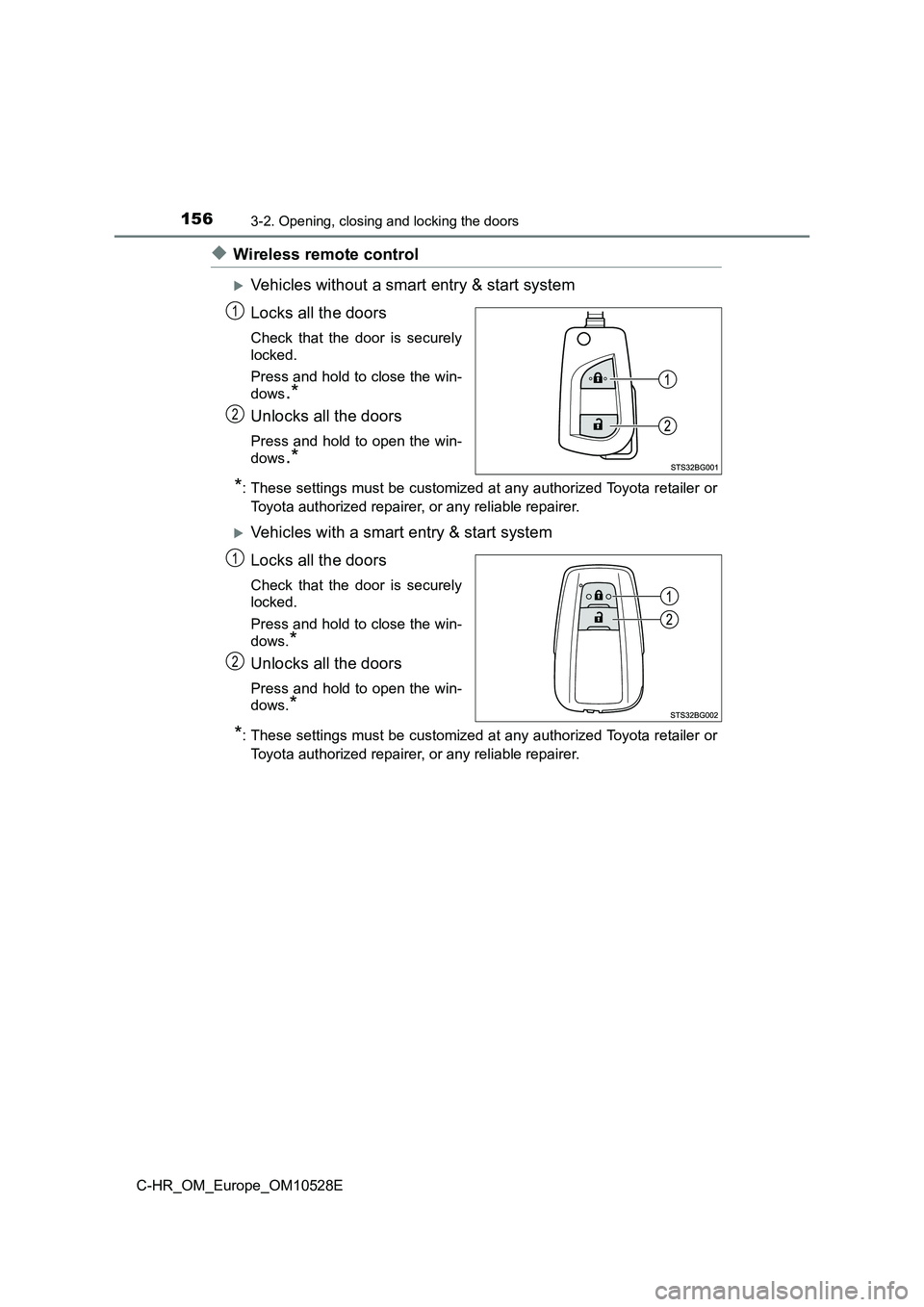

◆Wireless remote control
Vehicles without a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Press and hold to close the win-
dows.*
Unlocks all the doors
Press and hold to open the win-
dows.*
*: These settings must be customized at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Vehicles with a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Press and hold to close the win-
dows.*
Unlocks all the doors
Press and hold to open the win-
dows.*
*: These settings must be customized at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
1
2
1
2

1573-2. Opening, closing and locking the doors
3
Operation of each component
C-HR_OM_Europe_OM10528E

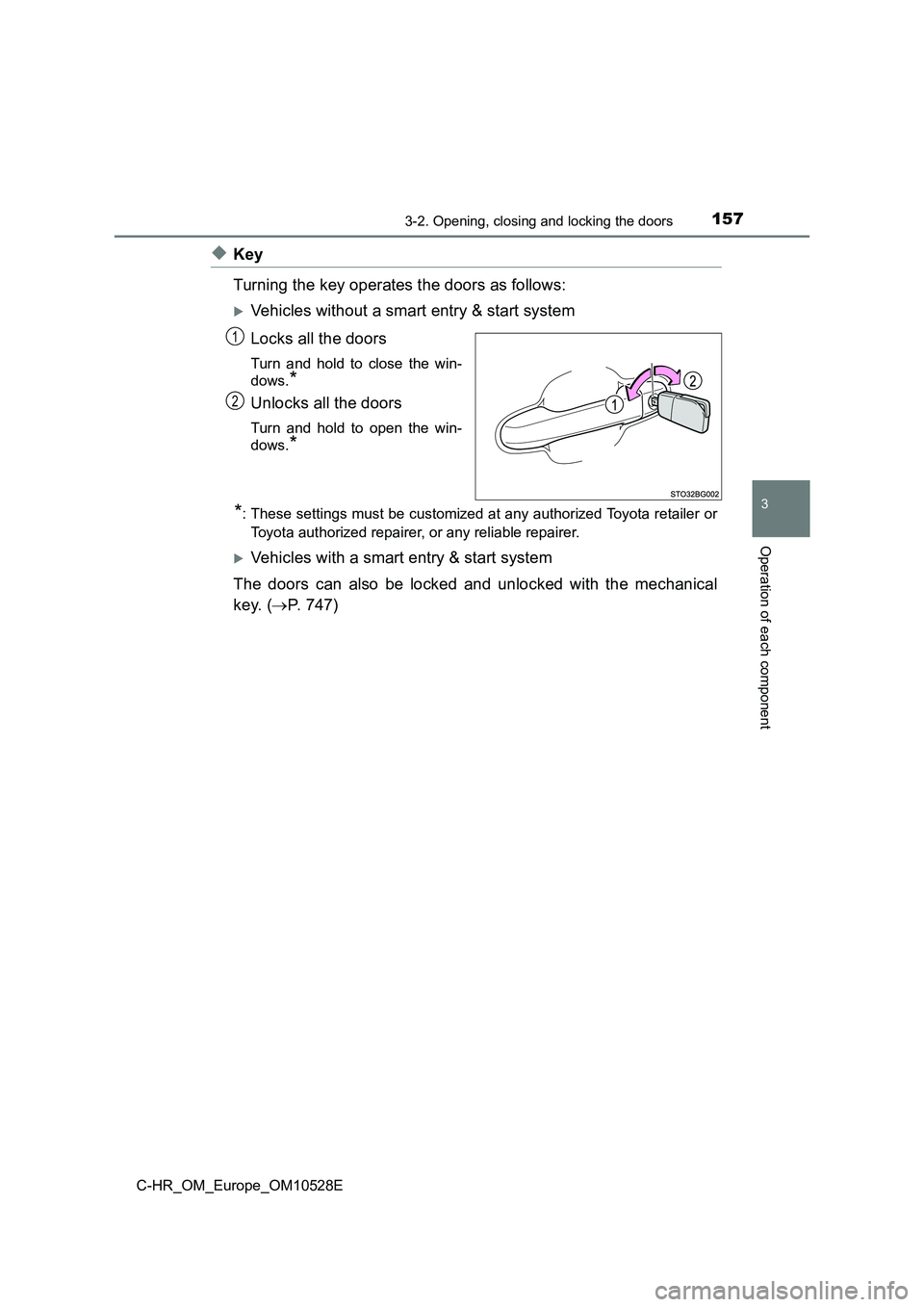

◆Key
Turning the key operates the doors as follows:
Vehicles without a smart entry & start system
Locks all the doors
Turn and hold to close the win-
dows.*
Unlocks all the doors
Turn and hold to open the win-
dows.*
*: These settings must be customized at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Vehicles with a smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. ( P. 747)
1
2

1583-2. Opening, closing and locking the doors
C-HR_OM_Europe_OM10528E
■Operation signals
Doors:
The emergency flashers flash to indicate that the doors have been locked/
unlocked using the entry function or wireless remote control. (Locked: Once;
Unlocked: Twice)
Windows (vehicles with a smart entry & start system):
A buzzer sounds to indicate that the windows are operating.
■ Security feature
Vehicles without a smart entry & start system
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked using the wireless remote control, the security feature automatically
locks the vehicle again.
Vehicles with a smart entry & start system
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked using the entry function or wireless remote control, the security fea-
ture automatically locks the vehicle again.
■ When the door cannot be locked by the lock sensor on the surface of the
front door handle (vehicles wi th a smart entry & start system)
Use your palm to touch the lock sensor.

1593-2. Opening, closing and locking the doors
3
Operation of each component
C-HR_OM_Europe_OM10528E

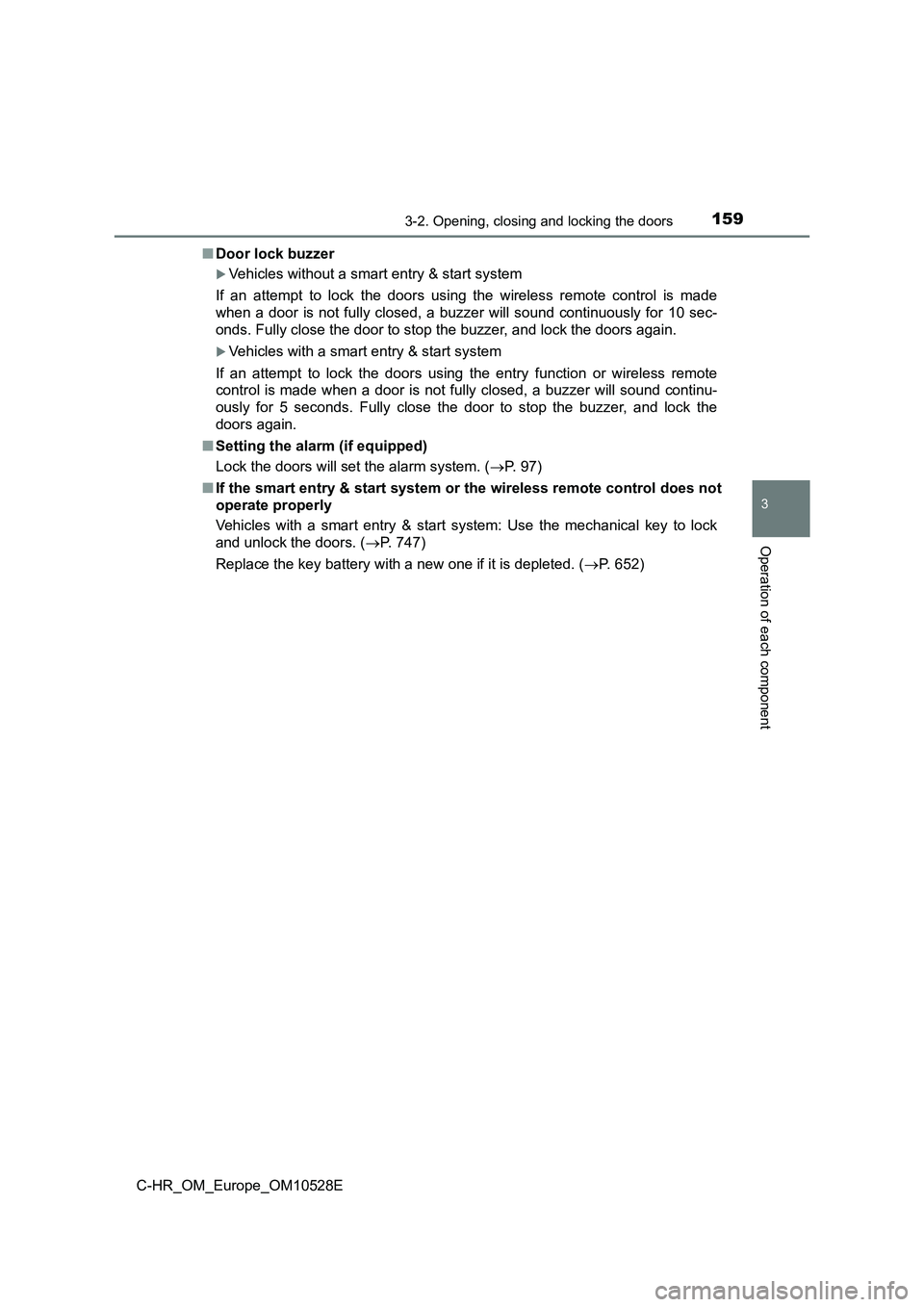

■ Door lock buzzer
Vehicles without a smart entry & start system
If an attempt to lock the doors using the wireless remote control is made
when a door is not fully closed, a buzzer will sound continuously for 10 sec-
onds. Fully close the door to stop the buzzer, and lock the doors again.
Vehicles with a smart entry & start system
If an attempt to lock the doors using the entry function or wireless remote
control is made when a door is not fully closed, a buzzer will sound continu-
ously for 5 seconds. Fully close the door to stop the buzzer, and lock the
doors again.
■ Setting the alarm (if equipped)
Lock the doors will set the alarm system. ( P. 97)
■ If the smart entry & start system or the wireless remote control does not
operate properly
Vehicles with a smart entry & start system: Use the mechanical key to lock
and unlock the doors. ( P. 747)
Replace the key battery with a new one if it is depleted. ( P. 652)

1603-2. Opening, closing and locking the doors
C-HR_OM_Europe_OM10528E

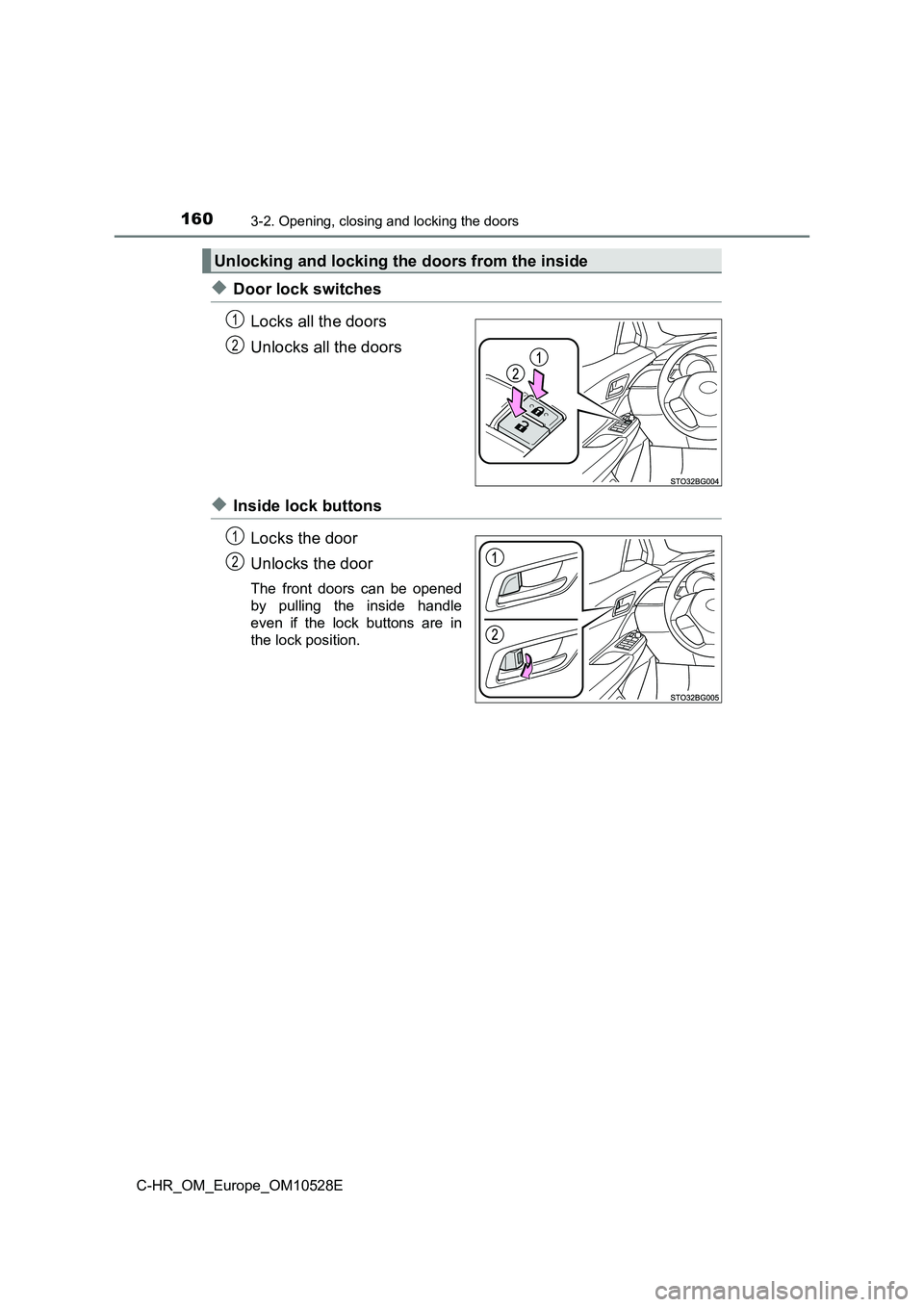

◆Door lock switches
Locks all the doors
Unlocks all the doors
◆Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Unlocking and locking the doors from the inside
1
2
1
2
