1212. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E
Odometer and trip meter display
Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Maintenance required information:
Displays the remaining distance until the engine oil should be changed. If
“-” is displayed before distance, it means oil maintenance is overdue. Have
the engine oil changed by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
• Displays the maintenance required information when the engine switch
is turned to the “ON” position (vehicles without smart entry & start sys-
tem) or in IGNITION ON mode (vehicles with smart entry & start sys-
tem).
• Maintenance required information reset method ( P. 621)
Stop & Start system operation time (if equipped):
Displays the total amount of time that the engine has been stopped due to
operation of the Stop & Start system during the time of the current engine
stop.
Instrument cluster light control display (monochrome display):
Displays the meter light control display.
Shift position and shift range display (color display)
Displays the selected shift position or selected shift range. ( P. 244)
Engine coolant temperature gauge
Displays the engine coolant temperature.
6
7
8

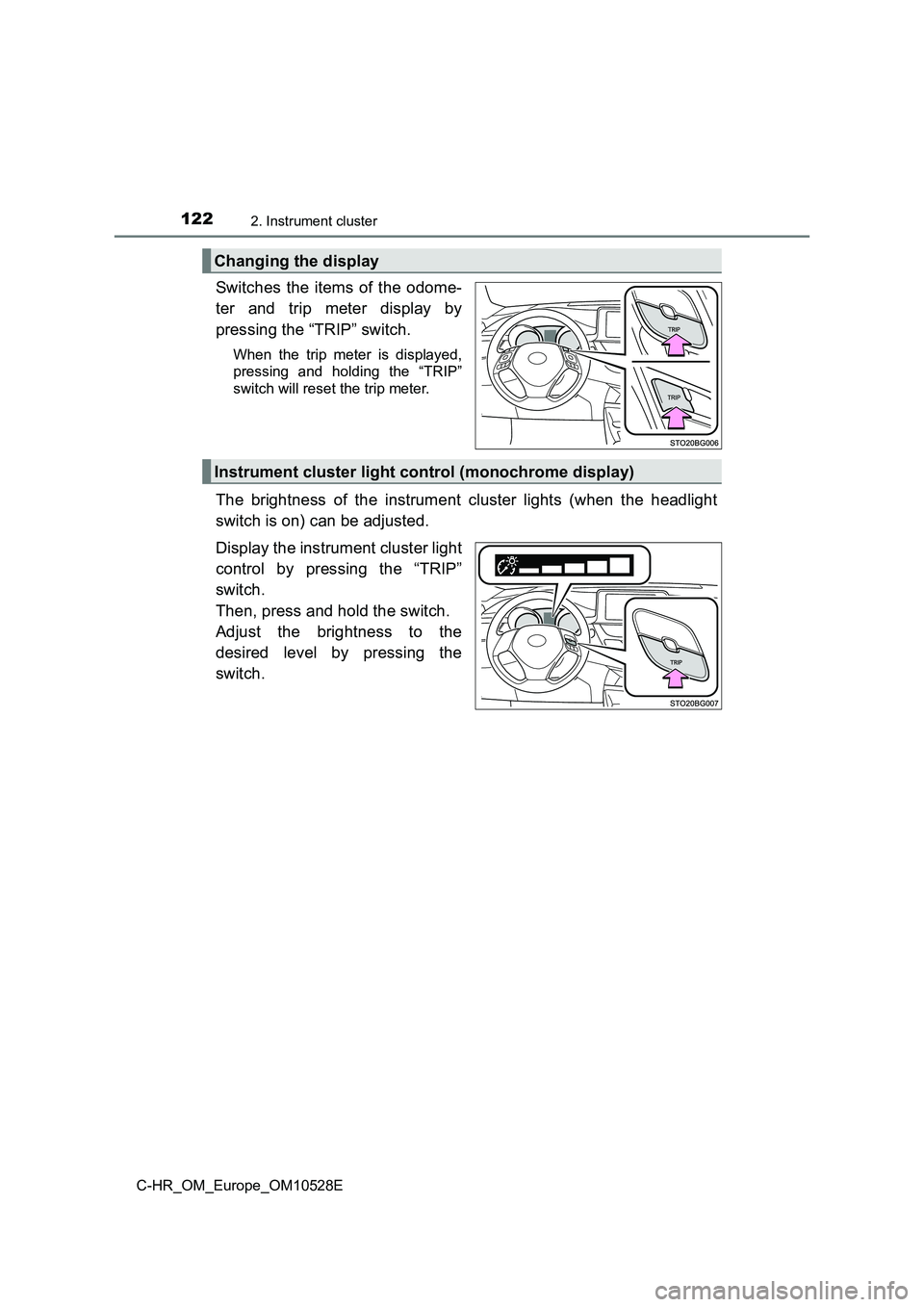

1222. Instrument cluster
C-HR_OM_Europe_OM10528E
Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.
When the trip meter is displayed,
pressing and holding the “TRIP”
switch will reset the trip meter.
The brightness of the instrument cluster lights (when the headlight
switch is on) can be adjusted.
Display the instrument cluster light
control by pressing the “TRIP”
switch.
Then, press and hold the switch.
Adjust the brightness to the
desired level by pressing the
switch.
Changing the display
Instrument cluster light control (monochrome display)

1232. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E
■The meters and display illuminate when
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The engine switch is in IGNITION ON mode.
■ Outside temperature display
● In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 25 km/h [16 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● When “--” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (“H”). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 756)

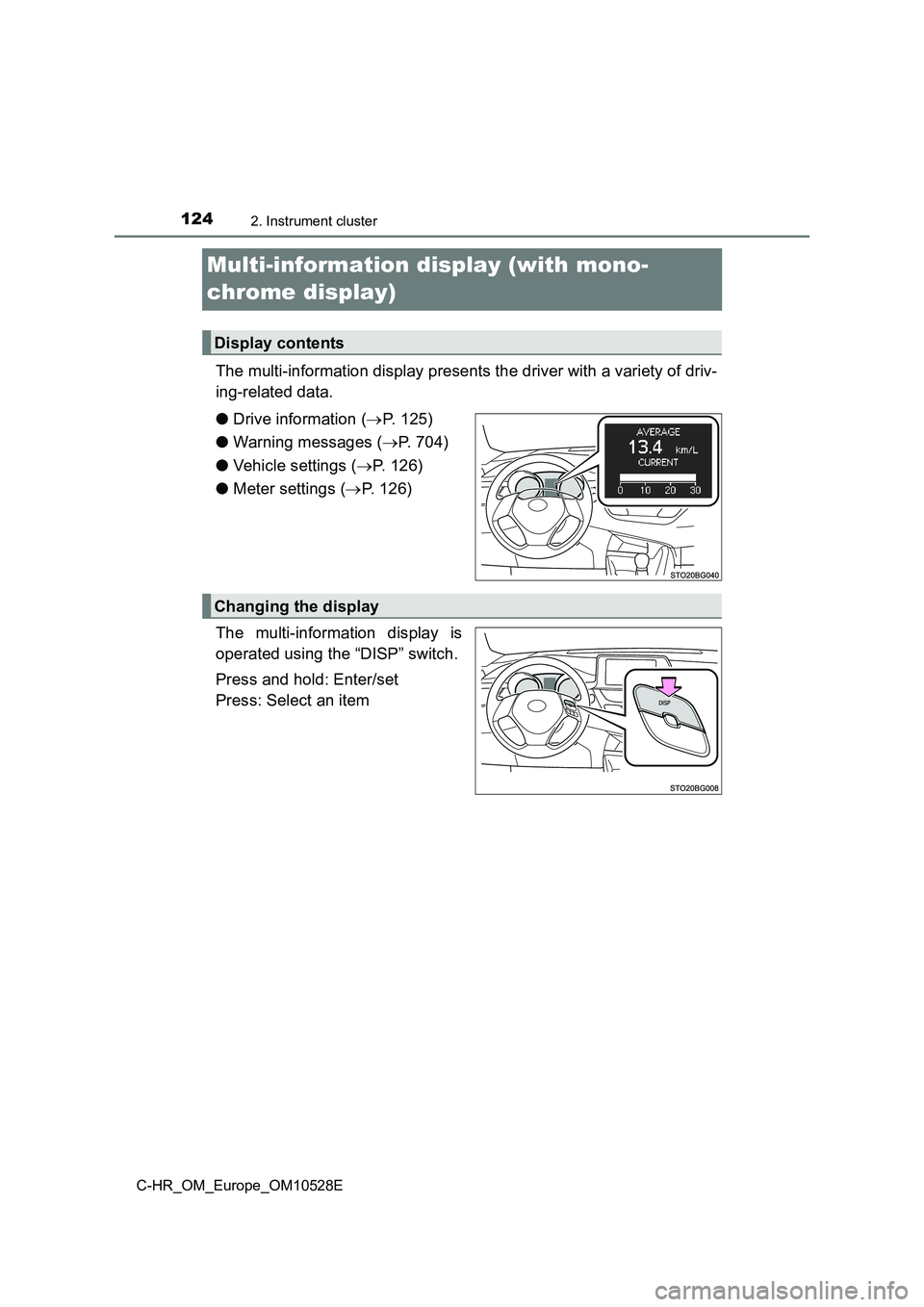

1242. Instrument cluster
C-HR_OM_Europe_OM10528E
Multi-information display (with mono-
chrome display)
The multi-information display presents the driver with a variety of driv-
ing-related data.
● Drive information (P. 125)
● Warning messages (P. 704)
● Vehicle settings (P. 126)
● Meter settings (P. 126)
The multi-information display is
operated using the “DISP” switch.
Press and hold: Enter/set
Press: Select an item
Display contents
Changing the display

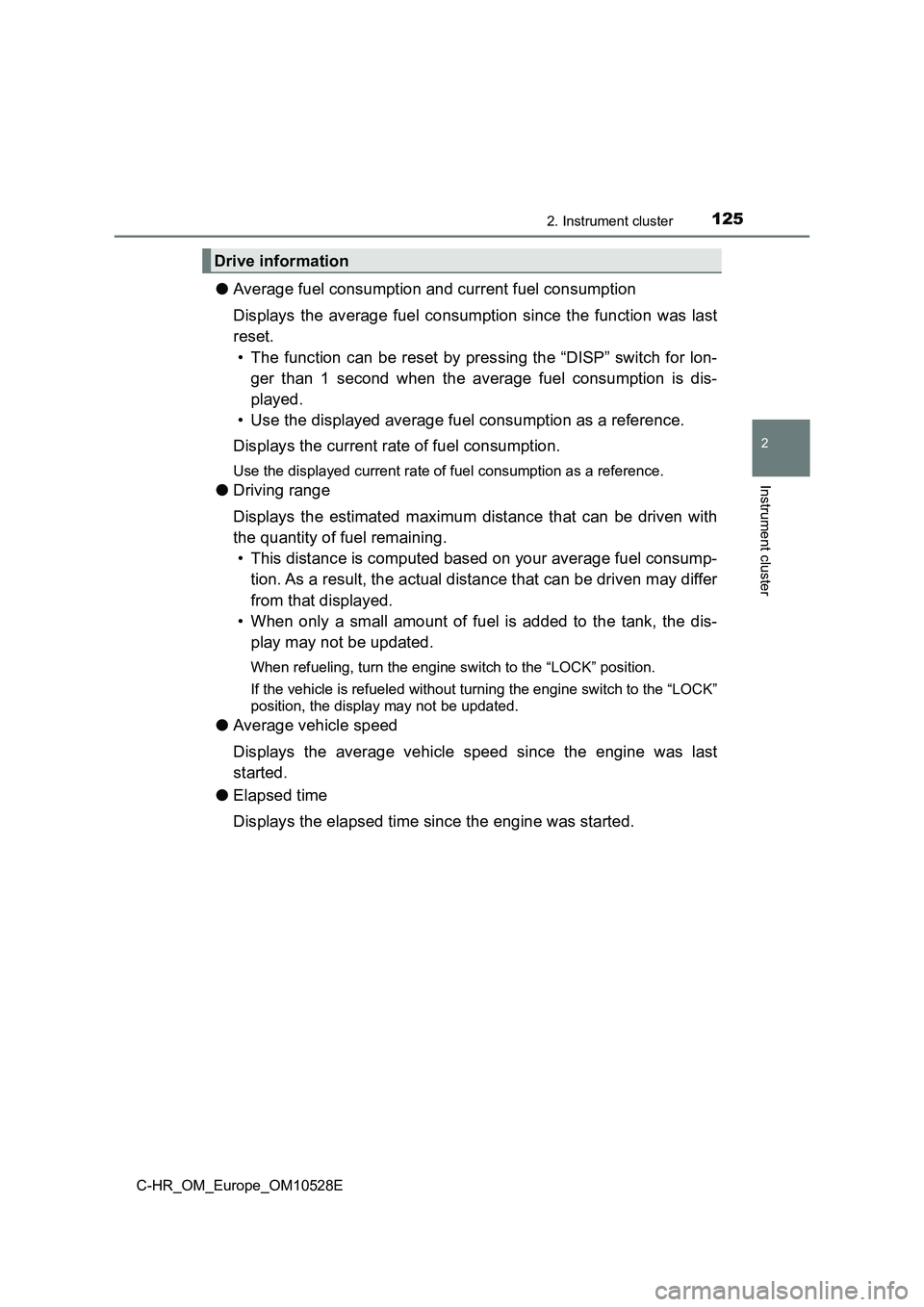

1252. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E
●Average fuel consumption and current fuel consumption
Displays the average fuel consumption since the function was last
reset.
• The function can be reset by pressing the “DISP” switch for lon-
ger than 1 second when the average fuel consumption is dis-
played.
• Use the displayed average fuel consumption as a reference.
Displays the current rate of fuel consumption.
Use the displayed current rate of fuel consumption as a reference.
● Driving range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consump-
tion. As a result, the actual distance that can be driven may differ
from that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the engine switch to the “LOCK” position.
If the vehicle is refueled without turning the engine switch to the “LOCK”
position, the display may not be updated.
● Average vehicle speed
Displays the average vehicle speed since the engine was last
started.
● Elapsed time
Displays the elapsed time since the engine was started.
Drive information

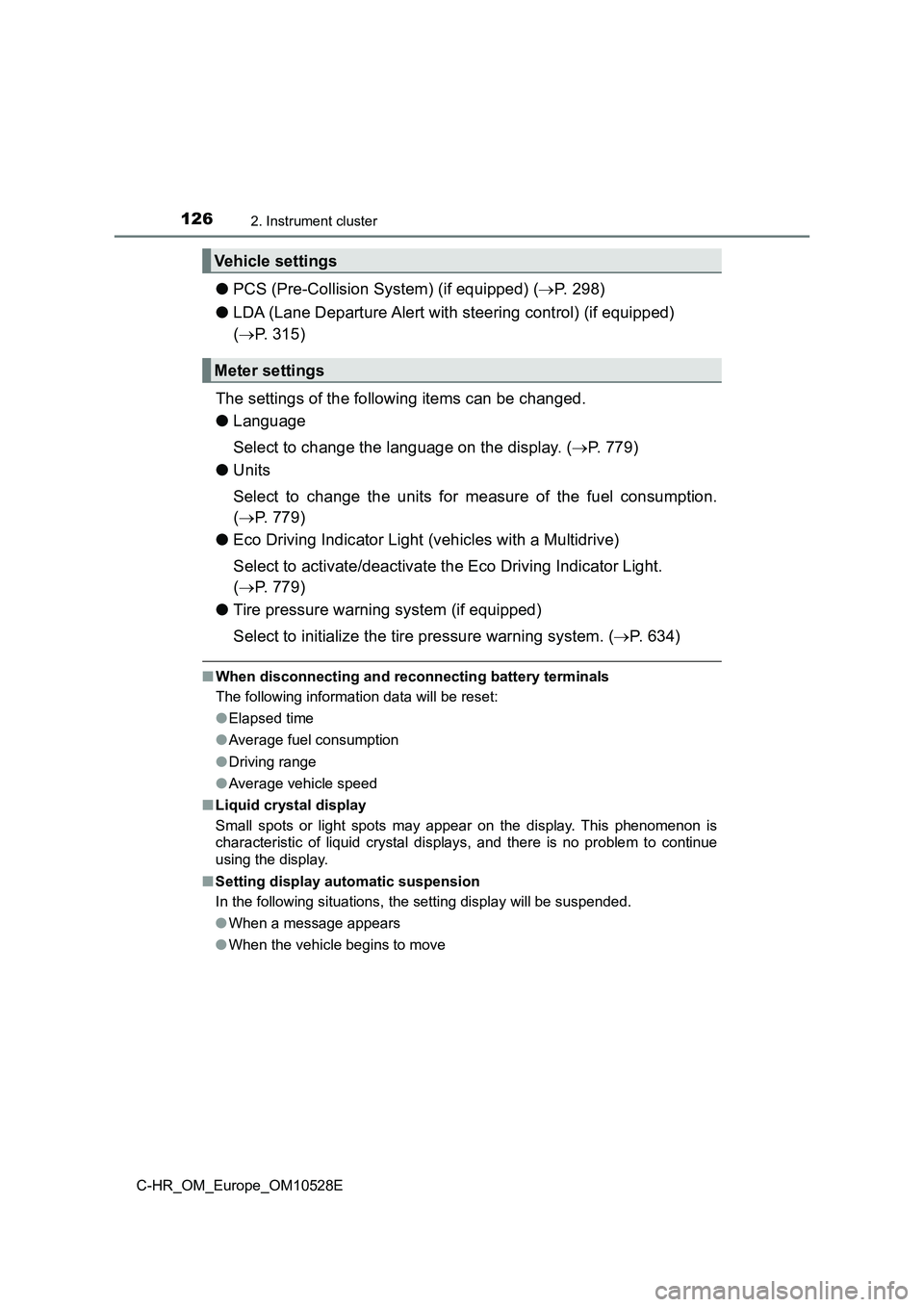

1262. Instrument cluster
C-HR_OM_Europe_OM10528E
●PCS (Pre-Collision System) (if equipped) (P. 298)
● LDA (Lane Departure Alert with steering control) (if equipped)
( P. 315)
The settings of the following items can be changed.
● Language
Select to change the language on the display. ( P. 779)
● Units
Select to change the units for measure of the fuel consumption.
( P. 779)
● Eco Driving Indicator Light (vehicles with a Multidrive)
Select to activate/deactivate the Eco Driving Indicator Light.
( P. 779)
● Tire pressure warning system (if equipped)
Select to initialize the tire pressure warning system. ( P. 634)
■When disconnecting and reconnecting battery terminals
The following information data will be reset:
● Elapsed time
● Average fuel consumption
● Driving range
● Average vehicle speed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem to continue
using the display.
■ Setting display automatic suspension
In the following situations, the setting display will be suspended.
● When a message appears
● When the vehicle begins to move
Vehicle settings
Meter settings

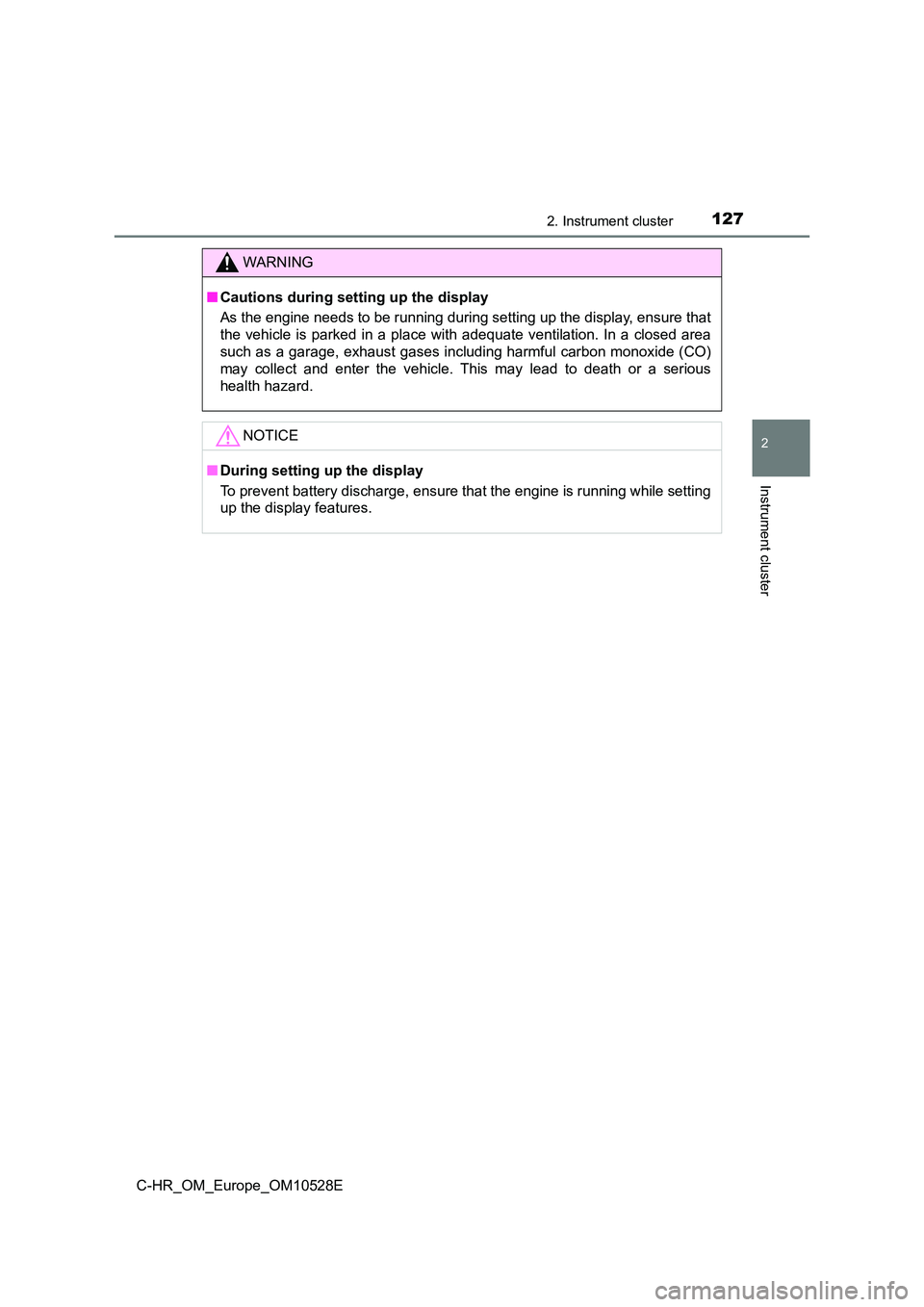

1272. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E
WARNING
■Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

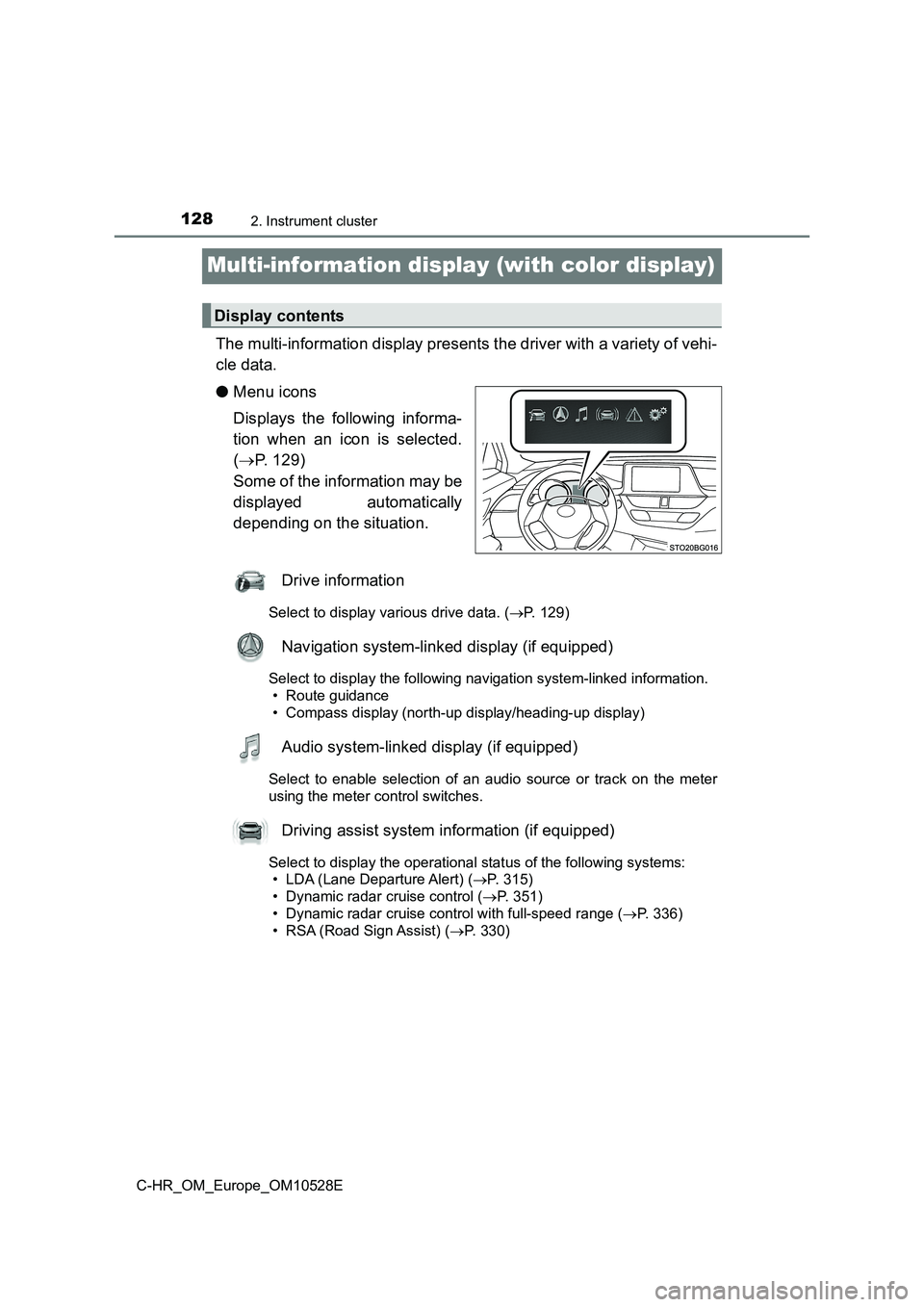

1282. Instrument cluster
C-HR_OM_Europe_OM10528E
Multi-information display (with color display)
The multi-information display presents the driver with a variety of vehi-
cle data.
● Menu icons
Displays the following informa-
tion when an icon is selected.
( P. 129)
Some of the information may be
displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( P. 129)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving assist system information (if equipped)
Select to display the operational status of the following systems:
• LDA (Lane Departure Alert) ( P. 315)
• Dynamic radar cruise control ( P. 351)
• Dynamic radar cruise control with full-speed range ( P. 336)
• RSA (Road Sign Assist) ( P. 330)
Display contents

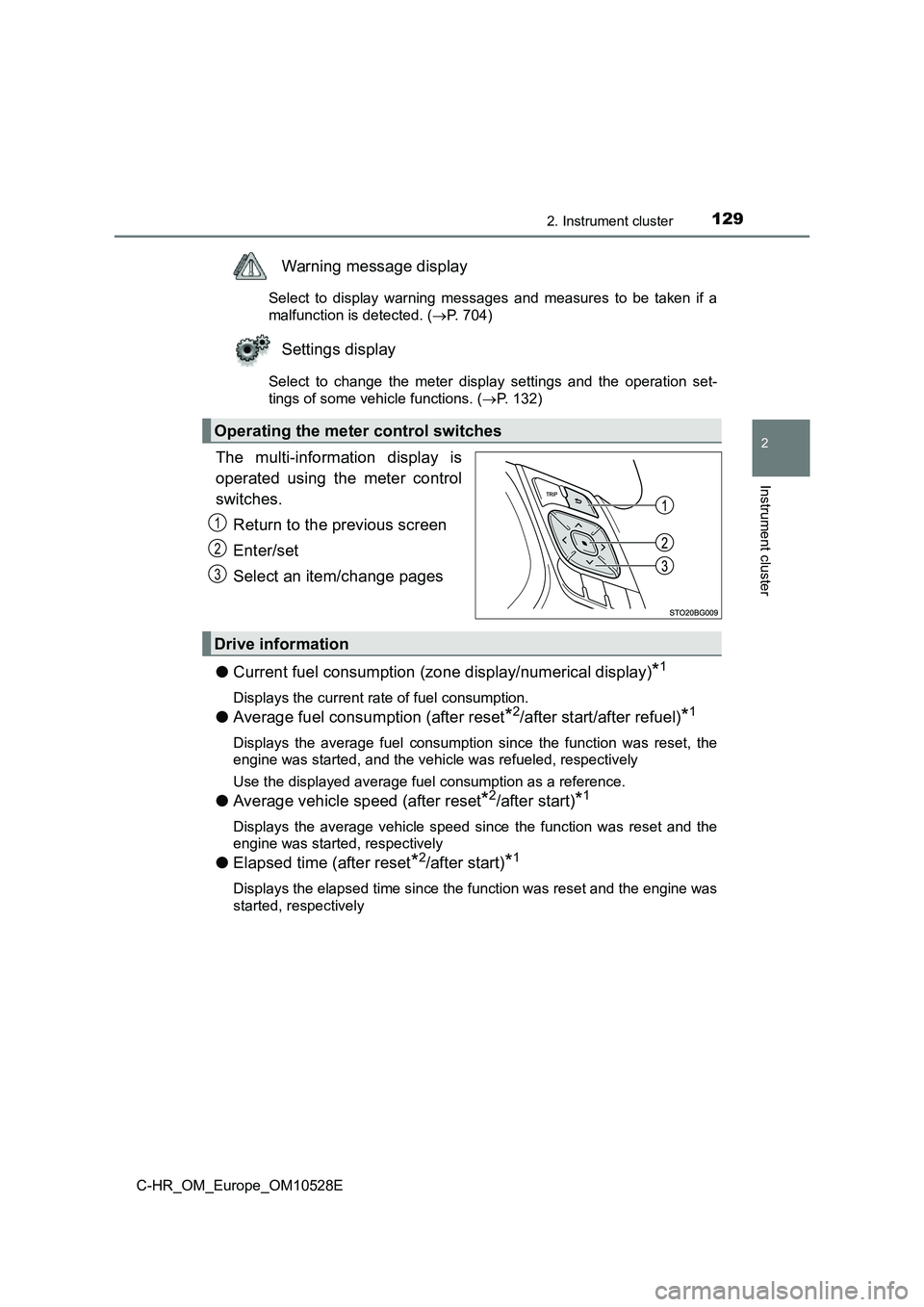

1292. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 704)
Settings display
Select to change the meter display settings and the operation set-
tings of some vehicle functions. ( P. 132)
The multi-information display is
operated using the meter control
switches.
Return to the previous screen
Enter/set
Select an item/change pages
● Current fuel consumption (zone display/numerical display)*1
Displays the current rate of fuel consumption.
●Average fuel consumption (after reset*2/after start/after refuel)*1
Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively
Use the displayed average fuel consumption as a reference.
● Average vehicle speed (after reset*2/after start)*1
Displays the average vehicle speed since the function was reset and the
engine was started, respectively
● Elapsed time (after reset*2/after start)*1
Displays the elapsed time since the function was reset and the engine was
started, respectively
Operating the meter control switches
1
2
3
Drive information

1302. Instrument cluster
C-HR_OM_Europe_OM10528E
●Distance (driving range/after start)*1
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining and the distance driven after the engine was
started, respectively
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
● Stop & Start system operation time (if equipped)*3
Displays the total amount of time that the engine has been stopped due to
operation of the Stop & Start system during the time of the current engine
stop.
● Eco Driving Indicator Zone Display
P. 134
●Speedometer
Displays the vehicle speed.
●Dynamic Torque Control AWD system display (AWD models)
P. 135
