For your information
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently avai lable on the market. Should it be deter-
mined that any of the genuine Toyota parts or accessories supplied with the
vehicle need to be replaced, Toyota recommends that genuine Toyota parts
or accessories, be used to replace them. Other parts or accessories of
matching quality can also be used.
Toyota cannot accept any liability or guarantee spare parts and accessories
which are not genuine Toyota products, nor for replacement or installation
involving such parts. In addition, damage or performance problems resulting
from the use of non-genuine Toyota spare parts or accessories may not be
covered under warranty.
Main Owner’s Manual
Accessories, spare parts and modification of your Toyota

351-1. For safe use
1
For safety and security
C-HR_OM_Europe_OM10528E
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.

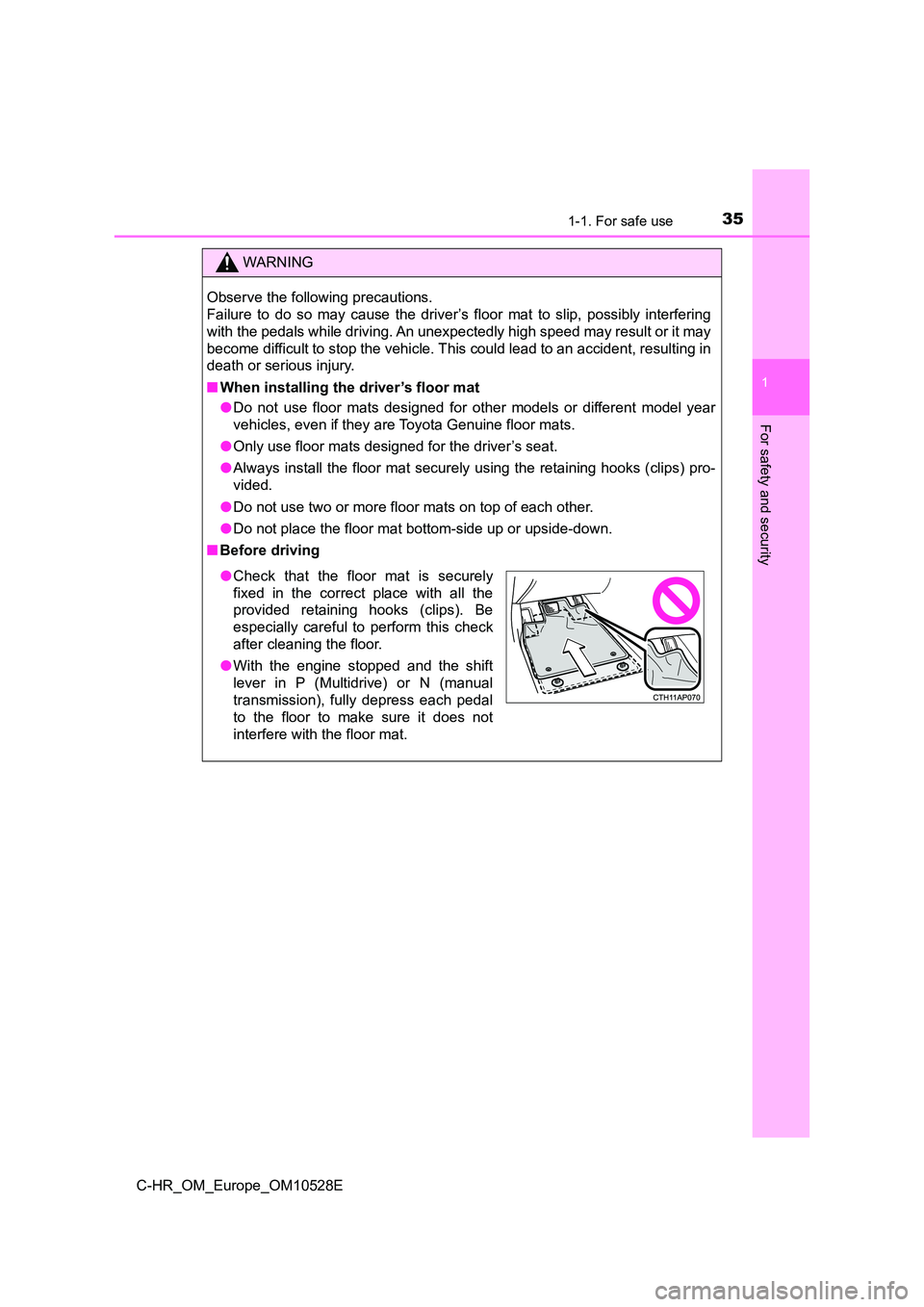

■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P (Multidrive) or N (manual
transmission), fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

571-2. Child safety
1
For safety and security
C-HR_OM_Europe_OM10528E

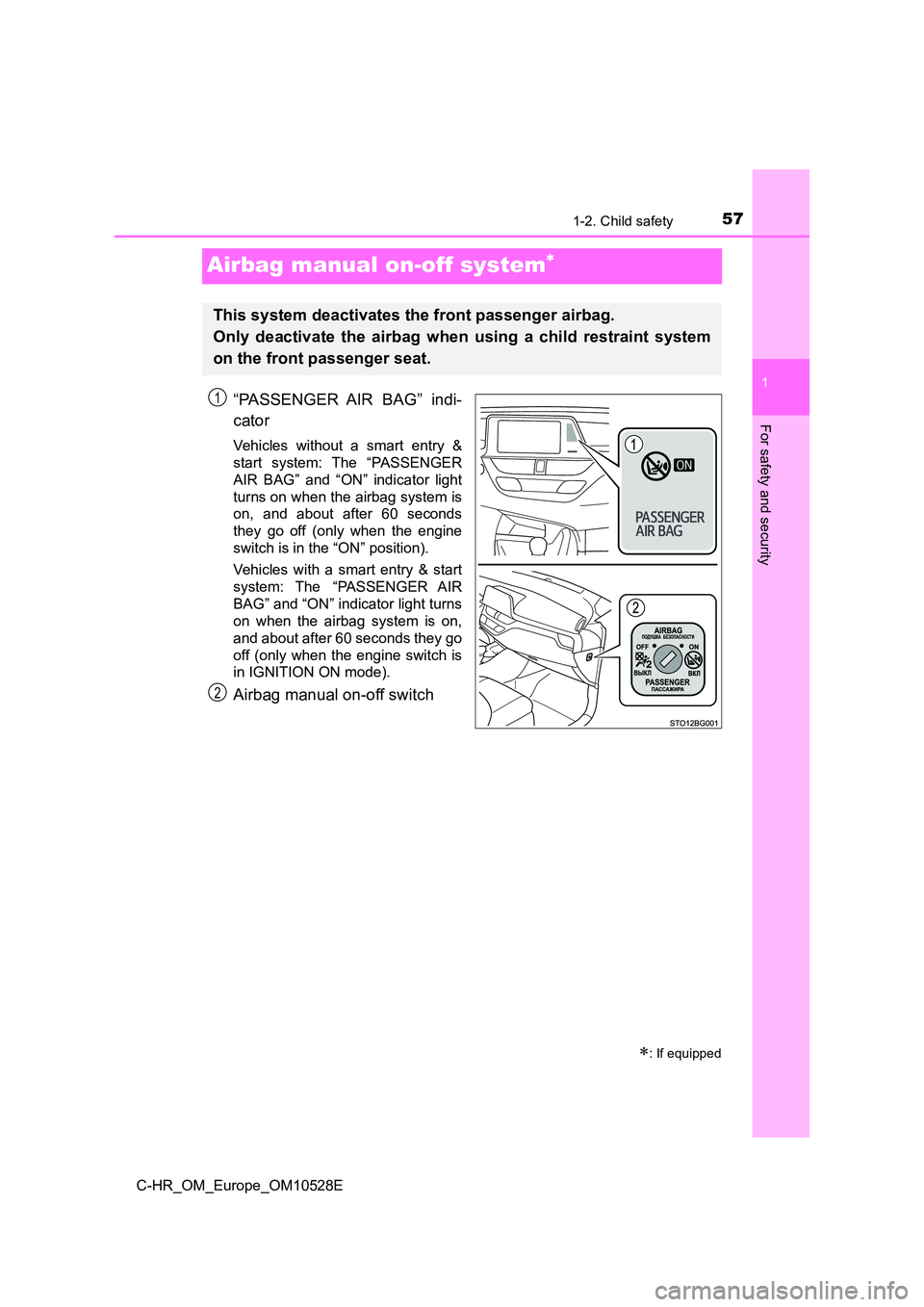

Airbag manual on-off system
“PASSENGER AIR BAG” indi-
cator
Vehicles without a smart entry &
start system: The “PASSENGER
AIR BAG” and “ON” indicator light
turns on when the airbag system is
on, and about after 60 seconds
they go off (only when the engine
switch is in the “ON” position).
Vehicles with a smart entry & start
system: The “PASSENGER AIR
BAG” and “ON” indicator light turns
on when the airbag system is on,
and about after 60 seconds they go
off (only when the engine switch is
in IGNITION ON mode).
Airbag manual on-off switch
: If equipped
This system deactivates the front passenger airbag.
Only deactivate the airbag when using a child restraint system
on the front passenger seat.
1
2

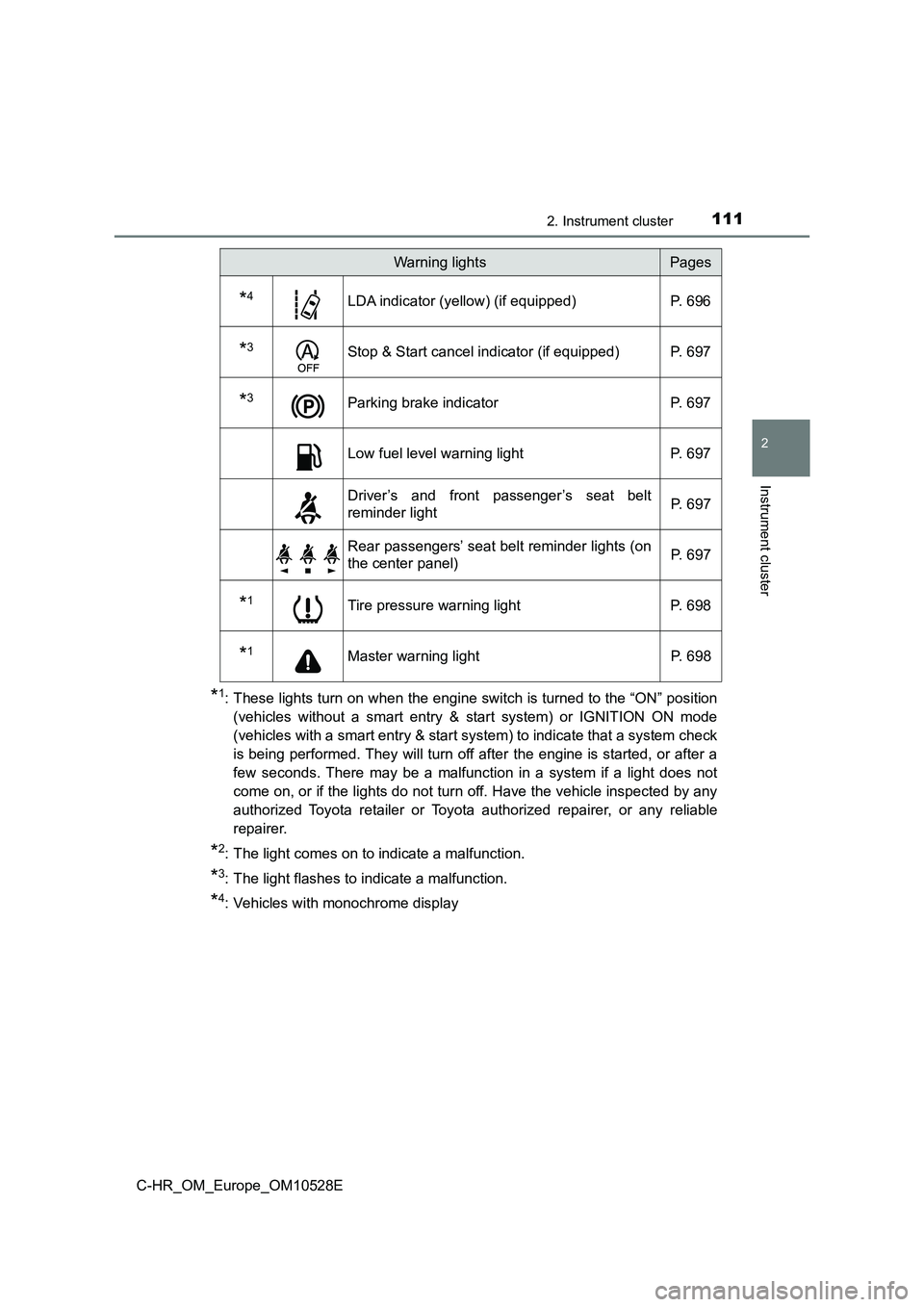

1112. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
*2: The light comes on to indicate a malfunction.
*3: The light flashes to indicate a malfunction.
*4: Vehicles with monochrome display
*4LDA indicator (yellow) (if equipped) P. 696
*3Stop & Start cancel indicator (if equipped) P. 697
*3Parking brake indicator P. 697
Low fuel level warning light P. 697
Driver’s and front passenger’s seat belt
reminder light P. 6 9 7
Rear passengers’ seat belt reminder lights (on
the center panel) P. 6 9 7
*1Tire pressure warning light P. 698
*1Master warning light P. 698
Warning lightsPages

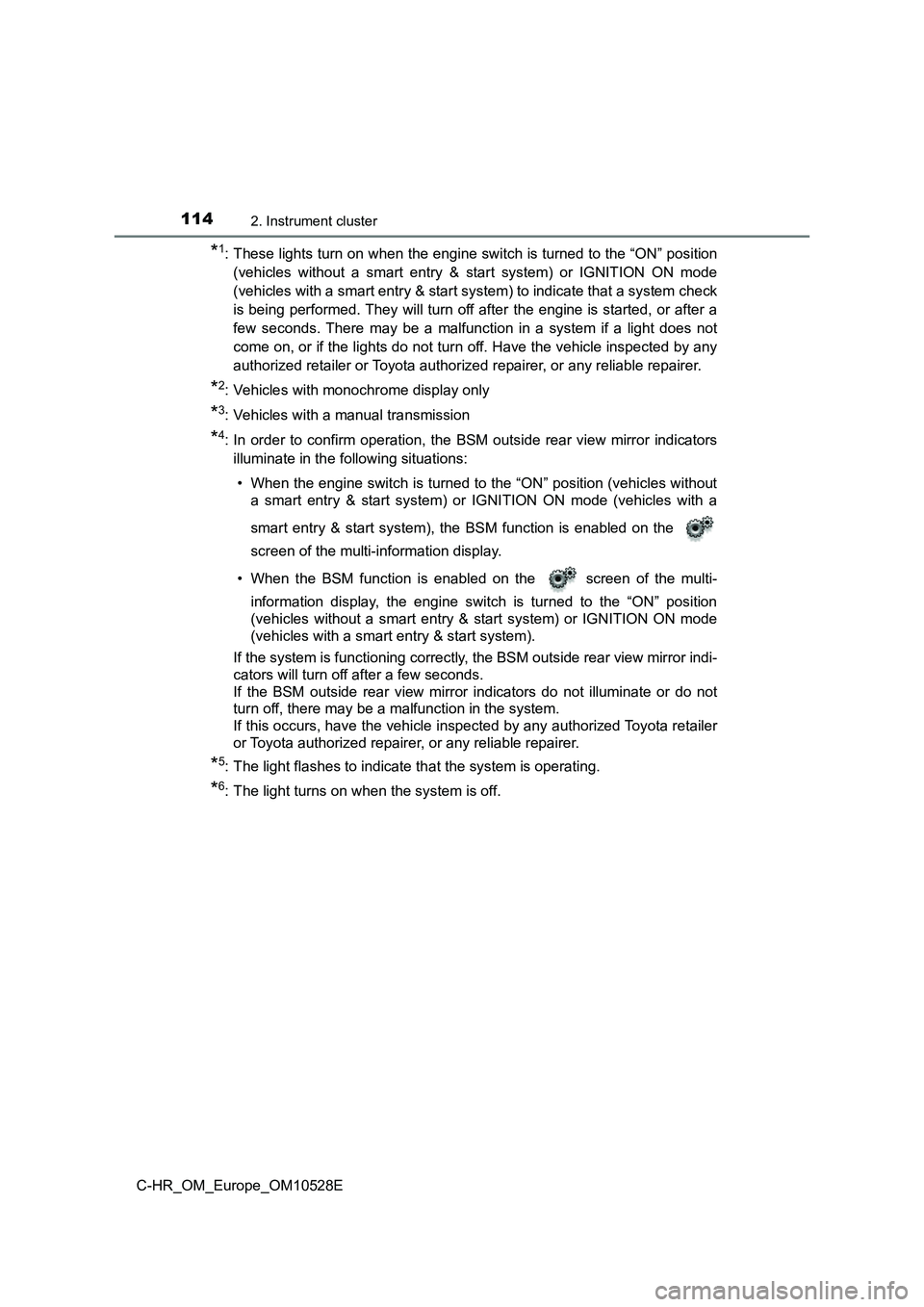

1142. Instrument cluster
C-HR_OM_Europe_OM10528E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by any
authorized retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with monochrome display only
*3: Vehicles with a manual transmission
*4: In order to confirm operation, the BSM outside rear view mirror indicators
illuminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles without
a smart entry & start system) or IGNITION ON mode (vehicles with a
smart entry & start system), the BSM function is enabled on the
screen of the multi-information display.
• When the BSM function is enabled on the screen of the multi-
information display, the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system).
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
*5: The light flashes to indicate that the system is operating.
*6: The light turns on when the system is off.

1152. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E

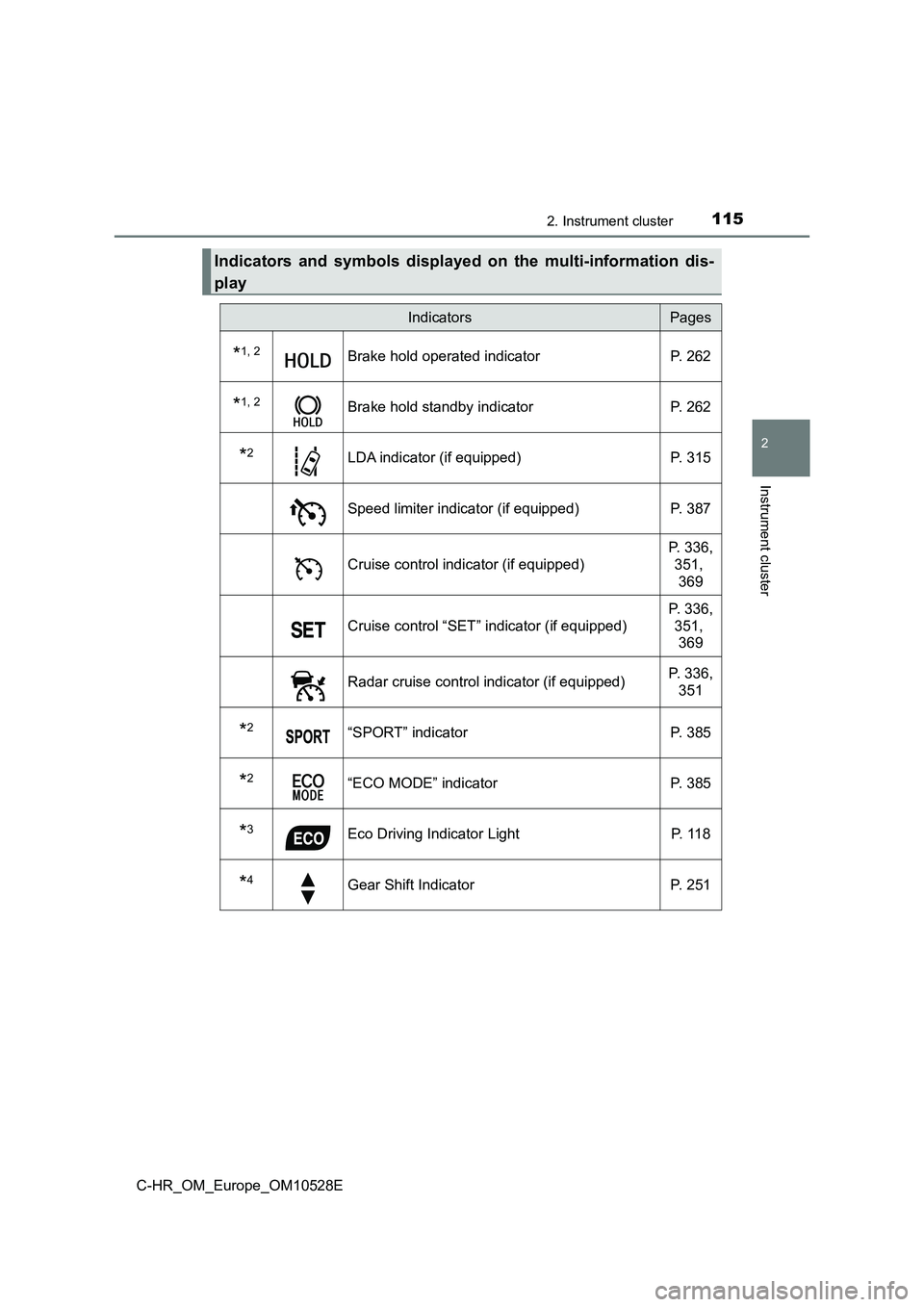

Indicators and symbols displayed on the multi-information dis-
play
IndicatorsPages
*1, 2Brake hold operated indicator P. 262
*1, 2Brake hold standby indicator P. 262
*2LDA indicator (if equipped) P. 315
Speed limiter indicator (if equipped) P. 387
Cruise control indicator (if equipped)
P. 336,
351,
369
Cruise control “SET” indicator (if equipped)
P. 336,
351,
369
Radar cruise control indicator (if equipped) P. 336,
351
*2“SPORT” indicator P. 385
*2“ECO MODE” indicator P. 385
*3Eco Driving Indicator Light P. 118
*4Gear Shift Indicator P. 251

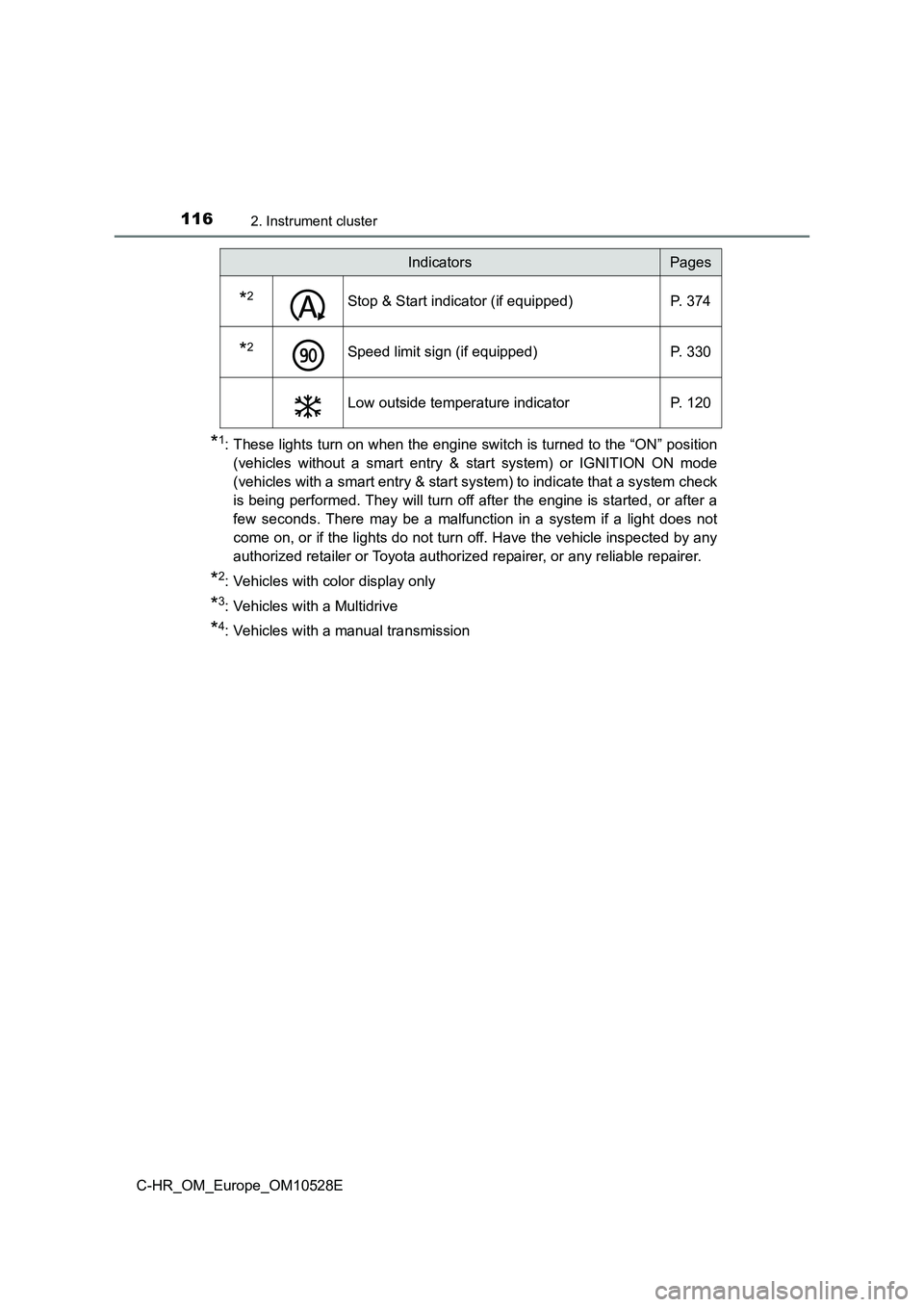

1162. Instrument cluster
C-HR_OM_Europe_OM10528E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by any
authorized retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with color display only
*3: Vehicles with a Multidrive
*4: Vehicles with a manual transmission
*2Stop & Start indicator (if equipped) P. 374
*2Speed limit sign (if equipped) P. 330
Low outside temperature indicator P. 120
IndicatorsPages

1182. Instrument cluster
C-HR_OM_Europe_OM10528E

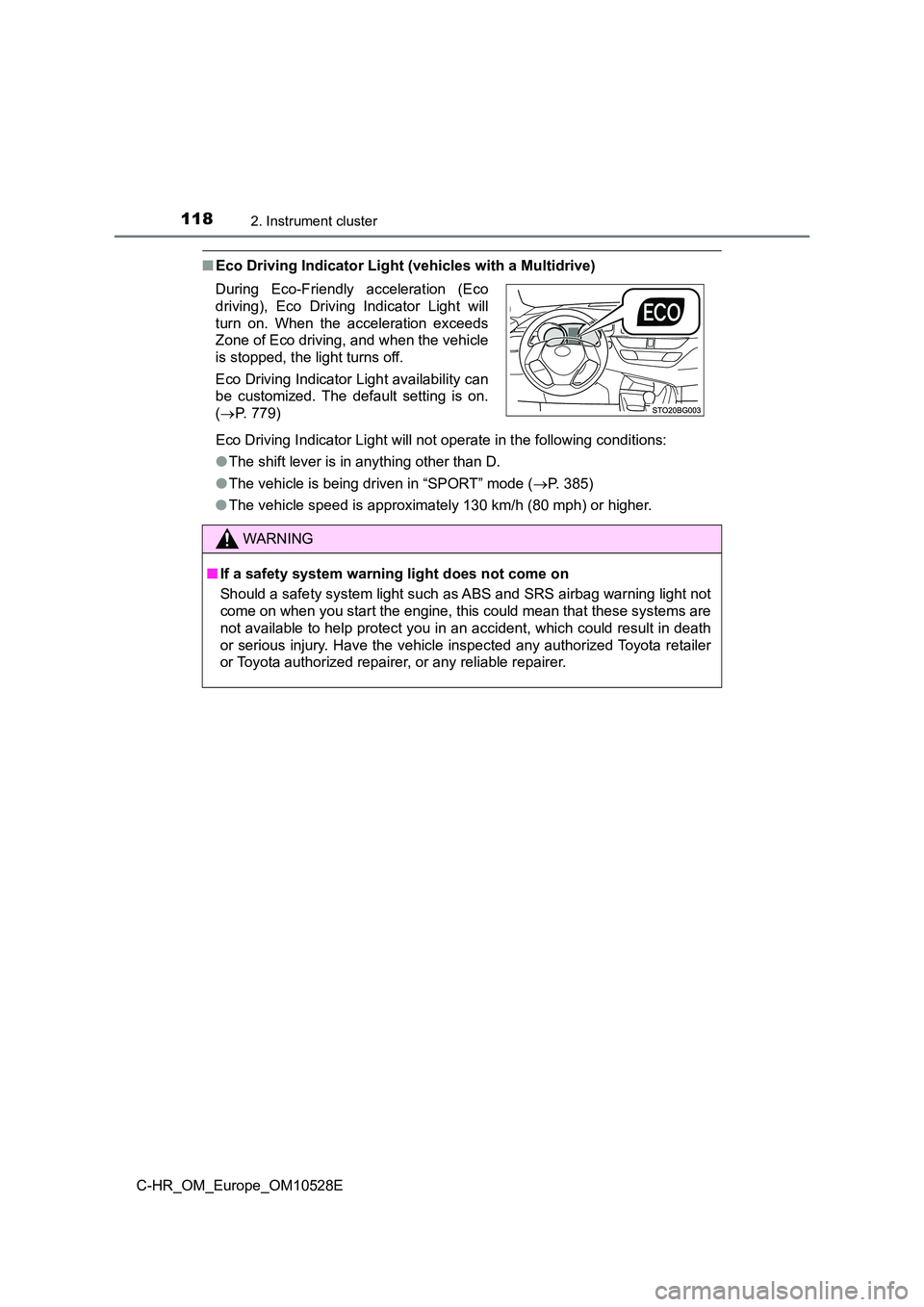

■Eco Driving Indicator Light (vehicles with a Multidrive)
Eco Driving Indicator Light will not operate in the following conditions:
● The shift lever is in anything other than D.
● The vehicle is being driven in “SPORT” mode (P. 385)
● The vehicle speed is approximately 130 km/h (80 mph) or higher.
During Eco-Friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds
Zone of Eco driving, and when the vehicle
is stopped, the light turns off.
Eco Driving Indicator Light availability can
be customized. The default setting is on.
( P. 779)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.

1212. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E

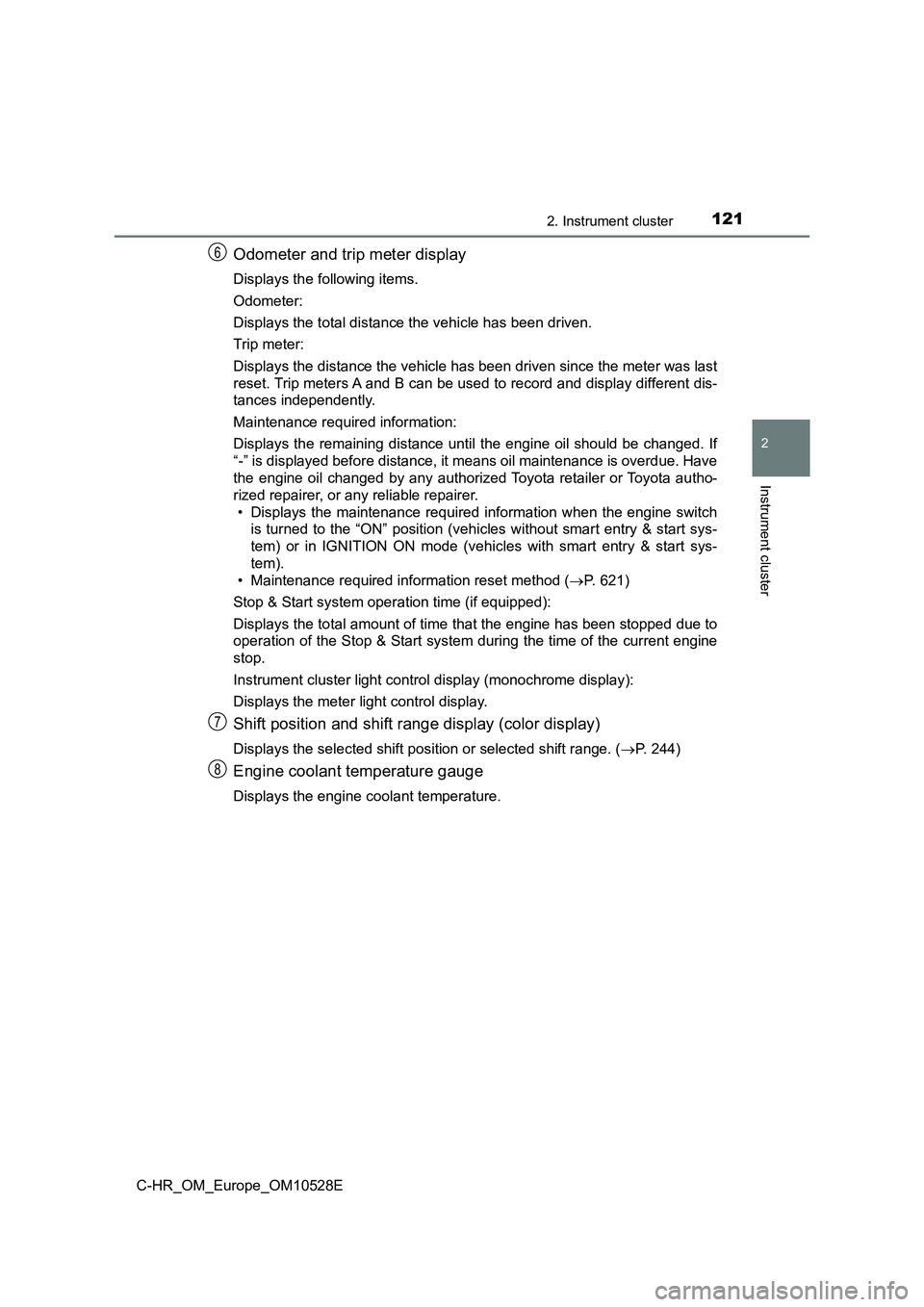

Odometer and trip meter display
Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Maintenance required information:
Displays the remaining distance until the engine oil should be changed. If
“-” is displayed before distance, it means oil maintenance is overdue. Have
the engine oil changed by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
• Displays the maintenance required information when the engine switch
is turned to the “ON” position (vehicles without smart entry & start sys-
tem) or in IGNITION ON mode (vehicles with smart entry & start sys-
tem).
• Maintenance required information reset method ( P. 621)
Stop & Start system operation time (if equipped):
Displays the total amount of time that the engine has been stopped due to
operation of the Stop & Start system during the time of the current engine
stop.
Instrument cluster light control display (monochrome display):
Displays the meter light control display.
Shift position and shift range display (color display)
Displays the selected shift position or selected shift range. ( P. 244)
Engine coolant temperature gauge
Displays the engine coolant temperature.
6
7
8

1302. Instrument cluster
C-HR_OM_Europe_OM10528E

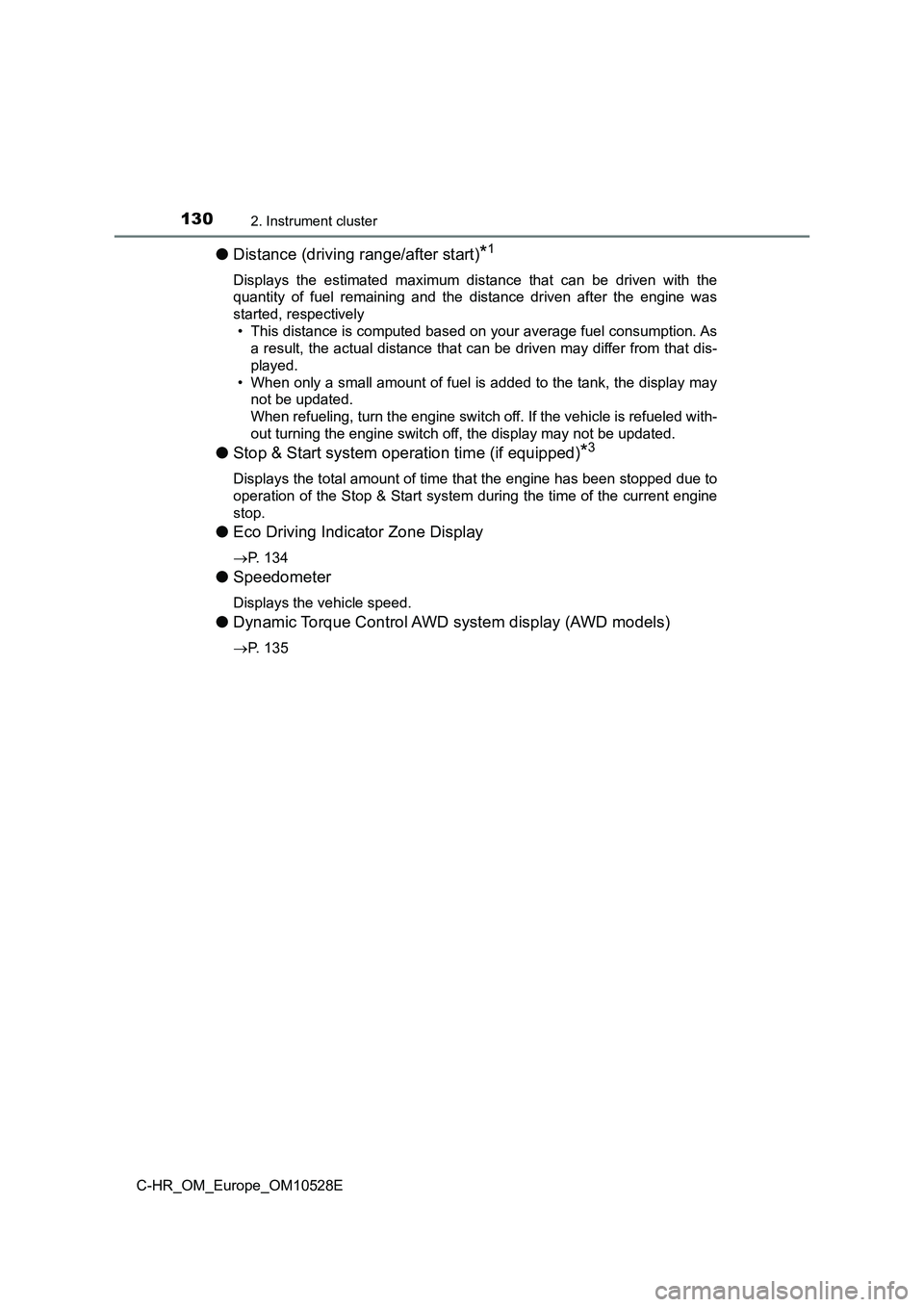

●Distance (driving range/after start)*1
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining and the distance driven after the engine was
started, respectively
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
● Stop & Start system operation time (if equipped)*3
Displays the total amount of time that the engine has been stopped due to
operation of the Stop & Start system during the time of the current engine
stop.
● Eco Driving Indicator Zone Display
P. 134
●Speedometer
Displays the vehicle speed.
●Dynamic Torque Control AWD system display (AWD models)
P. 135
