TOYOTA C-HR 2018 1.G Owners Manual
Manufacturer: TOYOTA, Model Year: 2018, Model line: C-HR, Model: TOYOTA C-HR 2018 1.GPages: 516, PDF Size: 9.32 MB
Page 471 of 516
4718-1. Specifications
8
Vehicle specifications
C-HR_OM_USA_OM10526U

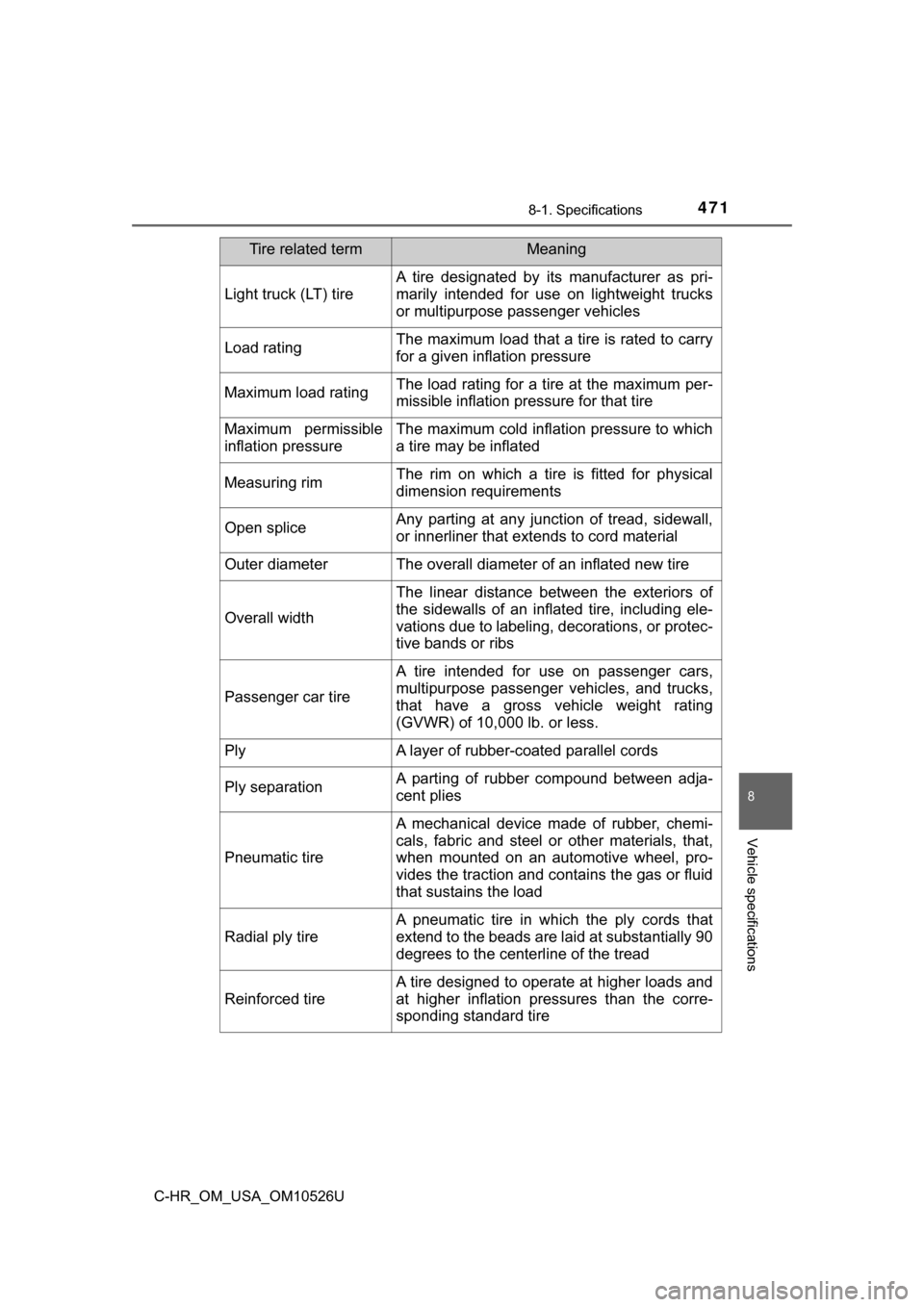

Light truck (LT) tire
A tire designated by its manufacturer as pri-
marily intended for use on lightweight trucks
or multipurpose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which
a tire may be inflated
Measuring rimThe rim on which a tire is fitted for physical
dimension requirements
Open spliceAny parting at any junction of tread, sidewall,
or innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of
the sidewalls of an inflated tire, including ele-
vations due to labeling, decorations, or protec-
tive bands or ribs
Passenger car tire
A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adja-
cent plies
Pneumatic tire
A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and cont ains the gas or fluid
that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Tire related termMeaning
Page 472 of 516
4728-1. Specifications
C-HR_OM_USA_OM10526U
*: Table 1 ⎯ Occupant loading and distribution for vehicle normal load for
various designated seating capacities

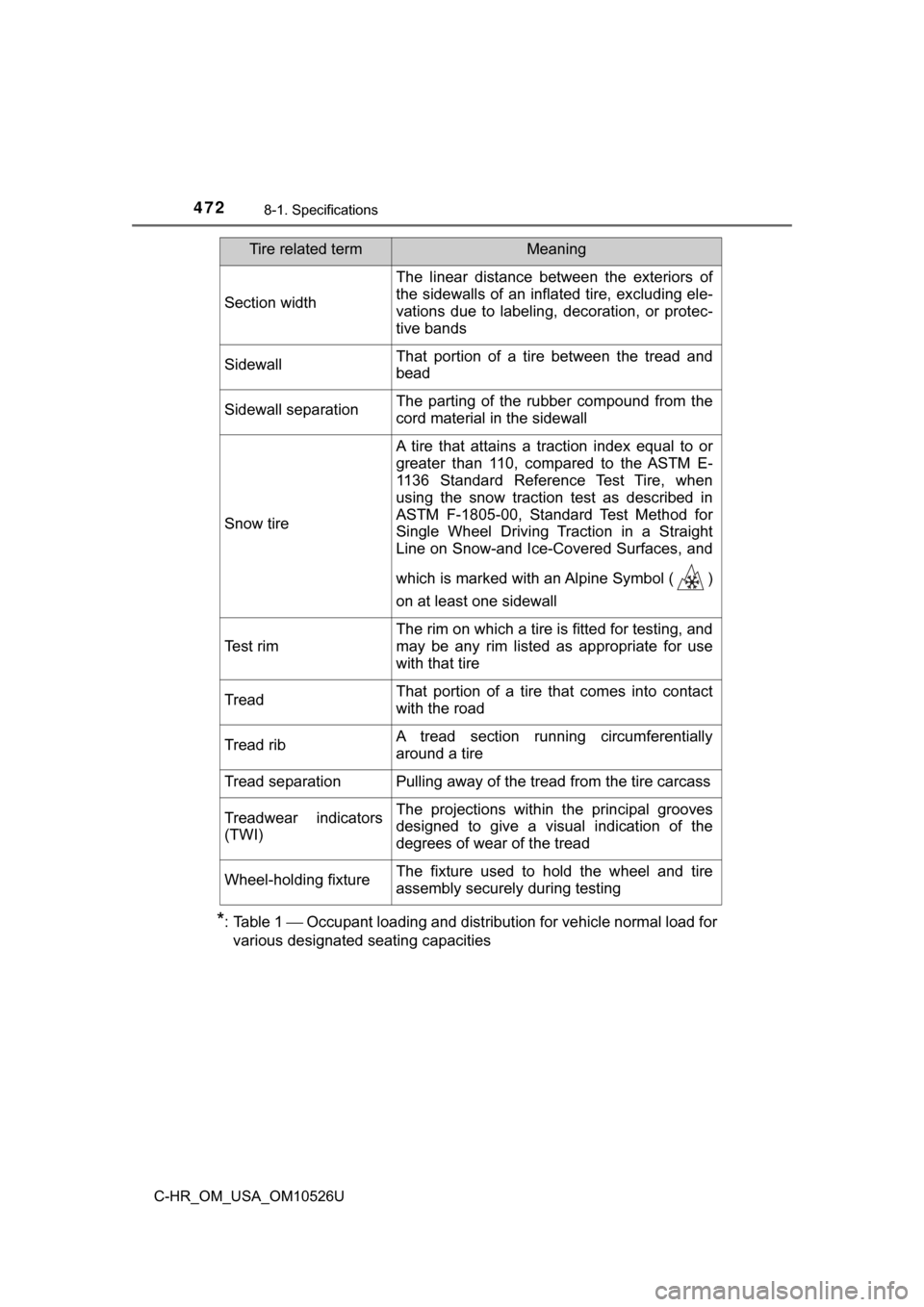

Section width
The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
SidewallThat portion of a tire between the tread and
bead
Sidewall separationThe parting of the rubber compound from the
cord material in the sidewall
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Test rim
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Tire related termMeaning
Page 473 of 516
4738-1. Specifications
8
Vehicle specifications
C-HR_OM_USA_OM10526U

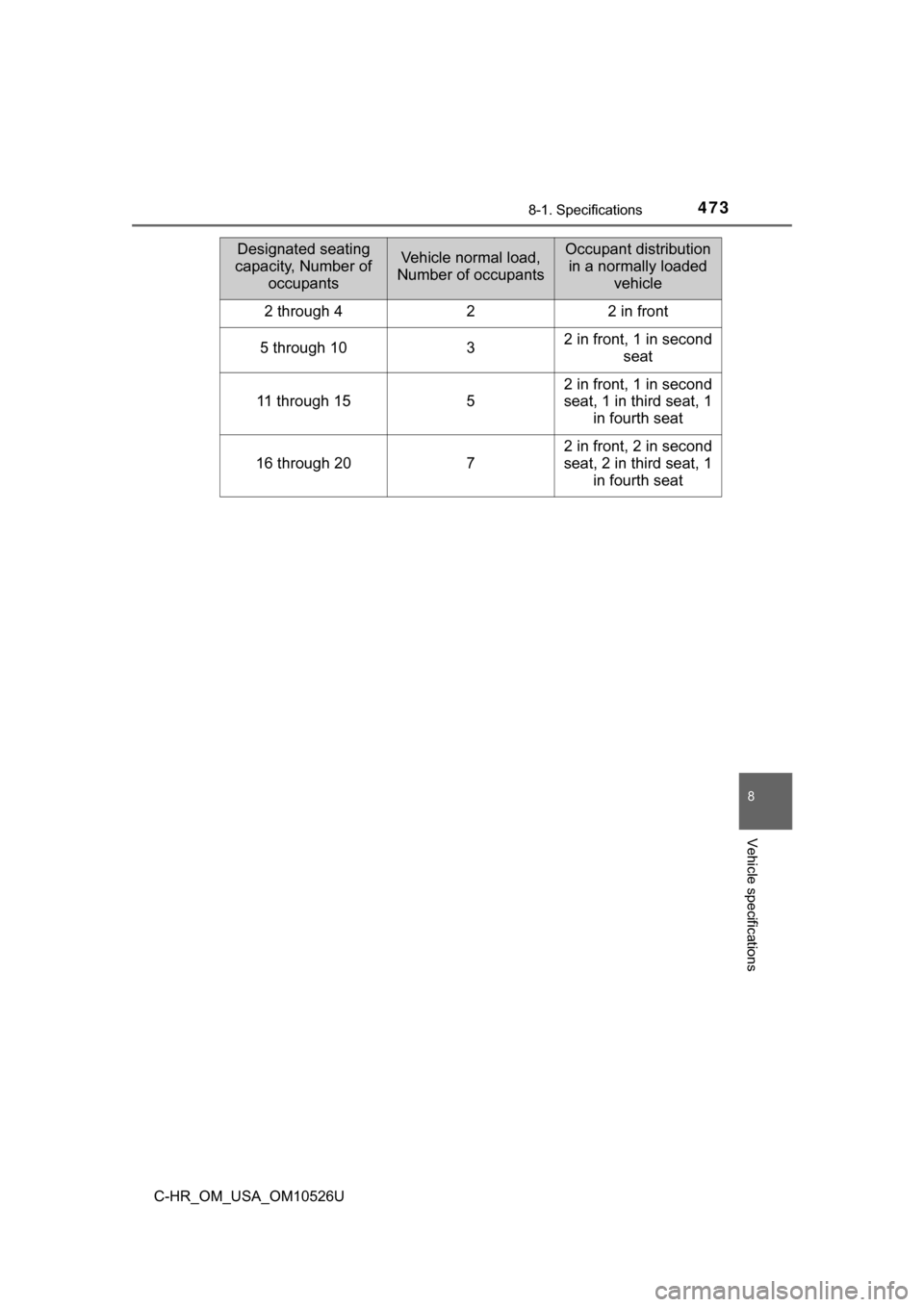

Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second
seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat
Page 474 of 516
4748-2. Customization
C-HR_OM_USA_OM10526U
Customizable features
Press “<” or “>” of the meter contro l switches, select .
Press “ ∧” or “ ∨” of the meter control switches, select “Meter Set-
tings”, and then press .
Press “ ∧” or “∨ ” of the meter control swit ches, select the item, and
then press .
Press “ ∧” or “ ∨” of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
Some function settings are changed simultaneously with other func-
tions when customized. Contact your Toyota dealer for further details.
Settings that can be changed using the multi-information display
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, — = Not available
Your vehicle includes a variety of electronic features that can be
personalized to suit your prefer ences. The settings of these fea-
tures can be changed using the multi-information display or at
your Toyota dealer.
Customizing vehicle features usi ng the multi-information display
Customizable features
1
2
3
4
Page 475 of 516
4758-2. Customization
8
Vehicle specifications
C-HR_OM_USA_OM10526U■
Gauges, meters and mult
i-information display (→P. 86, 89)
*1: The default setting varies according to country.
*2: 2 of the following items: current fuel consumption (gauge display), current
fuel consumption (numerical display), average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel),
average vehicle speed (after reset), av erage vehicle speed (after start),
elapsed time (after reset), elapsed time (after start), distance (driving
range), distance (after start), blank.
FunctionDefault settingCustomized setting
Language*1EnglishFrenchOO
Units*1miles (MPG)km (km/L)OOkm (L/100 km)
°F°COO
Eco Driving Indicator LightOn
(Self-lighting)OffOO
Drive information 1
Current fuel
consumption
(gauge display)
*2OOAverage fuel economy
(after reset)
Drive information 2
Distance
(driving range)
*2OOAverage vehicle
speed (after reset)
Page 476 of 516
4768-2. Customization
C-HR_OM_USA_OM10526U■

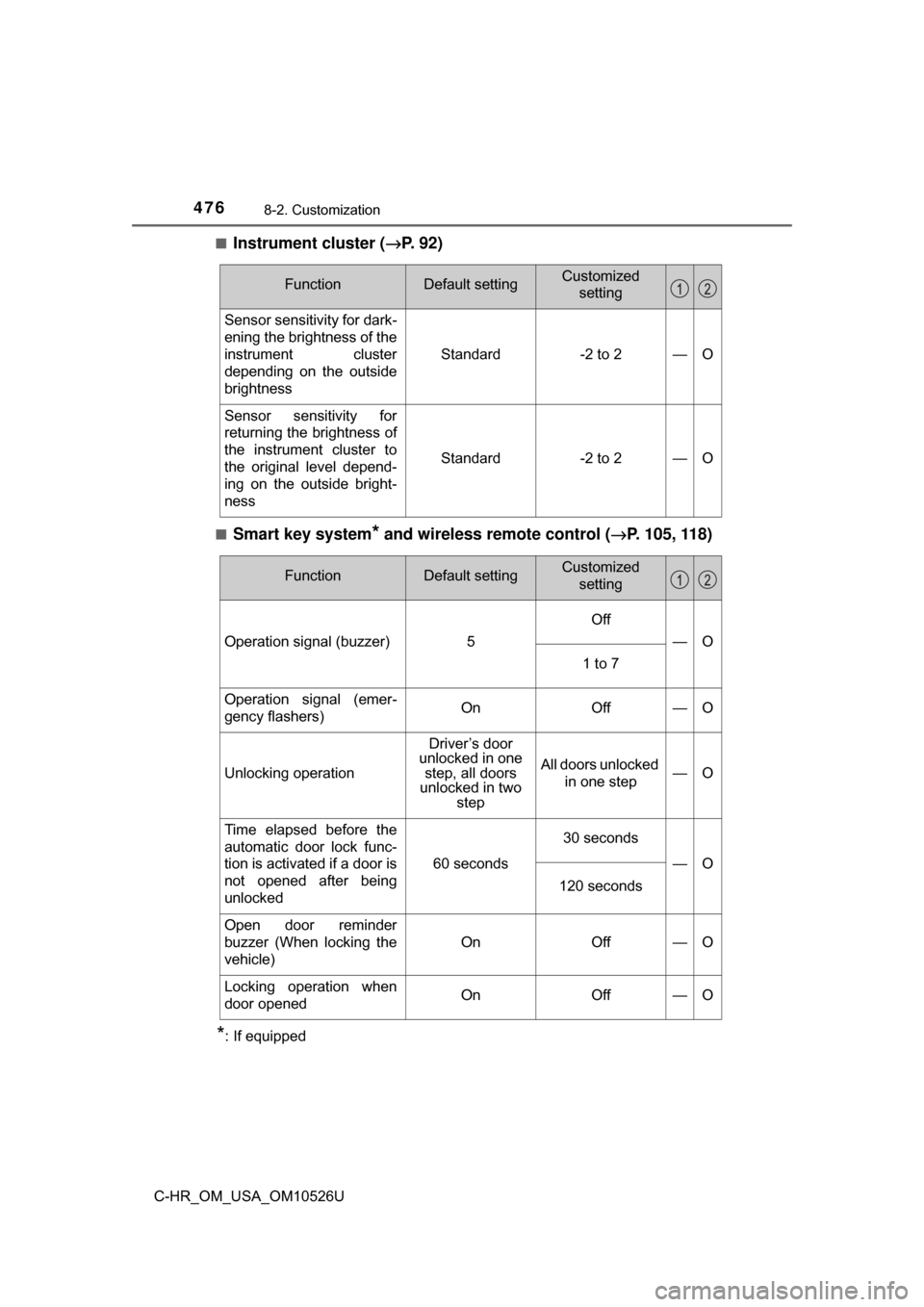

Instrument cluster (
→P. 92)
■Smart key system* and wireless remote control ( →P. 105, 118)
*: If equipped
FunctionDefault settingCustomized
setting
Sensor sensitivity for dark-
ening the brightness of the
instrument cluster
depending on the outside
brightness
Standard-2 to 2—O
Sensor sensitivity for
returning the brightness of
the instrument cluster to
the original level depend-
ing on the outside bright-
ness
Standard-2 to 2—O
FunctionDefault settingCustomized setting
Operation signal (buzzer)5
Off
—O
1 to 7
Operation signal (emer-
gency flashers)OnOff—O
Unlocking operation
Driver’s door
unlocked in one step, all doors
unlocked in two step
All doors unlocked
in one step—O
Time elapsed before the
automatic door lock func-
tion is activated if a door is
not opened after being
unlocked
60 seconds
30 seconds
—O
120 seconds
Open door reminder
buzzer (When locking the
vehicle)
OnOff—O
Locking operation when
door openedOnOff—O
Page 477 of 516
4778-2. Customization
8
Vehicle specifications
C-HR_OM_USA_OM10526U■

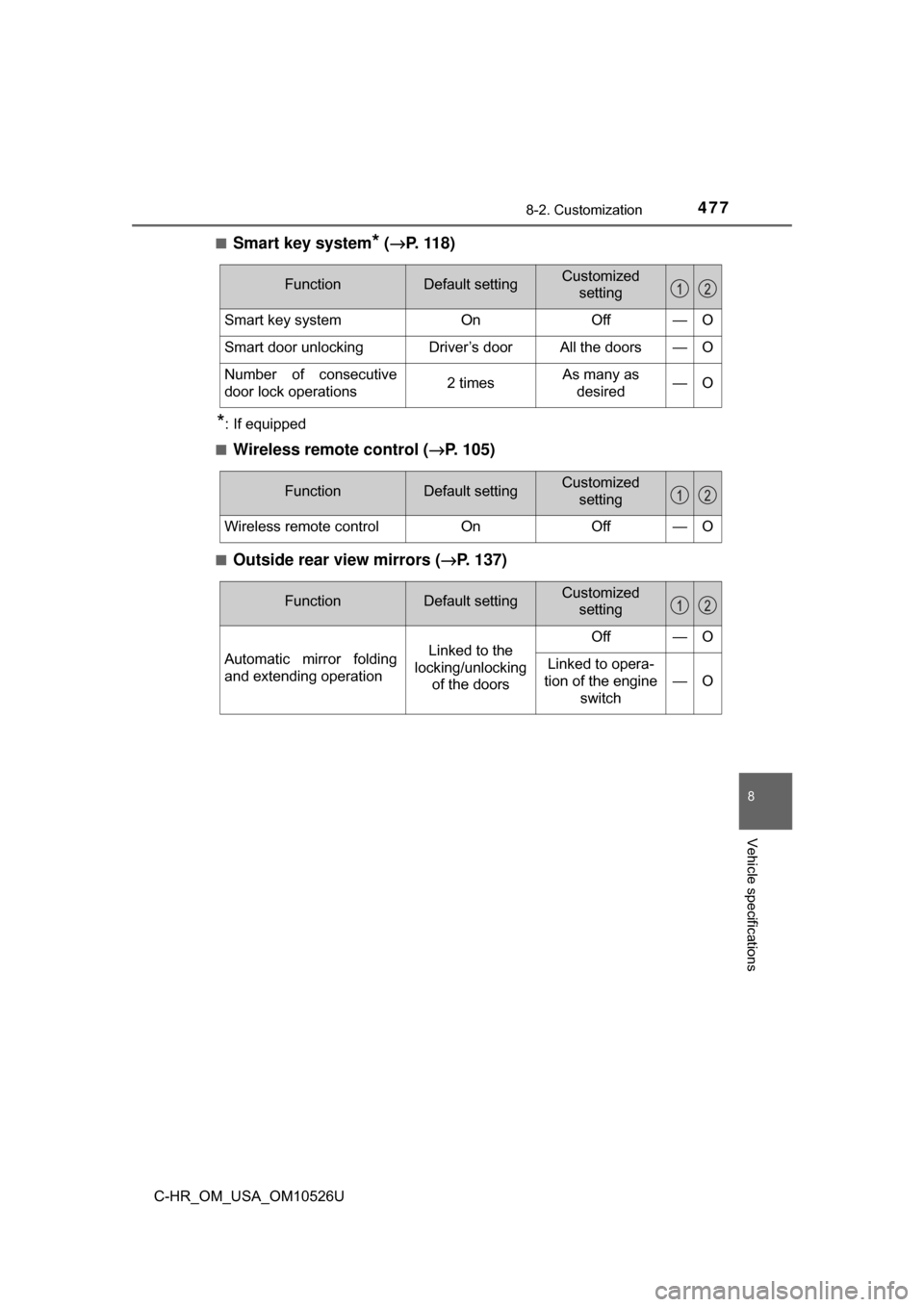

Smart key system* (
→ P. 1 1 8 )
*: If equipped
■
Wireless remote control ( →P. 105)
■Outside rear view mirrors ( →P. 137)
FunctionDefault settingCustomized
setting
Smart key systemOnOff—O
Smart door unlockingDriver’s doorAll the doors—O
Number of consecutive
door lock operations2 timesAs many as desired—O
FunctionDefault settingCustomized
setting
Wireless remote controlOnOff—O
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operationLinked to the
locking/unlocking of the doorsOff—O
Linked to opera-
tion of the engine switch
—O
Page 478 of 516
4788-2. Customization
C-HR_OM_USA_OM10526U■
Power windows (
→P. 140)
*1: Vehicles without a smart key system
*2: Vehicles with a smart key system
■
Turn signal lever ( →P. 176)
■Automatic light control system ( →P. 185)
FunctionDefault settingCustomized
setting
Key*1 or mechanical
key
*2 linked operation
(open)OffOn—O
Key*1 or mechanical
key
*2 linked operation
(close)OffOn—O
Wireless remote control
linked operation (open
only)
OffOn—O
Key*1 or mechanical
key
*2, wireless remote
control linked operation
signal (buzzer)OnOff—O
FunctionDefault settingCustomized
setting
Times of flashing of the
lane change signal flash-
ers
3
Off
—O5
7
FunctionDefault settingCustomized setting
Light sensor sensitivity Level 0 Level -2 to 2—O
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
—O60 seconds
90 seconds
Page 479 of 516
4798-2. Customization
8
Vehicle specifications
C-HR_OM_USA_OM10526U■

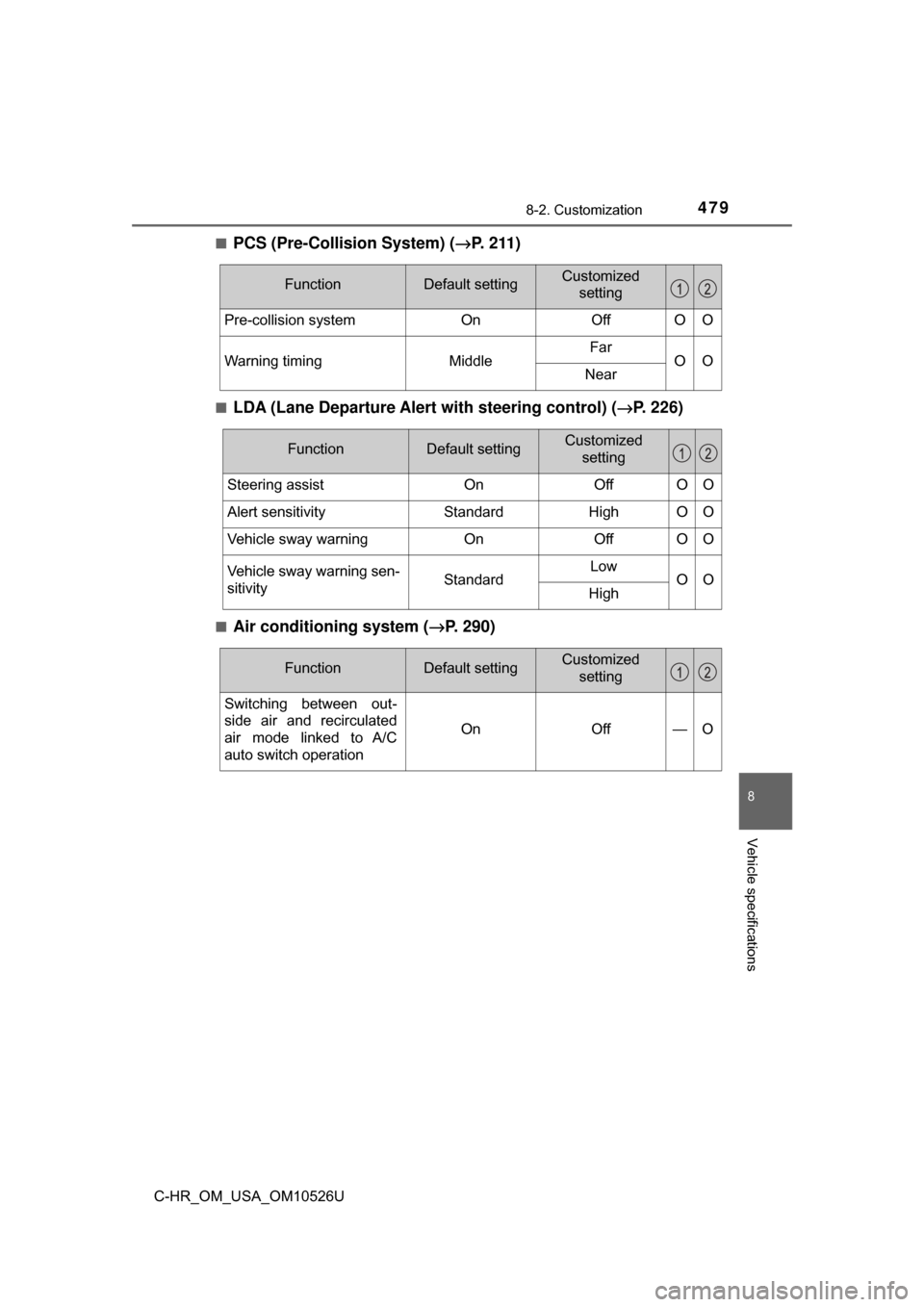

PCS (Pre-Collision System) (→
P. 211)
■LDA (Lane Departure Alert with steering control) (→P. 226)
■Air conditioning system ( →P. 290)
FunctionDefault settingCustomized
setting
Pre-collision systemOnOffOO
Warning timingMiddleFarOONear
FunctionDefault settingCustomized
setting
Steering assistOnOffOO
Alert sensitivityStandardHighOO
Vehicle sway warningOnOffOO
Vehicle sway warning sen-
sitivityStandardLowOOHigh
FunctionDefault settingCustomized setting
Switching between out-
side air and recirculated
air mode linked to A/C
auto switch operation
OnOff—O
Page 480 of 516
4808-2. Customization
C-HR_OM_USA_OM10526U■

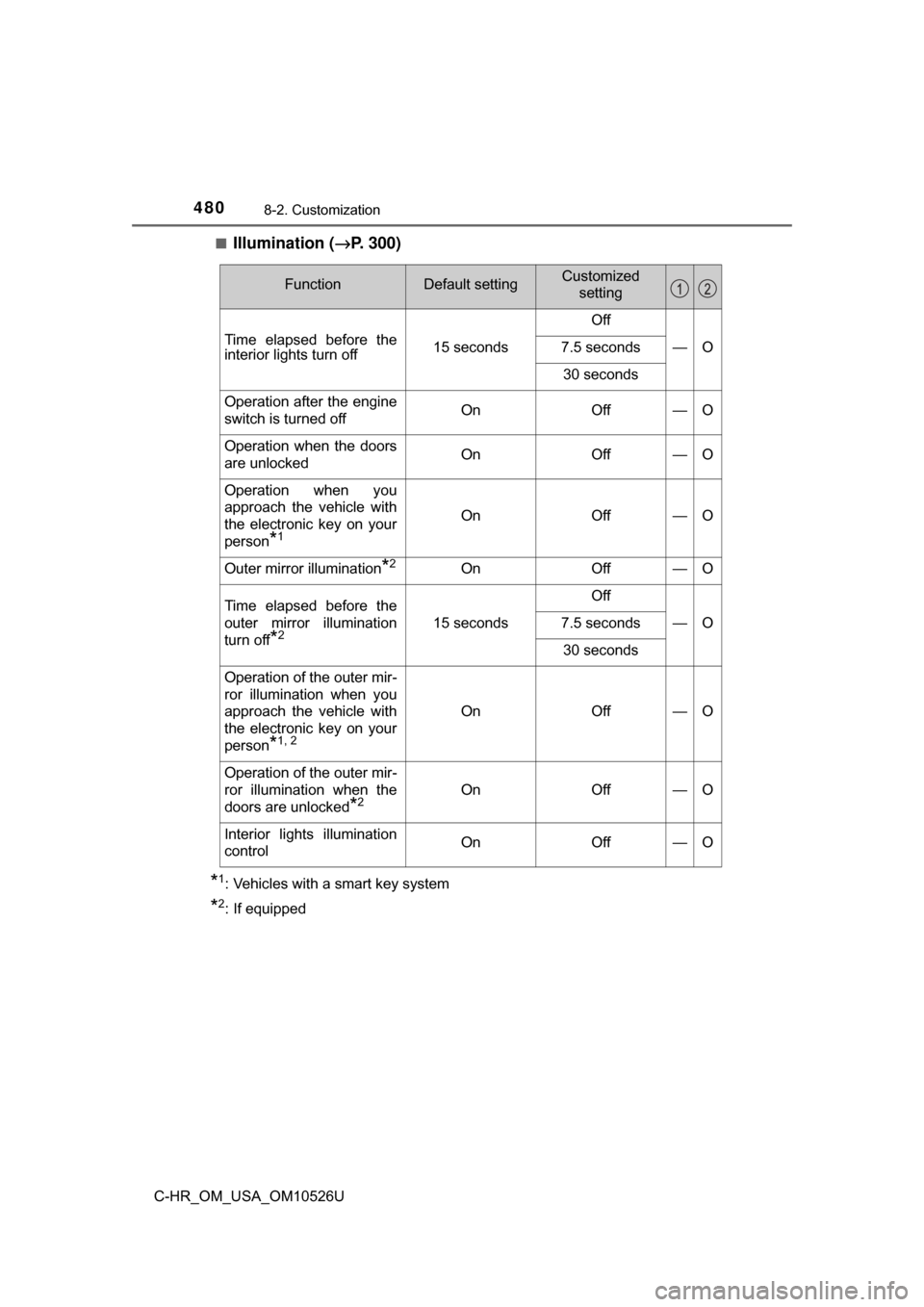

Illumination (
→P. 300)
*1: Vehicles with a smart key system
*2: If equipped
FunctionDefault settingCustomized
setting
Time elapsed before the
interior lights turn off15 seconds
Off
—O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff—O
Operation when the doors
are unlockedOnOff—O
Operation when you
approach the vehicle with
the electronic key on your
person
*1
OnOff—O
Outer mirror illumination*2OnOff—O
Time elapsed before the
outer mirror illumination
turn off
*215 seconds
Off
—O7.5 seconds
30 seconds
Operation of the outer mir-
ror illumination when you
approach the vehicle with
the electronic key on your
person
*1, 2
OnOff—O
Operation of the outer mir-
ror illumination when the
doors are unlocked
*2OnOff—O
Interior lights illumination
controlOnOff—O
