9
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”

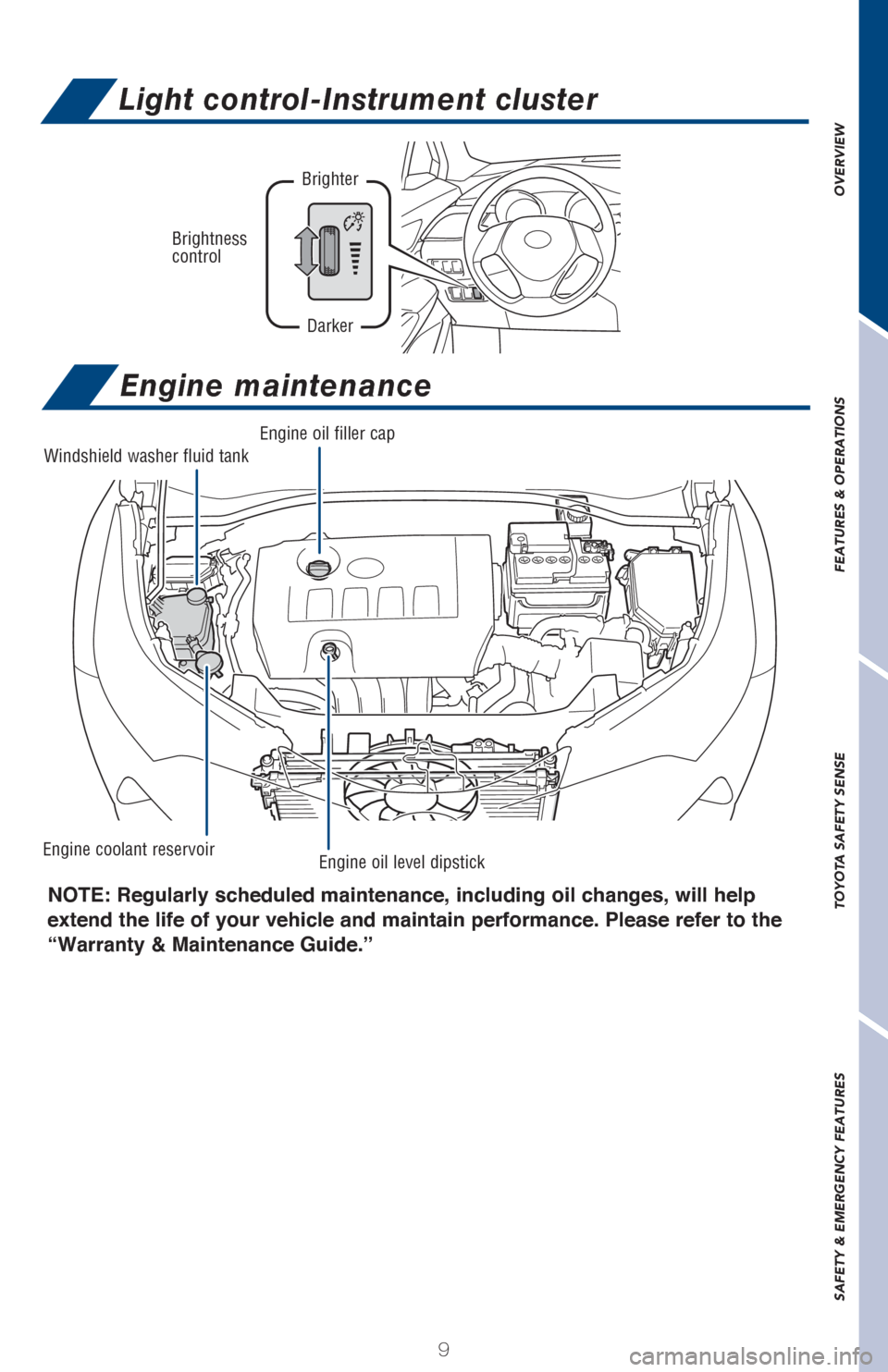

Engine maintenance
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Light control-Instrument cluster
Brightness
control
Brighter
Darker
Page 12 of 48
10

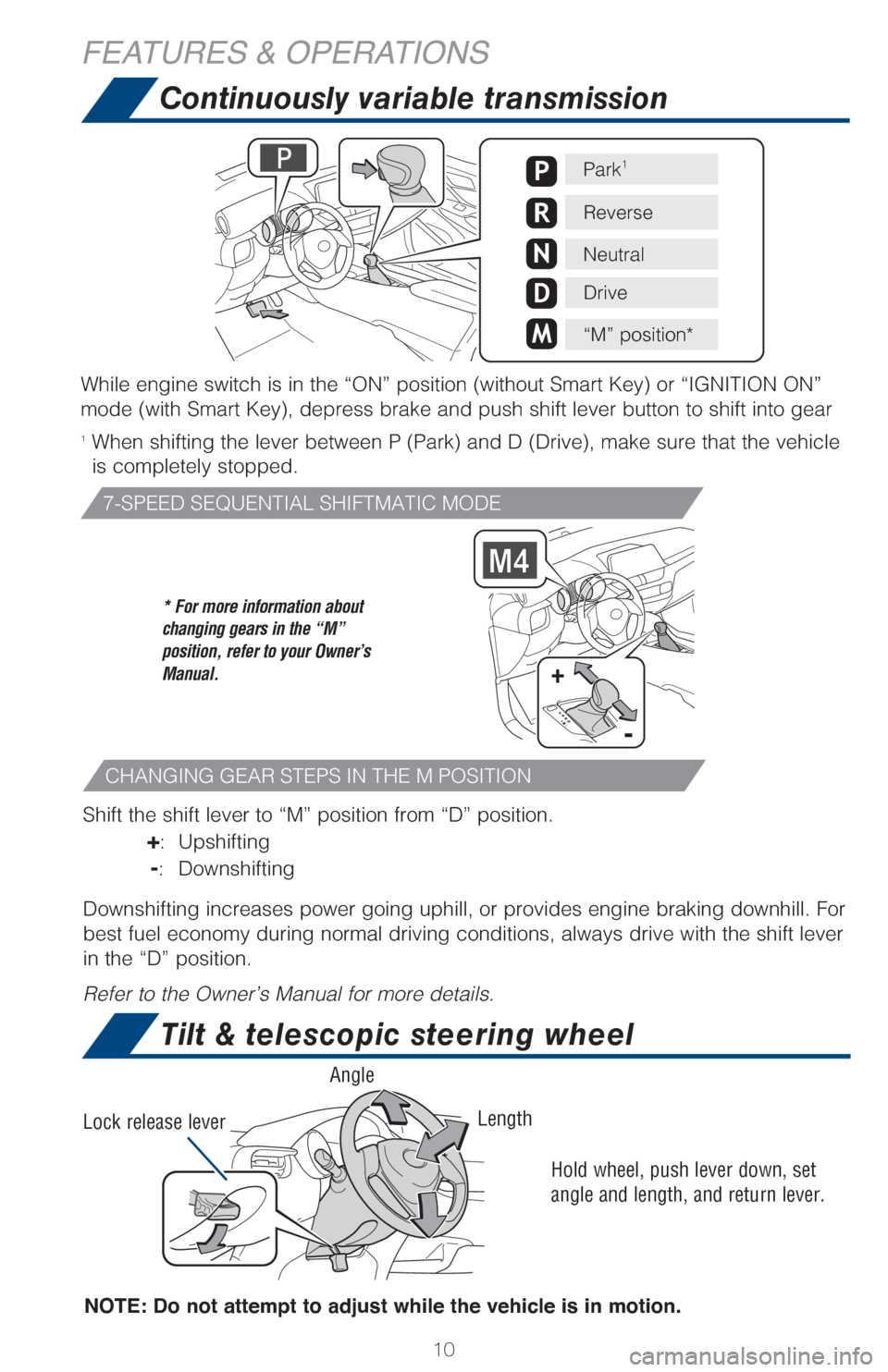

Continuously variable transmission
CHANGING GEAR STEPS IN THE M POSITION
7-SPEED SEQUENTIAL SHIFTMATIC MODE
1 8 I F O T I J G U J O H U I F M F W F S C F U X F F O 1 1 B S L
B O E % % S J W F
N B L F T V S F U I B U U I F W F I J D M F
is completely stopped. 8 I J M F F O H J O F T X J U D I J T J O U I F i 0 / w Q P T J U J P O X J U I P V U 4 N B S U , F Z
P S i * ( / * 5 * 0 / 0 / w
N P E F X J U I 4 N B S U , F Z
E F Q S F T T C S B L F B O E Q V T I T I J G U M F W F S C V U U P O U P T I J G U J O U P H F B S
Shift the shift lever to “M” position from “D” position.
+: Upshifting
-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Refer to the Owner’s Manual for more details.
Park1
Reverse
Neutral
Drive
“M” position*
P
R
N
D
M
* For more information about
changing gears in the “M”
position, refer to your Owner’s
Manual.
FEATURES & OPERATIONS
Tilt & telescopic steering wheel
NOTE: Do not attempt to adjust while the vehicle is in motion. Lock release leverAngle
Length
Hold wheel, push lever down, set
angle and length, and return lever.
+
-
Page 13 of 48
11
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Electric parking brake
Brake hold feature
Automatic (shift lever operation)
Manual
Pull to activate systemPush to deactivate system
To turn automatic mode ON, while vehicle is stopped, pull and hold switch and until
i & 1 # 4 I J G U * O U F S M P D L ' V O D U J P O " D U J W B U F E w E J T Q M B Z T J O . V M U J * O G P S N B U J P O % J T Q M B Z . * %
While depressing brake, shifting into P position will automatically set the brake and
turn indicator on in meter. To release brake, depress brake and shift out of P. The
indicator light turns off.
To turn automatic mode OFF, push and hold parking brake switch until “EPB Shift
Interlock Function Deactivated” displays on the MID.
The brake hold system keeps the brake applied when the shift lever is in any
position other than P or R with the system on and the brake pedal has been
E F Q S F T T F E U P T U P Q U I F W F I J D M F Z F M M P X J O E J D B U P S M J H I U
5 I F T Z T U F N S F M F B T F T U I F
brake when the accelerator pedal is depressed with the shift lever in any position
P U I F S U I B O 1 P S / U P B M M P X T N P P U I T U B S U P G G H S F F O J O E J D B U P S M J H I U
Refer to the Toyota Owner’s Manual for more information on this feature. While vehicle is stopped and brake pedal is depressed, pull to set parking brake
and display indicator light turns on in the meter. To release, press the brake pedal
and push switch. The indicator light turns off.
Push
Page 14 of 48
12
FEATURES & OPERATIONS
Daytime Running Light system (DRL)
Automatically turns on the headlights at a reduced intensity.
Automatic light cut off system
Automatically turns lights off after 30-second delay, or lock switch on remote may
be pushed after locking.

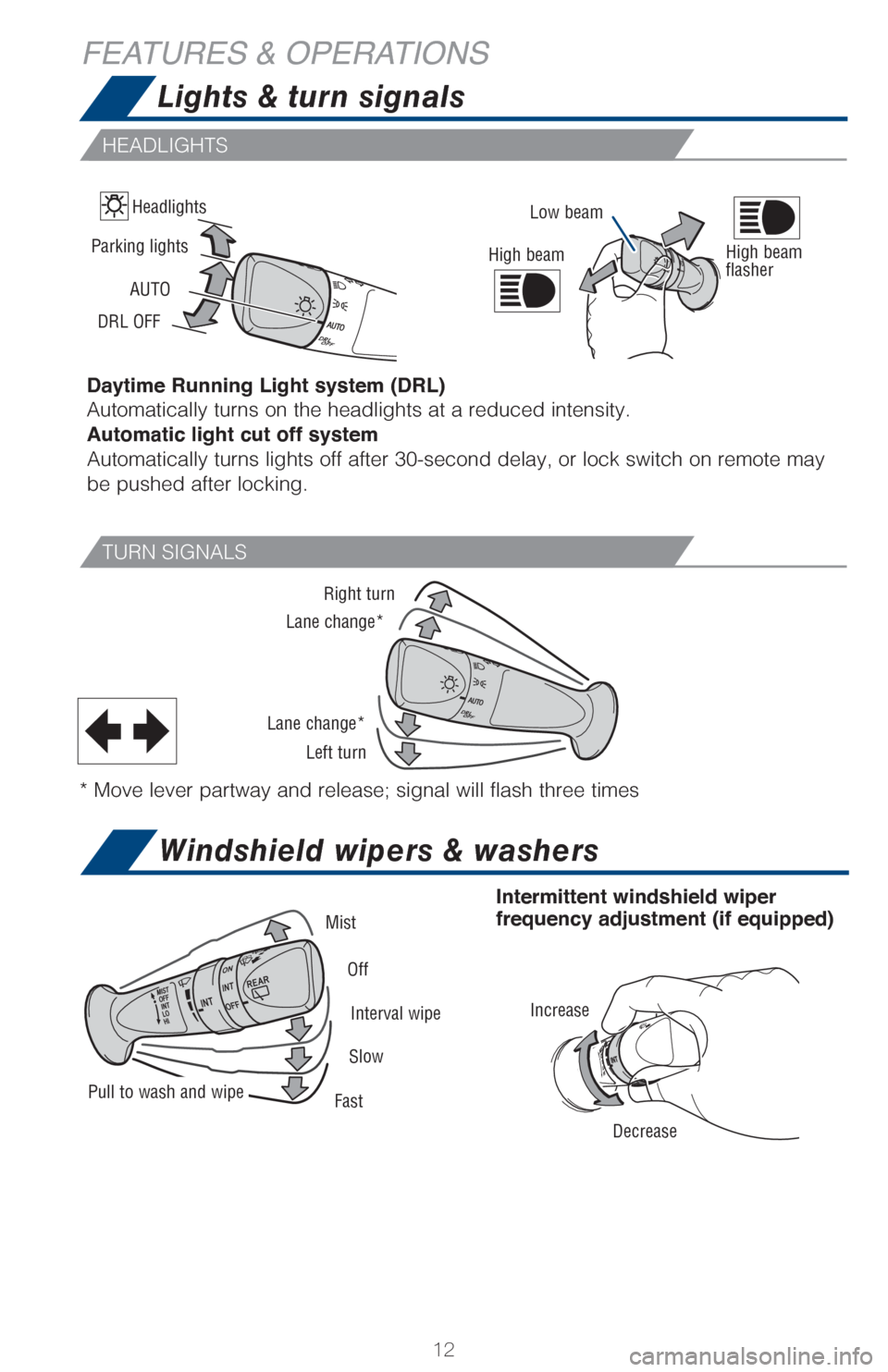

Lights & turn signals
HEADLIGHTS
TURN SIGNALS
Interval wipe Mist
Off
Slow
Fast
Pull to wash and wipe
Intermittent windshield wiper
frequency adjustment (if equipped)
Increase
Decrease
Windshield wipers & washers
Right turn
Lane change*
Lane change*
Left turn
* Move lever partway and release; signal will flash three times
High beamHigh beam
flasher
Headlights
Parking lights
DRL OFFAUTOLow beam
Page 15 of 48
13
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

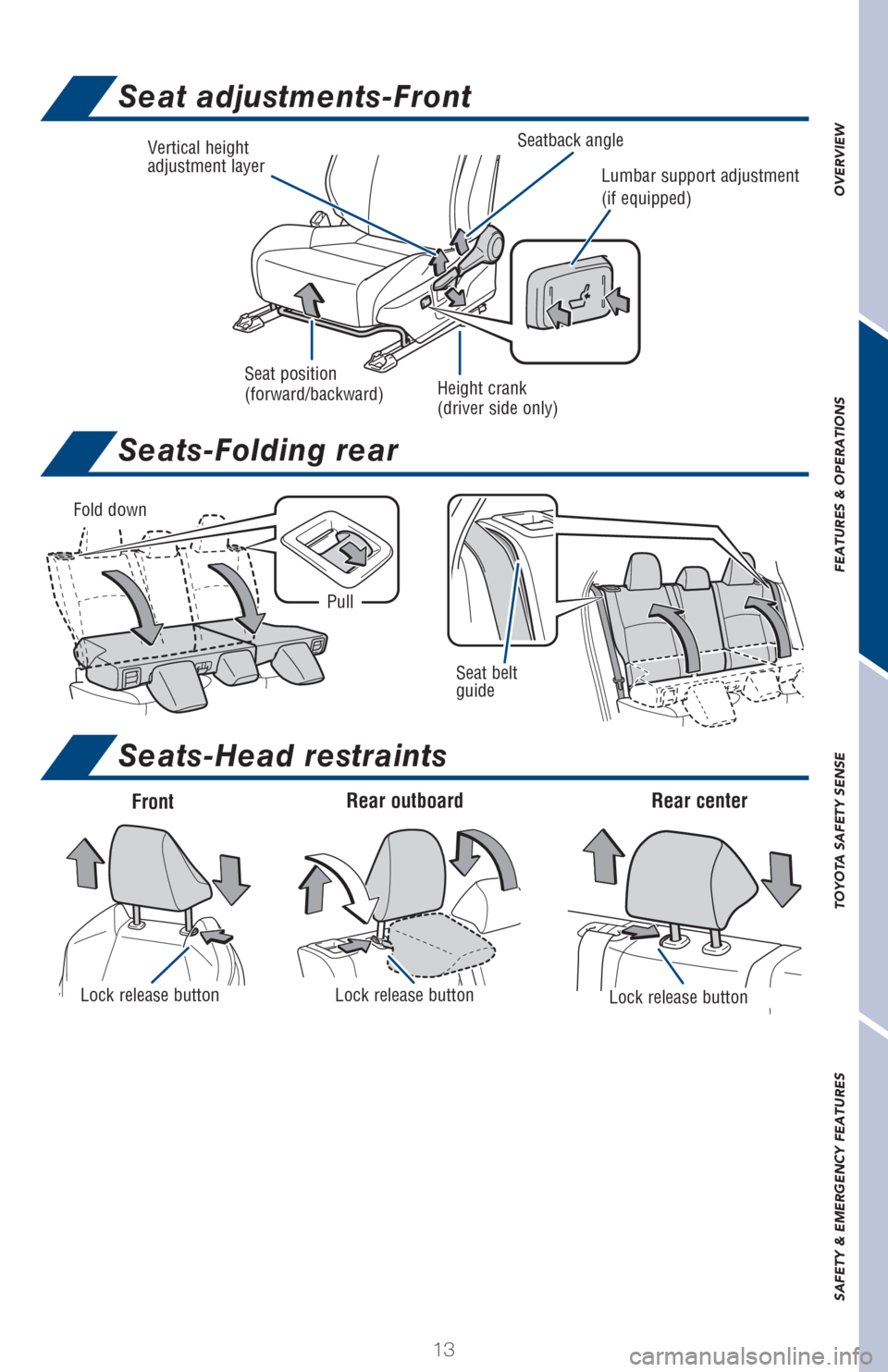

Seat adjustments-Front
FrontRear center Rear outboard
Lock release buttonLock release buttonLock release button
Fold down
Seat belt
guide
Pull
Seats-Folding rear
Seats-Head restraints
Seat position
(forward/backward)Height crank
(driver side only) Vertical height
adjustment layer
Seatback angle
Lumbar support adjustment
(if equipped)
Page 16 of 48
14
FEATURES & OPERATIONS

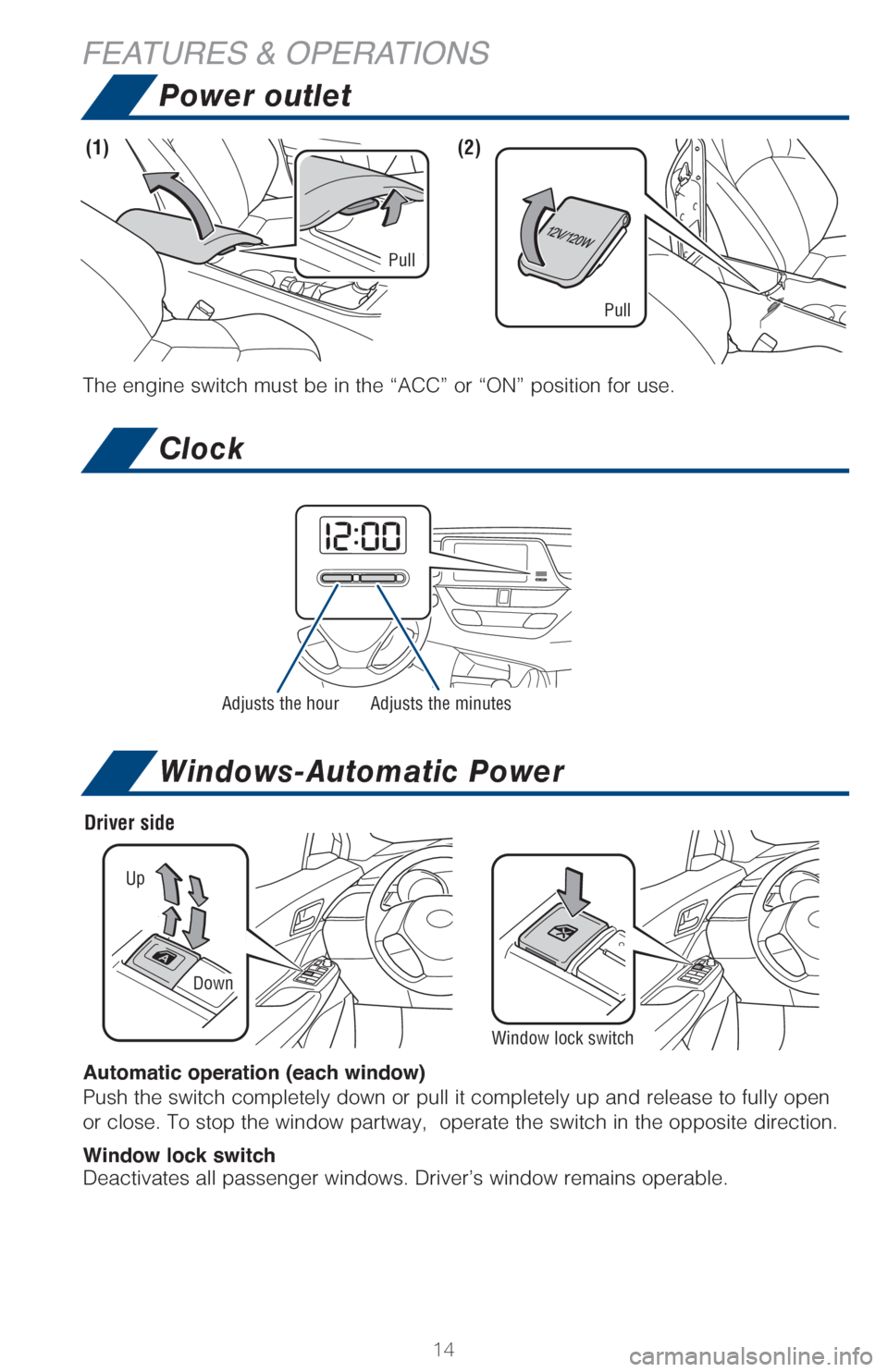

The engine switch must be in the “ACC” or “ON” position for use.
Adjusts the hourAdjusts the minutes
Windows-Automatic Power
Up
Down
Driver side
(1)(2)
Window lock switch
Automatic operation (each window)
Push the switch completely down or pull it completely up and release to fully open
or close. To stop the window partway, operate the switch in the opposite direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable.
Pull
Pull
Power outlet
Clock
Page 17 of 48
15
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

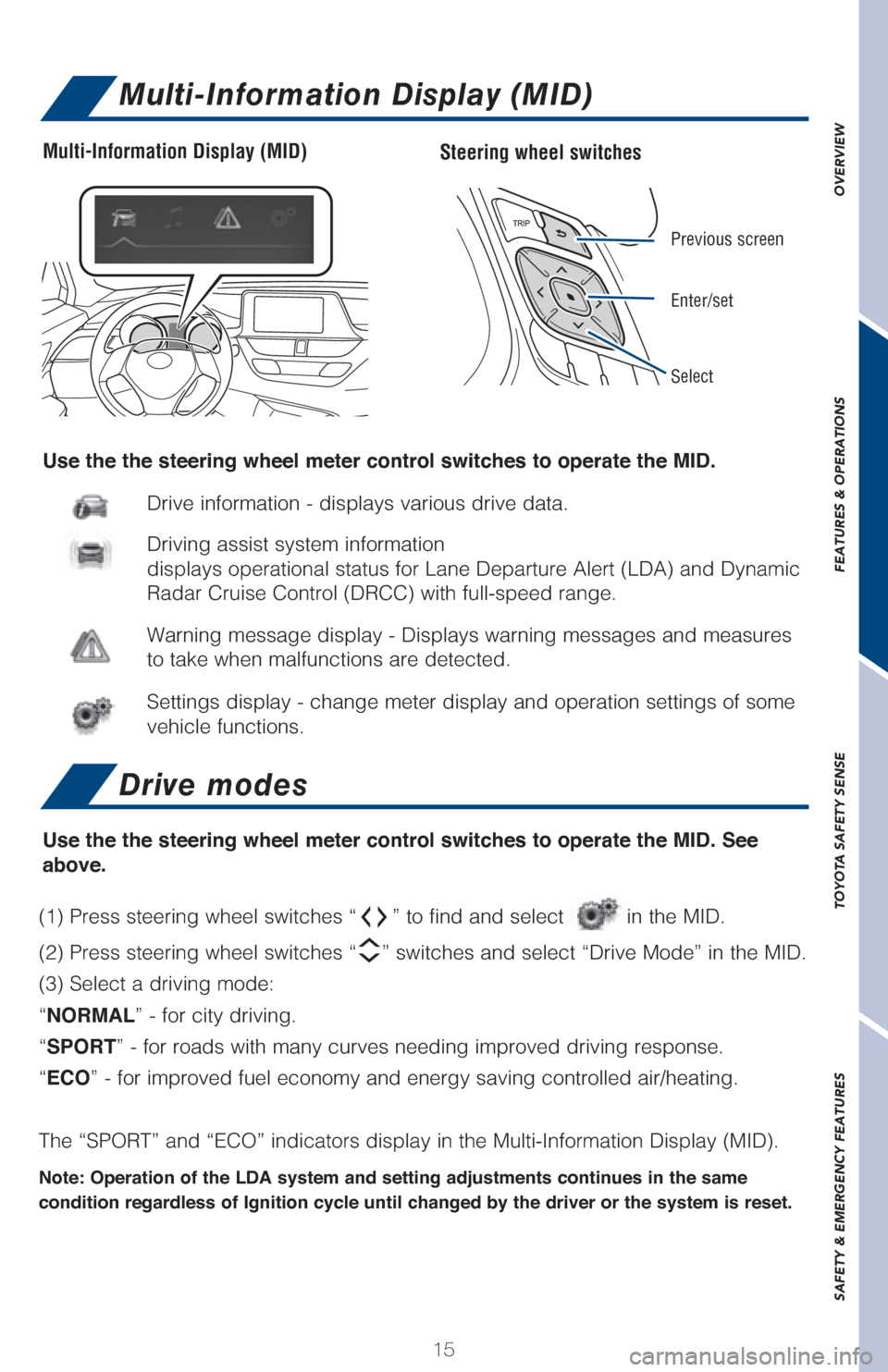

Multi-Information Display (MID)
Steering wheel switchesMulti-Information Display (MID)
Previous screen
Enter/set
Select
Use the the steering wheel meter control switches to operate the MID.
Use the the steering wheel meter control switches to operate the MID. See
above.
Drive modes
1 S F T T T U F F S J O H X I F F M T X J U D I F T i” to find and select in the MID.
1 S F T T T U F F S J O H X I F F M T X J U D I F T “
” switches and select “Drive Mode” in the MID.
4 F M F D U B E S J W J O H N P E F
“NORMAL” - for city driving.
“SPORT” - for roads with many curves needing improved driving response.
“ECO” - for improved fuel economy and energy saving controlled air/heating.
5 I F i 4 1 0 3 5 w B O E i & $ 0 w J O E J D B U P S T E J T Q M B Z J O U I F . V M U J * O G P S N B U J P O % J T Q M B Z . * %
Note: Operation of the LDA system and setting adjustments continues in the same
condition regardless of Ignition cycle until changed by the driver or the system is reset.
Drive information - displays various drive data.
Settings display - change meter display and operation settings of some
vehicle functions.
Warning message display - Displays warning messages and measures
to take when malfunctions are detected.
Driving assist system information
E J T Q M B Z T P Q F S B U J P O B M T U B U V T G P S - B O F % F Q B S U V S F " M F S U - % "
B O E % Z O B N J D
3 B E B S $ S V J T F $ P O U S P M % 3 $ $
X J U I G V M M T Q F F E S B O H F
Page 18 of 48
16
FEATURES & OPERATIONS

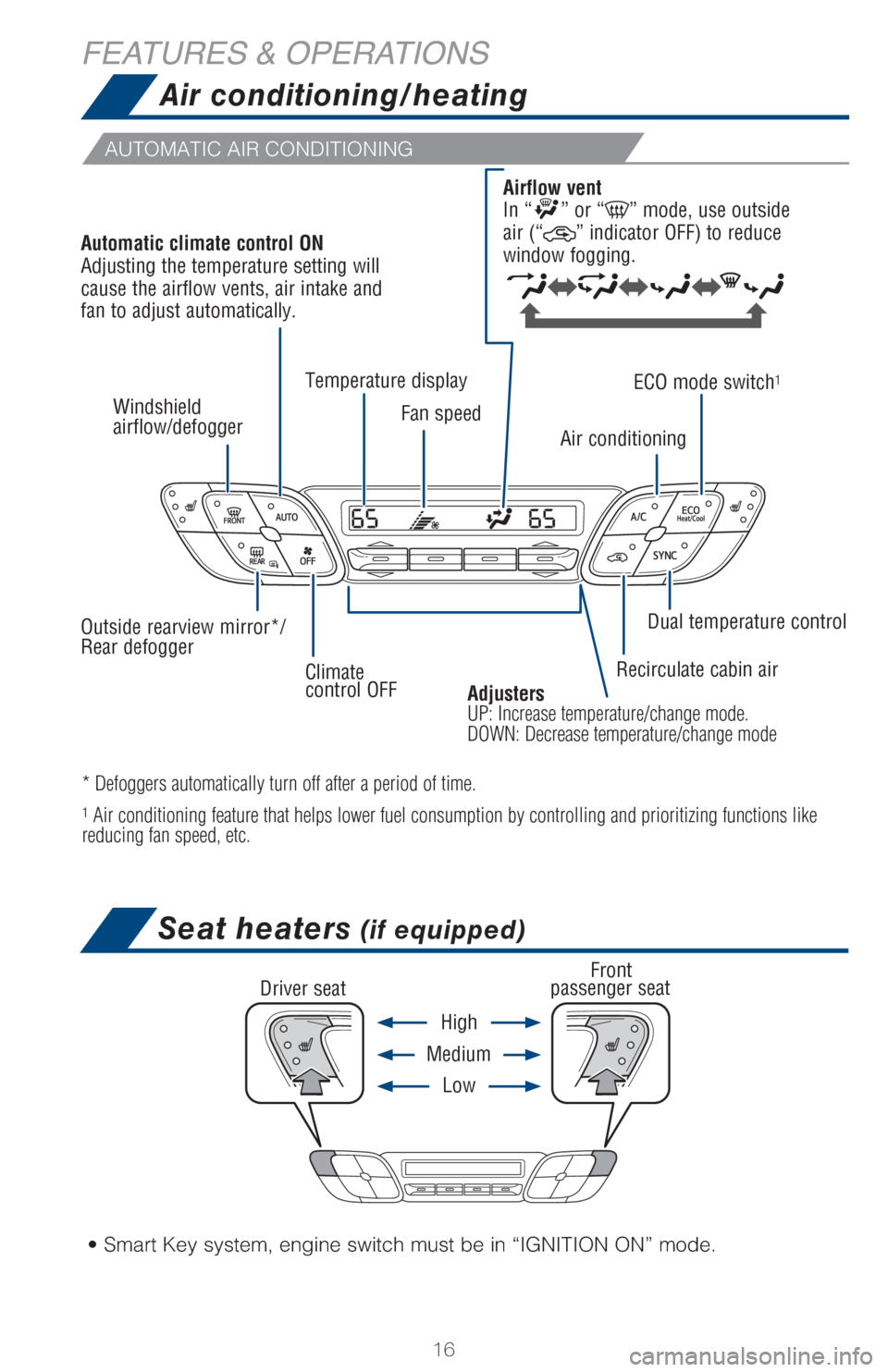

Seat heaters (if equipped)
Air conditioning/heating
Driver seatFront
passenger seat
High
Medium
Low
AUTOMATIC AIR CONDITIONING
Dual temperature control ECO mode switch
1
Air conditioning Temperature display
Recirculate cabin air
Climate
control OFF Outside rearview mirror*/
Rear defoggerFan speed
Windshield
airflow/defogger
Automatic climate control ON
Adjusting the temperature setting will
cause the airflow vents, air intake and
fan to adjust automatically.Airflow vent
In “
” or “” mode, use outside
air (“” indicator OFF) to reduce
window fogging.
Adjusters
UP: Increase temperature/change mode.
DOWN: Decrease temperature/change mode
* Defoggers automatically turn off after a period of time.
1 Air conditioning feature that helps lower fuel consumption by controlling and prioritizing functions like
reducing fan speed, etc.
t 4 N B S U , F Z T Z T U F N
F O H J O F T X J U D I N V T U C F J O i * ( / * 5 * 0 / 0 / w N P E F
Page 19 of 48
17
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

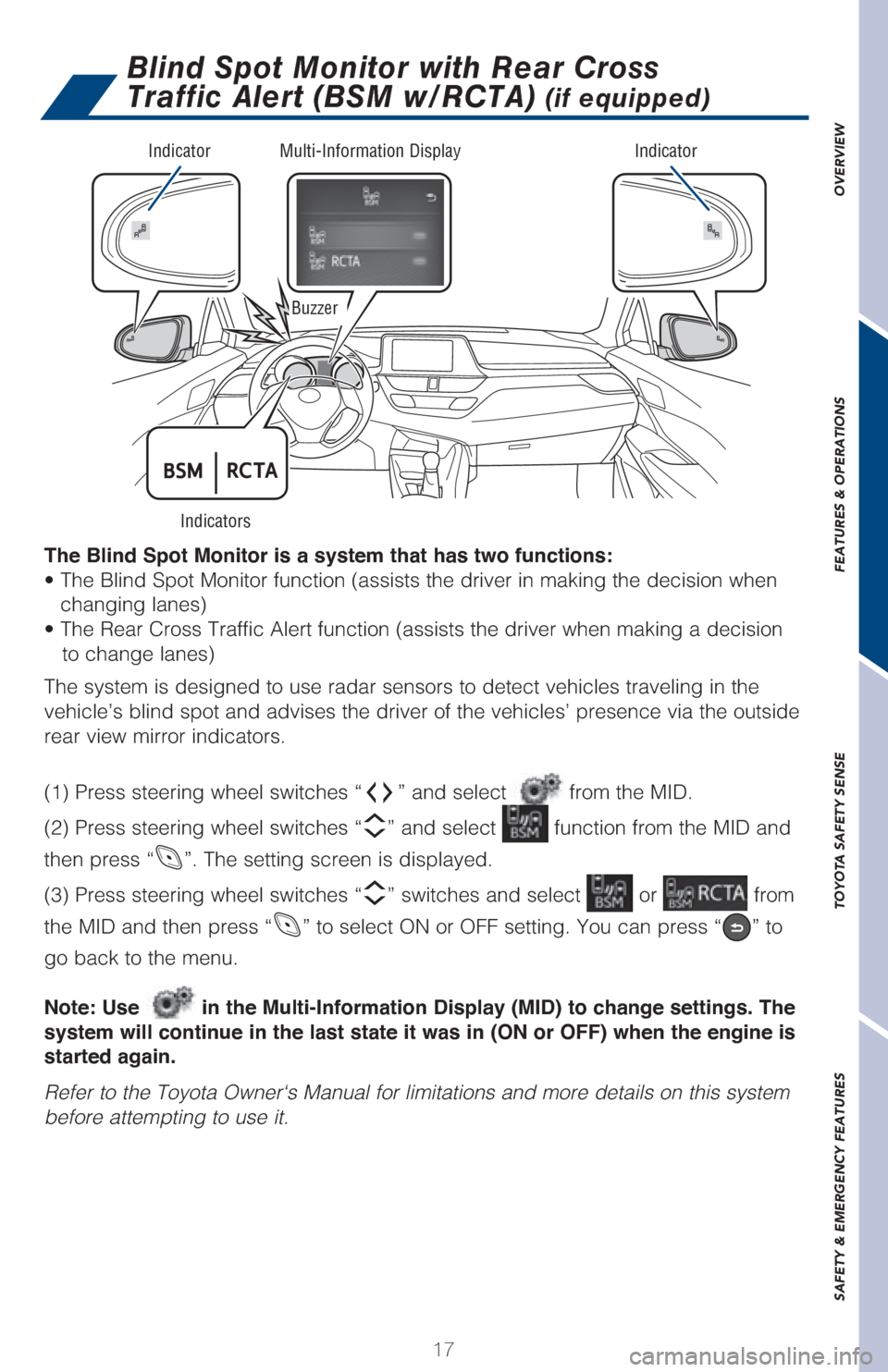

Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
IndicatorIndicatorMulti-Information Display
Buzzer
Indicators
The Blind Spot Monitor is a system that has two functions:
t 5 I F # M J O E 4 Q P U . P O J U P S G V O D U J P O B T T J T U T U I F E S J W F S J O N B L J O H U I F E F D J T J P O X I F O
D I B O H J O H M B O F T
t 5 I F 3 F B S $ S P T T 5 S B G G J D " M F S U G V O D U J P O B T T J T U T U I F E S J W F S X I F O N B L J O H B E F D J T J P O
U P D I B O H F M B O F T
5 I F T Z T U F N J T E F T J H O F E U P V T F S B E B S T F O T P S T U P E F U F D U W F I J D M F T U S B W F M J O H J O U I F
W F I J D M F T C M J O E T Q P U B O E B E W J T F T U I F E S J W F S P G U I F W F I J D M F T Q S F T F O D F W J B U I F P V U T J E F
S F B S W J F X N J S S P S J O E J D B U P S T
1 S F T T T U F F S J O H X I F F M T X J U D I F T i
w B O E T F M F D U G S P N U I F . * %
1 S F T T T U F F S J O H X I F F M T X J U D I F T i
w B O E T F M F D U G V O D U J P O G S P N U I F . * % B O E
U I F O Q S F T T i
w 5 I F T F U U J O H T D S F F O J T E J T Q M B Z F E
1 S F T T T U F F S J O H X I F F M T X J U D I F T i
w T X J U D I F T B O E T F M F D U P S G S P N
U I F . * % B O E U I F O Q S F T T i
w U P T F M F D U 0 / P S 0 ' ' T F U U J O H : P V D B O Q S F T T i w U P
H P C B D L U P U I F N F O V
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to the Toyota Owner‘s Manual for limitations and more details on this system
before attempting to use it.
Page 20 of 48
18
FEATURES & OPERATIONS
CAUTION:

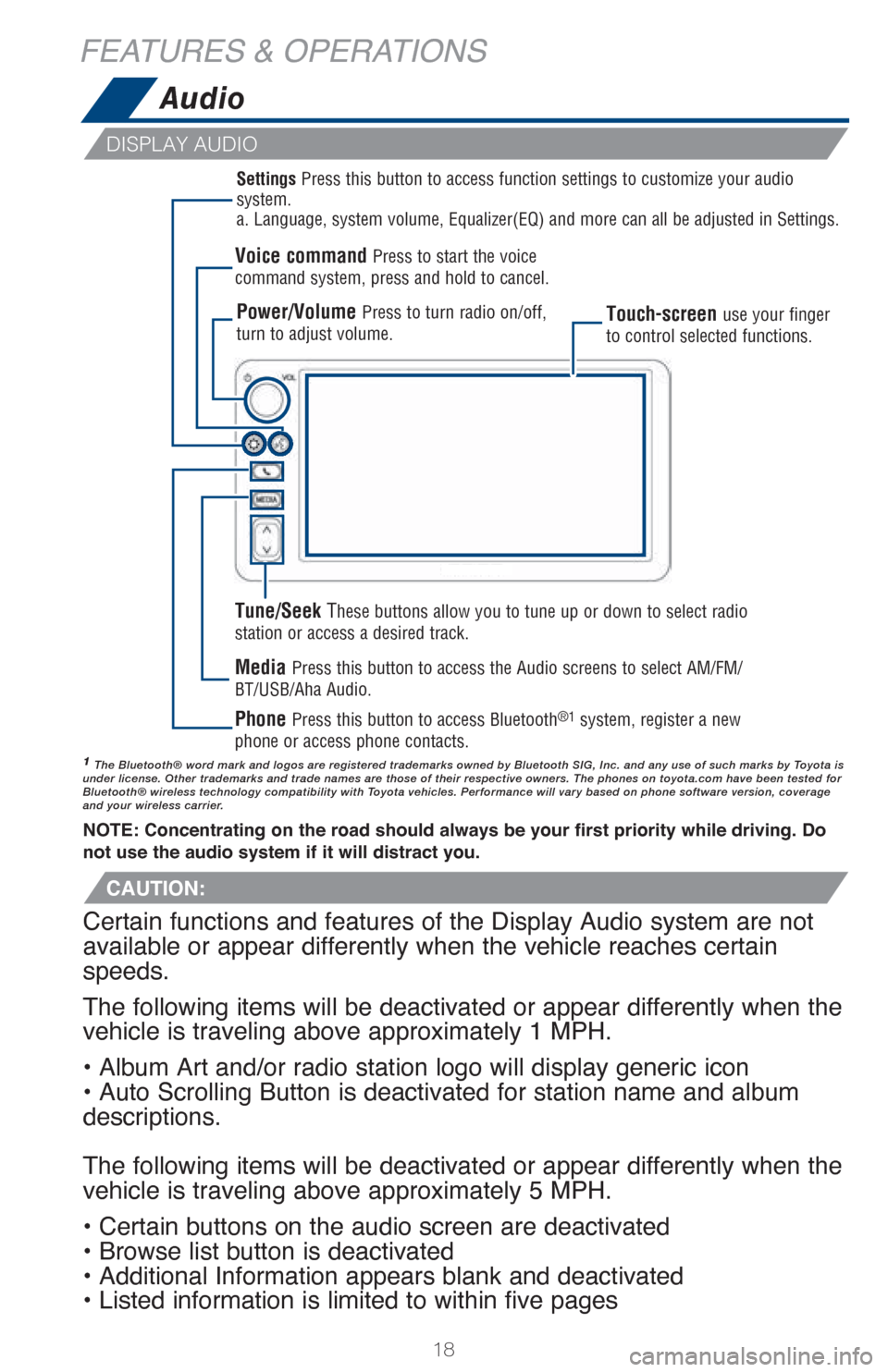

DISPLAY AUDIO
Settings Press this button to access function settings to customize your audio
system.
a. Language, system volume, Equalizer(EQ) and more can all be adjusted in Settings.
Power/Volume Press to turn radio on/off,
turn to adjust volume.
Tune/Seek These buttons allow you to tune up or down to select radio
station or access a desired track.
Media Press this button to access the Audio screens to select AM/FM/
BT/USB/Aha Audio.
Phone Press this button to access Bluetooth®1 system, register a new
phone or access phone contacts.
Voice command Press to start the voice
command system, press and hold to cancel.
Touch-screen U S E Y O U R l N G E R
to control selected functions.
Certain functions and features of the Display Audio system are not
available or appear differently when the vehicle reaches certain
speeds.
The following items will be deactivated or appear differently when the
vehicle is traveling above approximately 1 MPH.
‡ Album Art and/or radio station logo will display generic icon
‡ Auto Scrolling Button is deactivated for station name and album
descriptions.
The following items will be deactivated or appear differently when the
vehicle is traveling above approximately 5 MPH.
‡ Certain buttons on the audio screen are deactivated
‡ Browse list button is deactivated
‡ Additional Information appears blank and deactivated
‡ Listed information is limited to within five pages
NOTE: Concentrating on the road should always be your first priority while driving. Do
not use the audio system if it will distract you.
1
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is
under license. Other trademarks and trade names are those of their respective owners. The phones on toyota.com have been tested for
Bluetooth® wireless technology compatibility with Toyota vehicles. Performance will vary based on phone software version, coverage
and your wireless carrier.
Audio
