TOYOTA C-HR 2018 1.G Quick Reference Guide

19
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

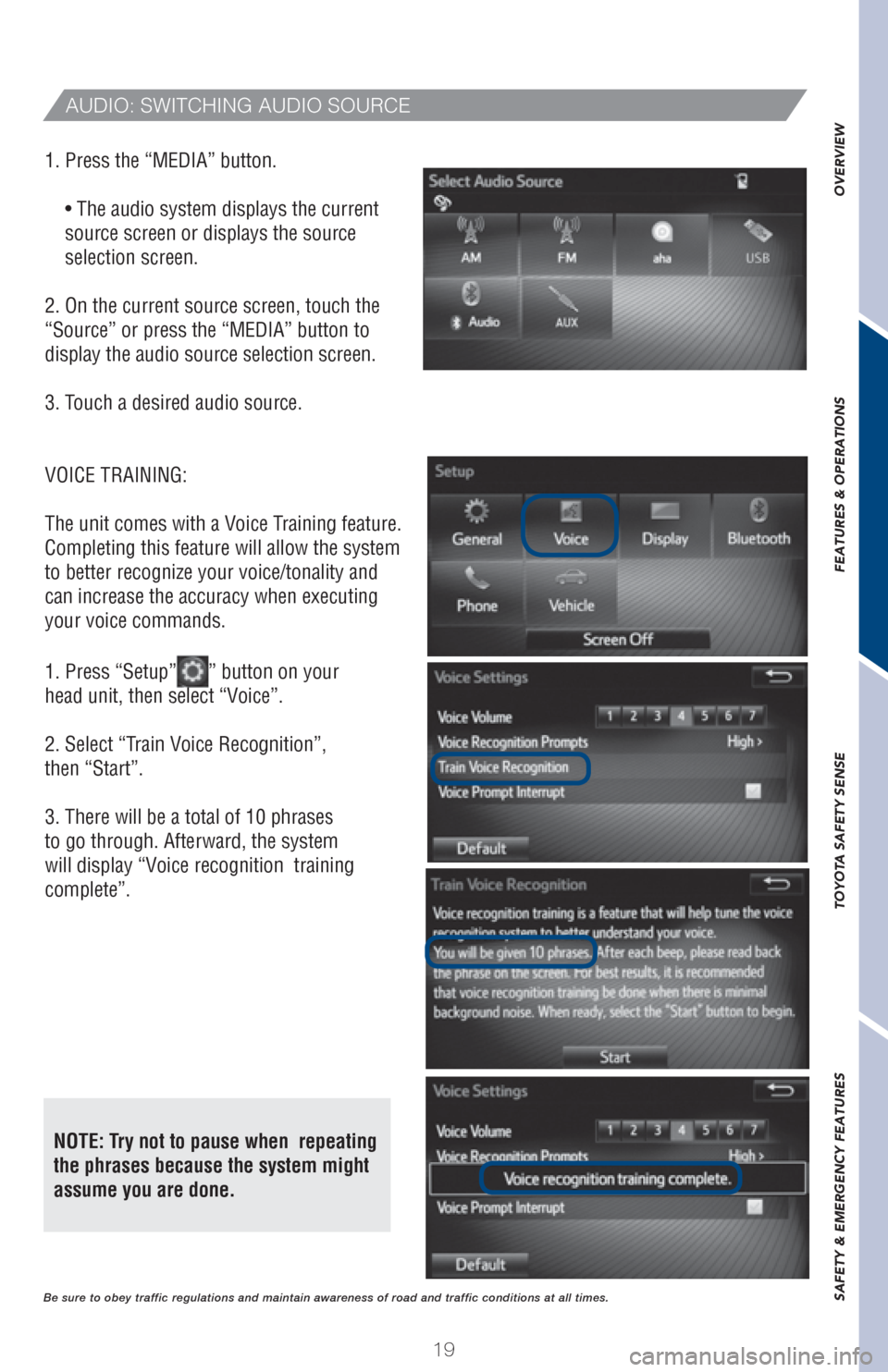

1. Press the “MEDIA” button.
s The audio system displays the current
source screen or displays the source
selection screen.
2. On the current source screen, touch the
“Source” or press the “MEDIA” button to
display the audio source selection screen.
3. Touch a desired audio source.
VOICE TRAINING:
The unit comes with a Voice Training feature.
Completing this feature will allow the system
to better recognize your voice/tonality and
can increase the accuracy when executing
your voice commands.
1. Press “Setup” ” button on your
head unit, then select “Voice”.
2. Select “Train Voice Recognition”,
then “Start”.
3. There will be a total of 10 phrases
to go through. Afterward, the system
will display “Voice recognition training
complete”.
NOTE: Try not to pause when repeating
the phrases because the system might
assume you are done.
Be sure to obey traffic regulations and maintain awareness of road and traffic conditions at all times.
AUDIO: SWITCHING AUDIO SOURCE

20
Be sure to obey traffic regulations and maintain awareness of road and traffic conditions at all times.

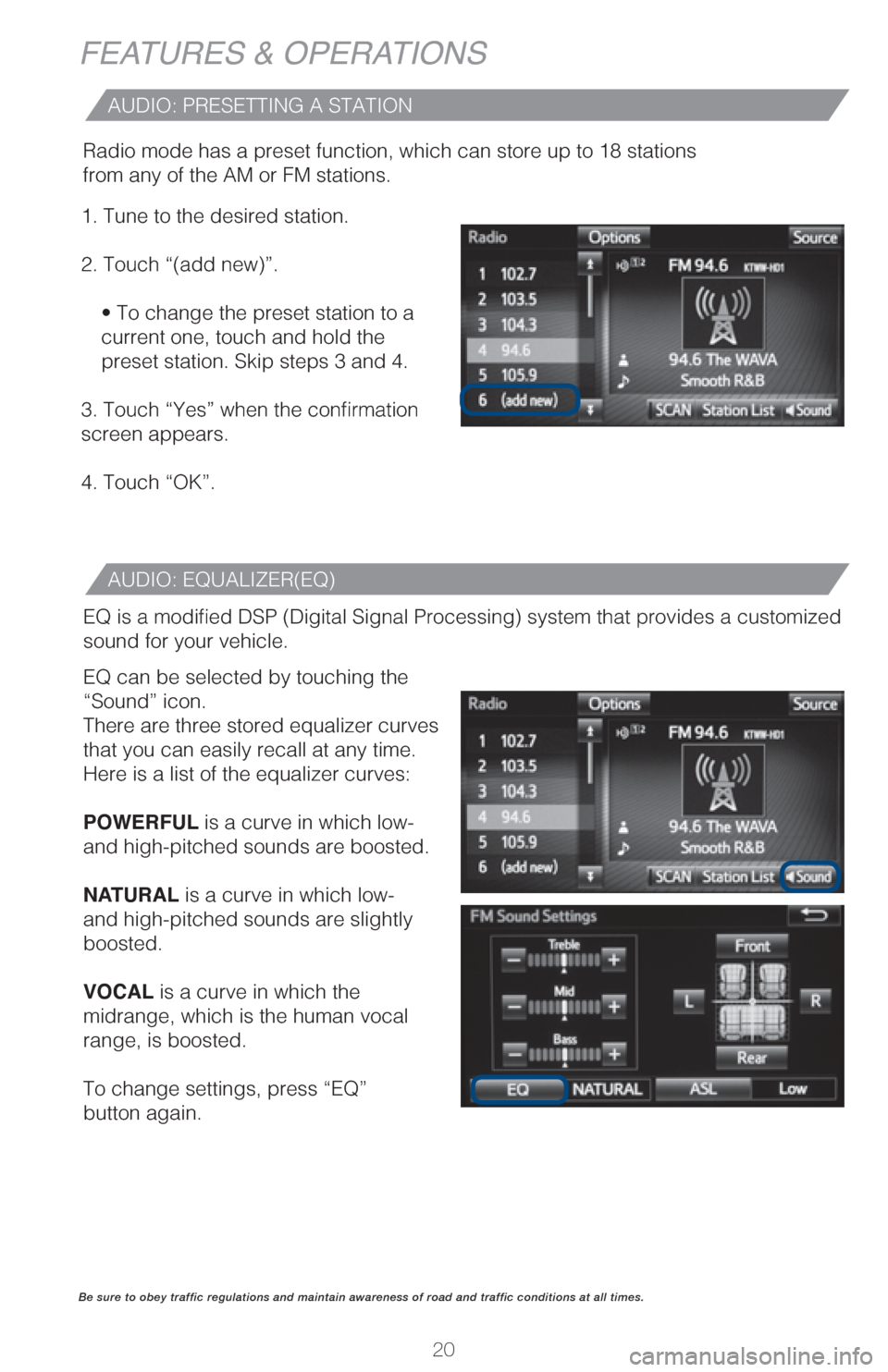

1. Tune to the desired station.
5PVDIi BEEOFX
w
t To change the preset station to a
current one, touch and hold the
preset station. Skip steps 3 and 4.
5PVDIi:FTwXIFOUIFDPOmSNBUJPO
screen appears.
4. Touch “OK”.
EQ can be selected by touching the
“Sound” icon.
There are three stored equalizer curves
that you can easily recall at any time.
Here is a list of the equalizer curves:
POWERFUL is a curve in which low-
and high-pitched sounds are boosted.
NATURAL is a curve in which low-
and high-pitched sounds are slightly
boosted.
VOCAL is a curve in which the
midrange, which is the human vocal
range, is boosted.
To change settings, press “EQ”
button again.
Radio mode has a preset function, which can store up to 18 stations
from any of the AM or FM stations.
<002600320003004a0054000300420003004e00500045004a006d004600450003002500340031000300090025004a0048004a00550042004d00030034004a0048004f0042004d00030031005300500044004600540054004a004f0048000a00030054005a00
5400550046004e000300550049004200550003005100530050>WJEFTBDVTUPNJ[FE
sound for your vehicle.
AUDIO: PRESETTING A STATION
"6%*0&26"-*;&3 &2

FEATURES & OPERATIONS

21
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

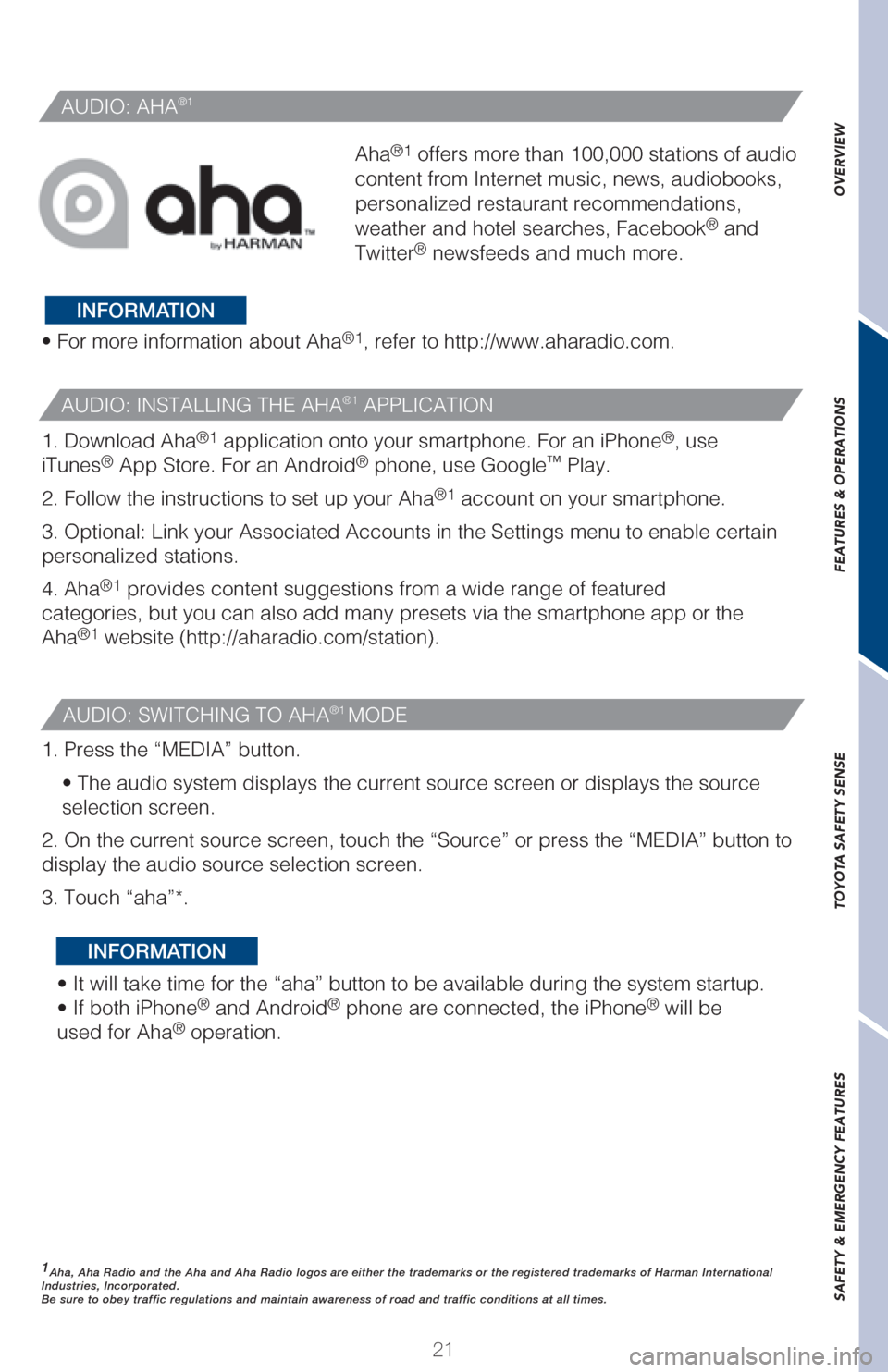

AUDIO: INSTALLING THE AHA®1 APPLICATION
AUDIO: AHA®1
AUDIO: SWITCHING TO AHA®1 MODE
Aha®1 offers more than 100,000 stations of audio
content from Internet music, news, audiobooks,
personalized restaurant recommendations,
weather and hotel searches, Facebook
® and
Twitter® newsfeeds and much more.
1. Download Aha
®1 application onto your smartphone. For an iPhone®, use
iTunes® App Store. For an Android® phone, use Google™ Play.
2. Follow the instructions to set up your Aha
®1 account on your smartphone.
3. Optional: Link your Associated Accounts in the Settings menu to enable certain
personalized stations.
4. Aha
®1 provides content suggestions from a wide range of featured
categories, but you can also add many presets via the smartphone app or the
Aha
®1XFCTJUF IUUQBIBSBEJPDPNTUBUJPO

1. Press the “MEDIA” button.
t The audio system displays the current source screen or displays the source
selection screen.
2. On the current source screen, touch the “Source” or press the “MEDIA” button to
display the audio source selection screen.
3. Touch “aha”*.
t It will take time for the “aha” button to be available during the system startup.
t If both iPhone
® and Android® phone are connected, the iPhone® will be
used for Aha® operation. t For more information about Aha
®1, refer to http://www.aharadio.com.
1Aha, Aha Radio and the Aha and Aha Radio logos are either the trademarks or the registered trademarks of Harman International
Industries, Incorporated.
Be sure to obey traffic regulations and maintain awareness of road and traffic conditions at all times.
INFORMATION
INFORMATION

22
FEATURES & OPERATIONS
1Android, Google Play, and other marks are trademarks of Google Inc.2iPhone® not included. iPhone and iTunes are registered trademarks of Apple Inc.
Be sure to obey traffic regulations and maintain awareness of road and traffic conditions at all times.

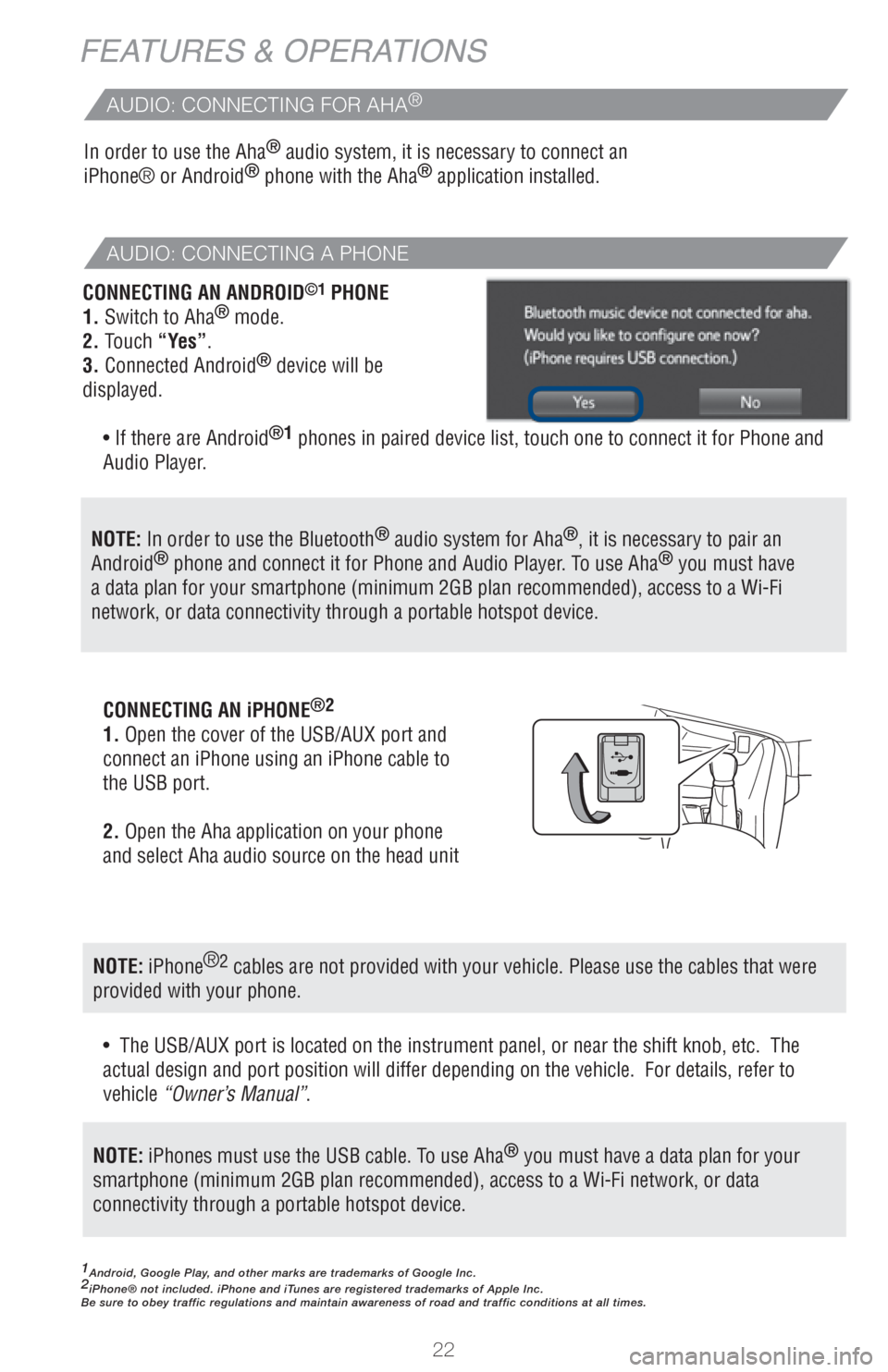

In order to use the Aha® audio system, it is necessary to connect an
iPhone® or Android® phone with the Aha® application installed.
CONNECTING AN ANDROID
©1 PHONE
1. Switch to Aha® mode.
2. Touch “Yes”.
3. Connected Android
® device will be
displayed.
s If there are Android
®1 phones in paired device list, touch one to connect it for Phone and
Audio Player.
s The USB/AUX port is located on the instrument panel, or near the shift knob, etc. The
actual design and port position will differ depending on the vehicle. For details, refer to
vehicle “Owner’s Manual”. CONNECTING AN iPHONE
®2
1. Open the cover of the USB/AUX port and
connect an iPhone using an iPhone cable to
the USB port.
2. Open the Aha application on your phone
and select Aha audio source on the head unit
NOTE: In order to use the Bluetooth® audio system for Aha®, it is necessary to pair an
Android® phone and connect it for Phone and Audio Player. To use Aha® you must have
a data plan for your smartphone (minimum 2GB plan recommended), access to a Wi-Fi
network, or data connectivity through a portable hotspot device.
NOTE: iPhones must use the USB cable. To use Aha®
you must have a data plan for your
smartphone (minimum 2GB plan recommended), access to a Wi-Fi network, or data
connectivity through a portable hotspot device.
NOTE: iPhone®2 cables are not provided with your vehicle. Please use the cables that were
provided with your phone.
AUDIO: CONNECTING FOR AHA®
AUDIO: CONNECTING A PHONE

23
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

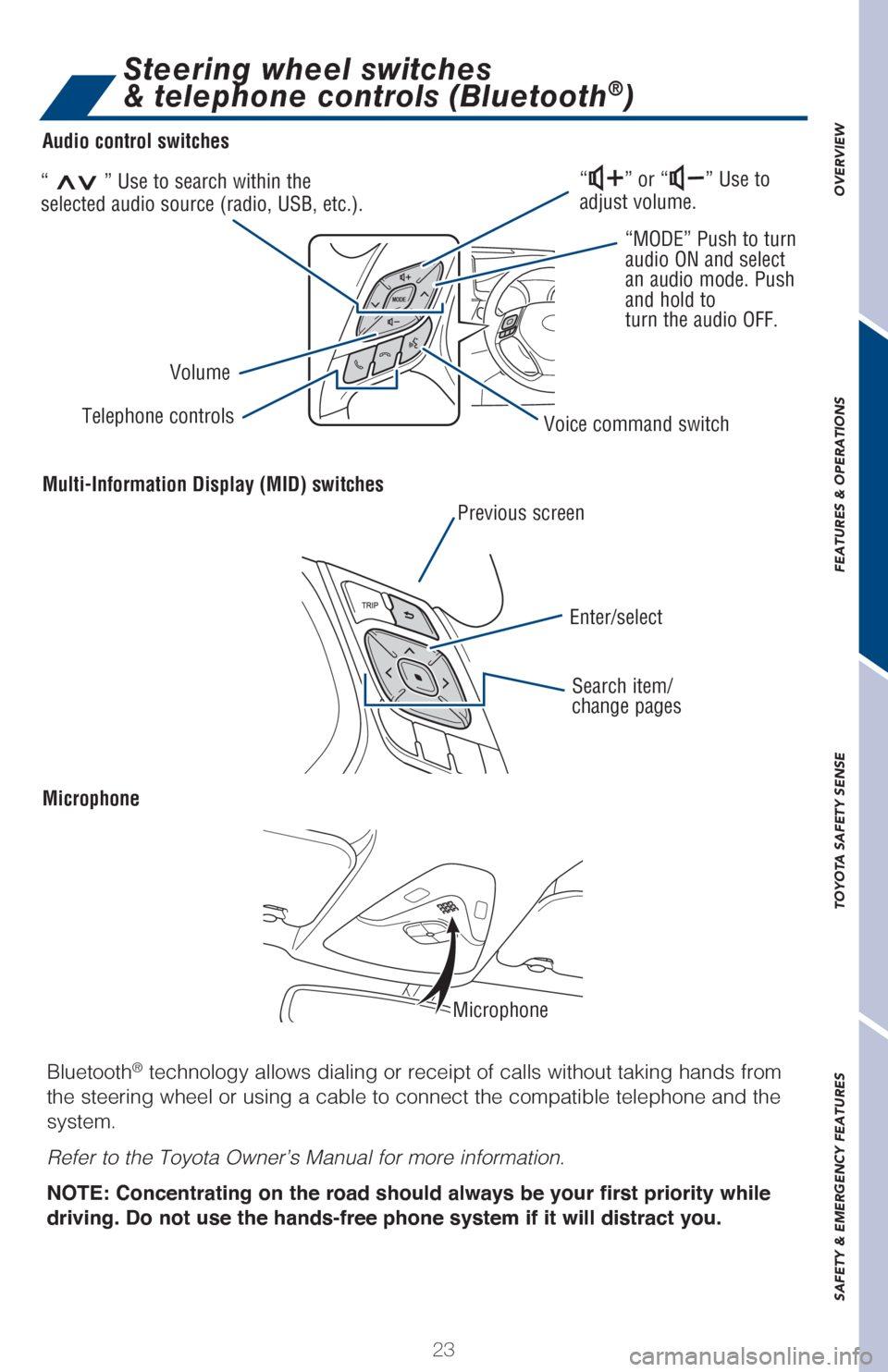

Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to the Toyota Owner’s Manual for more information.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the hands-free phone system if it will distract you.
Audio control switches
Multi-Information Display (MID) switches
Microphone
Microphone
Steering wheel switches
& telephone controls (Bluetooth®)
Previous screen
%NTERSELECT
3EARCHITEM
change pages Volume“
” or “” 5SETO
adjust volume.
Voice command switch Telephone controls “>>” 5SETOSEARCHWITHINTHE
SELECTEDAUDIOSOURCERADIO 53" ETC
“MODE” Push to turn
audio ON and select
an audio mode. Push
and hold to
TURNTHEAUDIO/&&

24
FEATURES & OPERATIONS

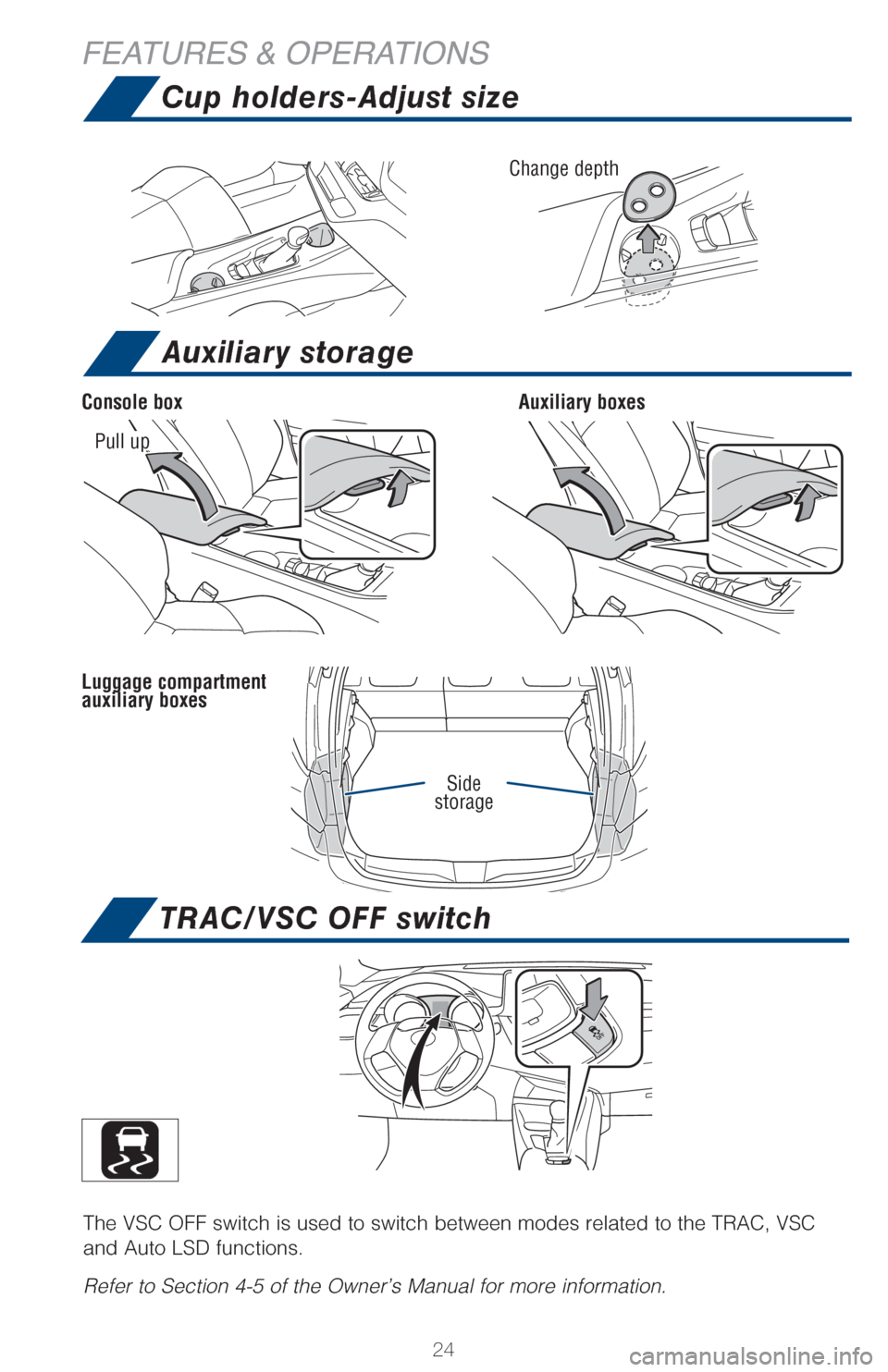

The VSC OFF switch is used to switch between modes related to the TRAC, VSC
and Auto LSD functions.
Refer to Section 4-5 of the Owner’s Manual for more information.
TRAC/VSC OFF switch
Cup holders-Adjust size
Auxiliary storage
Console box
Luggage compartment
auxiliary boxesAuxiliary boxes
Pull up
Side
storageChange depth

25
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

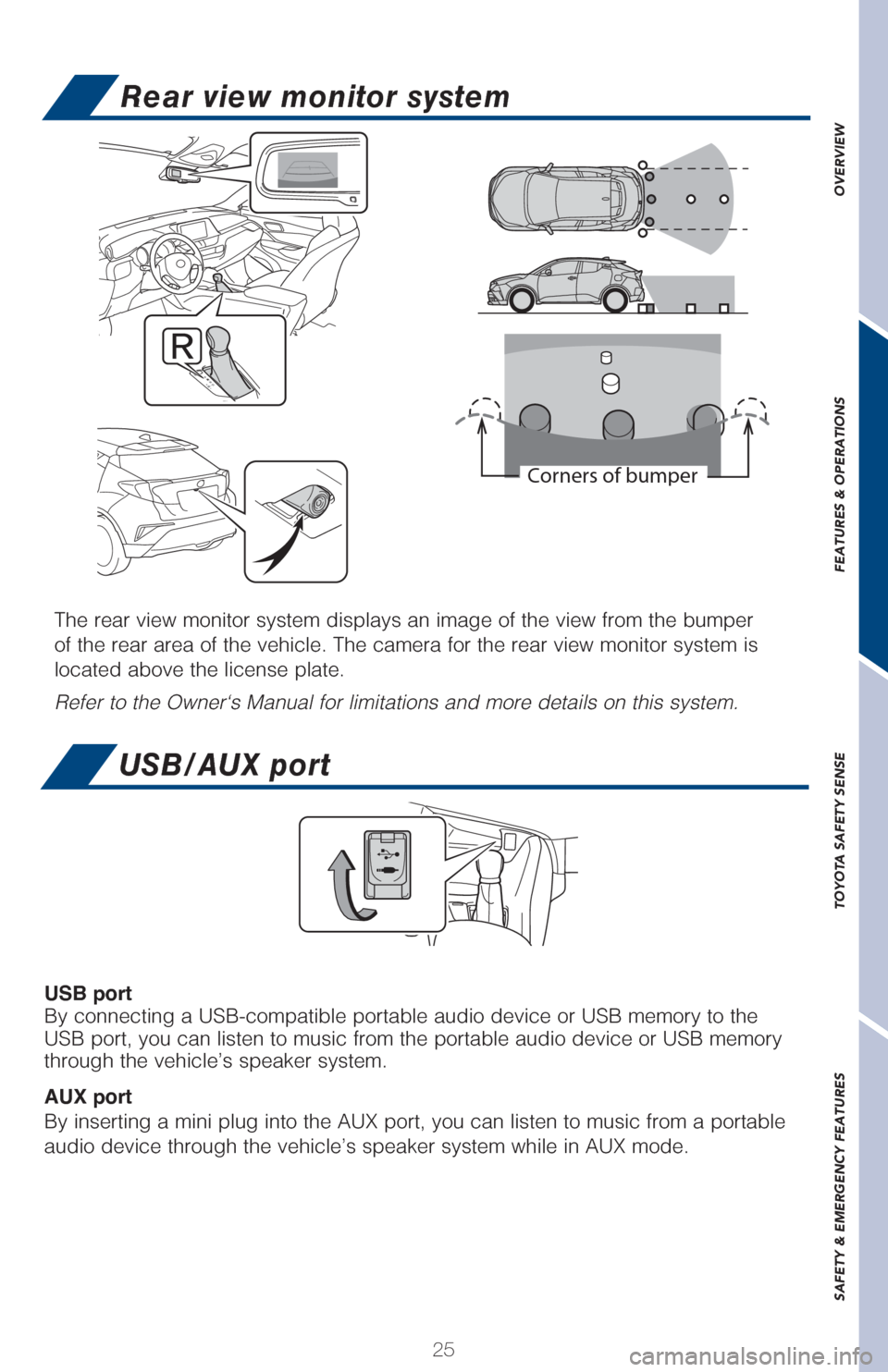

The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor system is
located above the license plate.
Refer to the Owner‘s Manual for limitations and more details on this system.
Corners of bumper
USB/AUX port
USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
Rear view monitor system

26

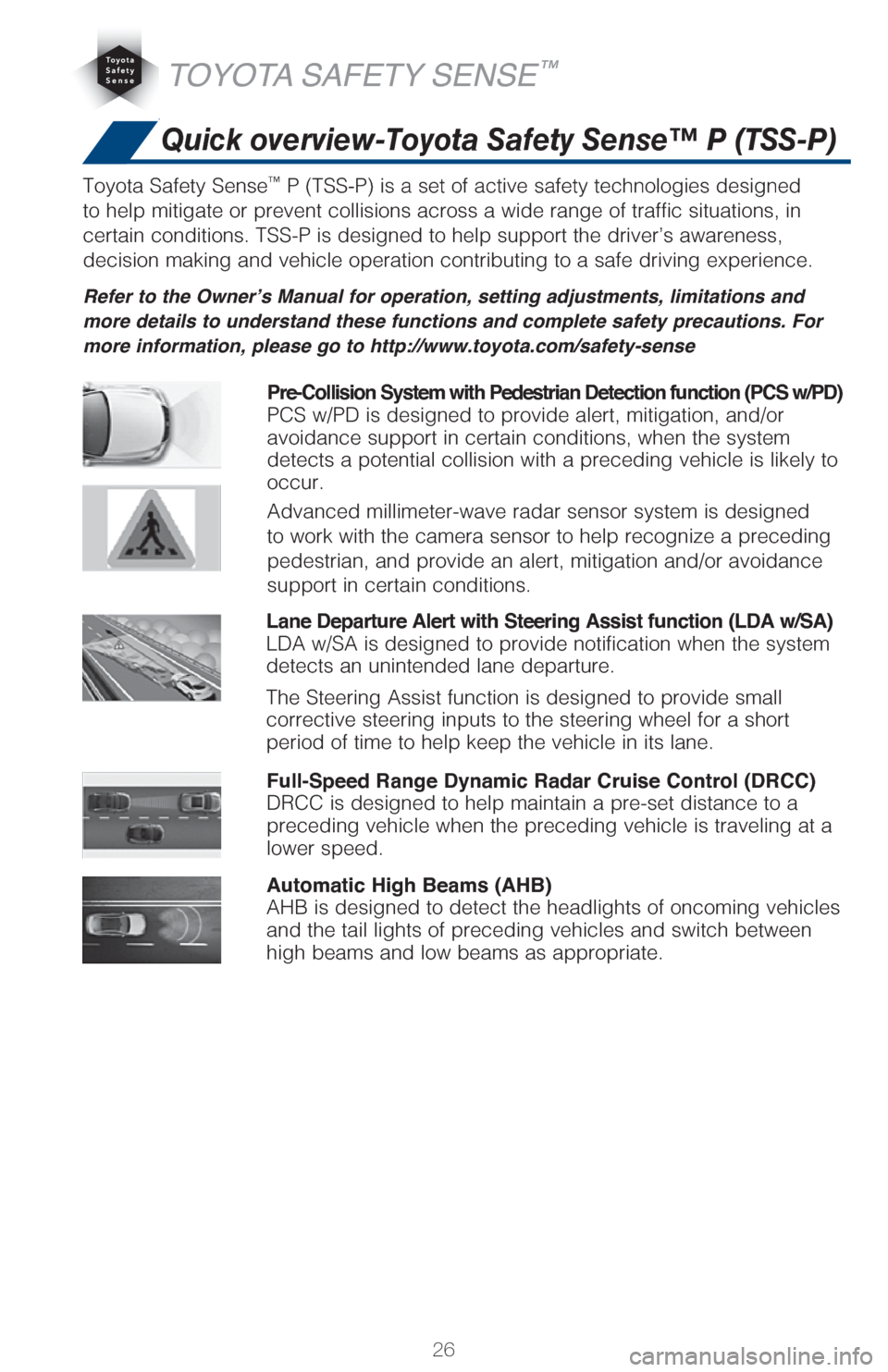

Quick overview-Toyota Safety Sense™ P (TSS-P)
TOYOTA SAFETY SENSE™
Toyota Safety Sense™1 5441
JTBTFUPGBDUJWFTBGFUZUFDIOPMPHJFTEFTJHOFE
to help mitigate or prevent collisions across a wide range of traffic situations, in
certain conditions. TSS-P is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.
5HIHUWRWKH2ZQHU

27
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear view mirror
and a millimeter-wave radar mounted in the front grill. These sensors support the
driver assist systems.
Camera sensor
Radar sensor

28
TOYOTA SAFETY SENSE™
The Pre-Collision System with Pedestrian Detection uses a radar sensor and camera
sensor to help detect vehicles and pedestrians in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance
that this system can provide, do not overly rely on this system. This system will not
prevent collisions or lessen collision damage or injury in every situation. Do not use
PCS w/PD instead of normal braking operations under any circumstances. Do not
attempt to test the operation of the pre-collision system yourself, as the system may
not operate or engage, possibly leading to an accident. In some situations, such as
when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or
while driving on a curve and for a few seconds after driving on a curve, a vehicle
may not be detected by the radar and camera sensors, preventing the system from
operating or engaging properly.
Refer to a Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.
Refer to a Toyota Owner’s Manual for additional information on PCS w/PD operation,
settings adjustments, limitations, and precautions before attempting to use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
%JTQMBZ .*%
UPVSHFUIFESJWFSUPUBLFFWBTJWFBDUJPO
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional
braking force using Brake Assist. This system may prime the brakes and may apply
greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection function (PCS w/PD)
