3936-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10569U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been repla ced, a bulb may
need replacement. ( P. 394)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness f rom damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicate d, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired b y your
Toyota dealer as soon as possible.

4066-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10569U
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immedia tely after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hand s. When it is
unavoidable to hold the glass portion, use and hold with a clea n dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Fa ilure to do so
may result in heat damage, fire, or water entering the headligh t unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors , electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

4237-2. Steps to take in an emergency
7
When trouble arises
C-HR_OM_USA_OM10569U
*3

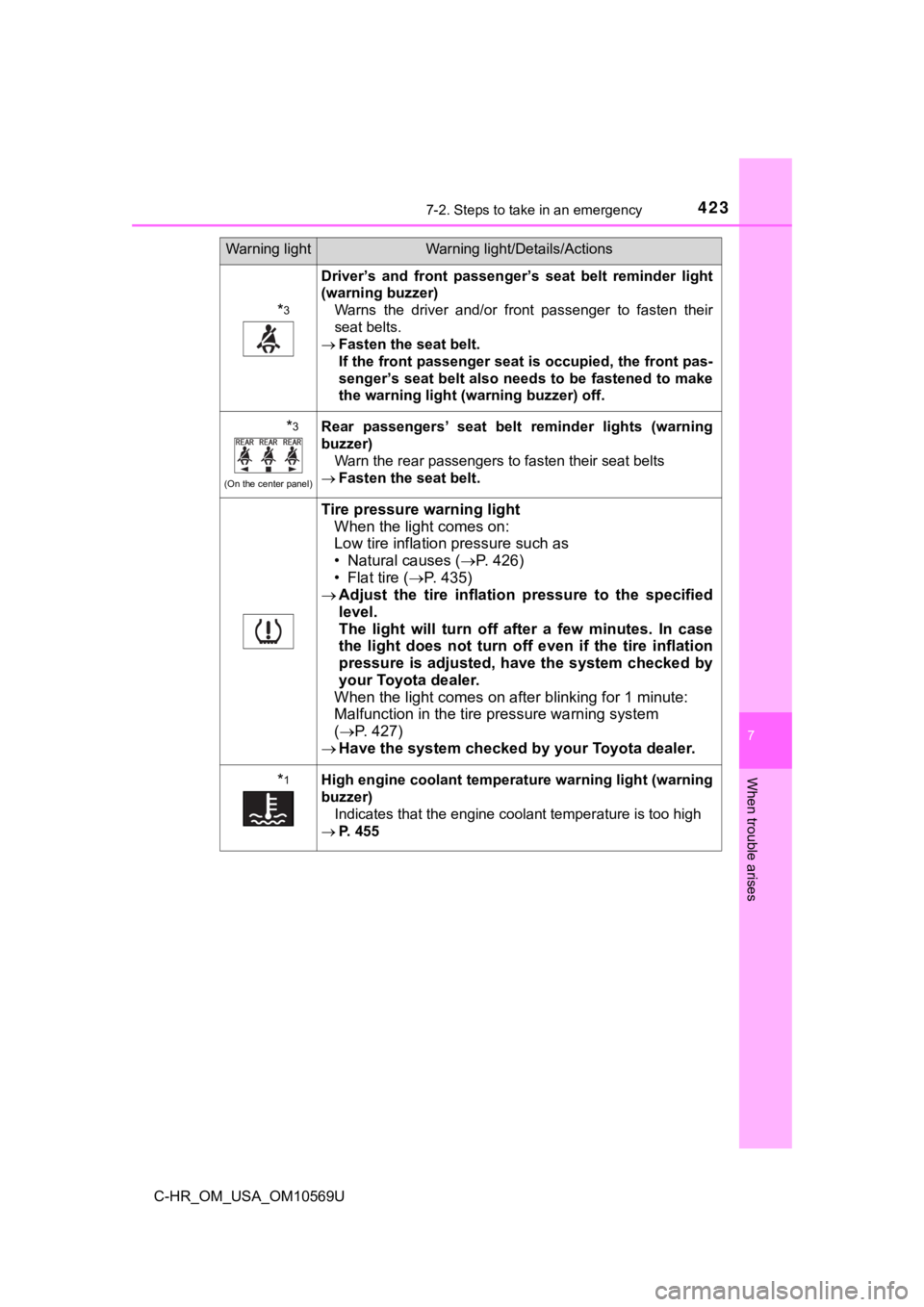

Driver’s and front passenger’s seat belt reminder light
(warning buzzer) Warns the driver and/or front passenger to fasten their
seat belts.
 Fasten the seat belt.
If the front passenger seat is occupied, the front pas-
senger’s seat belt also needs to be fastened to make
the warning light (warning buzzer) off.
*3
(On the center panel)
Rear passengers’ seat belt reminder lights (warning
buzzer)
Warn the rear passengers to fasten their seat belts
 Fasten the seat belt.
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 4 2 6 )
• Flat tire ( P. 435)
 Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case
the light does not turn off even if the tire inflation
pressure is adjusted, have the system checked by
your Toyota dealer.
When the light comes on after blinking for 1 minute:
Malfunction in t he tire pressure warning system
(  P. 4 2 7 )
 Have the system checked by your Toyota dealer.
*1High engine coolant temperature warning light (warning
buzzer)
Indicates that the engine coolant temperature is too high
 P. 455
Warning lightWarning light/Details/Actions

4277-2. Steps to take in an emergency
7
When trouble arises
C-HR_OM_USA_OM10569U■
If the tire pressure warning light frequently comes on after bl
inking
for 1 minute
If the tire pressure warning light frequently comes on after bl inking for
1 minute when the engine switch is turned to the “ON” position (vehicles
without smart key system) or IGNITION ON mode (vehicles with sm art
key system), have it checked by your Toyota dealer.
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy pla ce or an
audio sound.
WARNING
■ If both the ABS and the brake s ystem warning lights remain on
Stop your vehicle in a safe place immediately and contact your To y o t a
dealer. The vehicle will become extremely unstable during braki ng, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steerin g is
restricted. When the light comes on red, the assist to the powe r steering is
lost and handling operations of the steering wheel become extre mely
heavy. When steering wheel operations are heavier than usual, g rip the
steering wheel firmly and operate it using more force than usua l.
■
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust t he tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inf lation pres-
sure adjustment, it is probable that you have a flat tire. Chec k the tires.
If a tire is flat, change it with the spare tire and have the f lat tire
repaired by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires dete riorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

4317-2. Steps to take in an emergency
7
When trouble arises
C-HR_OM_USA_OM10569U
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by your Toyota
dealer immediately.
*: A buzzer sounds the first time a message is shown on the multi -informa-
tion display
Messages and warnings
System
warning lightWarning
buzzer
*Warning
 Sounds • Indicates an important situation, such as
when a system related to driving is malfunc-
tioning or that danger may result if the correc-
tion procedure is not performed
• Indicates a situation, such as when damage
to the vehicle or danger may result
Comes on or
flashes
Sounds
Indicates an important situation, such as when
the systems shown on the multi-information dis-
play may be malfunctioning
Does not
sound
• Indicates a condition, such as malfunction of electrical components, their condition, or indi-
cates the need for maintenance
• Indicates a situation, such as when an opera- tion has been performed incorrectly, or indi-
cates how to perform an operation correctly

4938-2. Customization
8
Vehicle specifications
C-HR_OM_USA_OM10569U■
Automatic light control system (
P. 195)
■PCS (Pre-Collision System) ( P. 224)
■LDA (Lane Departure Alert with steering control) (P. 2 3 8 )
■Air conditioning system ( P. 292)
FunctionDefault settingCustomized
setting
Light sensor sensitiv-
ity Level 0 Level -2 to 2—OO
Time elapsed before
headlights automati-
cally turn off after
doors are closed
30 seconds
Off
—OO60 seconds
90 seconds
Daytime running lights
(except for Canada) On Off—OO
FunctionDefault settingCustomized
setting
Pre-collision systemOnOffO—O
Warning timingMiddleFarO—ONear
FunctionDefault settingCustomized setting
Steering assistOnOffO—O
Alert sensitivityStandardHighO—O
Vehicle sway warningOnOffO—O
Vehicle sway warning
sensitivityStandardLowO—OHigh
FunctionDefault settingCustomized setting
A/C auto switch oper-
ationAutoManual—OO
