TABLE OF CONTENTS4
C-HR_OM_USA_OM10634U5-1. Using the air conditioning
system and defogger
Air conditioning system ..... 298
Heated steering wheel/ seat heaters .................... 306
5-2. Using the interior lights Interior lights list ................ 308• Interior lights ................. 309
• Personal lights .............. 310
5-3. Using the storage features
List of storage features...... 311 • Glove box...................... 312
• Console box .................. 312
• Bottle holders ................ 313
• Cup holders .................. 314
Luggage compartment features ........................... 315
5-4. Using the other interior features
Other interior features ....... 321 • Sun visors ..................... 321
• Vanity mirrors................ 321
• Power outlet .................. 322
• Assist grips ................... 323 6-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 326
Cleaning and protecting the vehicle interior ........... 330
6-2. Maintenance Maintenance requirements ................... 333
General maintenance ........ 336
Emission inspection and maintenance (I/M)
programs ......................... 340
6-3. Do-it-yourself maintenance Do-it-yourself service precautions ...................... 341
Hood .................................. 344
Positioning a floor jack....... 346
Engine compartment ......... 347
Tires................................... 362
Tire inflation pressure ........ 372
Wheels............................... 376
Air conditioning filter .......... 379
Wireless remote control/electronic key
battery ............................. 383
Checking and replacing fuses ................................ 387
Headlight aim (vehicles with front fog lights) ......... 391
Light bulbs ......................... 393
5Interior features6Maintenance and care
Page 347 of 536

3476-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10634U

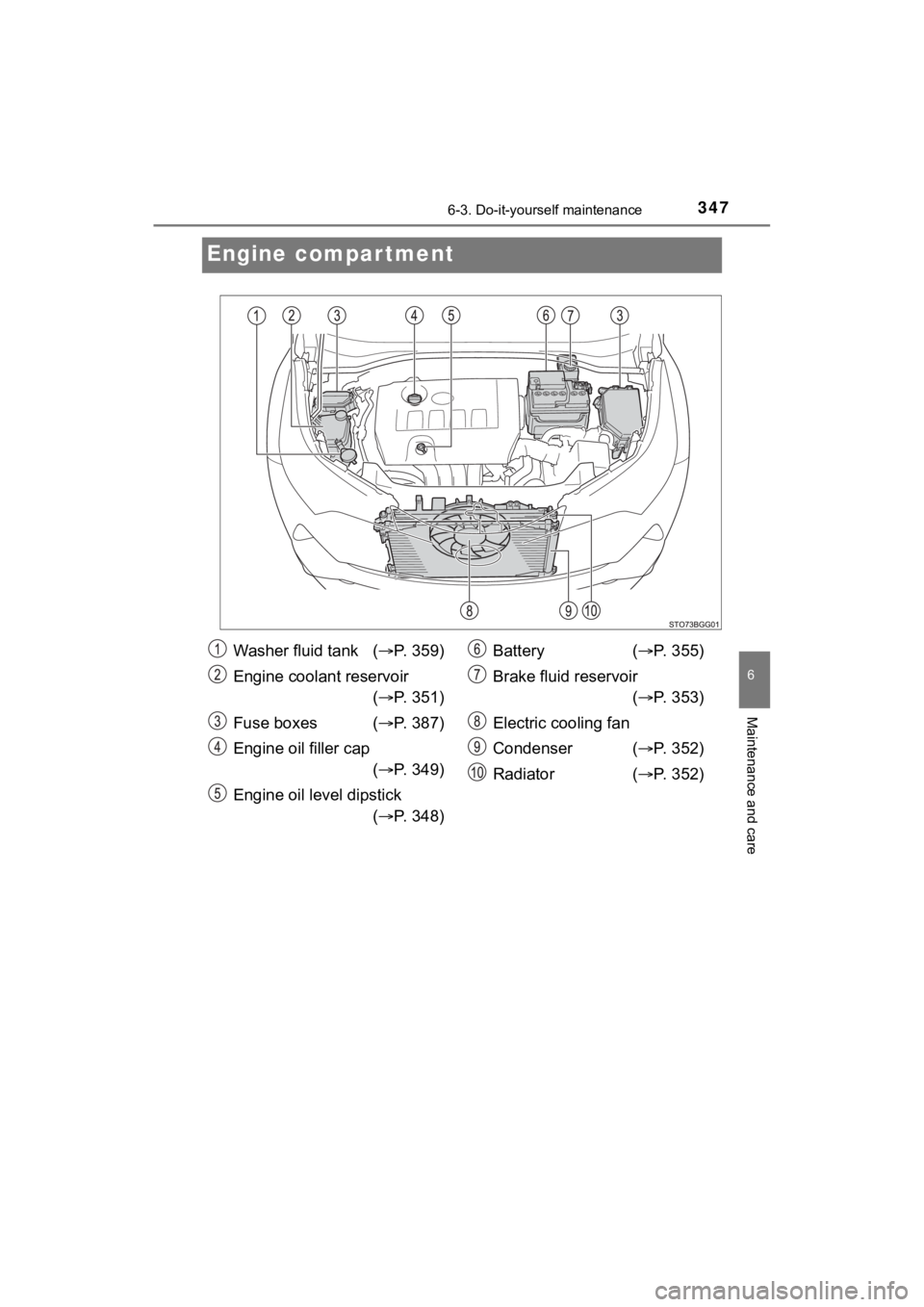

Engine compartment
Washer fluid tank (P. 359)
Engine coolant reservoir ( P. 351)
Fuse boxes ( P. 387)
Engine oil filler cap ( P. 349)
Engine oil level dipstick ( P. 348) Battery
( P. 355)
Brake fluid reservoir ( P. 353)
Electric cooling fan
Condenser ( P. 352)
Radiator ( P. 352)
Page 387 of 536

3876-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10634U
Checking and replacing fuses
Turn the engine switch off.
Open the fuse box cover.
Engine compartment type A fuse box

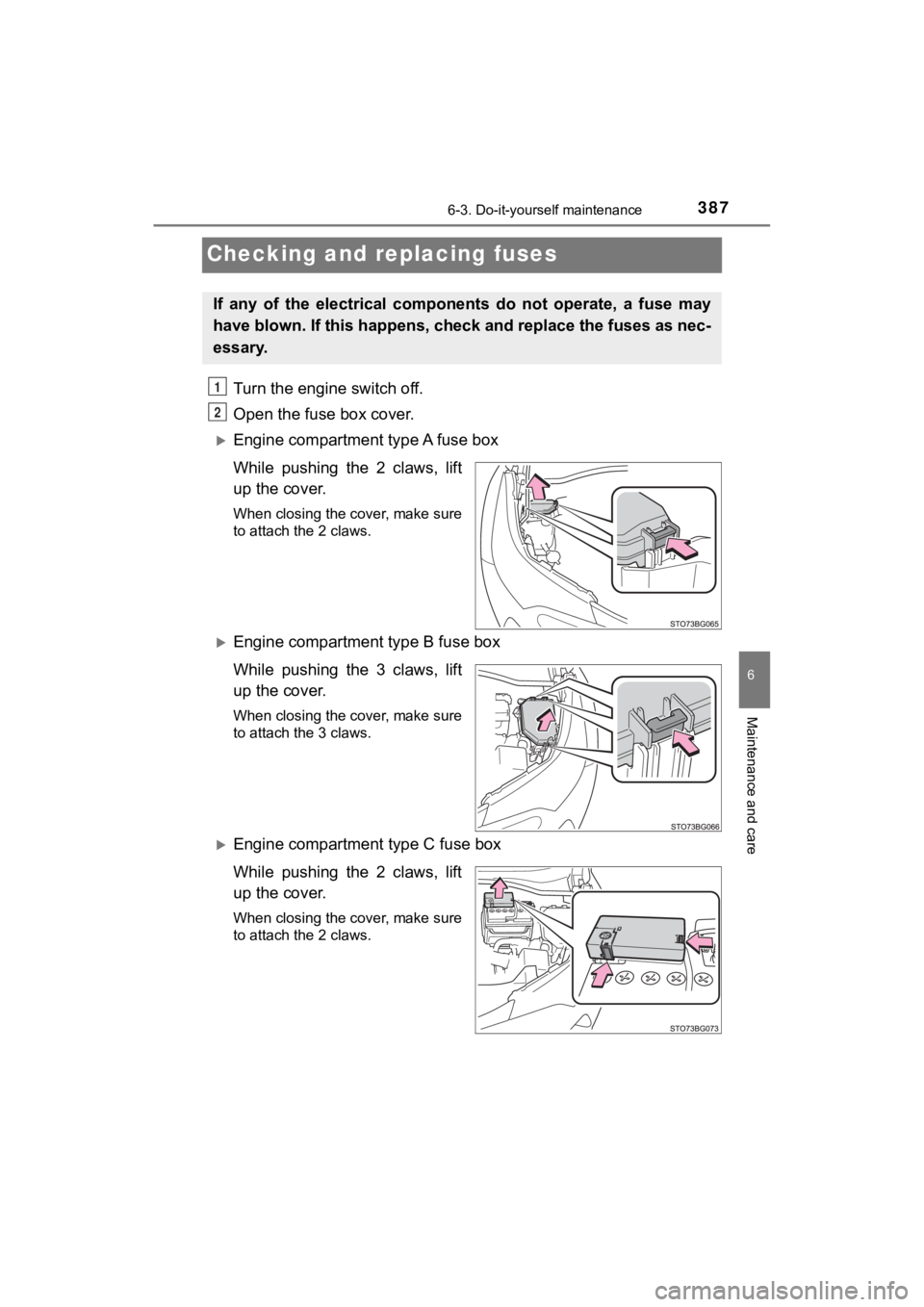

While pushing the 2 claws, lift
up the cover.
When closing the cover, make sure
to attach the 2 claws.
Engine compartment type B fuse box
While pushing the 3 claws, lift
up the cover.
When closing the cover, make sure
to attach the 3 claws.
Engine compartment type C fuse box
While pushing the 2 claws, lift
up the cover.
When closing the cover, make sure
to attach the 2 claws.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Page 389 of 536

3896-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10634U
Check if the fuse is blown.Normal fuse
Blown fuse
Except for type E:
Replace the blown fuse with a new fuse of an appropriate ampera ge rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact your Toyota dealer.

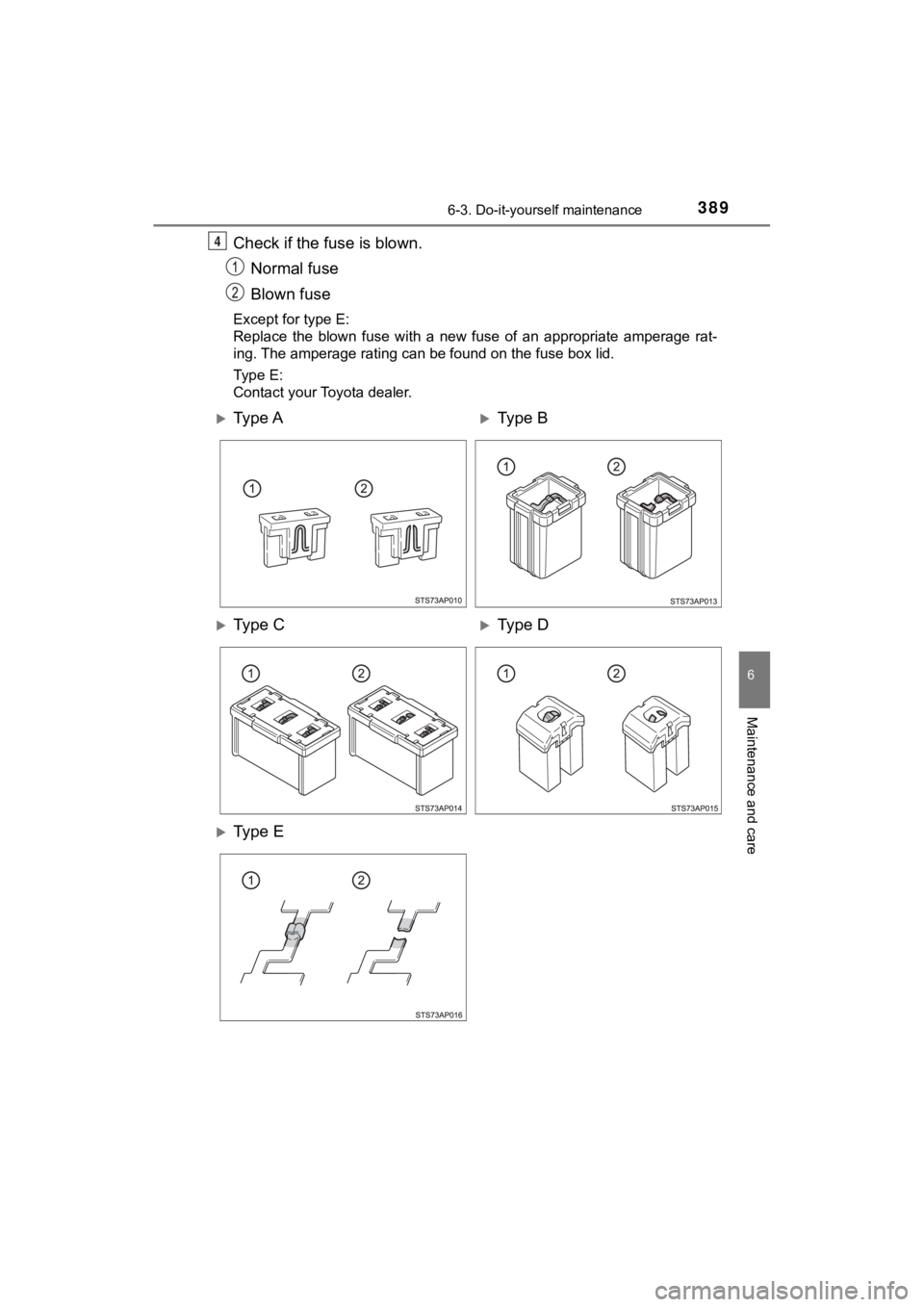

4
Ty p e AType B
Ty p e CType D
Ty p e E
Page 390 of 536

3906-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10634U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been repla ced, a bulb may
need replacement. ( P. 393)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness f rom damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicate d, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired b y your
Toyota dealer as soon as possible.
Page 525 of 536

525Alphabetical index
C-HR_OM_USA_OM10634U
Flat tire...................................... 436
Floor mats .................................. 22
FluidBrake .................................... 469
Continuously variable transmission ....................... 469
Washer ................................. 359
Fog lights
Replacing light bulbs............. 403
Switch ................................... 212
Front interior light ................... 309
Wattage ................................ 471
Front passenger occupant classification system .............. 46
Front personal lights ............... 310 Wattage ................................ 471
Front seats ............................... 141
Adjustment ............................ 141
Cleaning................................ 330
Correct driving posture ........... 24
Head restraints ..................... 145
Seat heaters ......................... 306
Front turn signal lights ........... 193
Replacing light bulbs..... 395, 403
Turn signal lever ................... 193
Wattage ................................ 471
Fuel ........................................... 218
Capacity ................................ 466
Fuel gauge .............................. 94
Fuel pump shut off system.... 420
Information ............................ 472
Refueling............................... 218
Type ...................................... 466
Warning light ......................... 423
Fuel filler door.......................... 218 Refueling............................... 218
Fuel pump shut off system ..... 420
Fuses ........................................ 387 Gauges ....................................... 94
Glove box ................................. 312
Grocery bag hooks.................. 315
Hands-free system
(for cellular phone)
*
Head restraints ........................ 145
Headlights ................................ 202 Automatic High Beam system .......... ...................... 207
Headlight aim........................ 391
Light switch ........................... 202
Replacing light bulbs ............ 403
Heated steering wheel ............ 306
Heaters Air conditioning system......... 298
Heated steering wheel .......... 306
Outside rear view mirrors ................................ 301
Seat heaters ......................... 306
Hill-start assist control ........... 287
Hood ......................................... 344
Hooks Cargo hooks ......................... 315
Grocery bag hooks ............... 315
Retaining hooks (floor mat) .... 22
Horn .......................................... 149
FG
