TOYOTA C-HR 2022 Owner's Guide

29Pictorial index
C-HR_HV_OM_Europe_OM10720E

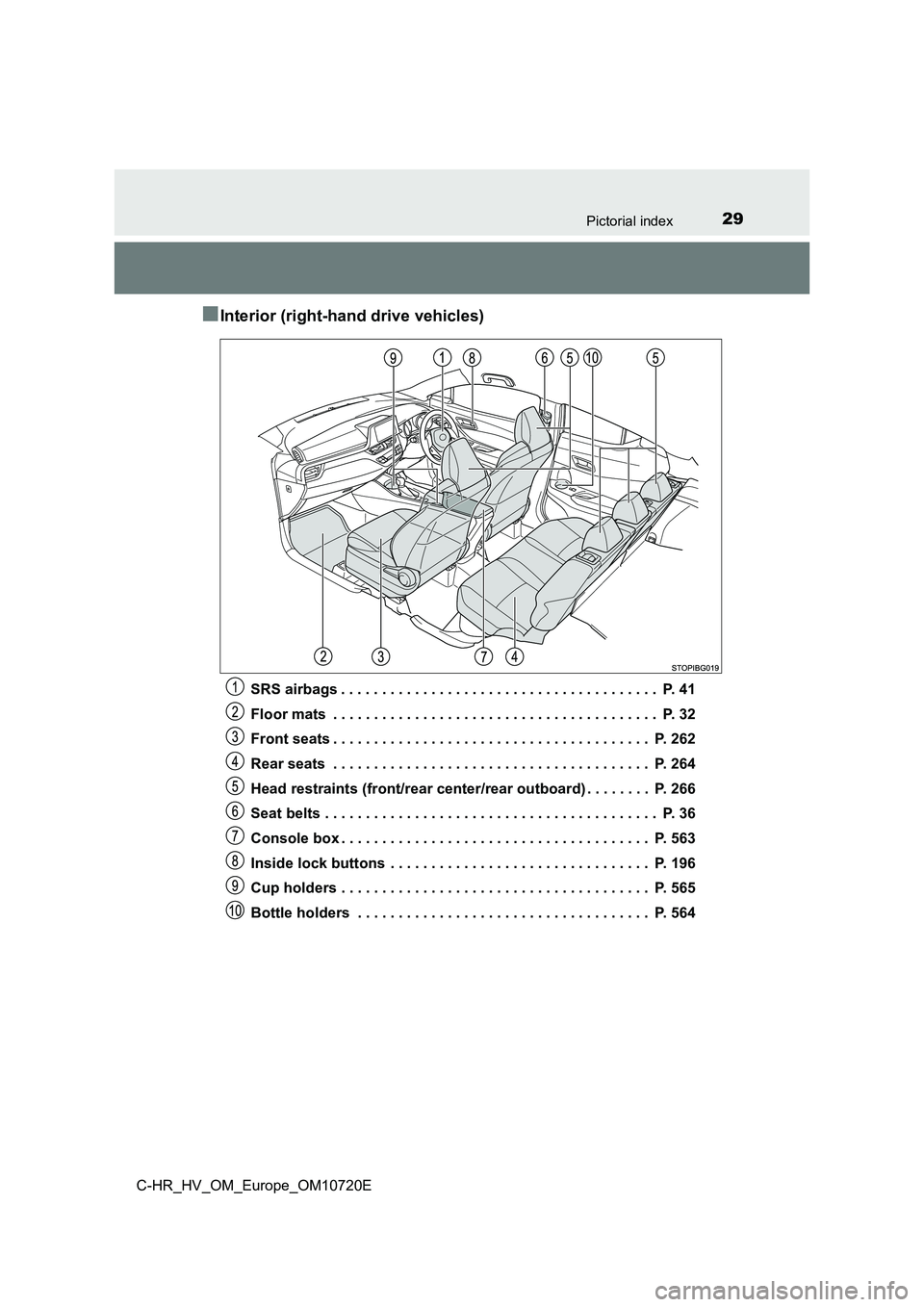

■Interior (right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 41
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 262
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 264
Head restraints (front/rear center/rear outboard) . . . . . . . . P. 266
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 36
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 563
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 565
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 564

30Pictorial index
C-HR_HV_OM_Europe_OM10720E
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 577
Vanity lights*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . . . . . P. 560
Theft sensor off switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Sun visors*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. ( P. 6 3 )

31
1For safety and security
C-HR_HV_OM_Europe_OM10720E
1-1. For safe use
Before driving....................... 32
For safe driving .................... 34
Seat belts ............................. 36
SRS airbags......................... 41
Exhaust gas precautions ..... 54
1-2. Child safety
Airbag manual on-off
system ............................... 55
Riding with children.............. 58
Child restraint systems ........ 59
1-3. Emergency assistance
eCall..................................... 97
1-4. Hybrid system
Hybrid system features ...... 118
Hybrid system
precautions ...................... 123
1-5. Theft deterrent system
Immobilizer system ............ 130
Double locking system ....... 145
Alarm ................................. 147
Theft prevention labels ...... 155

321-1. For safe use
C-HR_HV_OM_Europe_OM10720E

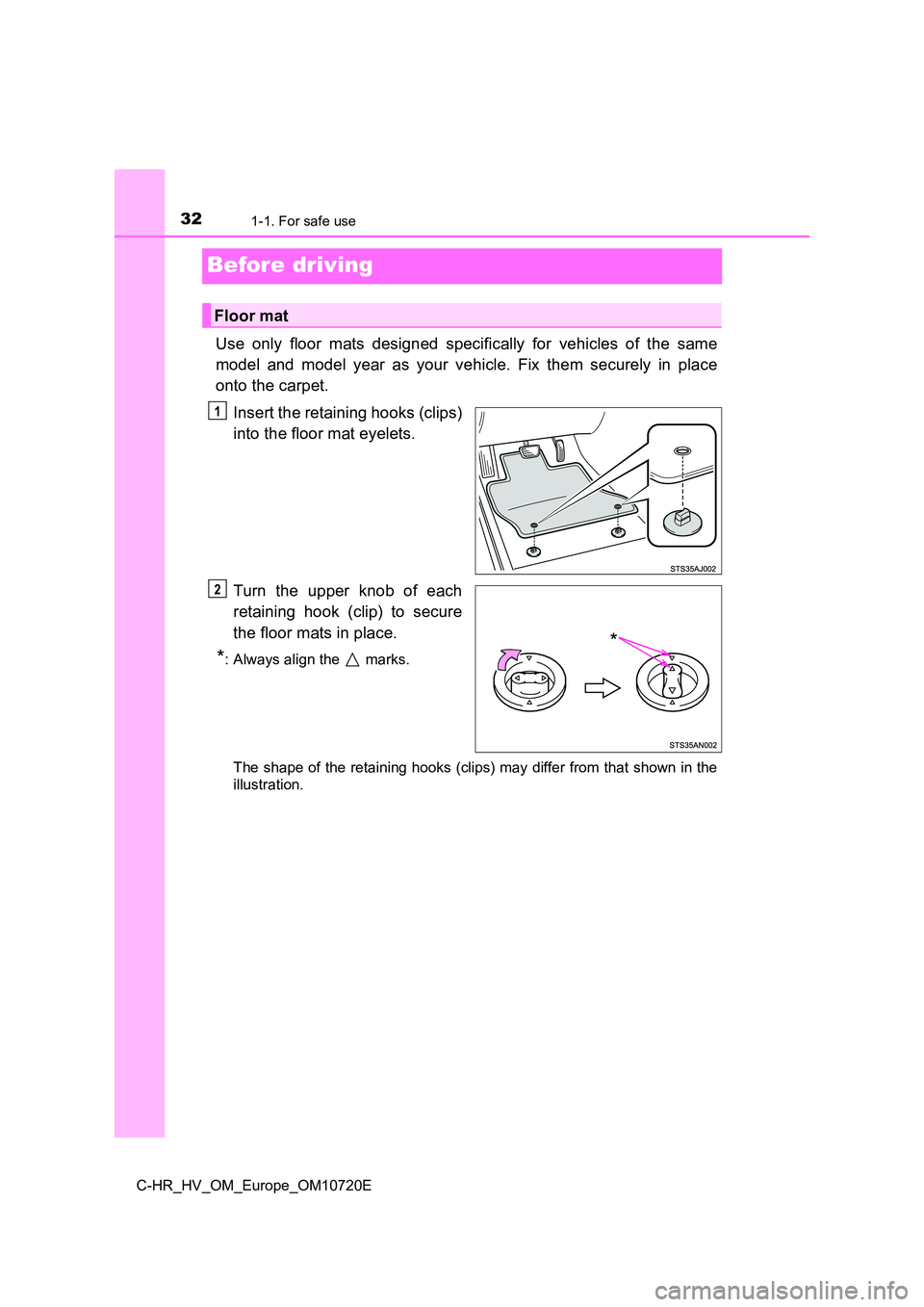

Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in plac e
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that s hown in the
illustration.
Floor mat
1
*
O

331-1. For safe use
1
For safety and security
C-HR_HV_OM_Europe_OM10720E

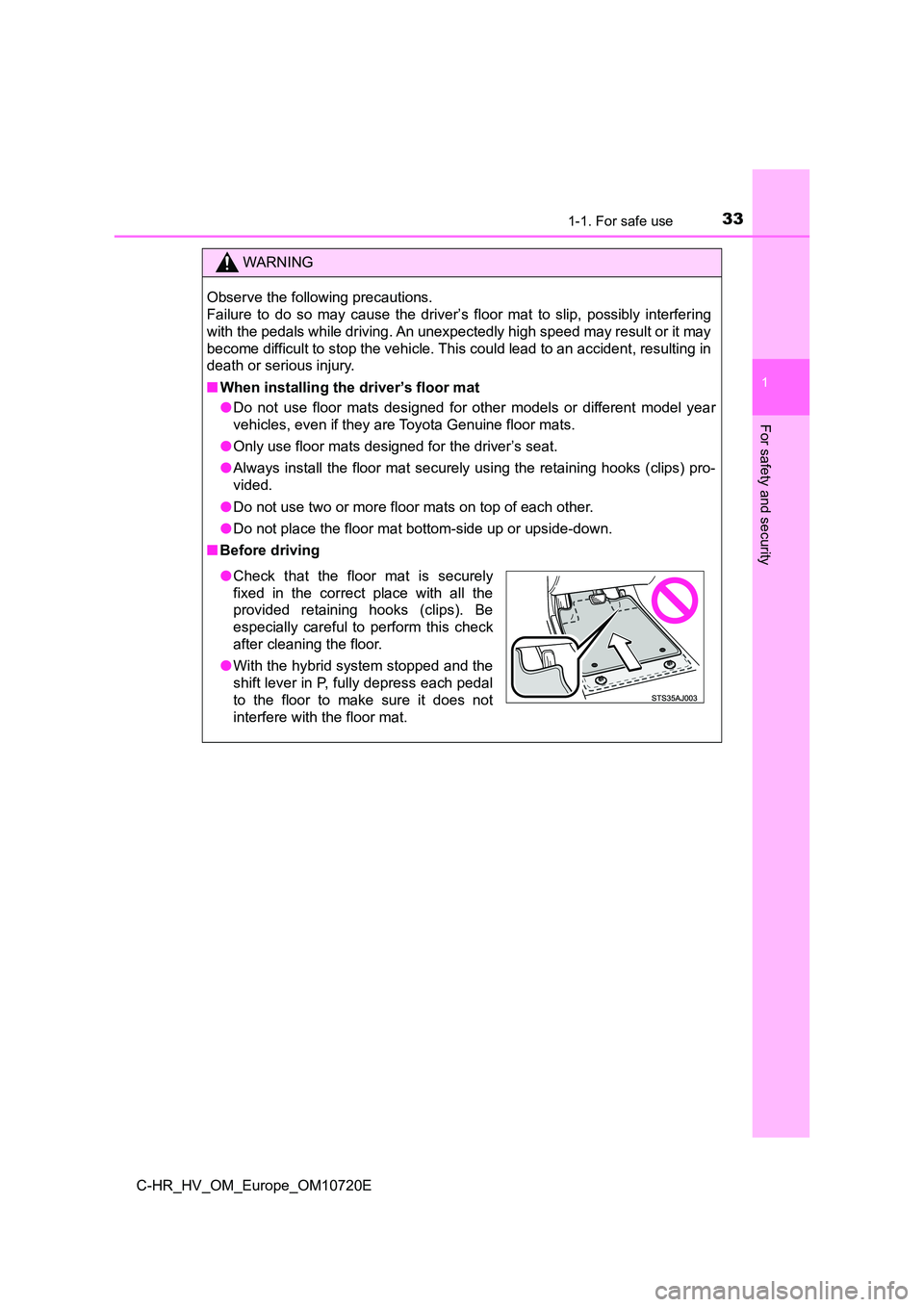

WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, poss ibly interfering
with the pedals while driving. An unexpectedly high speed may r esult or it may
become difficult to stop the vehicle. This could lead to an acc ident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the hybrid system stopped and the
shift lever in P, fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

341-1. For safe use
C-HR_HV_OM_Europe_OM10720E
For safe driving
Adjust the angle of the
seatback so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 2 6 2 )
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 262, 270)
Lock the head restraint in place with the center of the head re straint
closest to the top of your ears. ( P. 2 6 6 )
Wear the seat belt correctly. ( P. 3 6 )
Make sure that all occupants are wearing their seat belts befor e driv-
ing the vehicle. ( P. 3 6 )
Use a child restraint system appropriate for the child until th e child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 59)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
Correct use of the seat belts

351-1. For safe use
1
For safety and security
C-HR_HV_OM_Europe_OM10720E
Make sure that you can see the rear of the vehicle clearly by adjusting
the inside and outside rear view mirrors properly. ( P. 272, 274)
Adjusting the mirrors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the s eat
tracks and stop the seat from locking in place. This may lead t o an acci-
dent and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force y ourself to con-
tinue driving and take a break immediately.

361-1. For safe use
C-HR_HV_OM_Europe_OM10720E

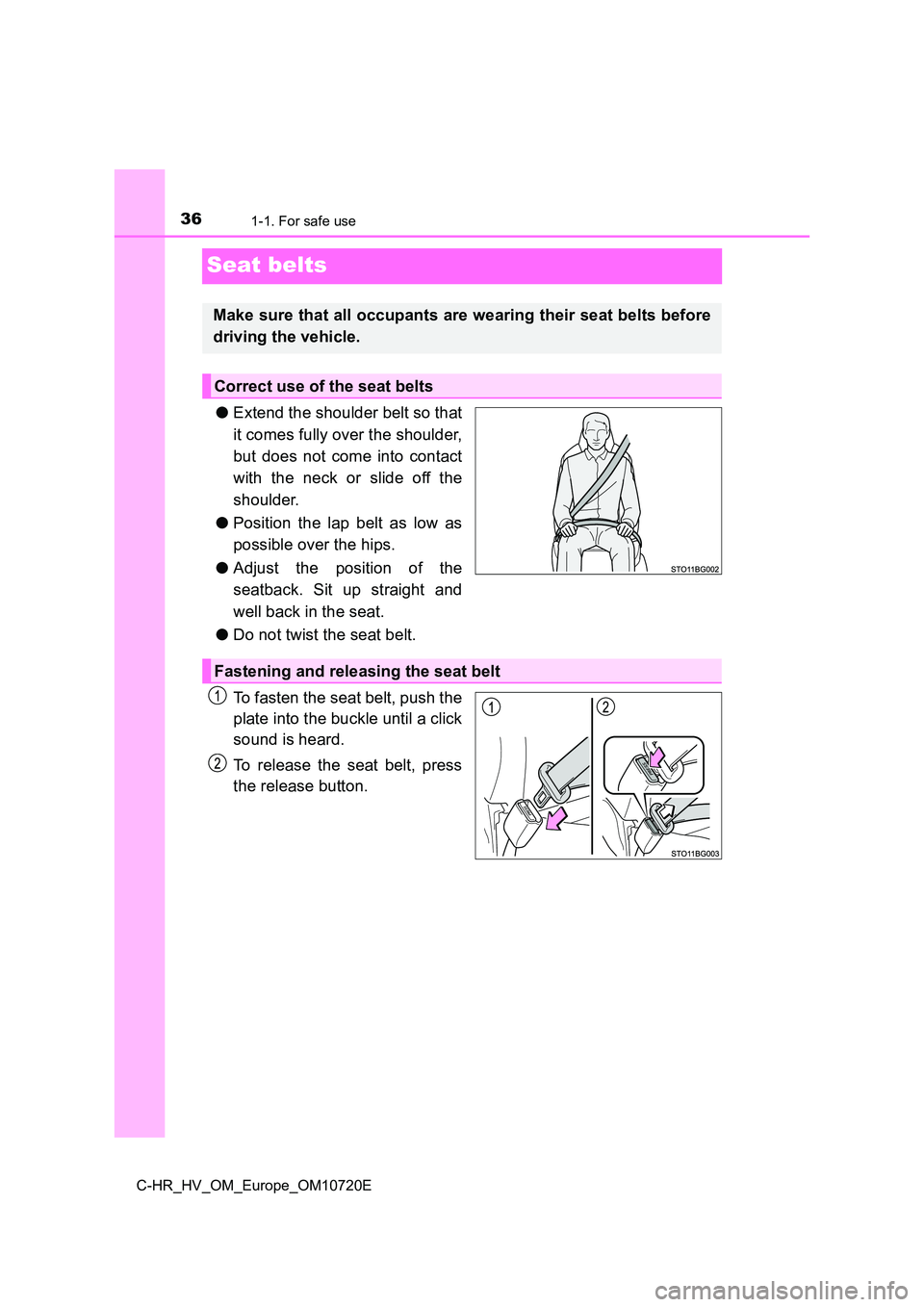

Seat belts
●Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the
seatback. Sit up straight and
well back in the seat.
● Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Make sure that all occupants are wearing their seat belts befor e
driving the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt

371-1. For safe use
1
For safety and security
C-HR_HV_OM_Europe_OM10720E

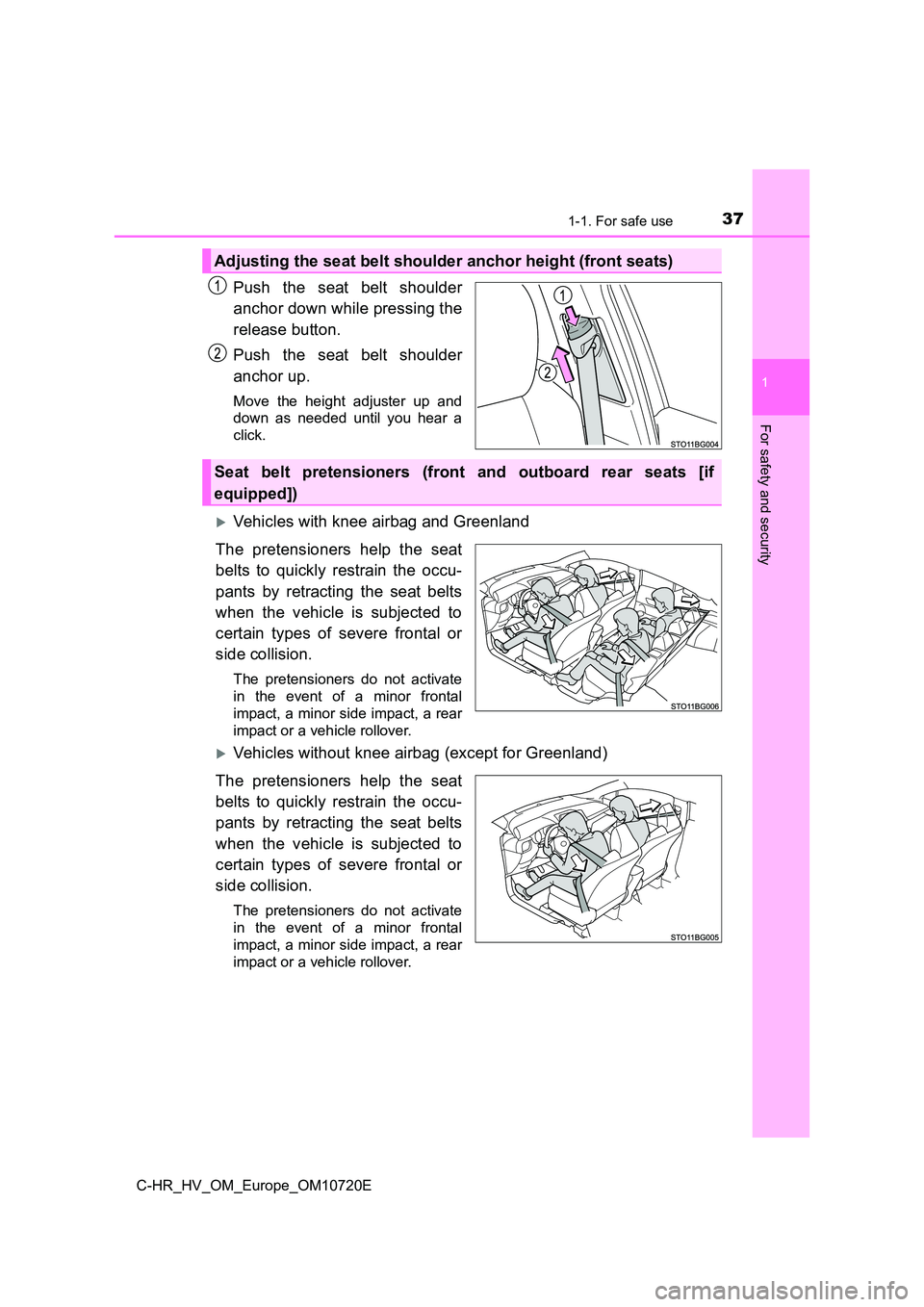

Push the seat belt shoulder
anchor down while pressing the
release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
Vehicles with knee airbag and Greenland
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact, a rear
impact or a vehicle rollover.
Vehicles without knee airbag (except for Greenland)
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact, a rear
impact or a vehicle rollover.
Adjusting the seat belt shoulder anchor height (front seats)
Seat belt pretensioners (front and outboard rear seats [if
equipped])

381-1. For safe use
C-HR_HV_OM_Europe_OM10720E
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on imp act. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Child seat belt usage
The seat belts of your vehicle were principally designed for pe rsons of adult
size.
● Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 5 9 )
● When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. ( P. 36)
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensi oner will activate for
the first collision, but will not activate for the second or su bsequent collisions.
■ Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer for seat belt repl acement or installation.
