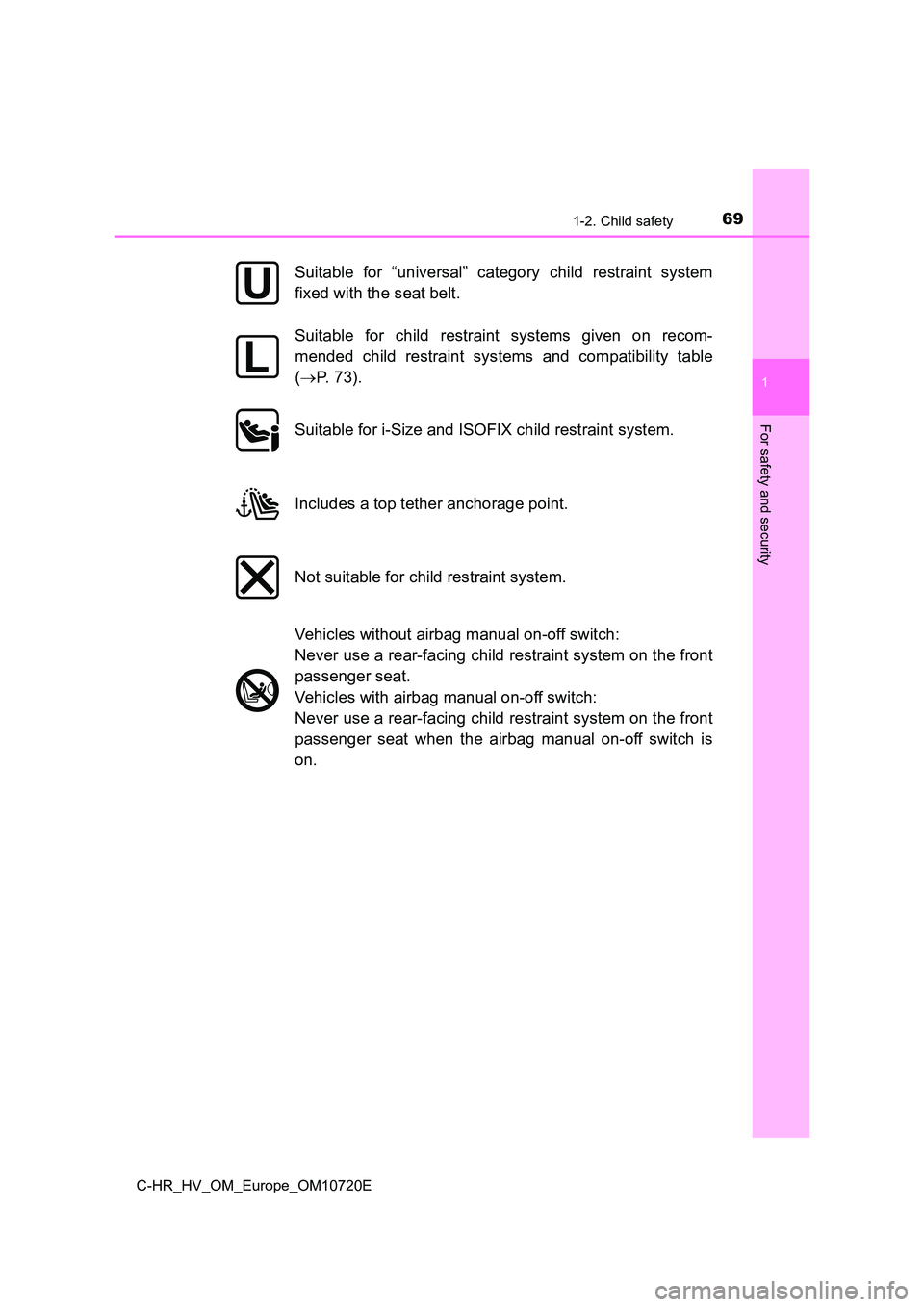

691-2. Child safety
1
For safety and security
C-HR_HV_OM_Europe_OM10720E
Suitable for “universal” category child restraint system
fixed with the seat belt.
Suitable for child restraint systems given on recom-
mended child restraint systems and compatibility table
( P. 73).
Suitable for i-Size and ISOFIX child restraint system.
Includes a top tether anchorage point.
Not suitable for child restraint system.
Vehicles without airbag manual on-off switch:
Never use a rear-facing child restraint system on the front
passenger seat.
Vehicles with airbag manual on-off switch:
Never use a rear-facing child restraint system on the front
passenger seat when the airbag manual on-off switch is
on.

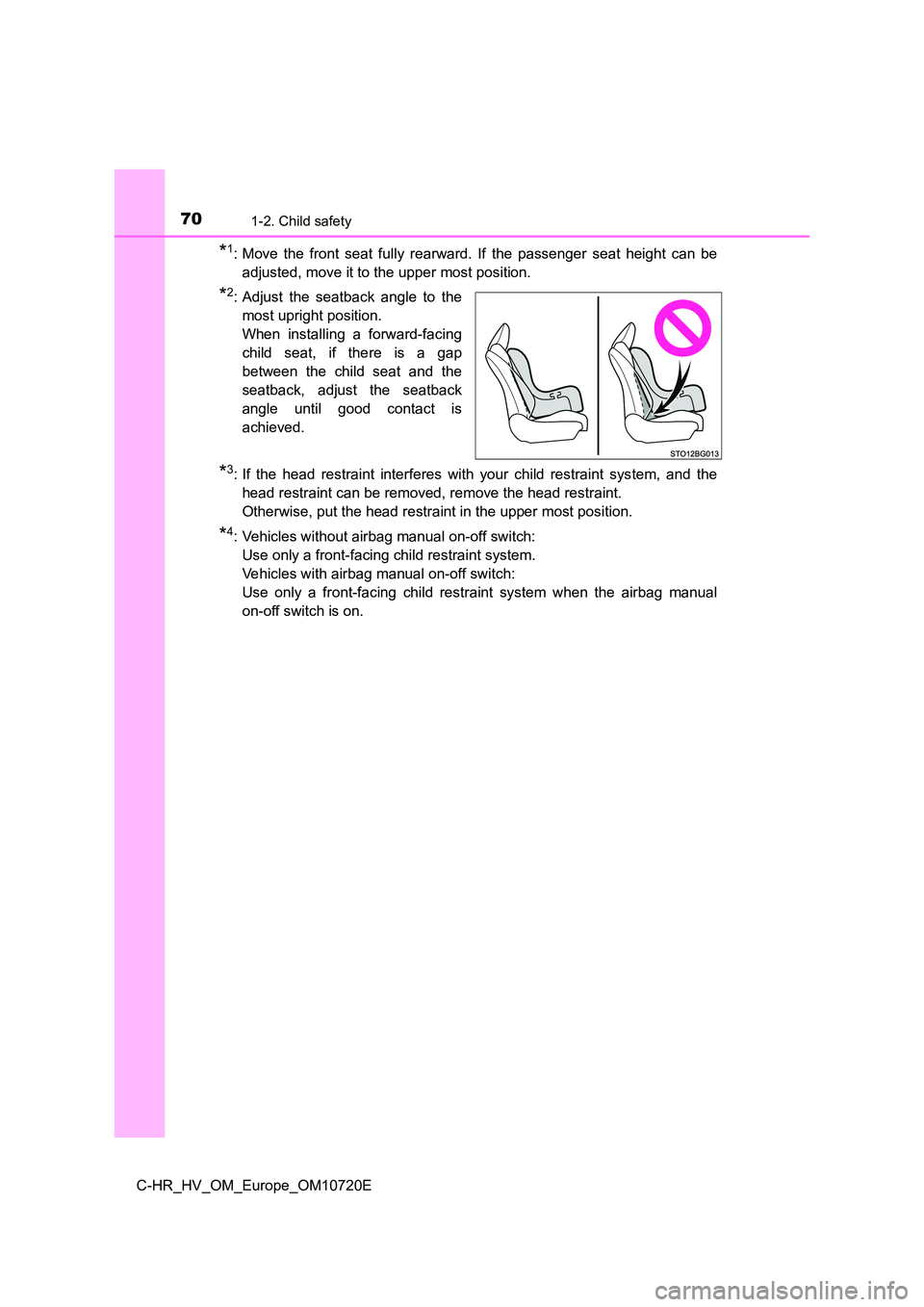

701-2. Child safety
C-HR_HV_OM_Europe_OM10720E
*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap
between the child seat and the
seatback, adjust the seatback
angle until good contact is
achieved.
*3: If the head restraint interferes with your child restraint sys tem, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Vehicles without airbag manual on-off switch:
Use only a front-facing child restraint system.
Vehicles with airbag manual on-off switch:
Use only a front-facing child restraint system when the airbag manual
on-off switch is on.

711-2. Child safety
1
For safety and security
C-HR_HV_OM_Europe_OM10720E
■Detail information for child restraint systems installation
Seating position
Seat position number
Without
airbag
manual
on-off
switch
With airbag man-
ual on-off switch
ONOFF
Seating position suitable
for universal belted
(Yes/No)
Ye s
Forward
facing
only
Ye s
Forward
facing
only
Ye sYe sYe s
i-Size seating position
(Yes/No)NoNoNoYe sYe s
Seating position suitable
for lateral fixture
(L1/L2/No)
NoNoNoNoNo
Suitable rearward facing
fixture
(R1/R2X/R2/R3/No)
NoNoNo
R1,
R2X,
R2
R1,
R2X,
R2
Suitable forward facing
fixture (F2X/F2/F3/No)NoNoNoF2X,
F2, F3
F2X,
F2, F3
Suitable junior seat fixture
(B2/B3/No)NoNoNoB2, B3B2, B3

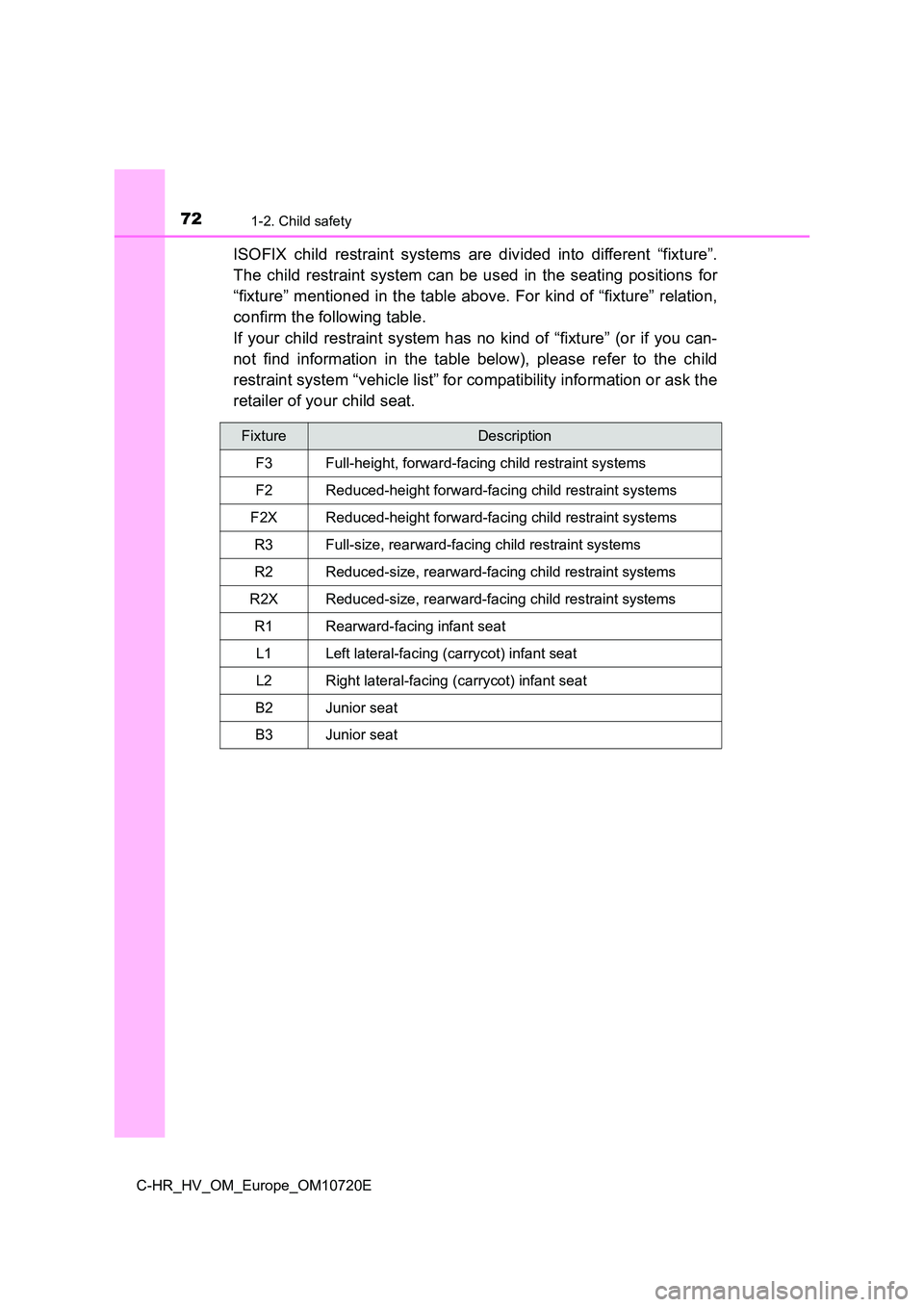

721-2. Child safety
C-HR_HV_OM_Europe_OM10720E
ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for
“fixture” mentioned in the table above. For kind of “fixture” r elation,
confirm the following table.
If your child restraint system has no kind of “fixture” (or if you can-
not find information in the table below), please refer to the c hild
restraint system “vehicle list” for compatibility information o r ask the
retailer of your child seat.
FixtureDescription
F3Full-height, forward-facing child restraint systems
F2Reduced-height forward-facing child restraint systems
F2XReduced-height forward-facing child restraint systems
R3Full-size, rearward-facing child restraint systems
R2Reduced-size, rearward-facing child restraint systems
R2XReduced-size, rearward-facing child restraint systems
R1Rearward-facing infant seat
L1Left lateral-facing (carrycot) infant seat
L2Right lateral-facing (carrycot) infant seat
B2Junior seat
B3Junior seat

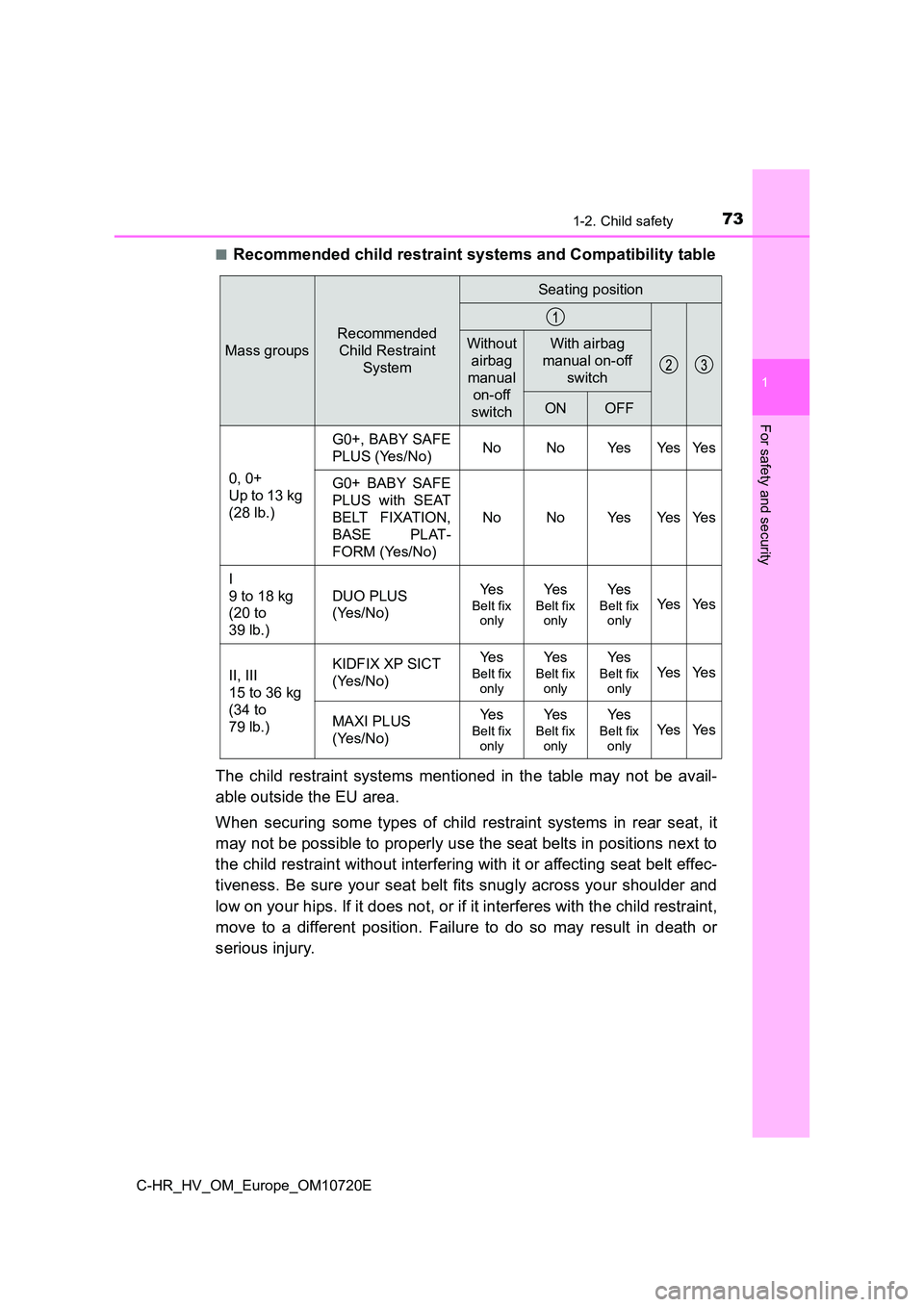

731-2. Child safety
1
For safety and security
C-HR_HV_OM_Europe_OM10720E
■Recommended child restraint systems and Compatibility table
The child restraint systems mentioned in the table may not be a vail-
able outside the EU area.
When securing some types of child restraint systems in rear sea t, it
may not be possible to properly use the seat belts in positions next to
the child restraint without interfering with it or affecting se at belt effec-
tiveness. Be sure your seat belt fits snugly across your should er and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in de ath or
serious injury.
Mass groups
Recommended
Child Restraint
System
Seating position
Without
airbag
manual
on-off
switch
With airbag
manual on-off
switch
ONOFF
0, 0+
Up to 13 kg
(28 lb.)
G0+, BABY SAFE
PLUS (Yes/No)NoNoYe sYe sYe s
G0+ BABY SAFE
PLUS with SEAT
BELT FIXATION,
BASE PLAT-
FORM (Yes/No)
NoNoYe sYe sYe s
I
9 to 18 kg
(20 to
39 lb.)
DUO PLUS
(Yes/No)
Ye s
Belt fix only
Ye s
Belt fix only
Ye s
Belt fix only
Ye sYe s
II, III
15 to 36 kg
(34 to
79 lb.)
KIDFIX XP SICT
(Yes/No)
Ye s
Belt fix only
Ye s
Belt fix only
Ye s
Belt fix only
Ye sYe s
MAXI PLUS
(Yes/No)
Ye s
Belt fix only
Ye s
Belt fix only
Ye s
Belt fix only
Ye sYe s

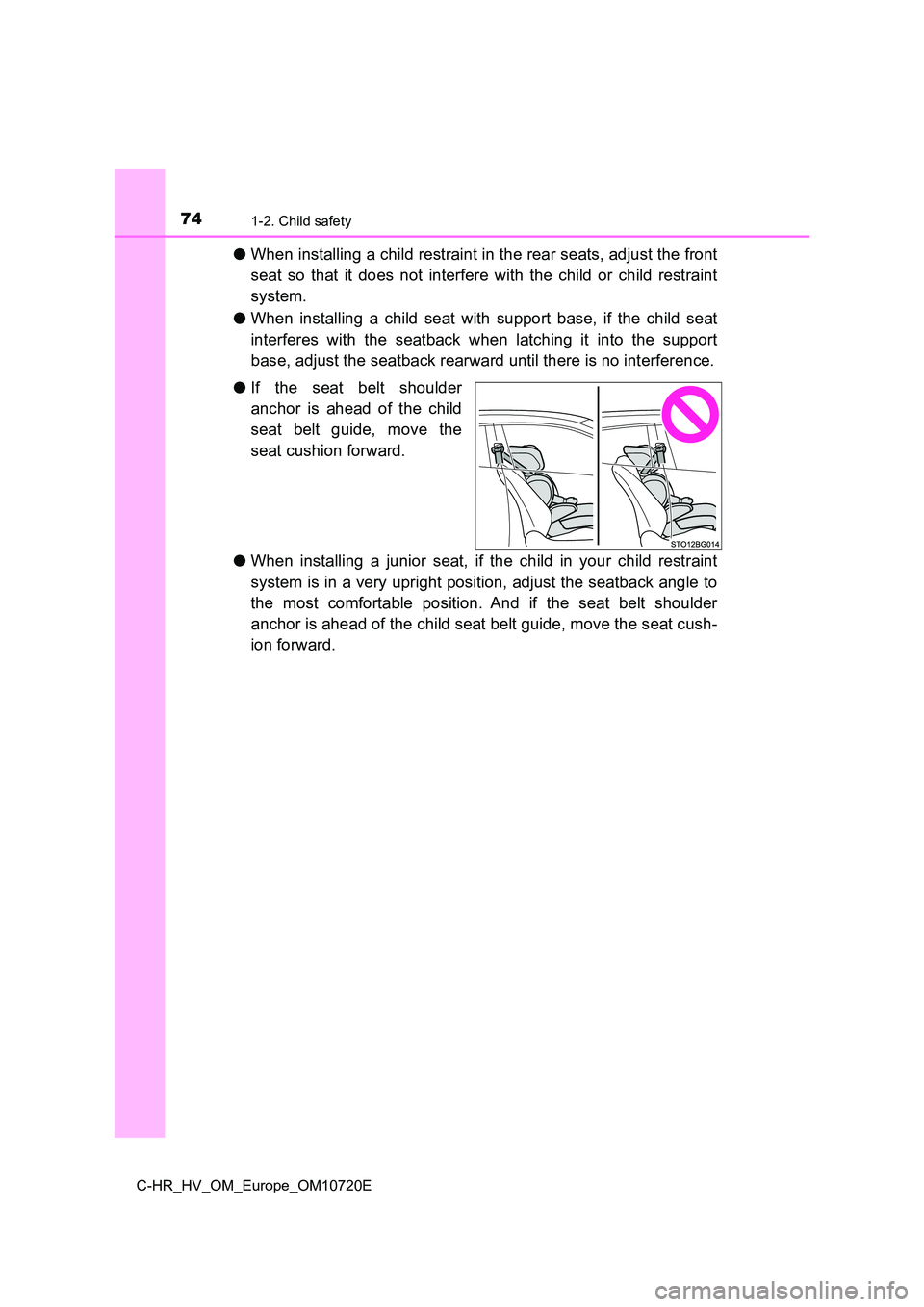

741-2. Child safety
C-HR_HV_OM_Europe_OM10720E
●When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child rest raint
system.
● When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interferen ce.
● If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.
● When installing a junior seat, if the child in your child restraint
system is in a very upright position, adjust the seatback angle to
the most comfortable position. And if the seat belt shoulder
anchor is ahead of the child seat belt guide, move the seat cus h-
ion forward.

751-2. Child safety
1
For safety and security
C-HR_HV_OM_Europe_OM10720E
■Child restraint system compatibility for each seating position
Compatibility of each seating position with child restraint sys tems
( P. 77) displays the type of child restraint systems that can be
used and possible seating positions for installation using symb ols.
Check the selected child restraint system together with the fol low-
ing [Before confirming the compatibility of each seating positi on
with child restraint systems].
■Before confirming the compatibility of each seating position
with child restraint systems
Checking the child restraint system standards.
Use a child restraint system that conforms to UN(ECE) R44*1 or
UN(ECE) R129*1, 2.
The following approval mark is displayed on child restraint sys -
tems which are conformed.
Check for an approval mark attached to the child restraint sys-
tem.
Example of the displayed
regulation number
UN(ECE) R44 approval
mark*3
The weight range of the
child who is applicable for
an UN(ECE) R44 approval
mark is indicated.
UN(ECE) R129 approval
mark*3
The height range of the
child who is applicable as
well as available weights
for an UN(ECE) R129
approval mark is indicated.
Child restraint system compatibility for each seating position
(For Reunion)
1

761-2. Child safety
C-HR_HV_OM_Europe_OM10720E
*1: UN(ECE) R44 and UN(ECE) R129 are U.N. regulations for child
restraint systems.
*2: The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
*3: The displayed mark may differ depending on the product.
Checking the category of the child restraint system.
Check the approval mark of the child restraint system for which
of the following categories the child restraint system is suita ble.
Also, if there are any uncertainties, check the user’s guide
included with the child restraint system or contact the retaile r of
the child restraint system.
•“universal”
• “semi-universal”
• “restricted”
• “vehicle specific”
2

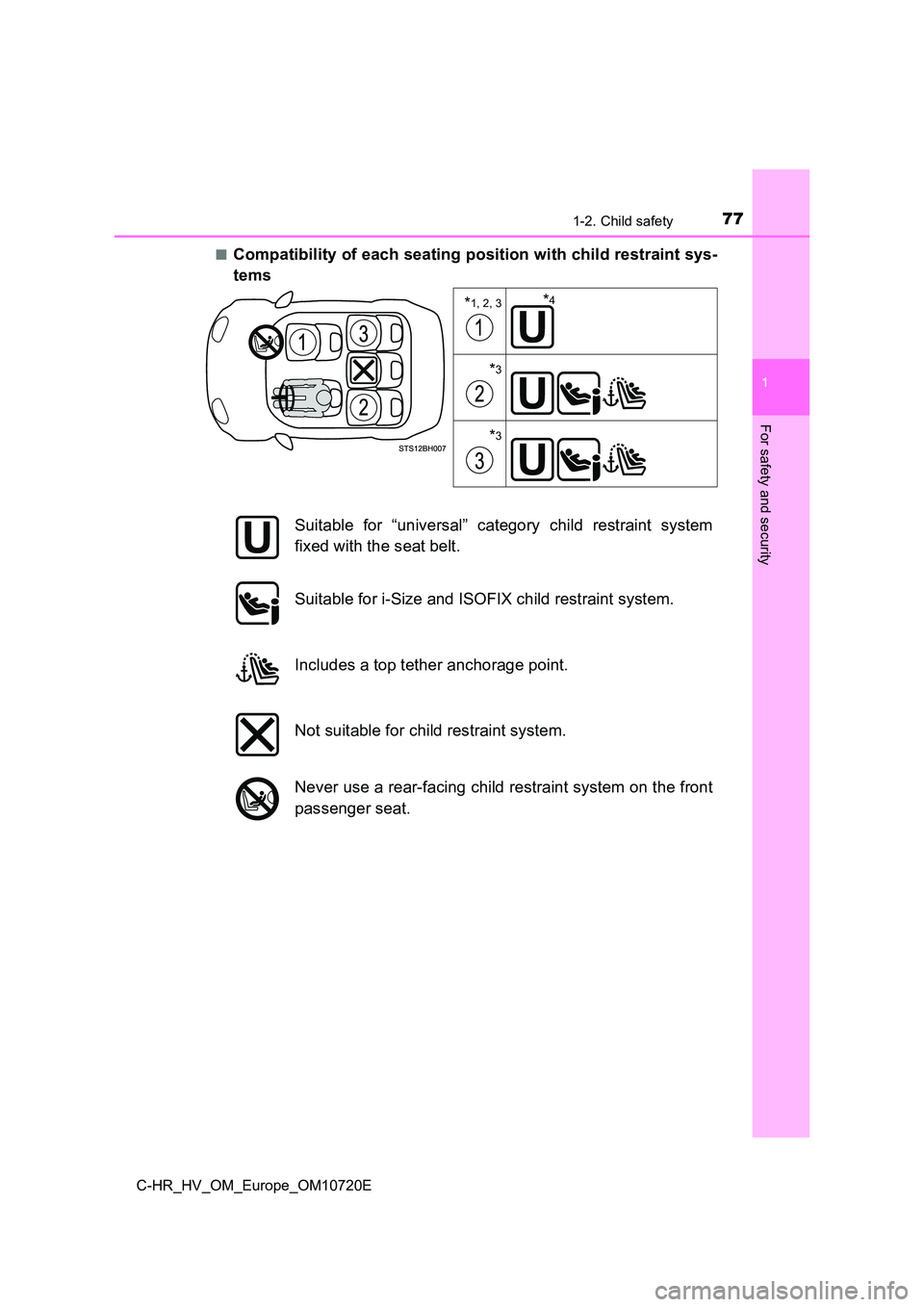

771-2. Child safety
1
For safety and security
C-HR_HV_OM_Europe_OM10720E
■Compatibility of each seating position with child restraint sys -
tems
*1, 2, 3
*3
*3
*4
Suitable for “universal” category child restraint system
fixed with the seat belt.
Suitable for i-Size and ISOFIX child restraint system.
Includes a top tether anchorage point.
Not suitable for child restraint system.
Never use a rear-facing child restraint system on the front
passenger seat.

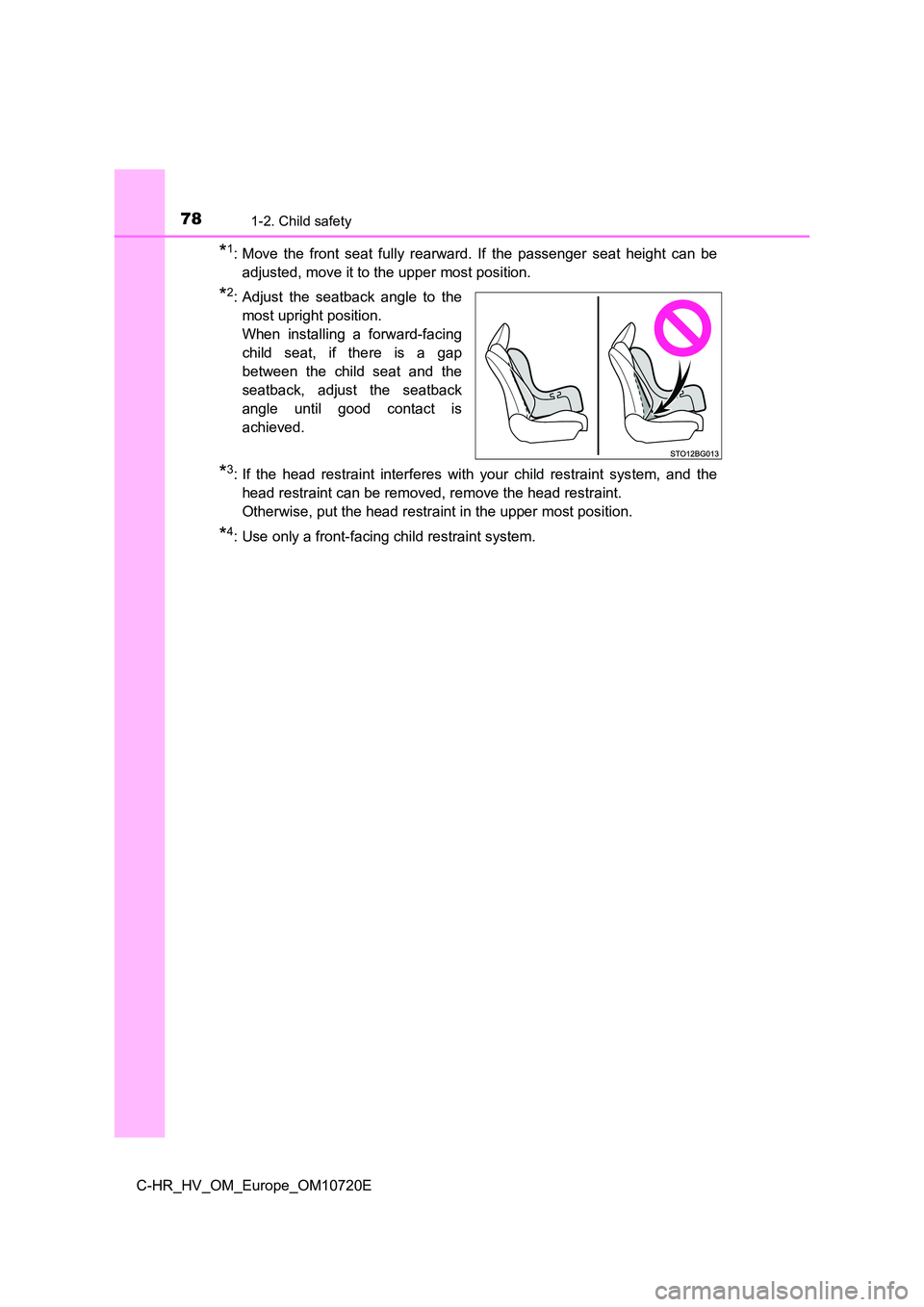

781-2. Child safety
C-HR_HV_OM_Europe_OM10720E
*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap
between the child seat and the
seatback, adjust the seatback
angle until good contact is
achieved.
*3: If the head restraint interferes with your child restraint sys tem, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Use only a front-facing child restraint system.
