instrument cluster TOYOTA C-HR 2022 Owners Manual

C-HR_HV_OM_Europe_OM10720E

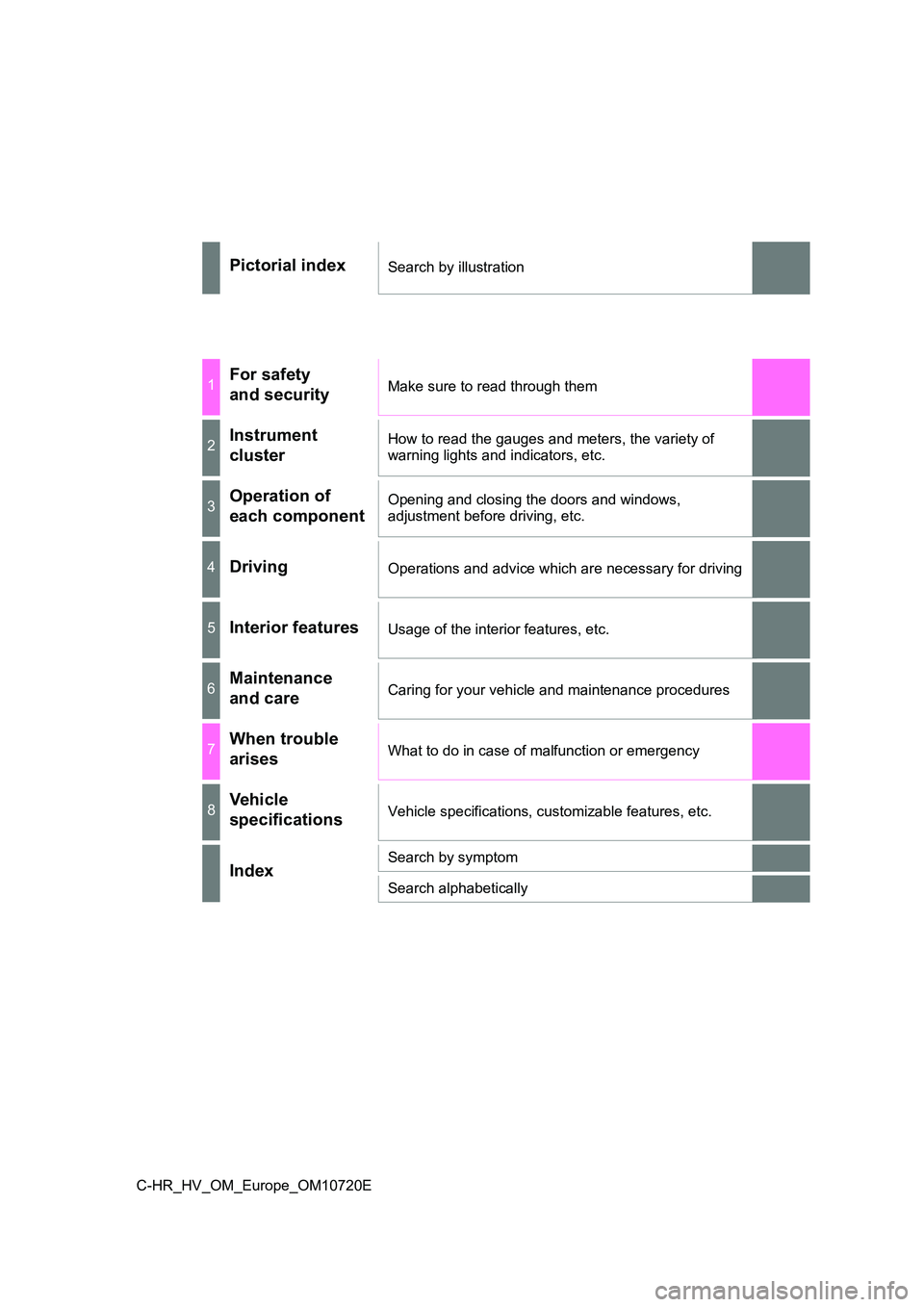

Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument
cluster
How to read the gauges and meters, the variety of
warning lights and indicators, etc.
3Operation of
each component
Opening and closing the doors and windows,
adjustment before driving, etc.
4DrivingOperations and advice which are necessary for driving
5Interior featuresUsage of the interior features, etc.
6Maintenance
and careCaring for your vehicle and maintenance procedures
7When trouble
arisesWhat to do in case of malfunction or emergency
8Vehicle
specificationsVehicle specifications, customizable features, etc.
IndexSearch by symptom
Search alphabetically

TABLE OF CONTENTS2
C-HR_HV_OM_Europe_OM10720E
For your information .......................8
Reading this manual.....................12
How to search ..............................13
Pictorial index ...............................14
1-1. For safe use
Before driving.......................32
For safe driving ....................34
Seat belts .............................36
SRS airbags.........................41
Exhaust gas precautions .....54
1-2. Child safety
Airbag manual on-off
system ...............................55
Riding with children..............58
Child restraint systems ........59
1-3. Emergency assistance
eCall.....................................97
1-4. Hybrid system
Hybrid system features ......118
Hybrid system
precautions ......................123
1-5. Theft deterrent system
Immobilizer system ............130
Double locking system .......145
Alarm .................................147
Theft prevention labels ......155
2. Instrument cluster
Warning lights and
indicators......................... 158
Gauges and meters........... 166
Multi-information display ... 170
Energy monitor/
consumption screen ........ 179
1For safety and security
2Instrument cluster

16Pictorial index
C-HR_HV_OM_Europe_OM10720E
■Instrument panel (left-hand drive vehicles)
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 305
Starting the hybrid system/changing the modes . . . . . . . . . . . P. 305
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 671
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . P. 744
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 692
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Shifting the shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 674
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 317
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Reading the meters/
adjusting the instrument cluster light . . . . . . . . . . . . . . . . P. 166, 173
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 681

24Pictorial index
C-HR_HV_OM_Europe_OM10720E
■Instrument panel (right-hand drive vehicles)
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 305
Starting the hybrid system/changing the modes . . . . . . . . . . . P. 305
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 671
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . P. 744
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 692
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Shifting the shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 674
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 317
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Reading the meters/
adjusting the instrument cluster light . . . . . . . . . . . . . . . . P. 166, 173
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 681

157
2Instrument cluster
C-HR_HV_OM_Europe_OM10720E
2. Instrument cluster
Warning lights and
indicators ......................... 158
Gauges and meters ........... 166
Multi-information display .... 170
Energy monitor/
consumption screen ........ 179

1582. Instrument cluster
C-HR_HV_OM_Europe_OM10720E

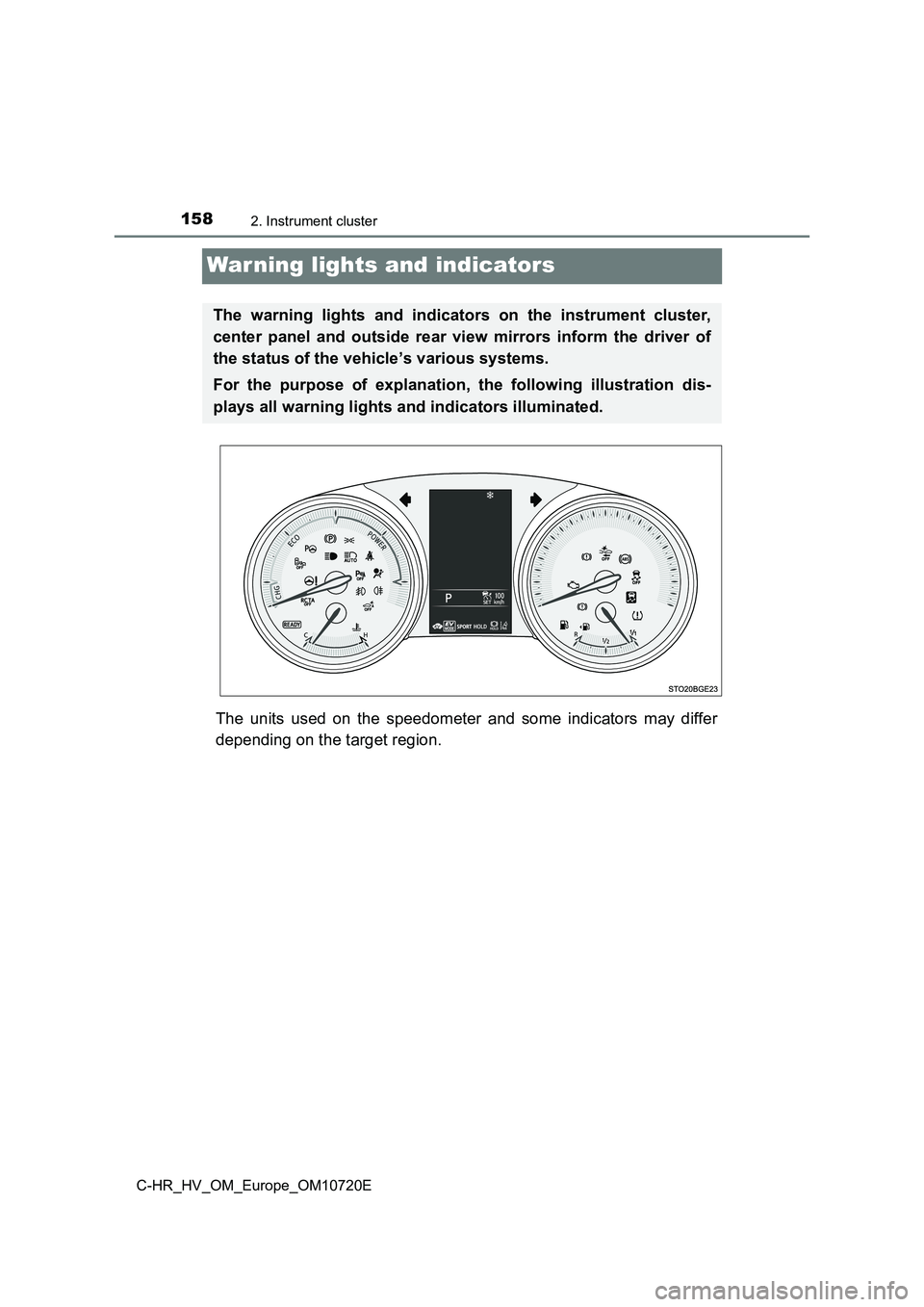

War ning lights and indicators
The units used on the speedometer and some indicators may differ
depending on the target region.
The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver of
the status of the vehicle’s various systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

1592. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
Warning lightsPages
*1Brake system warning light (red) P. 681
*1Malfunction indicator lamp P. 682
*1SRS warning light P. 682
*1ABS warning light P. 682
*1Electric power steering system warning light
(red) P. 6 8 2
*1Electric power steering system warning light
(yellow) P. 6 8 2
*1, 2Toyota parking assist-sensor OFF indicator
(if equipped) P. 6 8 3
*1, 2PKSB OFF indicator (if equipped) P. 683
*2“RCTA OFF” indicator (if equipped) P. 683
*1, 3Slip indicator light P. 684
*1Brake system warning light (yellow) P. 684

1602. Instrument cluster
C-HR_HV_OM_Europe_OM10720E

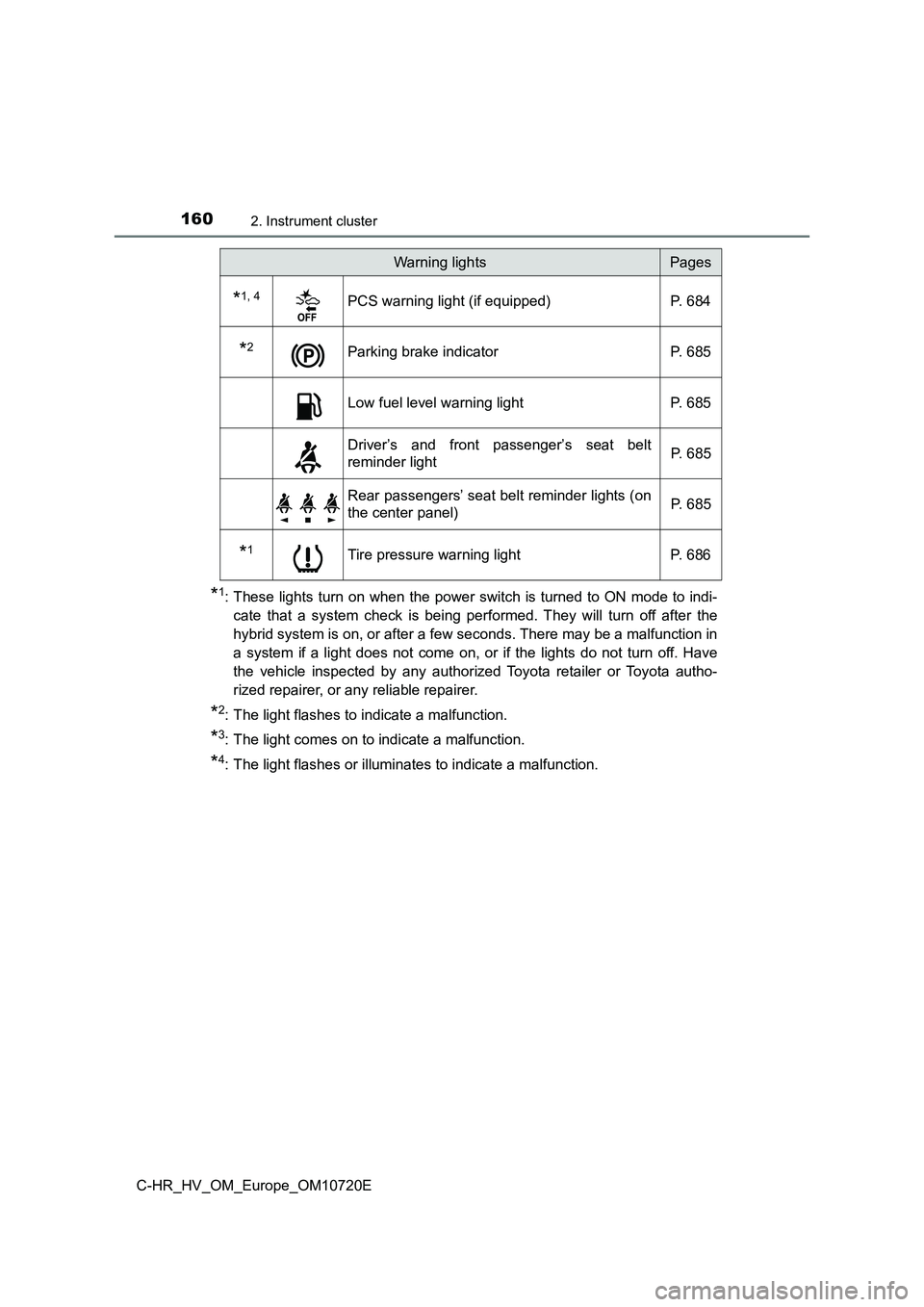

*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a mal function in
a system if a light does not come on, or if the lights do not t urn off. Have
the vehicle inspected by any authorized Toyota retailer or Toyo ta autho-
rized repairer, or any reliable repairer.
*2: The light flashes to indicate a malfunction.
*3: The light comes on to indicate a malfunction.
*4: The light flashes or illuminates to indicate a malfunction.
*1, 4PCS warning light (if equipped) P. 684
*2Parking brake indicator P. 685
Low fuel level warning light P. 685
Driver’s and front passenger’s seat belt
reminder light P. 6 8 5
Rear passengers’ seat belt reminder lights (on
the center panel) P. 6 8 5
*1Tire pressure warning light P. 686
Warning lightsPages

1612. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E

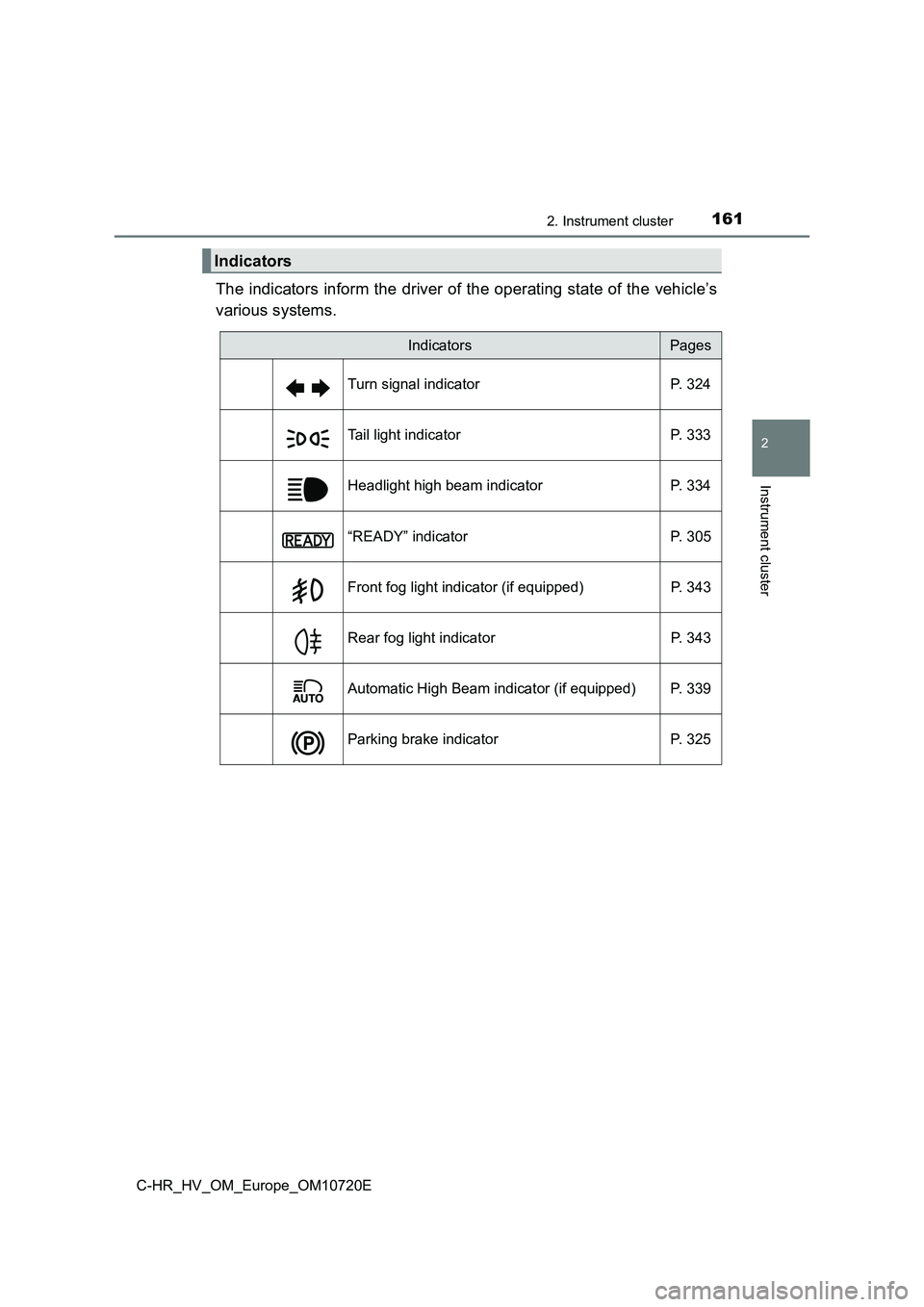

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
IndicatorsPages
Turn signal indicator P. 324
Tail light indicator P. 333
Headlight high beam indicator P. 334
“READY” indicator P. 305
Front fog light indicator (if equipped) P. 343
Rear fog light indicator P. 343
Automatic High Beam indi cator (if equipped) P. 339
Parking brake indicator P. 325

1622. Instrument cluster
C-HR_HV_OM_Europe_OM10720E
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a mal function in
a system if a light does not come on, or if the lights do not t urn off. Have
the vehicle inspected by any authorized Toyota retailer or Toyo ta autho-
rized repairer, or any reliable repairer.
*2: The light turns on when the system is off.
*3: The light flashes to indicate that the system is operating.
*1, 2Toyota parking assist-sensor OFF indicator
(if equipped) P. 4 5 7
*1, 2PKSB OFF indicator (if equipped) P. 478
S-IPA indicator (if equipped) P. 494
*1, 2BSM OFF indicator (if equipped) P. 437
*1BSM outside rear view mirror indicator
(on the outside rear vie w mirrors) (if equipped)
P. 437,
469
*2“RCTA OFF” indicator (if equipped) P. 469
Security indicator (on the center panel) P. 130,
147
*1, 3Slip indicator light P. 534
*1, 2VSC off indicator P. 535
*1, 2PCS warning light (if equipped) P. 369
*1“PASSENGER AIR BAG” indicator (on the
center panel) (if equipped) P. 55
IndicatorsPages
