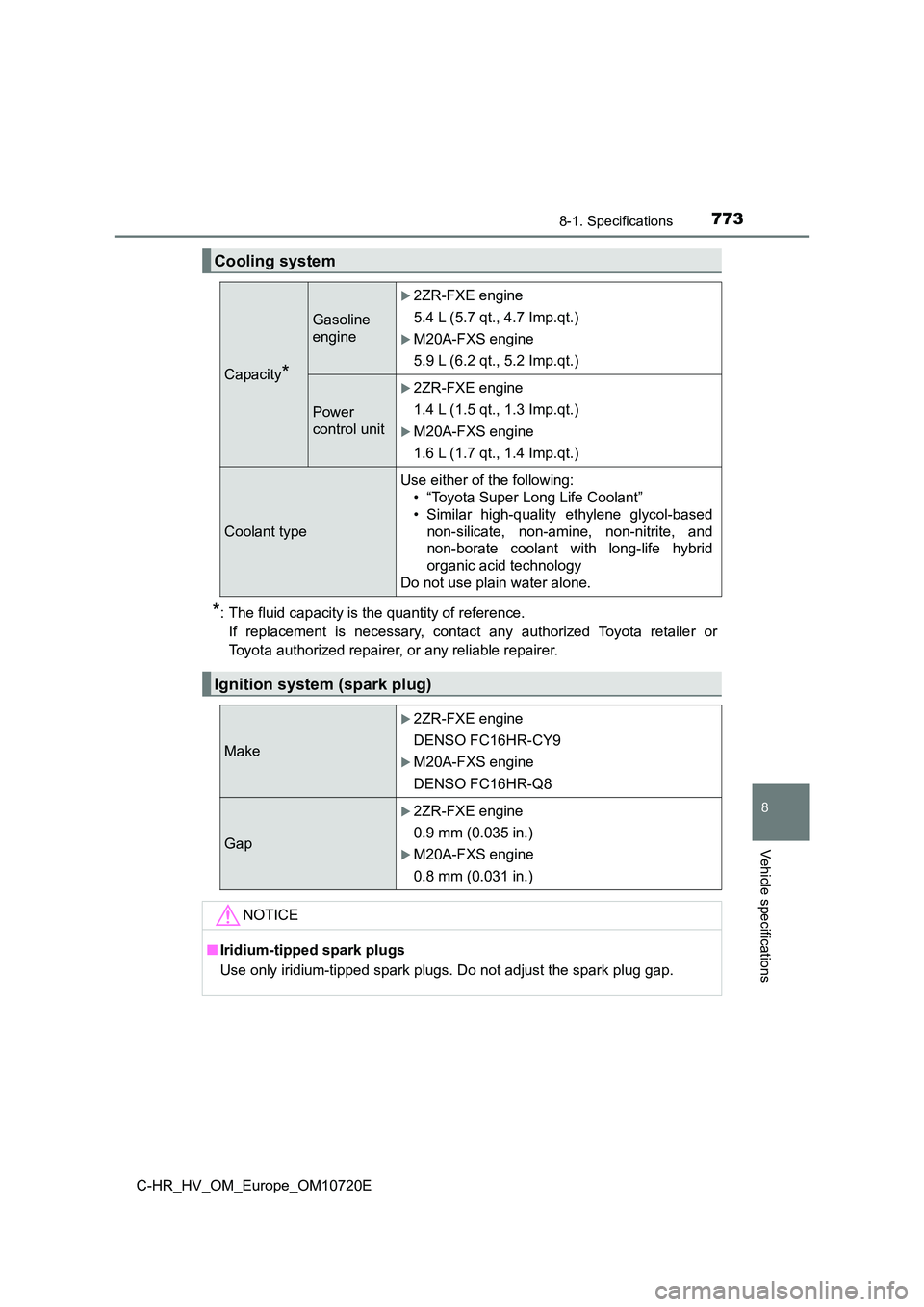

7738-1. Specifications
C-HR_HV_OM_Europe_OM10720E
8
Vehicle specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or
Toyota authorized repairer, or any reliable repairer.
Cooling system
Capacity*
Gasoline
engine
2ZR-FXE engine
5.4 L (5.7 qt., 4.7 Imp.qt.)
M20A-FXS engine
5.9 L (6.2 qt., 5.2 Imp.qt.)
Power
control unit
2ZR-FXE engine
1.4 L (1.5 qt., 1.3 Imp.qt.)
M20A-FXS engine
1.6 L (1.7 qt., 1.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
Make
2ZR-FXE engine
DENSO FC16HR-CY9
M20A-FXS engine
DENSO FC16HR-Q8
Gap
2ZR-FXE engine
0.9 mm (0.035 in.)
M20A-FXS engine
0.8 mm (0.031 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.
