6116-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
6
Maintenance and care
■Before recharging
When recharging, the 12-volt battery produces hydrogen gas whic h is flam-
mable and explosive. Therefore, observe the following precautio ns before
recharging:
● If recharging with the 12-volt battery installed on the vehicle, be sure to dis-
connect the ground cable.
● Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the 12-volt battery.
■ After recharging/reconnecting the 12-volt battery
● The hybrid system may not start. Follow the procedure below to initialize the
system.
Shift the shift lever to P.
Open and close any of the doors.
Restart the hybrid system.
● Vehicles with entry function: Unlocking the doors using the smart entry &
start system may not be possible immediately after reconnecting the 12-volt
battery. If this happens, use the wireless remote control or th e mechanical
key to lock/unlock the doors.
● Start the hybrid system with the power switch in ACCESSORY mode. The
hybrid system may not start with the power switch turned off. H owever, the
hybrid system will operate normally from the second attempt.
● The power switch mode is recorded by the vehicle. If the 12-volt battery is
reconnected, the vehicle will return the power switch mode to t he status it
was in before the 12-volt battery was disconnected. Make sure t o turn off
the power before disconnect the 12-volt battery. Take extra car e when con-
necting the 12-volt battery if the power switch mode prior to d ischarge is
unknown.
If the system will not start even after multiple attempts all m ethods above,
contact any authorized Toyota retailer or Toyota authorized rep airer, or any
reliable repairer.
1
2
3

6446-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
Remove the depleted battery.
When removing the cover, if the
battery cannot be seen due to the
electronic key module attaching to
the upper cover, remove the elec-
tronic key module from the cover
so that the battery is visible as
shown in the illustration.
Use an appropriate sized flathead
screwdriver when removing the
battery.
Insert a new battery with the “+” terminal facing up.
When installing, reverse the steps listed.
■ Use a CR2032 lithium battery
● Batteries can be purchased at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer, local electrical appliance shops
or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart entry & start system, push button start and wireless remote con-
trol will not function properly.
● The operational range will be reduced.
3
4

7447-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
If the electronic key does not operate
properly
Use the mechanical key ( P. 187) in order to perform the following
operations:
Locks all the doors
Closes the windows (turn and
hold)*
Unlocks all the doors
Opens the windows (turn and
hold)*
*: These settings must be custom-
ized at any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
( P. 779)
If communication between the electronic key and vehicle is inter-
rupted ( P. 208) or the electronic key cannot be used because the
battery is depleted, the smart entry & start system and wireles s
remote control cannot be used. In such cases, the doors can be
opened and the hybrid system can be started by following the pr o-
cedure below.
Locking and unlocking the doors

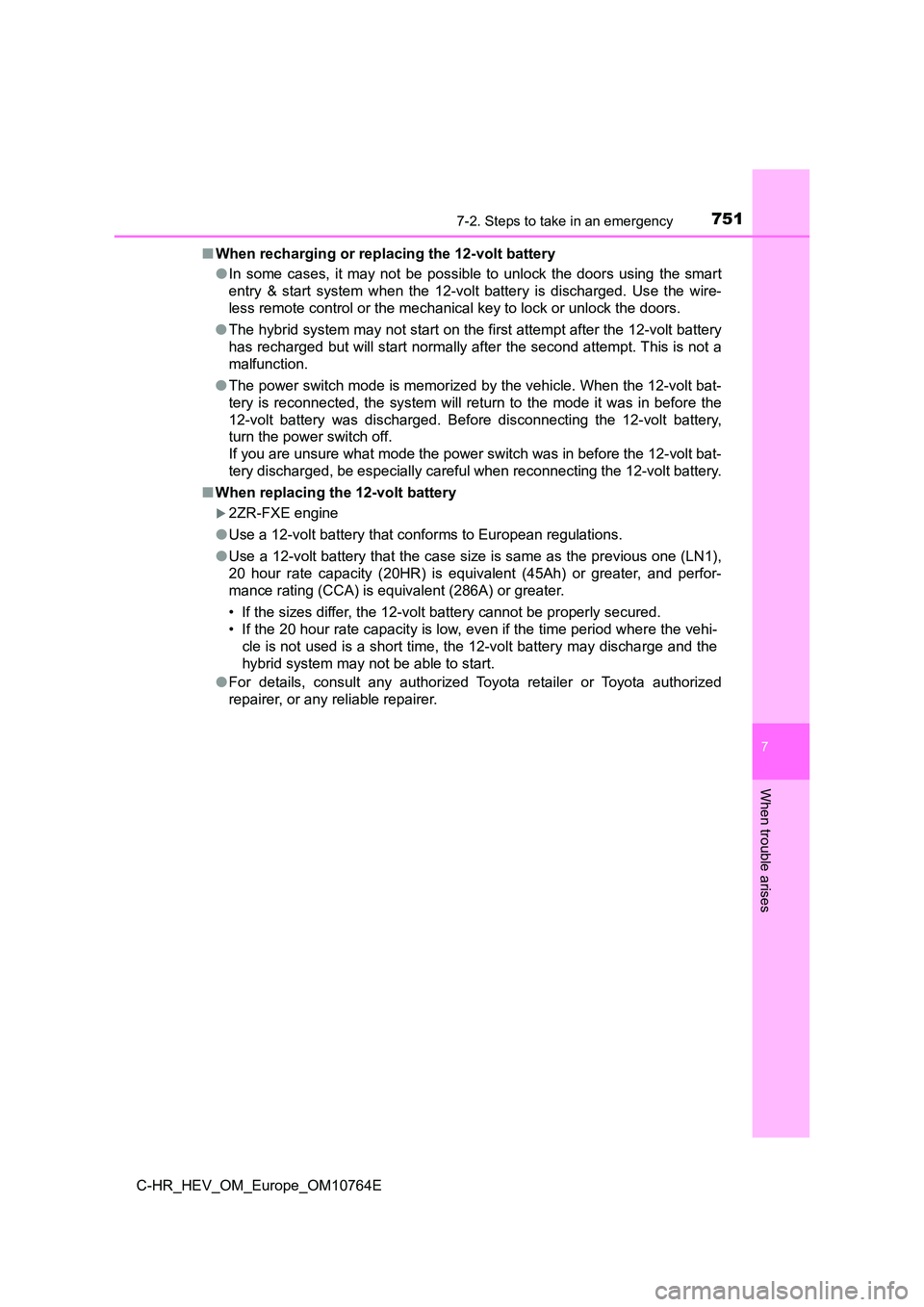

7517-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
7
When trouble arises
■When recharging or replacing the 12-volt battery
● In some cases, it may not be possible to unlock the doors using the smart
entry & start system when the 12-volt battery is discharged. Us e the wire-
less remote control or the mechanical key to lock or unlock the doors.
● The hybrid system may not start on the first attempt after the 12-volt battery
has recharged but will start normally after the second attempt. This is not a
malfunction.
● The power switch mode is memorized by the vehicle. When the 12-volt bat-
tery is reconnected, the system will return to the mode it was in before the
12-volt battery was discharged. Before disconnecting the 12-vol t battery,
turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt bat-
tery discharged, be especially careful when reconnecting the 12 -volt battery.
■ When replacing the 12-volt battery
2ZR-FXE engine
● Use a 12-volt battery that conforms to European regulations.
● Use a 12-volt battery that the case size is same as the previous one (LN1),
20 hour rate capacity (20HR) is equivalent (45Ah) or greater, a nd perfor-
mance rating (CCA) is equivalent (286A) or greater.
• If the sizes differ, the 12-volt battery cannot be properly se cured.
• If the 20 hour rate capacity is low, even if the time period w here the vehi-
cle is not used is a short time, the 12-volt battery may discha rge and the
hybrid system may not be able to start.
● For details, consult any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

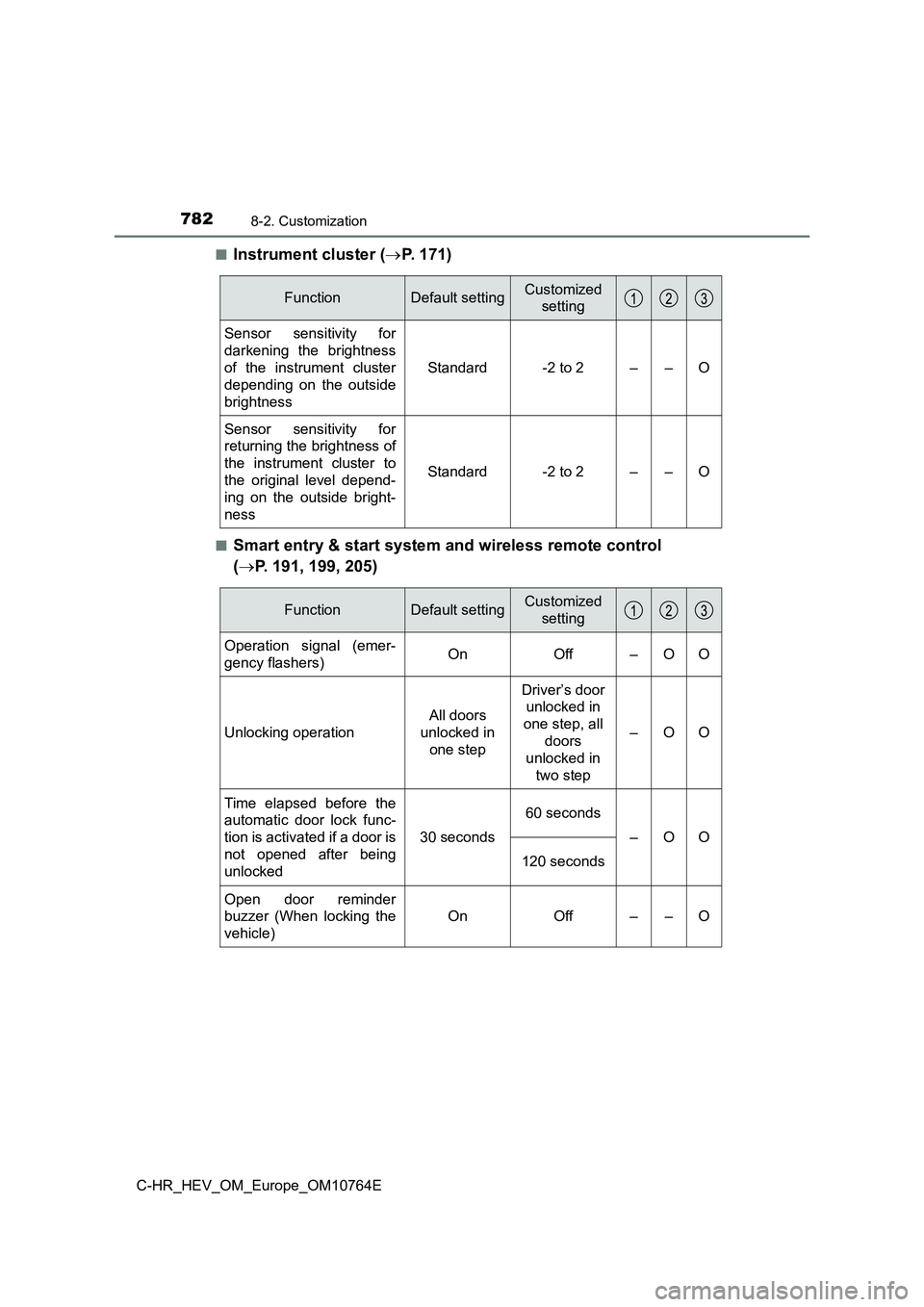

7828-2. Customization
C-HR_HEV_OM_Europe_OM10764E
■Instrument cluster ( P. 171)
■Smart entry & start system and wireless remote control
( P. 191, 199, 205)
FunctionDefault settingCustomized
setting
Sensor sensitivity for
darkening the brightness
of the instrument cluster
depending on the outside
brightness
Standard-2 to 2––O
Sensor sensitivity for
returning the brightness of
the instrument cluster to
the original level depend-
ing on the outside bright-
ness
Standard-2 to 2––O
FunctionDefault settingCustomized
setting
Operation signal (emer-
gency flashers)OnOff–OO
Unlocking operation
All doors
unlocked in
one step
Driver’s door
unlocked in
one step, all
doors
unlocked in
two step
–OO
Time elapsed before the
automatic door lock func-
tion is activated if a door is
not opened after being
unlocked
30 seconds
60 seconds
–OO
120 seconds
Open door reminder
buzzer (When locking the
vehicle)
OnOff––O

7838-2. Customization
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
■Smart entry & start system (P. 205)
*: Vehicles without an alarm
■Wireless remote control ( P. 192)
■Outside rear view mirrors (P. 2 7 2 )
FunctionDefault settingCustomized
setting
Smart entry & start sys-
temOnOff–OO
Smart door unlockingAll the doorsDriver’s door–OO
Number of consecutive
door lock operations*2 timesAs many as
desired––O
FunctionDefault settingCustomized
setting
Wireless remote controlOnOff––O
FunctionDefault settingCustomized
setting
Automatic mirror folding
and extending operation
Linked to the
locking/
unlocking of
the doors
Off
––OLinked to
operation of
the power
switch

796What to do if... (Troubleshooting)
C-HR_HEV_OM_Europe_OM10764E
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P. 683)
●The parking brake indicator is on
Is the parking brake released? ( P. 323)
Depending on the situation, other types of warning buzzer may a lso sound.
( P. 679, 690)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 146)
Do one of the following to deactivate or stop the alarms:
●Unlock the doors using the entry function (if equipped) or wire less remote
control.
●Start the hybrid system. (The alarm will be deactivated or stop ped after a
few seconds.)
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. ( P. 690)
●When a warning light turns on or a warning message is displayed, refer to
P. 679, 690.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

800Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Child-protectors ....................... 195
Cleaning
Aluminum wheels .................. 579
Camera sensor ..................... 355
Exterior.................................. 578
Hybrid battery
(traction battery)
air intake vent ..................... 638
Interior ................................... 584
Radar sensor ........................ 354
Seat belts .............................. 585
Clock ......................................... 573
Condenser ................................ 604
Console box ............................. 561
Consumption screen ............... 177
Coolant
Capacity ................................ 771
Checking ............................... 602
Preparing and
checking before winter........ 541
Cooling system ........................ 602
Hybrid system overheating ... 755
Cruise control
Cruise control ........................ 425
Dynamic radar cruise control
with full-speed range .......... 408
Cup holders .............................. 563
Curtain shield airbags ............... 41
Customizable features ............ 779
Daytime running light
system .................................... 334
Deck board ............................... 565
Defogger
Outside rear view mirrors...... 550
Rear window ......................... 550
Windshield ............................ 549
Dimension ................................ 764
Display
BSM (Blind Spot Monitor) ..... 435
Drive information................... 169
Dynamic radar cruise control
with full-speed range .......... 408
Energy monitor ..................... 177
LTA (Lane Tracing Assist) .... 385
Multi-information display ....... 168
Parking assist system ........... 455
Pre-collision warning............. 367
RSA (Road Sign Assist)........ 401
Warning messages ............... 690
Do-it-yourself maintenance .... 591
Door lock
Back door.............................. 199
Side doors............................. 191
Smart entry & start
system ........................ 191, 199
Wireless
remote control ............ 192, 199
Doors
Back door.............................. 199
Door glasses ......................... 275
Door lock............................... 191
Open door
warning buzzer ........... 197, 200
Outside rear view mirrors...... 272
Rear door child-protectors .... 195
Side doors............................. 191
D

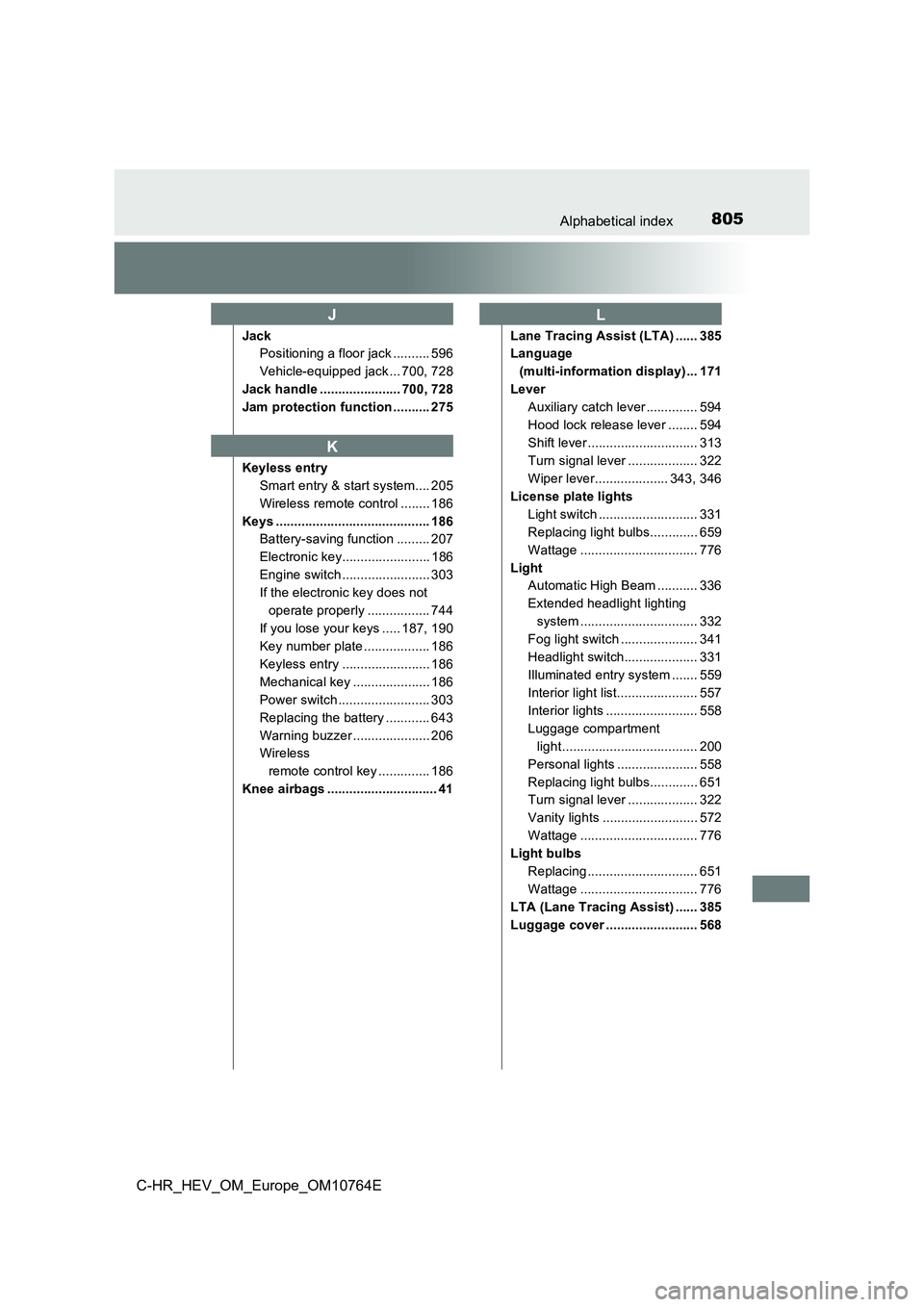

805Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Jack
Positioning a floor jack .......... 596
Vehicle-equipped jack ... 700, 728
Jack handle ...................... 700, 728
Jam protection function .......... 275
Keyless entry
Smart entry & start system.... 205
Wireless remote control ........ 186
Keys .......................................... 186
Battery-saving function ......... 207
Electronic key........................ 186
Engine switch ........................ 303
If the electronic key does not
operate properly ................. 744
If you lose your keys ..... 187, 190
Key number plate .................. 186
Keyless entry ........................ 186
Mechanical key ..................... 186
Power switch ......................... 303
Replacing the battery ............ 643
Warning buzzer ..................... 206
Wireless
remote control key .............. 186
Knee airbags .............................. 41
Lane Tracing Assist (LTA) ...... 385
Language
(multi-information display) ... 171
Lever
Auxiliary catch lever .............. 594
Hood lock release lever ........ 594
Shift lever .............................. 313
Turn signal lever ................... 322
Wiper lever.................... 343, 346
License plate lights
Light switch ........................... 331
Replacing light bulbs............. 659
Wattage ................................ 776
Light
Automatic High Beam ........... 336
Extended headlight lighting
system ................................ 332
Fog light switch ..................... 341
Headlight switch.................... 331
Illuminated entry system ....... 559
Interior light list...................... 557
Interior lights ......................... 558
Luggage compartment
light..................................... 200
Personal lights ...................... 558
Replacing light bulbs............. 651
Turn signal lever ................... 322
Vanity lights .......................... 572
Wattage ................................ 776
Light bulbs
Replacing .............................. 651
Wattage ................................ 776
LTA (Lane Tracing Assist) ...... 385
Luggage cover ......................... 568
J
K
L
