TOYOTA C-HR 2023 Owners Manual

2593-2. Opening, closing and locking the doors
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E

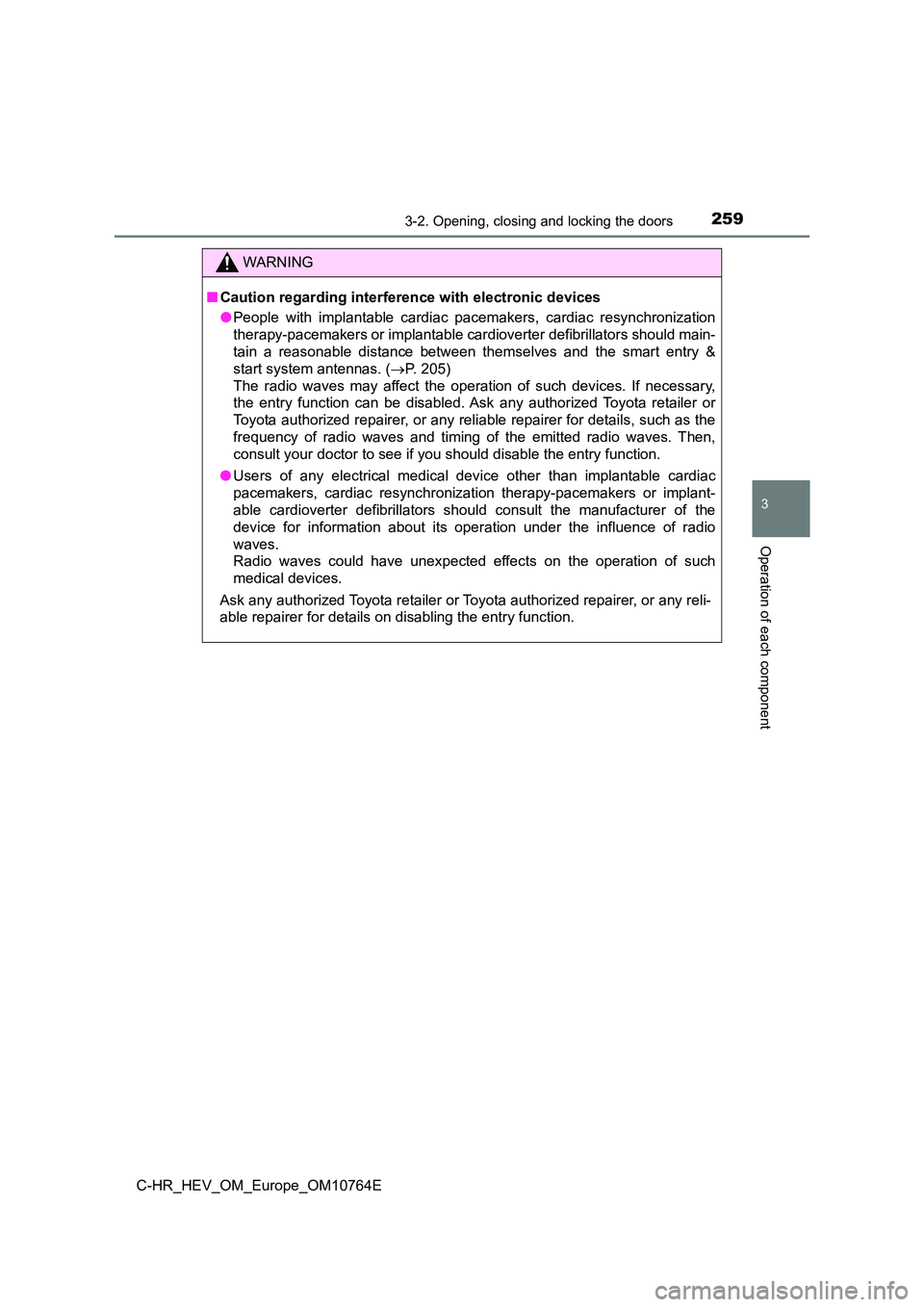

WARNING
■Caution regarding interference with electronic devices
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
tain a reasonable distance between themselves and the smart ent ry &
start system antennas. ( P. 205)
The radio waves may affect the operation of such devices. If ne cessary,
the entry function can be disabled. Ask any authorized Toyota r etailer or
Toyota authorized repairer, or any reliable repairer for detail s, such as the
frequency of radio waves and timing of the emitted radio waves. Then,
consult your doctor to see if you should disable the entry func tion.
● Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronization therapy-pacemakers or imp lant-
able cardioverter defibrillators should consult the manufacture r of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of s uch
medical devices.
Ask any authorized Toyota retailer or Toyota authorized repaire r, or any reli-
able repairer for details on disabling the entry function.

2603-3. Adjusting the seats
C-HR_HEV_OM_Europe_OM10764E
Front seats
Manual seat
Seat position adjustment lever
Seatback angle adjustment
lever
Vertical height adjustment lever
(if equipped)
Lumbar support adjustment
switch (if equipped)
Power seat (driver’s side only)
Seat position adjustment switch
Seatback angle adjustment
switch
Seat cushion (front) angle
adjustment switch
Vertical height adjustment
switch
Lumbar support adjustment
switch
Adjustment procedure

2613-3. Adjusting the seats
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
WARNING
■When adjusting the seat position
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
● Make sure to leave enough space around the feet so they do not get stuck.
■ Seat adjustment
● Be careful that the seat does not hit passengers or luggage.
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hi ps and apply
restraint forces directly to the abdomen, or your neck may cont act the
shoulder belt, increasing the risk of death or serious injury i n the event of
an accident.
Adjustments should not be made while driving as the seat may un expect-
edly move and cause the driver to lose control of the vehicle.
● Manual seat only: After adjusting the seat, make sure that the seat is
locked in position.

2623-3. Adjusting the seats
C-HR_HEV_OM_Europe_OM10764E

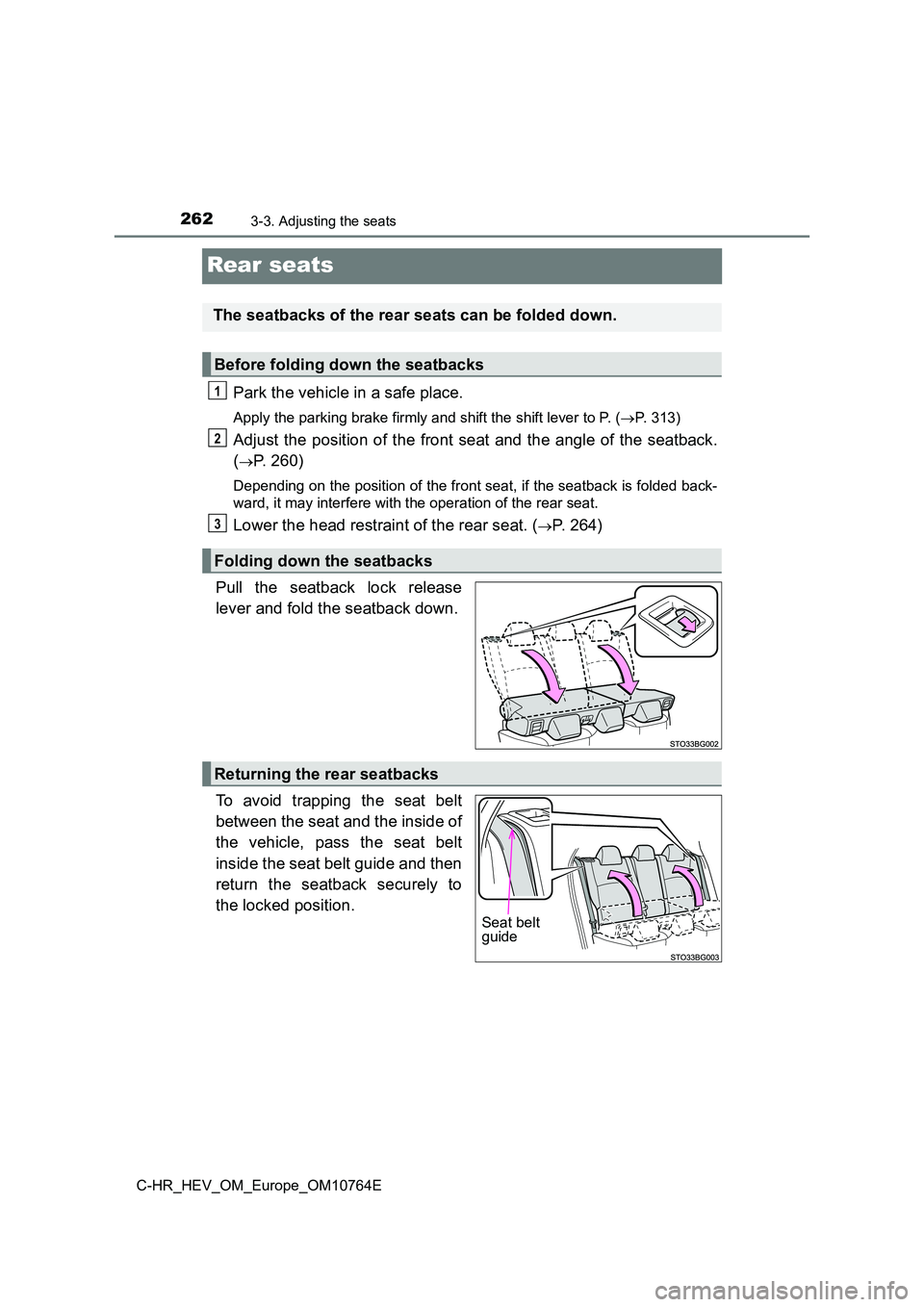

Rear seats
Park the vehicle in a safe place.
Apply the parking brake firmly and shift the shift lever to P. (P. 313)
Adjust the position of the front seat and the angle of the seatback.
(P. 260)
Depending on the position of the front seat, if the seatback is folded back-
ward, it may interfere with the operation of the rear seat.
Lower the head restraint of the rear seat. (P. 264)
Pull the seatback lock release
lever and fold the seatback down.
To avoid trapping the seat belt
between the seat and the inside of
the vehicle, pass the seat belt
inside the seat belt guide and then
return the seatback securely to
the locked position.
The seatbacks of the rear seats can be folded down.
Before folding down the seatbacks
Folding down the seatbacks
1
2
3
Returning the rear seatbacks
Seat belt guide

2633-3. Adjusting the seats
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E

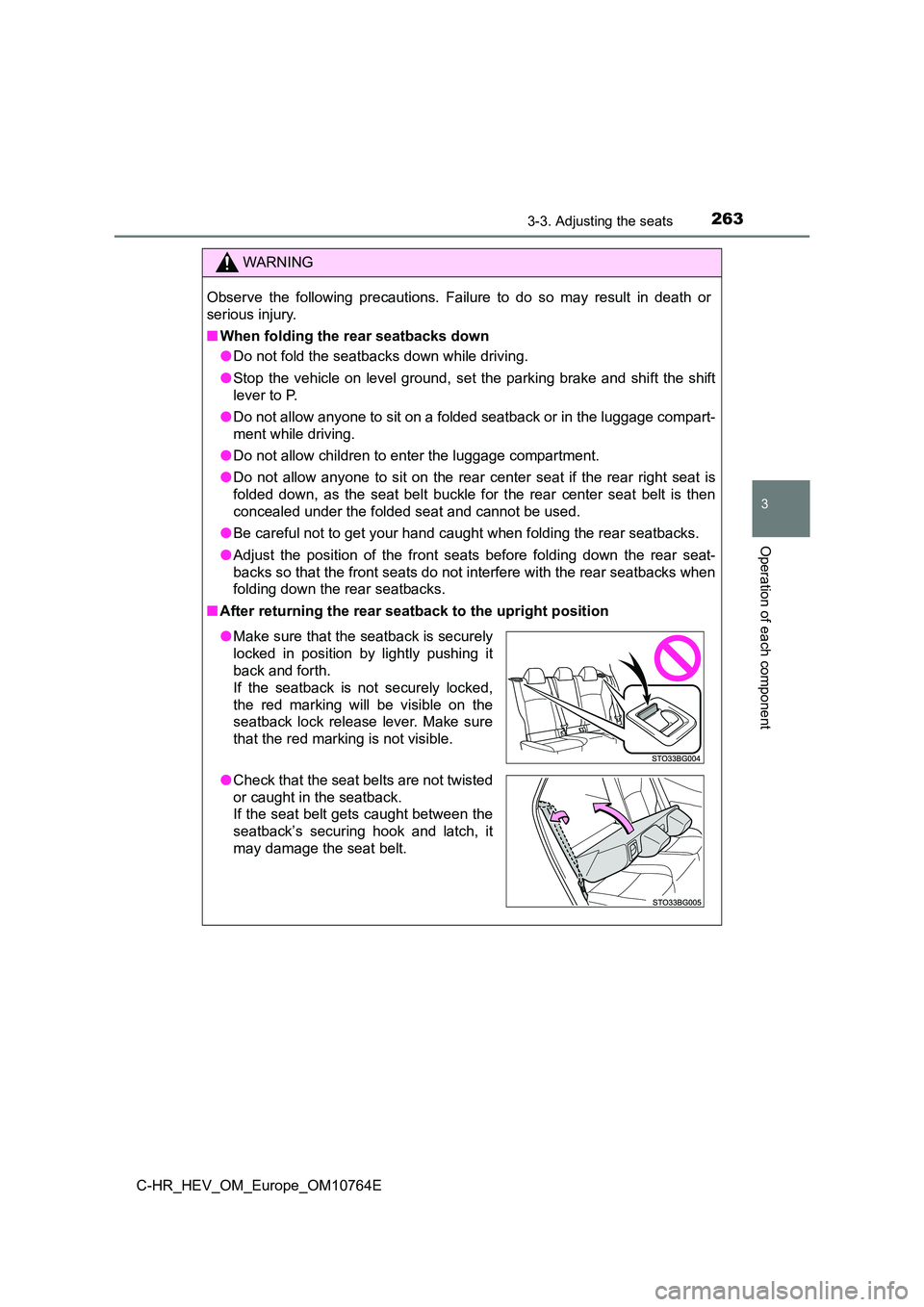

WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
■ When folding the rear seatbacks down
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● Do not allow anyone to sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat b elt is then
concealed under the folded seat and cannot be used.
● Be careful not to get your hand caught when folding the rear seatbacks.
● Adjust the position of the front seats before folding down the rear seat-
backs so that the front seats do not interfere with the rear se atbacks when
folding down the rear seatbacks.
■ After returning the rear seatback to the upright position
●Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release lever. Make sure
that the red marking is not visible.
● Check that the seat belts are not twisted
or caught in the seatback.
If the seat belt gets caught between the
seatback’s securing hook and latch, it
may damage the seat belt.

2643-3. Adjusting the seats
C-HR_HEV_OM_Europe_OM10764E

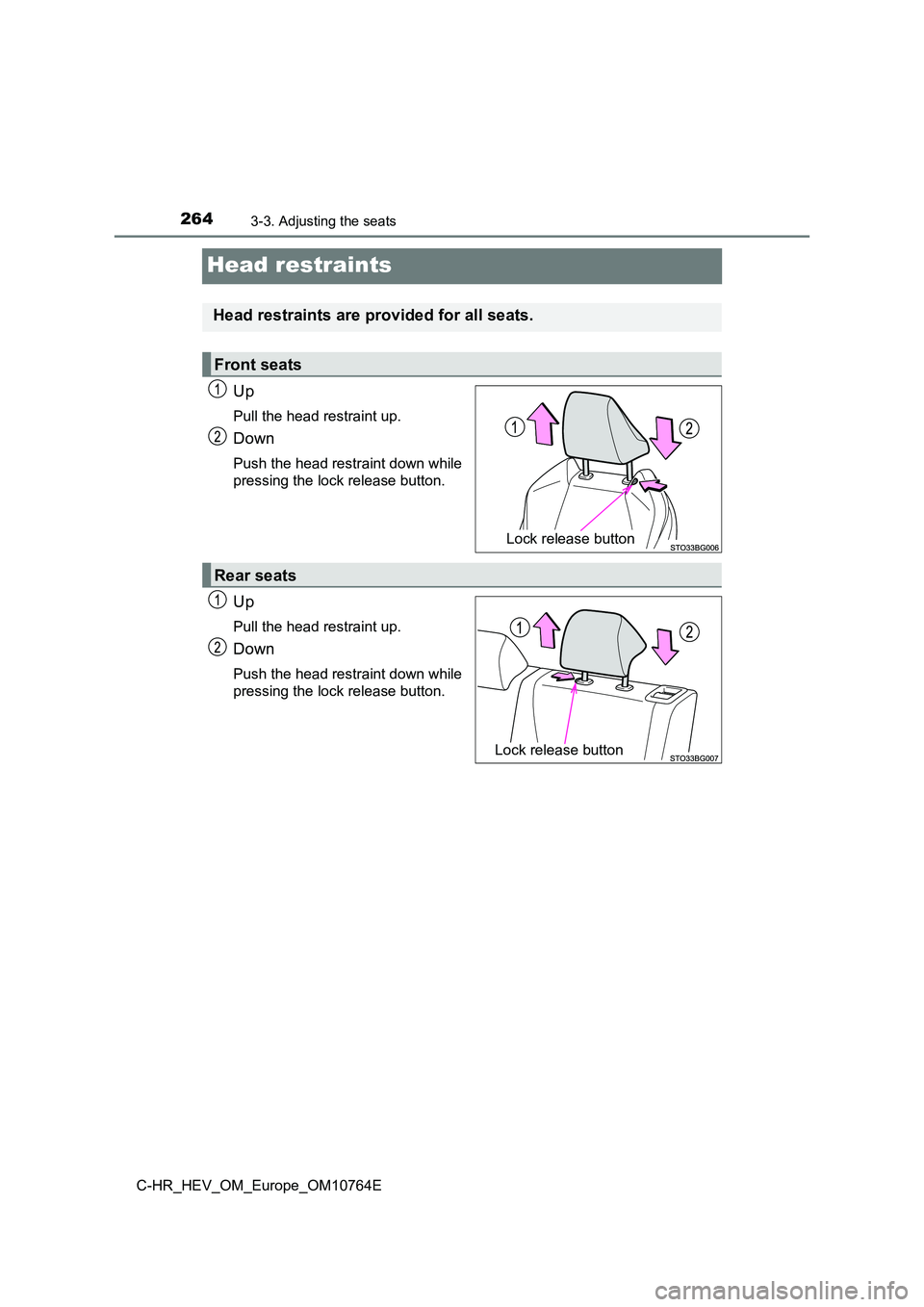

Head restraints
Up
Pull the head restraint up.
Down
Push the head restraint down while
pressing the lock release button.
Up
Pull the head restraint up.
Down
Push the head restraint down while
pressing the lock release button.
Head restraints are provided for all seats.
Front seats
Lock release button
Rear seats
Lock release button

2653-3. Adjusting the seats
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E

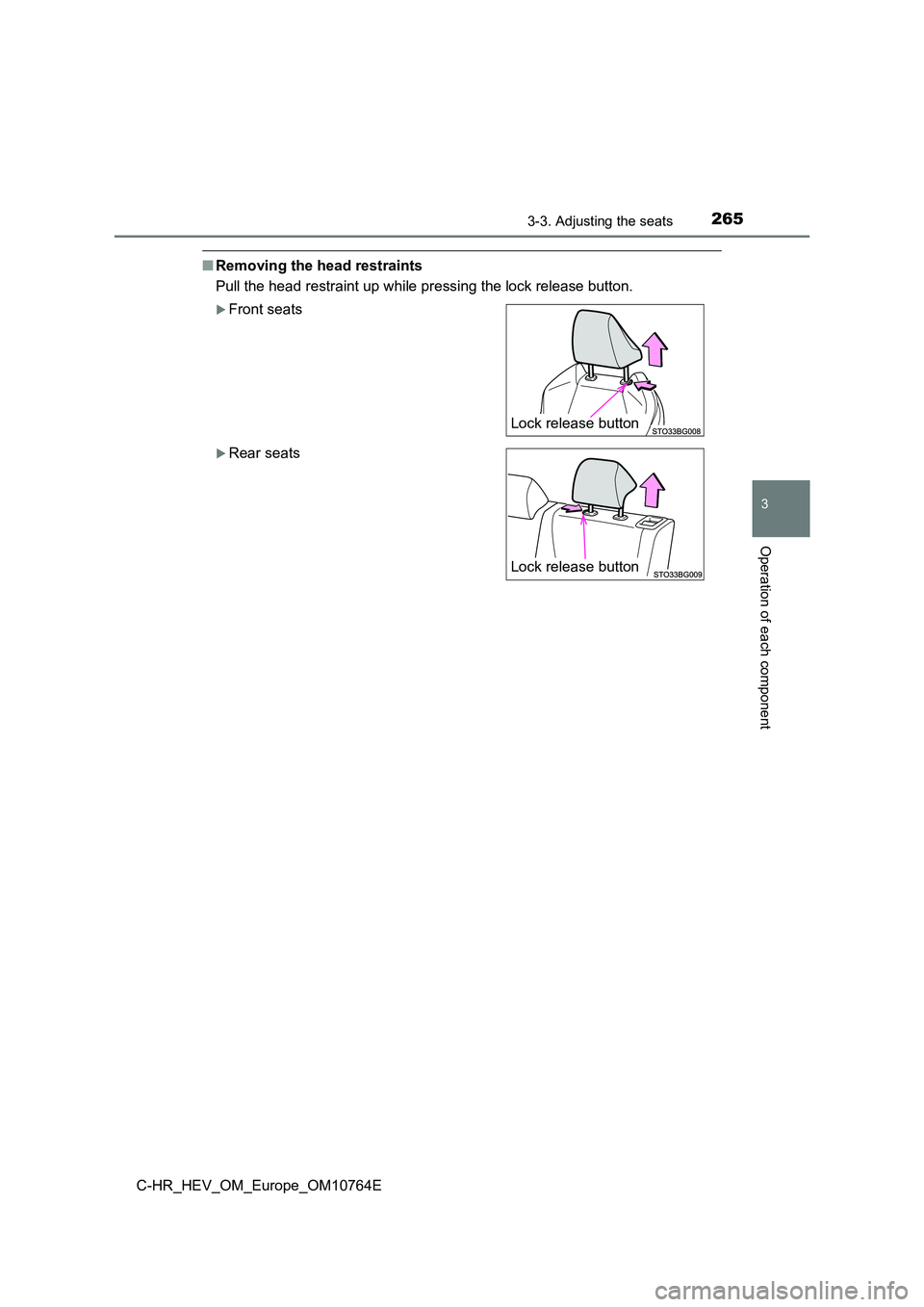

■Removing the head restraints
Pull the head restraint up while pressing the lock release butt on.
Front seats
Rear seats
Lock release button
Lock release button

2663-3. Adjusting the seats
C-HR_HEV_OM_Europe_OM10764E

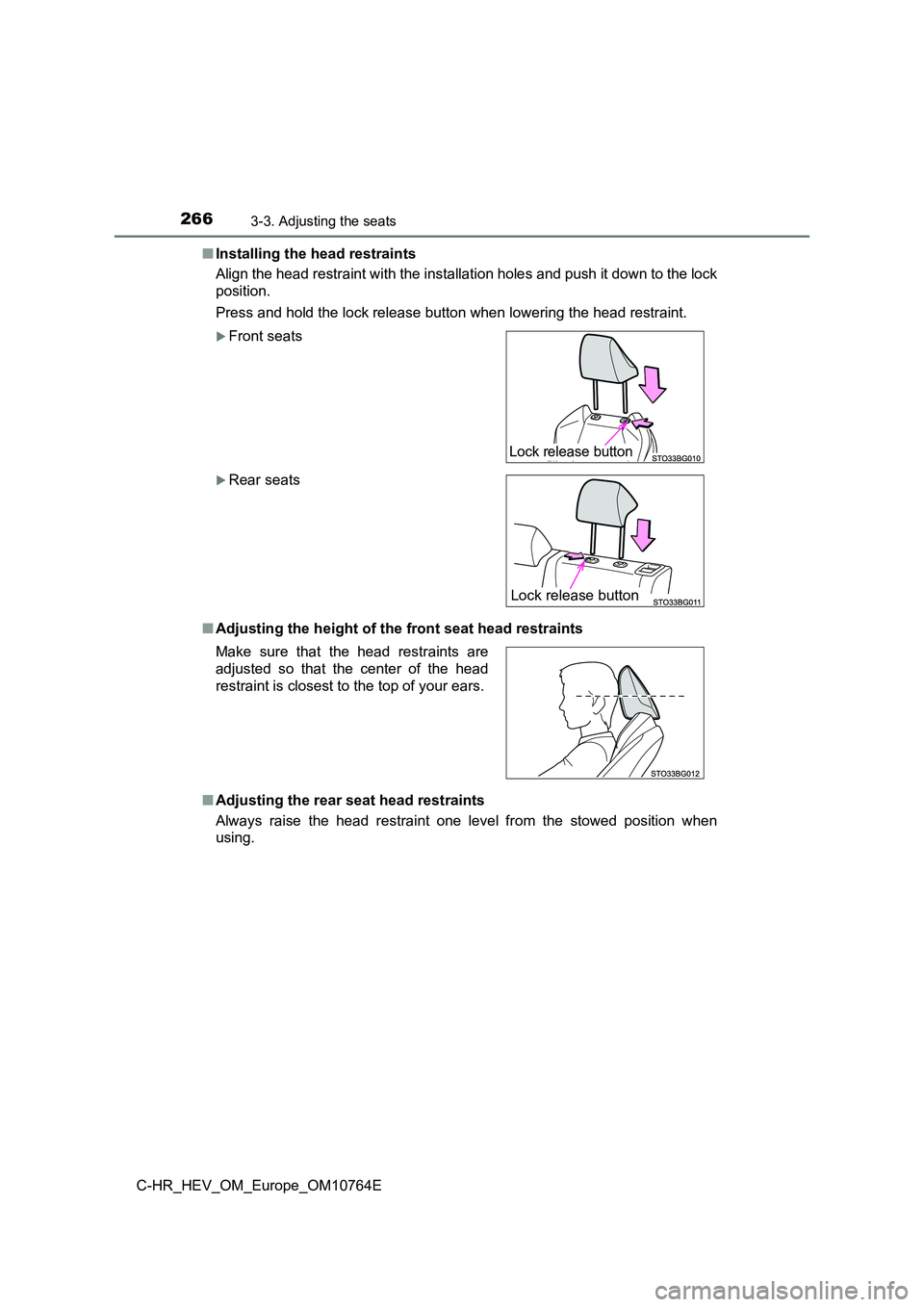

■ Installing the head restraints
Align the head restraint with the installation holes and push i t down to the lock
position.
Press and hold the lock release button when lowering the head r estraint.
■ Adjusting the height of the front seat head restraints
■ Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed posit ion when
using.
Front seats
Rear seats
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Lock release button
Lock release button

2673-3. Adjusting the seats
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E

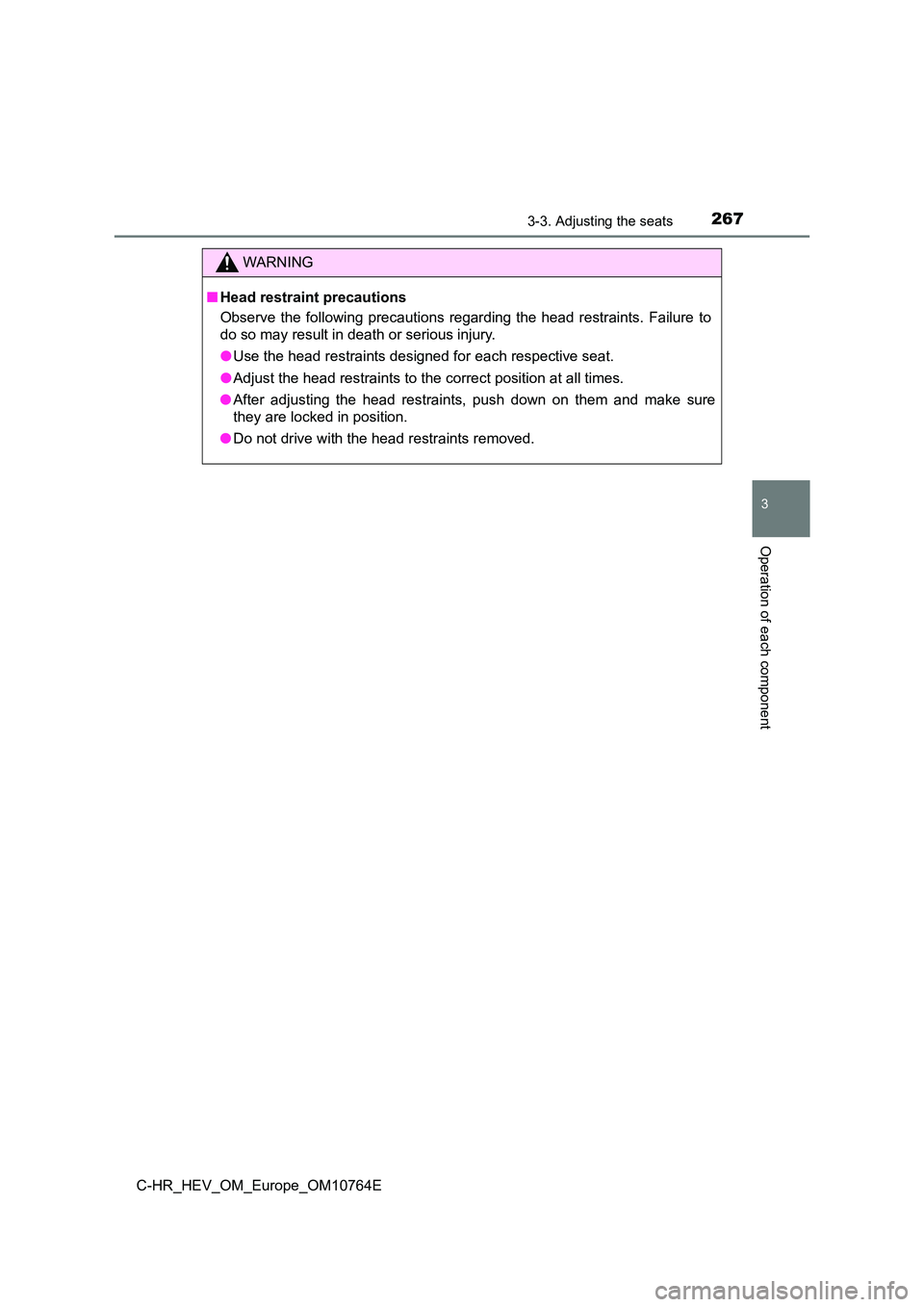

WARNING
■Head restraint precautions
Observe the following precautions regarding the head restraints . Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.

2683-4. Adjusting the steering wheel and mirrors
C-HR_HEV_OM_Europe_OM10764E

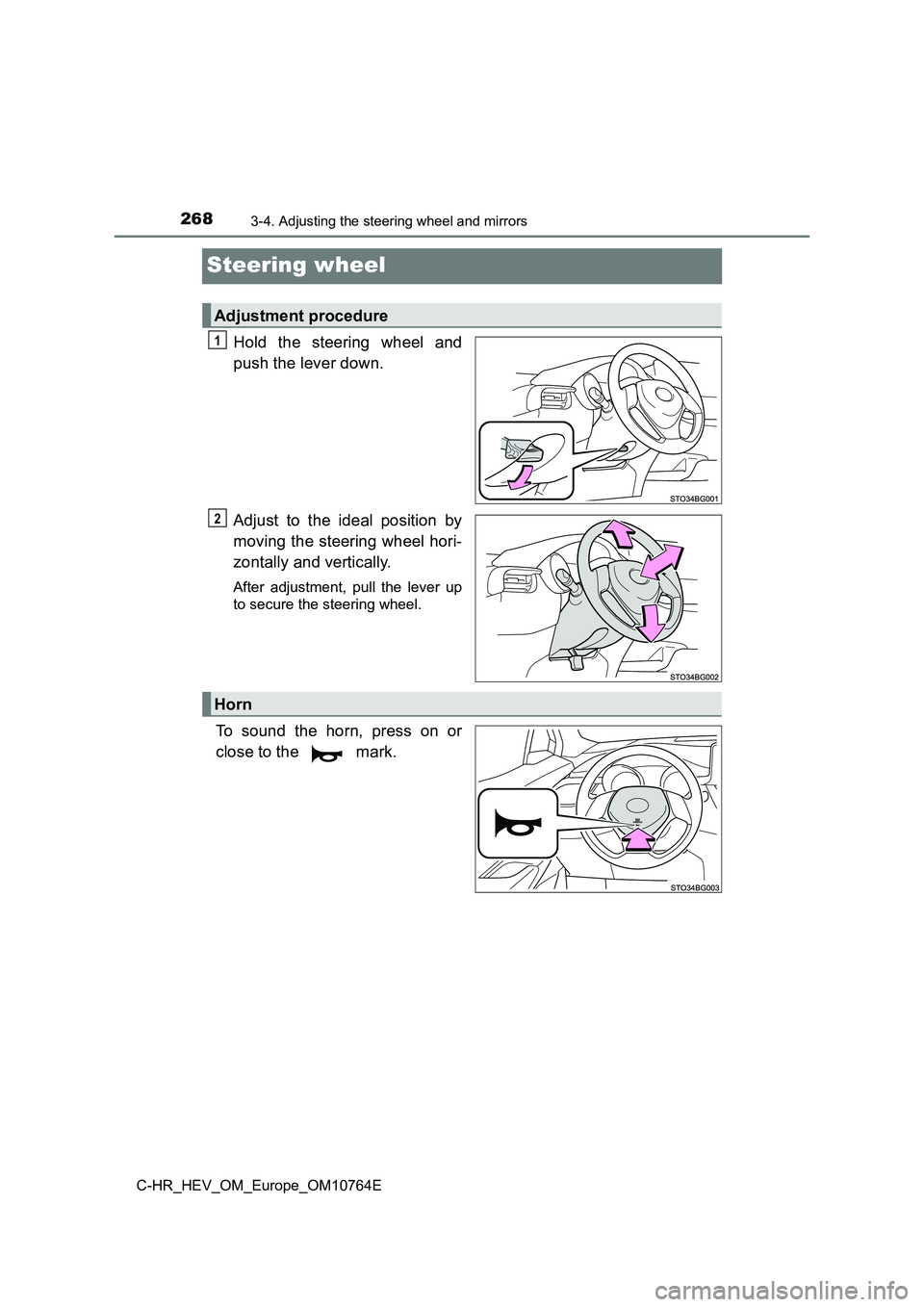

Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Adjustment procedure
1
2
Horn
