fuel filter TOYOTA C-HR 2023 Owners Manual

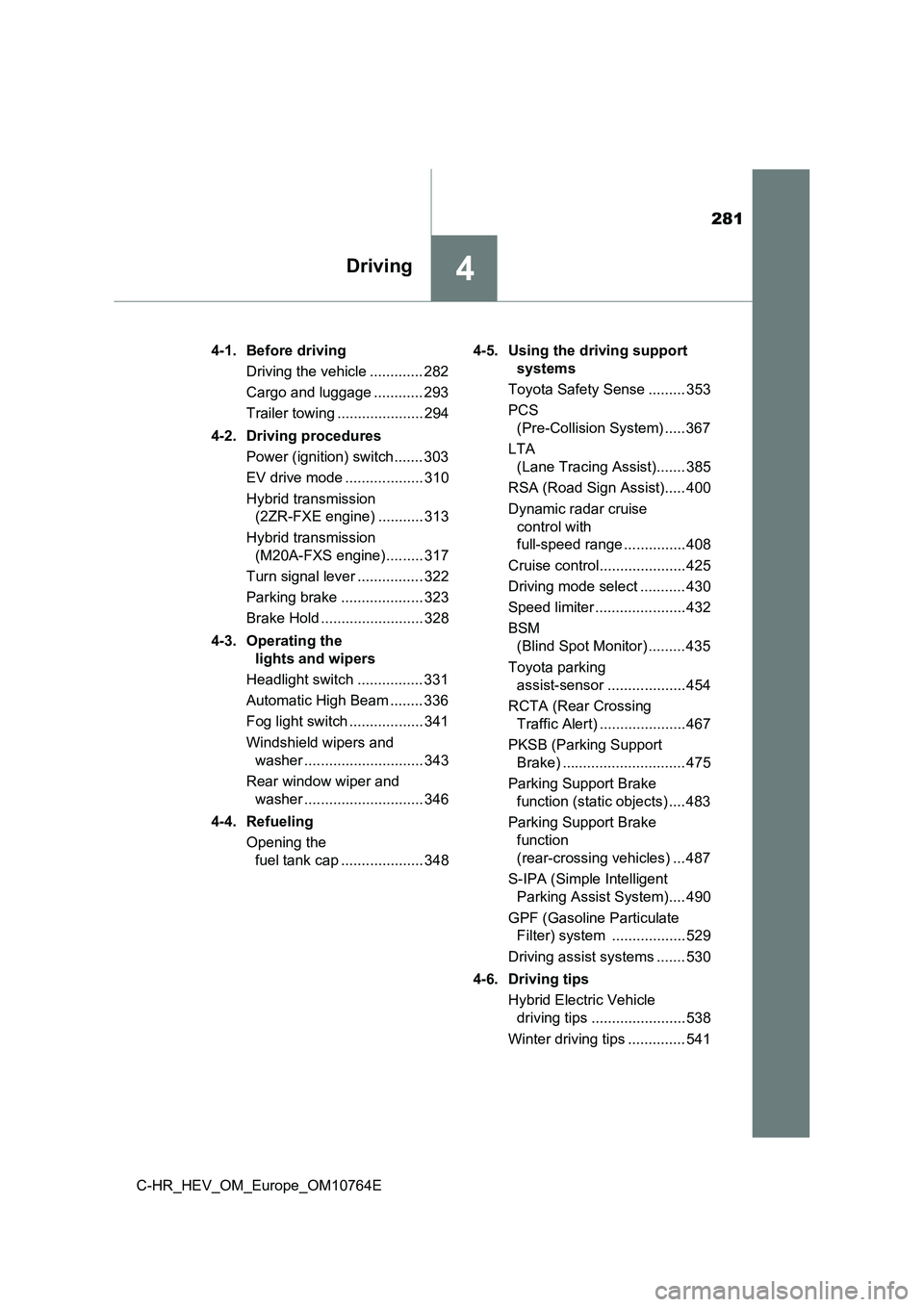

281
4Driving
C-HR_HEV_OM_Europe_OM10764E
4-1. Before driving
Driving the vehicle ............. 282
Cargo and luggage ............ 293
Trailer towing ..................... 294
4-2. Driving procedures
Power (ignition) switch ....... 303
EV drive mode ................... 310
Hybrid transmission
(2ZR-FXE engine) ........... 313
Hybrid transmission
(M20A-FXS engine) ......... 317
Turn signal lever ................ 322
Parking brake .................... 323
Brake Hold ......................... 328
4-3. Operating the
lights and wipers
Headlight switch ................ 331
Automatic High Beam ........ 336
Fog light switch .................. 341
Windshield wipers and
washer ............................. 343
Rear window wiper and
washer ............................. 346
4-4. Refueling
Opening the
fuel tank cap .................... 348
4-5. Using the driving support
systems
Toyota Safety Sense ......... 353
PCS
(Pre-Collision System) ..... 367
LTA
(Lane Tracing Assist)....... 385
RSA (Road Sign Assist)..... 400
Dynamic radar cruise
control with
full-speed range ............... 408
Cruise control..................... 425
Driving mode select ........... 430
Speed limiter ...................... 432
BSM
(Blind Spot Monitor) ......... 435
Toyota parking
assist-sensor ................... 454
RCTA (Rear Crossing
Traffic Alert) ..................... 467
PKSB (Parking Support
Brake) .............................. 475
Parking Support Brake
function (static objects) .... 483
Parking Support Brake
function
(rear-crossing vehicles) ... 487
S-IPA (Simple Intelligent
Parking Assist System).... 490
GPF (Gasoline Particulate
Filter) system .................. 529
Driving assist systems ....... 530
4-6. Driving tips
Hybrid Electric Vehicle
driving tips ....................... 538
Winter driving tips .............. 541

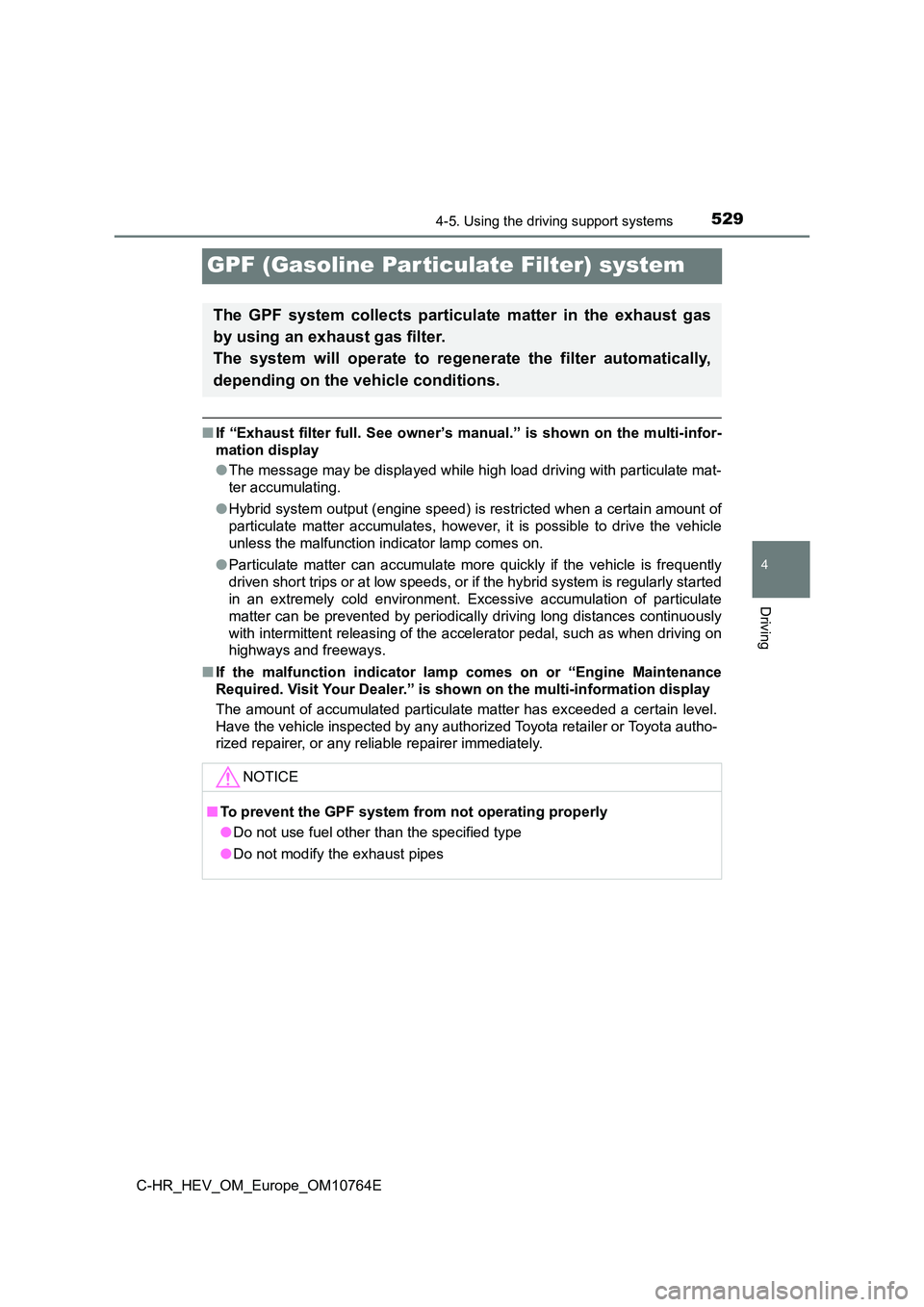

529
4
4-5. Using the driving support systems
Driving
C-HR_HEV_OM_Europe_OM10764E
GPF (Gasoline Par ticulate Filter) system
■If “Exhaust filter full. See owner’s manual.” is shown on the multi-infor-
mation display
● The message may be displayed while high load driving with particulate mat-
ter accumulating.
● Hybrid system output (engine speed) is restricted when a certain amount of
particulate matter accumulates, however, it is possible to driv e the vehicle
unless the malfunction indicator lamp comes on.
● Particulate matter can accumulate more quickly if the vehicle is frequently
driven short trips or at low s peeds, or if the hybrid system is regularly started
in an extremely cold environment. Excessive accumulation of par ticulate
matter can be prevented by periodically driving long distances continuously
with intermittent releasing of the accelerator pedal, such as w hen driving on
highways and freeways.
■ If the malfunction indicator lamp comes on or “Engine Maintenance
Required. Visit Your Dealer.” is shown on the multi-information display
The amount of accumulated particulate matter has exceeded a cer tain level.
Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reli able repairer immediately.
The GPF system collects particulate matter in the exhaust gas
by using an exhaust gas filter.
The system will operate to regenerate the filter automatically,
depending on the vehicle conditions.
NOTICE
■ To prevent the GPF system from not operating properly
● Do not use fuel other than the specified type
● Do not modify the exhaust pipes

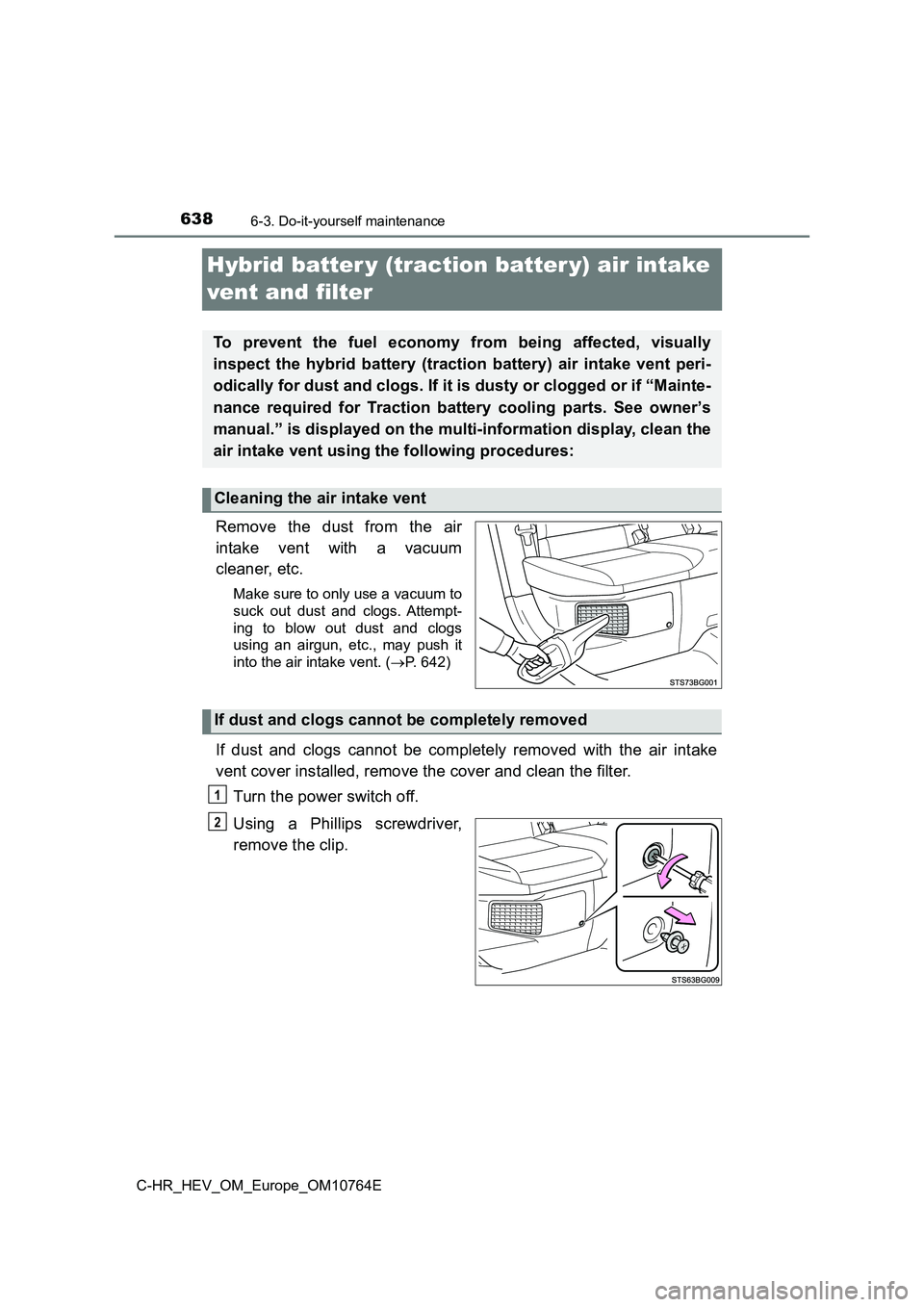

6386-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
Hybrid batter y (traction batter y) air intake
vent and filter
Remove the dust from the air
intake vent with a vacuum
cleaner, etc.
Make sure to only use a vacuum to
suck out dust and clogs. Attempt-
ing to blow out dust and clogs
using an airgun, etc., may push it
into the air intake vent. ( P. 642)
If dust and clogs cannot be completely removed with the air intake
vent cover installed, remove the cover and clean the filter.
Turn the power switch off.
Using a Phillips screwdriver,
remove the clip.
To prevent the fuel economy from being affected, visually
inspect the hybrid battery (traction battery) air intake vent p eri-
odically for dust and clogs. If it is dusty or clogged or if “M ainte-
nance required for Traction battery cooling parts. See owner’s
manual.” is displayed on the multi-information display, clean t he
air intake vent using the following procedures:
Cleaning the air intake vent
If dust and clogs cannot be completely removed
1
2

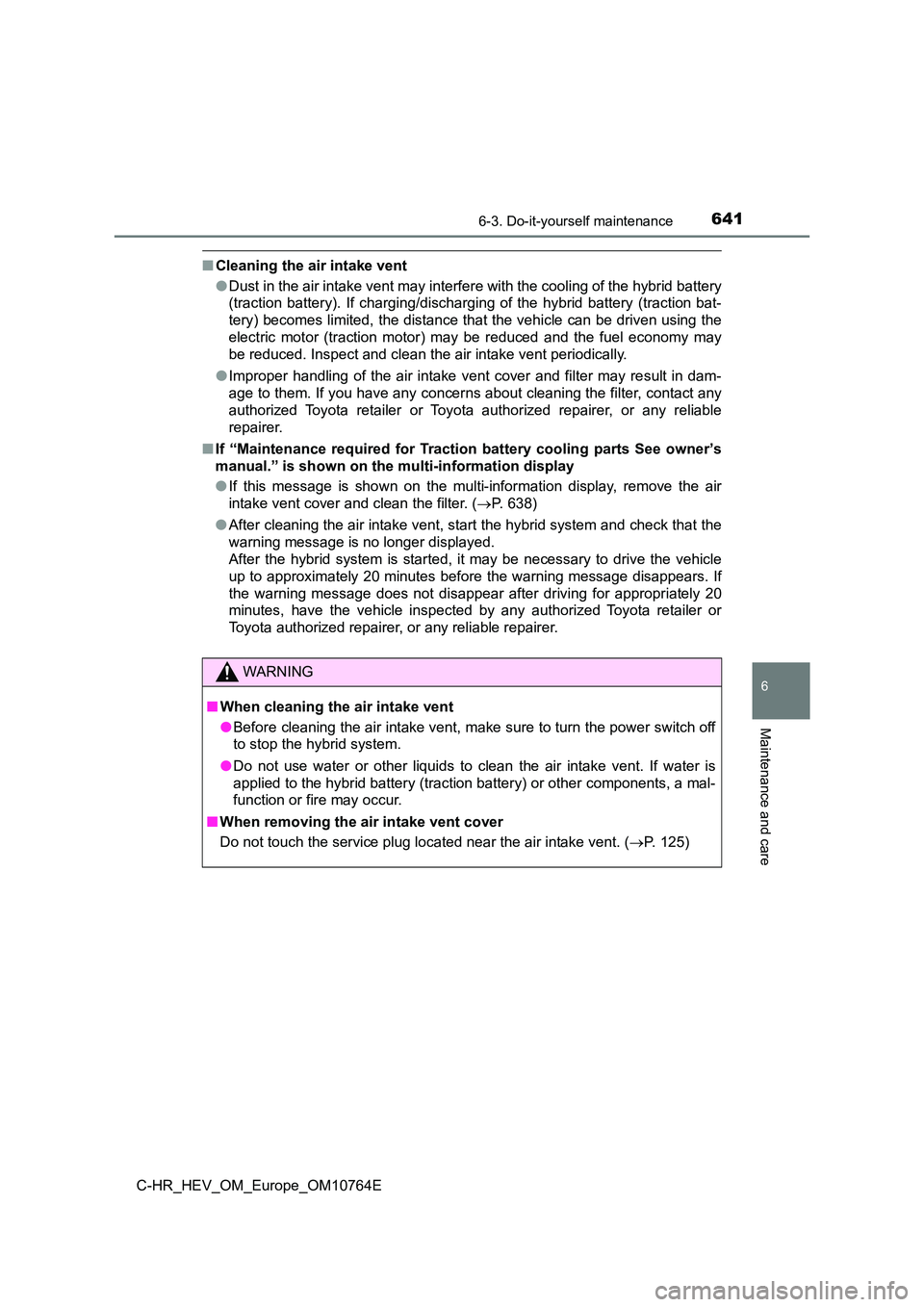

6416-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
6
Maintenance and care
■Cleaning the air intake vent
● Dust in the air intake vent may interfere with the cooling of the hybrid battery
(traction battery). If charging/discharging of the hybrid batte ry (traction bat-
tery) becomes limited, the distance that the vehicle can be dri ven using the
electric motor (traction motor) may be reduced and the fuel eco nomy may
be reduced. Inspect and clean the air intake vent periodically.
● Improper handling of the air intake vent cover and filter may result in dam-
age to them. If you have any concerns about cleaning the filter , contact any
authorized Toyota retailer or Toyota authorized repairer, or an y reliable
repairer.
■ If “Maintenance required for Traction battery cooling parts See owner’s
manual.” is shown on the multi-information display
● If this message is shown on the multi-information display, remove the air
intake vent cover and clean the filter. ( P. 638)
● After cleaning the air intake vent, start the hybrid system and check that the
warning message is no longer displayed.
After the hybrid system is started, it may be necessary to driv e the vehicle
up to approximately 20 minutes before the warning message disap pears. If
the warning message does not disappear after driving for approp riately 20
minutes, have the vehicle inspected by any authorized Toyota re tailer or
Toyota authorized repairer, or any reliable repairer.
WARNING
■ When cleaning the air intake vent
● Before cleaning the air intake vent, make sure to turn the power switch off
to stop the hybrid system.
● Do not use water or other liquids to clean the air intake vent. If water is
applied to the hybrid battery (traction battery) or other compo nents, a mal-
function or fire may occur.
■ When removing the air intake vent cover
Do not touch the service plug located near the air intake vent. (P. 125)

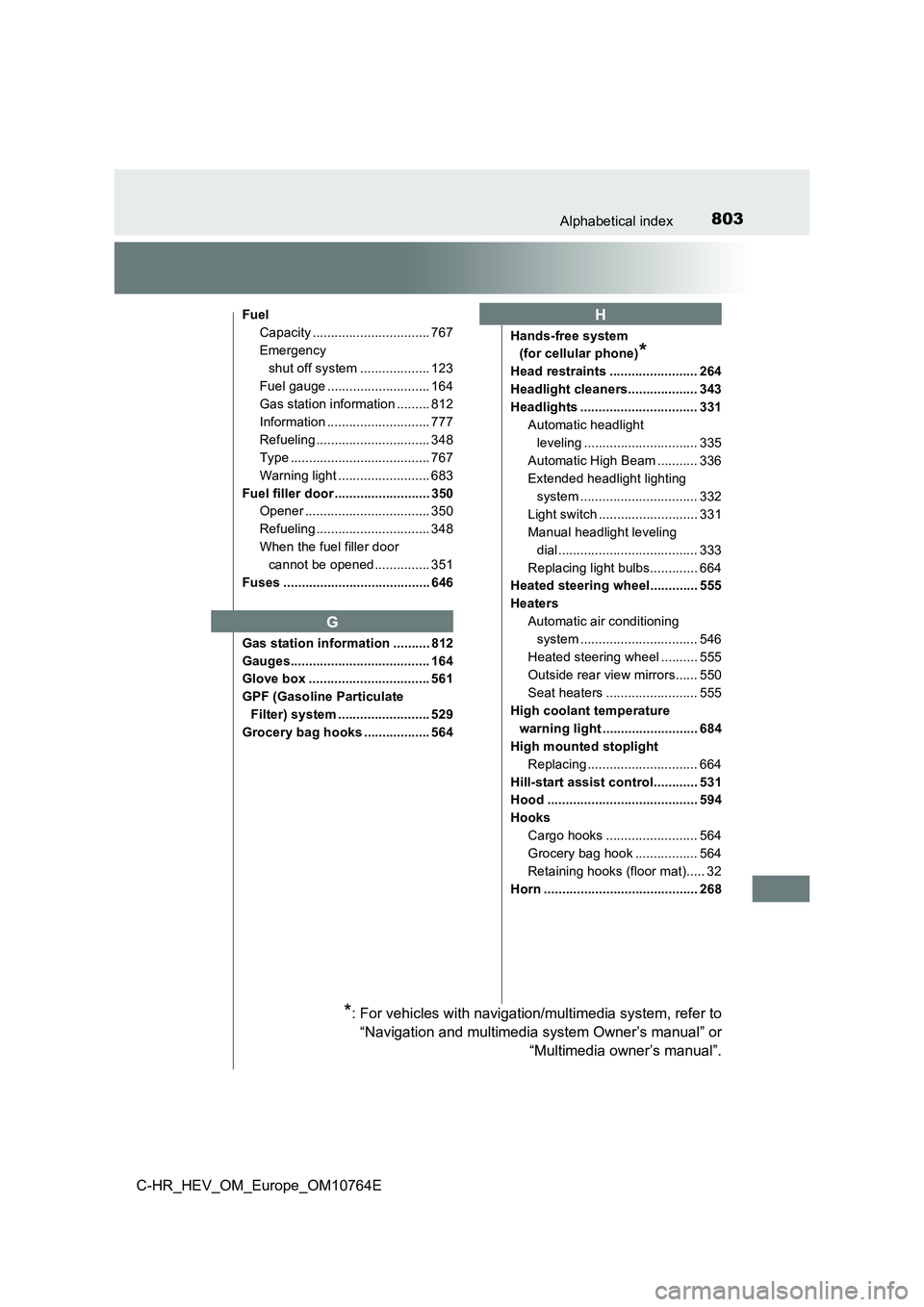

803Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Fuel
Capacity ................................ 767
Emergency
shut off system ................... 123
Fuel gauge ............................ 164
Gas station information ......... 812
Information ............................ 777
Refueling ............................... 348
Type ...................................... 767
Warning light ......................... 683
Fuel filler door .......................... 350
Opener .................................. 350
Refueling ............................... 348
When the fuel filler door
cannot be opened ............... 351
Fuses ........................................ 646
Gas station information .......... 812
Gauges...................................... 164
Glove box ................................. 561
GPF (Gasoline Particulate
Filter) system ......................... 529
Grocery bag hooks .................. 564
Hands-free system
(for cellular phone)*
Head restraints ........................ 264
Headlight cleaners................... 343
Headlights ................................ 331
Automatic headlight
leveling ............................... 335
Automatic High Beam ........... 336
Extended headlight lighting
system ................................ 332
Light switch ........................... 331
Manual headlight leveling
dial...................................... 333
Replacing light bulbs............. 664
Heated steering wheel............. 555
Heaters
Automatic air conditioning
system ................................ 546
Heated steering wheel .......... 555
Outside rear view mirrors...... 550
Seat heaters ......................... 555
High coolant temperature
warning light .......................... 684
High mounted stoplight
Replacing .............................. 664
Hill-start assist control............ 531
Hood ......................................... 594
Hooks
Cargo hooks ......................... 564
Grocery bag hook ................. 564
Retaining hooks (floor mat)..... 32
Horn .......................................... 268
G
H
*: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or
“Multimedia owner’s manual”.
