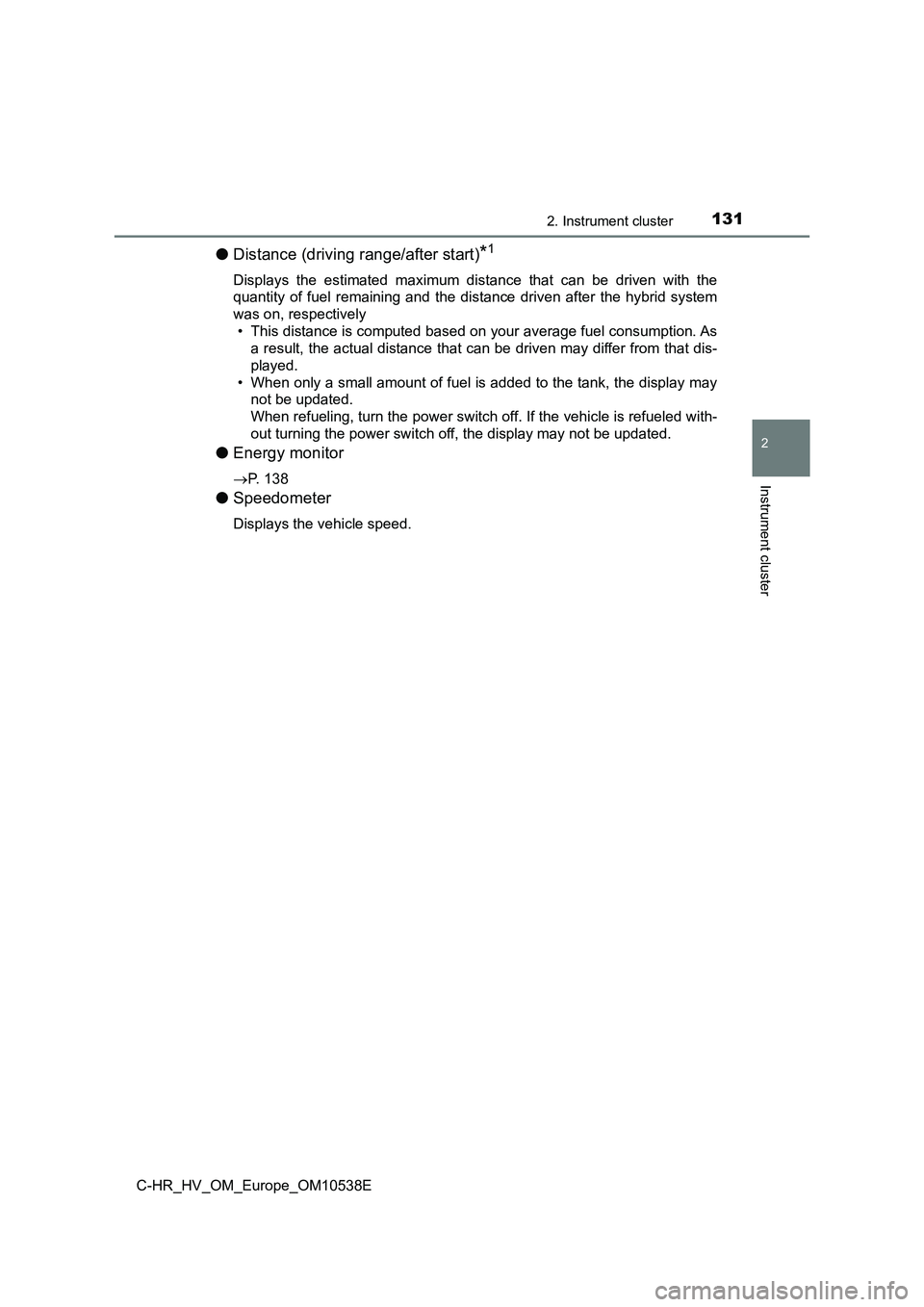

1312. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10538E
●Distance (driving range/after start)*1
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining and the distance driven after the hybrid system
was on, respectively
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.
● Energy monitor
P. 138
●Speedometer
Displays the vehicle speed.

1322. Instrument cluster
C-HR_HV_OM_Europe_OM10538E
●Sway warning (if equipped)
Detects the sway of the vehicle within a lane, which is often associated
with a decrease in the driver's attention level, and displays the decrease in
attention using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA ( Lane Departure Alert with steering con-
trol). The display is enabled when the operating conditions of the vehicle
sway warning are met. ( P. 292)
●Display off
A blank screen is displayed.
*1: Can be registered to Drive information 1 and 2. (P. 1 3 2 )
*2: Resetting procedures:
• Select a function to be reset using the meter control switches and then
press and hold to reset.
• If there is more than one function that can be reset, check boxes will be
displayed next to those functions.
The settings of the following items can be changed, refer to P. 679.
For functions that can be enabled or disabled, the function switches
between on and off each time is pressed.
● LDA (Lane Departure Alert) (P. 289)*1
Select to set up the following items.
• Steering Assist on/off
• Alert sensitivity
• Sway Alert on/off
• Sway sensitivity
● PCS (Pre-Collision System) (P. 274)*1
Select to set up the following items.
• PCS on/off
• PCS sensitivity
Settings display

1332. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10538E

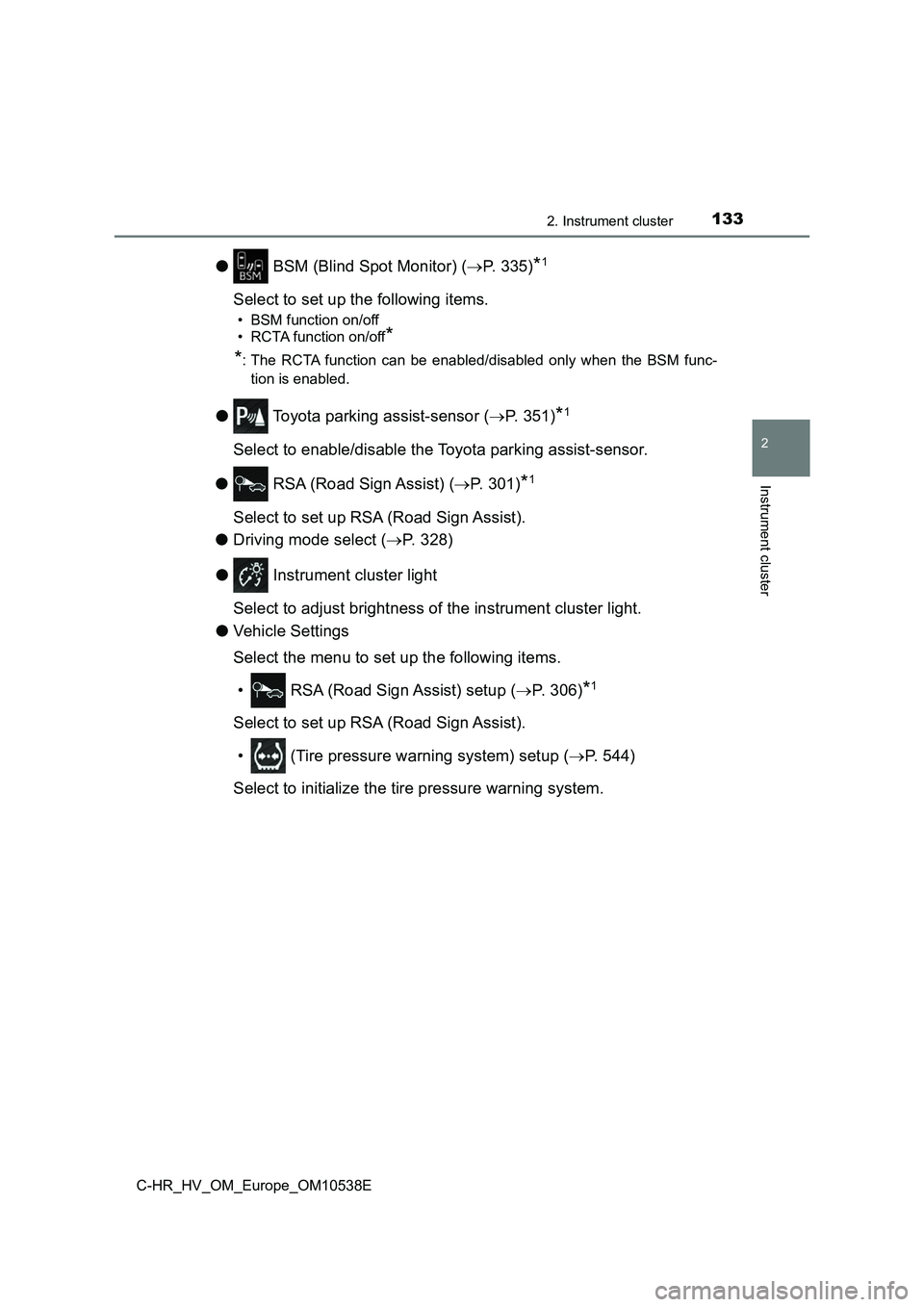

● BSM (Blind Spot Monitor) (P. 335)*1
Select to set up the following items.
• BSM function on/off
• RCTA function on/off*
*: The RCTA function can be enabled/disabled only when the BSM func-
tion is enabled.
● Toyota parking assist-sensor (P. 351)*1
Select to enable/disable the Toyota parking assist-sensor.
● RSA (Road Sign Assist) (P. 301)*1
Select to set up RSA (Road Sign Assist).
● Driving mode select (P. 328)
● Instrument cluster light
Select to adjust brightness of the instrument cluster light.
● Vehicle Settings
Select the menu to set up the following items.
• RSA (Road Sign Assist) setup ( P. 306)*1
Select to set up RSA (Road Sign Assist).
• (Tire pressure warning system) setup ( P. 544)
Select to initialize the tire pressure warning system.

1342. Instrument cluster
C-HR_HV_OM_Europe_OM10538E

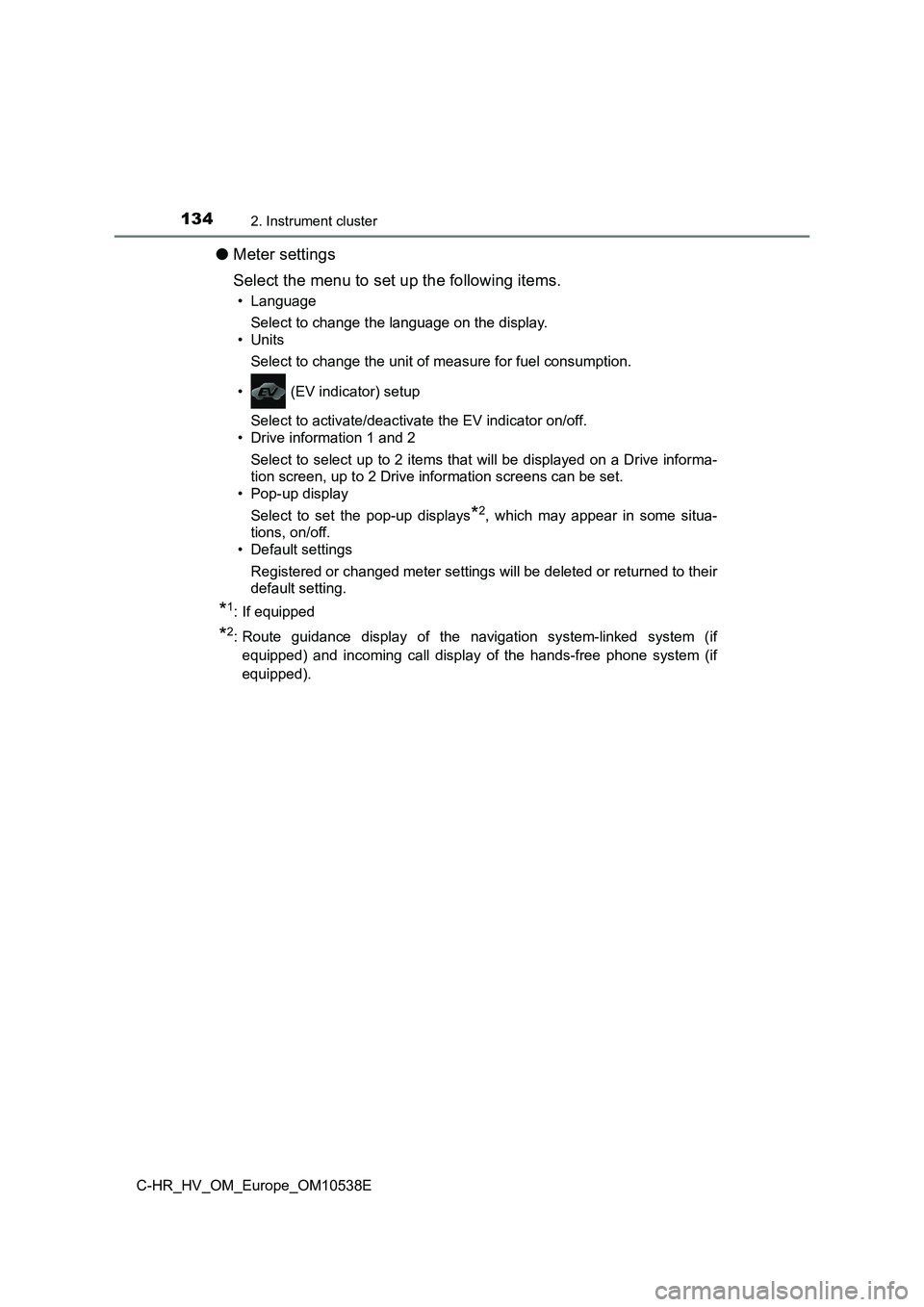

●Meter settings
Select the menu to set up the following items.
• Language
Select to change the language on the display.
•Units
Select to change the unit of measure for fuel consumption.
• (EV indicator) setup
Select to activate/deactivate the EV indicator on/off.
• Drive information 1 and 2
Select to select up to 2 items that will be displayed on a Drive informa-
tion screen, up to 2 Drive information screens can be set.
• Pop-up display
Select to set the pop-up displays*2, which may appear in some situa-
tions, on/off.
• Default settings
Registered or changed meter settings will be deleted or returned to their
default setting.
*1: If equipped
*2: Route guidance display of the navigation system-linked system (if
equipped) and incoming call display of the hands-free phone system (if
equipped).

1352. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10538E

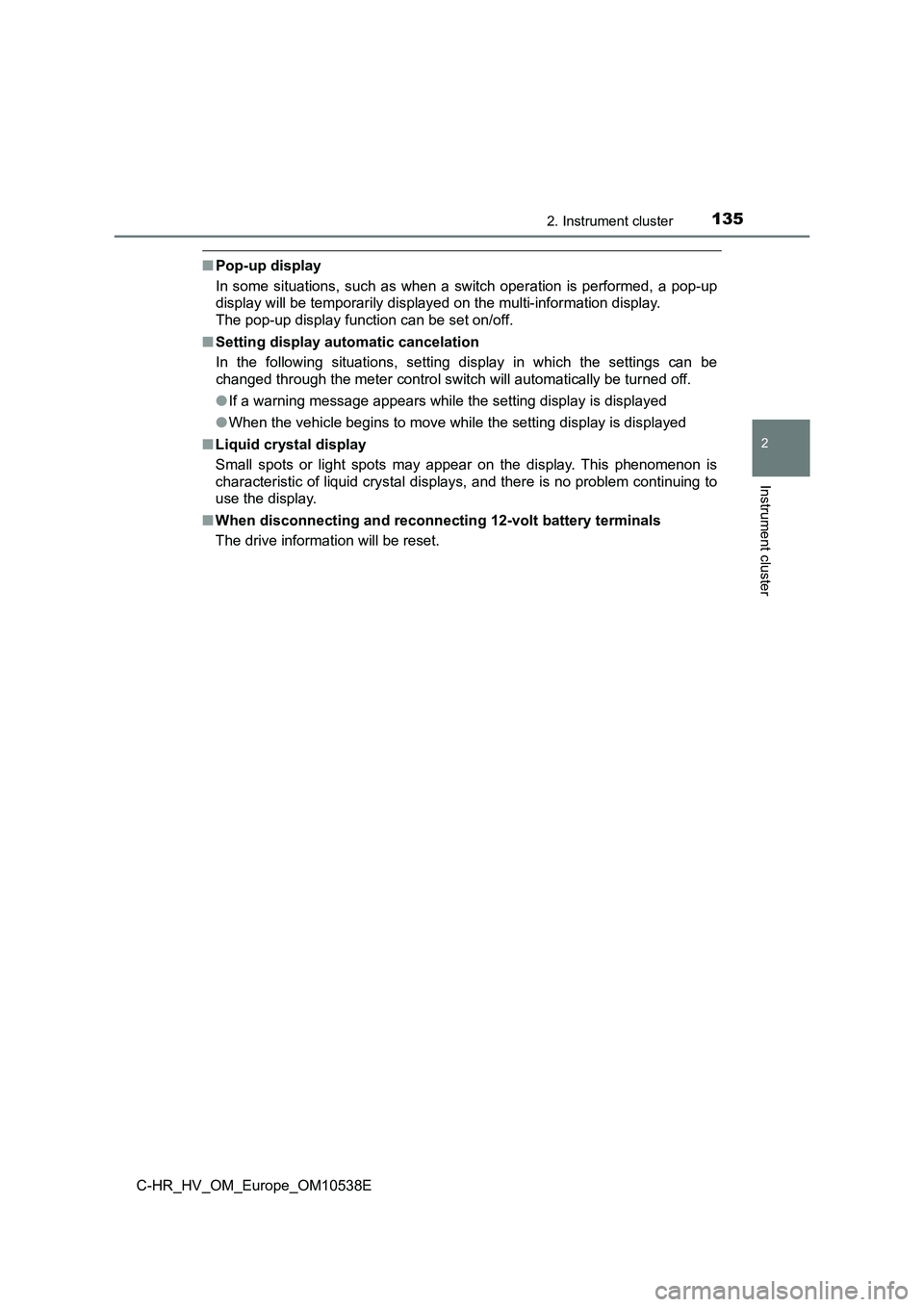

■Pop-up display
In some situations, such as when a switch operation is performed, a pop-up
display will be temporarily display ed on the multi-information display.
The pop-up display function can be set on/off.
■ Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the meter control switch will automatically be turned off.
● If a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ When disconnecting and reconnecting 12-volt battery terminals
The drive information will be reset.

1362. Instrument cluster
C-HR_HV_OM_Europe_OM10538E

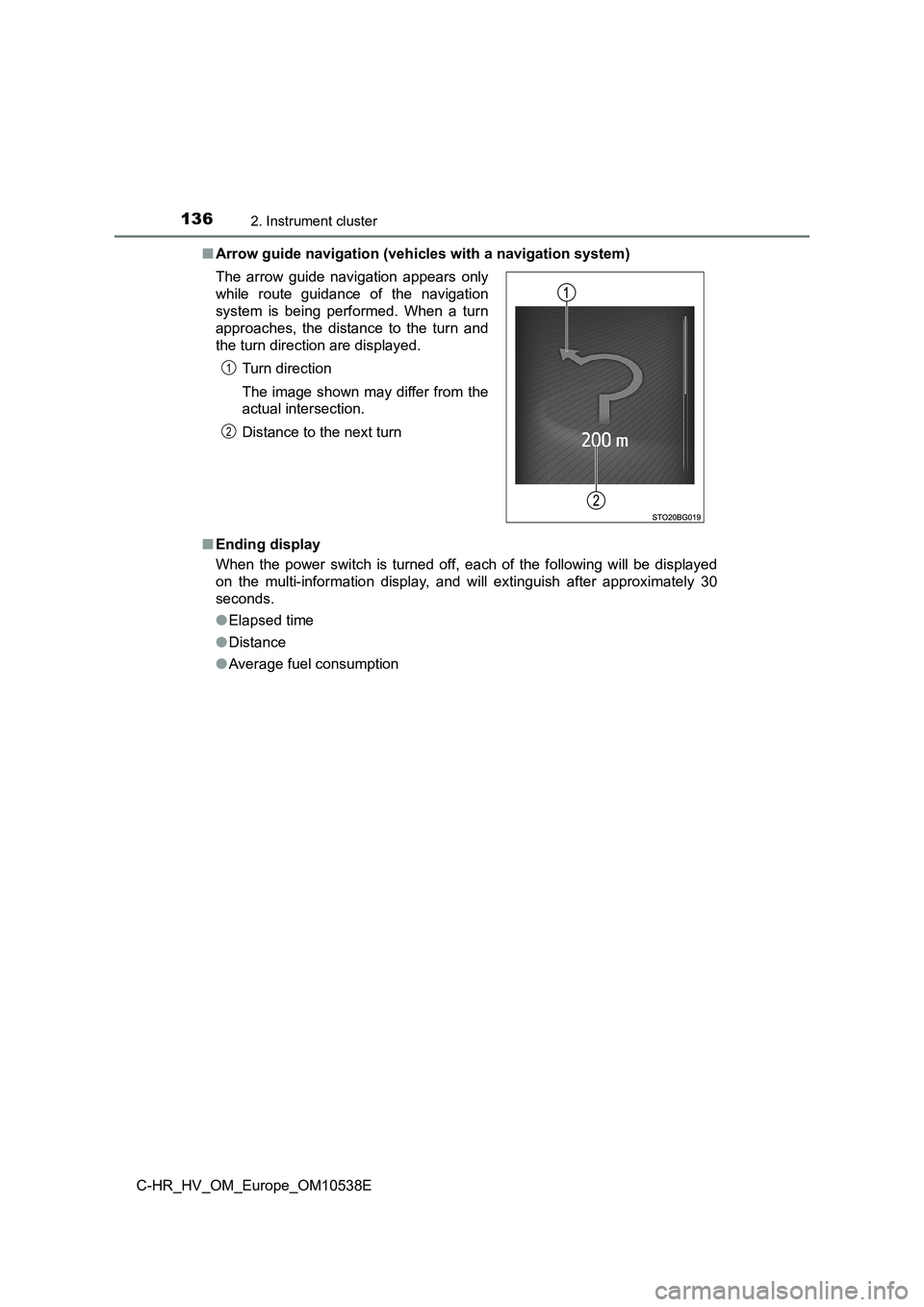

■ Arrow guide navigation (vehicles with a navigation system)
■ Ending display
When the power switch is turned off, each of the following will be displayed
on the multi-information display, and will extinguish after approximately 30
seconds.
● Elapsed time
● Distance
● Average fuel consumption
The arrow guide navigation appears only
while route guidance of the navigation
system is being performed. When a turn
approaches, the distance to the turn and
the turn direction are displayed.
Turn direction
The image shown may differ from the
actual intersection.
Distance to the next turn
1
2

1372. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10538E

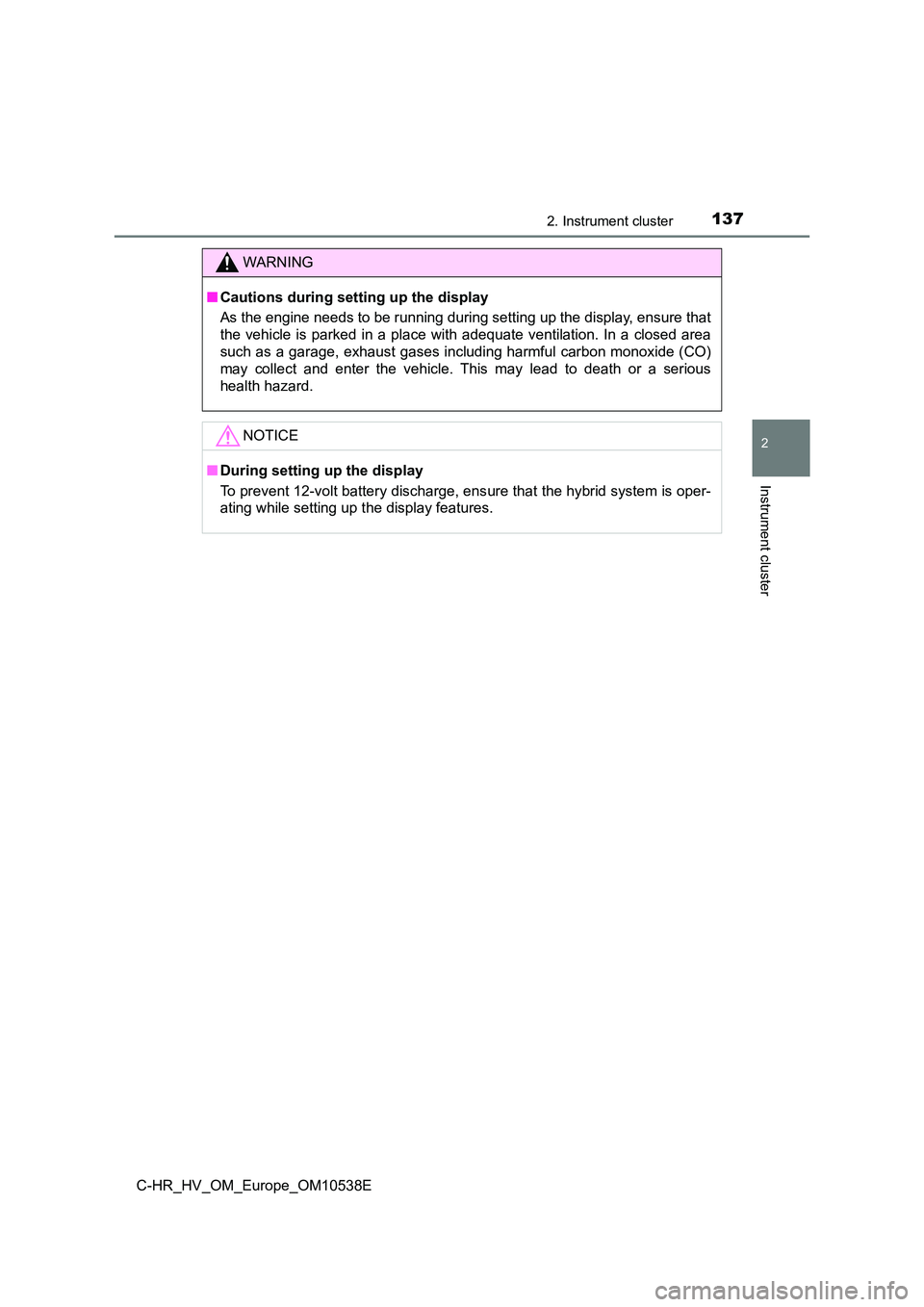

WARNING
■Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During setting up the display
To prevent 12-volt battery discharge, ens ure that the hybrid system is oper-
ating while setting up the display features.

1382. Instrument cluster
C-HR_HV_OM_Europe_OM10538E

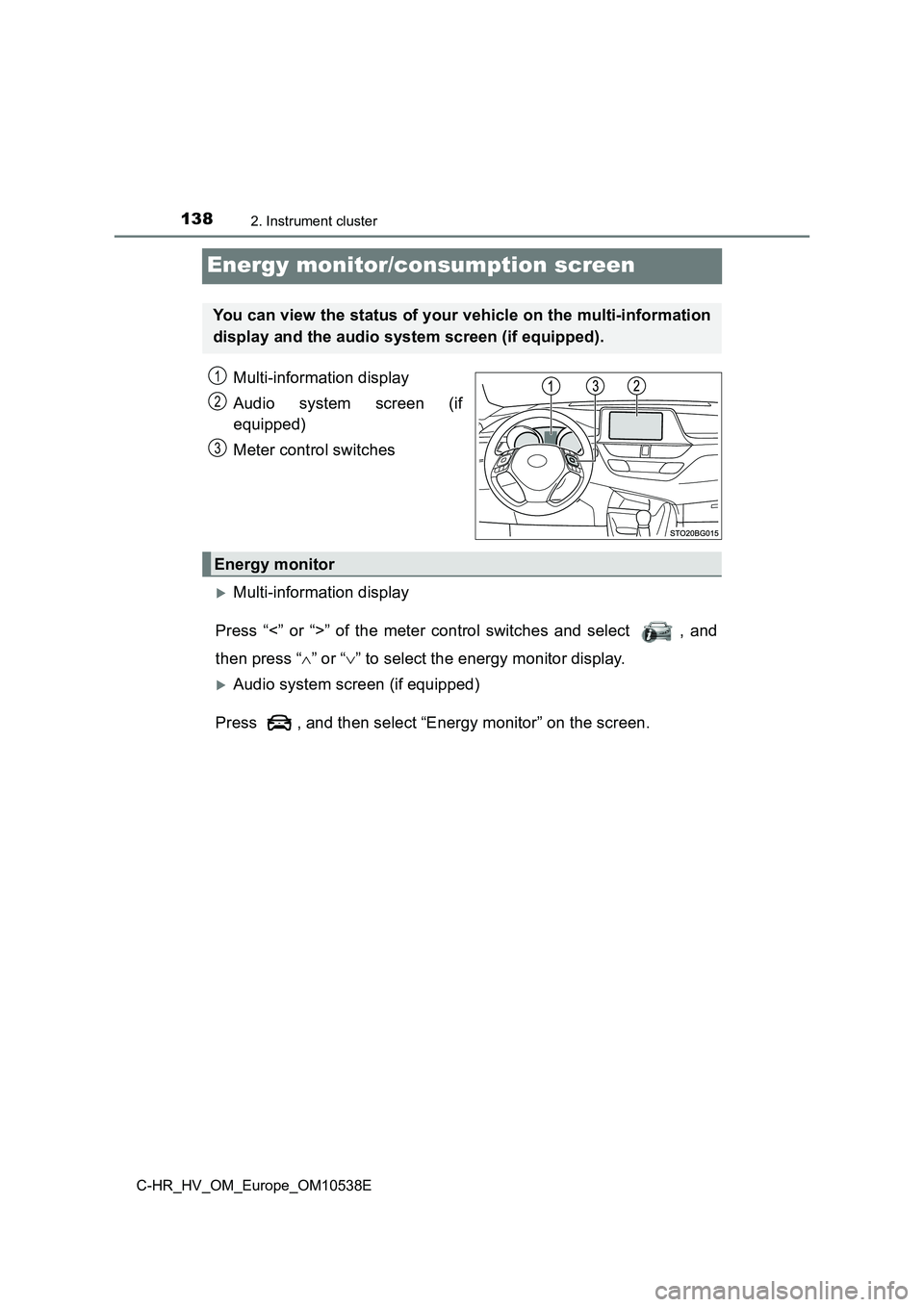

Energy monitor/consumption screen
Multi-information display
Audio system screen (if
equipped)
Meter control switches
Multi-information display
Press “<” or “>” of the meter control switches and select , and
then press “ ” or “” to select the energy monitor display.
Audio system screen (if equipped)
Press , and then select “Energy monitor” on the screen.
You can view the status of your vehicle on the multi-information
display and the audio system screen (if equipped).
1
2
3
Energy monitor

1392. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10538E

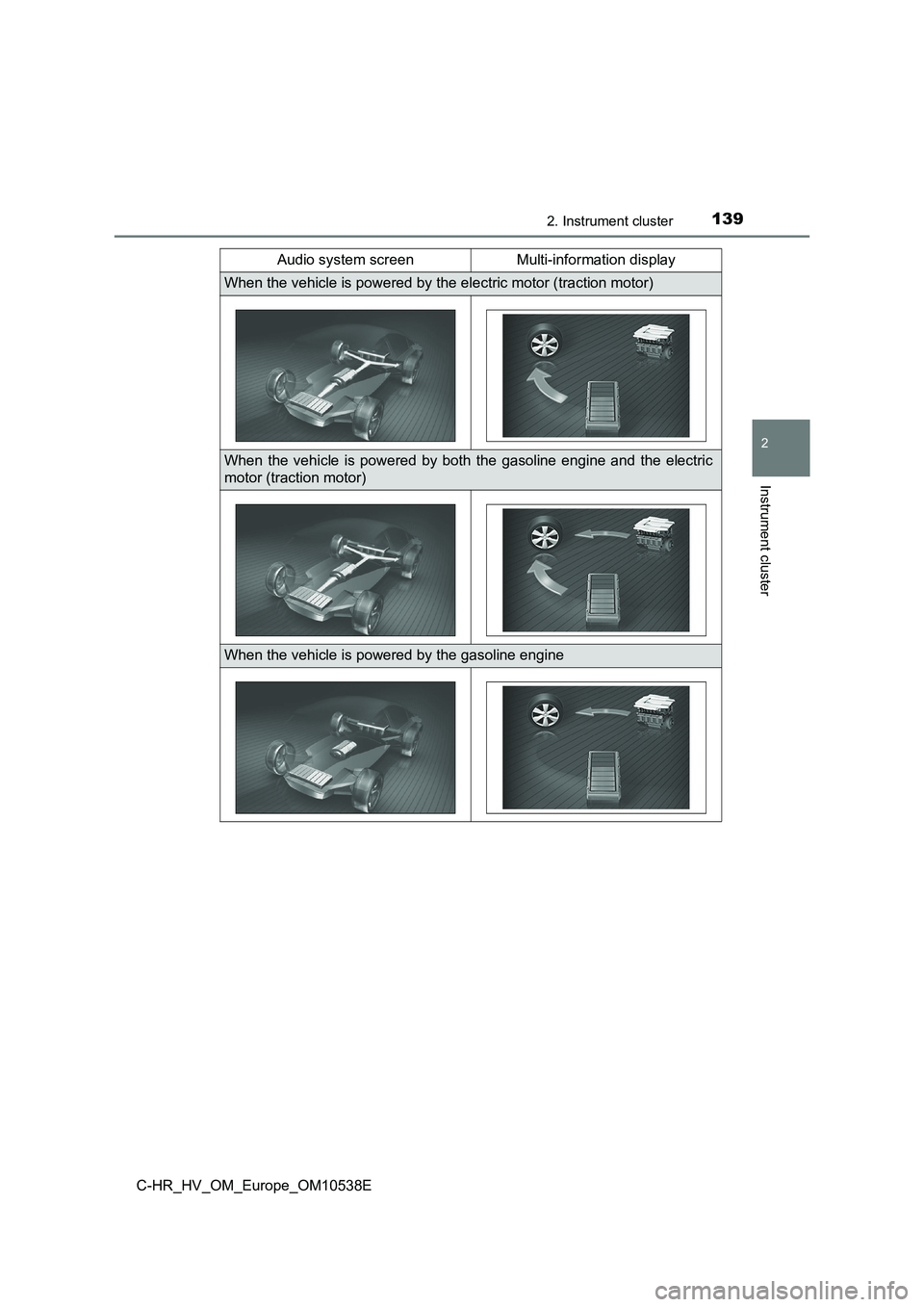

Audio system screen Multi-information display
When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor)
When the vehicle is powered by the gasoline engine

1402. Instrument cluster
C-HR_HV_OM_Europe_OM10538E

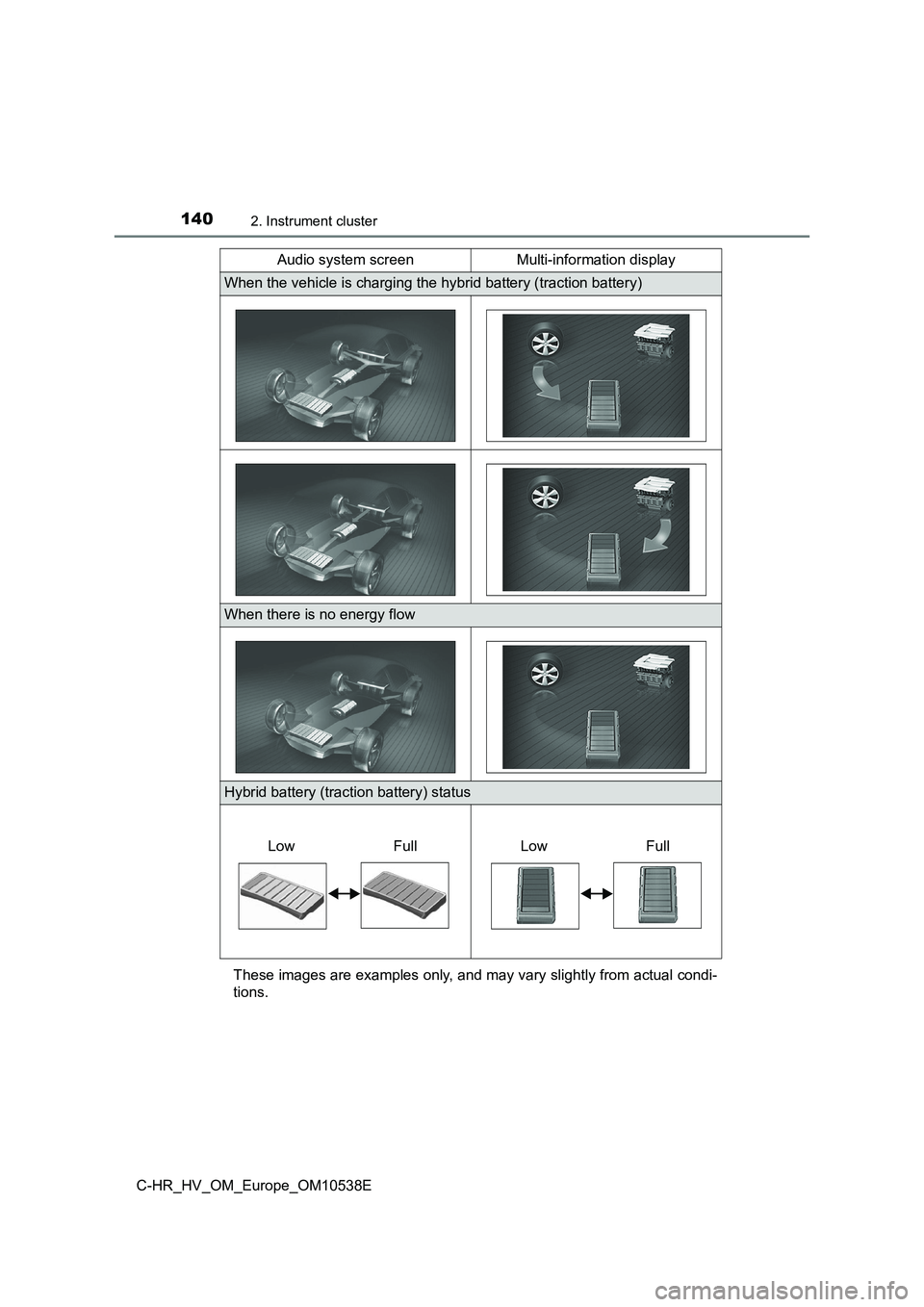

These images are examples only, and may vary slightly from actual condi-
tions.
When the vehicle is charging the hybrid battery (traction battery)
When there is no energy flow
Hybrid battery (traction battery) status
Audio system screen Multi-information display
Low FullLow Full
