1212. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10538E

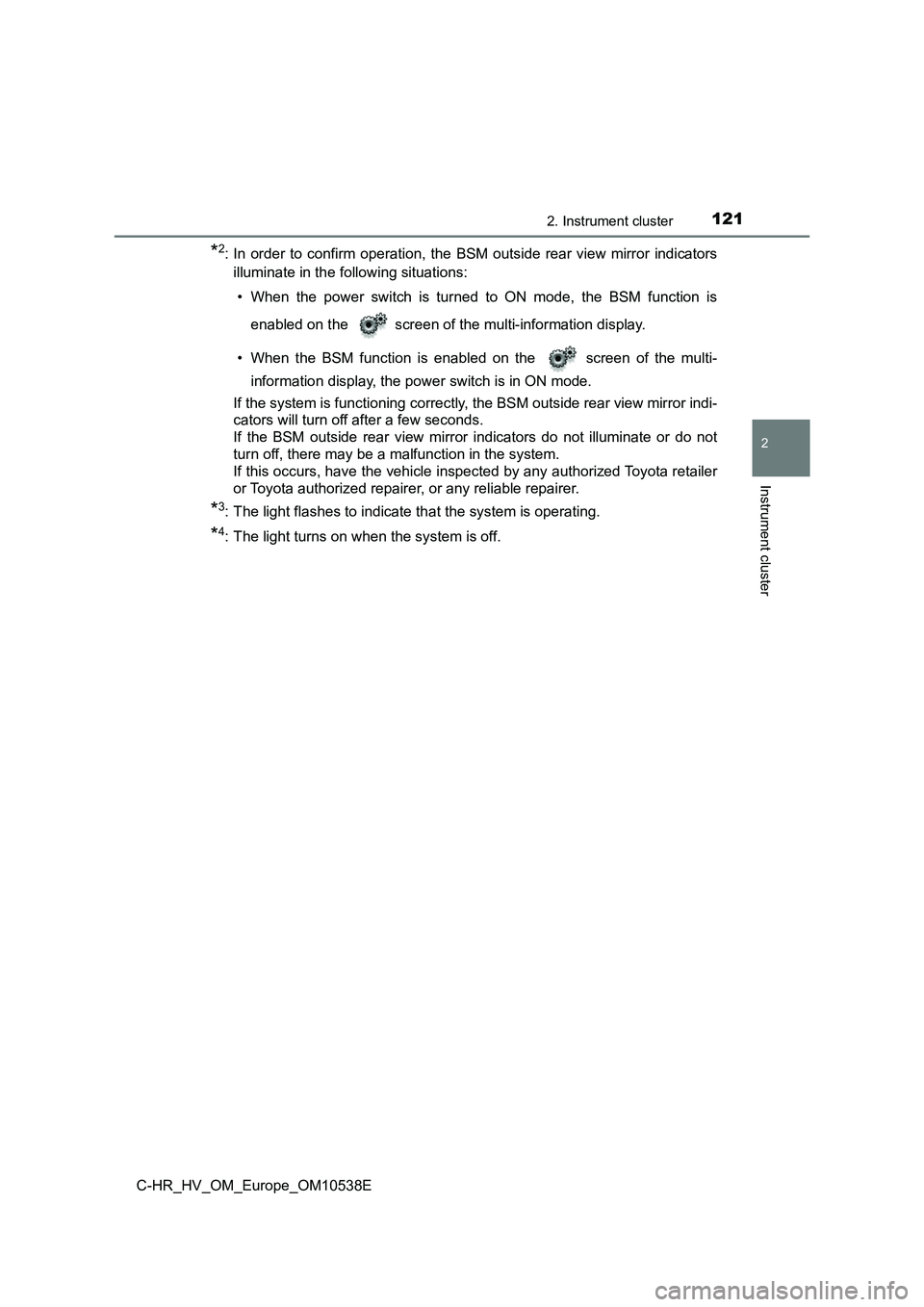

*2: In order to confirm operation, the BSM outside rear view mirror indicators
illuminate in the following situations:
• When the power switch is turned to ON mode, the BSM function is
enabled on the screen of the multi-information display.
• When the BSM function is enabled on the screen of the multi-
information display, the power switch is in ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
*3: The light flashes to indicate that the system is operating.
*4: The light turns on when the system is off.

1222. Instrument cluster
C-HR_HV_OM_Europe_OM10538E

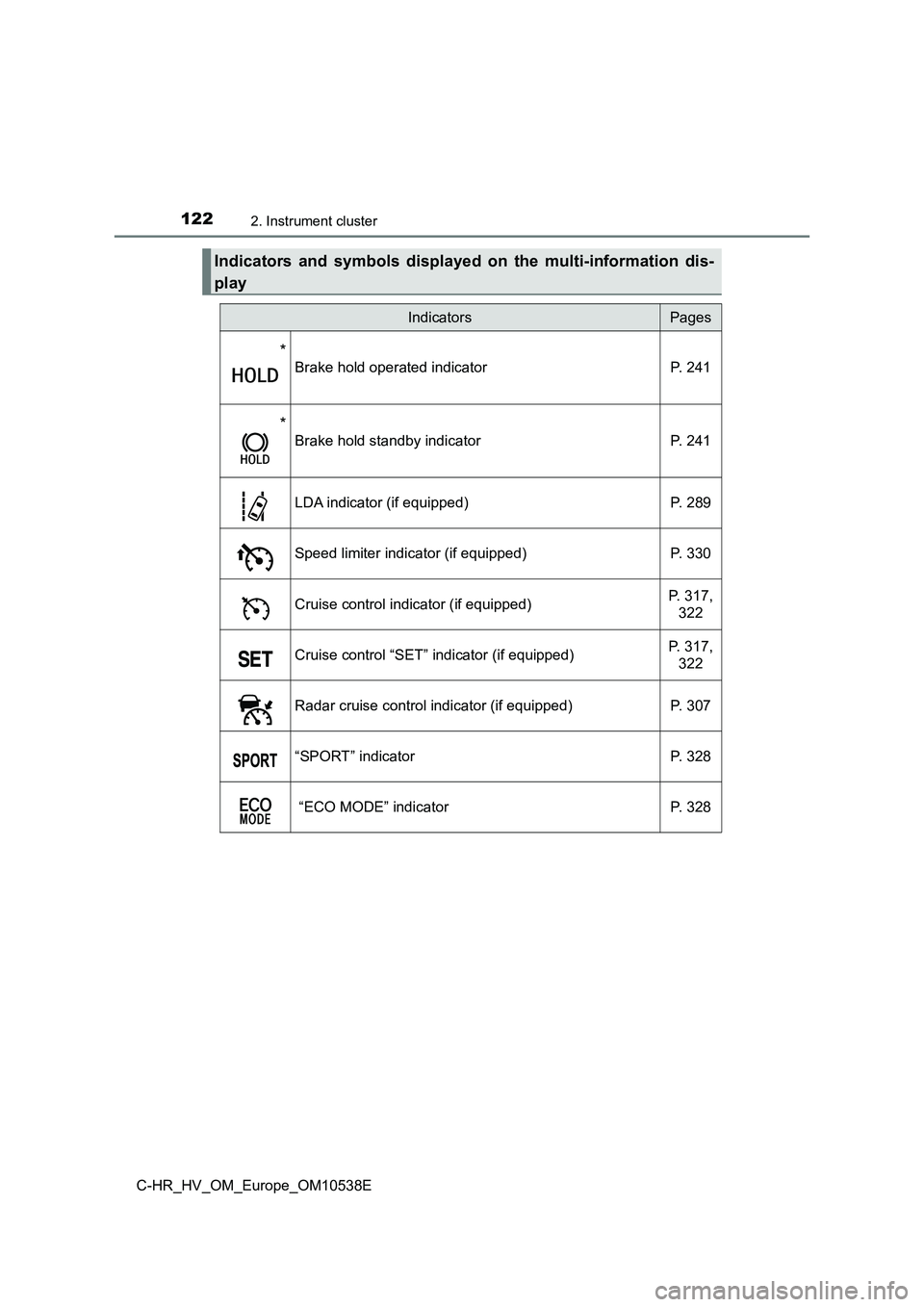

Indicators and symbols displayed on the multi-information dis-
play
IndicatorsPages
*
Brake hold operated indicator P. 241
*
Brake hold standby indicator P. 241
LDA indicator (if equipped) P. 289
Speed limiter indicator (if equipped) P. 330
Cruise control indicator (if equipped) P. 317,
322
Cruise control “SET” indicator (if equipped) P. 317,
322
Radar cruise control indicator (if equipped) P. 307
“SPORT” indicator P. 328
“ECO MODE” indicator P. 328

1232. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10538E

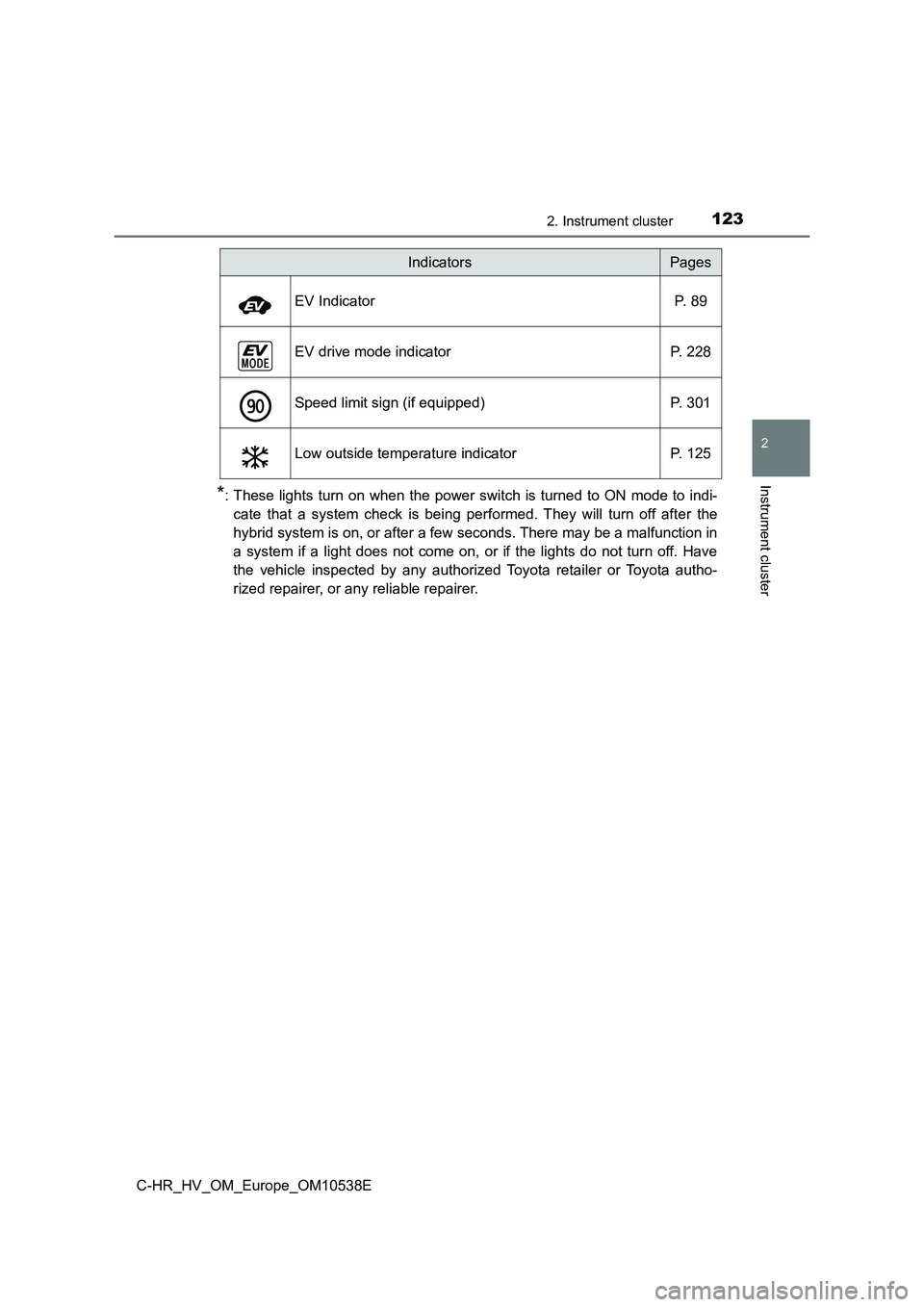

*: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
EV Indicator P. 89
EV drive mode indicator P. 228
Speed limit sign (if equipped) P. 301
Low outside temperature indicator P. 125
IndicatorsPages

1242. Instrument cluster
C-HR_HV_OM_Europe_OM10538E
Symbols on multi-information displayPages
Charging system warning light P. 595
Low engine oil pressure warning light P. 595
High engine coolant temperature warning light P. 600
LDA (Lane Departure Alert with steering control) (if
equipped)
P. 6 0 0
P. 2 8 9
Smart entry & start system P. 221
Brake Override System/Drive-Start Control P. 600
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

125
2
2. Instrument cluster
Instrument cluster
C-HR_HV_OM_Europe_OM10538E

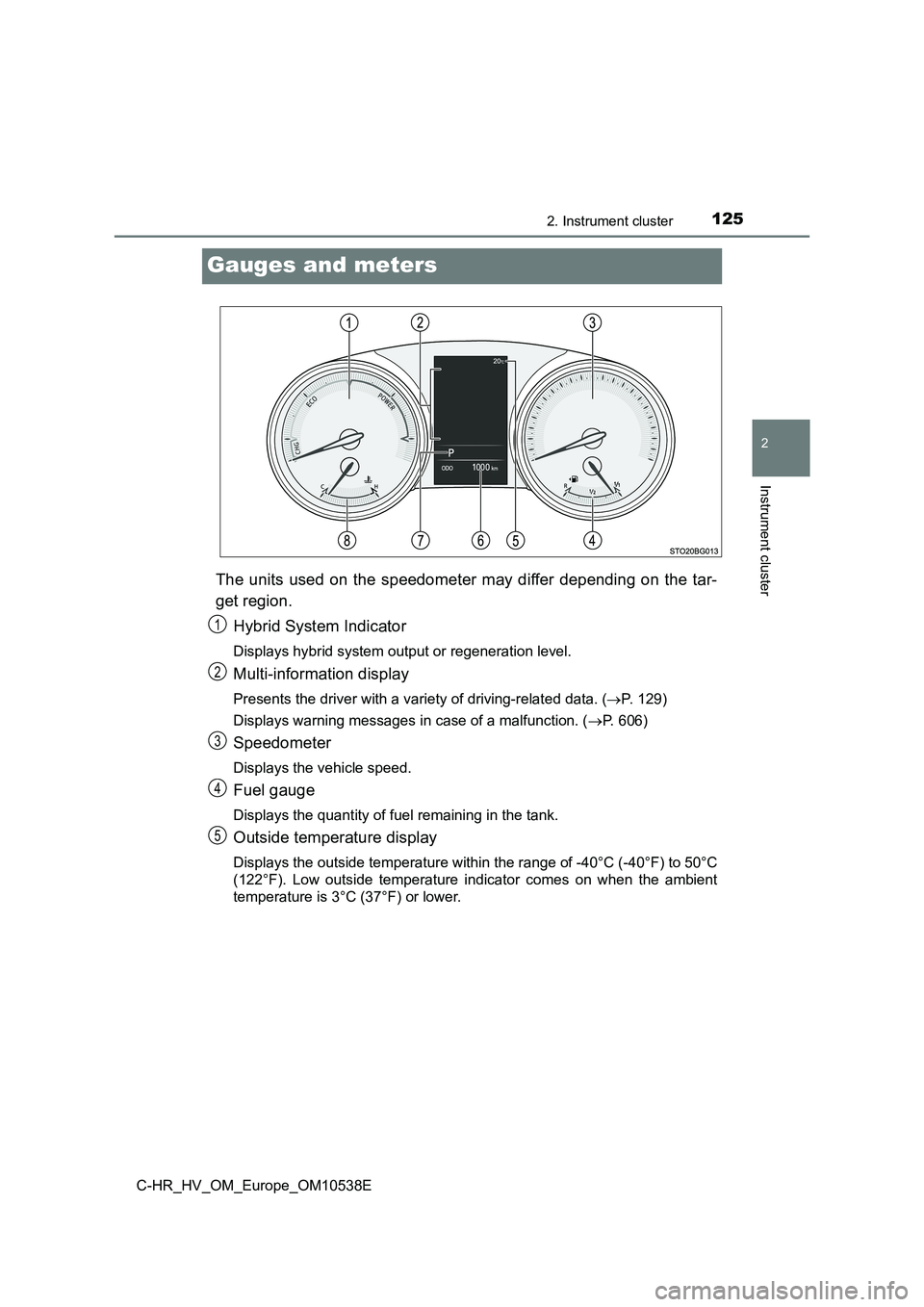

Gauges and meters
The units used on the speedometer may differ depending on the tar-
get region.
Hybrid System Indicator
Displays hybrid system output or regeneration level.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 1 2 9 )
Displays warning messages in case of a malfunction. ( P. 606)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Outside temperature display
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient
temperature is 3°C (37°F) or lower.
1
2
3
4
5

1262. Instrument cluster
C-HR_HV_OM_Europe_OM10538E
Odometer and trip meter display:
Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Shift position and shift range display
Displays the selected shift position or selected shift range. ( P. 231)
Engine coolant temperature gauge
Displays the engine coolant temperature.
Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.
When the trip meter is displayed,
pressing and holding the “TRIP”
switch will reset the trip meter.
Changing the display
6
7
8

1272. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10538E

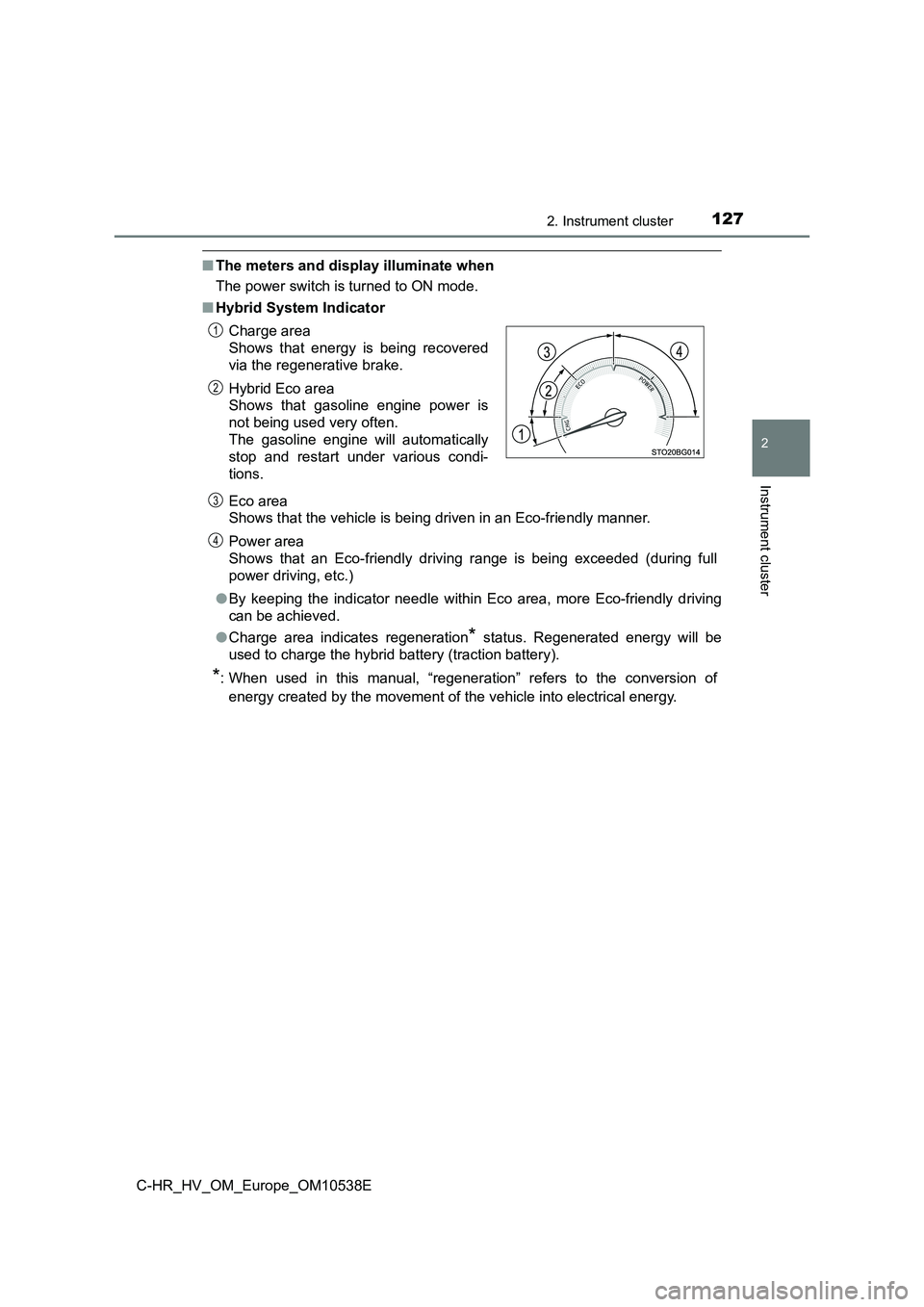

■The meters and display illuminate when
The power switch is turned to ON mode.
■ Hybrid System Indicator
Eco area
Shows that the vehicle is being driven in an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving range is being exceeded (during full
power driving, etc.)
● By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
Charge area
Shows that energy is being recovered
via the regenerative brake.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
1
2
3
4

1282. Instrument cluster
C-HR_HV_OM_Europe_OM10538E
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions, etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
■ Outside temperature display
● In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 25 km/h [16 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● When “--” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is
in the red zone (“H”). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 657)

129
2
2. Instrument cluster
Instrument cluster
C-HR_HV_OM_Europe_OM10538E

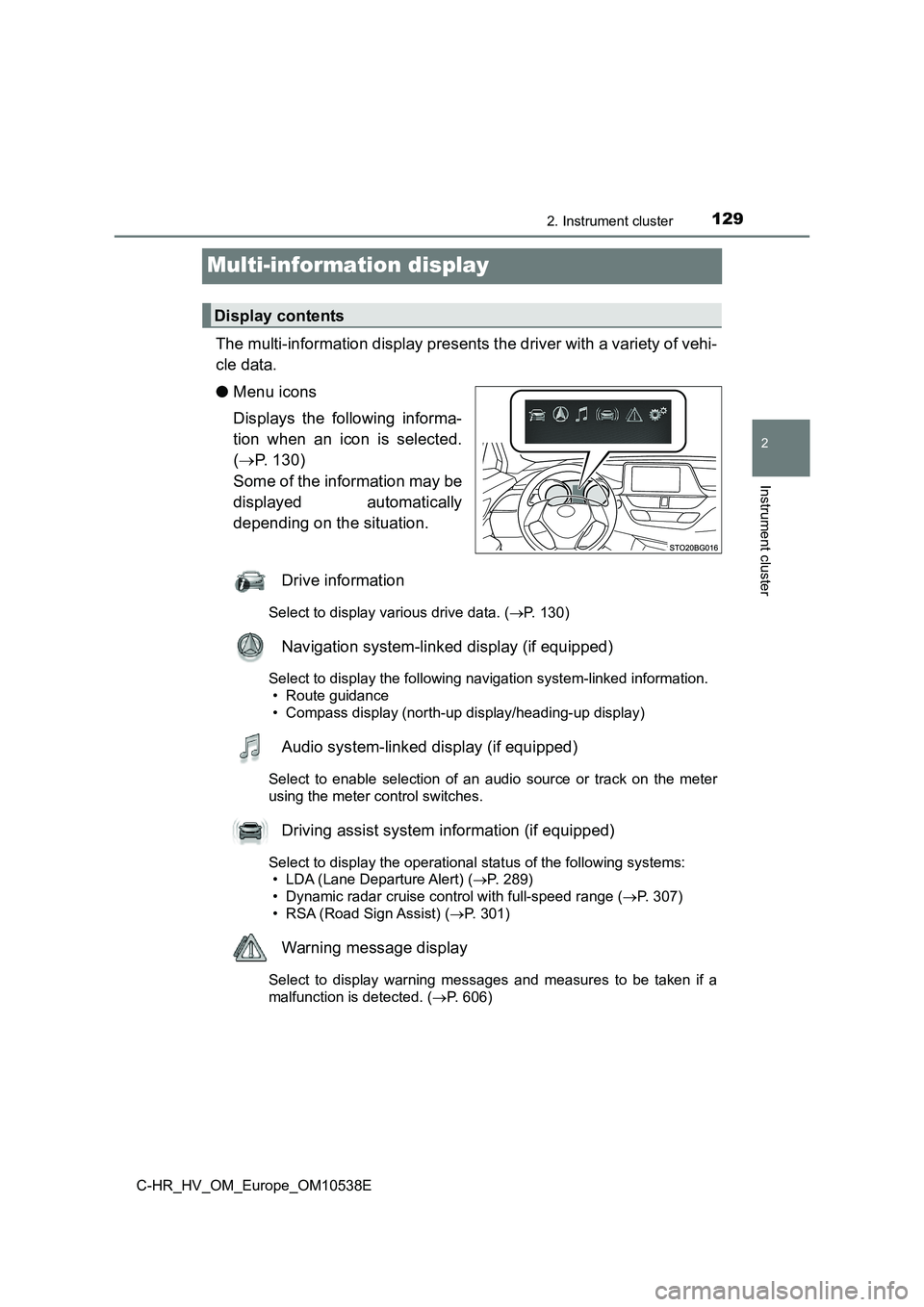

Multi-information display
The multi-information display presents the driver with a variety of vehi-
cle data.
● Menu icons
Displays the following informa-
tion when an icon is selected.
( P. 130)
Some of the information may be
displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( P. 130)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving assist system information (if equipped)
Select to display the operational status of the following systems:
• LDA (Lane Departure Alert) ( P. 289)
• Dynamic radar cruise control with full-speed range ( P. 307)
• RSA (Road Sign Assist) ( P. 301)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 606)
Display contents

1302. Instrument cluster
C-HR_HV_OM_Europe_OM10538E

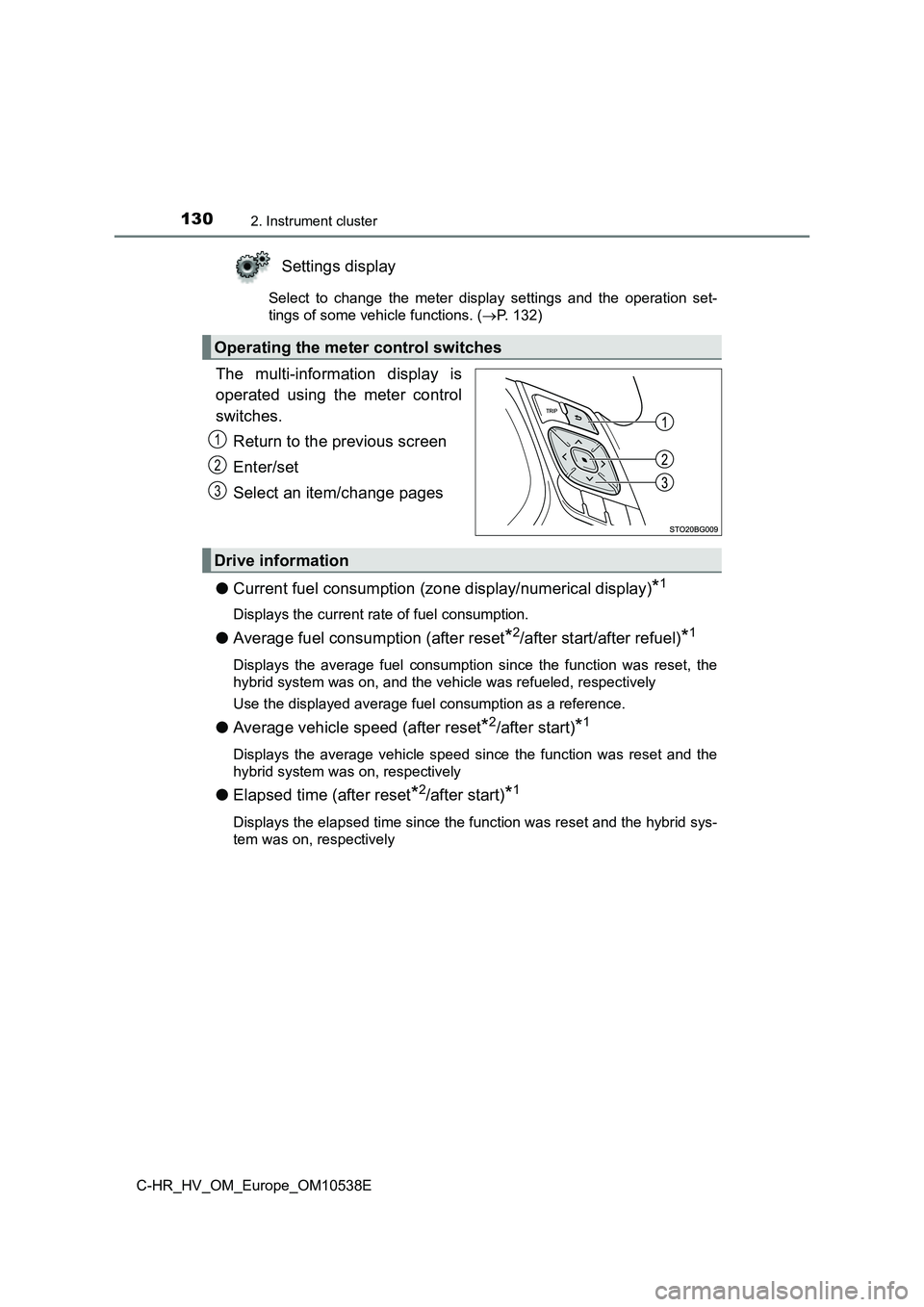

Settings display
Select to change the meter display settings and the operation set-
tings of some vehicle functions. ( P. 132)
The multi-information display is
operated using the meter control
switches.
Return to the previous screen
Enter/set
Select an item/change pages
● Current fuel consumption (zone display/numerical display)*1
Displays the current rate of fuel consumption.
●Average fuel consumption (after reset*2/after start/after refuel)*1
Displays the average fuel consumption since the function was reset, the
hybrid system was on, and the vehicle was refueled, respectively
Use the displayed average fuel consumption as a reference.
● Average vehicle speed (after reset*2/after start)*1
Displays the average vehicle speed since the function was reset and the
hybrid system was on, respectively
● Elapsed time (after reset*2/after start)*1
Displays the elapsed time since the function was reset and the hybrid sys-
tem was on, respectively
Operating the meter control switches
1
2
3
Drive information
