TOYOTA C_HR HYBRID 2017 Owners Manual

231
4
4-2. Driving procedures
Driving
C-HR_HV_OM_Europe_OM10538E

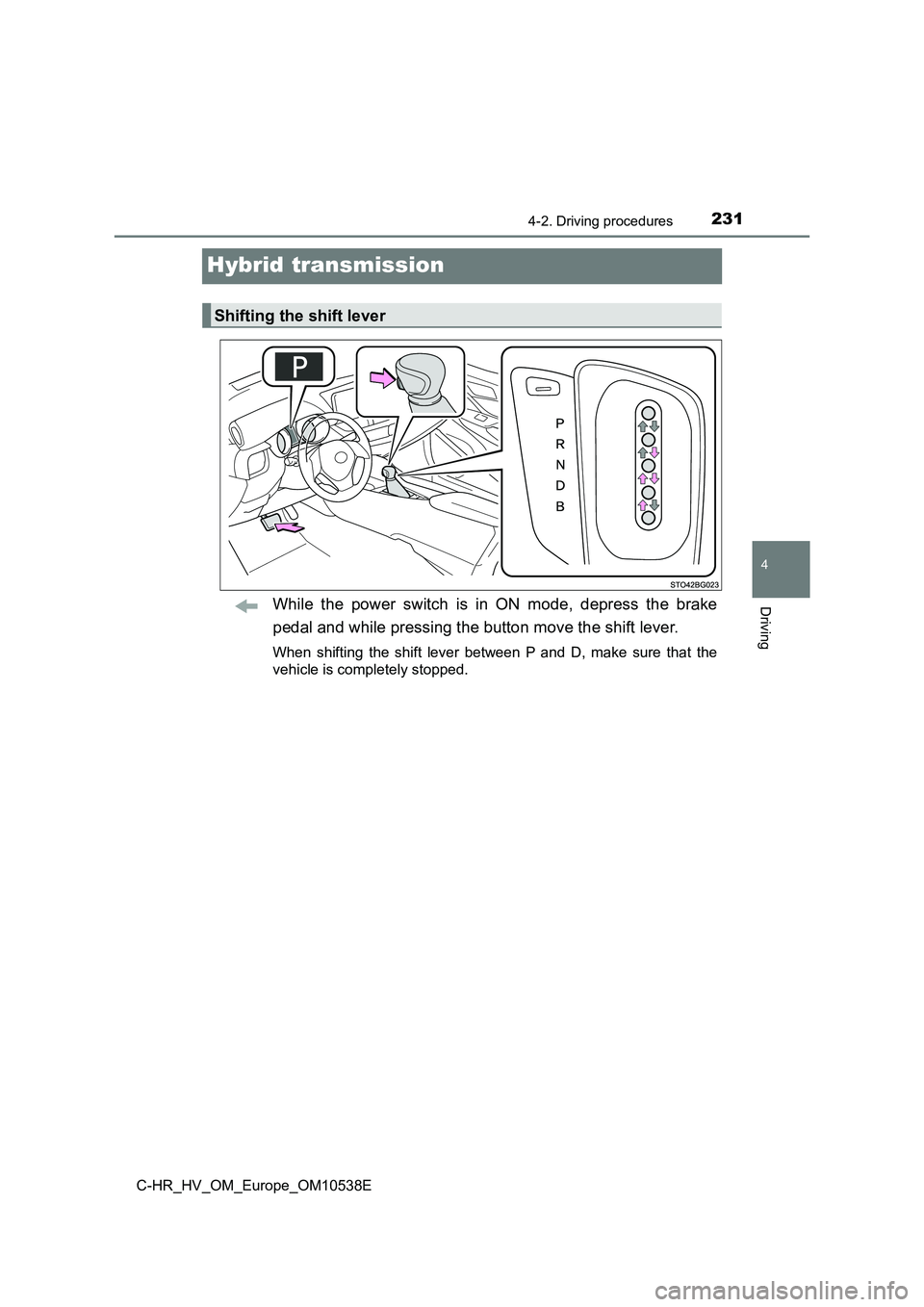

Hybrid transmission
While the power switch is in ON mode, depress the brake
pedal and while pressing the button move the shift lever.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
Shifting the shift lever

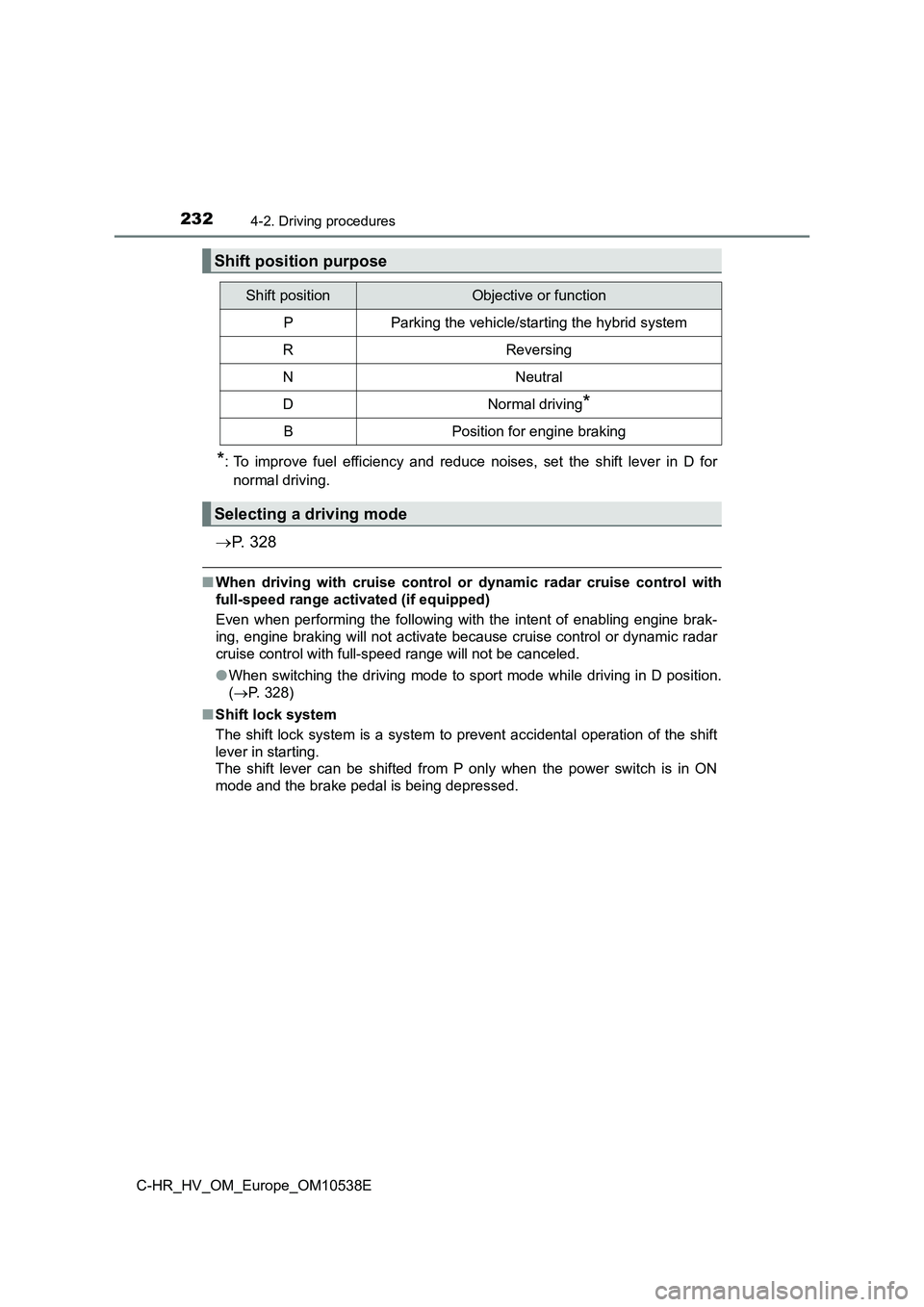

2324-2. Driving procedures
C-HR_HV_OM_Europe_OM10538E
*: To improve fuel efficiency and reduce noises, set the shift lever in D for
normal driving.
 P. 3 2 8
■When driving with cruise control or dynamic radar cruise control with
full-speed range activated (if equipped)
Even when performing the following with the intent of enabling engine brak-
ing, engine braking will not activate because cruise control or dynamic radar
cruise control with full-speed range will not be canceled.
● When switching the driving mode to sport mode while driving in D position.
( P. 328)
■ Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the power switch is in ON
mode and the brake pedal is being depressed.
Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the hybrid system
RReversing
NNeutral
DNormal driving*
BPosition for engine braking
Selecting a driving mode

2334-2. Driving procedures
4
Driving
C-HR_HV_OM_Europe_OM10538E

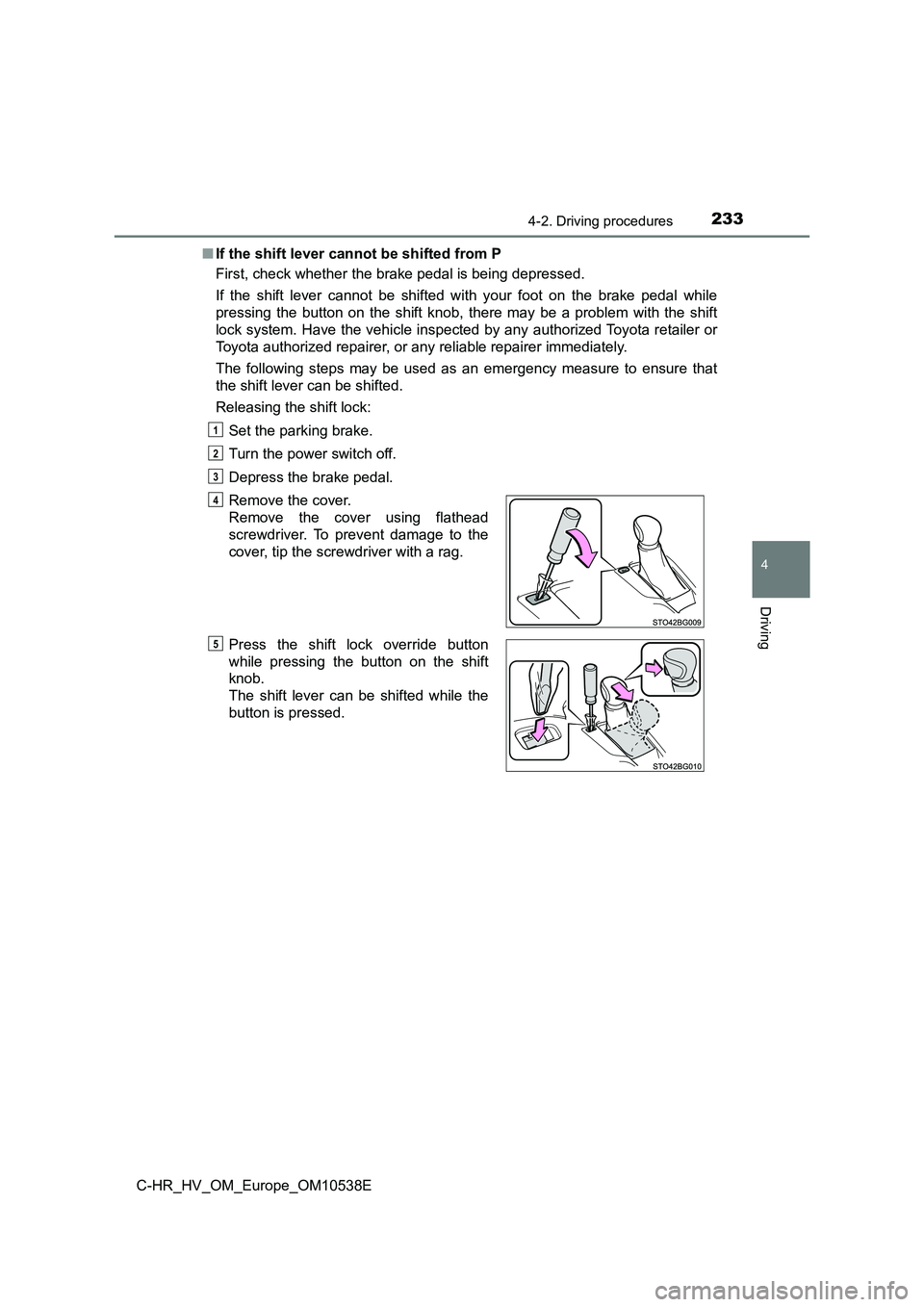

■ If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal while
pressing the button on the shift knob, there may be a problem with the shift
lock system. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Releasing the shift lock:
Set the parking brake.
Turn the power switch off.
Depress the brake pedal.
Remove the cover.
Remove the cover using flathead
screwdriver. To prevent damage to the
cover, tip the screwdriver with a rag.
Press the shift lock override button
while pressing the button on the shift
knob.
The shift lever can be shifted while the
button is pressed.
1
2
3
4
5

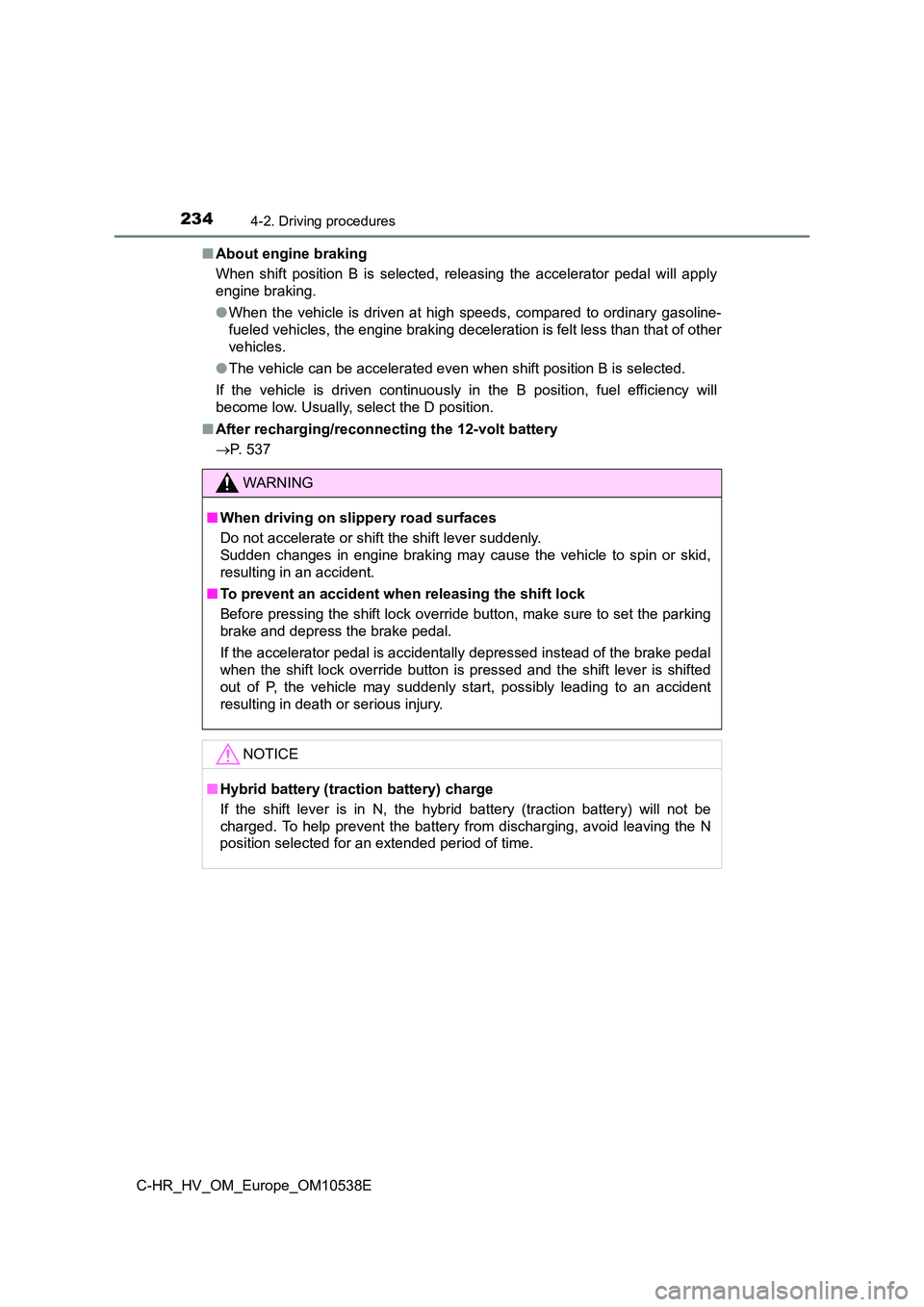

2344-2. Driving procedures
C-HR_HV_OM_Europe_OM10538E
■ About engine braking
When shift position B is selected, releasing the accelerator pedal will apply
engine braking.
● When the vehicle is driven at high speeds, compared to ordinary gasoline-
fueled vehicles, the engine braking deceleration is felt less than that of other
vehicles.
● The vehicle can be accelerated even when shift position B is selected.
If the vehicle is driven continuously in the B position, fuel efficiency will
become low. Usually, select the D position.
■ After recharging/reconnecting the 12-volt battery
 P. 537
WARNING
■When driving on slippery road surfaces
Do not accelerate or shift the shift lever suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
■ To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.
NOTICE
■ Hybrid battery (traction battery) charge
If the shift lever is in N, the hybrid battery (traction battery) will not be
charged. To help prevent the battery fr om discharging, avoid leaving the N
position selected for an extended period of time.

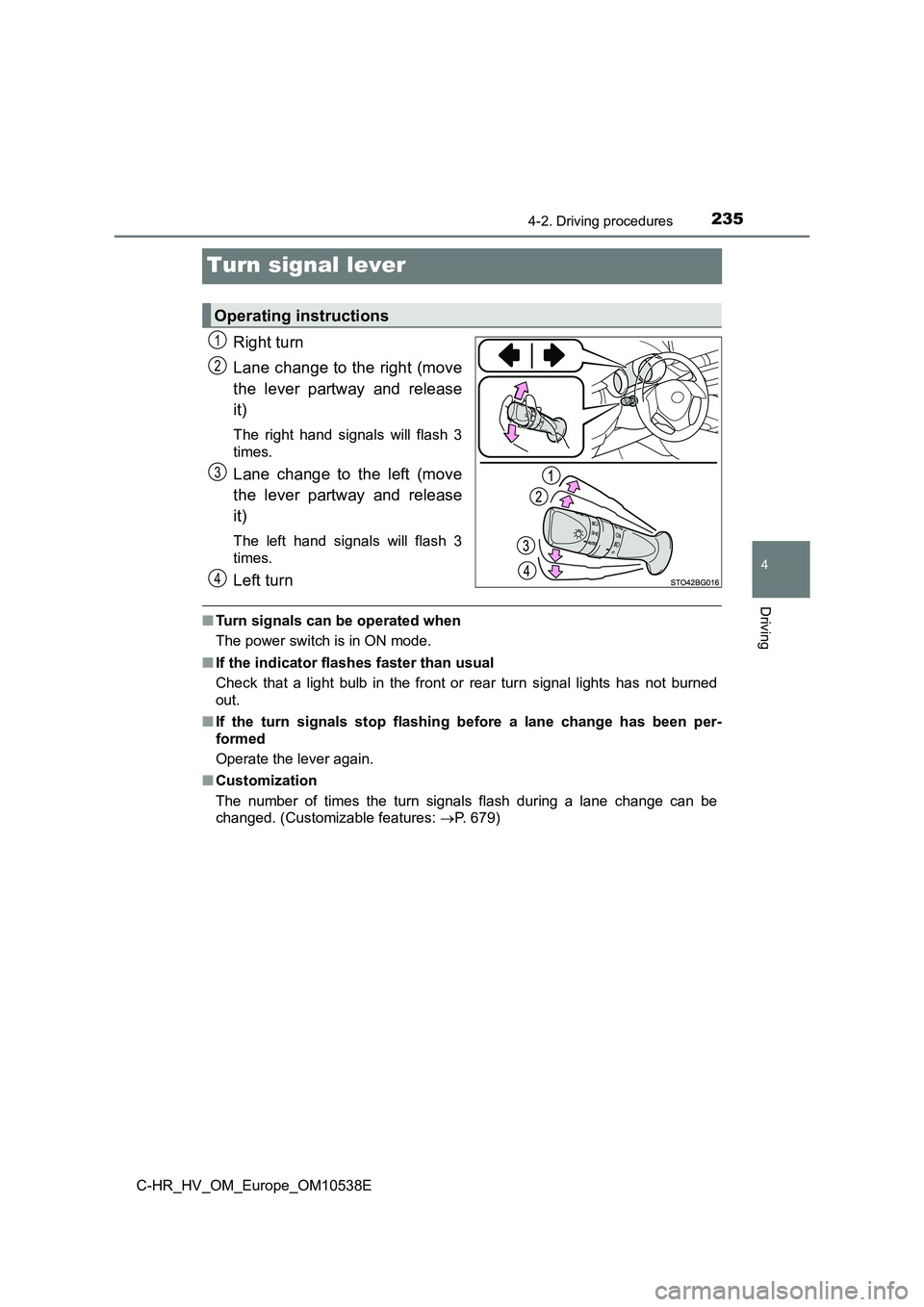

235
4
4-2. Driving procedures
Driving
C-HR_HV_OM_Europe_OM10538E
Turn signal lever
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
■ Turn signals can be operated when
The power switch is in ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
■ Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable features: P. 679)
Operating instructions
1
2
3
4

2364-2. Driving procedures
C-HR_HV_OM_Europe_OM10538E

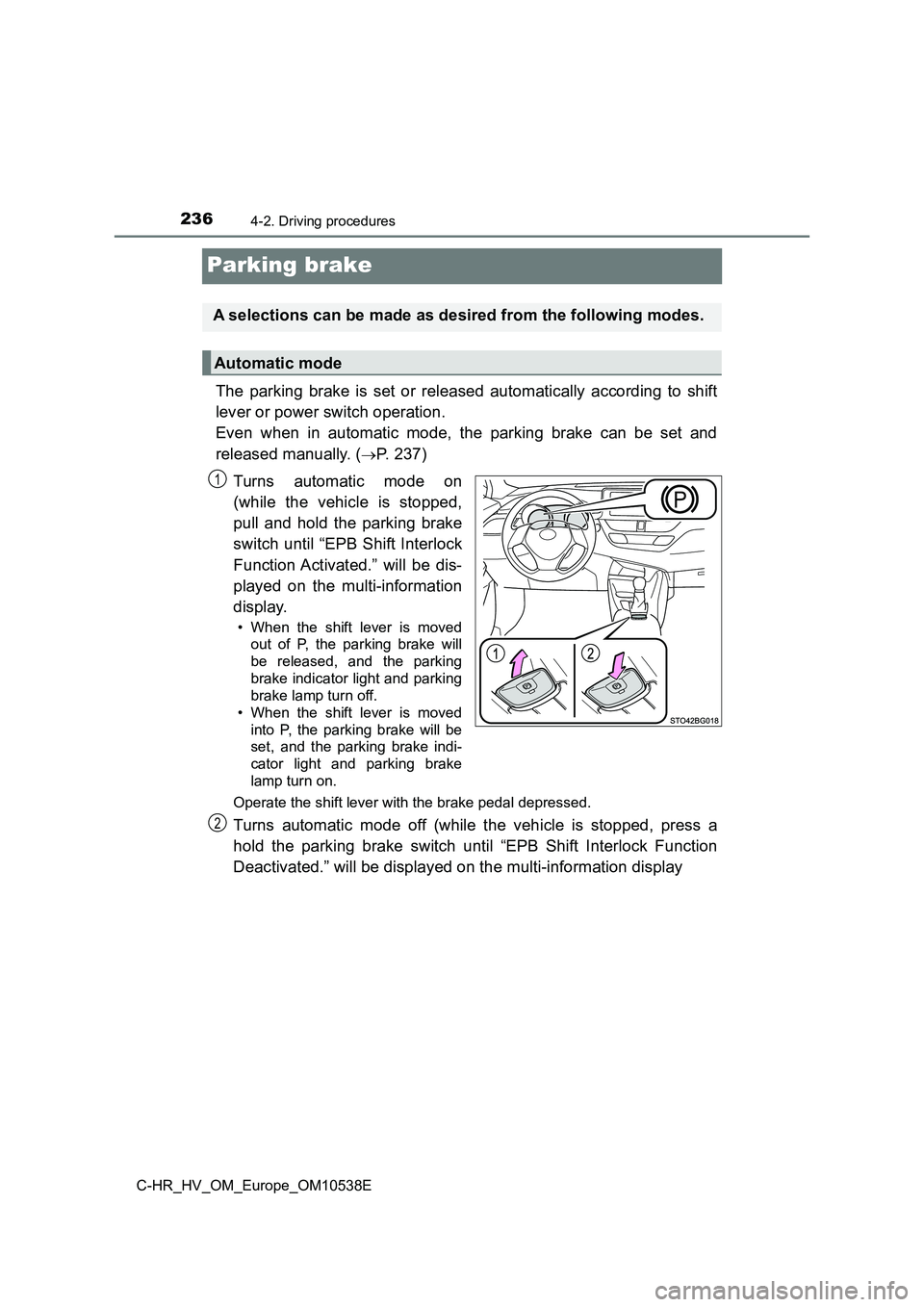

Parking brake
The parking brake is set or released automatically according to shift
lever or power switch operation.
Even when in automatic mode, the parking brake can be set and
released manually. (P. 237)
Turns automatic mode on
(while the vehicle is stopped,
pull and hold the parking brake
switch until “EPB Shift Interlock
Function Activated.” will be dis-
played on the multi-information
display.
• When the shift lever is moved
out of P, the parking brake will
be released, and the parking
brake indicator light and parking
brake lamp turn off.
• When the shift lever is moved
into P, the parking brake will be
set, and the parking brake indi-
cator light and parking brake
lamp turn on.
Operate the shift lever with the brake pedal depressed.
Turns automatic mode off (while the vehicle is stopped, press a
hold the parking brake switch until “EPB Shift Interlock Function
Deactivated.” will be displayed on the multi-information display
A selections can be made as desired from the following modes.
Automatic mode
1
2

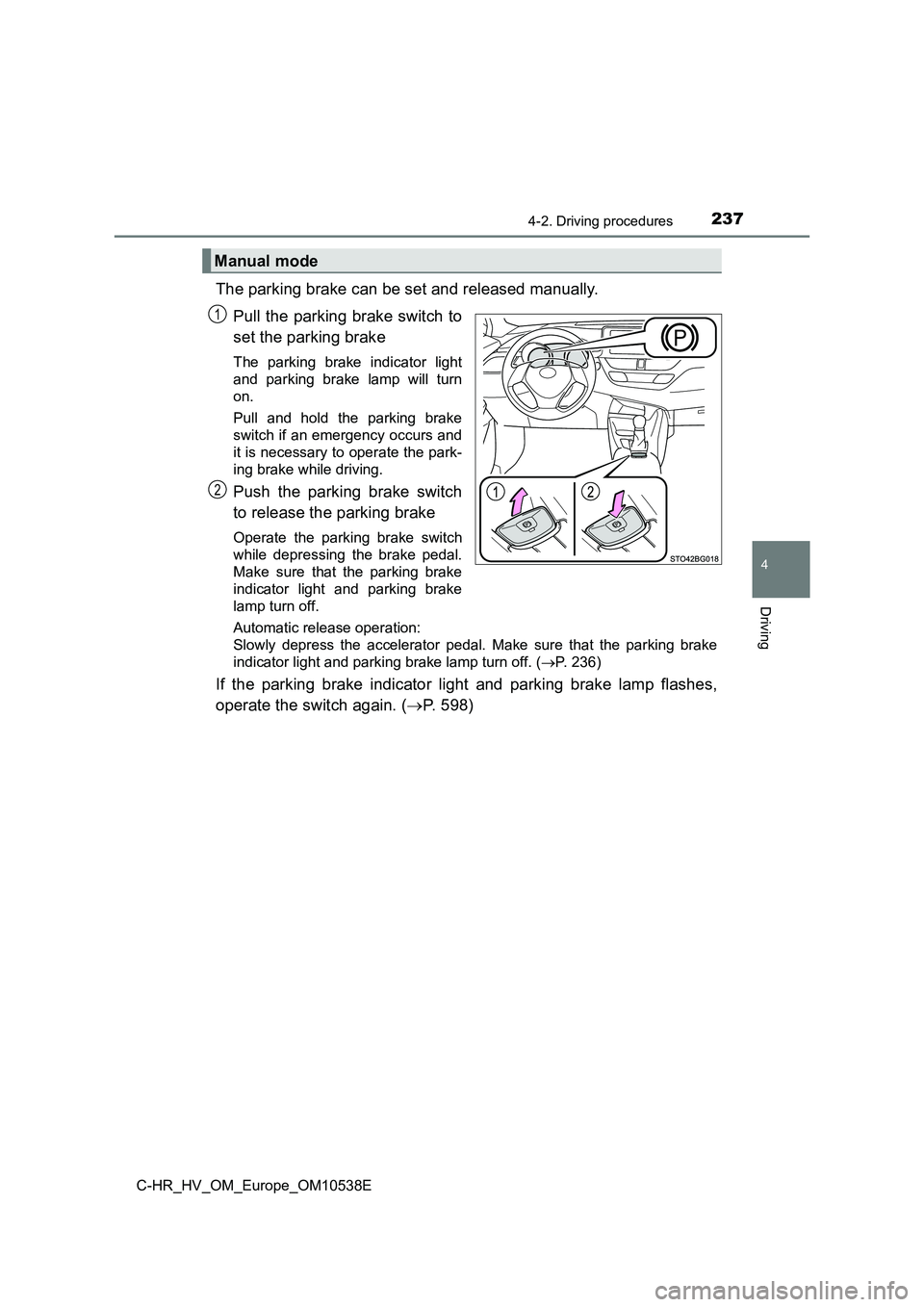

2374-2. Driving procedures
4
Driving
C-HR_HV_OM_Europe_OM10538E
The parking brake can be set and released manually.
Pull the parking brake switch to
set the parking brake
The parking brake indicator light
and parking brake lamp will turn
on.
Pull and hold the parking brake
switch if an emergency occurs and
it is necessary to operate the park-
ing brake while driving.
Push the parking brake switch
to release the parking brake
Operate the parking brake switch
while depressing the brake pedal.
Make sure that the parking brake
indicator light and parking brake
lamp turn off.
Automatic release operation:
Slowly depress the accelerator pedal. Make sure that the parking brake
indicator light and parking brake lamp turn off. ( P. 2 3 6 )
If the parking brake indicator light and parking brake lamp flashes,
operate the switch again. ( P. 598)
Manual mode
1
2

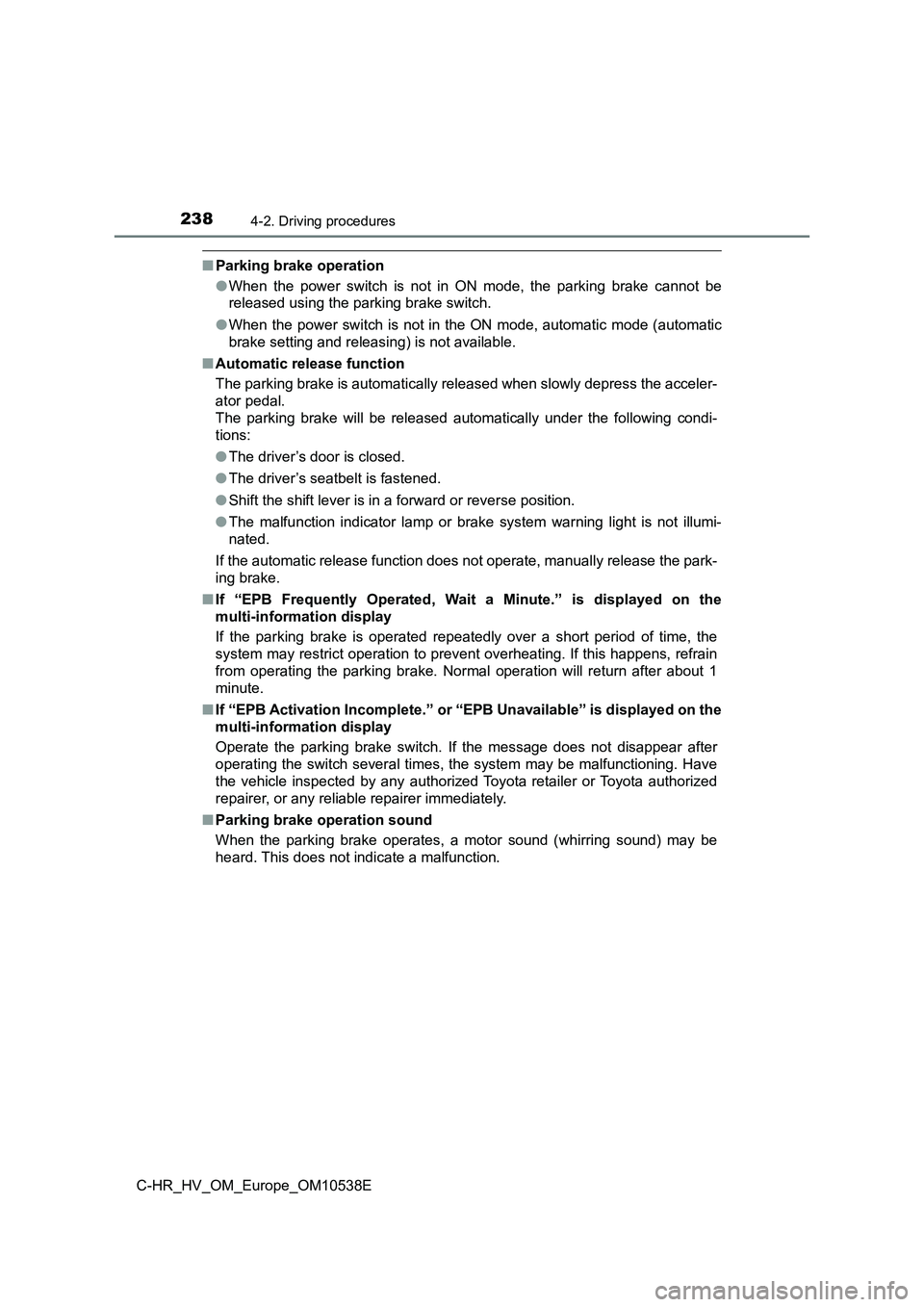

2384-2. Driving procedures
C-HR_HV_OM_Europe_OM10538E
■Parking brake operation
● When the power switch is not in ON mode, the parking brake cannot be
released using the parking brake switch.
● When the power switch is not in the ON mode, automatic mode (automatic
brake setting and releasing) is not available.
■ Automatic release function
The parking brake is automatically released when slowly depress the acceler-
ator pedal.
The parking brake will be released automatically under the following condi-
tions:
● The driver’s door is closed.
● The driver’s seatbelt is fastened.
● Shift the shift lever is in a forward or reverse position.
● The malfunction indicator lamp or brake system warning light is not illumi-
nated.
If the automatic release function does not operate, manually release the park-
ing brake.
■ If “EPB Frequently Operated, Wait a Minute.” is displayed on the
multi-information display
If the parking brake is operated repeatedly over a short period of time, the
system may restrict operation to prevent overheating. If this happens, refrain
from operating the parking brake. Normal operation will return after about 1
minute.
■ If “EPB Activation Incomplete.” or “EPB Unavailable” is displayed on the
multi-information display
Operate the parking brake switch. If the message does not disappear after
operating the switch several times, the system may be malfunctioning. Have
the vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliabl e repairer immediately.
■ Parking brake operation sound
When the parking brake operates, a motor sound (whirring sound) may be
heard. This does not indicate a malfunction.

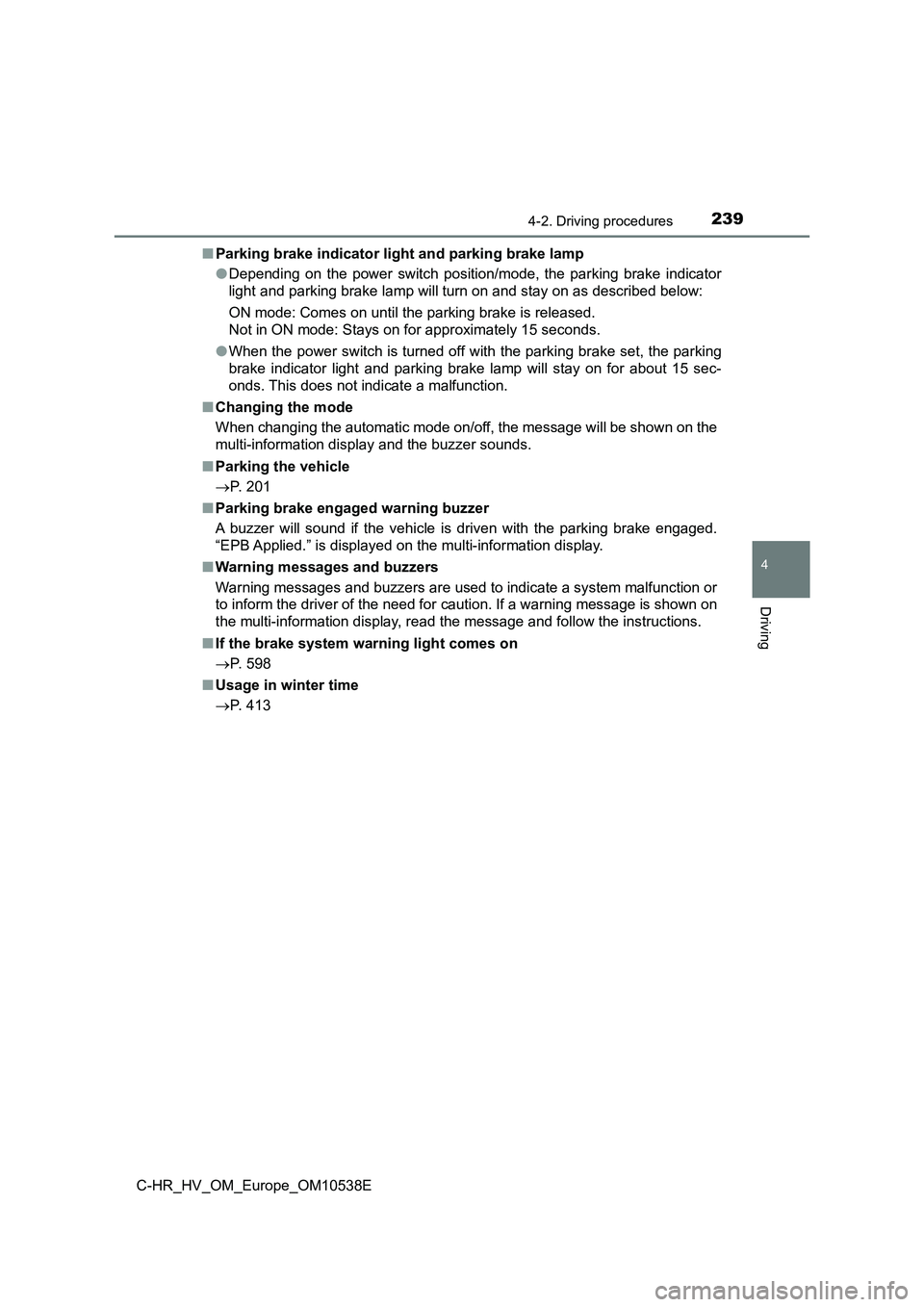

2394-2. Driving procedures
4
Driving
C-HR_HV_OM_Europe_OM10538E
■ Parking brake indicator light and parking brake lamp
● Depending on the power switch position/mode, the parking brake indicator
light and parking brake lamp will turn on and stay on as described below:
ON mode: Comes on until the parking brake is released.
Not in ON mode: Stays on for approximately 15 seconds.
● When the power switch is turned off with the parking brake set, the parking
brake indicator light and parking brake lamp will stay on for about 15 sec-
onds. This does not indicate a malfunction.
■ Changing the mode
When changing the automatic mode on/off, the message will be shown on the
multi-information display and the buzzer sounds.
■ Parking the vehicle
 P. 201
■ Parking brake engaged warning buzzer
A buzzer will sound if the vehicle is driven with the parking brake engaged.
“EPB Applied.” is displayed on the multi-information display.
■ Warning messages and buzzers
Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution. If a warning message is shown on
the multi-information display, read the message and follow the instructions.
■ If the brake system warning light comes on
 P. 598
■ Usage in winter time
 P. 413

2404-2. Driving procedures
C-HR_HV_OM_Europe_OM10538E

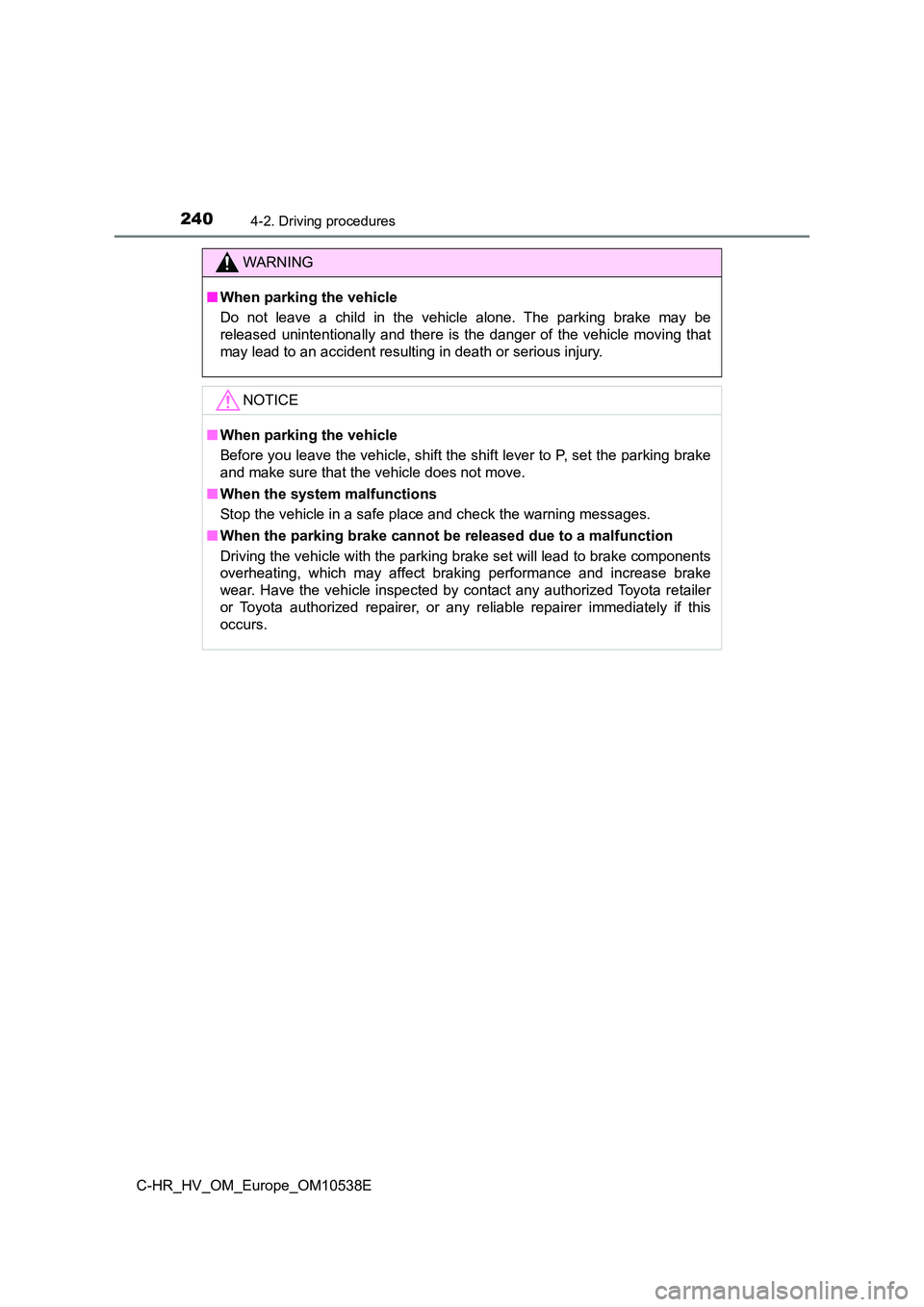

WARNING
■When parking the vehicle
Do not leave a child in the vehicle alone. The parking brake may be
released unintentionally and there is the danger of the vehicle moving that
may lead to an accident resulting in death or serious injury.
NOTICE
■ When parking the vehicle
Before you leave the vehicle, shift the shift lever to P, set the parking brake
and make sure that the vehicle does not move.
■ When the system malfunctions
Stop the vehicle in a safe place and check the warning messages.
■ When the parking brake cannot be released due to a malfunction
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear. Have the vehicle inspected by contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer immediately if this
occurs.
