TOYOTA C_HR HYBRID 2017 Owners Manual

3614-5. Using the driving support systems
4
Driving
C-HR_HV_OM_Europe_OM10538E

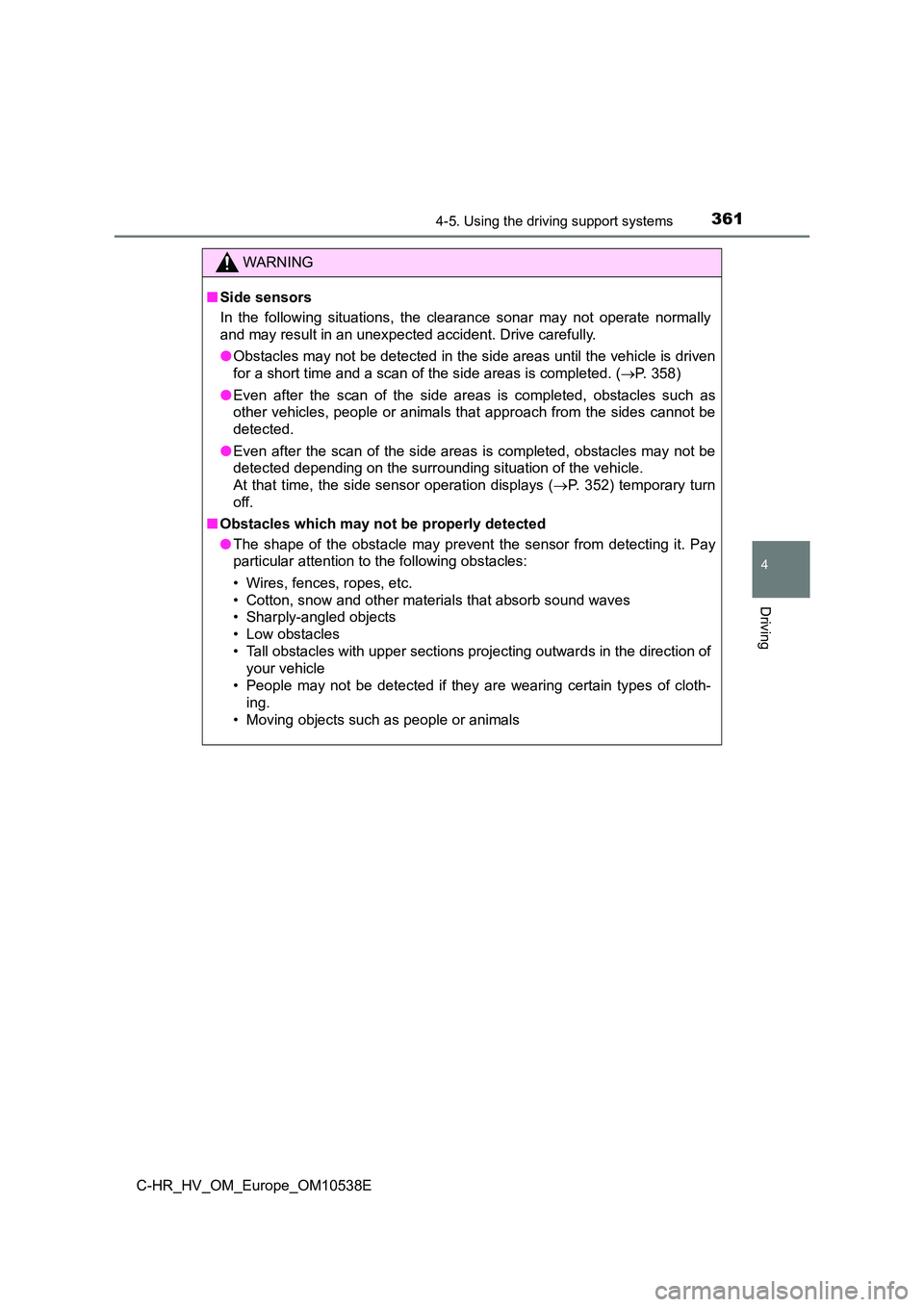

WARNING
■Side sensors
In the following situations, the clearance sonar may not operate normally
and may result in an unexpected accident. Drive carefully.
● Obstacles may not be detected in the side areas until the vehicle is driven
for a short time and a scan of the side areas is completed. ( P. 358)
● Even after the scan of the side areas is completed, obstacles such as
other vehicles, people or animals that approach from the sides cannot be
detected.
● Even after the scan of the side areas is completed, obstacles may not be
detected depending on the surrounding situation of the vehicle.
At that time, the side sensor operation displays ( P. 352) temporary turn
off.
■ Obstacles which may not be properly detected
● The shape of the obstacle may prevent the sensor from detecting it. Pay
particular attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that absorb sound waves
• Sharply-angled objects
• Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction of
your vehicle
• People may not be detected if they are wearing certain types of cloth-
ing.
• Moving objects such as people or animals

3624-5. Using the driving support systems
C-HR_HV_OM_Europe_OM10538E

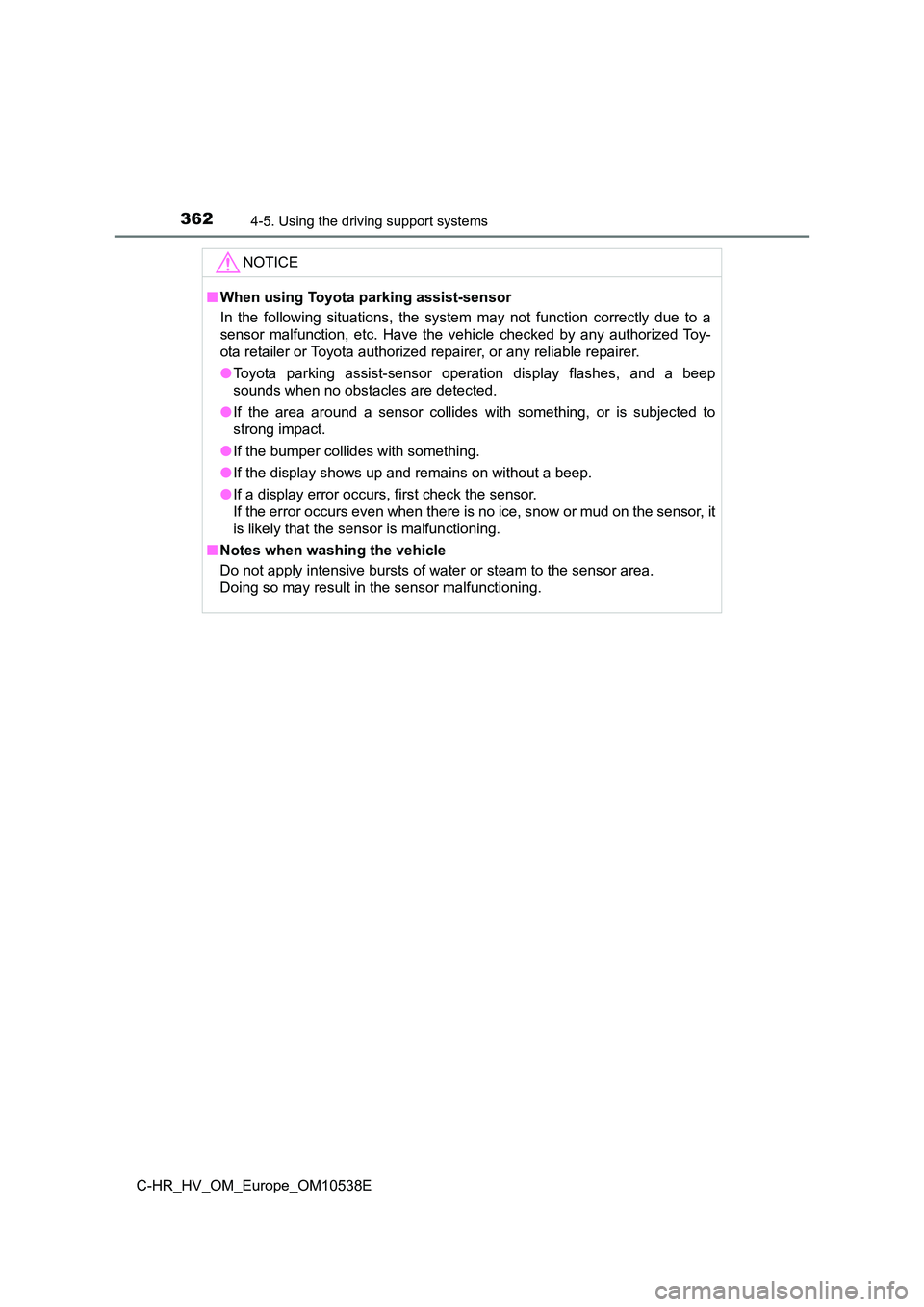

NOTICE
■When using Toyota parking assist-sensor
In the following situations, the system may not function correctly due to a
sensor malfunction, etc. Have the vehicle checked by any authorized Toy-
ota retailer or Toyota authorized repairer, or any reliable repairer.
● Toyota parking assist-sensor operation display flashes, and a beep
sounds when no obstacles are detected.
● If the area around a sensor collides with something, or is subjected to
strong impact.
● If the bumper collides with something.
● If the display shows up and remains on without a beep.
● If a display error occurs, first check the sensor.
If the error occurs even when there is no ice, snow or mud on the sensor, it
is likely that the sensor is malfunctioning.
■ Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.

363
4
4-5. Using the driving support systems
Driving
C-HR_HV_OM_Europe_OM10538E

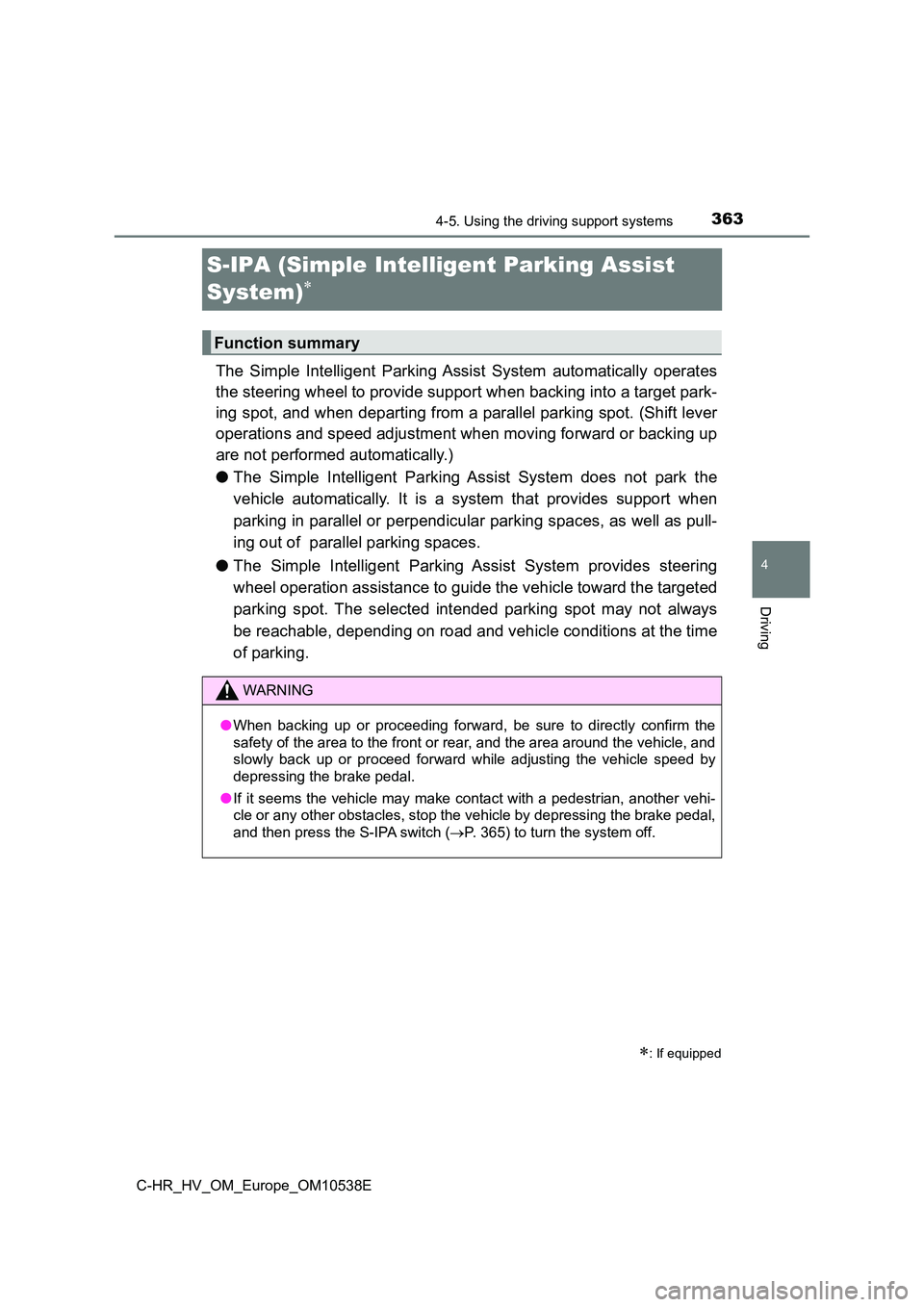

S-IPA (Simple Intelligent Parking Assist
System)
The Simple Intelligent Parking Assist System automatically operates
the steering wheel to provide support when backing into a target park-
ing spot, and when departing from a parallel parking spot. (Shift lever
operations and speed adjustment when moving forward or backing up
are not performed automatically.)
● The Simple Intelligent Parking Assist System does not park the
vehicle automatically. It is a system that provides support when
parking in parallel or perpendicular parking spaces, as well as pull-
ing out of parallel parking spaces.
● The Simple Intelligent Parking Assist System provides steering
wheel operation assistance to guide the vehicle toward the targeted
parking spot. The selected intended parking spot may not always
be reachable, depending on road and vehicle conditions at the time
of parking.
: If equipped
Function summary
WARNING
● When backing up or proceeding forward, be sure to directly confirm the
safety of the area to the front or rear, and the area around the vehicle, and
slowly back up or proceed forward while adjusting the vehicle speed by
depressing the brake pedal.
● If it seems the vehicle may make contact with a pedestrian, another vehi-
cle or any other obstacles, stop the vehicle by depressing the brake pedal,
and then press the S-IPA switch ( P. 365) to turn the system off.

3644-5. Using the driving support systems
C-HR_HV_OM_Europe_OM10538E

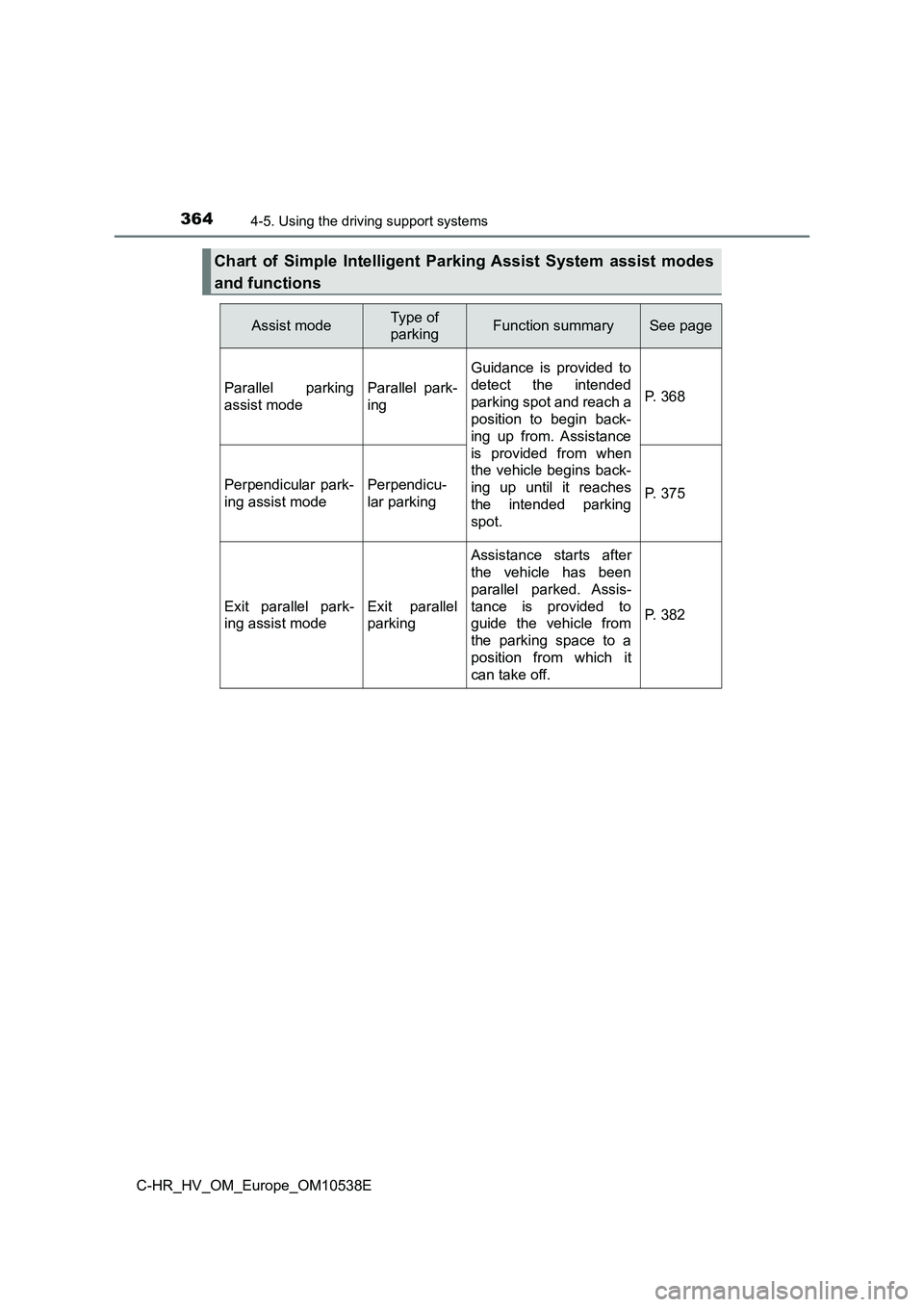

Chart of Simple Intelligent Parking Assist System assist modes
and functions
Assist modeType of
parkingFunction summarySee page
Parallel parking
assist mode
Parallel park-
ing
Guidance is provided to
detect the intended
parking spot and reach a
position to begin back-
ing up from. Assistance
is provided from when
the vehicle begins back-
ing up until it reaches
the intended parking
spot.
P. 368
Perpendicular park-
ing assist mode
Perpendicu-
lar parkingP. 375
Exit parallel park-
ing assist mode
Exit parallel
parking
Assistance starts after
the vehicle has been
parallel parked. Assis-
tance is provided to
guide the vehicle from
the parking space to a
position from which it
can take off.
P. 382

3654-5. Using the driving support systems
4
Driving
C-HR_HV_OM_Europe_OM10538E

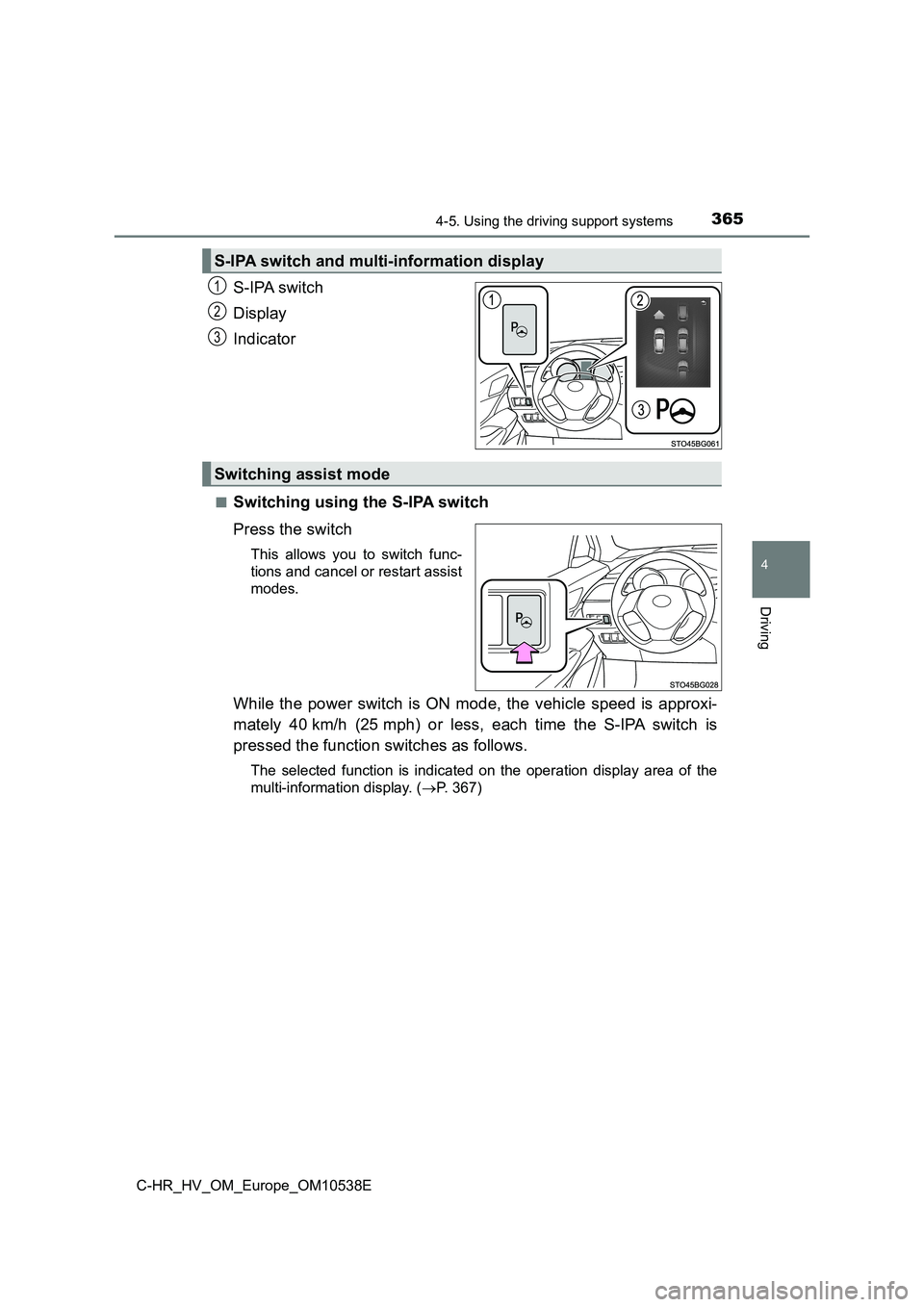

S-IPA switch
Display
Indicator
■Switching using the S-IPA switch
Press the switch
This allows you to switch func-
tions and cancel or restart assist
modes.
While the power switch is ON mode, the vehicle speed is approxi-
mately 40 km/h (25 mph) or less, each time the S-IPA switch is
pressed the function switches as follows.
The selected function is indicated on the operation display area of the
multi-information display. ( P. 367)
S-IPA switch and multi-information display
1
2
3
Switching assist mode

3664-5. Using the driving support systems
C-HR_HV_OM_Europe_OM10538E

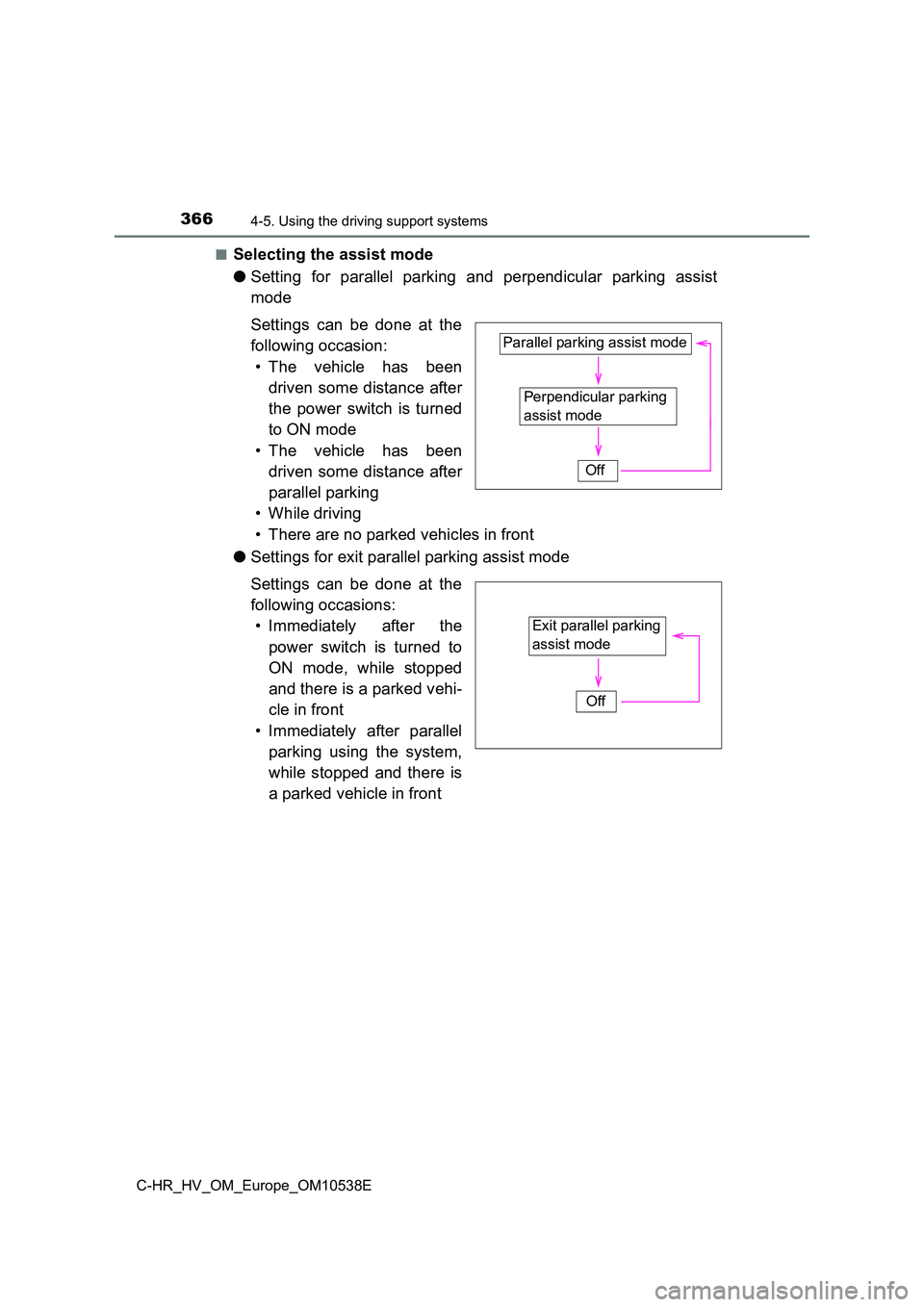

■Selecting the assist mode
● Setting for parallel parking and perpendicular parking assist
mode
Settings can be done at the
following occasion:
• The vehicle has been
driven some distance after
the power switch is turned
to ON mode
• The vehicle has been
driven some distance after
parallel parking
• While driving
• There are no parked vehicles in front
● Settings for exit parallel parking assist mode
Settings can be done at the
following occasions:
• Immediately after the
power switch is turned to
ON mode, while stopped
and there is a parked vehi-
cle in front
• Immediately after parallel
parking using the system,
while stopped and there is
a parked vehicle in front
Perpendicular parking
assist mode
Parallel parking assist mode
Off
Exit parallel parking
assist mode
Off

3674-5. Using the driving support systems
4
Driving
C-HR_HV_OM_Europe_OM10538E

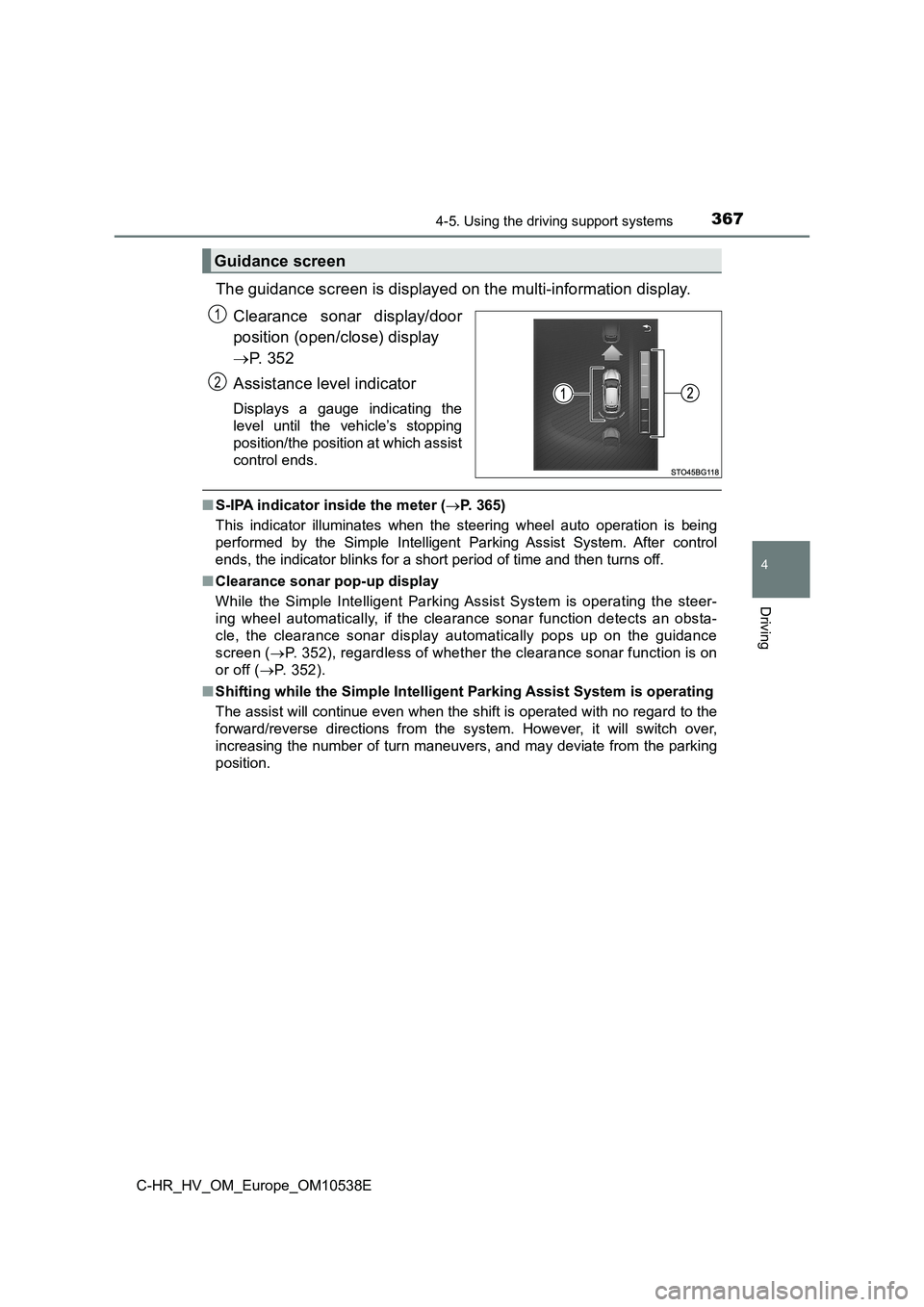

The guidance screen is displayed on the multi-information display.
Clearance sonar display/door
position (open/close) display
 P. 3 5 2
Assistance level indicator
Displays a gauge indicating the
level until the vehicle’s stopping
position/the position at which assist
control ends.
■ S-IPA indicator inside the meter (P. 365)
This indicator illuminates when the steering wheel auto operation is being
performed by the Simple Intelligent Parking Assist System. After control
ends, the indicator blinks for a short period of time and then turns off.
■ Clearance sonar pop-up display
While the Simple Intelligent Parking Assist System is operating the steer-
ing wheel automatically, if the clearance sonar function detects an obsta-
cle, the clearance sonar display automatically pops up on the guidance
screen ( P. 352), regardless of whether the clearance sonar function is on
or off ( P. 352).
■ Shifting while the Simple Intelligent Parking Assist System is operating
The assist will continue even when the shift is operated with no regard to the
forward/reverse directions from the system. However, it will switch over,
increasing the number of turn maneuvers, and may deviate from the parking
position.
Guidance screen
1
2

3684-5. Using the driving support systems
C-HR_HV_OM_Europe_OM10538E

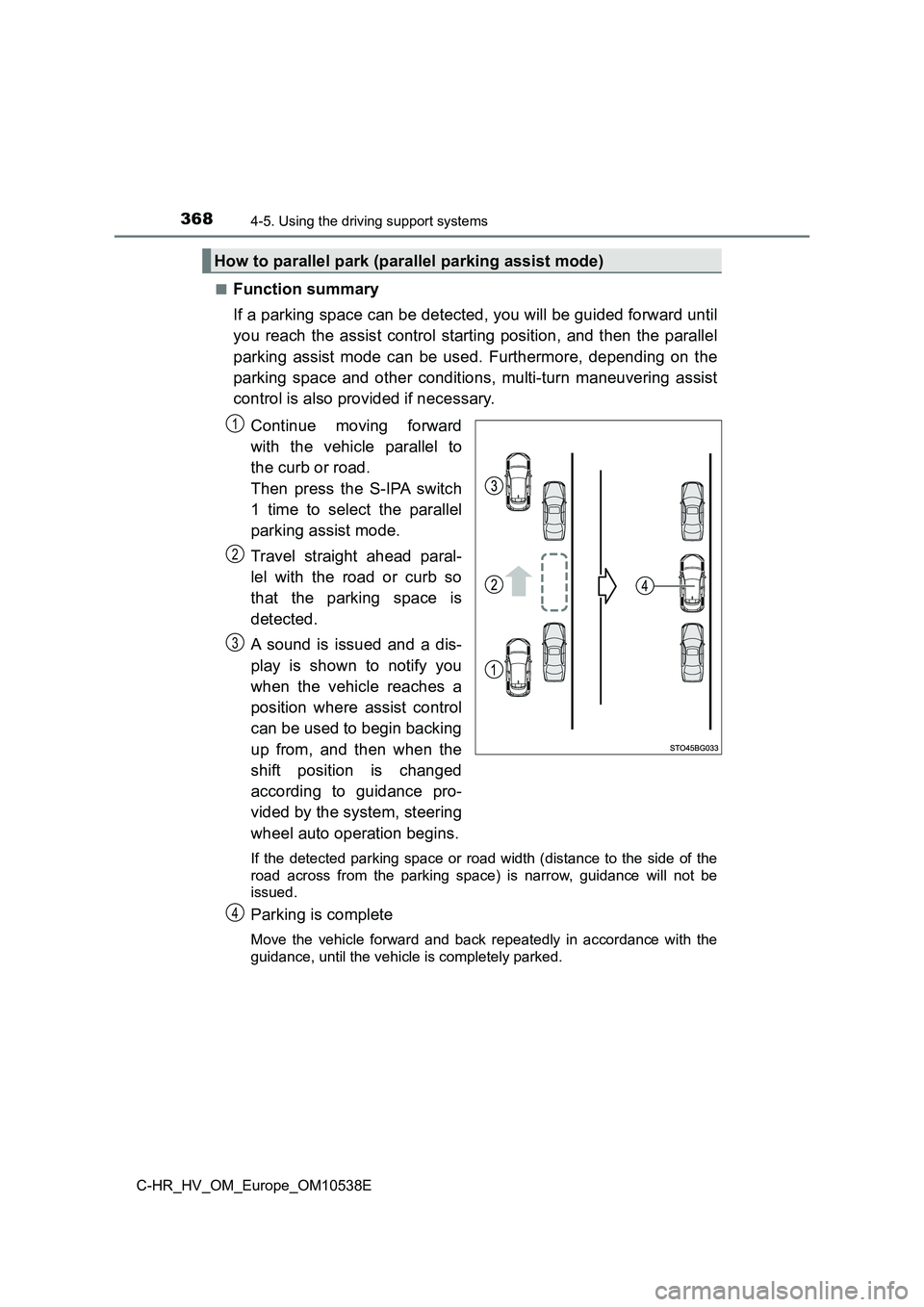

■Function summary
If a parking space can be detected, you will be guided forward until
you reach the assist control starting position, and then the parallel
parking assist mode can be used. Furthermore, depending on the
parking space and other conditions, multi-turn maneuvering assist
control is also provided if necessary.
Continue moving forward
with the vehicle parallel to
the curb or road.
Then press the S-IPA switch
1 time to select the parallel
parking assist mode.
Travel straight ahead paral-
lel with the road or curb so
that the parking space is
detected.
A sound is issued and a dis-
play is shown to notify you
when the vehicle reaches a
position where assist control
can be used to begin backing
up from, and then when the
shift position is changed
according to guidance pro-
vided by the system, steering
wheel auto operation begins.
If the detected parking space or road width (distance to the side of the
road across from the parking space) is narrow, guidance will not be
issued.
Parking is complete
Move the vehicle forward and back repeatedly in accordance with the
guidance, until the vehicle is completely parked.
How to parallel park (parallel parking assist mode)
1
2
3
4

3694-5. Using the driving support systems
4
Driving
C-HR_HV_OM_Europe_OM10538E

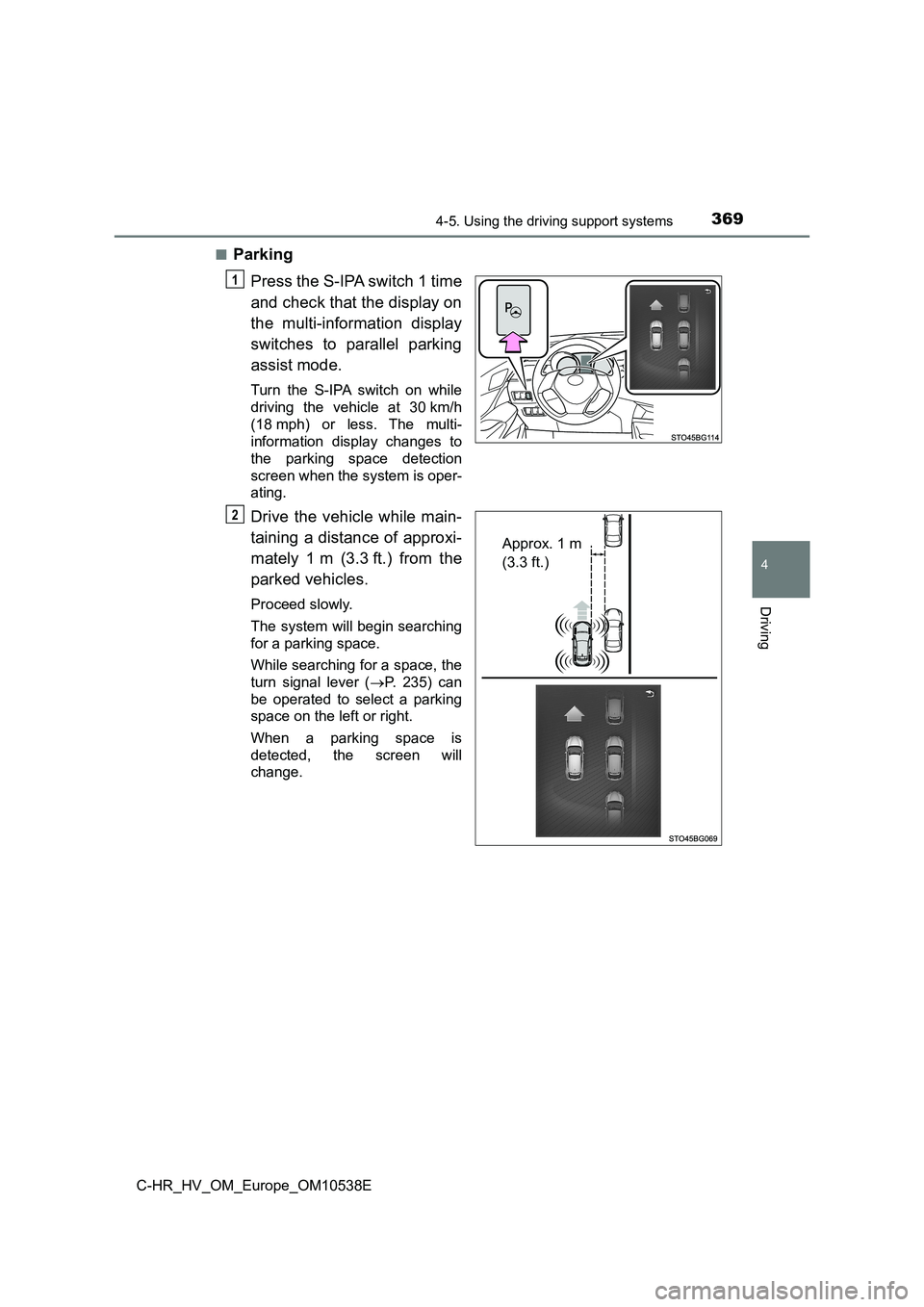

■Parking
Press the S-IPA switch 1 time
and check that the display on
the multi-information display
switches to parallel parking
assist mode.
Turn the S-IPA switch on while
driving the vehicle at 30 km/h
(18 mph) or less. The multi-
information display changes to
the parking space detection
screen when the system is oper-
ating.
Drive the vehicle while main-
taining a distance of approxi-
mately 1 m (3.3 ft.) from the
parked vehicles.
Proceed slowly.
The system will begin searching
for a parking space.
While searching for a space, the
turn signal lever ( P. 235) can
be operated to select a parking
space on the left or right.
When a parking space is
detected, the screen will
change.
1
Approx. 1 m
(3.3 ft.)
2

3704-5. Using the driving support systems
C-HR_HV_OM_Europe_OM10538E

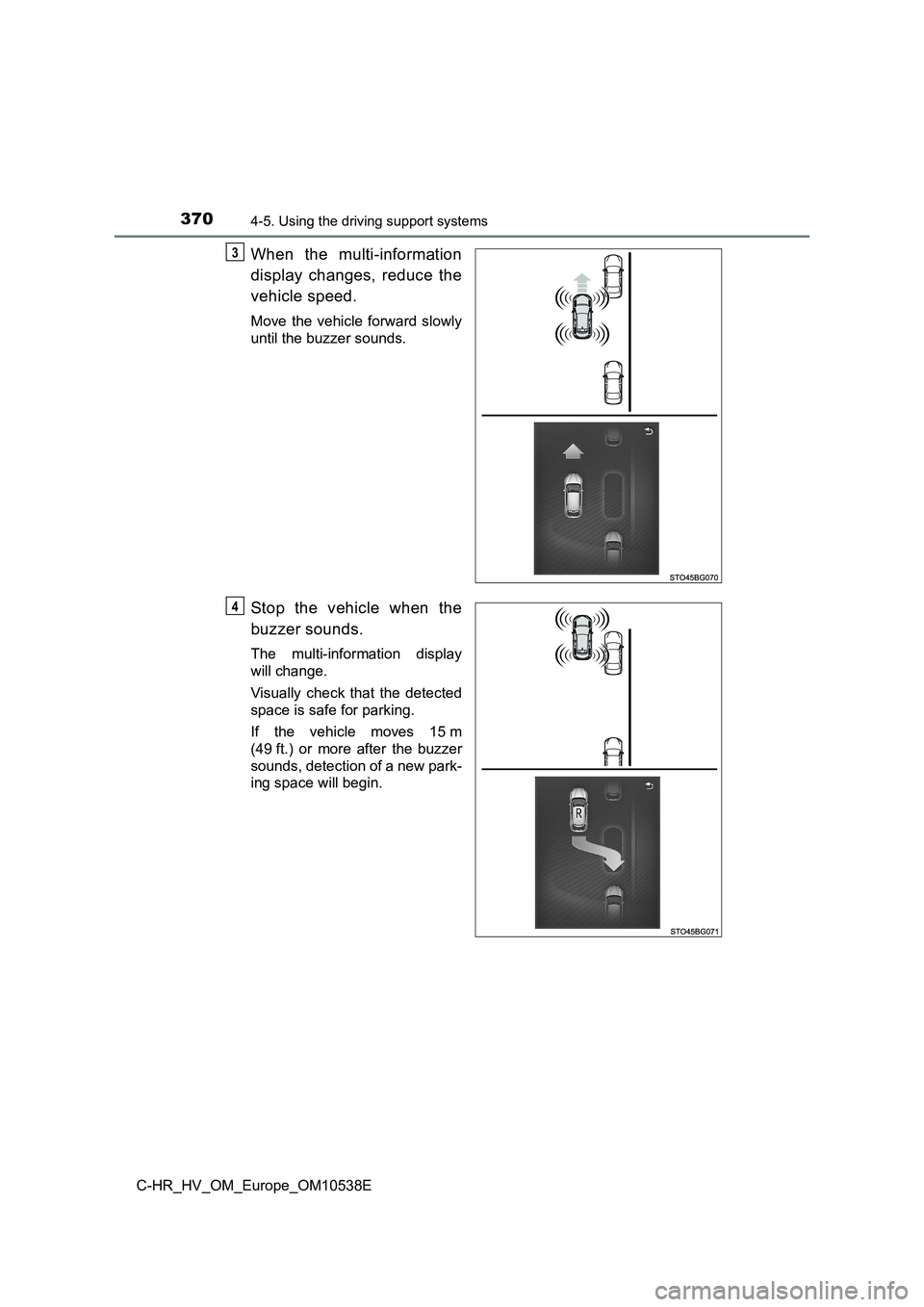

When the multi-information
display changes, reduce the
vehicle speed.
Move the vehicle forward slowly
until the buzzer sounds.
Stop the vehicle when the
buzzer sounds.
The multi-information display
will change.
Visually check that the detected
space is safe for parking.
If the vehicle moves 15 m
(49 ft.) or more after the buzzer
sounds, detection of a new park-
ing space will begin.
3
4
