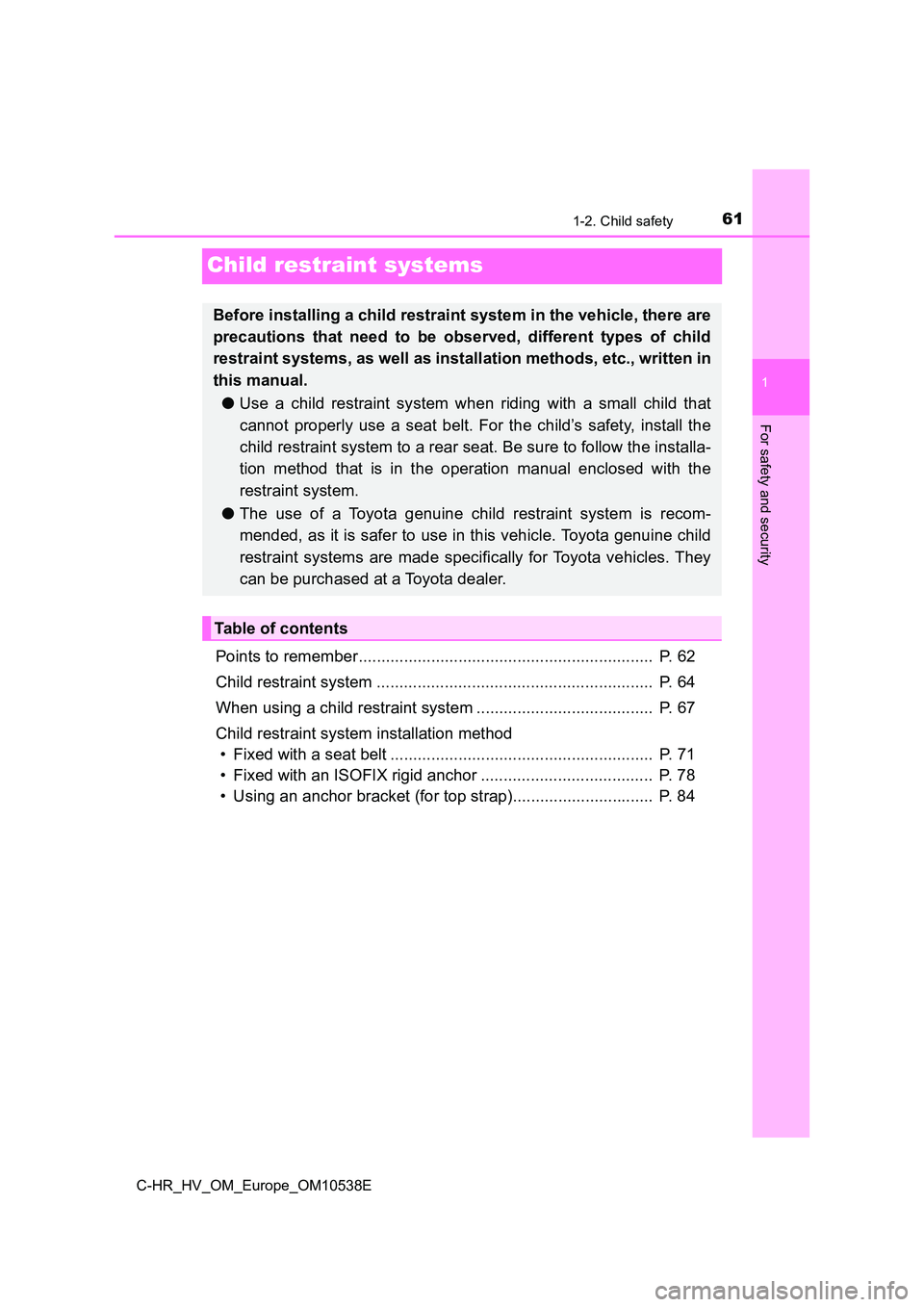

611-2. Child safety
1
For safety and security
C-HR_HV_OM_Europe_OM10538E
Child restraint systems
Points to remember................................................................. P. 62
Child restraint system ............................................................. P. 64
When using a child restraint system ....................................... P. 67
Child restraint system installation method
• Fixed with a seat belt .......................................................... P. 71
• Fixed with an ISOFIX rigid anchor ...................................... P. 78
• Using an anchor bracket (for top strap)............................... P. 84
Before installing a child restraint system in the vehicle, there are
precautions that need to be observed, different types of child
restraint systems, as well as installation methods, etc., written in
this manual.
● Use a child restraint system when riding with a small child that
cannot properly use a seat belt. For the child’s safety, install the
child restraint system to a rear seat. Be sure to follow the installa-
tion method that is in the operation manual enclosed with the
restraint system.
● The use of a Toyota genuine child restraint system is recom-
mended, as it is safer to use in this vehicle. Toyota genuine child
restraint systems are made specifically for Toyota vehicles. They
can be purchased at a Toyota dealer.
Table of contents

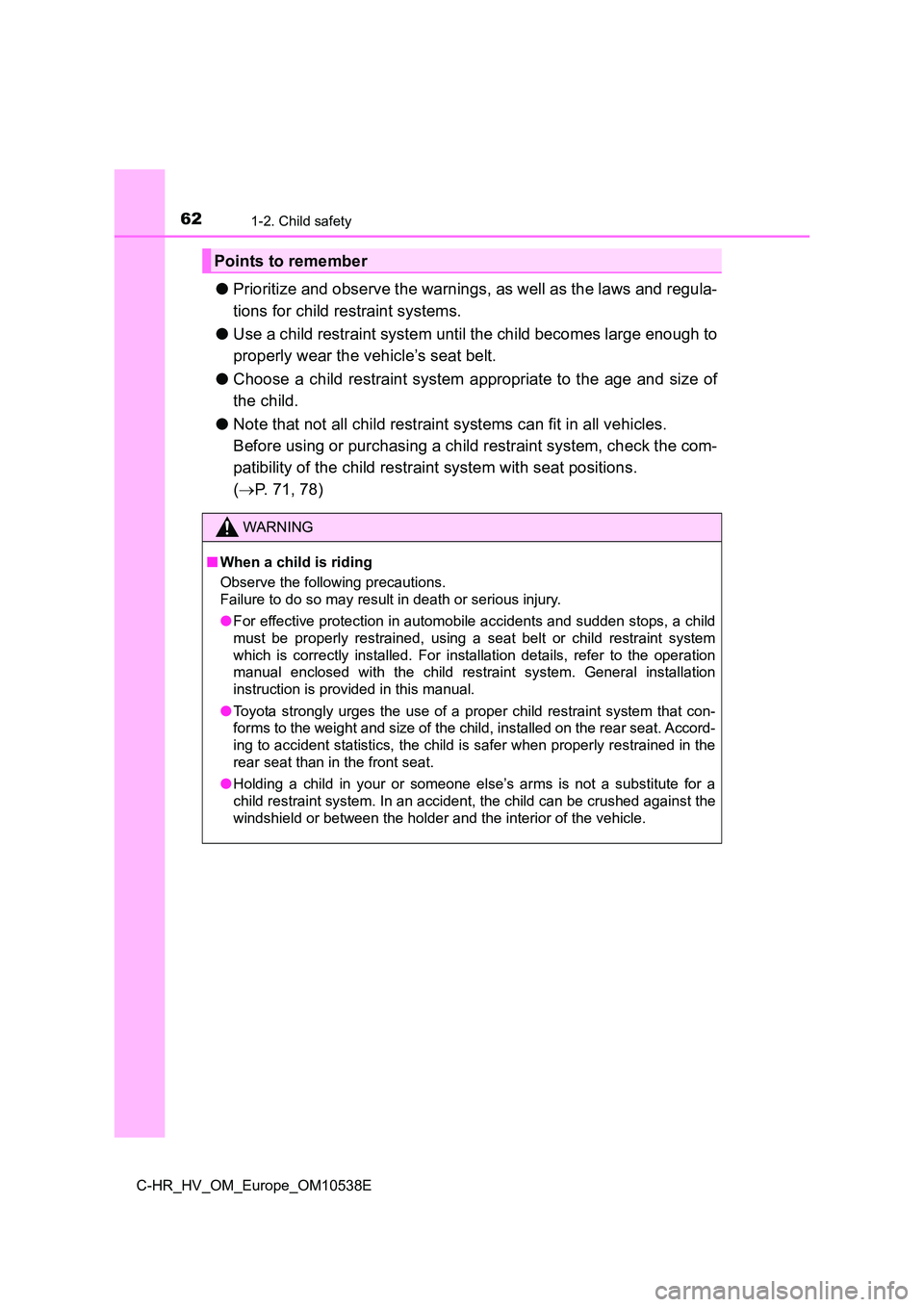

621-2. Child safety
C-HR_HV_OM_Europe_OM10538E
●Prioritize and observe the warnings, as well as the laws and regula-
tions for child restraint systems.
● Use a child restraint system until the child becomes large enough to
properly wear the vehicle’s seat belt.
● Choose a child restraint system appropriate to the age and size of
the child.
● Note that not all child restraint systems can fit in all vehicles.
Before using or purchasing a child restraint system, check the com-
patibility of the child restraint system with seat positions.
( P. 71, 78)
Points to remember
WARNING
■When a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
which is correctly installed. For inst allation details, refer to the operation
manual enclosed with the child restraint system. General installation
instruction is provided in this manual.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the weight and size of the child, installed on the rear seat. Accord-
ing to accident statistics, the child is safer when properly restrained in the
rear seat than in the front seat.
● Holding a child in your or someone else’s arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the
windshield or between the holder and the interior of the vehicle.

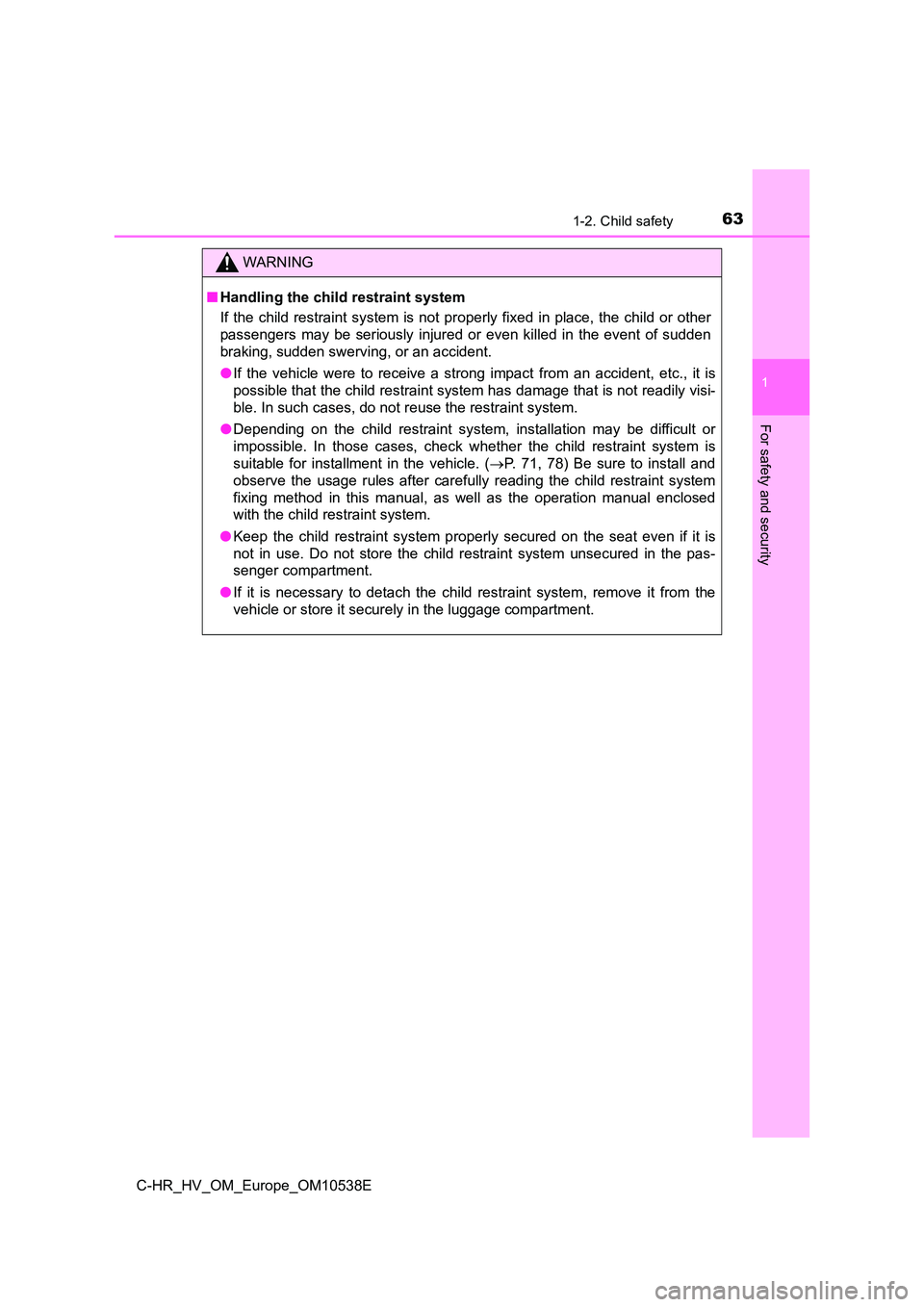

631-2. Child safety
1
For safety and security
C-HR_HV_OM_Europe_OM10538E
WARNING
■Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving, or an accident.
● If the vehicle were to receive a strong impact from an accident, etc., it is
possible that the child restraint system has damage that is not readily visi-
ble. In such cases, do not reuse the restraint system.
● Depending on the child restraint system, installation may be difficult or
impossible. In those cases, check whether the child restraint system is
suitable for installment in the vehicle. ( P. 71, 78) Be sure to install and
observe the usage rules after carefully reading the child restraint system
fixing method in this manual, as well as the operation manual enclosed
with the child restraint system.
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment.

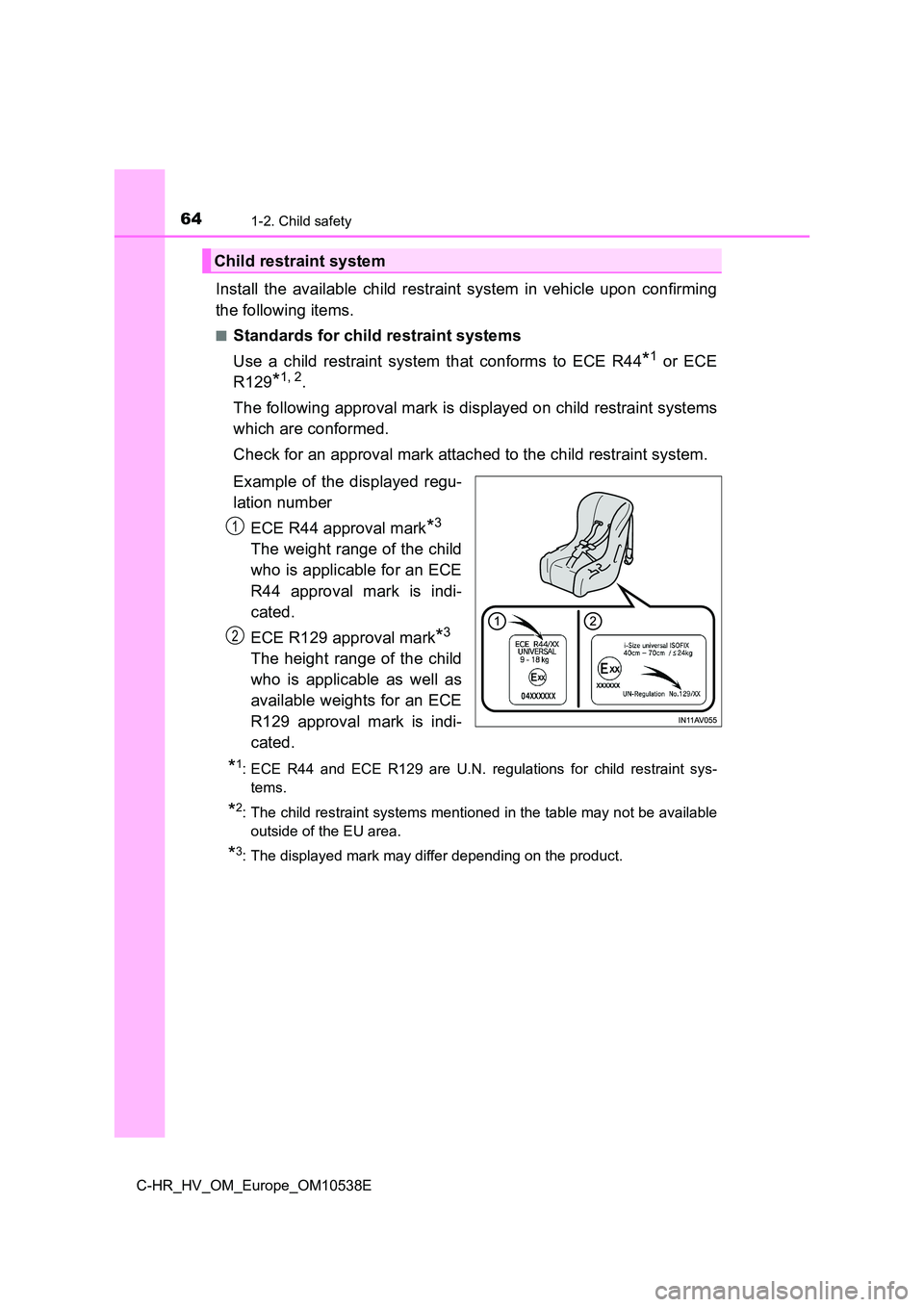

641-2. Child safety
C-HR_HV_OM_Europe_OM10538E
Install the available child restraint system in vehicle upon confirming
the following items.
■Standards for child restraint systems
Use a child restraint system that conforms to ECE R44*1 or ECE
R129*1, 2.
The following approval mark is displayed on child restraint systems
which are conformed.
Check for an approval mark attached to the child restraint system.
Example of the displayed regu-
lation number
ECE R44 approval mark*3
The weight range of the child
who is applicable for an ECE
R44 approval mark is indi-
cated.
ECE R129 approval mark*3
The height range of the child
who is applicable as well as
available weights for an ECE
R129 approval mark is indi-
cated.
*1: ECE R44 and ECE R129 are U.N. regulations for child restraint sys-
tems.
*2: The child restraint systems mentioned in the table may not be available
outside of the EU area.
*3: The displayed mark may differ depending on the product.
Child restraint system
1
2

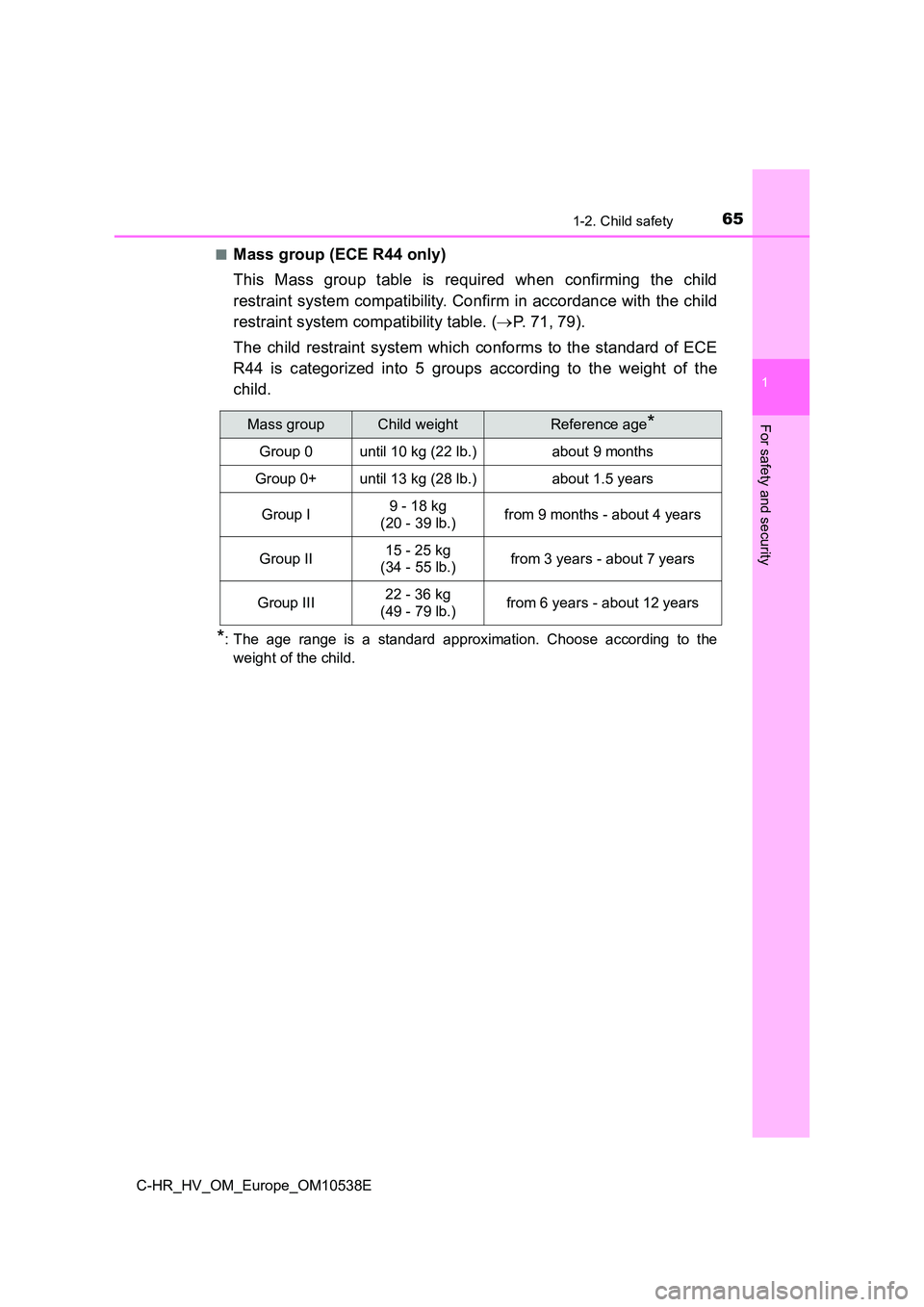

651-2. Child safety
1
For safety and security
C-HR_HV_OM_Europe_OM10538E
■Mass group (ECE R44 only)
This Mass group table is required when confirming the child
restraint system compatibility. Confirm in accordance with the child
restraint system compatibility table. ( P. 71,79).
The child restraint system which conforms to the standard of ECE
R44 is categorized into 5 groups according to the weight of the
child.
*: The age range is a standard approximation. Choose according to the
weight of the child.
Mass groupChild weightReference age*
Group 0until 10 kg (22 lb.)about 9 months
Group 0+until 13 kg (28 lb.)about 1.5 years
Group I9 - 18 kg
(20 - 39 lb.)from 9 months - about 4 years
Group II15 - 25 kg
(34 - 55 lb.)from 3 years - about 7 years
Group III22 - 36 kg
(49 - 79 lb.)from 6 years - about 12 years

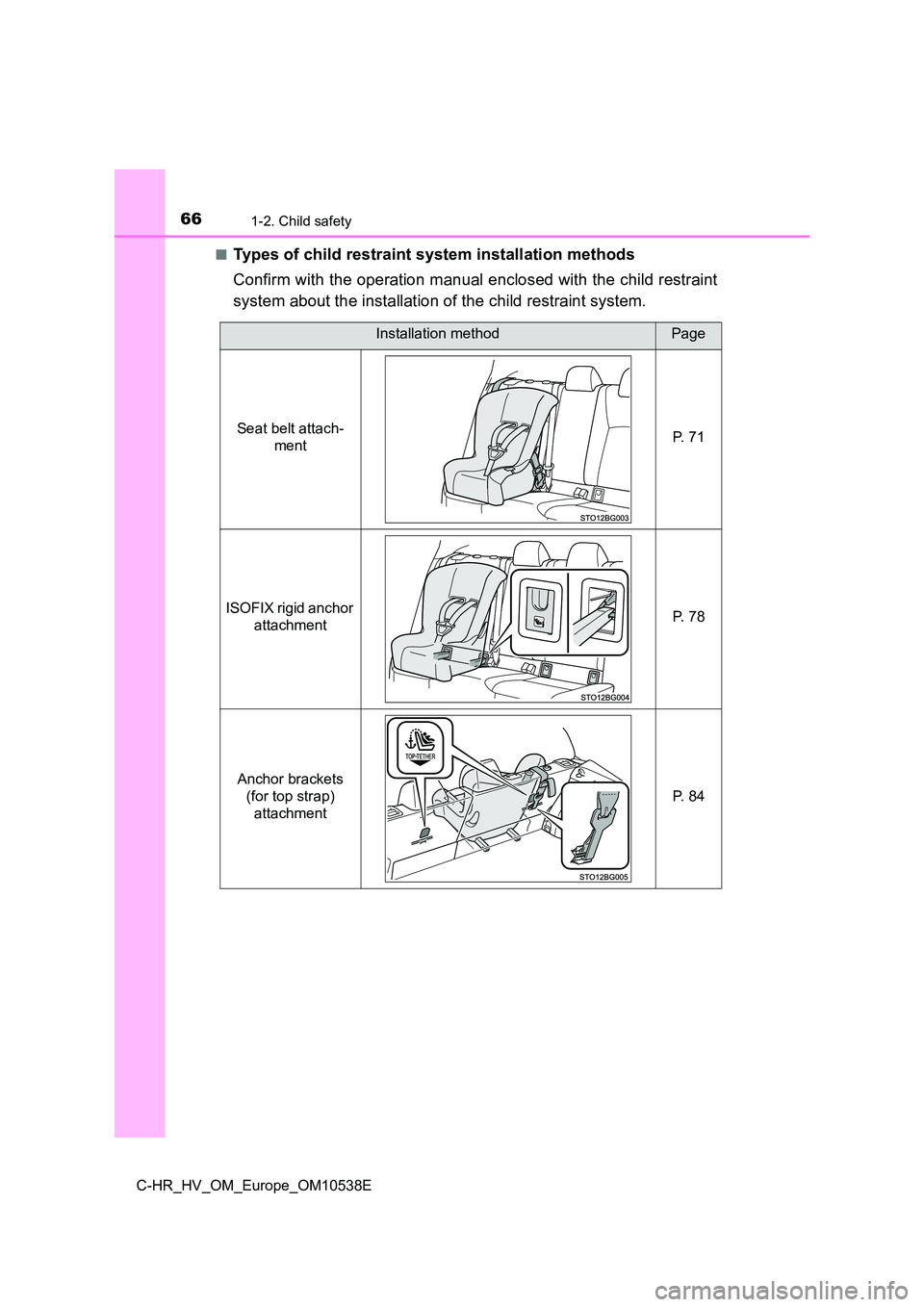

661-2. Child safety
C-HR_HV_OM_Europe_OM10538E
■Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.
Installation methodPage
Seat belt attach-
ment P. 7 1
ISOFIX rigid anchor
attachment P. 7 8
Anchor brackets
(for top strap)
attachment
P. 8 4

671-2. Child safety
1
For safety and security
C-HR_HV_OM_Europe_OM10538E
■When installing a child restraint system to a front passenger
seat
For the safety of a child, install a child restraint system to a rear
seat. When installing a child restraint system to a front passenger
seat is unavoidable, adjust the seat as follows and install the child
restraint system.
● Raise the seatback as much
as possible.
● Move the seat to the rear-
most position.
● If the head restraint interferes
with the child restraint sys-
tem installation and the head
restraint can be removed,
remove the head restraint.
When using a child restraint system
WARNING
■ When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Vehicles without an airbag manual on-
off switch:
Never use a rear-facing child restraint
system on the front passenger seat.
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.

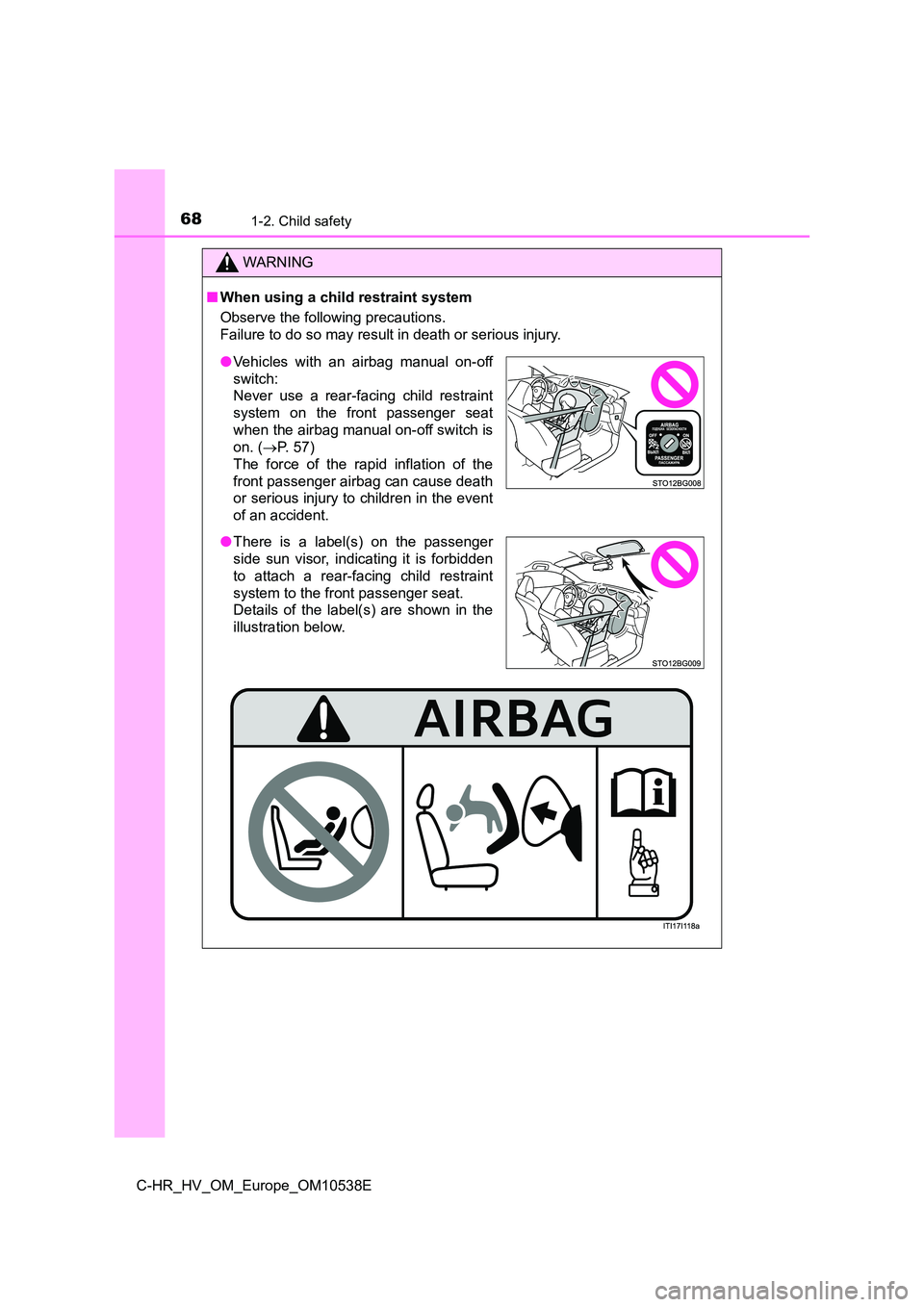

681-2. Child safety
C-HR_HV_OM_Europe_OM10538E
WARNING
■When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Vehicles with an airbag manual on-off
switch:
Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. ( P. 57)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
● There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.

691-2. Child safety
1
For safety and security
C-HR_HV_OM_Europe_OM10538E
WARNING
■When using a child restraint system
●Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).
● Do not allow the child to lean his/her
head or any part of his/her body against
the door or the area of the seat, front or
rear pillars, or roof side rails from which
the SRS side airbags or SRS curtain
shield airbags deploy even if the child is
seated in the child restraint system. It is
dangerous if the SRS side airbags and
curtain shield airbags inflate, and the
impact could cause death or serious
injury to the child.

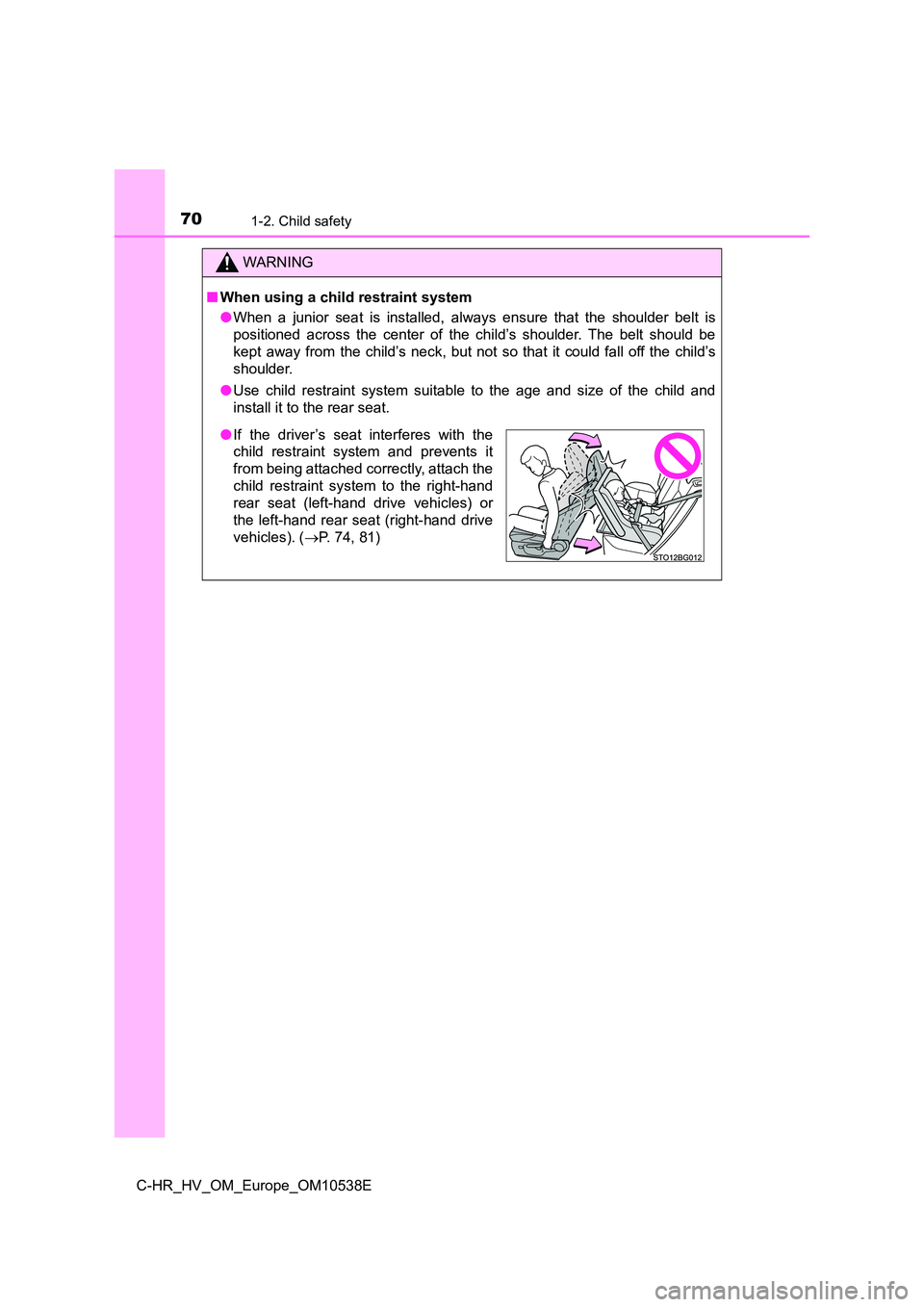

701-2. Child safety
C-HR_HV_OM_Europe_OM10538E
WARNING
■When using a child restraint system
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles). ( P. 74, 81)
