TOYOTA CAMRY 1999 Service Repair Manual

N21182
Webasto type:
DENSO type:21
1
2
Webasto type:
N21183
DENSO type:21
1
2
N21644
Within
10 to 60
seconds
± BODY ELECTRICALSLIDING ROOF SYSTEM
BE±75
2295 Author: Date:

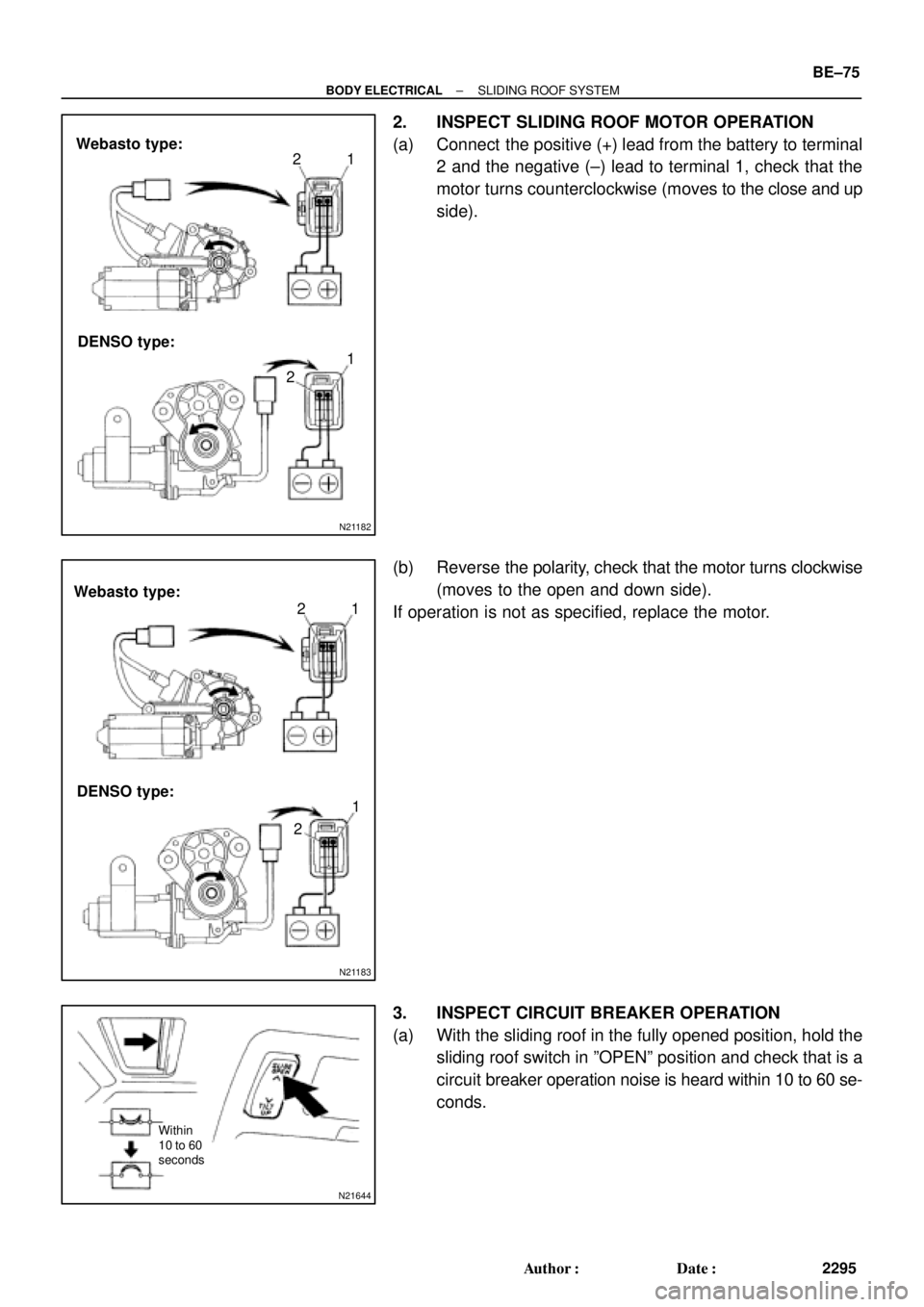

2. INSPECT SLIDING ROOF MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal
2 and the negative (±) lead to terminal 1, check that the
motor turns counterclockwise (moves to the close and up
side).
(b) Reverse the polarity, check that the motor turns clockwise
(moves to the open and down side).
If operation is not as specified, replace the motor.

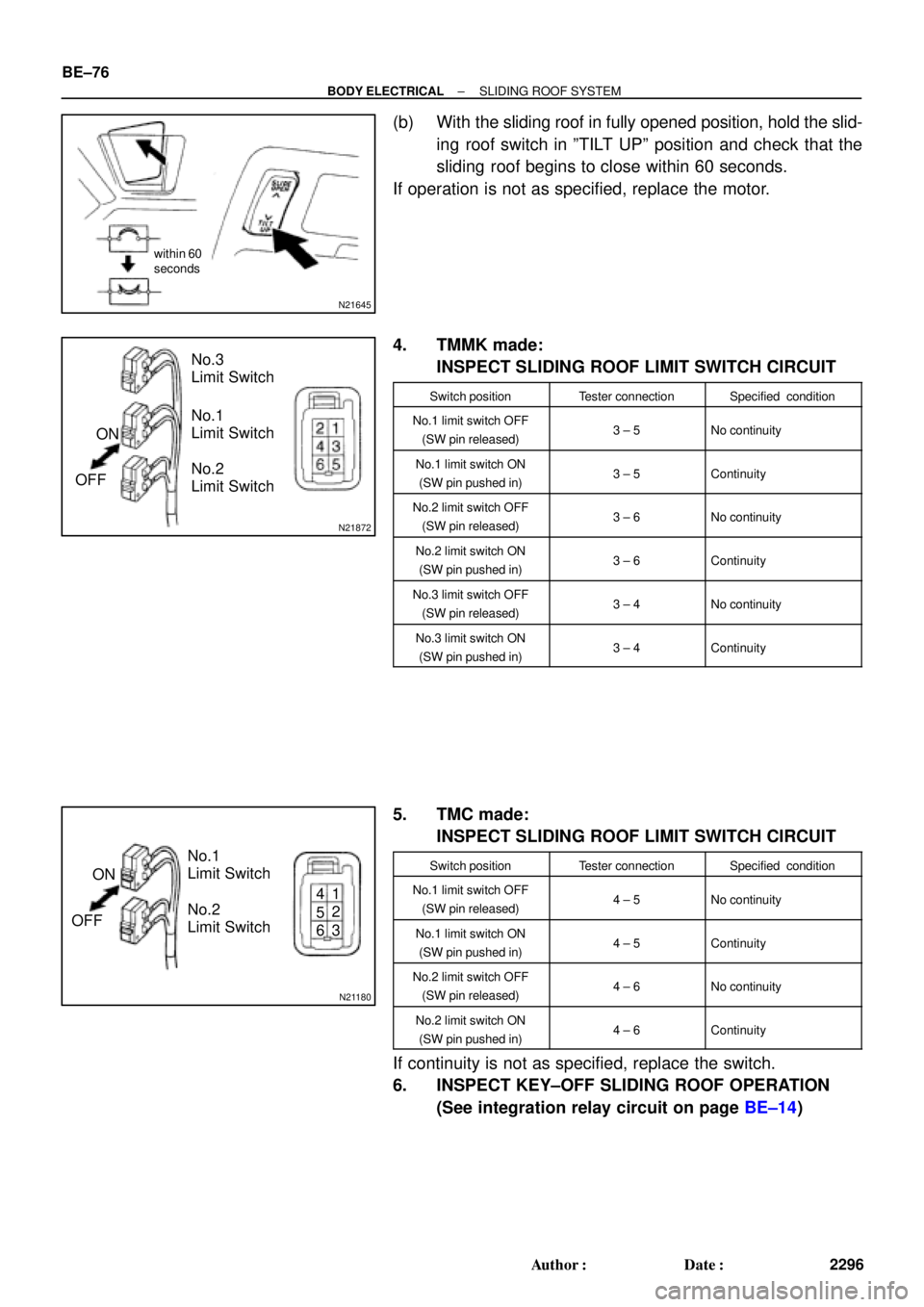

3. INSPECT CIRCUIT BREAKER OPERATION
(a) With the sliding roof in the fully opened position, hold the
sliding roof switch in ºOPENº position and check that is a
circuit breaker operation noise is heard within 10 to 60 se-
conds.

N21645
within 60
seconds
N21872
No.3
Limit Switch
No.1
Limit Switch
No.2
Limit Switch ON
OFF
N21180
No.1
Limit Switch
No.2
Limit Switch ON
OFF1
2
3 4
5
6 BE±76
± BODY ELECTRICALSLIDING ROOF SYSTEM
2296 Author: Date:
(b) With the sliding roof in fully opened position, hold the slid-
ing roof switch in ºTILT UPº position and check that the
sliding roof begins to close within 60 seconds.
If operation is not as specified, replace the motor.
4. TMMK made:
INSPECT SLIDING ROOF LIMIT SWITCH CIRCUIT
Switch positionTester connectionSpecified condition
No.1 limit switch OFF
(SW pin released)3 ± 5No continuity
No.1 limit switch ON
(SW pin pushed in)3 ± 5Continuity
No.2 limit switch OFF
(SW pin released)3 ± 6No continuity
No.2 limit switch ON
(SW pin pushed in)3 ± 6Continuity
No.3 limit switch OFF
(SW pin released)3 ± 4No continuity
No.3 limit switch ON
(SW pin pushed in)3 ± 4Continuity
5. TMC made:
INSPECT SLIDING ROOF LIMIT SWITCH CIRCUIT
Switch positionTester connectionSpecified condition
No.1 limit switch OFF
(SW pin released)4 ± 5No continuity
No.1 limit switch ON
(SW pin pushed in)4 ± 5Continuity
No.2 limit switch OFF
(SW pin released)4 ± 6No continuity
No.2 limit switch ON
(SW pin pushed in)4 ± 6Continuity
If continuity is not as specified, replace the switch.
6. INSPECT KEY±OFF SLIDING ROOF OPERATION
(See integration relay circuit on page BE±14)

BE0AT±02

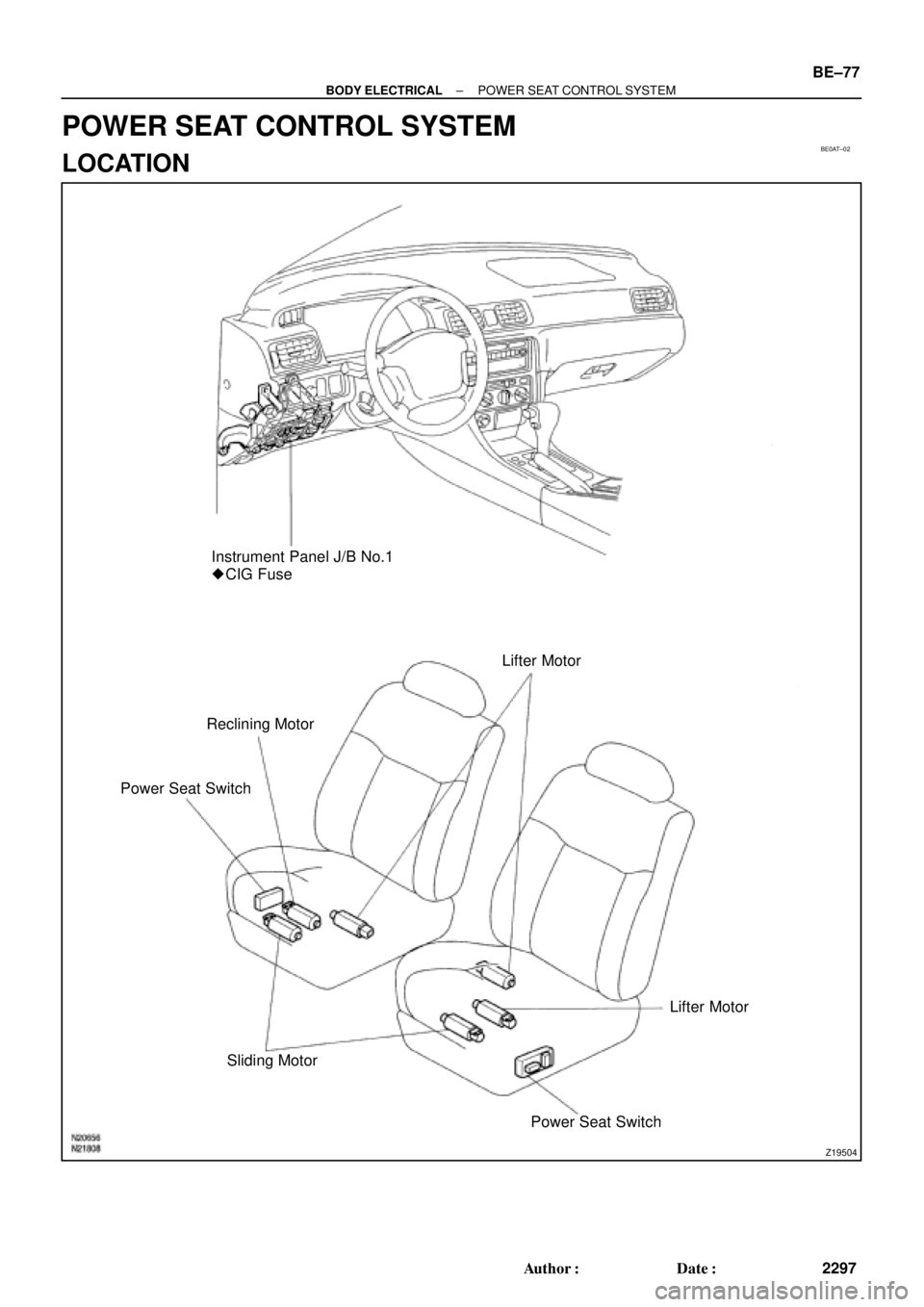

Z19504
Instrument Panel J/B No.1

CIG Fuse
Lifter Motor
Power Seat SwitchReclining Motor
Lifter Motor
Sliding Motor
Power Seat Switch
± BODY ELECTRICALPOWER SEAT CONTROL SYSTEM
BE±77
2297 Author: Date:

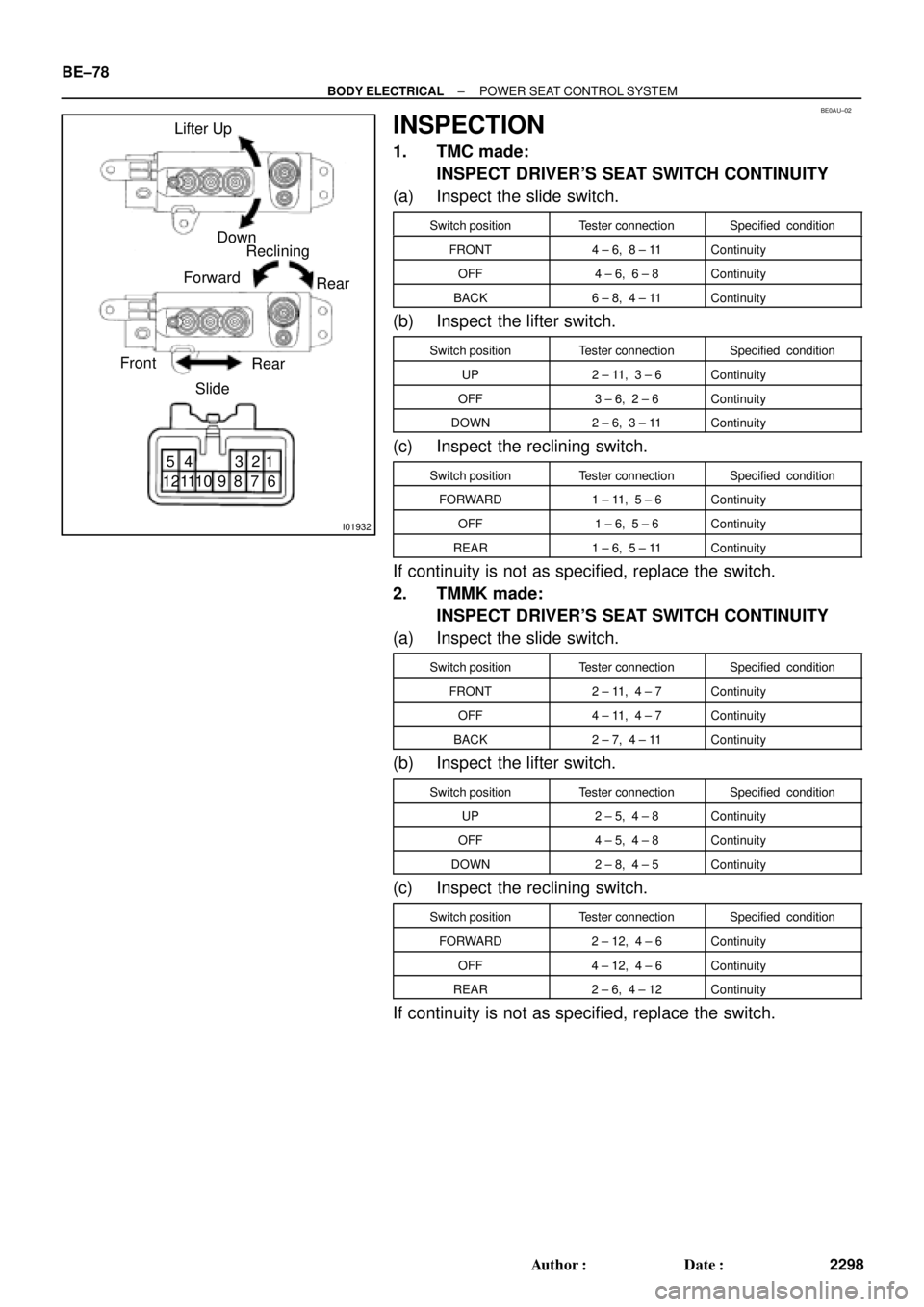

POWER SEAT CONTROL SYSTEM
LOCATION

BE0AU±02
I01932
Lifter Up
Down
Slide FrontRear Reclining
Forward
Rear
1 2 3 4 5
6 7 8 9 10 11 12 BE±78
± BODY ELECTRICALPOWER SEAT CONTROL SYSTEM
2298 Author: Date:
INSPECTION
1. TMC made:
INSPECT DRIVER'S SEAT SWITCH CONTINUITY
(a) Inspect the slide switch.
Switch positionTester connectionSpecified condition
FRONT4 ± 6, 8 ± 11Continuity
OFF4 ± 6, 6 ± 8Continuity
BACK6 ± 8, 4 ± 11Continuity
(b) Inspect the lifter switch.
Switch positionTester connectionSpecified condition
UP2 ± 11, 3 ± 6Continuity
OFF3 ± 6, 2 ± 6Continuity
DOWN2 ± 6, 3 ± 11Continuity
(c) Inspect the reclining switch.
Switch positionTester connectionSpecified condition
FORWARD1 ± 11, 5 ± 6Continuity
OFF1 ± 6, 5 ± 6Continuity
REAR1 ± 6, 5 ± 11Continuity
If continuity is not as specified, replace the switch.
2. TMMK made:
INSPECT DRIVER'S SEAT SWITCH CONTINUITY
(a) Inspect the slide switch.
Switch positionTester connectionSpecified condition
FRONT2 ± 11, 4 ± 7Continuity
OFF4 ± 11, 4 ± 7Continuity
BACK2 ± 7, 4 ± 11Continuity
(b) Inspect the lifter switch.
Switch positionTester connectionSpecified condition
UP2 ± 5, 4 ± 8Continuity
OFF4 ± 5, 4 ± 8Continuity
DOWN2 ± 8, 4 ± 5Continuity
(c) Inspect the reclining switch.
Switch positionTester connectionSpecified condition
FORWARD2 ± 12, 4 ± 6Continuity
OFF4 ± 12, 4 ± 6Continuity
REAR2 ± 6, 4 ± 12Continuity
If continuity is not as specified, replace the switch.

I01932
Lifter Up
Down
Slide FrontRear Reclining
Forward
Rear
1 2 3 4 5
6 7 8 9 10 11 12
N21865
(a)
(b)
1 21
2
± BODY ELECTRICALPOWER SEAT CONTROL SYSTEM
BE±79
2299 Author: Date:
3. TMC made:
INSPECT PASSENGER'S SEAT CONTINUITY
(a) Inspect the slide switch.
Switch positionTester connectionSpecified condition
FRONT4 ± 6, 8 ± 11Continuity
OFF4 ± 6, 6 ± 8Continuity
BACK6 ± 8, 4 ± 11Continuity
(b) Inspect the lifter switch.
Switch positionTester connectionSpecified condition
UP2 ± 6, 3 ± 11Continuity
OFF3 ± 6, 2 ± 6Continuity
DOWN3 ± 6, 2 ± 11Continuity
(c) Inspect the reclining switch.
Switch positionTester connectionSpecified condition
FORWARD5 ± 6, 1 ± 11Continuity
OFF1 ± 6, 5 ± 6Continuity
REAR1 ± 6, 5 ± 11Continuity
If continuity is not as specified, replace the switch.
4. TMMK made:
INSPECT PASSENGER'S SEAT CONTINUITY
(a) Inspect the slide switch.
Switch positionTester connectionSpecified condition
FRONT2 ± 11, 4 ± 7Continuity
OFF4 ± 11, 4 ± 7Continuity
BACK2 ± 7, 4 ± 11Continuity
(b) Inspect the lifter switch.
Switch positionTester connectionSpecified condition
UP2 ± 8, 4 ± 5Continuity
OFF4 ± 5, 4 ± 8Continuity
DOWN2 ± 5, 4 ± 8Continuity
(c) Inspect the reclining switch.
Switch positionTester connectionSpecified condition
FORWARD2 ± 12, 4 ± 6Continuity
OFF4 ± 12, 4 ± 6Continuity
REAR2 ± 6, 4 ± 12Continuity
If continuity is not as specified, replace the switch.
5. INSPECT SLIDE MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal
2 and the negative (±) lead to terminal 1, check that the
motor turns counterclockwise.
(b) Reverse the polarity, check that the motor turns clock-
wise.
If operation is not as specified, replace the seat adjuster.

N21866
1 2
N21867
1 2
N21865
(a)
(b)
1 21
2
N21868
1 2
N21869
1 2 BE±80
± BODY ELECTRICALPOWER SEAT CONTROL SYSTEM
2300 Author: Date:

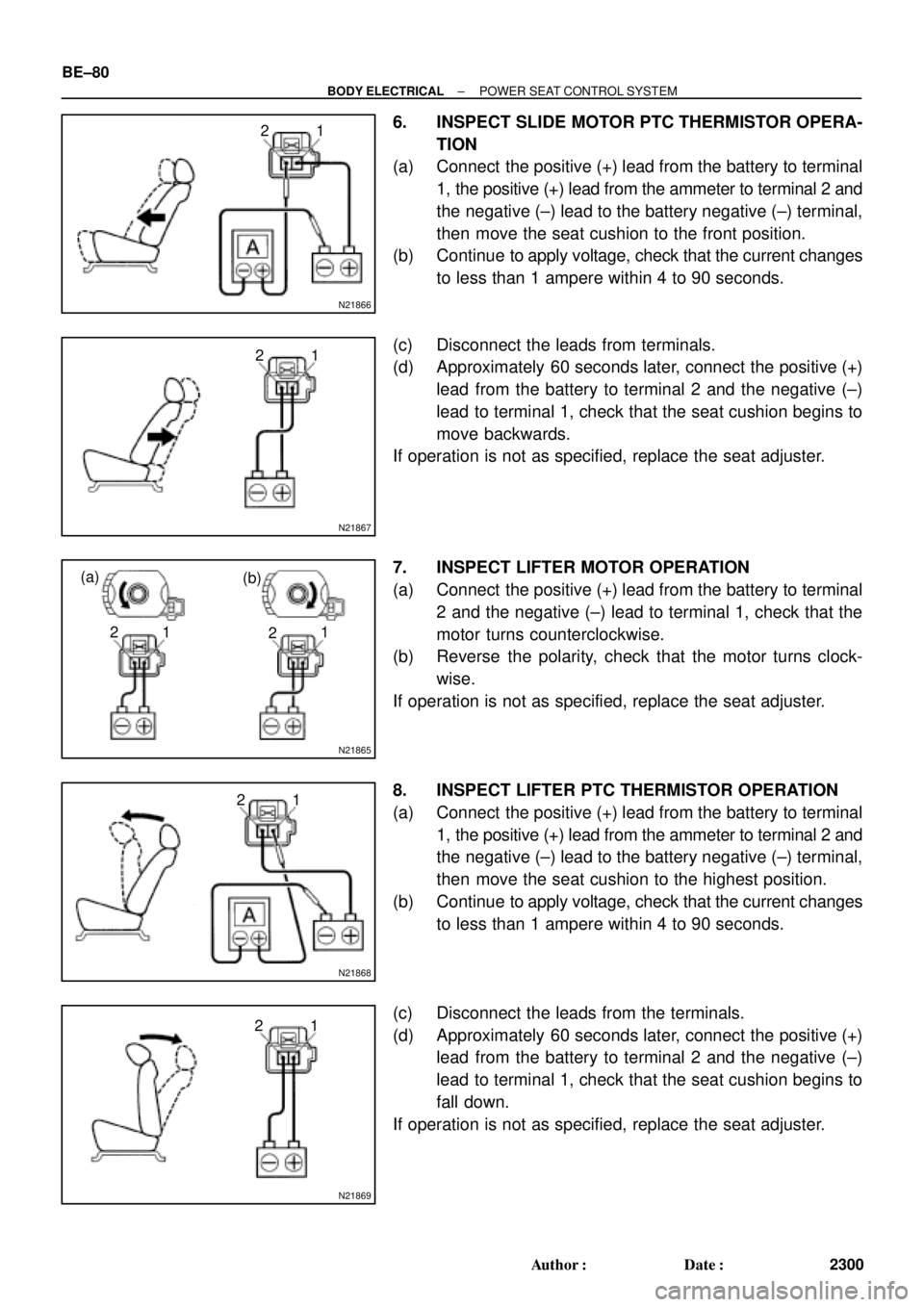

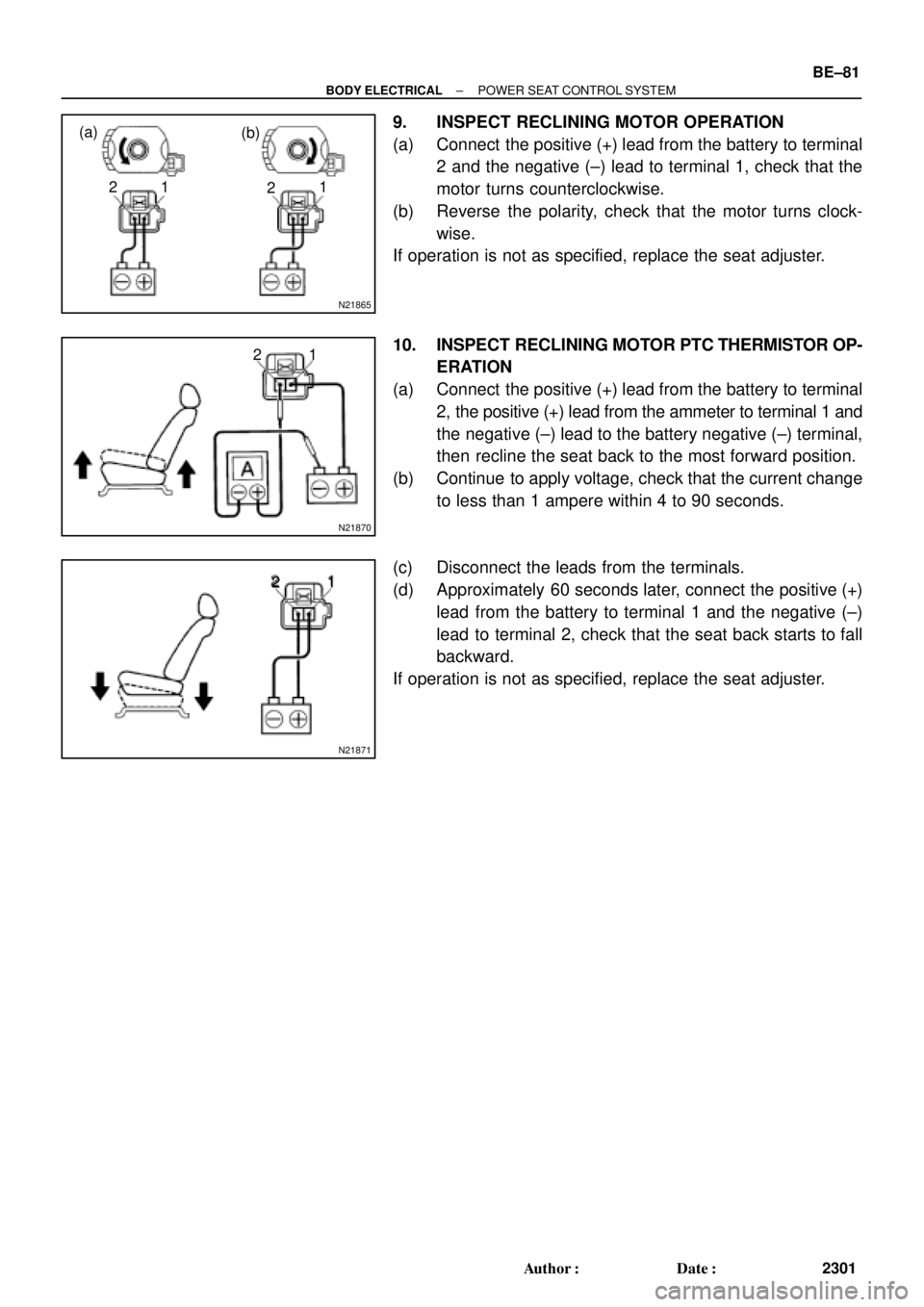

6. INSPECT SLIDE MOTOR PTC THERMISTOR OPERA-
TION
(a) Connect the positive (+) lead from the battery to terminal
1, the positive (+) lead from the ammeter to terminal 2 and
the negative (±) lead to the battery negative (±) terminal,
then move the seat cushion to the front position.
(b) Continue to apply voltage, check that the current changes
to less than 1 ampere within 4 to 90 seconds.
(c) Disconnect the leads from terminals.
(d) Approximately 60 seconds later, connect the positive (+)
lead from the battery to terminal 2 and the negative (±)
lead to terminal 1, check that the seat cushion begins to
move backwards.
If operation is not as specified, replace the seat adjuster.
7. INSPECT LIFTER MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal
2 and the negative (±) lead to terminal 1, check that the
motor turns counterclockwise.
(b) Reverse the polarity, check that the motor turns clock-
wise.
If operation is not as specified, replace the seat adjuster.
8. INSPECT LIFTER PTC THERMISTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal
1, the positive (+) lead from the ammeter to terminal 2 and
the negative (±) lead to the battery negative (±) terminal,
then move the seat cushion to the highest position.
(b) Continue to apply voltage, check that the current changes
to less than 1 ampere within 4 to 90 seconds.
(c) Disconnect the leads from the terminals.
(d) Approximately 60 seconds later, connect the positive (+)
lead from the battery to terminal 2 and the negative (±)
lead to terminal 1, check that the seat cushion begins to
fall down.
If operation is not as specified, replace the seat adjuster.

N21865
(a)
(b)
1 21
2
N21870
1 2
N21871
1 2
± BODY ELECTRICALPOWER SEAT CONTROL SYSTEM
BE±81
2301 Author: Date:
9. INSPECT RECLINING MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal
2 and the negative (±) lead to terminal 1, check that the
motor turns counterclockwise.
(b) Reverse the polarity, check that the motor turns clock-
wise.
If operation is not as specified, replace the seat adjuster.
10. INSPECT RECLINING MOTOR PTC THERMISTOR OP-
ERATION
(a) Connect the positive (+) lead from the battery to terminal
2, the positive (+) lead from the ammeter to terminal 1 and
the negative (±) lead to the battery negative (±) terminal,
then recline the seat back to the most forward position.
(b) Continue to apply voltage, check that the current change
to less than 1 ampere within 4 to 90 seconds.
(c) Disconnect the leads from the terminals.
(d) Approximately 60 seconds later, connect the positive (+)
lead from the battery to terminal 1 and the negative (±)
lead to terminal 2, check that the seat back starts to fall
backward.
If operation is not as specified, replace the seat adjuster.

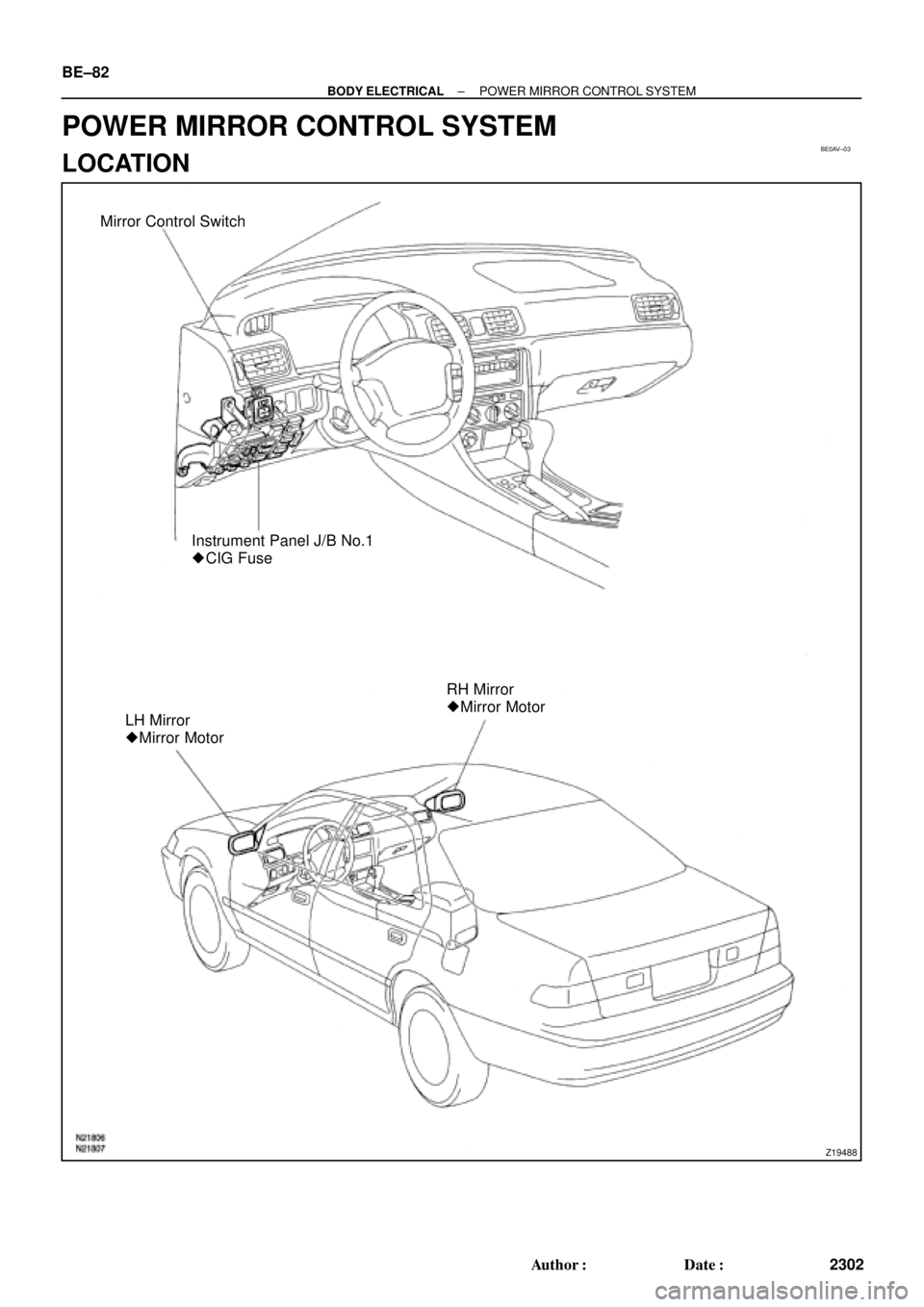

BE0AV±03
Z19488
Mirror Control Switch
Instrument Panel J/B No.1

CIG Fuse
LH Mirror

Mirror MotorRH Mirror

Mirror Motor BE±82
± BODY ELECTRICALPOWER MIRROR CONTROL SYSTEM
2302 Author: Date:

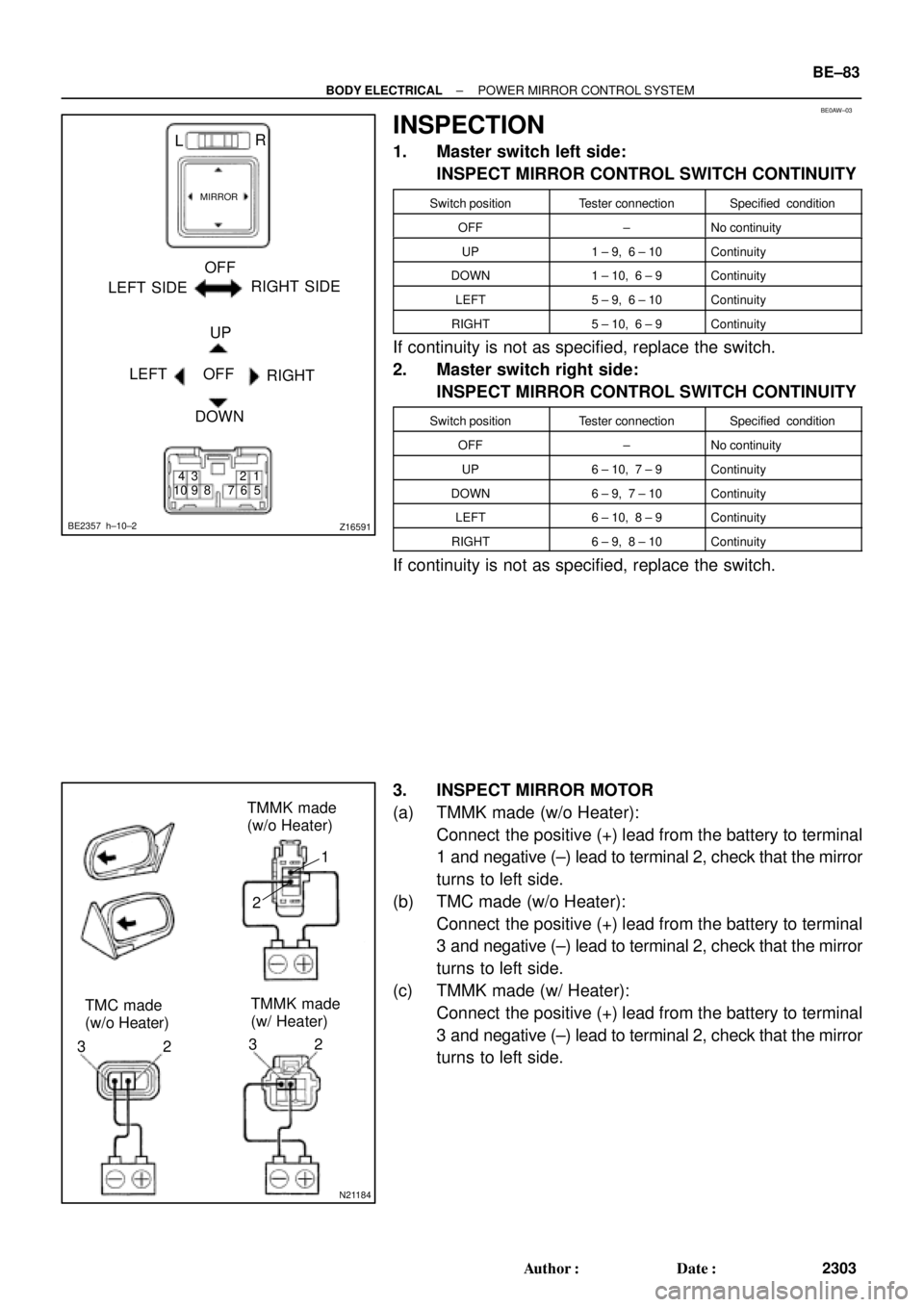

POWER MIRROR CONTROL SYSTEM
LOCATION

BE0AW±03
Z16591
LR
MIRROR
OFF
LEFT SIDERIGHT SIDE
UP
OFF LEFT
RIGHT
DOWN
1 2 3
7 8 4
10 9 5
BE2357 h±10±2
6
N21184
TMMK made
(w/o Heater)
TMC made
(w/o Heater)TMMK made
(w/ Heater)1
2
2 332
± BODY ELECTRICALPOWER MIRROR CONTROL SYSTEM
BE±83
2303 Author: Date:
INSPECTION
1. Master switch left side:
INSPECT MIRROR CONTROL SWITCH CONTINUITY
Switch positionTester connectionSpecified condition
OFF±No continuity
UP1 ± 9, 6 ± 10Continuity
DOWN1 ± 10, 6 ± 9Continuity
LEFT5 ± 9, 6 ± 10Continuity
RIGHT5 ± 10, 6 ± 9Continuity
If continuity is not as specified, replace the switch.
2. Master switch right side:
INSPECT MIRROR CONTROL SWITCH CONTINUITY
Switch positionTester connectionSpecified condition
OFF±No continuity
UP6 ± 10, 7 ± 9Continuity
DOWN6 ± 9, 7 ± 10Continuity
LEFT6 ± 10, 8 ± 9Continuity
RIGHT6 ± 9, 8 ± 10Continuity
If continuity is not as specified, replace the switch.
3. INSPECT MIRROR MOTOR
(a) TMMK made (w/o Heater):
Connect the positive (+) lead from the battery to terminal
1 and negative (±) lead to terminal 2, check that the mirror
turns to left side.
(b) TMC made (w/o Heater):
Connect the positive (+) lead from the battery to terminal
3 and negative (±) lead to terminal 2, check that the mirror
turns to left side.
(c) TMMK made (w/ Heater):
Connect the positive (+) lead from the battery to terminal
3 and negative (±) lead to terminal 2, check that the mirror
turns to left side.

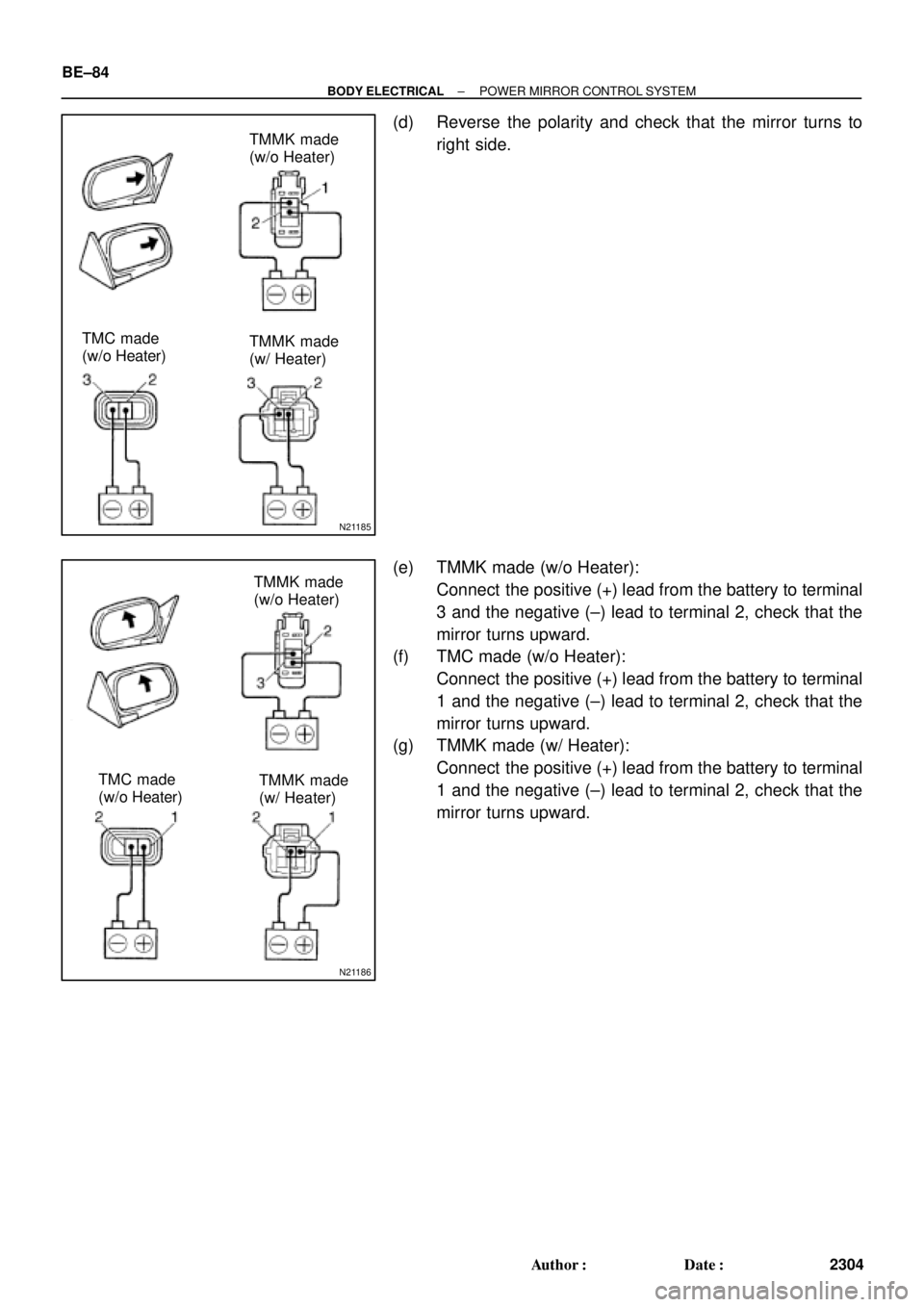

N21185
TMMK made
(w/o Heater)
TMC made
(w/o Heater)TMMK made
(w/ Heater)
N21186
TMMK made
(w/o Heater)
TMC made
(w/o Heater)TMMK made
(w/ Heater) BE±84
± BODY ELECTRICALPOWER MIRROR CONTROL SYSTEM
2304 Author: Date:
(d) Reverse the polarity and check that the mirror turns to
right side.
(e) TMMK made (w/o Heater):
Connect the positive (+) lead from the battery to terminal
3 and the negative (±) lead to terminal 2, check that the
mirror turns upward.
(f) TMC made (w/o Heater):
Connect the positive (+) lead from the battery to terminal
1 and the negative (±) lead to terminal 2, check that the
mirror turns upward.
(g) TMMK made (w/ Heater):
Connect the positive (+) lead from the battery to terminal
1 and the negative (±) lead to terminal 2, check that the
mirror turns upward.
