TOYOTA CAMRY 2000 Service Repair Manual

B06394
Type B

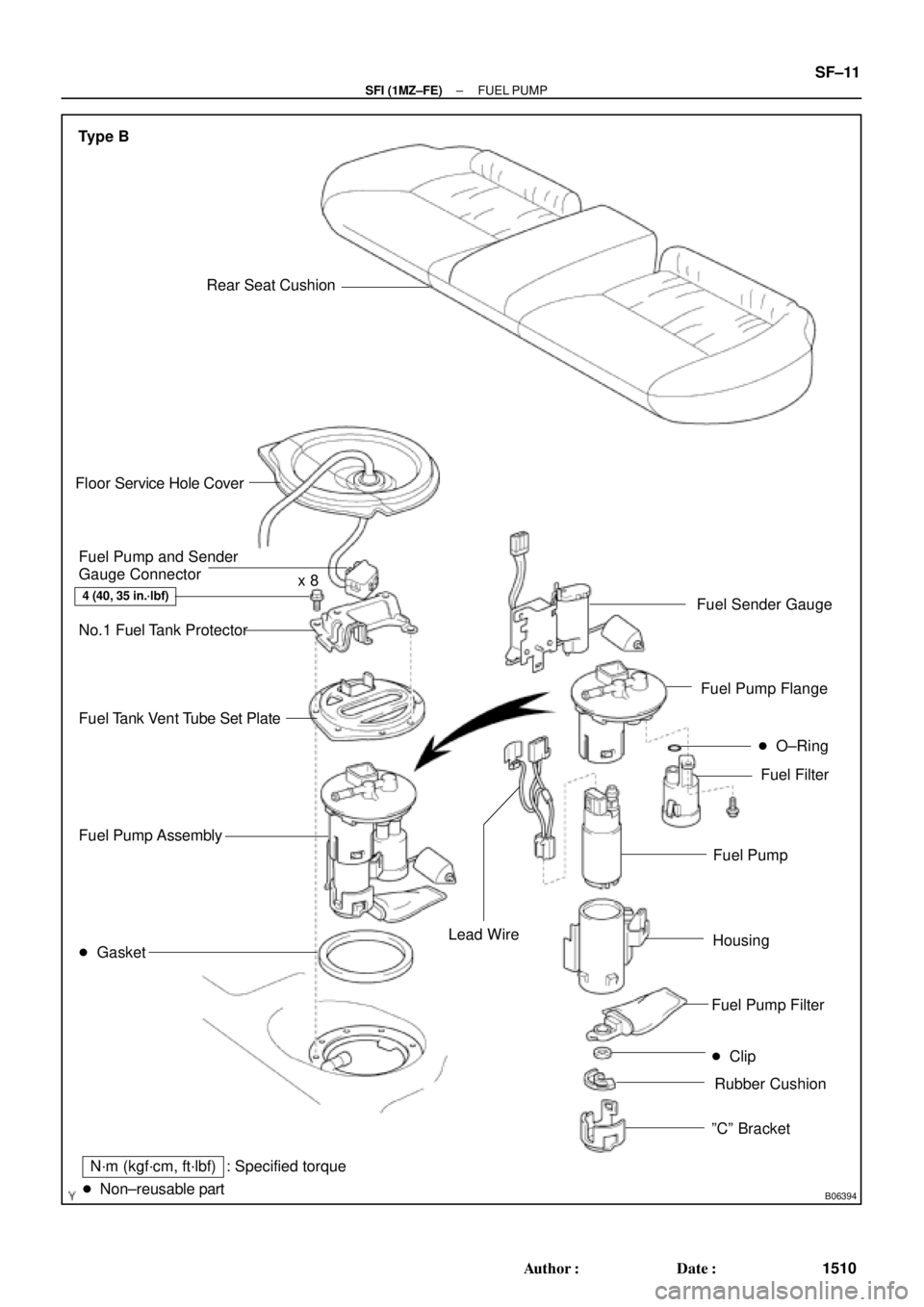

Rear Seat Cushion

Gasket
4 (40, 35 in.´lbf)
Floor Service Hole Cover
Fuel Pump and Sender
Gauge Connector
No.1 Fuel Tank Protector
Fuel Tank Vent Tube Set Plate
N´m (kgf´cm, ft´lbf) : Specified torque Fuel Pump Assemblyx 8

Clip
Rubber Cushion Fuel Pump FilterFuel Pump
HousingFuel Filter
ºCº Bracket

O±Ring
Fuel Sender Gauge
Fuel Pump Flange
Lead Wire

Non±reusable part
± SFI (1MZ±FE)FUEL PUMP
SF±11
1510 Author: Date:

SF07B±04
S04583
S04592
Vinyl Bag SF±12
± SFI (1MZ±FE)FUEL PUMP
1511 Author: Date:
REMOVAL
CAUTION:
Do not smoke or work near an open flame when working on
the fuel pump.
1. REMOVE REAR SEAT CUSHION
2. REMOVE FLOOR SERVICE HOLE COVER
(a) Take out the floor carpet.
(b) Remove the service hole cover.
HINT:
At the time of installation, plaese refer to the following items.
Check for fuel leakage.
3. DISCONNECT FUEL PUMP & SENDER GAUGE
CONNECTOR
4. REMOVE NO.1 FUEL TANK PROTECTOR
Remove the 2 bolts and No.1 fuel tank protector.
Torque: 4 N´m (40 kgf´cm, 35 in.´lbf)
5. DISCONNECT FUEL TUBE (FUEL TUBE CONNEC-
TOR)
CAUTION:

Perform disconnecting and connecting operations of
the fuel tube connector (quick type) after observing
the precautions. (See page SF±1)

As there is retained pressure in the fuel pipe line, pre-
vent it from splashing inside the vehicle compart-
ment.
6. REMOVE FUEL PUMP ASSEMBLY FROM FUEL TANK
(a) Remove the 6 bolts and fuel tank vent tube set plate.
Torque: 4 N´m (40 kgf´cm, 35 in.´lbf)
(b) Pull out the fuel pump assembly.
(c) Remove the gasket from the pump assembly.
NOTICE:

Do not damage the fuel pump filter.

Be careful that the arm of the sender gauge should
not bent.
HINT:
At the time of installation, plaese refer to the following items.
Install a new gasket to the pump assembly.

SF07C±03
S06028
Type B
S04603Pull Type A
S06033
PushA Type B
S06050
Type B
S06030
(2)(1)(3) Type B
± SFI (1MZ±FE)FUEL PUMP
SF±13
1512 Author: Date:
DISASSEMBLY
1. DISCONNECT FUEL PUMP CONNECTOR
2. TYPE B:
DISCONNECT GROUND PLATE
3. TYPE B:
DISCONNECT FUEL SENDER GAUGE CONNECTOR
4. Type A:
REMOVE FUEL PUMP FROM FUEL PUMP BRACKET
(a) Pull off the lower side of the fuel pump from the pump
bracket.
(b) Disconnect the fuel hose from the fuel pump, and remove
the fuel pump.
(c) Remove the rubber cushion from the fuel pump.
5. Type B:
REMOVE FUEL SENDER GAUGE
Push down the portion of A with a finger, and push up the send-
er gauge.
NOTICE:
Be careful that the arm of the sender gauge should not
bent.
6. Type B:
REMOVE FUEL FILTER
(a) Remove the screw, and pull out the fuel filter.
(b) Remove the O±ring from the fuel filter.
HINT:
At the time of installation, please refer to the following items.
Install the pump filter with a new clip.
7. TYPE B:
REMOVE FUEL PUMP FLANGE
Using a screwdriver, remove the snap fit portion in the order of
1, 2 and 3 as shown in the illustration.
HINT:
At the time of installation, please refer to the following items. Ap-
ply a light coat of gasoline to a new O±ring, and install it to the
fuel filter.

S06027
Type B
S06029
(1)(3)
(2)
Type B
FI6376
SF±14
± SFI (1MZ±FE)FUEL PUMP
1513 Author: Date:
8. Type B:
REMOVE FUEL PUMP LEAD WIRE
9. Type B:
REMOVE ºCº BRACKET, RUBBER CUSHION AND
FUEL PUMP
Using a screwdriver, remove the snap fit portion in the order of
1, 2 and 3 as shown in the illustration.
10. REMOVE FUEL PUMP FILTER FROM FUEL PUMP
(a) Using a small screwdriver, remove the clip.
(b) Pull out the pump filter.
HINT:
At the time of installation, please refer to the following items.
Install the pump filter with a new clip.

SF07D±01
± SFI (1MZ±FE)FUEL PUMP
SF±15
1514 Author: Date:
REASSEMBLY
Reassembly is in the reverse order of disassembly. (See page SF±13)

SF07E±01
SF±16
± SFI (1MZ±FE)FUEL PUMP
1515 Author: Date:
INSTALLATION
Installation is in the reverse order of removal. (See page SF±12)

SF07F±03
B06392

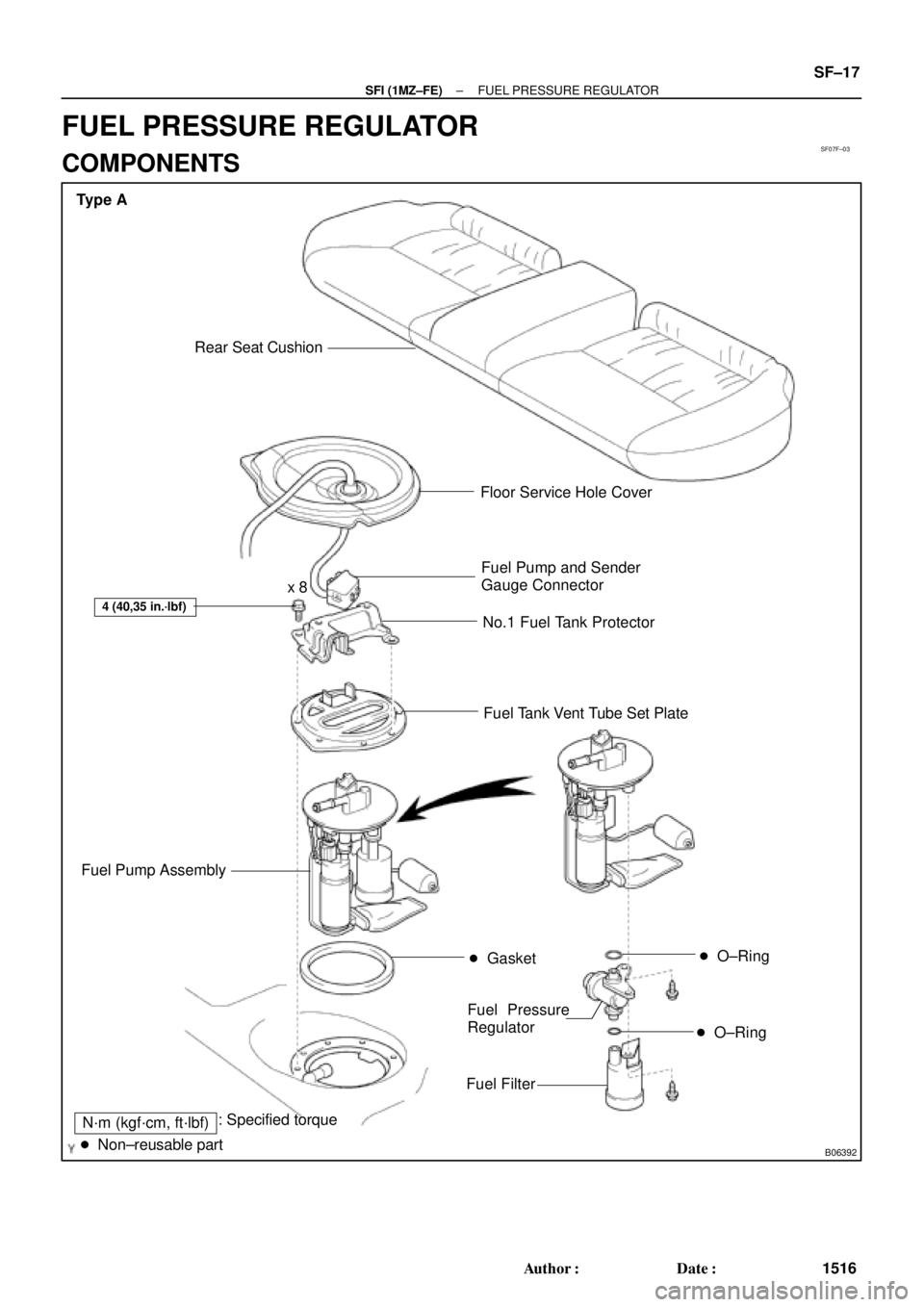

Type A
Rear Seat Cushion
Floor Service Hole Cover
Fuel Pump and Sender
Gauge Connector
No.1 Fuel Tank Protector
Fuel Tank Vent Tube Set Plate
Fuel Pressure
Regulator
Fuel Filter Fuel Pump Assembly

Gasket
N´m (kgf´cm, ft´lbf)
O±Ring
O±Ring

Non±reusable part: Specified torque
4 (40,35 in.´lbf)
x 8
± SFI (1MZ±FE)FUEL PRESSURE REGULATOR
SF±17
1516 Author: Date:
FUEL PRESSURE REGULATOR
COMPONENTS

B06393

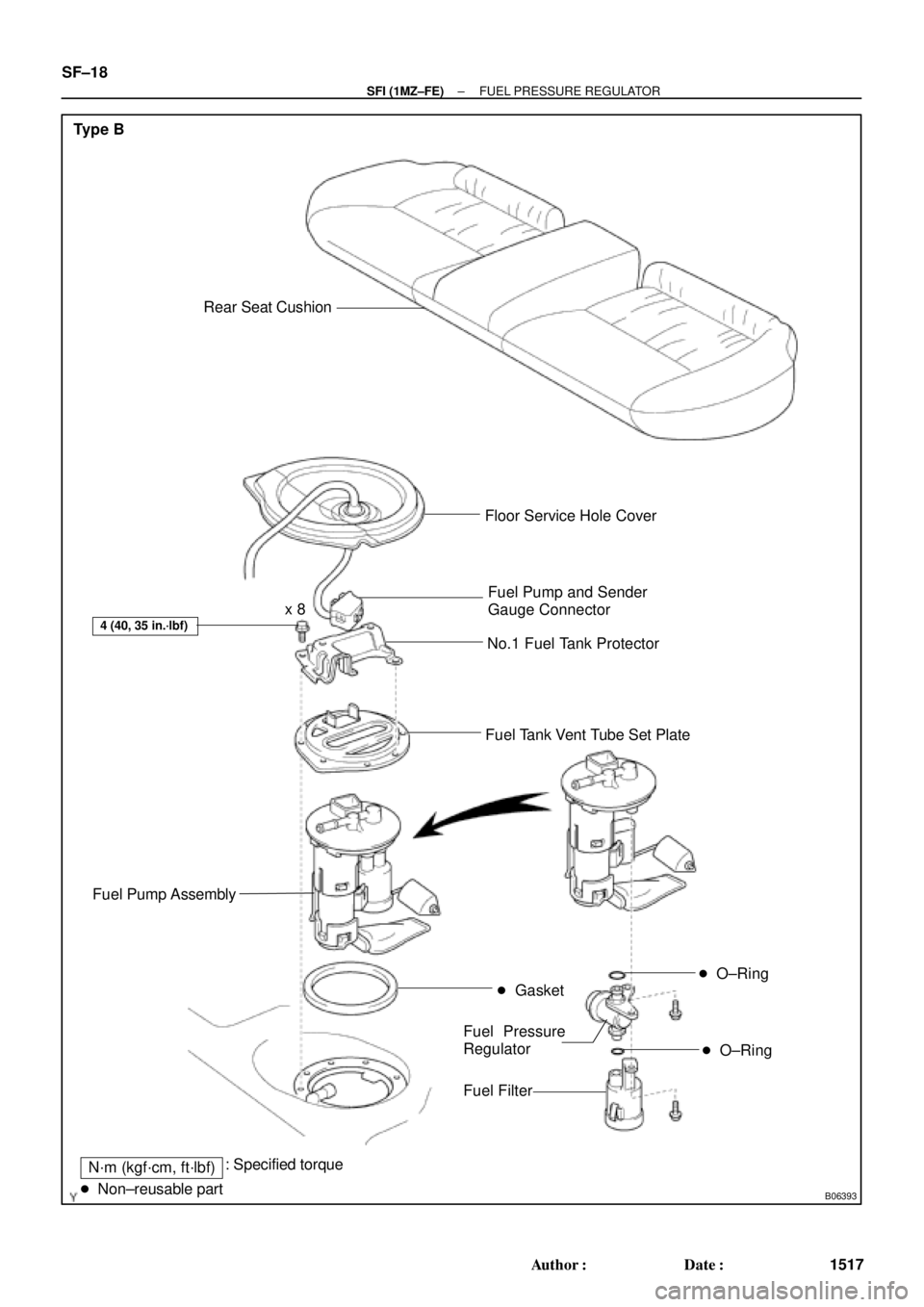

Type B
Rear Seat Cushion
Floor Service Hole Cover
Fuel Pump and Sender
Gauge Connector
No.1 Fuel Tank Protector
Fuel Tank Vent Tube Set Plate
Fuel Pressure
Regulator
Fuel Filter Fuel Pump Assembly

Gasket
N´m (kgf´cm, ft´lbf)
O±Ring
O±Ring

Non±reusable part: Specified torque
4 (40, 35 in.´lbf)x 8
SF±18
± SFI (1MZ±FE)FUEL PRESSURE REGULATOR
1517 Author: Date:

SF07G±03
S04591
S04590
± SFI (1MZ±FE)FUEL PRESSURE REGULATOR
SF±19
1518 Author: Date:
REMOVAL
1. REMOVE FUEL PUMP ASSEMBLY FROM FUEL TANK
(See page SF±12)
2. REMOVE FUEL FILTER
(a) Remove the screw, and pull out the fuel filter.
Torque: 2.0 N´m (20 kgf´cm, 17 in.´lbf)
(b) Remove the O±ring from the fuel filter.
HINT:
At the time of installation, please refer to the following items.
Apply a light coat of gasoline to a new O±ring, and install it to
the fuel filter.
3. REMOVE FUEL PRESSURE REGULATOR
(a) Remove the screw, and pull out the pressure regulator.
Torque: 2.0 N´m (20 kgf´cm, 17 in.´lbf)
(b) Remove the O±ring from the pressure regulator.
HINT:
At the time of installation, please refer to the following items.
Apply a light coat of gasoline to a new O±ring, and install it to
the pressure regulator.

SF07H±01
SF±20
± SFI (1MZ±FE)FUEL PRESSURE REGULATOR
1519 Author: Date:
INSTALLATION
Installation is in the reverse order of removal. (See page SF±19)
