TOYOTA CAMRY 2000 Service Repair Manual

SF0DU±03
B01276
Except California
± SFI (5S±FE)IDLE AIR CONTROL (IAC) VALVE
SF±37
1470 Author: Date:
REMOVAL
1. REMOVE THROTTLE BODY (See page SF±32)
2. REMOVE IAC VALVE
Remove the 4 screws, IAC valve and gasket.

SF0DV±03
S01477
Battery
ClosedISCC
+B
S01478
Battery
Open
ISCO +B SF±38
± SFI (5S±FE)IDLE AIR CONTROL (IAC) VALVE
1471 Author: Date:
INSPECTION
INSPECT IAC VALVE OPERATION
(a) Connect the positive (+) lead from the battery to terminal
+B and negative (±) lead to terminal ISCC, and check that
the valve is closed.
(b) Connect the positive (+) lead from the battery to terminal
+B and negative (±) lead to terminal ISCO, and check that
the valve is open.
If operation is not as specified, replace the IAC valve.

SF0DW±03
B01275
New
Gasket
± SFI (5S±FE)IDLE AIR CONTROL (IAC) VALVE
SF±39
1472 Author: Date:
INSTALLATION
1. INSTALL IAC VALVE
(a) Place a new gasket on the throttle body.
(b) Install the IAC valve with the 4 screws.
2. INSTALL THROTTLE BODY (See page SF±34)

S05392
EFI Main
Relay
SF0DX±03
S04970
Continuity
No ContinuityOhmmeter
2
35 Ohmmeter
1
S04969ContinuityOhmmeter 2
35 1
Battery SF±40
± SFI (5S±FE)EFI MAIN RELAY
1473 Author: Date:
EFI MAIN RELAY
INSPECTION
1. REMOVE RELAY BOX COVER
2. REMOVE EFI MAIN RELAY (Marking: EFI)
3. INSPECT EFI MAIN RELAY
(a) Inspect the relay continuity.
(1) Using an ohmmeter, check that there is continuity
between terminals 1 and 2.
If there is no continuity, replace the relay.
(2) Check that there is no continuity between terminals
3 and 5.
If there is continuity, replace the relay.
(b) Inspect the relay operation.
(1) Apply battery positive voltage across terminals 1
and 2.
(2) Using an ohmmeter, check that there is continuity
between terminals 3 and 5.
If there is no continuity, replace the relay.
4. REINSTALL EFI MAIN RELAY
5. REINSTALL RELAY BOX COVER

S05389
Circuit Opening
RelaySF0DY±03
S04970
Continuity
Ohmmeter
1
35 2Ohmmeter
No Continuity
S04969ContinuityOhmmeter
1
35 2
Battery
± SFI (5S±FE)CIRCUIT OPENING RELAY
SF±41
1474 Author: Date:
CIRCUIT OPENING RELAY
INSPECTION
1. REMOVE RELAY BOX COVER
2. REMOVE CIRCUIT OPENING RELAY (Marking: CIR
OPN)
3. INSPECT CIRCUIT OPENING RELAY
(a) Inspect the relay continuity.
(1) Using an ohmmeter, check that there is continuity
between terminals 1 and 2.
If there is no continuity, replace the relay.
(2) Check that there is no continuity between terminals
3 and 5.
If there is continuity, replace the relay.
(b) Inspect the relay operation.
(1) Apply battery positive voltage across terminals 1
and 2.
(2) Using an ohmmeter, check that there is continuity
between terminals 3 and 5.
If there is no continuity, replace the relay.
4. REINSTALL CIRCUIT OPENING RELAY
5. REINSTALL RELAY BOX COVER

SF0DZ±03
B06348
VSV Connector for EGR
Vacuum Hose
VSV for EGR
SF±42
± SFI (5S±FE)VSV FOR EXHAUST GAS RECIRCULATION (EGR)
1475 Author: Date:
VSV FOR EXHAUST GAS RECIRCULATION (EGR)
COMPONENTS

SF0E0±03
S05259
Ohmmeter
Continuity
S05260
Ohmmeter
No Continuity
S05261
Air
E
G
S05262
BatteryAir
E
Filter
± SFI (5S±FE)VSV FOR EXHAUST GAS RECIRCULATION (EGR)
SF±43
1476 Author: Date:
INSPECTION
1. REMOVE VSV
2. INSPECT VSV
(a) Inspect the VSV for open circuit.
Using an ohmmeter, check that there is continuity be-
tween the terminals.
Resistance: 33 ± 39 W at 20°C (68°F)
If there is no continuity, replace the VSV.
(b) Inspect the VSV for ground.
Using an ohmmeter, check that there is no continuity be-
tween each terminal and the body.
If there is continuity, replace the VSV.
(c) Inspect the VSV operation.
(1) Check that air flows from ports E to G.
(2) Apply battery positive voltage across the terminals.
(3) Check that air flows from port E to filter.
If operation is not as specified, replace the VSV.
3. REINSTALL VSV

SF0E1±03
S05276
VSV for EVAP
VSV Connector
for EVAP
EVAP Hose SF±44
± SFI (5S±FE)VSV FOR EVAPORATIVE EMISSION (EVAP)
1477 Author: Date:
VSV FOR EVAPORATIVE EMISSION (EVAP)
COMPONENTS

SF0E2±03
S05263
Ohmmeter
Continuity
S05264
Ohmmeter
No Continuity
S05265
Air
EF
S05266
BatteryAir
EF
± SFI (5S±FE)VSV FOR EVAPORATIVE EMISSION (EVAP)
SF±45
1478 Author: Date:
INSPECTION
1. REMOVE VSV
2. INSPECT VSV
(a) Inspect the VSV for open circuit.
Using an ohmmeter, check that there is continuity be-
tween the terminals.
Resistance: 30 ± 34 W at 20°C (68°F)
If there is no continuity, replace the VSV.
(b) Inspect the VSV for ground.
Using an ohmmeter, check that there is no continuity be-
tween each terminal and the body.
If there is continuity, replace the VSV.
(c) Inspect the VSV operation.
(1) Check that air dose not flow from ports E to F.
NOTICE:
Never apply more than 93 kPa (0.95 kgf/cm
2, 13.5 psi) of
pressure compressed air to the VSV.
(2) Apply battery positive voltage across the terminals.
(3) Check that air flows from ports E to F.
If operation is not as specified, replace the VSV.
3. REINSTALL VSV

SF0E3±03
B06550
VSV for Vapor Pressure
Sensor Connector
VSV for Vapor
Pressure Sensor
Vacuum Hose
Charcoal Canister
SF±46
± SFI (5S±FE)VSV FOR VAPOR PRESSURE SENSOR
1479 Author: Date:

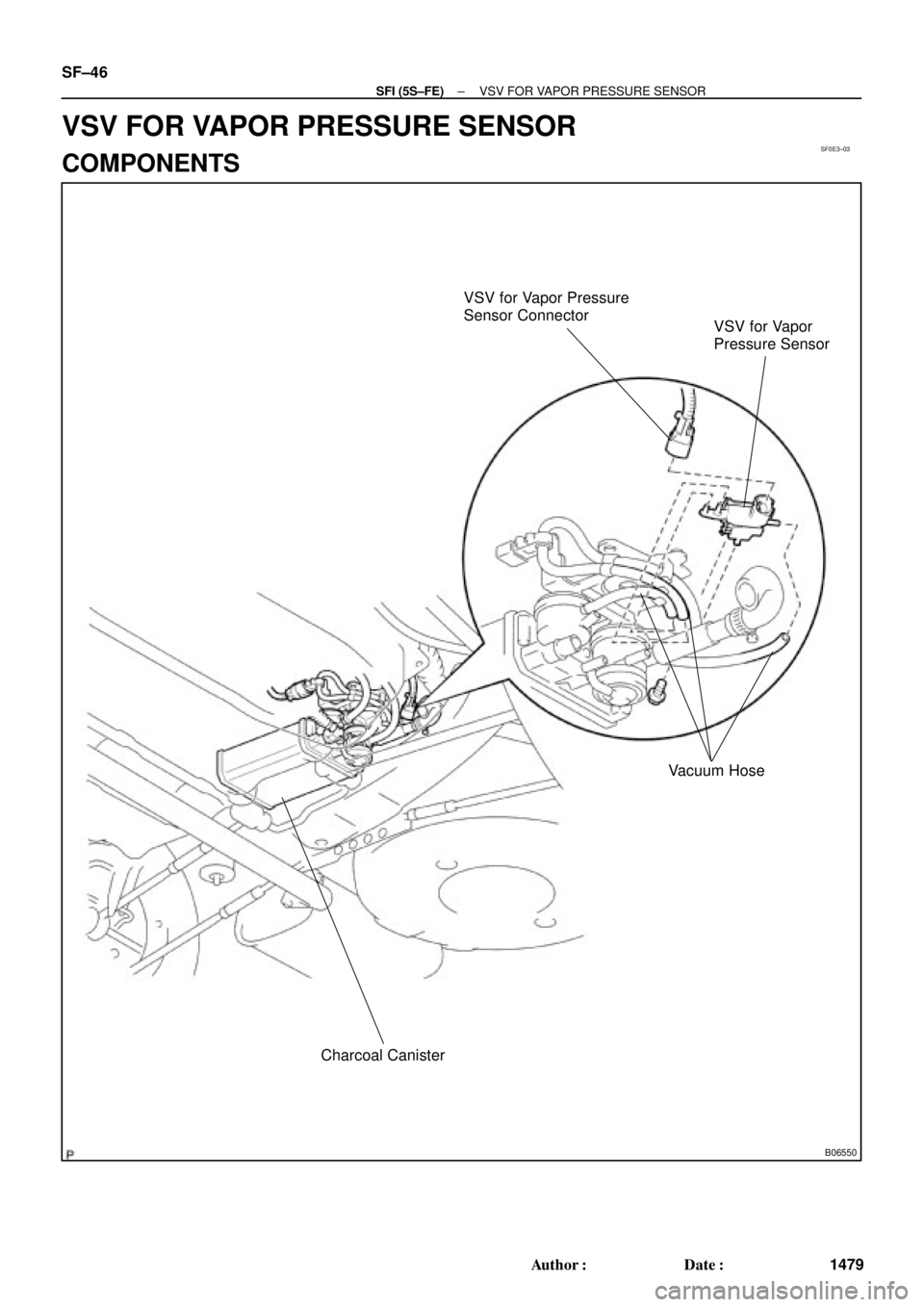

VSV FOR VAPOR PRESSURE SENSOR
COMPONENTS
