TOYOTA CAMRY 2000 Service Repair Manual

H01336
Tires
(5 or More)
R05403
H0133710 m (33 ft) or more SSTBattery
Side Airbag
Assembly
H00544
RS±46
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
2191 Author: Date:
(e) Place the tires.
(1) Place at least 2 tires under the tire to which the side
airbag assembly is tied.
(2) Place at least 2 tires over the tire to which the side
airbag assembly is tied. The top tire should have the
wheel installed.
(3) Tie the tires together with the 2 wire harnesses.
CAUTION:
Make sure that the wire harnesses are tight. It is very dan-
gerous when loose wire harnesses result in the tires com-
ing free due to the shock from the airbag deploying.
HINT:
Place the SST connector and wire harness inside tires. Secure
at least 1 m (3 ft) of slack for the wire harness.
(f) Install the SST.
Connect the connector of 2 SST to the side airbag assem-
bly connector.
SST 09082±00700, 09082±00750
(g) Deploy the airbag.
(1) Connect the SST red clip to the battery positive (+)
terminal and the black clip to the battery negative
(±) terminal.
(2) Check that no one is within 10 m (33 ft) area around
the tire which the side airbag assembly is tied to.
(3) Press the SST activation switch and deploy the air-
bag.
HINT:
The airbag deploys simultaneously as the LED of the SST ac-
tivation switch lights up.
(h) Dispose of the side airbag assembly.
CAUTION:

The side airbag assembly is very hot when the airbag
is deployed, so leave it alone for at least 30 minutes
after deployment.

Use gloves and safety glasses when handling a side
airbag assembly with the deployed airbag.

Do not apply water etc. to a side airbag assembly with
the deployed airbag.

± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
RS±47
2192 Author: Date:

Always wash your hands with water after completing
the operation.
(1) Remove the side airbag assembly from the tire.
(2) Place the side airbag assembly in a vinyl bag, tie the
end tightly and dispose of it in the same way as oth-
er general parts disposal.

RS05K±02
RS±48
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
2193 Author: Date:
REPLACEMENT
REPLACEMENT REQUIREMENTS
In the following cases, replace the seatback assembly or seatback cover.
CaseReplacing part
If the side airbag has been deployed.Seatback assembly
If the side airbag assembly has been found to be faulty in troubleshooting.Seatback assembly
If the side airbag assembly has cuts during checking items.
(See page RS±41)Seatback assembly
If the seatback cover has cuts and frayed seams during checking items.
(See page RS±41)Seatback cover
If the side airbag assembly has been found to be faulty during checking
items. (See page RS±41)Seatback assembly
If the seatback cover has been found to be faulty during checking items.
(See page RS±41)Seatback cover
If the seatback assembly has been dropped.Seatback assembly
CAUTION:
For removal and installation of the seatback assembly, see page RS±40 and RS±49. Be sure to follow
the correct procedure.

RS0EV±01
H02259
A
B
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
RS±49
2194 Author: Date:

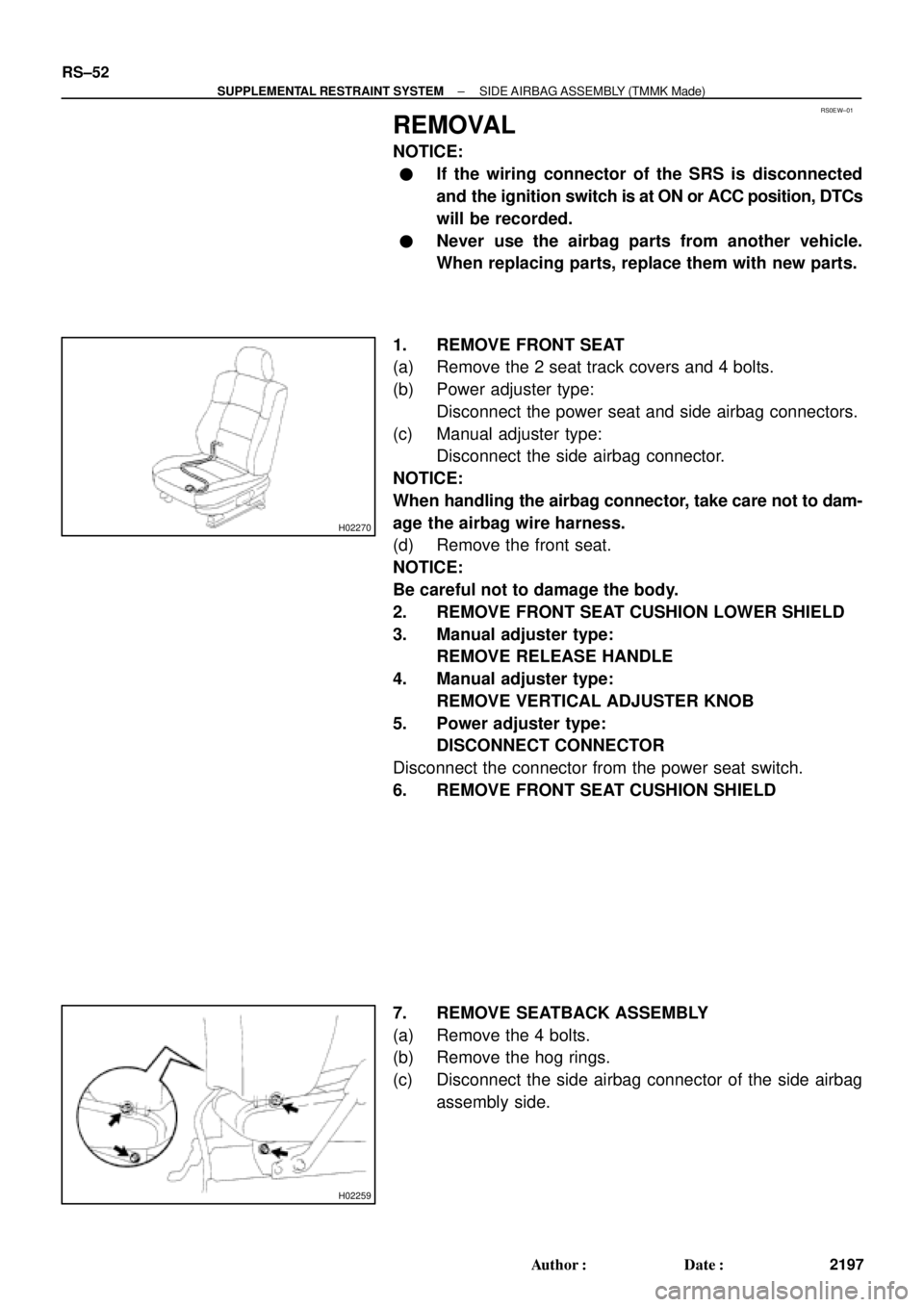

INSTALLATION
NOTICE:
Never use airbag parts from another vehicle. When replac-
ing parts, replace them with new parts.
1. INSTALL SEATBACK ASSEMBLY
(a) Install the seatback assembly.
(b) Install new hog rings.
HINT:
Install the hog rings to prevent wrinkles as little as possible.
(c) Install the 4 bolts.
Torque:
Bolt A: 18 N´m (185 kgf´cm, 13 ft´lbf)
Bolt B: 15 N´m (150 kgf´cm, 11 ft´lbf)
2. INSTALL FRONT SEAT CUSHION INNER SHIELD
3. INSTALL FRONT SEAT CUSHION SHIELD
4. Manual adjuster type:
INSTALL VERTICAL ADJUSTER KNOB
5. Manual adjuster type:
INSTALL RELEASE HANDLE
6. Power adjuster type:
CONNECT CONNECTOR
Connect the connector to the power seat switch.
7. INSTALL FRONT SEAT CUSHION LOWER SHIELD
8. INSTALL HEADREST SUPPORT
9. INSTALL HEADREST
10. INSTALL FRONT SEAT
(a) Slide the front seat to the most front position.
NOTICE:
Make sure that seat adjuster locks.
(b) Without holding the seat track handle, mount the seat to
the vehicle.
HINT:
If holding the seat track handle, the adjusted most front position
will slip off.
(c) Power adjuster type:
Connect the side airbag connector and power seat con-
nector.
(d) Manual adjuster type:
Connect the side airbag connector.
(e) Tighten the bolts on the rear side temporarily, starting
from the bolt on the inner side tighten them completely.
Torque: 37 N´m (375 kgf´cm, 27 ft´lbf)

RS±50
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
2195 Author: Date:
(f) Slide the seat to the rearmost position to install the bolts
on the front side.
Torque: 37 N´m (375 kgf´cm, 27 ft´lbf)

RS05M±03

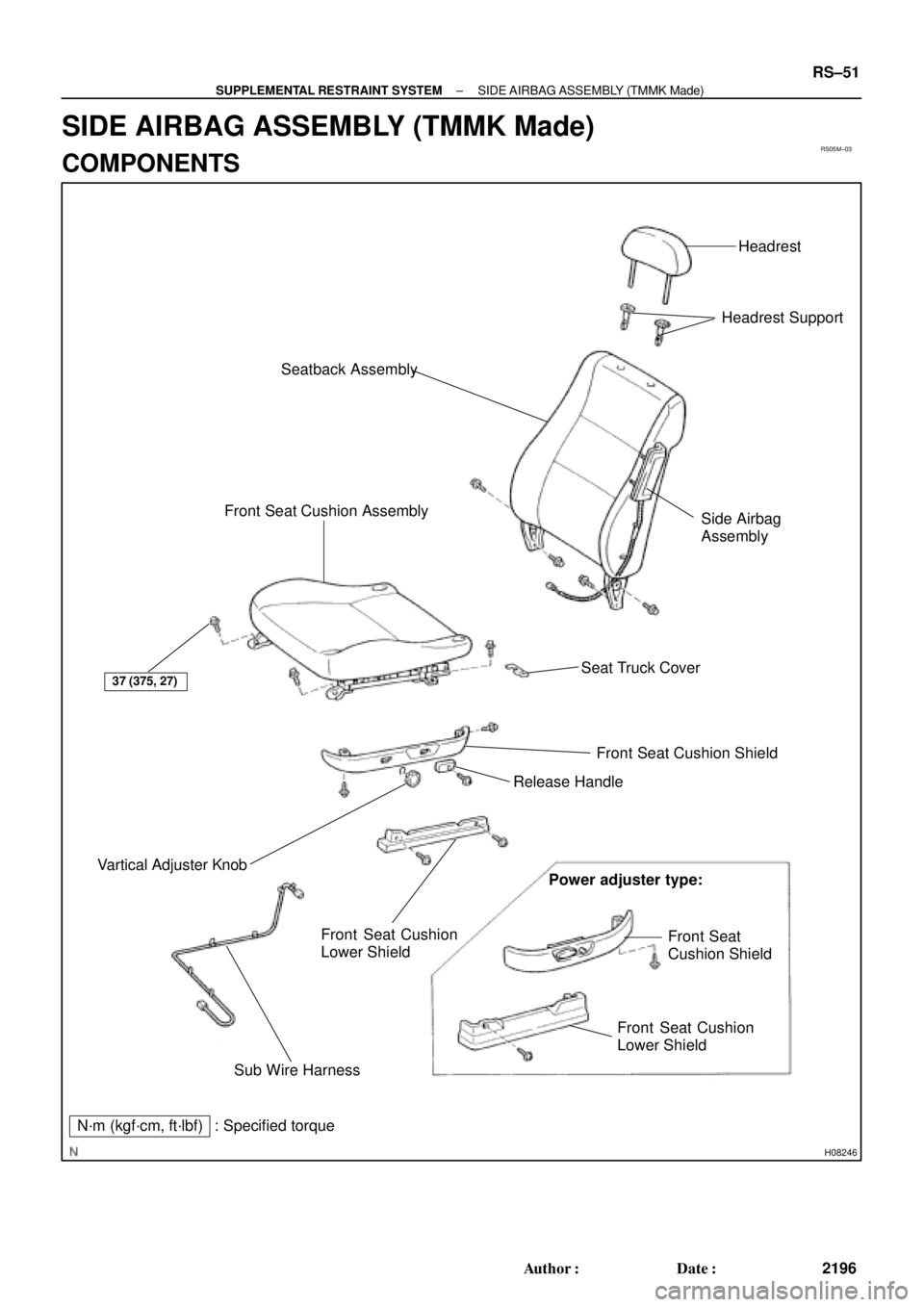

H08246
Seatback AssemblyHeadrest
Headrest Support
Side Airbag
Assembly
Seat Truck Cover
Front Seat Cushion Shield
Release Handle
Power adjuster type:
Front Seat
Cushion Shield Front Seat Cushion
Lower Shield Vartical Adjuster Knob
Sub Wire HarnessFront Seat Cushion
Lower Shield
37 (375, 27)
N´m (kgf´cm, ft´lbf) : Specified torque
Front Seat Cushion Assembly
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMMK Made)
RS±51
2196 Author: Date:
SIDE AIRBAG ASSEMBLY (TMMK Made)
COMPONENTS

RS0EW±01
H02270
H02259
RS±52
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMMK Made)
2197 Author: Date:
REMOVAL
NOTICE:

If the wiring connector of the SRS is disconnected
and the ignition switch is at ON or ACC position, DTCs
will be recorded.

Never use the airbag parts from another vehicle.
When replacing parts, replace them with new parts.
1. REMOVE FRONT SEAT
(a) Remove the 2 seat track covers and 4 bolts.
(b) Power adjuster type:
Disconnect the power seat and side airbag connectors.
(c) Manual adjuster type:
Disconnect the side airbag connector.
NOTICE:
When handling the airbag connector, take care not to dam-
age the airbag wire harness.
(d) Remove the front seat.
NOTICE:
Be careful not to damage the body.
2. REMOVE FRONT SEAT CUSHION LOWER SHIELD
3. Manual adjuster type:
REMOVE RELEASE HANDLE
4. Manual adjuster type:
REMOVE VERTICAL ADJUSTER KNOB
5. Power adjuster type:
DISCONNECT CONNECTOR
Disconnect the connector from the power seat switch.
6. REMOVE FRONT SEAT CUSHION SHIELD
7. REMOVE SEATBACK ASSEMBLY
(a) Remove the 4 bolts.
(b) Remove the hog rings.

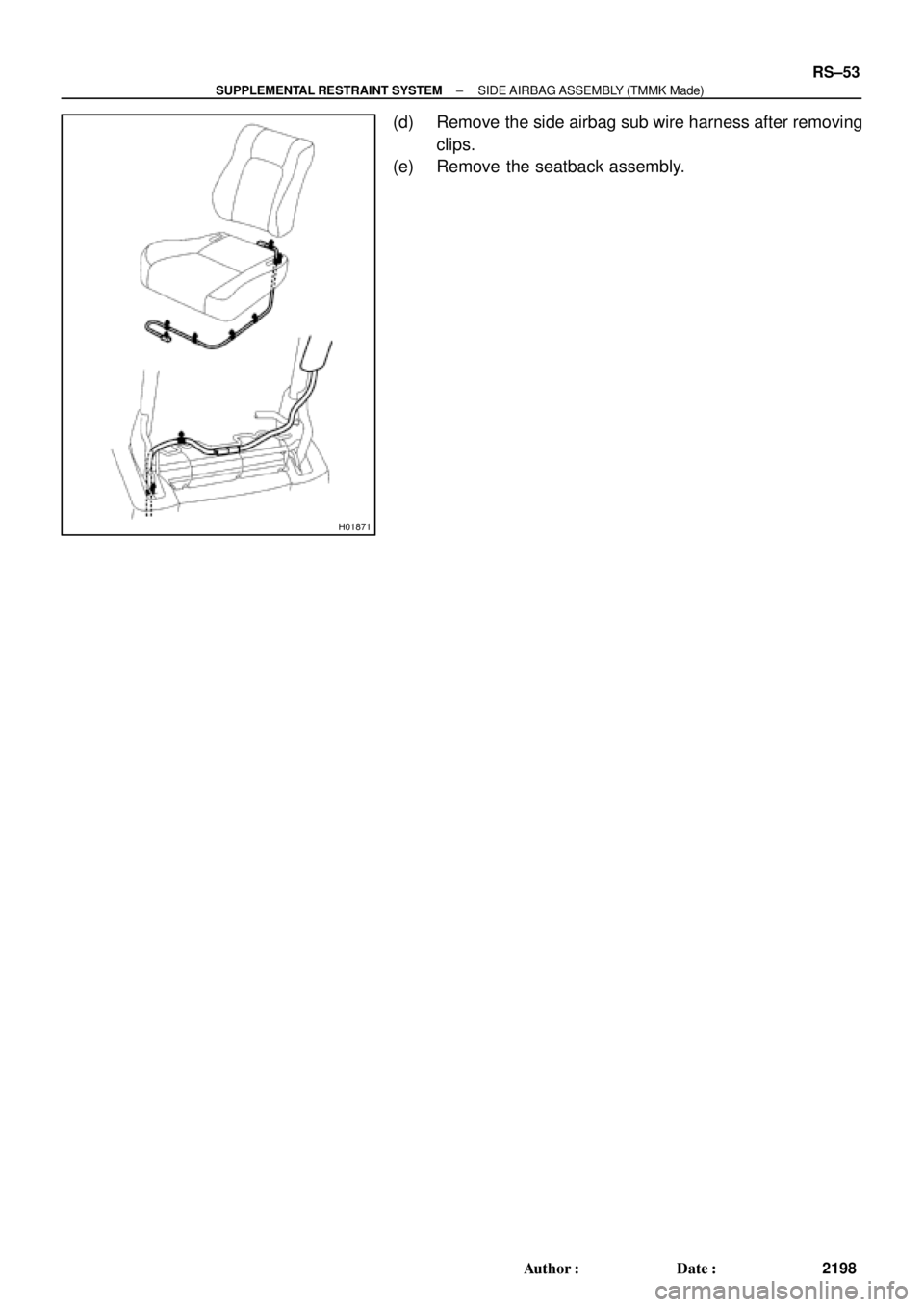

(c) Disconnect the side airbag connector of the side airbag
assembly side.

H01871
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMMK Made)
RS±53
2198 Author: Date:
(d) Remove the side airbag sub wire harness after removing
clips.
(e) Remove the seatback assembly.

RS05O±03
H01608

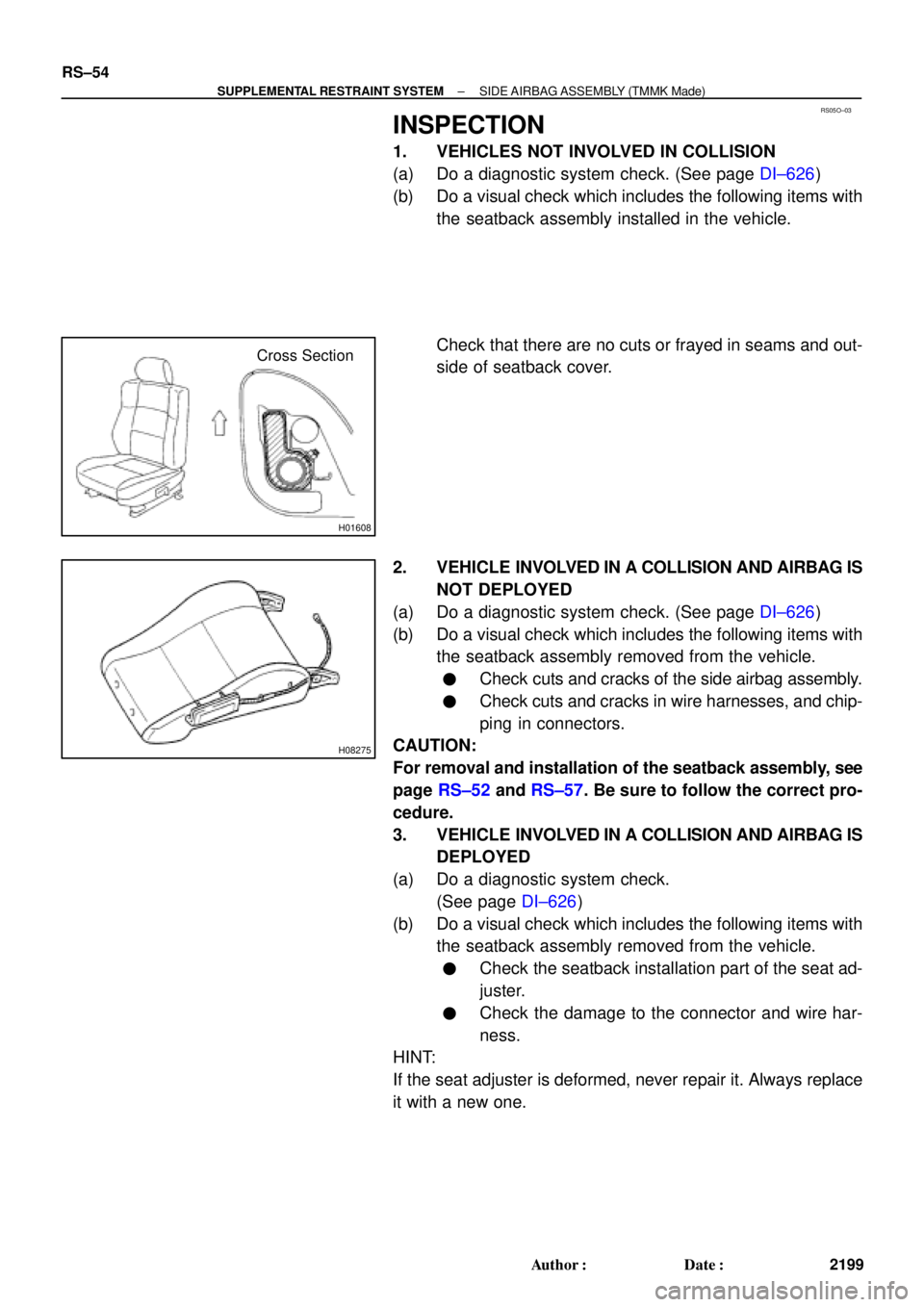

Cross Section
H08275
RS±54
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMMK Made)
2199 Author: Date:
INSPECTION
1. VEHICLES NOT INVOLVED IN COLLISION
(a) Do a diagnostic system check. (See page DI±626)
(b) Do a visual check which includes the following items with
the seatback assembly installed in the vehicle.
Check that there are no cuts or frayed in seams and out-
side of seatback cover.
2. VEHICLE INVOLVED IN A COLLISION AND AIRBAG IS
NOT DEPLOYED
(a) Do a diagnostic system check. (See page DI±626)
(b) Do a visual check which includes the following items with
the seatback assembly removed from the vehicle.

Check cuts and cracks of the side airbag assembly.

Check cuts and cracks in wire harnesses, and chip-
ping in connectors.
CAUTION:
For removal and installation of the seatback assembly, see
page RS±52 and RS±57. Be sure to follow the correct pro-
cedure.
3. VEHICLE INVOLVED IN A COLLISION AND AIRBAG IS
DEPLOYED
(a) Do a diagnostic system check.
(See page DI±626)
(b) Do a visual check which includes the following items with
the seatback assembly removed from the vehicle.

Check the seatback installation part of the seat ad-
juster.

Check the damage to the connector and wire har-
ness.
HINT:
If the seat adjuster is deformed, never repair it. Always replace
it with a new one.

RS05P±02
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMMK Made)
RS±55
2200 Author: Date:
DISPOSAL
(See page RS±42)
