TOYOTA CAMRY 2000 Service Repair Manual

RS05Q±03
RS±56
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMMK Made)
2201 Author: Date:
REPLACEMENT
REPLACEMENT REQUIREMENTS
In the following cases, replace the seatback assembly or seat cover.
CaseReplacing part
If the side airbag has been deployed.Seatback assembly
If the side airbag assembly has been found to be faulty in troubleshooting.Seatback assembly
If the side airbag assembly has cuts during checking items.
(See page RS±54)Seatback assembly
If the seatback cover has cuts and frayed seams during checking items.
(See page RS±54)Seatback cover
If the side airbag assembly has been found to be faulty during checking
items. (See page RS±54)Seatback assembly
If the seatback cover has been found to be faulty during checking items.
(See page RS±54)Seatback cover
If the seatback assembly has been dropped.Seatback assembly
CAUTION:
For removal and installation of the seatback assembly, see page RS±52 and RS±57. Be sure to follow
the correct procedure.

RS0EX±01
H01871
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMMK Made)
RS±57
2202 Author: Date:
INSTALLATION
NOTICE:
Never use airbag parts from another vehicle. When replac-
ing parts, replace them with new parts.
1. INSTALL SEATBACK ASSEMBLY
(a) Install the seatback assembly.
(b) Securely fix the side airbag sub wire harness to the seat
cushion with clips.
(c) Connect the side airbag connector of the side airbag as-
sembly side.
(d) Install new hog rings.
HINT:
Install the hog rings to prevent wrinkles as little as possible.
(e) Install the 4 bolts.
2. INSTALL FRONT SEAT CUSHION SHIELD
3. Manual adjuster type:
INSTALL VERTICAL ADJUSTER KNOB
4. Manual adjuster type:
INSTALL RELEASE HANDLE
5. Power adjuster type:
CONNECT CONNECTOR
Connect the connector to the power seat switch.
6. INSTALL FRONT SEAT CUSHION LOWER SHIELD
7. INSTALL HEADREST SUPPORT
8. INSTALL HEADREST
9. INSTALL FRONT SEAT
(a) Slide the front seat to the most front position.
NOTICE:
Make sure that seat adjuster locks.
(b) Without holding the seat track handle, mount the seat to
the vehicle.
HINT:
If holding the seat track handle, the adjusted most front position
will slip off.
(c) Tighten the bolts on the rear side temporarily, starting
from the bolt on the inner side tighten them completely.
Torque: 37 N´m (375 kgf´cm, 27 ft´lbf)
(d) Slide the seat to the rearmost position to install the bolts
on the front side.
Torque: 37 N´m (375 kgf´cm, 27 ft´lbf)
(e) Power adjuster type:
Connect the side airbag connector and power seat con-
nector.
(f) Manual adjuster type:
Connect the side airbag connector.

RS01G±11
H02269
20 (205, 15)
20 (205, 15)
Airbag Sensor Assembly
N´m (kgf´cm, ft´lbf) : Specified torque
RS±58
± SUPPLEMENTAL RESTRAINT SYSTEMAIRBAG SENSOR ASSEMBLY
2203 Author: Date:
AIRBAG SENSOR ASSEMBLY
COMPONENTS

RS0EY±01
H02267H02268H08322
LH side:
RH side:
± SUPPLEMENTAL RESTRAINT SYSTEMAIRBAG SENSOR ASSEMBLY
RS±59
2204 Author: Date:
REMOVAL
NOTICE:
Do not open the cover or the case of the ECU and various
electrical devices unless absolutely necessary.
(If the IC terminals are touched, the IC may be destroyed by
static electricity.)
REMOVE AIRBAG SENSOR ASSEMBLY
(a) Disconnect the airbag sensor connectors.
NOTICE:
Disconnect the connectors with the sensor assembly
installed.
(b) Using a torx wrench, remove the 4 screws and airbag sen-
sor assembly.
Torx wrench: T40 (Part No.09042±00020 or locally
manufactured tool)

RS05T±01
RS±60
± SUPPLEMENTAL RESTRAINT SYSTEMAIRBAG SENSOR ASSEMBLY
2205 Author: Date:
INSPECTION
1. VEHICLE NOT INVOLVED IN COLLISION
Do a diagnostic system check. (See page DI±626)
2. VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED
Do a diagnostic system check. (See page DI±626)
3. VEHICLE INVOLVED IN COLLISION AND AIRBAG IS DEPLOYED
Replace the airbag sensor assembly. (See page RS±59)

RS01J±13
± SUPPLEMENTAL RESTRAINT SYSTEMAIRBAG SENSOR ASSEMBLY
RS±61
2206 Author: Date:
REPLACEMENT
REPLACEMENT REQUIREMENTS
In the following cases, replace the airbag sensor assembly.

If the SRS has been deployed in a collision.

If the airbag sensor assembly has been found to be faulty in troubleshooting.

If the airbag sensor assembly has been dropped.
CAUTION:
For removal and installation of the airbag sensor assembly, see page RS±59 and RS±62. Be sure to
follow the correct procedure.

RS0EZ±01
H02267H02268H08322
LH side:
RH side: RS±62
± SUPPLEMENTAL RESTRAINT SYSTEMAIRBAG SENSOR ASSEMBLY
2207 Author: Date:
INSTALLATION
NOTICE:

Never use SRS parts from another vehicle. When re-
placing parts, replace them with new parts.

Never reuse the airbag sensor assembly involved in
a collision when the airbag has deployed.

Never repair a sensor in order to reuse it.
INSTALL AIRBAG SENSOR ASSEMBLY
(a) Using a torx wrench, install the airbag sensor assembly
with 4 screws.
Torx wrench: T40 (Part No.09042±00020 or locally
manufactured tool)
Torque: 20 N´m (205 kgf´cm, 15 ft´lbf)
(b) Connect the airbag sensor connectors.
NOTICE:

Connection of the connector is done after the sensor
assembly has been installed.

Make sure the sensor assembly is installed with the
specified torque.

If the sensor assembly has been dropped, or there are
cracks, dents or other defects in the case, bracket or
connector, replace the sensor assembly with a new
one.

When installing the sensor assembly, take care that
the SRS wiring does not interfere with other parts and
is not pinched between other parts.

After installing , shake the sensor assembly to check
that there is no looseness.

RS01L±14
H08233
N´m (kgf´cm, ft´lbf) : Specified torqueFront Airbag Sensor (RH)Front Airbag Sensor (LH)
20 (205, 15)
20 (205, 15)
20 (205, 15)
Turn Signal Light RH
Turn Signal Light LH
Head Light RH
Head Light LH
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT AIRBAG SENSOR
RS±63
2208 Author: Date:
FRONT AIRBAG SENSOR
COMPONENTS

RS0F0±01
H08318
H08319
RS±64
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT AIRBAG SENSOR
2209 Author: Date:
REMOVAL
NOTICE:

If the wiring connector of the SRS is disconnected
with the ignition switch at ON or ACC position, DTCs
will be recorded.

Never use SRS parts from another vehicle. When re-
placing parts, replace them with new parts.

Never reuse the sensor involved in a collision when
the SRS has deployed.

Never repair a sensor in order to reuse it.

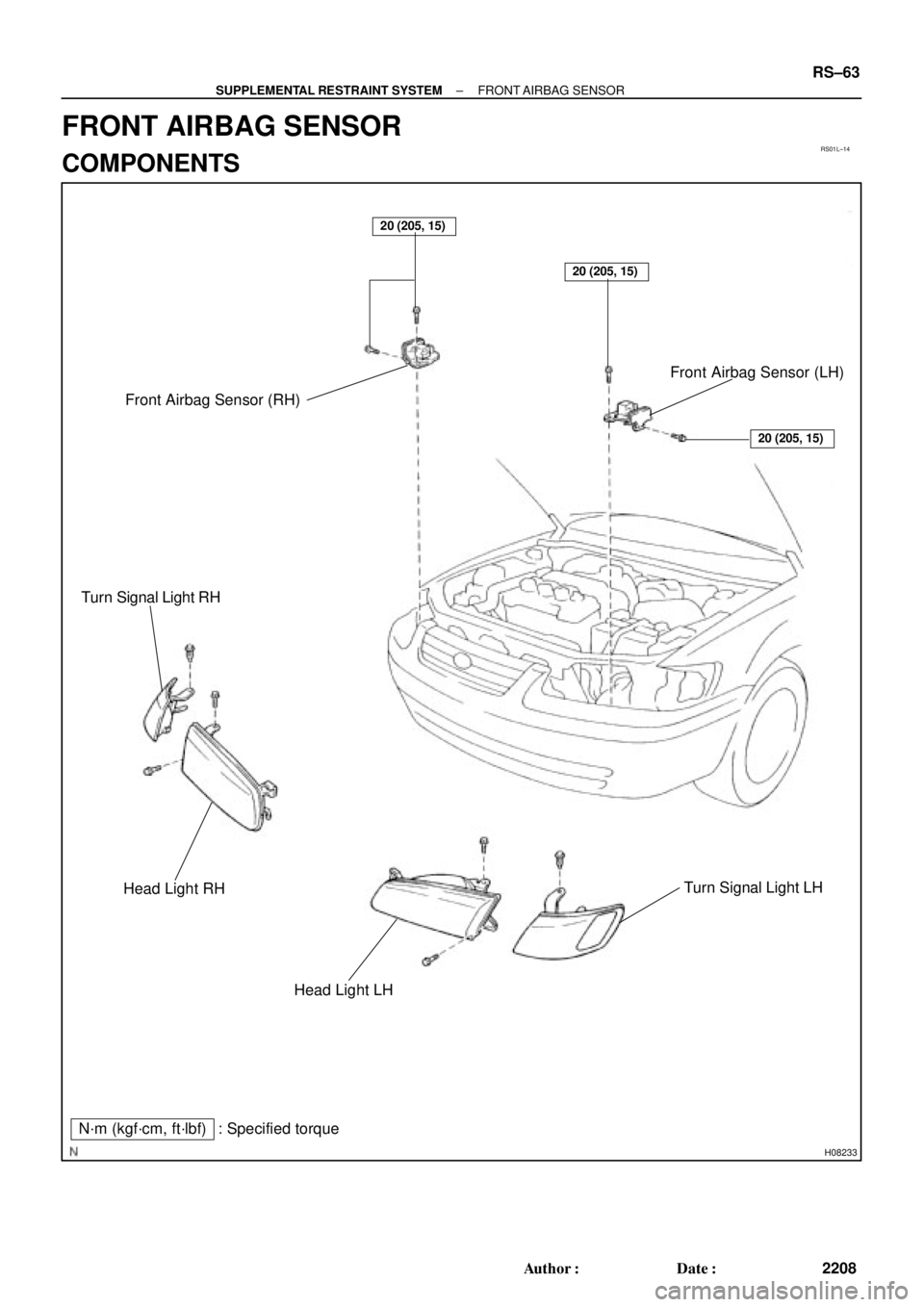

1. REMOVE HEAD LIGHT LH AND RH
(a) Remove the 2 clips and turn signal lights.
(b) Remove the 4 bolts and head lights.
2. LH:
REMOVE FRONT AIRBAG SENSOR
(a) Disconnect the connector.
NOTICE:
Disconnect the connector with sensor assembly installed.
(b) Remove the 2 bolts and front airbag sensor LH.
3. RH:
REMOVE FRONT AIRBAG SENSOR
(a) Disconnect the connector.
NOTICE:
Disconnect the connector with sensor assembly installed.
(b) Remove the 2 bolts and front airbag sensor RH.

RS01N±16
H08235
H06728
LH:
RH:
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT AIRBAG SENSOR
RS±65
2210 Author: Date:
INSPECTION
1. VEHICLE NOT INVOLVED IN COLLISION
Do a diagnostic system check.
(See page DI±626)
2. VEHICLE INVOLVED IN COLLISION
(a) Do a diagnostic system check.
(See page DI±626)
(b) If the front fender of the car or its periphery is damaged,
do a visual check for damage to the front airbag sensor,
which includes the following items even if the airbag was
not deployed:

Bracket deformation

Paint peeling off the bracket

Cracks, dents or chips in the case

Cracks, dents, chipping and scratches in the con-
nector

Peeling off of the label or damage to the serial num-
ber
