TOYOTA CAMRY 2000 Service Workshop Manual

5S±FE ENGINE
± 5S±FE ENGINEEG1±1

DESCRIPTION
The 5S±FE engine is an in±line, 4±cylinder, 2.2 liter DOHC 16±valve engine.
ENGINE MECHANICAL
± 5S±FE ENGINEENGINE MECHANICALEG1±2

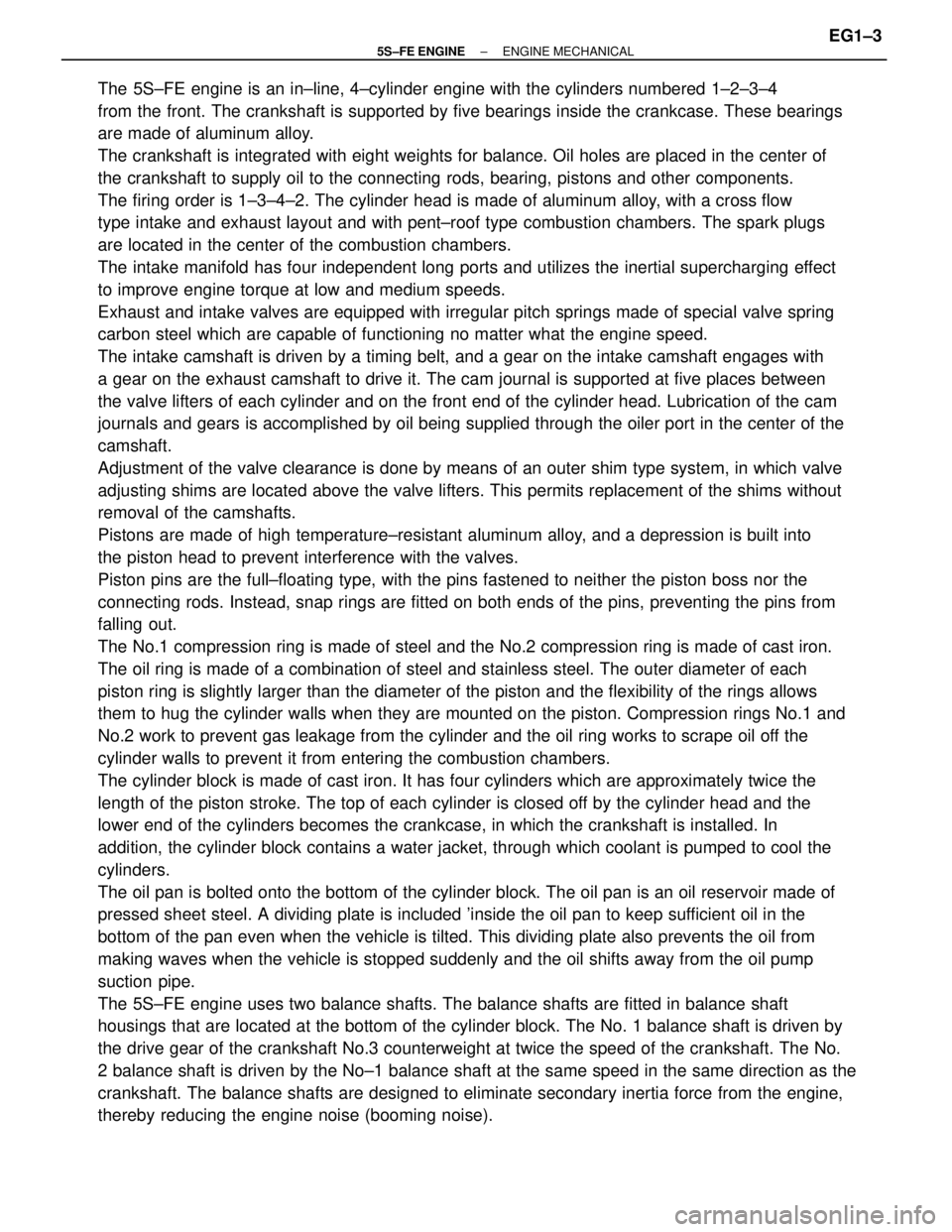

The 5S±FE engine is an in±line, 4±cylinder engine with the cylinders numbered 1±2±3±4
from the front. The crankshaft is supported by five bearings inside the crankcase. These bearings
are made of aluminum alloy.
The crankshaft is integrated with eight weights for balance. Oil holes are placed in the center of
the crankshaft to supply oil to the connecting rods, bearing, pistons and other components.
The firing order is 1±3±4±2. The cylinder head is made of aluminum alloy, with a cross flow
type intake and exhaust layout and with pent±roof type combustion chambers. The spark plugs
are located in the center of the combustion chambers.
The intake manifold has four independent long ports and utilizes the inertial supercharging effect
to improve engine torque at low and medium speeds.
Exhaust and intake valves are equipped with irregular pitch springs made of special valve spring
carbon steel which are capable of functioning no matter what the engine speed.
The intake camshaft is driven by a timing belt, and a gear on the intake camshaft engages with
a gear on the exhaust camshaft to drive it. The cam journal is supported at five places between
the valve lifters of each cylinder and on the front end of the cylinder head. Lubrication of the cam
journals and gears is accomplished by oil being supplied through the oiler port in the center of the
camshaft.
Adjustment of the valve clearance is done by means of an outer shim type system, in which valve
adjusting shims are located above the valve lifters. This permits replacement of the shims without
removal of the camshafts.
Pistons are made of high temperature±resistant aluminum alloy, and a depression is built into
the piston head to prevent interference with the valves.
Piston pins are the full±floating type, with the pins fastened to neither the piston boss nor the
connecting rods. Instead, snap rings are fitted on both ends of the pins, preventing the pins from
falling out.
The No.1 compression ring is made of steel and the No.2 compression ring is made of cast iron.
The oil ring is made of a combination of steel and stainless steel. The outer diameter of each
piston ring is slightly larger than the diameter of the piston and the flexibility of the rings allows
them to hug the cylinder walls when they are mounted on the piston. Compression rings No.1 and
No.2 work to prevent gas leakage from the cylinder and the oil ring works to scrape oil off the
cylinder walls to prevent it from entering the combustion chambers.
The cylinder block is made of cast iron. It has four cylinders which are approximately twice the
length of the piston stroke. The top of each cylinder is closed off by the cylinder head and the
lower end of the cylinders becomes the crankcase, in which the crankshaft is installed. In
addition, the cylinder block contains a water jacket, through which coolant is pumped to cool the
cylinders.
The oil pan is bolted onto the bottom of the cylinder block. The oil pan is an oil reservoir made of
pressed sheet steel. A dividing plate is included 'inside the oil pan to keep sufficient oil in the
bottom of the pan even when the vehicle is tilted. This dividing plate also prevents the oil from
making waves when the vehicle is stopped suddenly and the oil shifts away from the oil pump
suction pipe.
The 5S±FE engine uses two balance shafts. The balance shafts are fitted in balance shaft
housings that are located at the bottom of the cylinder block. The No. 1 balance shaft is driven by
the drive gear of the crankshaft No.3 counterweight at twice the speed of the crankshaft. The No.
2 balance shaft is driven by the No±1 balance shaft at the same speed in the same direction as the
crankshaft. The balance shafts are designed to eliminate secondary inertia force from the engine,
thereby reducing the engine noise (booming noise).
± 5S±FE ENGINEENGINE MECHANICALEG1±3

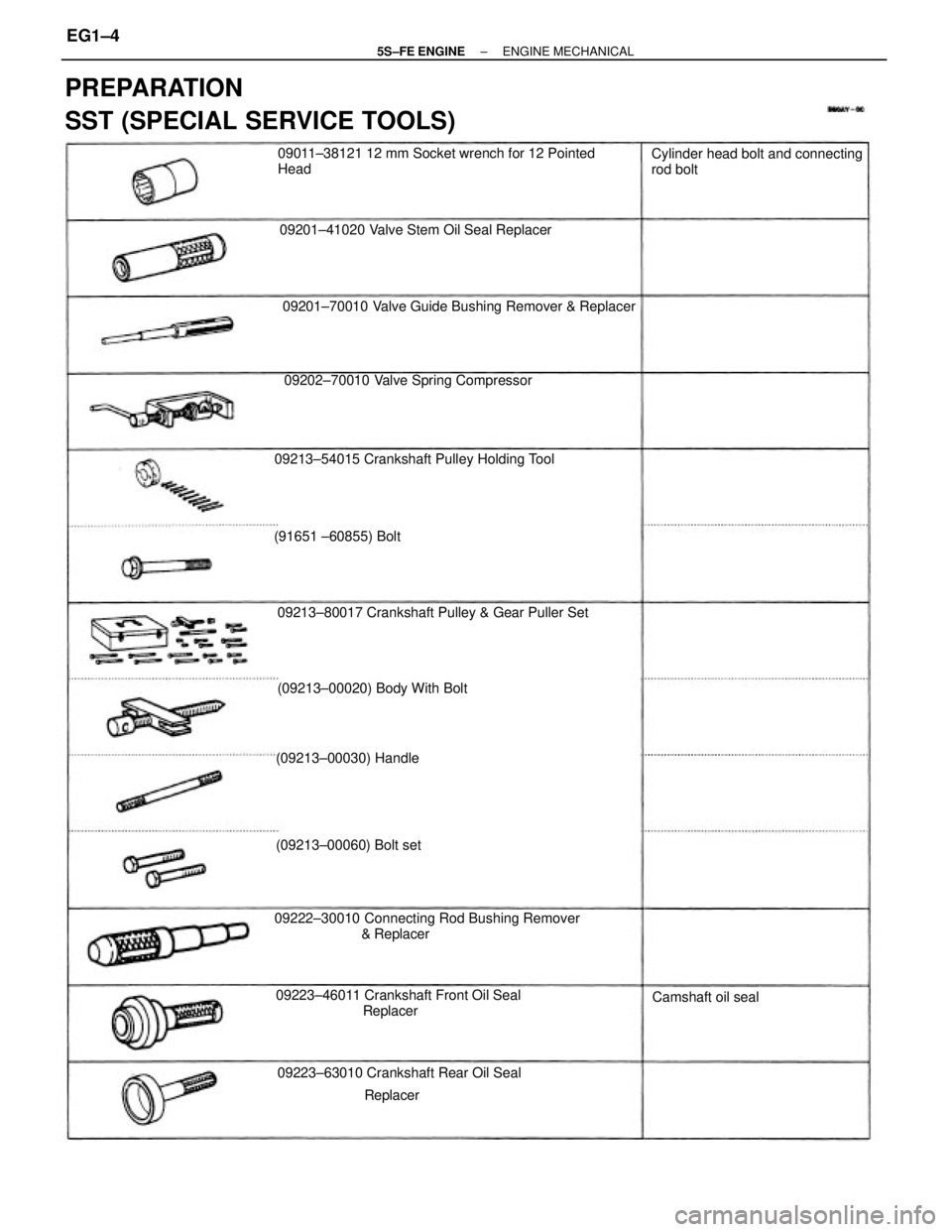

PREPARATION
SST (SPECIAL SERVICE TOOLS)
09222±30010 Connecting Rod Bushing Remover
& Replacer09201±70010 Valve Guide Bushing Remover & Replacer
(09213±00060) Bolt set (09213±00030) Handle (91651 ±60855) Bolt
(09213±00020) Body With Bolt 09213±80017 Crankshaft Pulley & Gear Puller Set09011±38121 12 mm Socket wrench for 12 Pointed
Head
09223±46011 Crankshaft Front Oil Seal
Replacer
09223±63010 Crankshaft Rear Oil Seal
ReplacerCylinder head bolt and connecting
rod bolt
09213±54015 Crankshaft Pulley Holding Tool09201±41020 Valve Stem Oil Seal Replacer
09202±70010 Valve Spring Compressor
Camshaft oil seal
± 5S±FE ENGINEENGINE MECHANICALEG1±4

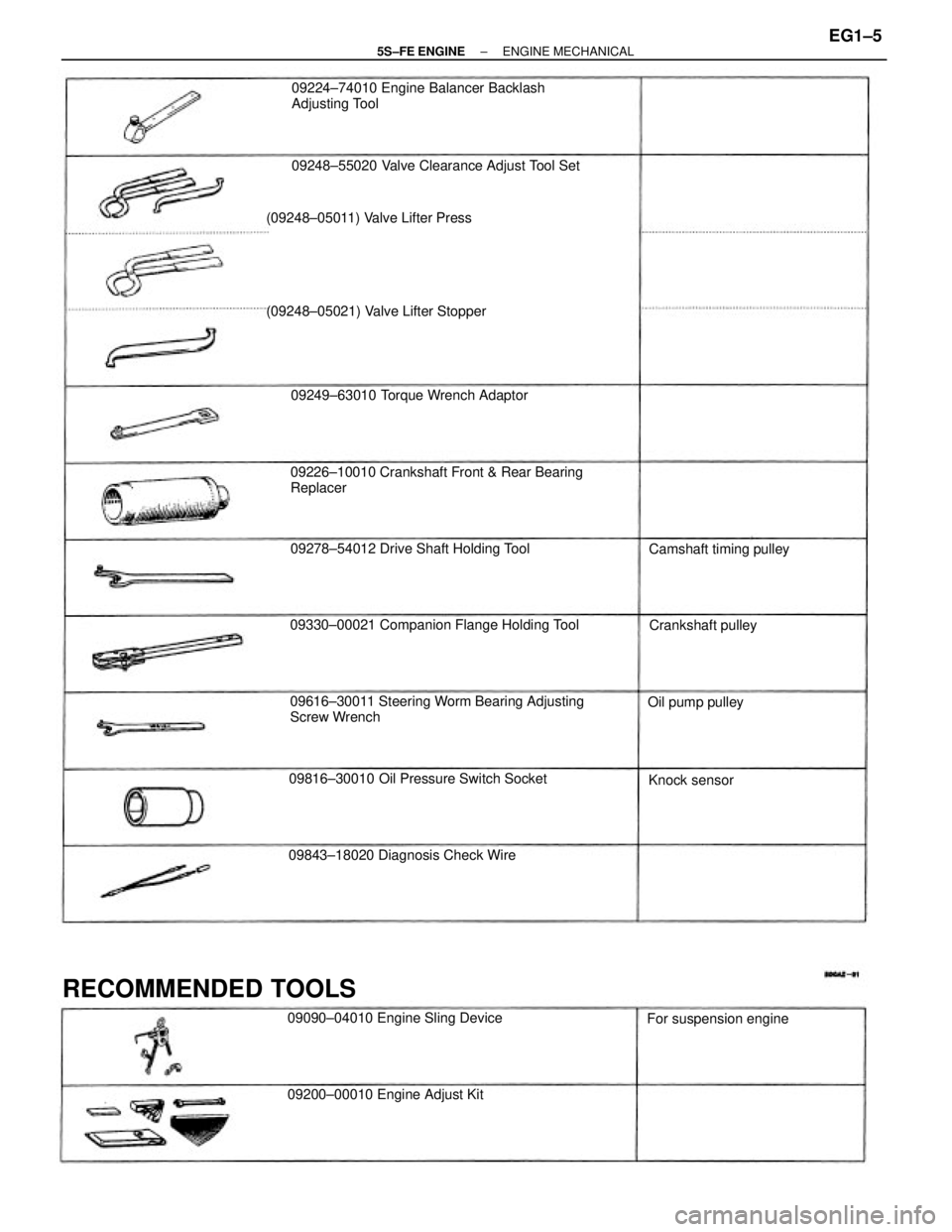

(09248±05011) Valve Lifter Press
(09248±05021) Valve Lifter Stopper
09226±10010 Crankshaft Front & Rear Bearing
Replacer
09616±30011 Steering Worm Bearing Adjusting
Screw Wrench09224±74010 Engine Balancer Backlash
Adjusting Tool
09330±00021 Companion Flange Holding Tool09248±55020 Valve Clearance Adjust Tool Set
RECOMMENDED TOOLS
09816±30010 Oil Pressure Switch Socket09278±54012 Drive Shaft Holding Tool09249±63010 Torque Wrench Adaptor
09843±18020 Diagnosis Check Wire
09090±04010 Engine Sling Device
09200±00010 Engine Adjust KitCamshaft timing pulley
For suspension engineCrankshaft pulley
Oil pump pulley
Knock sensor
± 5S±FE ENGINEENGINE MECHANICALEG1±5

Plug for vacuum hose, fuel hose
etc.
Battery specific gravity gauge09256±00030 Hose Plug Set
09904±00010 Expander Set
Piston ring compressorEngine tune±up tester Connecting rod aligner
Precision straight edge
EQUIPMENT
Piston ring expander Compression gauge
Magnetic finger Cylinder gauge
Torque wrenchDye penetrant CO/HC meterCaliper gauge
Spring tester
ThermometerDial indicator
Steel squareMicrometer
Valve spring
Valve spring Plastigage
Soft brushHeater
± 5S±FE ENGINEENGINE MECHANICALEG1±6

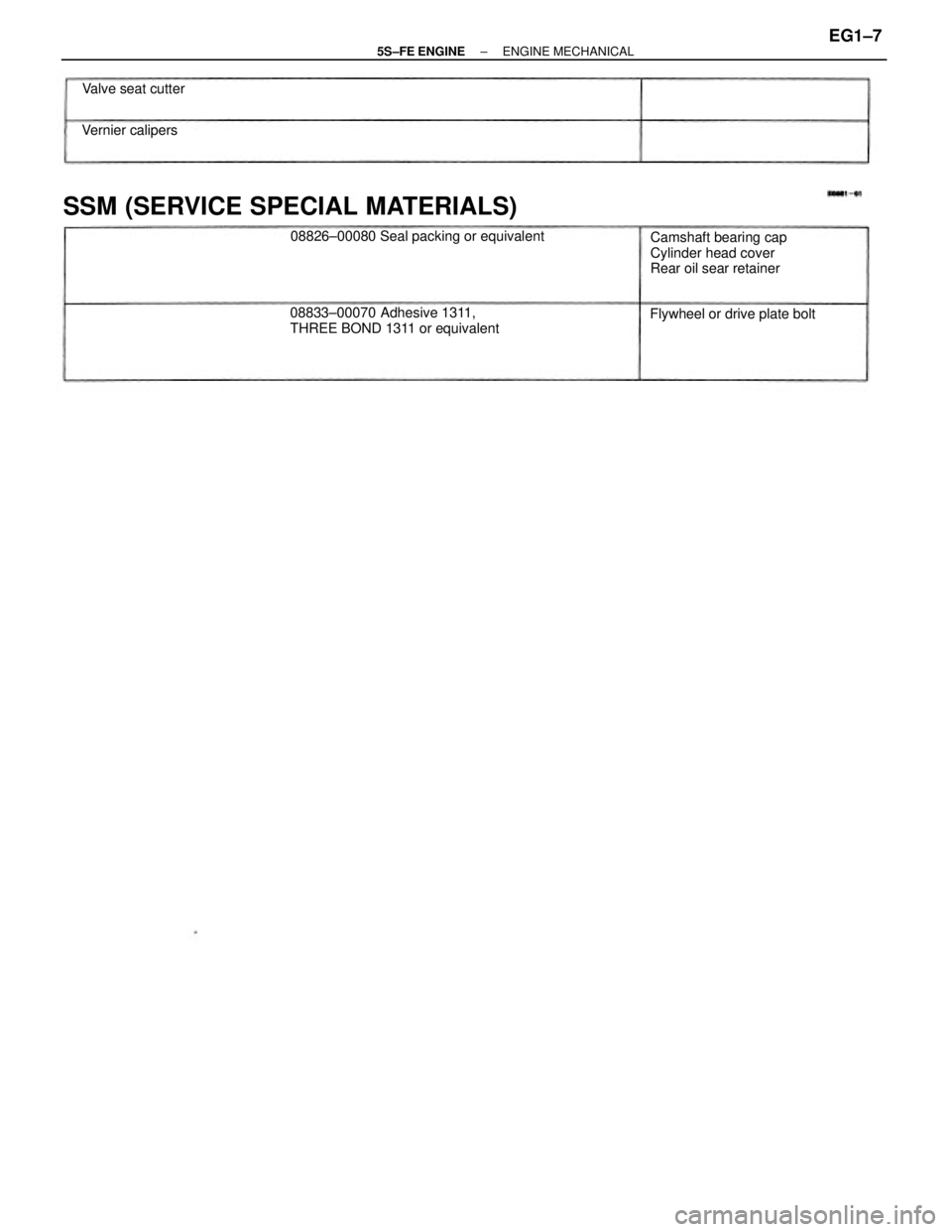

SSM (SERVICE SPECIAL MATERIALS)
08833±00070 Adhesive 1311,
THREE BOND 1311 or equivalentCamshaft bearing cap
Cylinder head cover
Rear oil sear retainer 08826±00080 Seal packing or equivalent
Flywheel or drive plate bolt Valve seat cutter
Vernier calipers
± 5S±FE ENGINEENGINE MECHANICALEG1±7

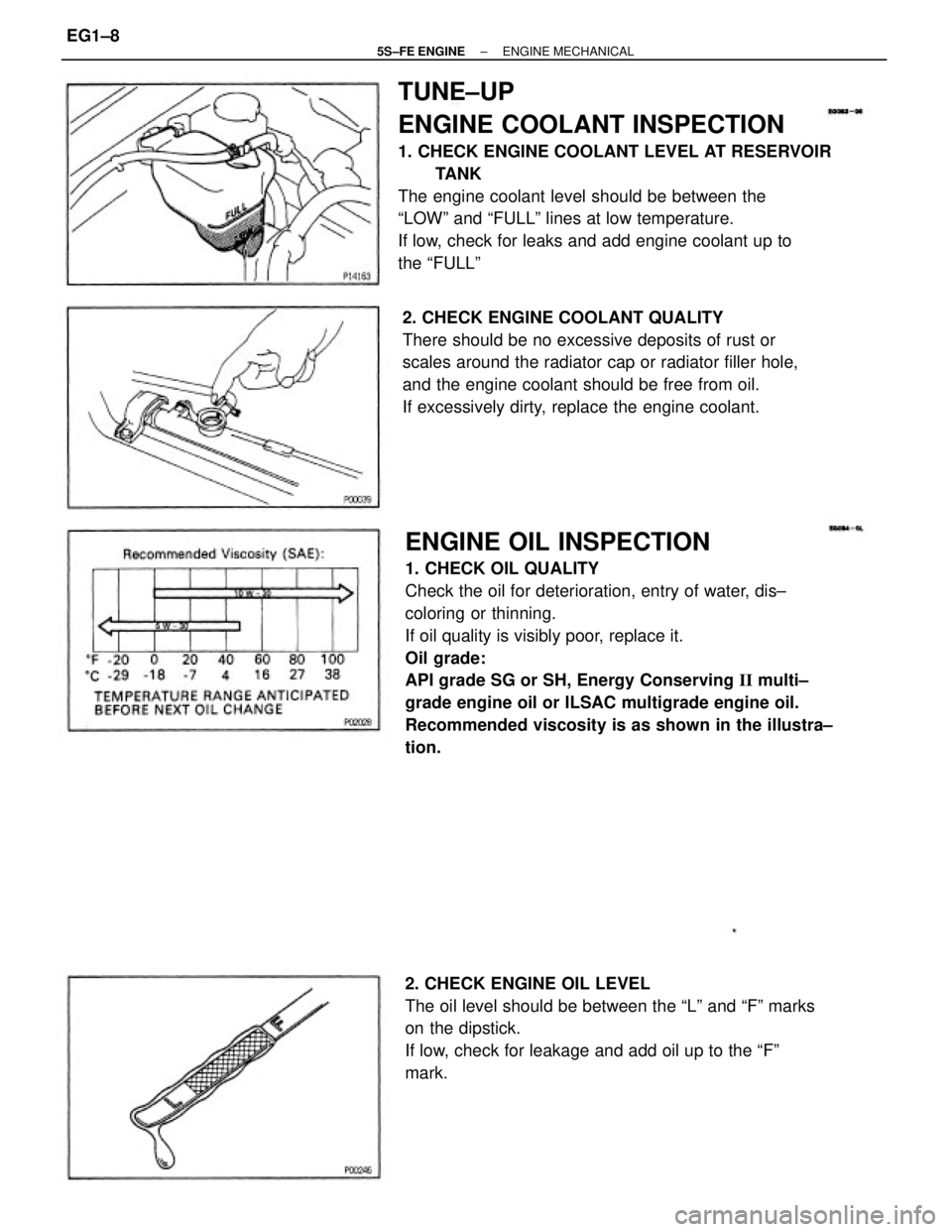

ENGINE OIL INSPECTION
1. CHECK OIL QUALITY
Check the oil for deterioration, entry of water, dis±
coloring or thinning.
If oil quality is visibly poor, replace it.
Oil grade:
API grade SG or SH, Energy Conserving II multi±
grade engine oil or ILSAC multigrade engine oil.
Recommended viscosity is as shown in the illustra±
tion.
TUNE±UP
ENGINE COOLANT INSPECTION
1. CHECK ENGINE COOLANT LEVEL AT RESERVOIR
TANK
The engine coolant level should be between the
ªLOWº and ªFULLº lines at low temperature.
If low, check for leaks and add engine coolant up to
the ªFULLº
2. CHECK ENGINE COOLANT QUALITY
There should be no excessive deposits of rust or
scales around the radiator cap or radiator filler hole,
and the engine coolant should be free from oil.
If excessively dirty, replace the engine coolant.
2. CHECK ENGINE OIL LEVEL
The oil level should be between the ªLº and ªFº marks
on the dipstick.
If low, check for leakage and add oil up to the ªFº
mark.
± 5S±FE ENGINEENGINE MECHANICALEG1±8

2. Except Delco Battery:
CHECK BATTERY VOLTAGE AND SPECIFIC
GRAVITY
A. Maintenance Free Battery
Measure the battery voltage between the terminals
negative (±) and positive (+) of the battery.
Standard voltage:
12.7 ± 12.9 V at 205C (685F)
HINT:
wBefore measuring the voltage, turn the ignition
switch to LOCK and turn off the electrical sys±
tems (headlight, blower motor, rear defogger etc.)
for 60 seconds to remove the surface charge.
wIf the vehicle has been running, wait 5 minutes or
more after the vehicle stops before measuring
the battery voltage.
If the voltage is less than specification, charge the
battery.
HINT: Check the indicator as shown in the illustration. 1. Except Delco Battery:
CHECK BATTERY ELECTROLYTE LEVEL
Check the electrolyte quantity of each cell.
A. Maintenance Free Battery
If under the lower level, replace the battery (or add
distilled water if possible). Check the charging system.
B. Except Maintenance Free Battery
If under the ªLOWERº or ªMINº line, add distilled
water.
BATTERY INSPECTION
± 5S±FE ENGINEENGINE MECHANICALEG1±9

3. Delco Battery:
CHECK HYDROMETER
Green Dot visible:
Battery is adequately charged
Dark (Green Dot not visible):
Battery must be charged
Clear or Light Yellow:
Replace battery
HINT: There is no need to add water during the entire
service life of the battery.
AIR FILTER INSPECTION
1. INSPECT AIR FILTER
Visually check that the element is not excessively
dirty, damaged or oily.
2. CLEAN AIR FILTER
Clean the element with compressed air.
First blow air from the inside thoroughly. Then blow
off the outside of the element.B. Except Maintenance Free Battery
Check the specific gravity of each cell.
Standard specific gravity:
55D23L battery for GNB Incorporated
1.25 ± 1.27 at 205C (685F)
55D23L battery for JOHNSON CONTROLS
1.26 ± 1.28 at 275C (815F)
80D26L battery for GNB Incorporated
1.27 ± 1.29 at 205C (685F)
80D26L battery for JOHNSON CONTROLS
1.28 ± 1.30 at 27
C (81
F)
If the gravity is less than specification, charge the
battery.
HINT: Check the indicator as shown in the illustration.
HIGH±TENSION CORDS INSPECTION
1. DISCONNECT HIGH±TENSION CORDS FROM
SPARK PLUGS
Disconnect the high ± tension cords at the rubber
boot. Do not pull on the high±tension cords.
NOTICE: Pulling on or bending the cords may damage the
conductor inside.
