’04Camry_U (L/O 0307)
3
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

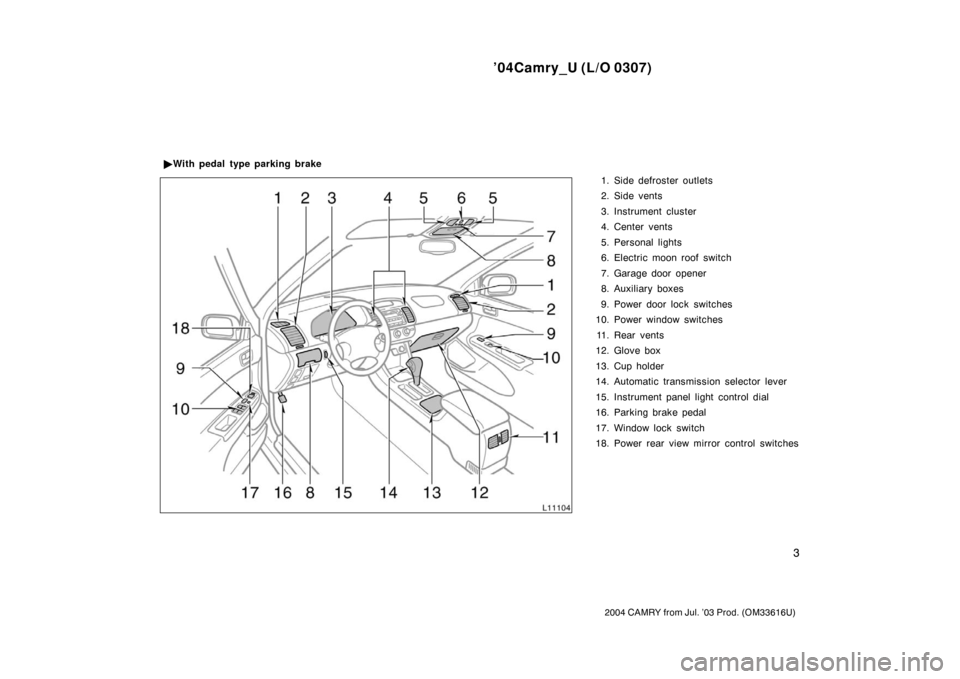

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Power door lock switches
10. Power window switches
11. Rear vents
12. Glove box
13. Cup holder
14. Automatic transmission selector lever
15. Instrument panel light control dial
16. Parking brake pedal
17. Window lock switch
18. Power rear view mirror control switches
With pedal type parking brake
Page 12 of 330
’04Camry_U (L/O 0307)
4
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

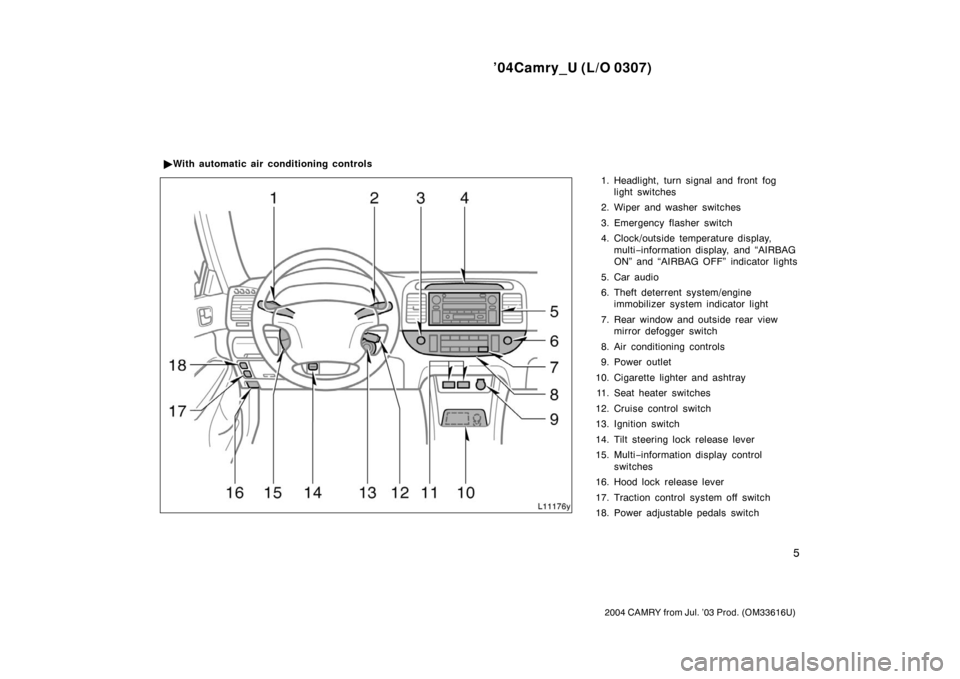

1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature display, multi −information display, and “AIRBAG
ON” and “AIRBAG OFF” indicator lights
5. Car audio
6. Theft deterrent system/engine immobilizer system indicator light
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Power outlet
10. Cigarette lighter and ashtray 11. Seat heater switches
12. Cruise control switch
13. Ignition switch
14. Tilt steering lock release lever
15. Multi −information display control
switches
16. Hood lock release lever
17. Traction control system off switch
18. Power adjustable pedals switch
With manual air conditioning controls
Page 13 of 330
’04Camry_U (L/O 0307)
5
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature display, multi −information display, and “AIRBAG
ON” and “AIRBAG OFF” indicator lights
5. Car audio
6. Theft deterrent system/engine immobilizer system indicator light
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Power outlet
10. Cigarette lighter and ashtray 11. Seat heater switches
12. Cruise control switch
13. Ignition switch
14. Tilt steering lock release lever
15. Multi −information display control
switches
16. Hood lock release lever
17. Traction control system off switch
18. Power adjustable pedals switch
With automatic air conditioning controls
Page 14 of 330
’04Camry_U (L/O 0307)
6
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

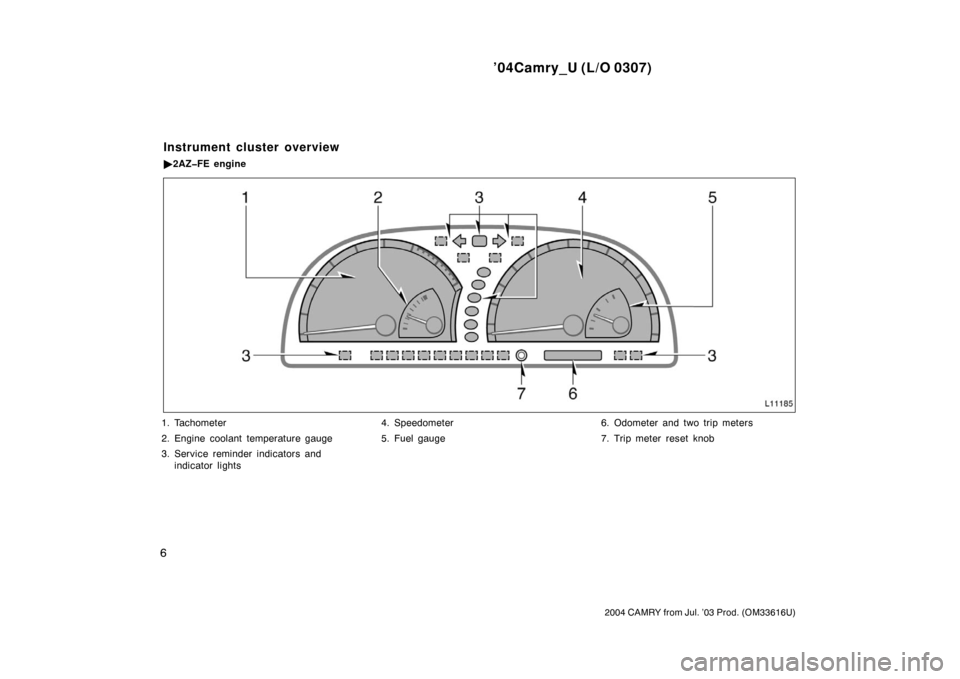

1. Tachometer
2. Engine coolant temperature gauge
3. Service reminder indicators andindicator lights 4. Speedometer
5. Fuel gauge
6. Odometer and two trip meters
7. Trip meter reset knob
Instrument cluster overview
2AZ FE engine
Page 15 of 330
’04Camry_U (L/O 0307)
7
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
1. Tachometer
2. Engine coolant temperature gauge
3. Service reminder indicators andindicator lights 4. Speedometer
5. Fuel gauge
6. Odometer and two trip meters
7. Trip meter reset knob
1MZ FE and 3MZ FE engines
Page 16 of 330
’04Camry_U (L/O 0307)
8
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti −lock brake system warning light∗
1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
or
or
Front passenger ’s seat belt reminder light∗
1
Low fuel level warning light∗1
Vehicle stability control system and traction
control system warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
“AIRBAG ON” indicator light
Indicator symbols on the instrument panel
Page 17 of 330
’04Camry_U (L/O 0307)
9
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
Slip indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 111 in Section 1− 6.
∗
2: If this light flashes, see “Cruise control” on page 135 in Sec-
tion 1 −7.
Cruise control indicator light∗
2
Overdrive −off indicator light
Automatic transmission indicator lights
Traction control system off indicator light
or
Headlight high beam indicator light
Turn signal indicator lights “AIRBAG OFF” indicator light
Page 18 of 330
’04Camry_U (L/O 0307)
10
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
Page 19 of 330
’04Camry_U (L/O 0307)
11
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Hood 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2
Page 20 of 330
’04Camry_U (L/O 0307)
12
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

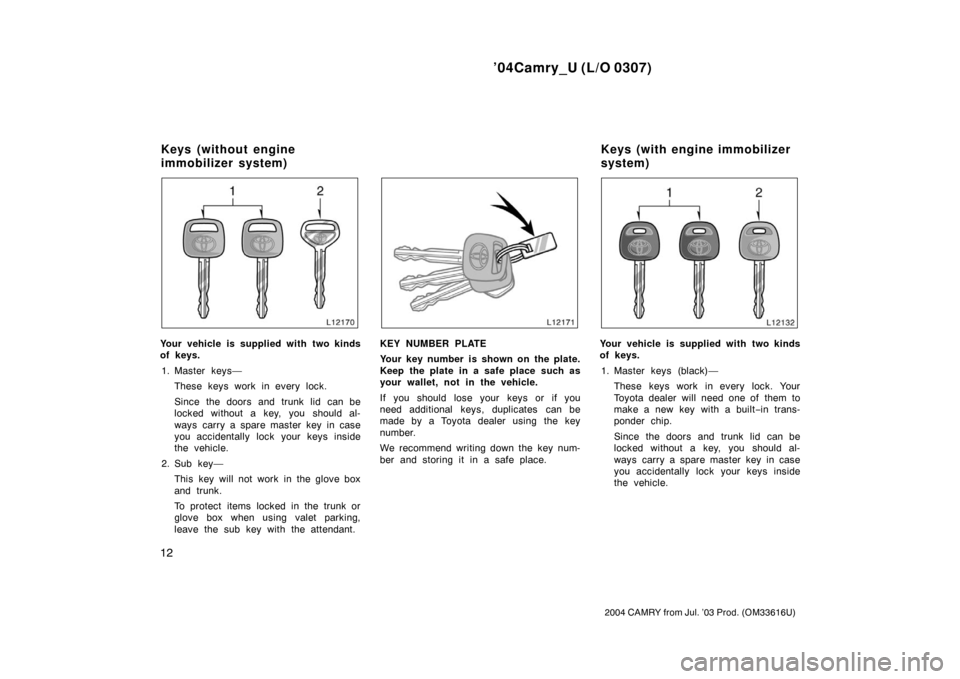

Your vehicle is supplied with two kinds
of keys.1. Master keys— These keys work in every lock.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
2. Sub key— This key will not work in the glove box
and trunk.
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)— These keys work in every lock. Your
Toyota dealer will need one of them to
make a new key with a built −in trans-
ponder chip.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)
