Page 321 of 330
’04Camry_U (L/O 0307)
313
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

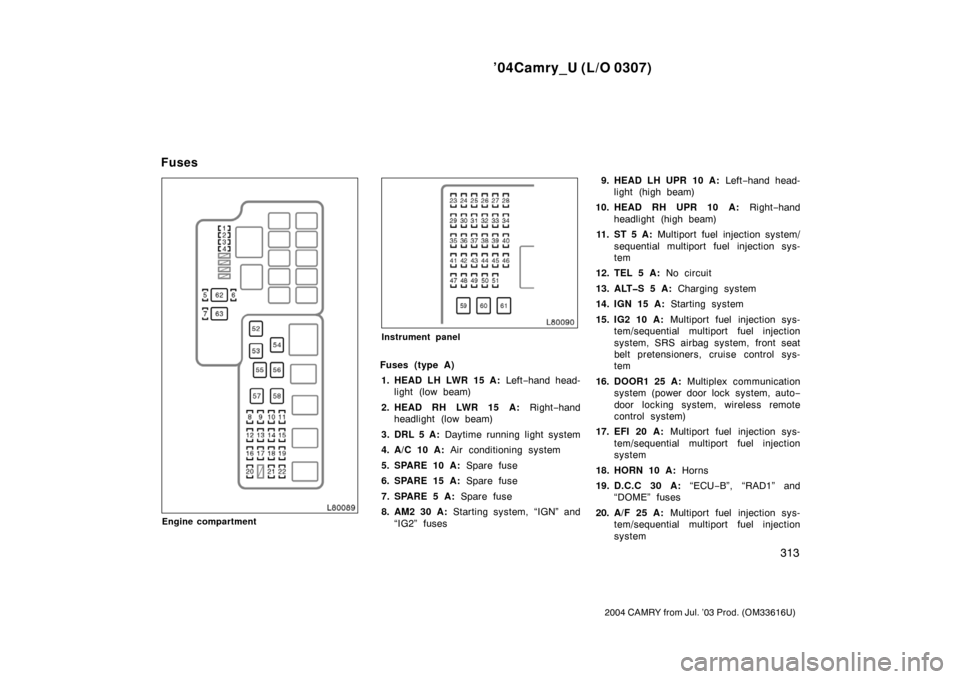

Engine compartment
Instrument panel
Fuses (type A)1. HEAD LH LWR 15 A: Left−hand head-
light (low beam)
2. HEAD RH LWR 15 A: Right−hand
headlight (low beam)
3. DRL 5 A: Daytime running light system
4. A/C 10 A: Air conditioning system
5. SPARE 10 A: Spare fuse
6. SPARE 15 A: Spare fuse
7. SPARE 5 A: Spare fuse
8. AM2 30 A: Starting system, “IGN” and
“IG2” fuses 9. HEAD LH UPR 10 A:
Left−hand head-
light (high beam)
10. HEAD RH UPR 10 A: Right−hand
headlight (high beam)
11. ST 5 A: Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
12. TEL 5 A: No circuit
13. ALT S 5 A: Charging system
14. IGN 15 A: Starting system
15. IG2 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, SRS airbag system, front seat
belt pretensioners, cruise control sys-
tem
16. DOOR1 25 A: Multiplex communication
system (power door lock system, auto −
door locking system, wireless remote
control system)
17. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
18. HORN 10 A: Horns
19. D.C.C 30 A: “ECU−B”, “RAD1” and
“DOME” fuses
20. A/F 25 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
Fuses
Page 322 of 330
’04Camry_U (L/O 0307)
314
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
21. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
22. HAZ 15 A: Emergency flashers
23. ECU B 10 A: Multiplex communication
system (power door lock system, secu-
rity system, auto −door locking system,
automatic light control system, head-
light delay off system, tail light auto
cut system, illuminated entry system,
daytime running light system, wireless
remote control system), air conditioning
system
24. DOME 7.5 A: Ignition switch light, inte-
rior light, personal lights, trunk light,
vanity lights, garage door opener,
clock, outside temperature gauge, mul-
ti −information display
25. CIG 15 A: Cigarette lighter
26. ECU ACC 5 A: Power rear view mir-
rors, clock, multi −information display
27. RAD NO.2 10 A: Car audio system,
navigation system
28. POWER POINT 15 A: Power outlets
29. RAD NO.1 20 A: Car audio system,
navigation system 30. GAUGE1 10 A:
Gauges and meters,
clock, outside temperature gauge, mul-
ti −information display, shift lock system,
seat belt reminder lights
31. ECU IG 10 A: SRS airbag system,
power windows, anti −lock brake system
32. WIPER 25 A: Windshield wipers
33. HTR 10 A: Air conditioning systems
34. MIR HTR 10 A: Outside rear view mir-
ror heaters
35. AM1 5 A: Starting system
36. FOG 15 A: Front fog lights
37. SUN SHADE 15 A: No circuit
38. GAUGE2 10 A: Auto anti−glare inside
rear view mirror, compass, electric
moon roof, back −up lights, automatic
transmission indicator lights, automatic
light control system, cruise control sys-
tem
39. PANEL 10 A: Glove box light, clock,
outside temperature gauge, multi −infor-
mation display, instrument cluster
lights, instrument panel lights, over-
drive− off indicator light
40. TAIL 10 A: Tail lights, parking lights,
license plate lights 41. PWR NO.4 20 A:
Rear passenger’s
power window (left side)
42. PWR NO.2 20 A: Front passenger ’s
door lock system, front passenger ’s
power window
43. OBD 7.5 A: On−board diagnosis sys-
tem
44. SEAT HTR 20 A: Seat heaters
45.
WASHER 15 A: Windshield washer
46. FAN RLY 10 A: Electric cooling fans
47. STOP 15 A: Stop lights, high mounted
stoplight, anti −lock brake system,
cruise control system
48. FUEL OPEN 5 A: No circuit
49. DOOR NO.2 25 A: Multiplex commu-
nication system (power door lock sys-
tem, auto −door locking system, wire-
less remote control system)
50. AMP 25 A: No circuit
51. PWR NO.3 20 A: Rear passenger’s
power window (right side)
Page 323 of 330
’04Camry_U (L/O 0307)
315
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
Fuses (type B)
52. MAIN 40 A: “HEAD LH LWR”, “HEAD
RH LWR”, “HEAD LH UPR”, “HEAD LH
UPR” and “DRL” fuses
53. ABS No.2 40 A: Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system
54. RDI 30 A: Electric cooling fan
55. CDS 30 A: Electric cooling fan
56. HTR 50 A: Air conditioning system
57. ADJ PDL 30 A: Power adjustable ped-
als
58. ABS No.3 30 A: Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system
59. PWR SEAT 30 A: Power seats
60. PWR NO.1 30 A: Driver ’s door lock
system, driver’s power wi ndow, electric
moon roof
61. DEF 40 A: Rear window defogger Fuses (type C)
62. ALT 120 A: “DEF”, “PWR NO.1”, “PWR
NO.2”, “PWR NO.3”, “PWR NO.4”,
“STOP”, “DOOR NO.2”, “OBD”, “PWR
SEAT”, “FUEL OPEN”, “FOG”, “AMP”,
“PANEL”, “TAIL”, “AM1”, “CIG”, “POW-
ER POINT”, “RAD NO.2”, “ECU −ACC”,
“GAUGE1”, “GAUGE2”, “ECU −IG”,
“WIPER”, “WASHER”, “HTR (10 A)”,
“SEAT HTR” and “SUN −SHADE” fuses
63. ABS NO.1 50 A: Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system
Page 324 of 330
’04Camry_U (L/O 0307)
316
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
Page 325 of 330
’04Camry_U (L/O 0307)
317
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS
Reporting safety defects for U.S. owners
Reporting safety defects for U.S. owners318
. . . . . . . . . . . . . . . . . . . . . .
SECTION 9
Page 326 of 330
’04Camry_U (L/O 0307)
318
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc.
(Toll−free: 1 −800 −331 −4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc. To contact NHTSA, you may ei-
ther call the Auto Safety Hotline
toll
−free at 1 −800 −424 −9393 (or
366 −0123 in Washington, D.C.
area) or write to: NHTSA, U.S.
Department of Transportation,
Washington, D.C. 20590. You can
also obtain other information about
motor vehicle safety from the Hot-
line.
Reporting safety defects for
U.S. owners
Page 327 of 330
’04Camry_U (L/O 0307)
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
Publication No. OM33616U
Part No. 01999-33616
Printed in Japan 01−0307 −00
Quick index
If a service reminder indicator or warning buzzer comes on 111 . . . . . . . .
If your vehicle will not start 238 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
If your engine stalls while driving 241 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 242 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
If you have a flat tire 243 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
If your vehicle needs to be towed 253 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving during break −in period 198 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine 224 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
General maintenance 269 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Gas station information
Fuel type:
2AZ −FE engine: UNLEADED gasoline, Octane Rating 87
(Research Octane Number 91) or higher
1MZ −FE and 3MZ −FE engines: UNLEADED gasoline, Octane Rating 87
(Research Octane Number 91) or higher. For improved vehicle performance,
the use of premium unleaded gasoline with an Octane Rating of 91 (Research
Octane Number 96) or higher is recommended.
See page 198 for detailed information.
Fuel tank capacity:
70 L (18.5 gal., 15.4 lmp. gal.)
Engine oil:
API grade SL “Energy −Conserving” or ILSAC multigrade engine oil is recom-
mended.
See page 283 for detailed information.
Automatic transmission fluid: Toyota Genuine ATF Type T −IV
Tire information: See pages 287 through 295.
Tire inflation pressure: See page 312.
bU1
I
Gas Stati on Inform ati on
Page 328 of 330
’04Camry_U (L/O 0307)
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
You should know as much about the quality and
importance of proper main tenance of your new
vehicle as the people who built it.
The Toyota authorized Repair Manual
tells you how to maint ain your vehicle and
enables you to correct ly perform your own
maintenance.
The best way to keep your new vehicle in top
running order is to maintain it properly from
the moment you drive it off the showroom
floor.
The Toyota authorized Repair Manual is
packed with literally everything you need to
know to perform your own maintenance in
virtually every area of your new vehicle.
Repair Manual Information
Page 329 of 330
’04Camry_U (L/O 0307)
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
Where to obtain the Repair Manual
The repair manual for CAMRY, written in Eng-
lish, may be purchased as applicable from any
Toy ota dea l er.
Pub. Name: 2004 CAMRY Repair Manual
Pub. No.: RM1063U1 RM1063U2
RM1063U3
Maintenance procedures for the engine,
chassis, body, electric al system, and more,
are clearly explained and illustrated.
Periodic maintenance and tune up
Periodic maintenance and tune up helps to pre-
vent small problems from growing into larger ones lat-
er on. The repair manual outlines exactly what main-
tenance is required and clearly explains how to do the
work yourself step by step.
Areas covered include such things as spark plug re-
placement, valve clearance adjustment and engine oil
and filter replacement.
Page 330 of 330
’04Camry_U (L/O 0307)
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
WE REALLY CARE ABOUT YOU PLEASE BUCKLE UP
Toyota has made a special effort to encourage use of seat belts.
Toyota belts are:
Comfortable
Easy to use
Convenient
We encourage you to use your belts every time you drive.
U
Seat Belt Warning
