TOYOTA CAMRY 2004 XV30 / 7.G Owners Manual

’04Camry_U (L/O 0307)
303
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

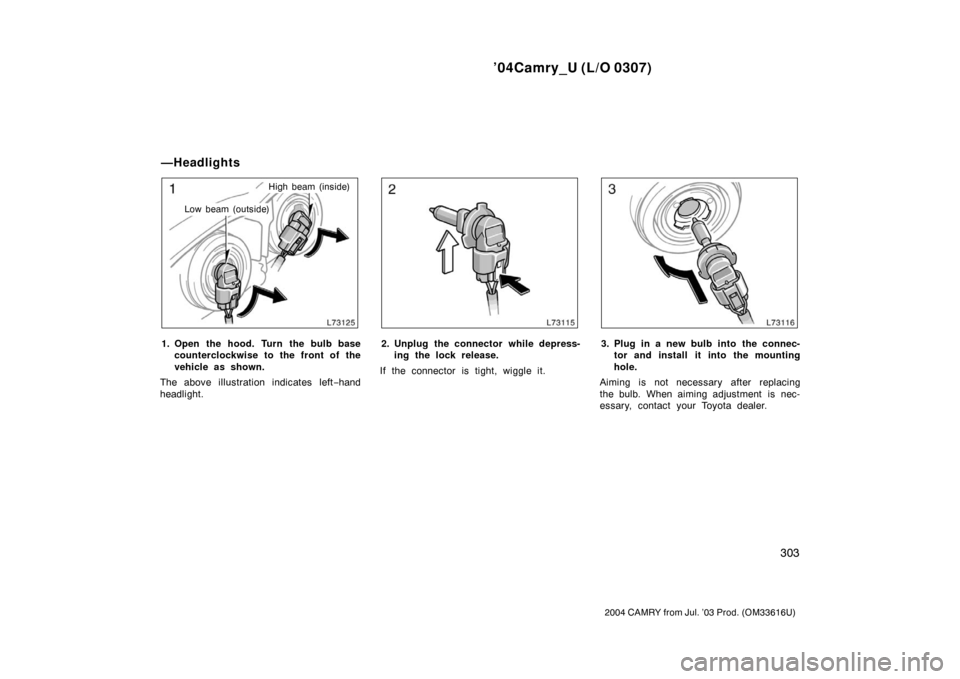

Low beam (outside)High beam (inside)
1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.
The above illustration indicates left −hand
headlight.2. Unplug the connector while depress- ing the lock release.
If the connector is tight, wiggle it.3. Plug in a new bulb into the connec- tor and install it into the mounting
hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

’04Camry_U (L/O 0307)
304
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

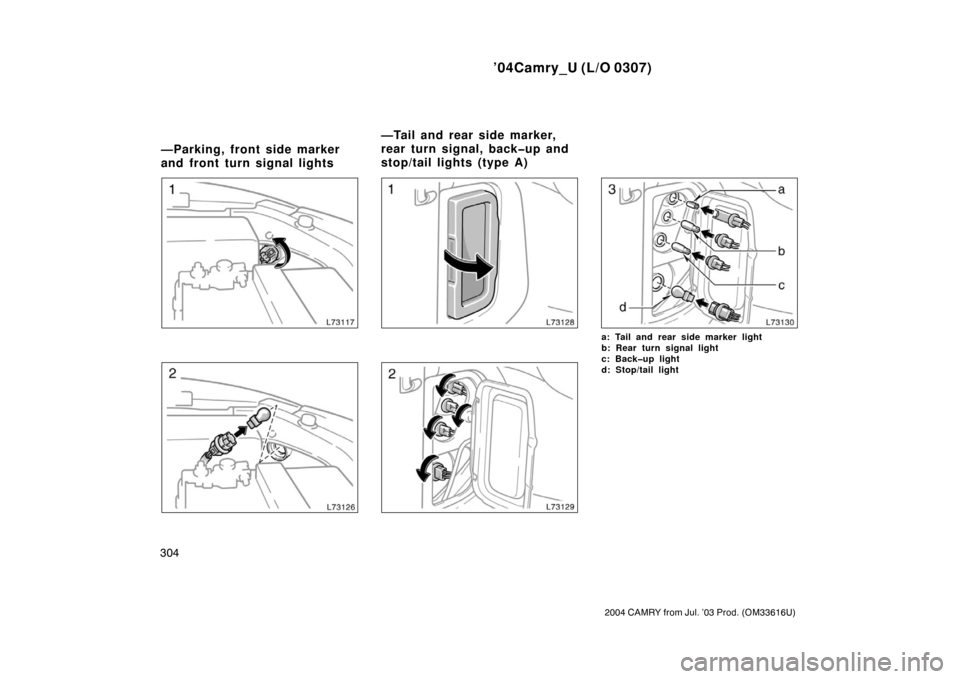

a: Tail and rear side marker light
b: Rear turn signal light
c: Backup light
d: Stop/tail light
—Parking, front side marker
and front turn signal lights—Tail and rear side marker,
rear turn signal, backup and
stop/tail lights (type A)

’04Camry_U (L/O 0307)
305
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

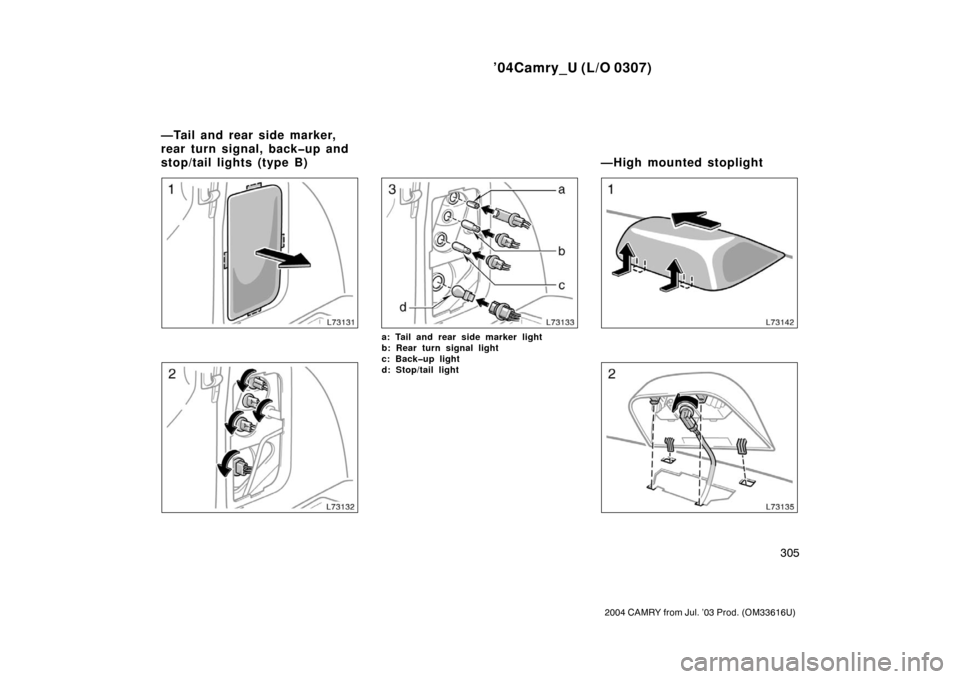

a: Tail and rear side marker light
b: Rear turn signal light
c: Backup light
d: Stop/tail light
—Tail and rear side marker,
rear turn signal, backup and

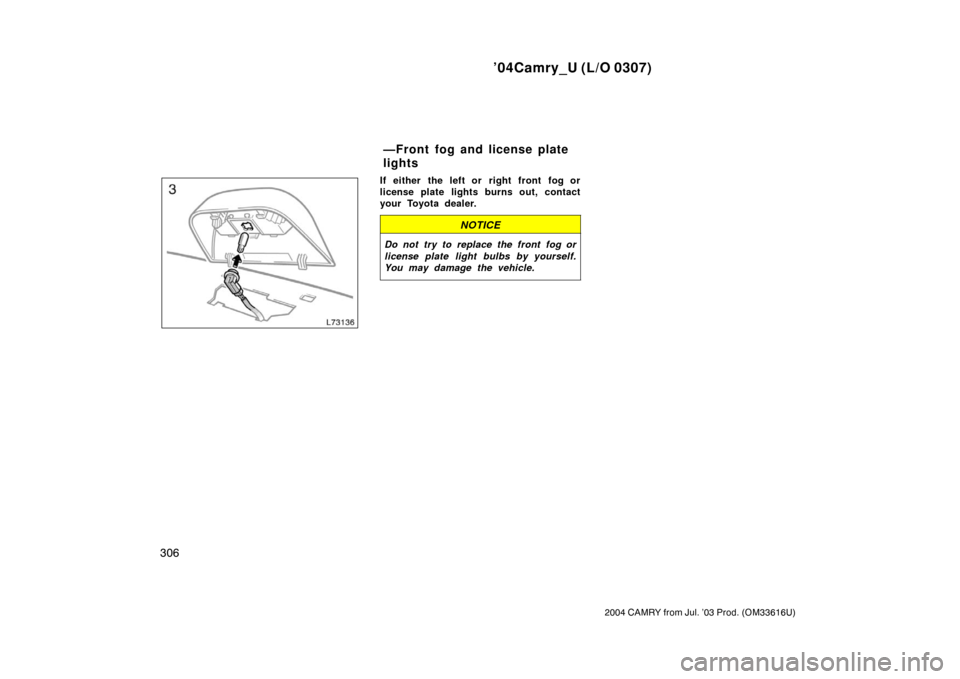

stop/tail lights (type B) —High mounted stoplight

’04Camry_U (L/O 0307)
306
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
If either the left or right front fog or
license plate lights burns out, contact
your Toyota dealer.
NOTICE
Do not try to replace the front fog or
license plate light bulbs by yourself.
You may damage the vehicle.
—Front fog and license plate
lights

’04Camry_U (L/O 0307)
307
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
SPECIFICATIONS
Specifications
Dimensions and weights308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 312
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’04Camry_U (L/O 0307)
308
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
Model:2AZ− FE, 1MZ −FE and 3MZ −FE
Type:
2AZ− FE engine
4 cylinder in line, 4 cycle, gasoline
1MZ −FE and 3MZ −FE engines
6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.): 2AZ− FE engine
88.5 96.0 (3.48 3.78)
1MZ −FE engine
87.5 83.0 (3.44 3.27)
3MZ −FE engine
92.0 83.0 (3.62 3.27)
Displacement, cm
3 (cu. in.):
2AZ− FE engine 2362 (144.1)
1MZ −FE engine 2995 (182.8)
3MZ −FE engine 3311 (202.1)
Dimensions and weights
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ 1 mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity weight
(occupants + luggage) kg (lb.)
∗
1: Unladen vehicle∗2: With 205/65R15 tires∗3: With 215/60R16 tires 1490 (58.7)
∗
2
1500 (59.1)∗3
4805 (189.2)
1795 (70.7)
2720 (107.1)
1545 (60.8)
1535 (60.4)
410 (900)
Towing capacity
(trailer weight + cargo weight) kg (lb.) 907 (2000)
Engine

’04Camry_U (L/O 0307)
309
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
Fuel type:2AZ− FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
1MZ −FE and 3MZ −FE engines
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher. For improved vehicle perfor-
mance, the use of premium unleaded
gasoline with an Octane Rating of 91
(Research Octane Number 96) or
higher is recommended.
Fuel tank capacity, L (gal., Imp. gal.): 70 (18.5, 15.4) ENGINE
Valve clearance (engine cold), mm (in.):
2AZ− FE engine
Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.30—0.40 (0.012—0.016)
1MZ −FE and 3MZ −FE engines
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm(in.): 1.1 (0.043)
1MZ −FE and 3MZ −FE engines—
Drive belt tension measured with
Borroughs drive belt tension gauge
No.BT− 33−73F (used belt), Ibf:
125 10 ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
2AZ− FE engine
With filter 3.8 (4.0, 3.3)
Without filter 3.6 (3.8, 3.2)
1MZ −FE and 3MZ −FE engines
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
“Toyota Genuine Motor Oil” is f illed in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade: API grade SL “Energy −Conserving” or
ILSAC multigrade engine oil
Fuel Service specifications

’04Camry_U (L/O 0307)
310
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
Recommended oil viscosity:SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
2AZ− FE engine 6.2 (6.6, 5.4)
1MZ −FE and 3MZ −FE engines
9.2 (9.8, 8.1)
Coolant type: “Toyota Super Long Life Coolant” is
filled in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
Do not use plain water alone.
Please contact your Toyota dealer for
further details. BATTERY
Open voltage
∗ at 20
C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
Note: If replacement is necessary, make
sure to do so with a battery that meets
the same standard as the original.
CLUTCH
Pedal free play, mm (in.): 5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 2.5 (2.6, 2.2)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90

’04Camry_U (L/O 0307)
311
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill), L (qt.,
Imp. qt.):3.5 (3.7, 3.1)
Fluid type: Toyota Genuine ATF Type T −IV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF Type T −IV”
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type TIV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Please contact your Toyota dealer for fur-
ther details. BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
63 (2.5)
∗
∗
: Fixed type and adjustable type (in front
most position)
Pedal free play, mm (in.):
Fixed type 1—6 (0.04—0.24)
Adjustable type (in front most position) 1—8 (0.04—0.31)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake Lever type—Parking brake adjustment when pulled
with the force of 196 N (20 kgf, 44
lbf):6—9 clicks
Pedal type— Parking brake adjustment when de-
pressed with the force of 300 N (31
kgf, 67 lbf):3—6 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3 STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

’04Camry_U (L/O 0307)
312
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
Tire size and cold tire inflation pressure:
Normal drivingkPa (kgf/cm
2 or bar, psi)
Ti r e siz e
FrontRearWheel size
P205/65R15 92T200 (2.0, 29)200 (2.0, 29)15 61/2 JJ
P205/65R15 92H200 (2.0, 29)200 (2.0, 29)15 61/2 JJ
P215/60R16 94V200 (2.0, 29)200 (2.0, 29)16 61/2 JJ
When driving under the above vehicle conditions at sustai ned high speeds above 160 km/h (100 mph), in countries
where such speeds are permitted by −law, inflate the front and rear tires to 240 kPa (2.4 kgf/cm2 or bar, 35 psi) provided
that it does not exceed the maximum cold tire inflation pressure molded on the tire sidewall.
Compact spare tire kPa (kgf/cm
2 or bar, psi) Wheel size
T145/80R16 105M 420 (4.2, 60)16  4T
Trailer driving kPa (kgf/cm
2 or bar, psi)
Ti r e siz e
FrontRear
P205/65R15 92T220 (2.2, 32)220 (2.2, 32)
P205/65R15 92H220 (2.2, 32)220 (2.2, 32)
P215/60R16 94V200 (2.0, 29)200 (2.0, 29)
W h eel nu t to rq u e, N·m (kg f· m, ft· l b f ) : 103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing ti res or replacing wheels), see “Checking tire inflation pres-
sure” through “Aluminum wheel precautions”, pages 287 through 295, in Section 7 −2.
Tires
