TOYOTA CAMRY 2006 XV40 / 8.G Navigation Manual

06 CAMRY NAVI_U (L/O 0507)
i
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
Introduction
Thank you for your purchase of the Navigation System. Please read this manual\
carefully to ensure proper use. Keep this manual
in your vehicle at all times.
The Navigation System is one of the most technologically advanced vehicle a\
ccessories ever developed. The system receives satellite signals
from the Global Positioning System (GPS) operated by the U.S. Department of Def\
ense. Using these signals and other vehicle sensors, the
system indicates your present position and assists in locating a desired desti\
nation.
The navigation system is designed to select efficient routes from your present starting location to your destination. \
The syst em is designed
to direct you to a destination that is unfamiliar to you in an efficient manner. The system uses the maps of DENSO. The calcu lated routes
may not be the shortest nor the least traffic congested. Your own personal local knowledge or “short cut” may at times be faster than the calcu-
lated routes.
The navigation system’s database includes about 75 Point of Interest categories to allow you to \
easily select destinations such as restaurants
and banks. If a destination is not in the database, you can enter the stre\
et address or a major intersection close to it and the system will guide
you there. The system will provide both a visual map and audio instruct\
ions. The audio instructions will announce the distanc e remaining
and the direction to turn in approaching a fork or intersection. These voi\
ce instructions will help you keep your eyes on the road and are timed
to provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitatio\
ns that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle condition or other \
circumstan-
ces. For more information on the limitations of the system, refer to pages \
10 through 12.

06 CAMRY NAVI_U (L/O 0507)
ii
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to reduce the risk of injury to
yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning is
ignored. You are informed about what
you must or must not do in order to
avoid or reduce the risk of damage to
your vehicle and its equipment.
INFORMATION
This provides additional information.
Initial screen
When you start the engine or turn the ignition
switch to the “ACC” position, the initial
screen appears and the system begins
operating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
After a few seconds, the “CAUTION” screen
appears.
Touch either “English” or
“Français” to select a language. Read
and follow the instructions.
When you touch the
“I Agree” switch
on the screen, the map screen appears.
You can access this screen when you push
the
“INFO” button and touch the “Lan-
guage”
switch. Then you can select a lan-
guage.

06 CAMRY NAVI_U (L/O 0507)
iii
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
Safety Instruction
To use your system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist you in
reaching your destination and, if used prop-
erly, can do so. Y ou, as the driver, are solely
responsible for the safe operation of your ve-
hicle and the safety of your passengers.
Do not use any feature of this system to the
extent it distracts you from safe driving. Your
first priority while driving should always be
the safe operation of your vehicle. While you
are driving, be sure to observe all traffic regu-
lations. Prior to the actual use of this system, learn
how to use it and become thoroughly familiar
with it. Read the entire Navigation System
Owner’s Manual to make sure you under-
stand
the system. Do not allow others to use
this system until they have read and under-
stood the instructions in this manual.
For your safety, some functions may become
inoperable when you start driving. Unavail-
able switches are dimmed. You can input
your destination and select your route only
when the vehicle is not moving.
CAUTION
 For safety, the driver should not
operate the navigation system while
he/she is driving. Inattention to the
road and traffic may cause an
accident.
 While you are driving, be sure to
obey the traffic regulations and
maintain awareness of the road
conditions. If a traffic sign on the
road has been changed, route
guidance may provide wrong
information such as t he direction of
a one way street.

06 CAMRY NAVI_U (L/O 0507)
iv
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
While you are driving, listen to the voice in-
structions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice gui-
dance. Use it just for your information. If the
system cannot determine your current posi-
tion correctly, there is a possibility of incor-
rect, late or non −voice guidance.
The data in the system may occasionally be
incomplete. Road conditions, including driv-
ing restrictions (no left turns, street closures,
etc.) frequently change. Therefore, before
you follow any instruction from the system,
look to see whether you can comply with the
instruction safely and legally.
This system cannot warn you about such
things as the safety of an area, condition of
streets, and availability of emergency servi-
ces. If you are unsure about the safety of an
area, do not drive into it. Under no circum-
stances is this system a substitute for the
driver’s personal judgement.
Use this system only in locations where it is
legal to do so. Some states/provinces may
have laws prohibiting video screens within
sight of the driver.

06 CAMRY NAVI_U (L/O 0507)
v
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

06 CAMRY NAVI_U (L/O 0507)
xii
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

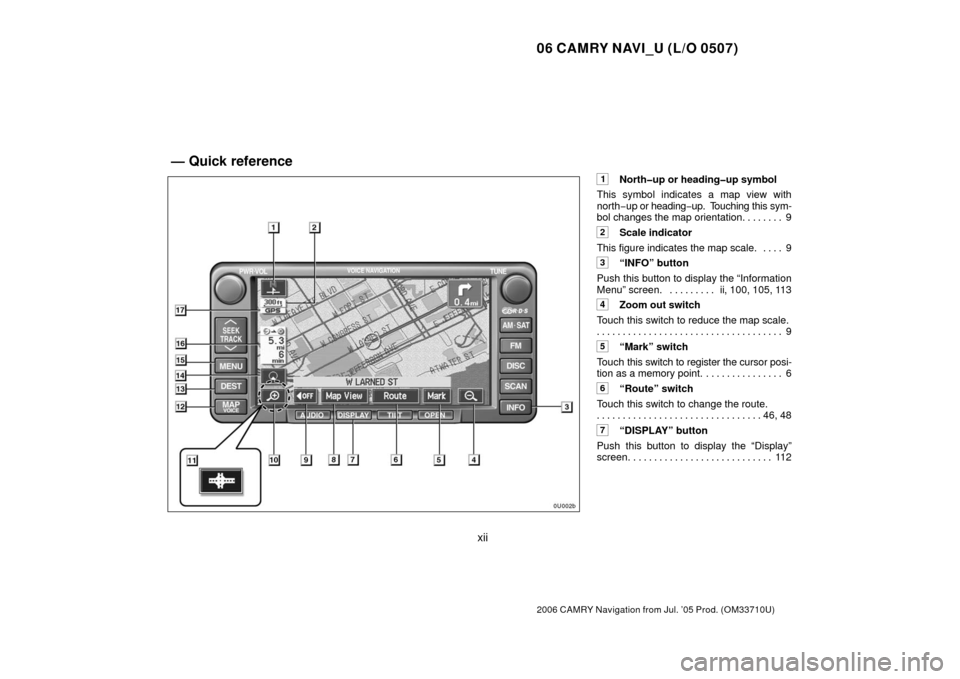

1Northup or headingup symbol
This symbol indicates a map view with
north−up or heading −up. T ouching this sym-
bol changes the map orientation. 9 . . . . . . .
2Scale indicator
This figure indicates the map scale. 9 . . . .
3“INFO” button
Push this button to display the “Information
Menu” screen. ii, 100, 105, 113 . . . . . . . . .
4Zoom out switch
Touch this switch to reduce the map scale. 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
5“Mark” switch
Touch this switch to register the cursor posi-
tion as a memory point. 6 . . . . . . . . . . . . . . .
6“Route” switch
Touch this switch to change the route. 46, 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“DISPLAY” button
Push this button to display the “Display”
screen. 112 . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Quick reference

06 CAMRY NAVI_U (L/O 0507)
xiii
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
8“Map View” switch
Touch this switch to obtain information re-
garding the route to the destination and infor-
mation about the POI (Points of Interest) on
the map screen. 53, 55, 56 . . . . . . . . . . . . .
9“ OFF” switch
Touch this switch to obtain a broader view.
Some of the switches on the screen are not
displayed. They reappear by touching the
“ON ” switch. 93 . . . . . . . . . . . . . . . . . . . . .
10Zoom in switch
Touch this switch to magnify the map scale. 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
11Foot print map switch
Touch this switch to display the foot print
map and the building information. 62 . . . . .
12“MAP/VOICE” button
Push this b utton to repeat a voice guidance,
cancel one touch scroll, start guidance and
display the current position. 5, 6, 46 . . . . .
13“DEST” button
Push this button to display the “Destination”
screen. xiv, 24 . . . . . . . . . . . . . . . . . . . . . . . .
14Screen configuration switch
Touch this switch to change the screen
mode. 57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15“MENU” button
Push this button to display the “Menu”
screen. xvi, 20, 65 . . . . . . . . . . . . . . . . . . . . .
16Distance and time to destination
Displays the distance and the estimated
travel time to the destination. 61 . . . . . . . . .
17“GPS” mark (Global Positioning
System)
Whenever your vehicle is receiving signals
from the GPS, this mark is displayed. 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

06 CAMRY NAVI_U (L/O 0507)
xiv
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

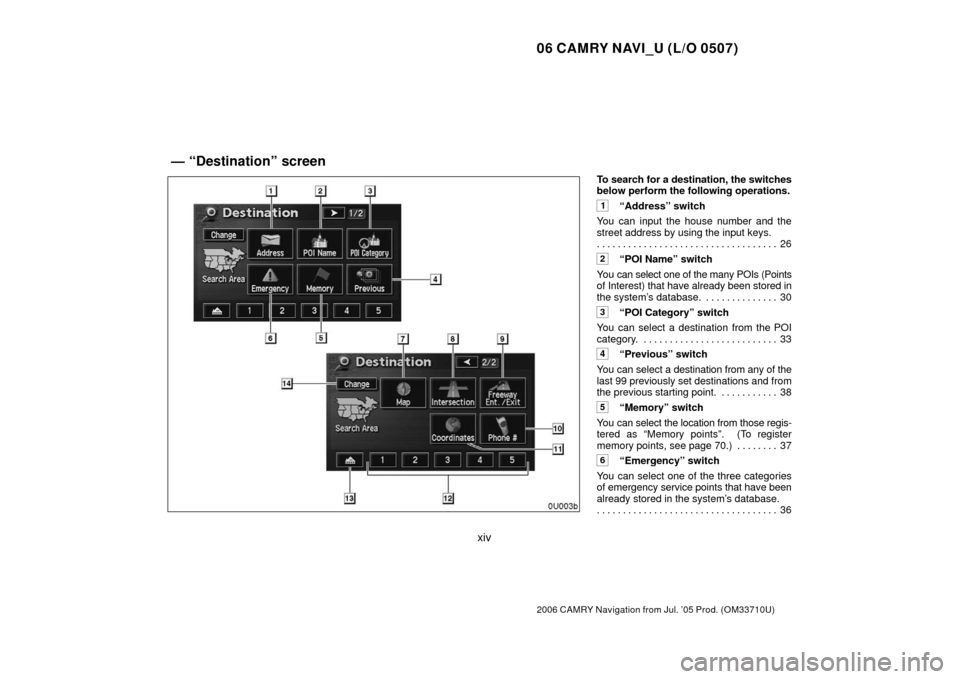

To search for a destination, the switches
below perform the following operations.
1“Address” switch
You can input the house number and the
street address by using the input keys. 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2“POI Name” switch
You can select one of the many POIs (Points
of Interest) that have already been stored in
the system’s database. 30 . . . . . . . . . . . . . .
3“POI Category” switch
You can select a destination from the POI
category. 33 . . . . . . . . . . . . . . . . . . . . . . . . . .
4“Previous” switch
You can select a destination from any of the
last 99 previously set destinations and from
the previous starting point. 38
. . . . . . . . . . .
5“Memory” switch
You can select the location from those regis-
tered as “Memory points”. (To register
memory points, see page 70.) 37 . . . . . . . .
6“Emergency” switch
You can select one of the three categories
of emergency service points that have been
already stored in the system’s database. 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— “Destination” screen

06 CAMRY NAVI_U (L/O 0507)
xv
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
7“Map” switch
You can select a destination simply by
touching the location on the displayed map.
38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8“Intersection” switch
You can enter the names of two intersecting
streets. This is helpful if you do not know the
specific street address of your destination
but know the general vicinity. 39 . . . . . . . . .
9“Freeway Ent./Exit” switch
You can enter the name of a freeway (inter-
state) entrance or exit. 40 . . . . . . . . . . . . . . .
10“Phone #” switch
You can enter a destination by the telephone
number. 41 . . . . . . . . . . . . . . . . . . . . . . . . . . .
11“Coordinates” switch
You can set a destination using latitude and
longitude as coordinates. 41 . . . . . . . . . . . .
12Quick access switch
You can select one of 5 preset destinations
directly. To use this function, it is necessary
to set the “Attribute” for each memory point.
(To register a “Quick Access”, see page 74.)
26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13Home switch
You can select your own home without en-
tering the address each time. To use this
function, it is necessary to set the “Attribute”
for the memory point. (To register “Home”,
see page 74.) 26 . . . . . . . . . . . . . . . . . . . . . .
14“Change” switch
To change the search area, touch this
switch. 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

06 CAMRY NAVI_U (L/O 0507)
xvi
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

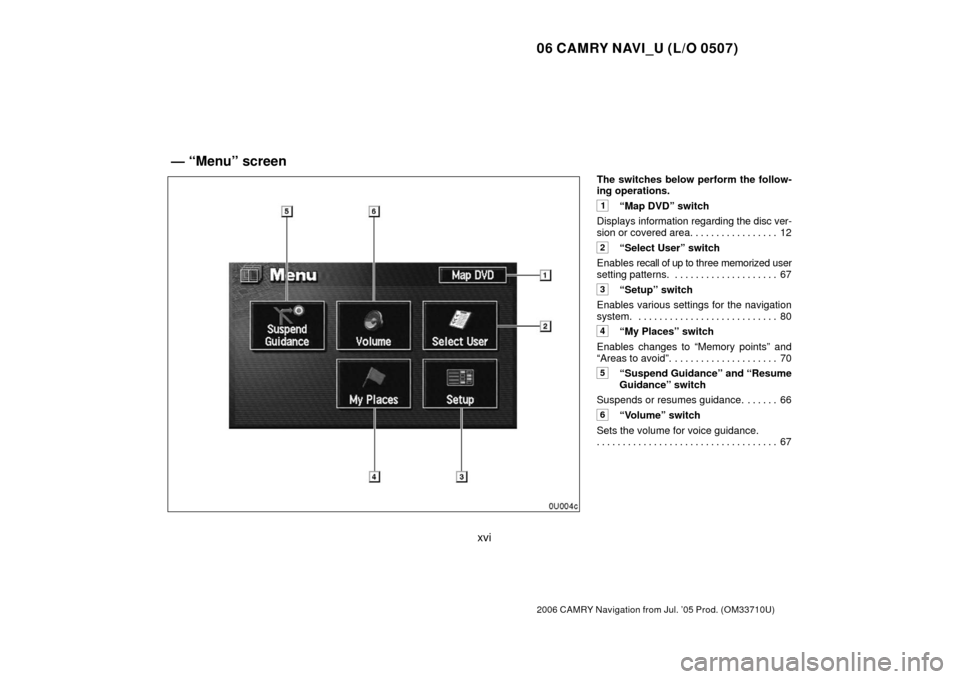

The switches below perform the follow-
ing operations.
1“Map DVD” switch
Displays information regarding the disc ver-
sion or covered area. 12 . . . . . . . . . . . . . . . .
2“Select User” switch
Enables recall of up to three memorized user
setting patterns. 67 . . . . . . . . . . . . . . . . . . . .
3“Setup” switch
Enables various settings for the navigation
system. 80 . . . . . . . . . . . . . . . . . . . . . . . . . . .
4“My Places” switch
Enables changes to “Memory points” and
“Areas to avoid”. 70 . . . . . . . . . . . . . . . . . . . .
5“Suspend Guidance” and “Resume
Guidance” switch
Suspends or resumes guidance. 66 . . . . . .
6“Volume” switch
Sets the volume for voice guidance. 67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— “Menu” screen
