TOYOTA CAMRY 2006 XV40 / 8.G Navigation Manual

06 CAMRY NAVI_U (L/O 0507)
111
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

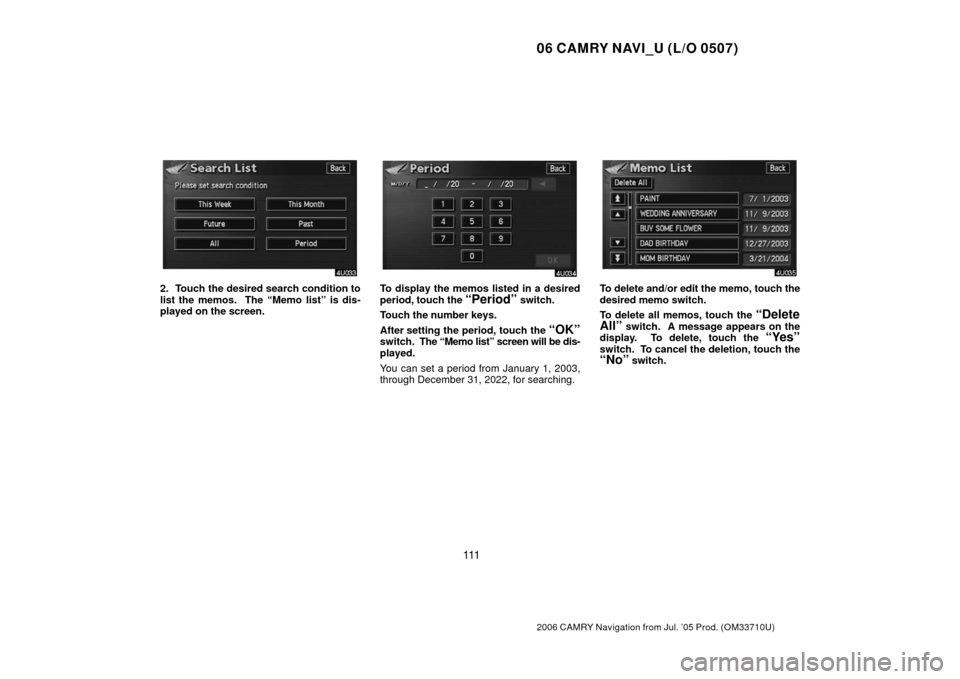

2. Touch the desired search condition to
list the memos. The “Memo list” is dis-
played on the screen.To display the memos listed in a desired
period, touch the
“Period” switch.
Touch the number keys.
After setting the period, touch the
“OK”switch. The “Memo list” screen will be dis-
played.
You can set a period from January 1, 2003,
through December 31, 2022, for searching.
To delete and/or edit the memo, touch the
desired memo switch.
To delete all memos, touch the
“Delete
All”
switch. A message appears on the
display. To delete, touch the “Yes”
switch. To cancel the deletion, touch the“No” switch.

06 CAMRY NAVI_U (L/O 0507)
11 2
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

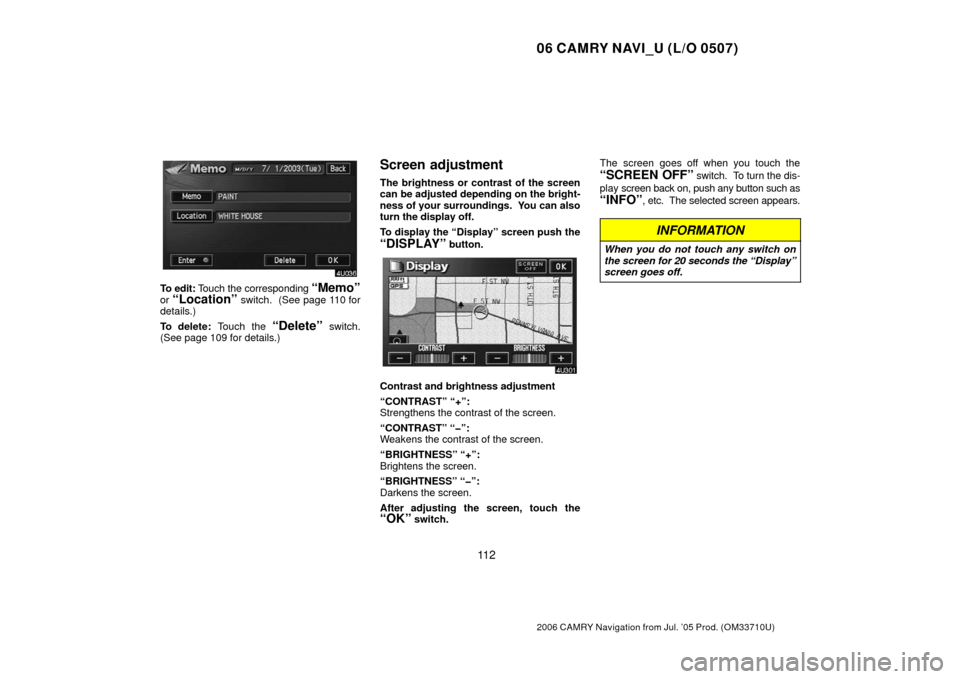

To edit: Touch the corresponding “Memo”
or “Location” switch. (See page 110 for
details.)
To delete: Touch the
“Delete” switch.
(See page 109 for details.)
Screen adjustment
The brightness or contrast of the screen
can be adjusted depending on the bright-
ness of your surroundings. You can also
turn the display off.
To display the “Display” screen push the
“DISPLAY” button.
Contrast and brightness adjustment
“CONTRAST” “+”:
Strengthens the contrast of the screen.
“CONTRAST” “”:
Weakens the contrast of the screen.
“BRIGHTNESS” “+”:
Brightens the screen.
“BRIGHTNESS” “”:
Darkens the screen.
After adjusting the screen, touch the
“OK” switch. The screen goes off when you touch the
“SCREEN OFF” switch. To turn the dis-
play screen back on, push any button such as
“INFO”, etc. The selected screen appears.
INFORMATION
When you do not touch any switch on
the screen for 20 seconds the “Display”
screen goes off.

06 CAMRY NAVI_U (L/O 0507)
11 3
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
Depending on the position of the headlight
switch, the screen changes to either day
mode or night mode.
To display the screen in the day mode even
with the headlight switch on, touch the
“DAY
MODE”
switch on the adjustment screen for
brightness and contrast control.
If the screen is set in the day mode with the
headlight switch turned on, this condition is
memorized in the system even with the en-
gine turned off.

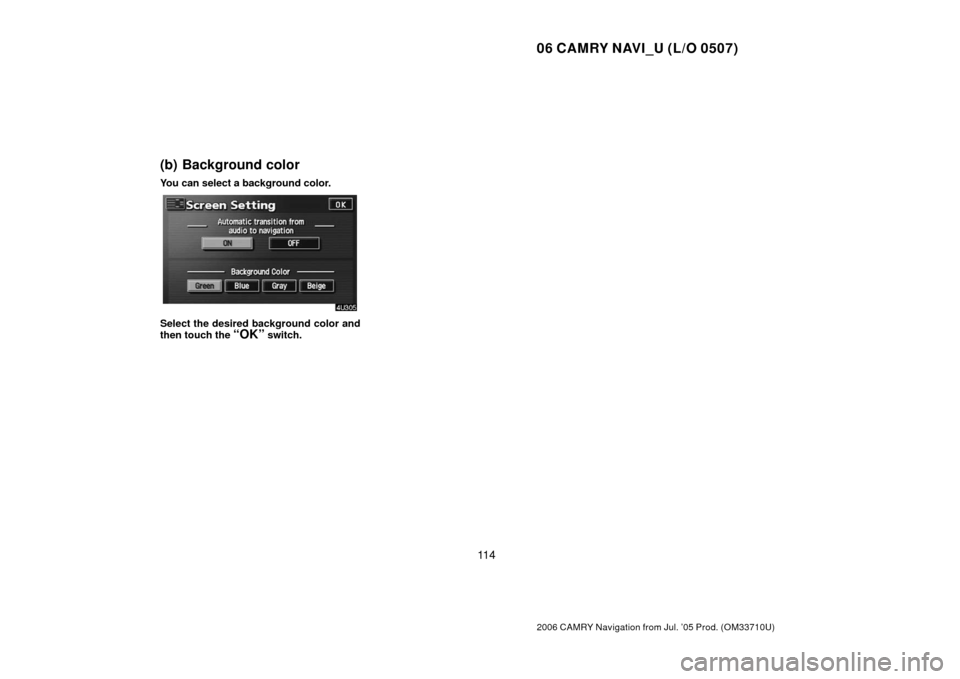

Screen setting
1. Push the “INFO” button to display the
“Information Menu” screen.
2. Touch the “Screen Setting” switch.
(a) Automatic transition
You can select a function that enables au-
tomatic return to the navigation screen
from the audio screen.
Select “ON” or “OFF” and then touch
the
“OK” switch.
“ON”: The navigation screen automatically
returns from the audio screen 20
seconds after the end of audio op-
eration.
“OFF”: The audio screen remains on.

06 CAMRY NAVI_U (L/O 0507)
11 4
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
(b) Background color
You can select a background color.
Select the desired background color and
then touch the
“OK” switch.

06 CAMRY NAVI_U (L/O 0507)
11 5
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
AUDIO SYSTEM
Audio system
Quick reference11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Using your audio system 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Audio system operating hints 132
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
SECTION V

06 CAMRY NAVI_U (L/O 0507)
11 6
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
1Function switch display screen
Touch the switches displayed on the
screen to control the radio and compact
disc player. For details, see page 118.
2“TUNE” knob
Turn this knob to move the station band
or SAT channel up or down. For details,
see pages 120 and 124.
3“AM·SAT” button
Push this button to choose an AM station
or SAT channel. For details, see pages
118, 120 and 124.
4“FM” button
Push this button to choose an FM sta-
tion. For details, see pages 118 and
120.
5“DISC” button
Push t his button to turn the compact disc
player on. For details, see pages 118
and 130.
6“SCAN” button
Push this button to scan radio stations/
SAT channels or the tracks on a com-
pact disc. For details, see pages 121,
126 and 131.
7“OPEN” button
Push this button to open the display to
access the slot for the compact disc
player. For details, see page 129.
Quick reference

06 CAMRY NAVI_U (L/O 0507)
11 7
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
8“AUDIO” button
Push this button to display the audio
control screen. For details, see page
117.
9“SEEK/TRACK” button
Push either side of this button to seek up
or down for a station, to access a desired
program or track, or to select a SAT
channel. For details, see pages 121,
125 and 131.
10“PWR·VOL” knob
Push this knob to turn the audio system
on and off, and turn it to adjust the volu-
me. For details, see page 117.
Using your audio system —
— Some basics
This section describes some of the basic fea-
tures of your audio system. Some information
may not pertain to your system.
Your audio system works when the ignition
switch is in the “ACC” or “ON” position.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio system
on longer than necessary when the en-
gine is not running.
(a) Turning the system on and off
“PWR·VOL”: Push this knob to turn the audio
system on and off. Turn this knob to adjust the
volume. The system turns on in the last mode
used.
“AUDIO”: Push this button to display
switches for audio system (audio control
mode).
You can select the function that enables auto-
matic return to the previous screen from the
audio screen. See page 113 for details.

06 CAMRY NAVI_U (L/O 0507)
11 8
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
Push “AM·SAT”, “FM” or “DISC” button to
turn on the desired mode. The selected
mode turns on immediately.
Push these buttons if you want to switch from
one mode to another.
If the disc is not set, the compact disc player
does not turn on.
You can turn off the compact disc player by
ejecting the compact disc. If the audio system
was previously off, then the entire audio sys-
tem will be turned off when you eject the com-
pact disc. If the other function was previously
playing, it will come on again.
The switches for radio and compact disc
player operation are displayed on the
function switch display screen when the
audio control mode is selected. Touch
them lightly and directly on the screen.
The selected switch is highlighted in green or
yellow.
INFORMATION
 If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
 You cannot operate dimmed
switches.
 Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.

06 CAMRY NAVI_U (L/O 0507)
11 9
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

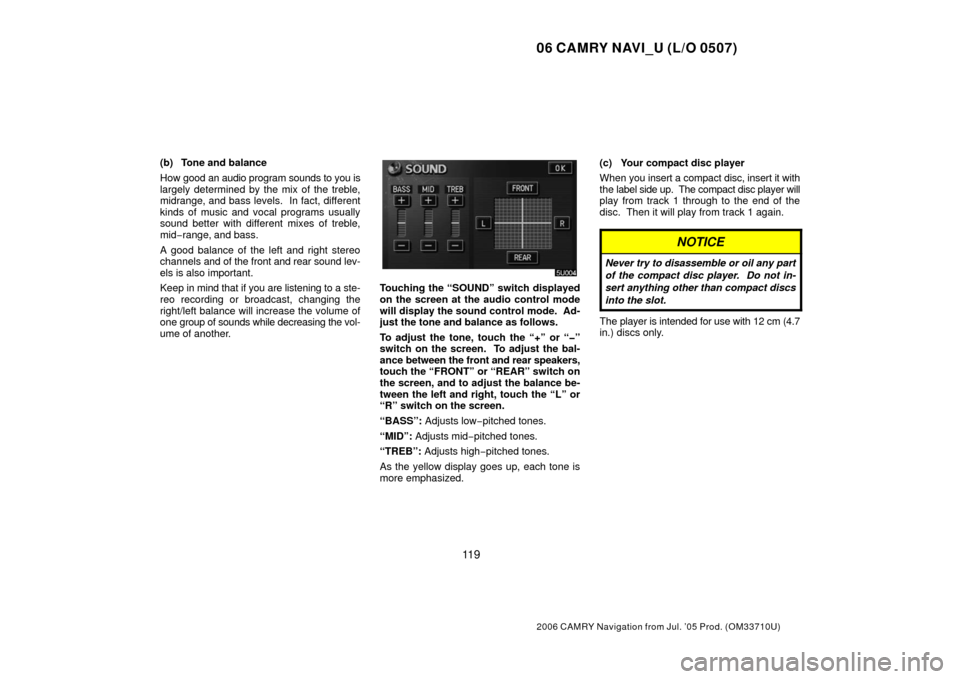

(b) Tone and balance
How good an audio program sounds to you is
largely determined by the mix of the treble,
midrange, and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different mixes of treble,
mid−range, and bass.
A good balance of the left and right stereo
channels and of the front and rear sound lev-
els is also important.
Keep in mind that if you are listening to a ste-
reo recording or broadcast, changing the
right/left balance will increase the volume of
one group of sounds while decreasing the vol-
ume of another.
Touching the “SOUND” switch displayed
on the screen at the audio control mode
will display the sound control mode. Ad-
just the tone and balance as follows.
To adjust the tone, touch the “+” or “”
switch on the screen. To adjust the bal-
ance between the front and rear speakers,
touch the “FRONT” or “REAR” switch on
the screen, and to adjust the balance be-
tween the left and right, touch the “L” or
“R” switch on the screen.
“BASS”: Adjusts low −pitched tones.
“MID”: Adjusts mid− pitched tones.
“TREB”: Adjusts high− pitched tones.
As the yellow display goes up, each tone is
more emphasized. (c) Your compact disc player
When
you insert a compact disc, insert it with
the label side up. The compact disc player will
play from track 1 through to the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any part
of the compact disc player. Do not in-
sert anything other than compact discs
into the slot.
The player is intended for use with 12 cm (4.7
in.) discs only.

06 CAMRY NAVI_U (L/O 0507)
120
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
— Radio operation
(a) Listening to the radio
Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the screen.
If your vehicle is equipped with satellite ra-
dio broadcast system, when you push the
“AM·SAT” button, “AM”, “SAT1”, “SAT2” or
“SAT3” station appears on the display. For
details about satellite radio broadcast, see
“— Radio operation (XM satellite radio broad-
cast)” on page 123.
Turn the knob clockwise to step up the sta-
tion band or counterclockwise to step
down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio switches
from stereo to mono reception. In this case,
“ST” disappears from the screen.
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the switches (1 — 6) you
want and hold it until a beep is heard. This
sets the station to the switch and the fre-
quency appears on the switch.
Each radio mode (AM, FM1 or FM2) can store
up to 6 stations. To change the preset station
to a different one, follow the same procedure.
The preset station memory is cancelled when
the power source is interrupted by battery dis-
connection or a blown fuse.
