TOYOTA CAMRY 2006 XV40 / 8.G Navigation Manual

06 CAMRY NAVI_U (L/O 0507)
41
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

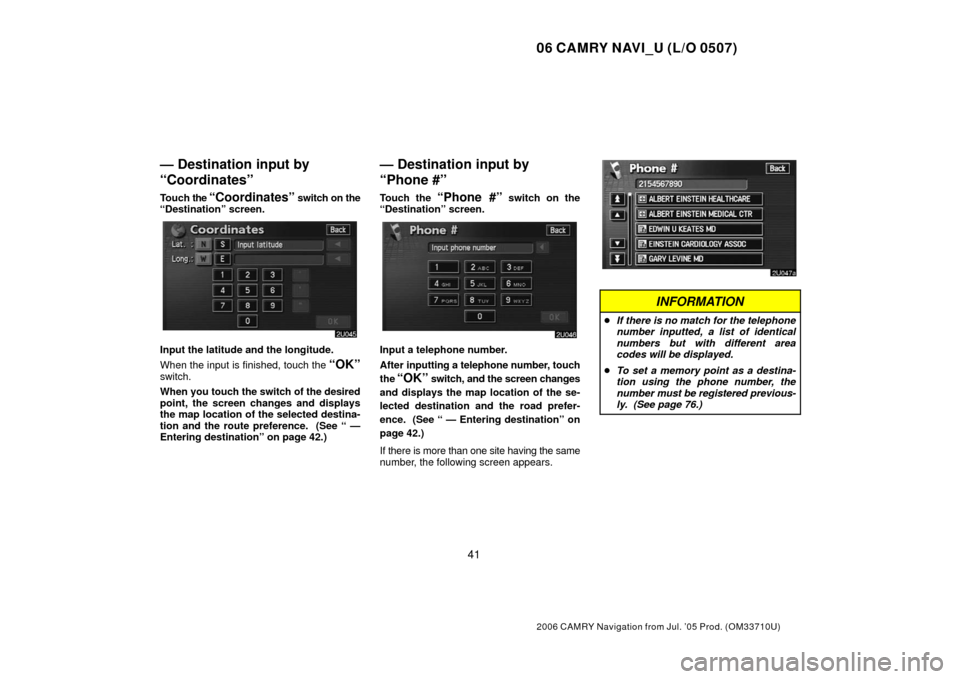

— Destination input by
“Coordinates”
Touch the “Coordinates” switch on the
“Destination” screen.
Input the latitude and the longitude.
When the input is finished, touch the
“OK”switch.
When you touch the switch of the desired
point, the screen changes and displays
the map location of the selected destina-
tion and the route preference. (See “ —
Entering destination” on page 42.)
— Destination input by
“Phone #”
Touch the “Phone #” switch on the
“Destination” screen.
Input a telephone number.
After inputting a telephone number, touch
the
“OK” switch, and the screen changes
and displays the map location of the se-
lected destination and the road prefer-
ence. (See “ — Entering destination” on
page 42.)
If there is more than one site having the same
number, the following screen appears.
INFORMATION
 If there is no match for the telephone
number inputted, a list of identical
numbers but with different area
codes will be displayed.
 To set a memory point as a destina-
tion using the phone number, the
number must be registered previous-
ly. (See page 76.)

06 CAMRY NAVI_U (L/O 0507)
42
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

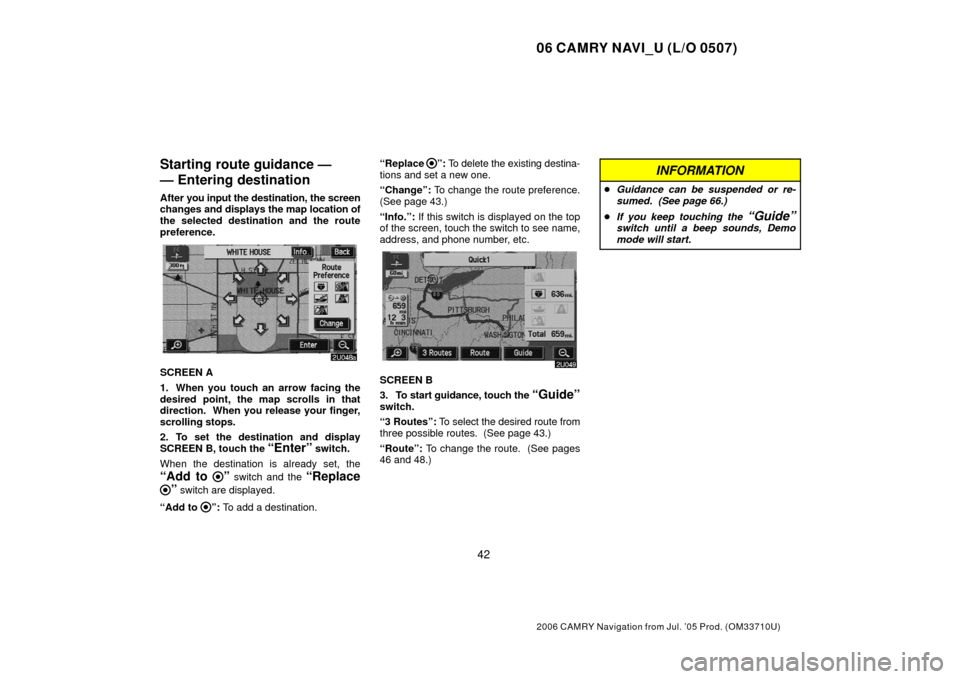

Starting route guidance —
— Entering destination
After you input the destination, the screen
changes and displays the map location of
the selected destination and the route
preference.
SCREEN A
1. When you touch an arrow facing the
desired point, the map scrolls in that
direction. When you release your finger,
scrolling stops.
2. To set the destination and display
SCREEN B, touch the
“Enter” switch.
When the destination is already set, the
“Add to ” switch and the “Replace
” switch are displayed.
“Add to
”: To add a destination. “Replace
”:
To delete the existing destina-
tions and set a new one.
“Change”: To change the route preference.
(See page 43.)
“Info.”: If this switch is displayed on the top
of the screen, touch the switch to see name,
address, and phone number, etc.
SCREEN B
3. To start guidance, touch the
“Guide”switch.
“3 Routes”: To select the desired route from
three possible routes. (See page 43.)
“Route”: To change the route. (See pages
46 and 48.)
INFORMATION
 Guidance can be suspended or re-
sumed. (See page 66.)
 If you keep touching the
“Guide”switch until a beep sounds, Demo
mode will start.

06 CAMRY NAVI_U (L/O 0507)
43
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

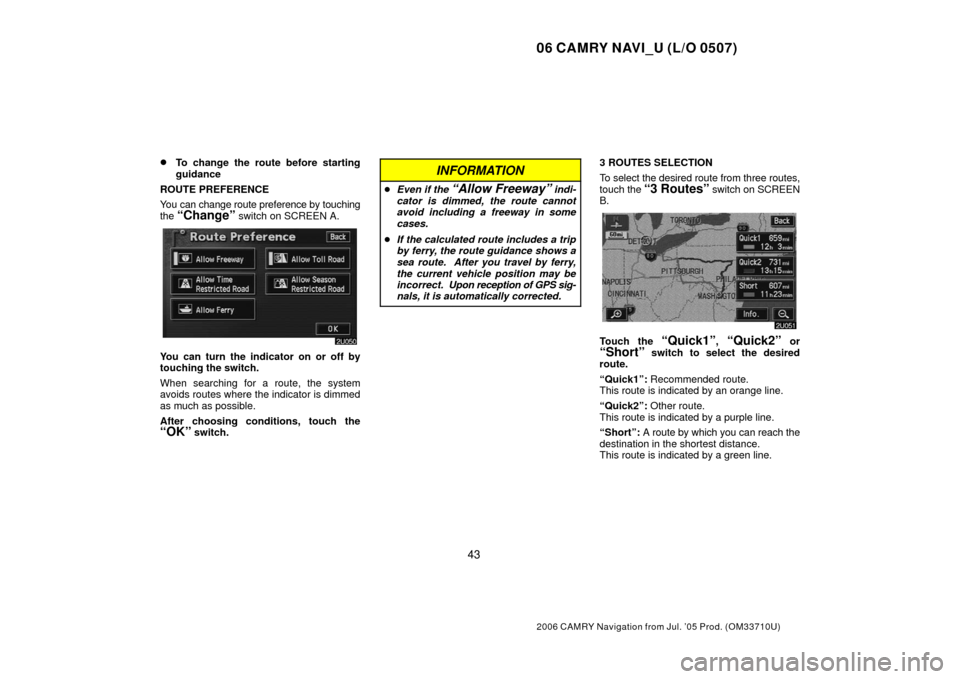

To change the route before starting
guidance
ROUTE PREFERENCE
You can change route preference by touching
the
“Change” switch on SCREEN A.
You can turn the indicator on or off by
touching the switch.
When searching for a route, the system
avoids routes where the indicator is dimmed
as much as possible.
After choosing conditions, touch the
“OK” switch.
INFORMATION
 Even if the “Allow Freeway” indi-
cator is dimmed, the route cannot
avoid including a freeway in some
cases.
 If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig-
nals, it is automatically corrected.
3 ROUTES SELECTION
To select the desired route from three routes,
touch the
“3 Routes” switch on SCREEN
B.
Touch the “Quick1”, “Quick2” or“Short” switch to select the desired
route.
“Quick1”: Recommended route.
This route is indicated by an orange line.
“Quick2”: Other route.
This route is indicated by a purple line.
“Short”: A route by which you can reach the
destination in the shortest distance.
This route is indicated by a green line.

06 CAMRY NAVI_U (L/O 0507)
44
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

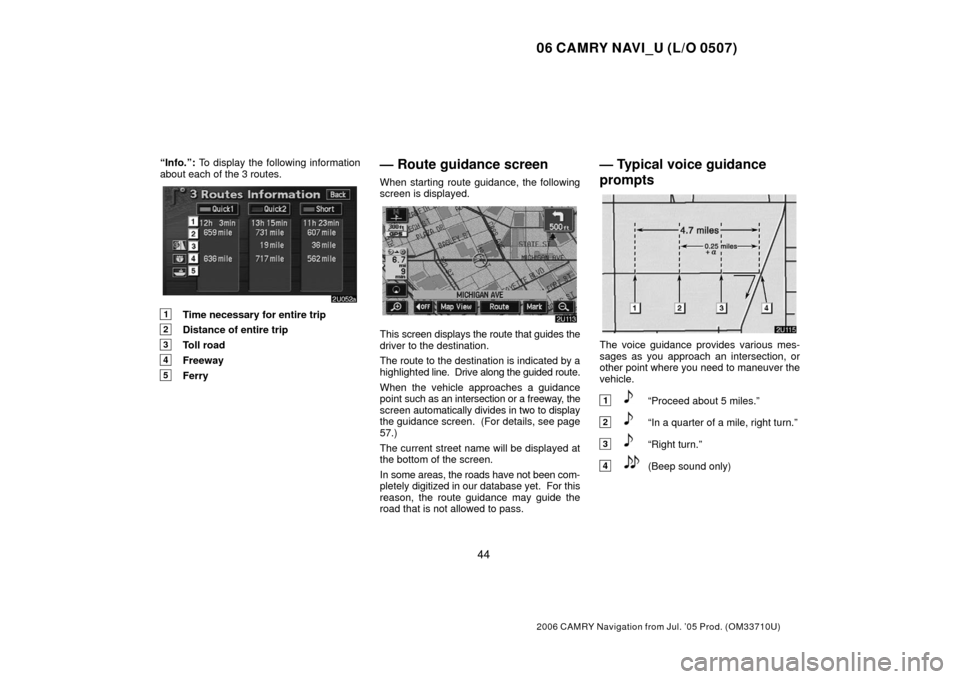

“Info.”: To display the following information
about each of the 3 routes.
1Time necessary for entire trip
2Distance of entire trip
3Toll road
4Freeway
5Ferry
— Route guidance screen
When starting route guidance, the following
screen is displayed.
This screen displays the route that guides the
driver to the destination.
The route to the destination is indicated by a
highlighted line. Drive along the guided route.
When the vehicle approaches a guidance
point such as an intersection or a freeway, the
screen automatically divides in two to display
the guidance screen. (For details, see page
57.)
The current street name will be displayed at
the bottom of the screen.
In some areas, the roads have not been com-
pletely digitized in our database yet. For this
reason, the route guidance may guide the
road that is not allowed to pass.
— Typical voice guidance
prompts
The voice guidance provides various mes-
sages as you approach an intersection, or
other point where you need to maneuver the
vehicle.
1“Proceed about 5 miles.”
2“In a quarter of a mile, right turn.”
3“Right turn.”
4(Beep sound only)

06 CAMRY NAVI_U (L/O 0507)
45
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

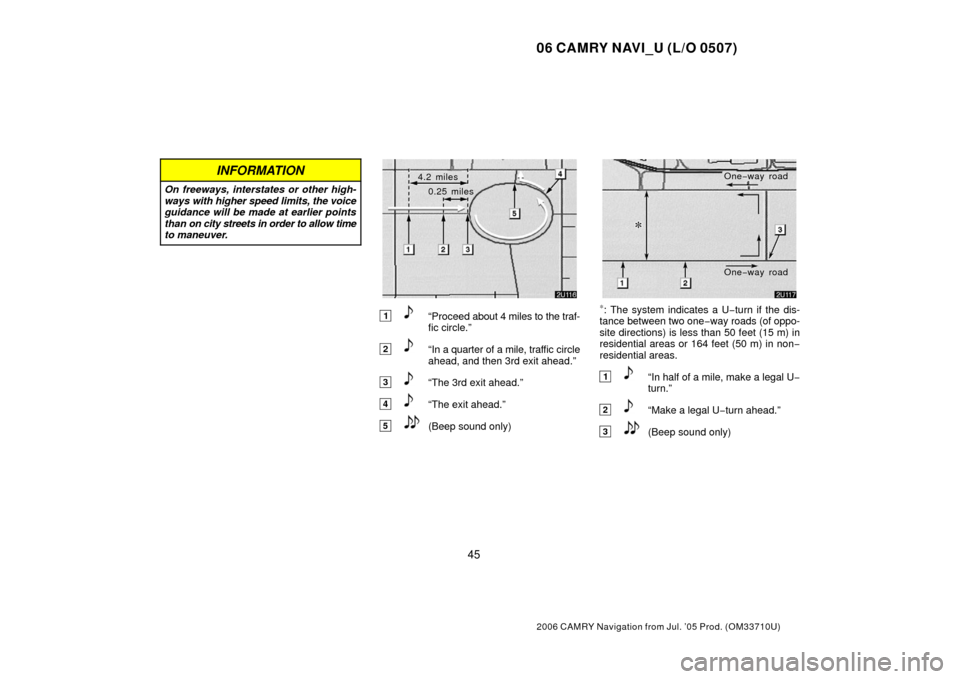

INFORMATION
On freeways, interstates or other high-
ways with higher speed limits, the voice
guidance will be made at earlier points
than on city streets in order to allow time
to maneuver.
4.2 miles
0.25 miles
1“Proceed about 4 miles to the traf-
fic circle.”
2“In a quarter of a mile, traf fic circle
ahead, and then 3rd exit ahead.”
3“The 3rd exit ahead.”
4“The exit ahead.”
5(Beep sound only)
One −way road
One −way road
∗: The system indicates a U −turn if the dis-
tance between two one −way roads (of oppo-
site directions) is less than 50 feet (15 m) in
residential areas or 164 feet (50 m) in non −
residential areas.
1“In half of a mile, make a legal U −
turn.”
2“Make a legal U −turn ahead.”
3(Beep sound only)

06 CAMRY NAVI_U (L/O 0507)
46
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

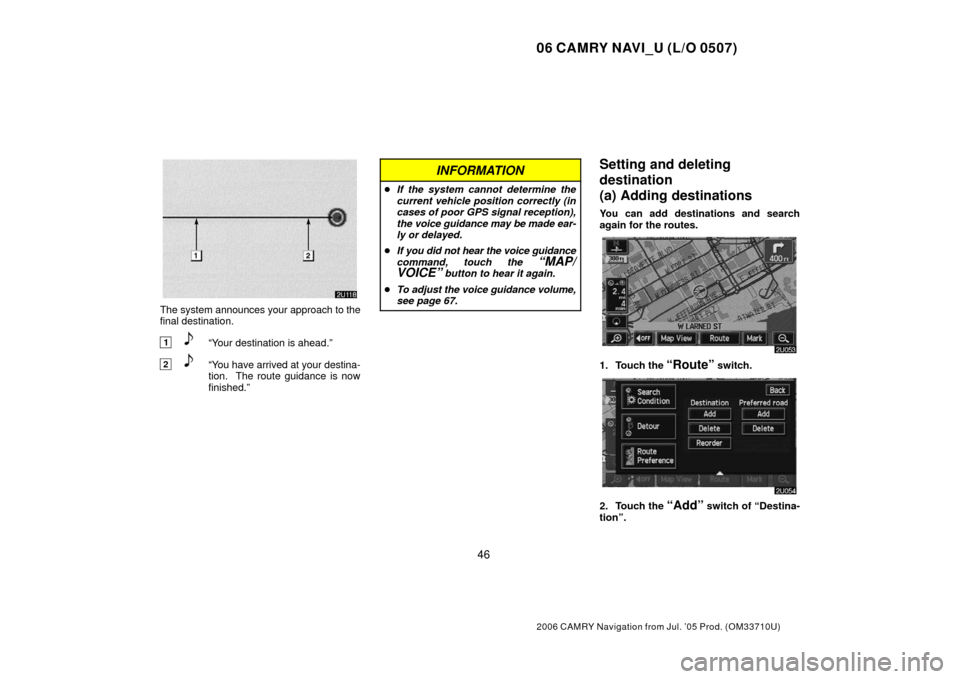

The system announces your approach to the
final destination.
1“Your destination is ahead.”
2“You have arrived at your destina-
tion. The route guidance is now
finished.”
INFORMATION
If the system cannot determine the
current vehicle position correctly (in
cases of poor GPS signal reception),
the voice guidance may be made ear-
ly or delayed.
 If you did not hear the voice guidance
command, touch the
“MAP/
VOICE” button to hear it again.
 To adjust the voice guidance volume,
see page 67.
Setting and deleting
destination
(a) Adding destinations
You can add destinations and search
again for the routes.
1. Touch the “Route” switch.
2. Touch the “Add” switch of “Destina-
tion”.

06 CAMRY NAVI_U (L/O 0507)
47
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

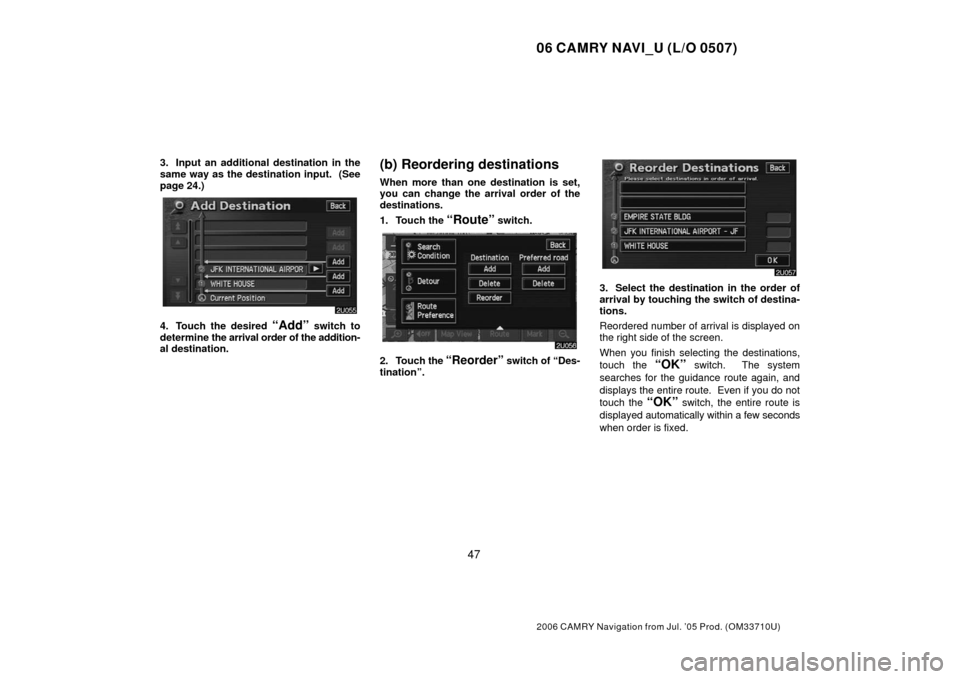

3. Input an additional destination in the
same way as the destination input. (See
page 24.)
4. Touch the desired “Add” switch to
determine the arrival order of the addition-
al destination.
(b) Reordering destinations
When more than one destination is set,
you can change the arrival order of the
destinations.
1. Touch the
“Route” switch.
2. Touch the “Reorder” switch of “Des-
tination”.
3. Select the destination in the order of
arrival by touching the switch of destina-
tions.
Reordered number of arrival is displayed on
the right side of the screen.
When you finish selecting the destinations,
touch the
“OK” switch. The system
searches for the guidance route again, and
displays the entire route. Even if you do not
touch the
“OK” switch, the entire route is
displayed automatically within a few seconds
when order is fixed.

06 CAMRY NAVI_U (L/O 0507)
48
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

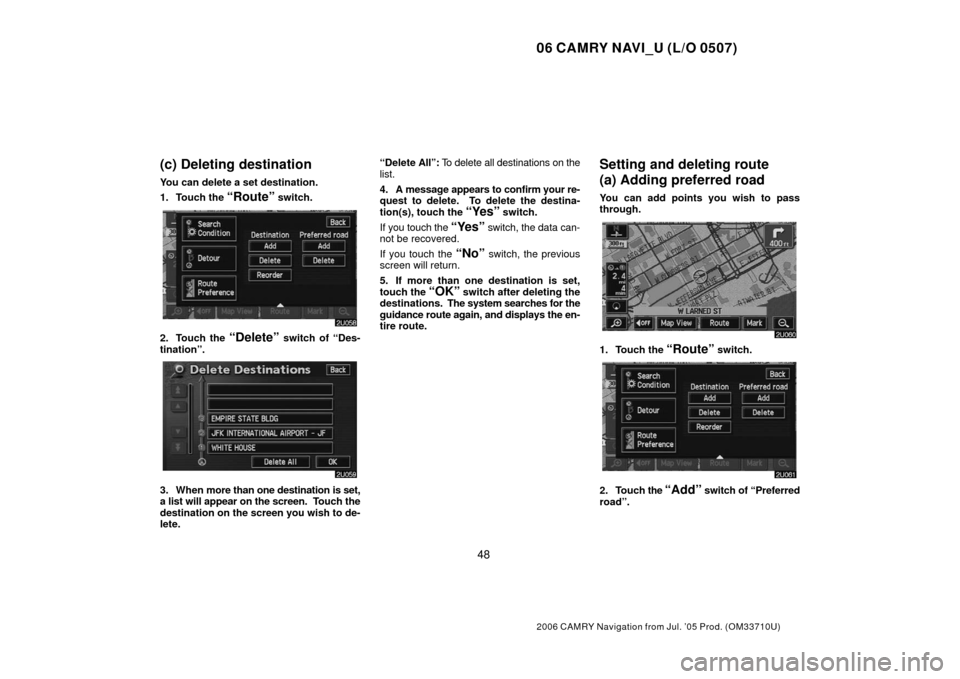

(c) Deleting destination
You can delete a set destination.
1. Touch the
“Route” switch.
2. Touch the “Delete” switch of “Des-
tination”.
3. When more than one destination is set,
a list will appear on the screen. Touch the
destination on the screen you wish to de-
lete. “Delete
All”: To delete all destinations on the
list.
4. A message appears to confirm your re-
quest to delete. To delete the destina-
tion(s), touch the
“Yes” switch.
If you touch the
“Yes” switch, the data can-
not be recovered.
If you touch the
“No” switch, the previous
screen will return.
5. If more than one destination is set,
touch the
“OK” switch after deleting the
destinations. The system searches for the
guidance route again, and displays the en-
tire route.
Setting and deleting route
(a) Adding preferred road
You can add points you wish to pass
through.
1. Touch the “Route” switch.
2. Touch the “Add” switch of “Preferred
road”.

06 CAMRY NAVI_U (L/O 0507)
49
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

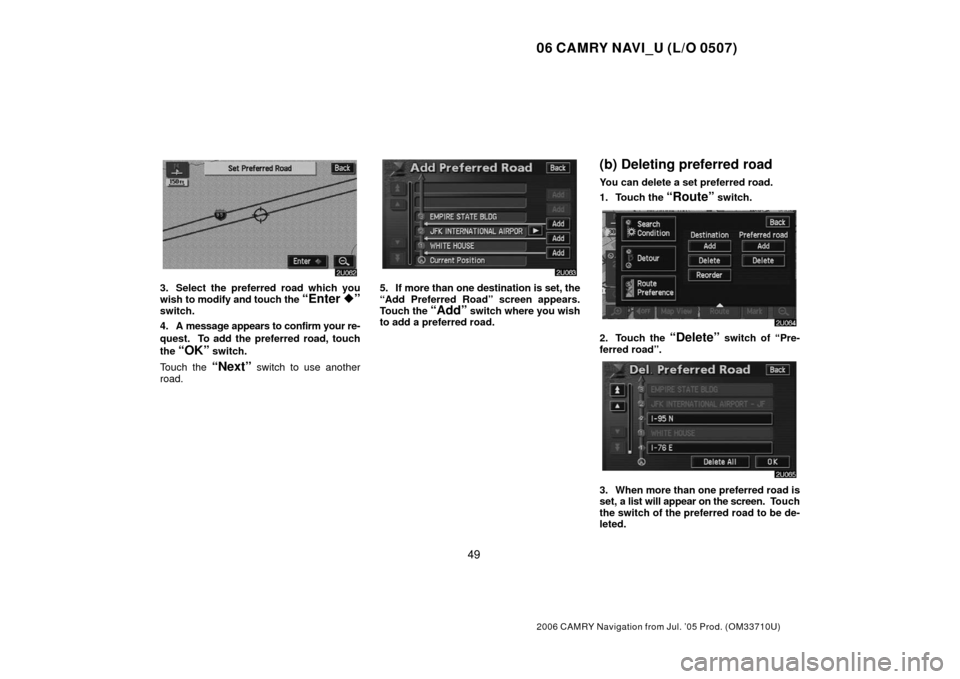

3. Select the preferred road which you
wish to modify and touch the “Enter ”switch.
4. A message appears to confirm your re-
quest. To add the preferred road, touch
the
“OK” switch.
Touch the
“Next” switch to use another
road.
5. If more than one destination is set, the
“Add Preferred Road” screen appears.
Touch the
“Add” switch where you wish
to add a preferred road.
(b) Deleting preferred road
You can delete a set preferred road.
1. Touch the
“Route” switch.
2. Touch the “Delete” switch of “Pre-
ferred road”.
3. When more than one preferred road is
set, a l ist will appear on the screen. T ouch
the switch of the preferred road to be de-
leted.

06 CAMRY NAVI_U (L/O 0507)
50
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
“Delete All”: To delete all the listed preferred
road.
4. A message appears to confirm your re-
quest to delete. To delete the preferred
road, touch the
“Yes” switch.
If you touch the
“Yes” switch, the data can-
not be recovered.
If you want to try again or cancel deletion,
touch the
“No” switch. The previous screen
will return.
5. If more than one preferred road is set,
touch the
“OK” switch after deleting the
preferred road. The system searches for
the guidance route again, and displays en-
tire route.

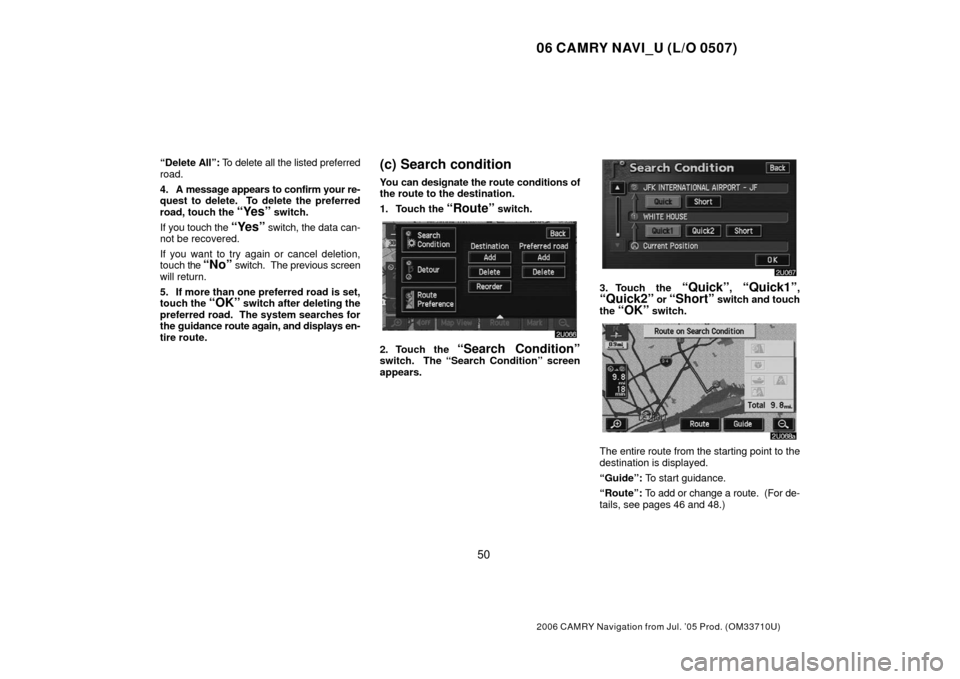

(c) Search condition
You can designate the route conditions of
the route to the destination.
1. Touch the
“Route” switch.
2. Touch the “Search Condition”switch. The “Search Condition” screen
appears.
3. Touch the “Quick”, “Quick1”,“Quick2” or “Short” switch and touch
the “OK” switch.
The entire route from the starting point to the
destination is displayed.
“Guide”: To start guidance.
“Route”: To add or change a route. (For de-
tails, see pages 46 and 48.)
