TOYOTA CAMRY 2006 XV40 / 8.G Owners Manual
Manufacturer: TOYOTA, Model Year: 2006, Model line: CAMRY, Model: TOYOTA CAMRY 2006 XV40 / 8.GPages: 357, PDF Size: 6.17 MB
Page 101 of 357
’06Camry_U (L/O 0507)
93
2006 CAMRY from July ‘05 Prod. (OM33708U)
For installation details, refer to the instruc-
tion manual equipped with each product.
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
Page 102 of 357
’06Camry_U (L/O 0507)
94
2006 CAMRY from July ‘05 Prod. (OM33708U)
Page 103 of 357
’06Camry_U (L/O 0507)
95
2006 CAMRY from July ‘05 Prod. (OM33708U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Power adjustable pedals 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Outside rear view mirrors 97
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti −glare inside rear view mirror 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 99
. . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 101
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 4
Page 104 of 357
’06Camry_U (L/O 0507)
96
2006 CAMRY from July ‘05 Prod. (OM33708U)
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
To adjust the position of the accelerator
and brake pedals, push the switch.
The ignition key must be in the “ON” posi-
tion with the automatic transmission selec-
tor lever in the “P” position.
To move the pedals toward the front of
the vehicle: Push the “” side of the
switch.
To move the pedals back toward you:
Push the “ ” side of the switch.
The accelerator and brake pedals will
move simultaneously as long as you hold
the switch.
Tilt steering wheel Power adjustable pedals
(some models with an
automatic transmission)
Page 105 of 357
’06Camry_U (L/O 0507)
97
2006 CAMRY from July ‘05 Prod. (OM33708U)
When you set your driving position:1. Set the parking brake firmly.
2. Move the accelerator and brake pedals to the front most position.
3. Adjust the seat position and steering wheel angle properly. (See “Front
seats” on page 40 in Section 1 −3 and
“Tilt steering wheel” on page 96 in
this Section.)
4. Move the pedals toward you until you can fully depress the brake pedal.
5. After adjusting, depress the pedals a few times to get used to the feel.
CAUTION
Never put your foot on the acceler-
ator pedal while the pedals are
moving. It may cause racing of the
engine or sudden acceleration.
Make sure that you can fully de-
press the brake pedal before driv-
ing. Otherwise, you may not be able
to hold down the brake pedal firmly
in an emergency stop.
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface. (See “Rear
window and outside rear view mirror de-
foggers” on page 113 in Section 1 −5.)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
Since the mirror surfaces can get
hot, do not touch them when the
defogger switch is on.
NOTICE
The outside rear view mirrors are
fixed in place. Do not try to fold the
mirrors. It may damage the mirrors.
Outside rear view mirrors—
Page 106 of 357
’06Camry_U (L/O 0507)
98
2006 CAMRY from July ‘05 Prod. (OM33708U)
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray de icer to free
the mirror.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
—Power rear view mirror
control Anti glare inside rear view
mirror
Page 107 of 357
’06Camry_U (L/O 0507)
99
2006 CAMRY from July ‘05 Prod. (OM33708U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Ty p e A
Ty p e B
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.
In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
Type A—To turn off and on the automatic
function, push the “MIRROR” switch.
Type B—To turn off and on the automatic
function, push the switch.
Adjust it before driving so that the rear
view is in the best condition.
Auto anti glare inside rear
view mirror
Page 108 of 357
’06Camry_U (L/O 0507)
100
2006 CAMRY from July ‘05 Prod. (OM33708U)
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Ty p e A
Ty p e B
To ensure correct functioning of anti
glare mirror sensors located on both
sides of the mirror, do not touch or
cover the sensors with your finger or
a piece of cloth, etc.
Page 109 of 357
’06Camry_U (L/O 0507)
101
2006 CAMRY from July ‘05 Prod. (OM33708U)

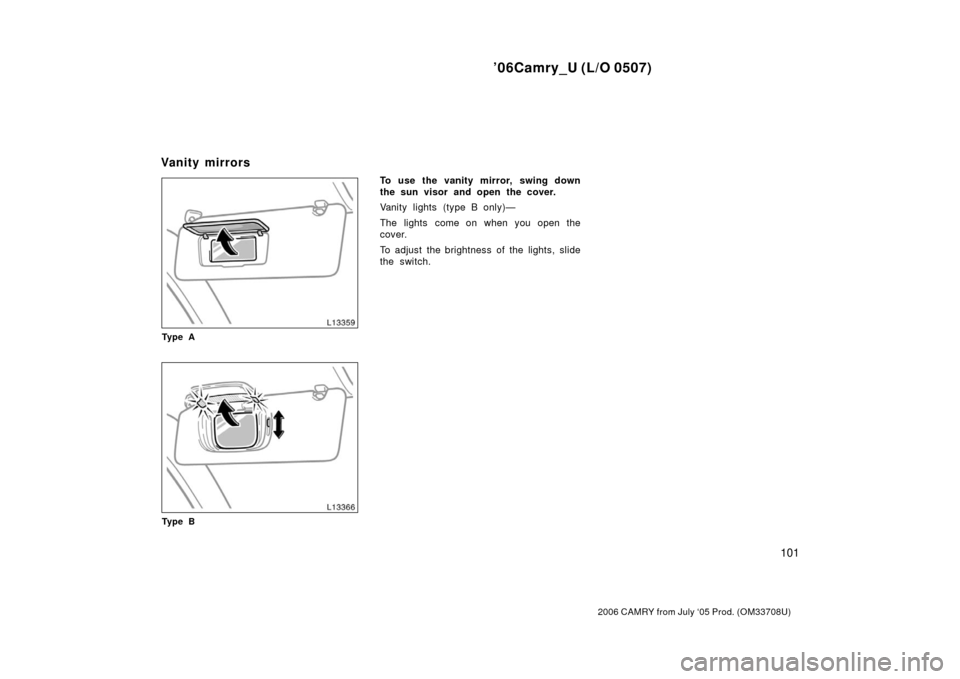

Ty p e A
Ty p e B
To use the vanity mirror, swing down
the sun visor and open the cover.
Vanity lights (type B only)—
The lights come on when you open the
cover.
To adjust the brightness of the lights, slide
the switch.
Vanity mirrors
