TOYOTA CAMRY 2006 XV40 / 8.G Owners Manual
Manufacturer: TOYOTA, Model Year: 2006, Model line: CAMRY, Model: TOYOTA CAMRY 2006 XV40 / 8.GPages: 357, PDF Size: 6.17 MB
Page 341 of 357
’06Camry_U (L/O 0507)
333
2006 CAMRY from July ‘05 Prod. (OM33708U)
If either the left or right front fog or
license plate lights burns out, contact
your Toyota dealer.
NOTICE
Do not try to replace the front fog or
license plate light bulbs by yourself.
You may damage the vehicle.
—Front fog and license plate
lights
Page 342 of 357
’06Camry_U (L/O 0507)
335
2006 CAMRY from July ‘05 Prod. (OM33708U)
SPECIFICATIONS
Specifications
Dimensions and weights336
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 336
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 337
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 337
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 340
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 342
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8
Page 343 of 357
’06Camry_U (L/O 0507)
336
2006 CAMRY from July ‘05 Prod. (OM33708U)
Model:2AZ− FE, 1MZ −FE and 3MZ −FE
Type:
2AZ− FE engine
4 cylinder in line, 4 cycle, gasoline
1MZ −FE and 3MZ −FE engines
6 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 2AZ− FE engine
88.5 96.0 (3.48 3.78)
1MZ −FE engine
87.5 83.0 (3.44 3.27)
3MZ −FE engine
92.0 83.0 (3.62 3.27)
Displacement, cm
3 (cu. in.):
2AZ− FE engine 2362 (144.1)
1MZ −FE engine 2995 (182.8)
3MZ −FE engine 3311 (202.1)
Dimensions and weights
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ 1 mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity weight
(occupants + luggage) kg (lb.)
∗
1: Unladen vehicle∗2: With P205/65R15 tires∗3: With P215/60R16 and P215/55R17 tires 1490 (58.7)
∗
2
1500 (59.1)∗3
4805 (189.2)
1795 (70.7)
2720 (107.1)
1545 (60.8)
1535 (60.4)
410 (900)
Towing capacity
(trailer weight + cargo weight) kg (lb.) 907 (2000)
Engine
Page 344 of 357
’06Camry_U (L/O 0507)
337
2006 CAMRY from July ‘05 Prod. (OM33708U)
Fuel type:2.4 L 4 −cylinder (2AZ −FE) engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
3.0 L V6 (1MZ −FE) and 3.3 L V6 (3MZ −
FE) engines Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher. For improved vehicle perfor-
mance, use premium unleaded gaso-
line with an Octane Rating of 91 (Re-
search Octane Number 96) or higher.
Fuel tank capacity, L (gal., Imp. gal.): 70 (18.5, 15.4) ENGINE
Valve clearance (engine cold), mm (in.):
2.4 L 4 −cylinder (2AZ −FE) engine
Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.30—0.40 (0.012—0.016)
3.0 L V6 (1MZ −FE) and 3.3 L V6 (3MZ −
FE) engines Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm(in.): 1.1 (0.043)
3.0 L V6 (1MZ −FE) and 3.3 L V6 (3MZ −
FE) engines—
Drive belt tension measured with
Borroughs drive belt tension gauge
No.BT− 33−73F (used belt), Ibf:
125 10 ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
2.4 L 4 −cylinder (2AZ −FE) engine
With filter 3.8 (4.0, 3.3)
Without filter 3.6 (3.8, 3.2)
3.0 L V6 (1MZ −FE) and 3.3 L V6 (3MZ −
FE) engines
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade: ILSAC multigrade engine oil
Fuel Service specifications
Page 345 of 357
’06Camry_U (L/O 0507)
338
2006 CAMRY from July ‘05 Prod. (OM33708U)
Recommended oil viscosity:SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
2.4 L 4 −cylinder (2AZ −FE) engine
6.2 (6.6, 5.4)
3.0 L V6 (1MZ −FE) and 3.3 L V6 (3MZ −
FE) engines
9.2 (9.8, 8.1)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details. BATTERY
Open voltage
∗ at 20
C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
Note: If replacement is necessary, make
sure to do so with a battery that meets
the same standard as the original.
CLUTCH
Pedal free play, mm (in.): 5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 2.5 (2.6, 2.2)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
Page 346 of 357
’06Camry_U (L/O 0507)
339
2006 CAMRY from July ‘05 Prod. (OM33708U)
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill), L (qt.,
Imp. qt.):3.5 (3.7, 3.1)
Fluid type: Toyota Genuine ATF Type T −IV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF Type T −IV”
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type T IV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Please contact your Toyota dealer for fur-
ther details. BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
63 (2.5)
∗
∗
: Fixed type and adjustable type (in front
most position)
Pedal free play, mm (in.):
Fixed type 1—6 (0.04—0.24)
Adjustable type (in front most position) 1—8 (0.04—0.31)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake Lever type—Parking brake adjustment when pulled
with the force of 196 N (20 kgf, 44
lbf):6—9 clicks
Pedal type— Parking brake adjustment when de-
pressed with the force of 300 N (31
kgf, 67 lbf):3—6 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3 STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III
Page 347 of 357
’06Camry_U (L/O 0507)
340
2006 CAMRY from July ‘05 Prod. (OM33708U)
Tire size and cold tire inflation pressure:
Front and rear
Normal drivingkPa (kgf/cm
2 or bar, psi)
Grade
Ti r e siz eFrontRearWheel size
LEP205/65R15 92T
P205/65R15 92H200 (2.0, 29)200 (2.0, 29)15 61/2 JJ
XLE
2. 4 L SEP215/60R16 94V200 (2.0, 29)200 (2.0, 29)16 61/2 JJ
3. 3 L V6 SEP215/55R17 93V210 (2.1, 30)210 (2.1, 30)17 7 JJ
When driving under the above vehicle conditions at sustai ned high speeds above 160 km/h (100 mph), in countries
where such speeds are permitted by −law, inflate the front and rear tires to 240 kPa (2.4 kgf/cm2 or bar, 35 psi) provided
that it does not exceed the maximum cold tire inflation pressure molded on the tire sidewall.
Trailer driving kPa (kgf/cm
2 or bar, psi)
Grade
Ti r e siz eFrontRear
LEP205/65R15 92T
P205/65R15 92H220 (2.2, 32)220 (2.2, 32)
XLE
2. 4 L SEP215/60R16 94V200 (2.0, 29)200 (2.0, 29)
3. 3 L V6 SEP215/55R17 93V220 (2.2, 32)220 (2.2, 32)
Tires
Page 348 of 357
’06Camry_U (L/O 0507)
341
2006 CAMRY from July ‘05 Prod. (OM33708U)
SparekPa (kgf/cm2 or bar, psi)
Ti r e siz e
FrontRearWheel size
T145/80R16 105M420 (4.2, 60)420 (4.2, 60)16 4T
W h eel nu t to rq u e, N·m (kg f· m, ft· l b f ) :
103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing ti res or replacing wheels), see “Checking tire inflation pres-
sure” through “Aluminum wheel precautions”, pages 314 through 323, in Section 7 −2.
Page 349 of 357
’06Camry_U (L/O 0507)
342
2006 CAMRY from July ‘05 Prod. (OM33708U)

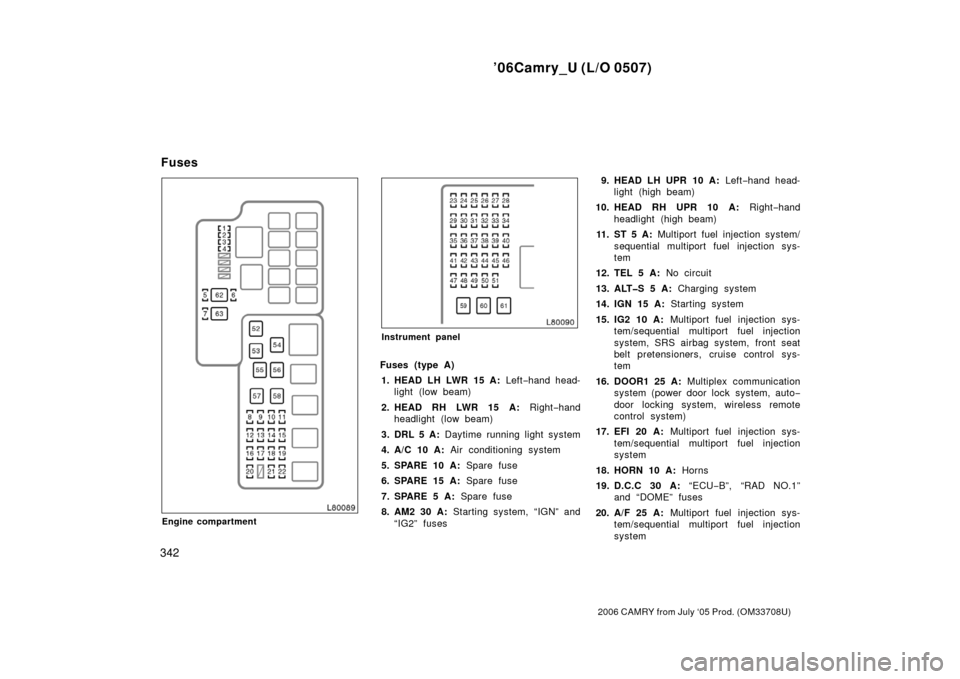

Engine compartment
Instrument panel
Fuses (type A)1. HEAD LH LWR 15 A: Left−hand head-
light (low beam)
2. HEAD RH LWR 15 A: Right−hand
headlight (low beam)
3. DRL 5 A: Daytime running light system
4. A/C 10 A: Air conditioning system
5. SPARE 10 A: Spare fuse
6. SPARE 15 A: Spare fuse
7. SPARE 5 A: Spare fuse
8. AM2 30 A: Starting system, “IGN” and
“IG2” fuses 9. HEAD LH UPR 10 A:
Left−hand head-
light (high beam)
10. HEAD RH UPR 10 A: Right−hand
headlight (high beam)
11. ST 5 A: Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
12. TEL 5 A: No circuit
13. ALT S 5 A: Charging system
14. IGN 15 A: Starting system
15. IG2 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, SRS airbag system, front seat
belt pretensioners, cruise control sys-
tem
16. DOOR1 25 A: Multiplex communication
system (power door lock system, auto −
door locking system, wireless remote
control system)
17. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
18. HORN 10 A: Horns
19. D.C.C 30 A: “ECU−B”, “RAD NO.1”
and “DOME” fuses
20. A/F 25 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
Fuses
Page 350 of 357
’06Camry_U (L/O 0507)
343
2006 CAMRY from July ‘05 Prod. (OM33708U)
21. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
22. HAZ 15 A: Emergency flashers
23. ECU B 10 A: Multiplex communication
system (power door lock system, secu-
rity system, auto −door locking system,
automatic light control system, head-
light delay off system, tail light auto
cut system, illuminated entry system,
daytime running light system, wireless
remote control system), air conditioning
system
24. DOME 7.5 A: Ignition switch light, inte-
rior light, personal lights, trunk light,
vanity lights, garage door opener,
clock, outside temperature display, mul-
ti −information display
25. CIG 15 A: Cigarette lighter
26. ECU ACC 5 A: Power rear view mir-
rors, clock, multi −information display
27. RAD NO.2 10 A: Audio system, navi-
gation system
28. POWER POINT 15 A: Power outlets
29. RAD NO.1 20 A: Audio system, navi-
gation system 30. GAUGE1 10 A:
Gauges and meters,
clock, outside temperature display, mul-
ti −information display, shift lock system,
seat belt reminder lights
31. ECU IG 10 A: SRS airbag system,
power windows, anti −lock brake system
32. WIPER 25 A: Windshield wipers
33. HTR 10 A: Air conditioning system
34. MIR HTR 10 A: Outside rear view mir-
ror heaters
35. AM1 5 A: Starting system
36. FOG 15 A: Front fog lights
37. SUN SHADE 15 A: No circuit
38. GAUGE2 10 A: Auto anti−glare inside
rear view mirror, compass, electric
moon roof, back −up lights, automatic
transmission indicator lights, automatic
light control system, cruise control sys-
tem
39. PANEL 10 A: Glove box light, clock,
outside temperature display, multi −infor-
mation display, instrument cluster
lights, instrument panel lights, over-
drive− off indicator light
40. TAIL 10 A: Tail lights, parking lights,
license plate lights 41. PWR NO.4 20 A:
Rear passenger’s
power window (left side)
42. PWR NO.2 20 A: Front passenger ’s
door lock system, front passenger ’s
power window
43. OBD 7.5 A: On−board diagnosis sys-
tem
44. SEAT HTR 20 A: Seat heaters
45.
WASHER 15 A: Windshield washer
46. FAN RLY 10 A: Electric cooling fans
47. STOP 15 A: Stop lights, high mounted
stoplight, anti −lock brake system,
cruise control system
48. FUEL OPEN 5 A: No circuit
49. DOOR NO.2 25 A: Multiplex commu-
nication system (power door lock sys-
tem, auto −door locking system, wire-
less remote control system)
50. AMP 25 A: No circuit
51. PWR NO.3 20 A: Rear passenger’s
power window (right side)
