TOYOTA CAMRY 2007 XV40 / 8.G Owners Manual

’07Camry_U (L/O 0608)
213
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
The MP3/WMA player does not play
back MP3/WMA files from discs record-
er using packet write data transfer
(UDF format). Discs should be re-
corded using “pre−mastering” software
rather than packet−write software.
M3u playlists are not compatible with
the audio player.
MP3i (MP3 interactive) and MP3PRO
formats are not compatible with the au-
dio player.
The MP3 player is compatible with
VBR (Variable Bit Rate).
When playing back files recorded as
VBR (Variable Bit Rate) files, the play
time will not be correctly displayed if
fast forward or reverse operations are
used.
It is not possible to check folders that
do not include MP3/WMA files.
MP3/WMA files in folders up to 8 lev-
els deep can be played. However, the
start of playback may be delayed when
using discs containing numerous levels
of folders. For this reason, we recom-
mend creating discs with no more than
two levels of folders.
It is possible to play up to 192 folders
or 255 files on one disc.
001.mp3
002.wma
Folder 1
003.mp3
Folder 2
004.wma
005.mp3
Folder 3
006.mp3
The play order of the compact disc
with the structure shown on the left is
as follows:
CDR and CDRW discs
CD−R/CD−RW discs that have not been
subject to the “finalizing process” (a
process that allows discs to be played
on a conventional CD player) cannot
be played.
It may not be possible to play CD−
R/CD−RW discs recorded on a music
CD recorder or a personal computer
because of disc characteristics,
scratches or dirt on the disc, or dirt,
condensation, etc. on the lens of the
unit.
It may not be possible to play discs
recorded on a personal computer de-
pending on the application settings and
the environment. Record with the cor-
rect format. (For details, contact the
appropriate application manufacturers of
the applications.)
CD−R/CD−RW discs may be damaged
by direct exposure to sunlight, high
temperatures or other storage condi-
tions. The unit may be unable to play
some damaged discs.

’07Camry_U (L/O 0608)
214
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
If you insert a CD−RW disc into the
MP3/WMA player, playback will begin
more slowly than with a conventional
CD or CD−R disc.
Recordings on CD−R/CD−RW cannot
be played using the DDCD (Double
Density CD) system.TERMS
Packet write—
This is a general term that describes the
process of writing data on−demand to
CD−R, etc., in the same way that data is
written to floppy or hard discs.
ID3 Tag—
This is a method of embedding track−re-
lated information in an MP3 file. This em-
bedded information can include the track
title, the artist’s name, the album title, the
music genre, the year of production, com-
ments and other data. The contents can
be freely edited using software with ID3
tag editing functions. Although the tags
are restricted to the number of characters,
the information can be viewed when the
track is played back.
WMA Tag—
WMA files can contain a WMA tag that is
used in the same way as an ID3 tag.
WMA tags carry information such as track
title, artist name.ISO 9660 format—
This is the international standard for the
formatting of CD−ROM folders and files.
For the ISO 9660 format, there are two
levels of regulations.
Level 1:
The file name is in 8.3 format (8 charac-
ter file names, with a 3 character file
extension. File names must be composed
of one−byte capital letters and numbers.
The “_” symbol may also be included.)
Level 2:
The file name can have up to 31 charac-
ters (including the separation mark “.” and
file extension). Each folder must contain
fewer than 8 hierarchies.
m3u—
Playlists created using “WINAMP” software
have a playlist file extension (.m3u).
MP3—
MP3 is an audio compression standard
determined by a working group (MPEG) of
the ISO (International Standard Organiza-
tion). MP3 compresses audio data to
about 1/10 the size of that on convention-
al discs.

’07Camry_U (L/O 0608)
215
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
WMA—
WMA (Windows Media Audio) is an audio
compression format developed by Micro-
soft. It compresses files into a size small-
er than that of MP3 files. The decoding
formats for WMA files are Ver. 7, 8, and
9.Phone Setup (see page 221)
Pair phone
To use the hands−free system, you
need to register your phone in the sys-
tem.
Change name
The registered phone names can be
changed.
Delete
The registered phones can be deleted.
List phones
The registered phone names can be
checked.
Select phone
The registered phones can be selected.
Set passkey
The passkey can be changed.Security (see page 226)
Set PIN
The PIN can be set or changed.
Phone book lock
The phone book can be locked.
Phone book unlock
The locked phone book can be un-
locked.
System Setup (see page 230)
Adjust Guidance Volume
Guidance volume can be adjusted.
Initialize
Phone Book (see page 230)
Add Entry
Phone numbers and voice tags can be
registered.
Change Name
The registered names can be changed.
Delete Entry
The registered names can be deleted.
Handsfree phone system—
—Reference

’07Camry_U (L/O 0608)
216
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Delete Speed Dial
The registered speed dial can be de-
leted.
List names
The registered names can be checked.
Set Speed Dial
Speed dials can be set
Redial (see page 238)
Callback (see page 239)
Making a phone call (see page 240)
Receiving a phone call (see page 243)
Talking on the phone (see page 244)
This system supports Bluetooth, a
wireless system that allows you to
make or receive calls without taking
your hands from the steering wheel and
without using cables to connect the
phone and system.
The phone must be paired to the system
before using the hands−free feature. If
your cellular phone does not support Blue-
tooth, this system will not function.
CAUTION
While you are driving, do not use a
cellular phone or connect the
Bluetooth phone.
NOTICE
Do not leave your cellular phone in
the car. The temperature indoor may
be high and damage the phone.
—Some basics

’07Camry_U (L/O 0608)
217
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
The system may not function in the follow-
ing conditions and places:
The cellular phone is turned off.
The current position is outside the
communication area.
The cellular phone is not connected.
The cellular phone has a low battery.
The cellular phone is hiding behind the
seat or in the glove box and console
box.
The cellular phone touches or is cov-
ered with metal materials.
This system supports the following ser-
vice.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth
phone, and take OPP service individually.
BLUETOOTH is a trademark owned by
Bluetooth SIG. Inc.When transferring ownership of the ve-
hicle:
A lot of personal data is registered
when you use the handsfree system.
When transferring ownership of the ve-
hicle, initialize the system.
If you initialize it, the former state will
never come back again. Pay much atten-
tion when initializing the data.
You can initialize the following data in the
system.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
FCC ID: HYQBTAU01A
IC ID: 1551ABTAU01A
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS−210. Operation is
subject to the following two conditions:
(1) This device may not cause harmful
interference, and (2) This device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.

’07Camry_U (L/O 0608)
218
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

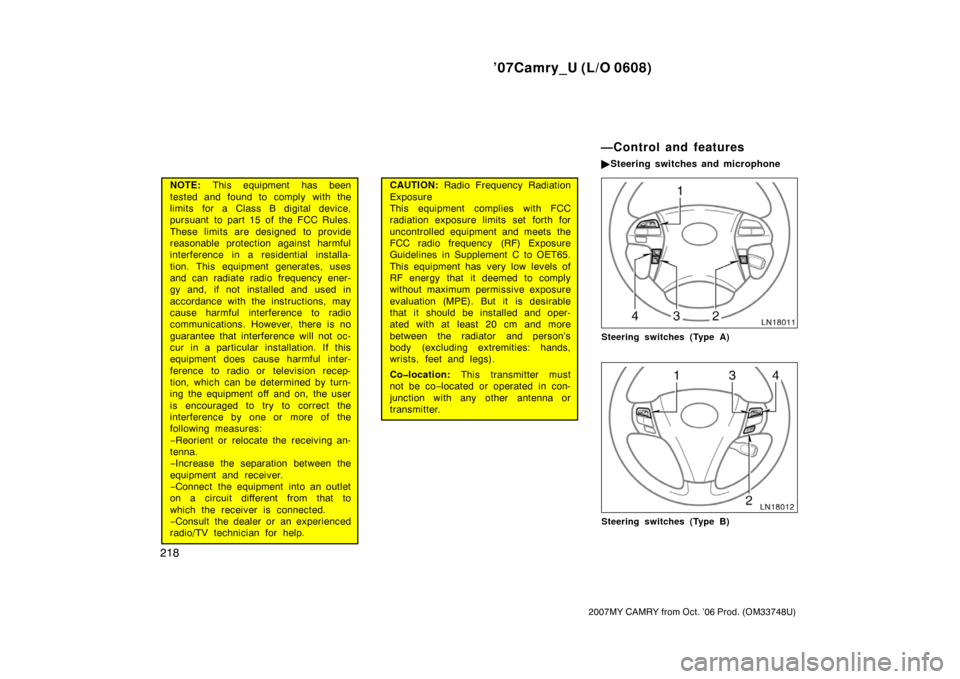

NOTE: This equipment has been
tested and found to comply with the
limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installa-
tion. This equipment generates, uses
and can radiate radio frequency ener-
gy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not oc-
cur in a particular installation. If this
equipment does cause harmful inter-
ference to radio or television recep-
tion, which can be determined by turn-
ing the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the
following measures:
−Reorient or relocate the receiving an-
tenna.
−Increase the separation between the
equipment and receiver.
−Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
−Consult the dealer or an experienced
radio/TV technician for help.CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
This equipment has very low levels of
RF energy that it deemed to comply
without maximum permissive exposure
evaluation (MPE). But it is desirable
that it should be installed and oper-
ated with at least 20 cm and more
between the radiator and person’s
body (excluding extremities: hands,
wrists, feet and legs).
Colocation: This transmitter must
not be co−located or operated in con-
junction with any other antenna or
transmitter.
Steering switches (Type A)
Steering switches (Type B)
—Control and features
Steering switches and microphone

’07Camry_U (L/O 0608)
219
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Overhead console
1. Volume control switch
To increase the volume: Push “+”.
To decrease the volume: Push “−”.
When driving at 80 km/h (50 mph) or
more, the volume automatically increases
without switch adjustment. When your
speed falls below 70 km/h (43 mph), the
volume automatically returns to its original
level.
Voice guidance volume cannot be changed
by pushing the volume control switch on
the steering wheel.2. Talk switch
Pushing the talk switch turns the hands−
free system on and initiates the speech
command system.
Pushing and holding the talk switch ends
the speech command system.
3. Offhook switch
Pushing the off−hook switch turns the
hands−free system on.
When receiving a call, pushing the off−
hook switch allows you to talk on the
phone.
4. Onhook switch
When the hands−free system is on, push-
ing the on−hook switch turns the hands−
free system off.
5. Microphone
The microphone is used when talking on
the phone or using the speech command
system.

’07Camry_U (L/O 0608)
220
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Display
Displays such items as the reception lev-
el, a party’s name and phone number. See
“DISPLAY” described on the following
page for further details about the display.
2. “AUDIO CTRL” knob
Turning the “AUDIO CTRL” knob displays
the menu items, names, numbers, etc. to
be selected. To select an item, push the
“AUDIO CTRL” knob. Due to safety con-
cerns, the “AUDIO CTRL” knob does not
function while the vehicle is in motion.
3. Preset buttons
Pushing the preset button displays the
registered speed dial numbers.
4. “TEXT” button
When the party’s name or phone number
is too long to be displayed, pushing and
holding the “TEXT” button displays the re-
maining characters. Audio unit

’07Camry_U (L/O 0608)
221
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
DISPLAY
1. Bluetooth display
Displays when a Bluetooth connection is
made. If there is no display, the
Bluetooth connection has not been made
and communication between the phone
and system is not possible. When using
the hands−free system, make sure that
“BT” is displayed. The display is updated
in real time.2. Reception level display
Displays the reception level of the radio
wave signals. This may not match the
display on the cellular phone. The recep-
tion level of some cellular phones may not
be displayed.
The number of bars is greater when the
signal received is stronger.
3. Message display
Displays phone numbers, names, com-
ments, menu items, etc.The phone setup menu includes the fol-
lowing:
Pair Phone
To use the hands−free system, you need
to register your phone in the system.
Once you have registered it, you can
make a hands−free call. Up to 6 phones
can be registered.
Select Phone
When the system connects to Bluetooth,
the phone previously used is automatically
selected. Select a different phone if nec-
essary. Only the selected phone can be
used with the hands−free system.
Change Name
The registered phone names can be
changed.
List Phones
The registered phone names can be
checked.
The following can be performed during the
name playback:
Select phone
Change name
Delete
—Phone Setup

’07Camry_U (L/O 0608)
222
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Set PassKey
The passkey can be changed. A 4 to 8
digit code can be input as a passkey.
Delete
The registered phones can be deleted.
To enter the phone setup menu
1. Push the off−hook switch to turn the
hands−free system on.
2. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Setup” is displayed and push the
knob.
“Setup. Please push the talk switch and
say security, or phone setup.” is heard.
3. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Phone Setup” is displayed and push
the knob.
“Phone setup. Push the talk switch and
say pair phone, select phone, change
name, list phones, set passkey or delete.”
is heard.
“XXX (phone name) already selected.” is
heard and “XXX (phone name)” is dis-
played.
If no phone has been registered, the sys-
tem may not function properly.To pair phones
1. Push the talk switch and say “Pair
phone”, or turn the “AUDIO CTRL”
knob until “Pair Phone” is displayed
and push the knob.
“Pair. Push the talk switch and say a
name for the phone.” is heard.
2. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Record Name” is displayed, push the
knob and say “XXX (desired phone
name)”.
“Push the talk switch and say confirm.
Otherwise, say go back.” is heard.
3. Follow voice guidance instructions, or
turn the “AUDIO CTRL” knob until
“Confirm” is displayed and push the
knob.
“XXX Ready for phone pairing. Please use
the phone to connect it to the hands−free
system. The passkey for the phone is....”
is heard.
After “HANDS FREE” is displayed, a pass-
key
∗ is displayed and “Searching.” is
heard.
4. Input the displayed passkey into the
phone.“The phone is paired and ready for use.
Returning to the main menu.” is heard and
“Paired” is displayed.
The system may not function in the follow-
ing cases:
If 6 phones have already been regis-
tered.
If the vehicle is moving.
If the system cannot communicate with
the phone.
∗: Passkey is a password required to reg-
ister a phone to the system.
INFORMATION
To use the handsfree system, you
need to register your phone in the
system. Once you have registered
it, you can make a handsfree call.
Up to 6 phones can be registered.
For the operation of the phone, see
the manual that comes with your
cellular phone.
The passkey can be changed. See
page 225 for changing the passkey.
