TOYOTA CAMRY 2007 XV40 / 8.G Owners Manual

’07Camry_U (L/O 0608)
343
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Reduce your speed gradually,
keeping a straight line. Move cau-
tiously off the road to a safe place
well away from the traffic. Avoid
stopping on the center divider of
a highway. Park on a level spot
with firm ground.
2. Stop the engine and turn on your
emergency flashers.
3. Firmly set the parking brake and
put the transmission in “P” (auto-
matic) or reverse (manual).
4. Have everyone get out of the ve-
hicle on the side away from traffic.
5. Read the following instructions
thoroughly.CAUTION
When jacking, be sure to observe
the following to reduce the possi-
bility of death or serious injury:
Follow jacking instructions.
Do not put any part of your
body under the vehicle sup-
ported by the jack. Otherwise,
personal injury may occur.
Do not start or run the engine
while your vehicle is supported
by the jack.
Stop the vehicle on a level firm
ground, firmly set the parking
brake and put the transmission
in “P” (automatic) or reverse
(manual). Block the wheel diag-
onally opposite to the one be-
ing changed if necessary.
Make sure to set the jack prop-
erly in the jack point. Raising
the vehicle with jack improper-
ly positioned will damage the
vehicle or may allow the ve-
hicle to fall off the jack and
cause personal injury.
Never get under the vehicle
when the vehicle is supported
by the jack alone.
Use the jack only for lifting
your vehicle during wheel
changing.
Do not raise the vehicle with
someone in the vehicle.
When raising the vehicle, do
not place any objects on top
of or underneath the jack.
Raise the vehicle only high
enough to remove and change
the tire.
If you have a flat tire—

’07Camry_U (L/O 0608)
344
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
NOTICE
Do not continue driving with a
deflated tire. Driving even a
short distance can damage a
tire and wheel beyond repair.
Compact spare tire (on some mod-
els)
The compact spare tire is designed
for temporary emergency use only.
The compact spare tire is identified
by the distinctive wording
“TEMPORARY USE ONLY” molded
into the side wall of the tire.
The compact spare tire saves space
in your luggage compartment, and its
lighter weight helps to improve fuel
economy and permits easier installa-
tion in case of a flat tire.The compact spare tire can be used
many times, if necessary. It has tread
life of up to 4800 km (3000 miles) de-
pending on road conditions and your
driving habits. When tread wear indi-
cators appear on the tire, replace the
tire.
See also the tire information on page
388 in Section 7−2 for details on the
tread wear indicators and other ser-
vice information.CAUTION
The compact spare tire was de-
signed especially for your Toy-
ota. Do not use it on any other
vehicle.
Do not use more than one com-
pact spare tire at the same
time.
The pressure for the compact
spare tire must be 420 kPa (4.2
kgf/cm
2 or bar, 60 psi).
Do not exceed 80 km/h (50
mph) when driving with the
compact spare tire.

’07Camry_U (L/O 0608)
345
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Replace the compact spare tire
with the standard tire as soon
as possible.
Avoid sudden acceleration,
sudden deceleration and sharp
turns with the compact spare
tire.
NOTICE
Your ground clearance is re-
duced when the compact spare
tire is installed so avoid driving
over obstacles and drive slowly
on rough, unpaved roads and
speed bumps. Also, do not at-
tempt to go through an auto-
matic car wash as the vehicle
may get caught, resulting in
damage.
With a compact spare tire
Without a compact spare tire1. Get the required tools and
spare tire.
1. Jack handle
2. Wheel nut wrench
3. Transport eyelet
(on some models)
4. Jack
5. Spare tire
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
— R eq u ired to o ls an d sp are
tire

’07Camry_U (L/O 0608)
346
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Before removing the jack, unhook the
tightening strap.
After storing the jack, make sure it is
securely held by the tightening strap.
This prevents the jack from flying for-
ward during a collision or sudden
stop.To remove the spare tire:
1. Loosen the nut and remove it.
2. Remove the spare tire cover.
3. Loosen the bolt and remove it.
4. Remove the spacer (with alumi-
num wheels).
Then take the spare tire out of the
vehicle.When storing the spare tire, put it in
place with the outer side of the wheel
facing up. Then secure the tire by re-
peating the above removal steps in
reverse order to prevent it from flying
forward during a collision or sudden
braking.

’07Camry_U (L/O 0608)
347
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
2. Block the wheel diagonally op-
posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When blocking the wheel, place a
wheel block in front of one of the front
wheels or behind one of the rear
wheels.3. Remove the wheel ornament.
Pry off the wheel ornament, using the
beveled end of the wheel nut wrench
as shown.
CAUTION
Do not try to pull off the orna-
ment by hand. Take due care in
handling the ornament to avoid
unexpected personal injury.
4. Loosen all the wheel nuts.
Always loosen the wheel nuts before
raising the vehicle.
Turn the wheel nuts counterclockwise
to loosen. To get maximum leverage,
fit the wrench to the nut so that the
handle is on the right side, as shown
above. Grab the wrench near the end
of the handle and pull up on the han-
dle. Be careful that the wrench does
not slip off the nut.
Do not remove the nuts yet—just un-
screw them about one−half turn.
—Blocking the wheel—Removing wheel ornament
(steel wheels only)—Loosening wheel nuts

’07Camry_U (L/O 0608)
348
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CAUTION
Never use oil or grease on the
bolts or nuts. The nuts may be-
come loose and the wheels may
fall off, which could cause a seri-
ous accident.
5. Position the jack at the correct
jack point as shown.
Make sure the jack is positioned on
a level and solid place.
Jack point guide
The jack point guides are located un-
der the rocker panel. They indicate
the jack point positions.
—Positioning the jack

’07Camry_U (L/O 0608)
349
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
6. After making sure that no one
is in the vehicle, raise it high
enough so that the spare tire
can be installed.
Remember you will need more ground
clearance when putting on the spare
tire than when removing the flat tire.

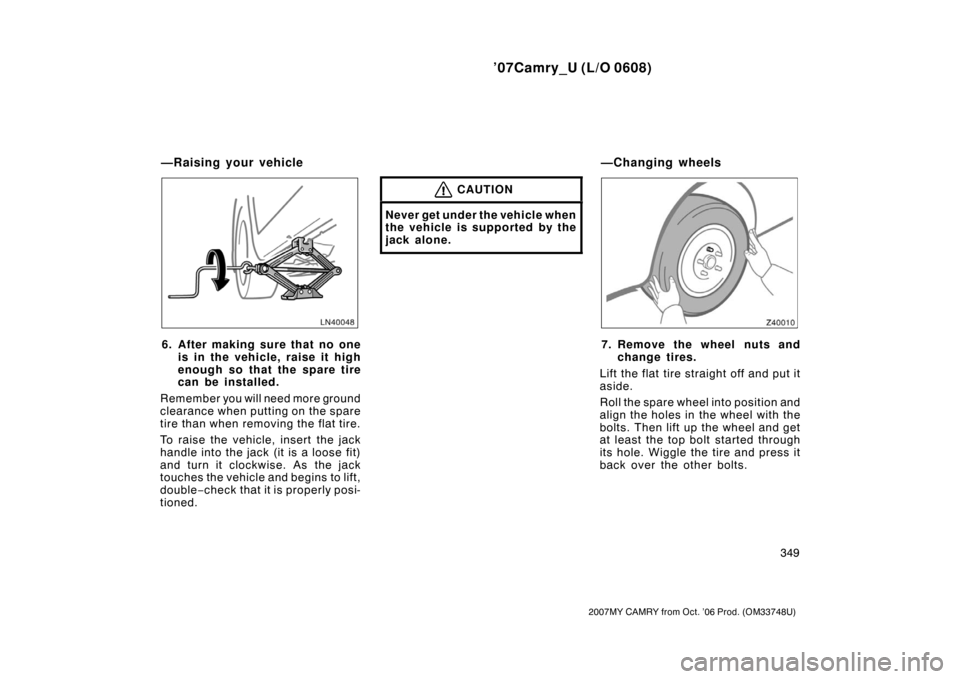

To raise the vehicle, insert the jack
handle into the jack (it is a loose fit)
and turn it clockwise. As the jack
touches the vehicle and begins to lift,
double−check that it is properly posi-
tioned.
CAUTION
Never get under the vehicle when
the vehicle is supported by the
jack alone.
7. Remove the wheel nuts and
change tires.
Lift the flat tire straight off and put it
aside.
Roll the spare wheel into position and
align the holes in the wheel with the
bolts. Then lift up the wheel and get
at least the top bolt started through
its hole. Wiggle the tire and press it
back over the other bolts.
—Raising your vehicle —Changing wheels

’07Camry_U (L/O 0608)
350
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

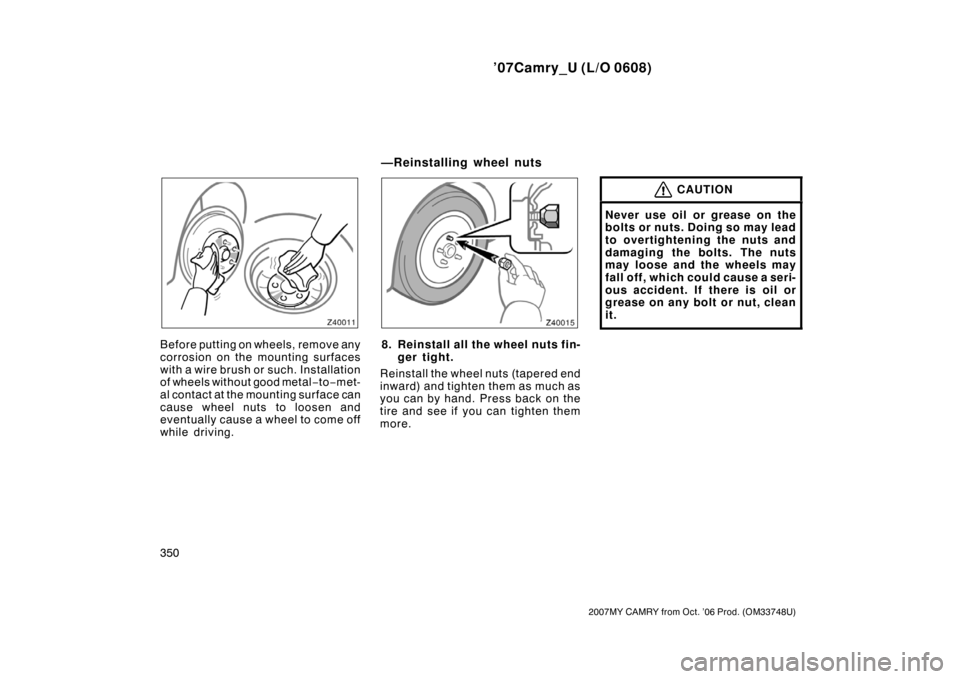

Before putting on wheels, remove any
corrosion on the mounting surfaces
with a wire brush or such. Installation
of wheels without good metal−to−met-
al contact at the mounting surface can
cause wheel nuts to loosen and
eventually cause a wheel to come off
while driving.8. Reinstall all the wheel nuts fin-
ger tight.
Reinstall the wheel nuts (tapered end
inward) and tighten them as much as
you can by hand. Press back on the
tire and see if you can tighten them
more.
CAUTION
Never use oil or grease on the
bolts or nuts. Doing so may lead
to overtightening the nuts and
damaging the bolts. The nuts
may loose and the wheels may
fall off, which could cause a seri-
ous accident. If there is oil or
grease on any bolt or nut, clean
it.
—Reinstalling wheel nuts

’07Camry_U (L/O 0608)
351
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
9. Lower the vehicle completely
and tighten the wheel nuts.
Turn the jack handle counterclock-
wise to lower the vehicle.
Use only the wheel nut wrench to
tighten the nuts. Do not use other
tools or any additional leverage other
than your hands, such as a hammer,
pipe or your foot. Make sure the
wrench is securely engaged over the
nut.

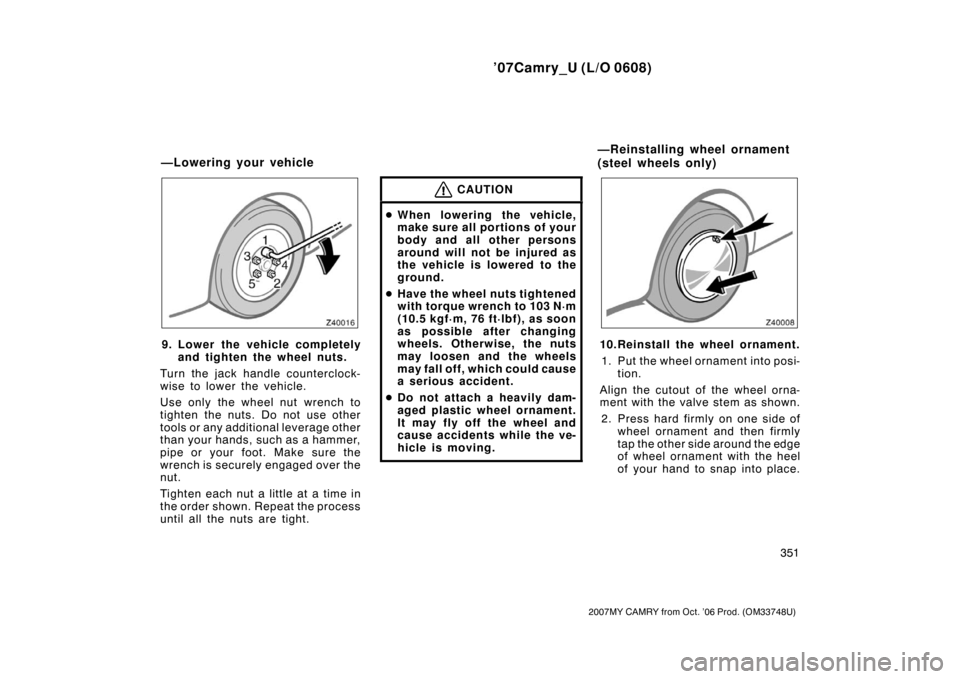

Tighten each nut a little at a time in
the order shown. Repeat the process
until all the nuts are tight.
CAUTION
When lowering the vehicle,
make sure all portions of your
body and all other persons
around will not be injured as
the vehicle is lowered to the
ground.
Have the wheel nuts tightened
with torque wrench to 103 N·m
(10.5 kgf·m, 76 ft·lbf), as soon
as possible after changing
wheels. Otherwise, the nuts
may loosen and the wheels
may fall off, which could cause
a serious accident.
Do not attach a heavily dam-
aged plastic wheel ornament.
It may fly off the wheel and
cause accidents while the ve-
hicle is moving.
10.Reinstall the wheel ornament.
1. Put the wheel ornament into posi-
tion.
Align the cutout of the wheel orna-
ment with the valve stem as shown.
2. Press hard firmly on one side of
wheel ornament and then firmly
tap the other side around the edge
of wheel ornament with the heel
of your hand to snap into place.
—Lowering your vehicle—Reinstalling wheel ornament
(steel wheels only)

’07Camry_U (L/O 0608)
352
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CAUTION
Take due care in handling the or-
nament to avoid unexpected per-
sonal injury.
11. Check the air pressure of the re-
placed tire.
Adjust the air pressure to the specifi-
cation designed on page 411 in Sec-
tion 8. If the pressure is lower, drive
slowly to the nearest service station
and fill to the correct pressure.
Do not forget to reinstall the tire infla-
tion valve cap as dirt and moisture
could get into the valve core and
possibly cause air leakage. If the cap
is missing, have a new one put on as
soon as possible.
12.Restow all the tools, jack and
flat tire securely.
As soon after changing wheels as
possible, tighten the wheel nuts to the
torque specified on page 411 in Sec-
tion 8 with a torque wrench. Have a
technician repair the flat tire and re-
place the spare tire with it.Initial adjustment of the tire pres-
sure warning system is necessary
after you have replaced your tires
or wheels. See “Tire pressure
warning system” on page 174 in
Section 17.
CAUTION
Before driving, make sure all the
tools, jack and flat tire are se-
curely in place in their storage
location to reduce the possibility
of personal injury during a colli-
sion or sudden braking.
—After changing wheels
