Leather interior
The leather upholstery may be cleaned
with neutral detergent for wool.
Remove dirt using a soft cloth dampened
with 5% solution of neutral detergent for
wool. Then thoroughly wipe off all traces
of detergent with a clean damp cloth.
After cleaning or whenever any part of the
leather gets wet, dry with a soft clean
cloth. Allow the leather to dry in a venti-
lated shaded area.
NOTICE
If a stain should fail to come out
with a neutral detergent, apply a
cleaner that does not contain an
organic solvent.
Never use organic substances such
as benzine, alcohol or gasoline, or
alkaline or acid solutions for clean-
ing the leather as these could
cause discoloring.
Use of a nylon brush or synthetic
fiber cloth, etc. may scratch the
fine grained surface of the leather.
Mildew may develop on soiled leath-
er upholstery. Be especially careful
to avoid oil spots. Try to keep your
upholstery always clean.
Long exposure to direct sunlight
may cause the leather surface to
harden and shrink. Keep your ve-
hicle in a shaded area, especially in
the summer.
The interior of your vehicle is apt
to heat up on hot summer days, so
avoid placing on the upholstery
items made of vinyl or plastic or
containing wax as these tend to
stick to leather when warm.
Improper cleaning of the leather up-
holstery could result in discolor-
ation or staining.
If you have any questions about the
cleaning of your Toyota, your local
Toyota dealer will be pleased to answer
them.

’07Camry_U (L/O 0608)
364
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

’07Camry_U (L/O 0608)
365
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
VEHICLE MAINTENANCE AND CARE
Vehicle maintenance and care
Maintenance requirements366 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance367 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Does your vehicle need repairing?369 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emissions Inspection and Maintenance (I/M) programs370 . . . . . . . . .
For scheduled maintenance information, please refer to the
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.
SECTION 6

’07Camry_U (L/O 0608)
366
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Your Toyota vehicle has been designed for
fewer maintenance requirements with long-
er service intervals to save both your time
and money. However, each regular mainte-
nance, as well as day−to−day care, is
more important than ever before to ensure
smooth, trouble−free, safe, and economical
drivings.
It is the owner ’s responsibility to make
sure the specified maintenance, including
general maintenance service, is performed.
Note that both the new vehicle and emis-
sion control system warranties specify that
proper maintenance and care must be per-
formed. See “Owner ’s Warranty Informa-
tion Booklet” or “Owner ’s Manual Supple-
ment” for complete warranty information.
General maintenance
General maintenance items are those day−
to−day care practices that are important to
your vehicle for proper operation. It is the
owner ’s responsibility to insure that the
general maintenance items are performed
regularly.
These checks or inspections can be done
either by yourself or a qualified technician,
or if you prefer, your Toyota dealer will be
pleased to do them at a nominal cost.Scheduled maintenance
The scheduled maintenance items listed in
the “Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement” are those
required to be serviced at regular inter-
vals.
For details of your maintenance schedule,
read the “Scheduled Maintenance Guide”
or “Owner ’s Manual Supplement”.
It is recommended that any replacement
parts used for maintenance or for the
repair of the emission control system
be Toyota supplied.
The owner may elect to use nonToyota
supplied parts for replacement pur-
poses without invalidating the emission
control system warranty. However, use
of replacement parts which are not of
equivalent quality may impair the effec-
tiveness of the emission control sys-
tems.
You may also elect to have mainte-
nance, replacement, or repair of the
emission control devices and system
performed by any automotive repair es-
tablishment or individual without invali-
dating this warranty. See “Owner’s War-
ranty Information Booklet” or “Owner’s
Manual Supplement” for complete war-
ranty information.Where to go for service?
Toyota technicians are well−trained spe-
cialists and are kept up to date with the
latest service information through technical
bulletins, service tips, and in−dealership
training programs. They learn to work on
Toyotas before they work on your vehicle,
rather than while they are working on it.
You can be confident that your Toyota
dealer ’s service department performs the
best job to meet the maintenance require-
ments on your vehicle—reliably and eco-
nomically.
Your copy of the repair order is proof that
all required maintenance has been per-
formed for warranty coverage. If any prob-
lems should arise with your vehicle while
under warranty, your Toyota dealer will
promptly take care of it. Again, be sure
to keep a copy of the repair order for any
service performed on your Toyota.
Maintenance requirements

’07Camry_U (L/O 0608)
367
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
What about doityourself maintenance?
Many of the maintenance items are easy
to do yourself if you have a little mechani-
cal ability and a few basic automotive
tools. Simple instructions for how to per-
form them are presented on page 371 in
Section 7.
If you are a skilled do−it−yourself mechan-
ic, the Toyota service manuals are recom-
mended. Please be aware that do−it−your-
self maintenance can affect your warranty
coverage. See “Owner ’s Warranty Informa-
tion Booklet” or “Owner ’s Manual Supple-
ment” for the details.Listed below are the general maintenance
items that should be performed as fre-
quently as specified. In addition to check-
ing the items listed, if you notice any
unusual noise, smell or vibration, you
should investigate the cause or take your
vehicle to your Toyota dealer or a quali-
fied service shop immediately. It is recom-
mended that any problem you notice be
brought to the attention of your dealer or
the qualified service shop for their advice.
CAUTION
Make these checks only with ade-
quate ventilation if you run the en-
gine.

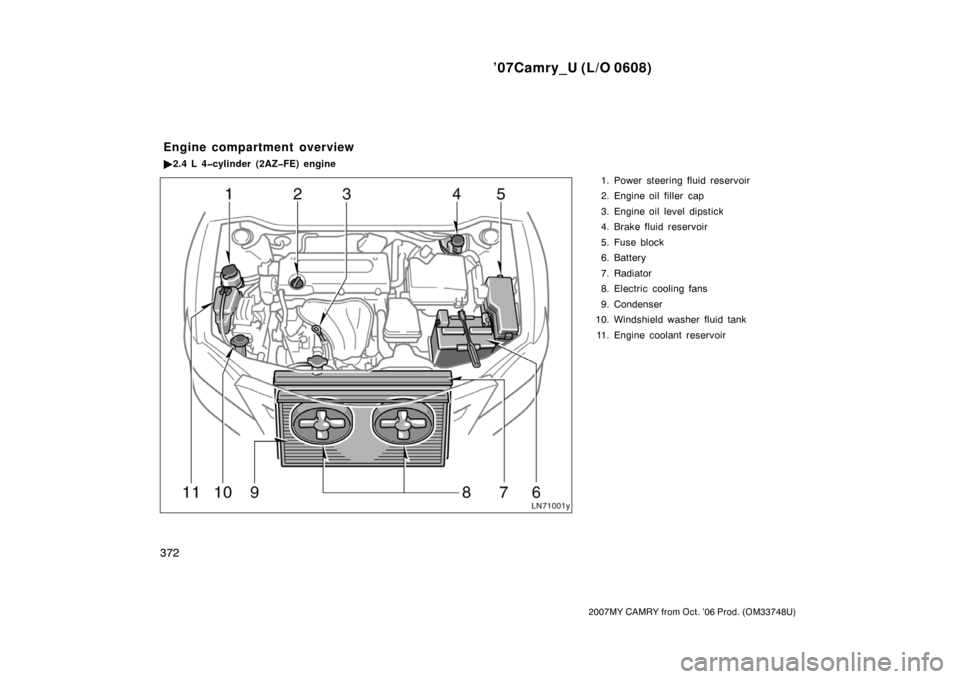

IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See page 399 in Section 7−3 for
additional information.
Engine coolant level
Make sure the coolant level is between
the “F” and “L” lines on the see−through
reservoir when the engine is cold. See
page 382 in Section 7−2 for additional
information.
Radiator, condenser and hoses
Check that the front of the radiator and
condenser are clean and not blocked with
leaves, dirt or insects. See page 383 in
Section 7−2 for additional information.
Battery condition
Check the battery condition by the indica-
tor color. See page 396 in Section 7−3 for
additional information.
General maintenance

’07Camry_U (L/O 0608)
368
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Brake fluid level
Make sure the brake fluid level is correct.
See page 383 in Section 7−2 for addition-
al information.
Engine oil level
Check the level on the dipstick with the
engine turned off and the vehicle parked
on a level spot. See page 380 in Section
7−2 for additional information.
Power steering fluid level
Check the level through the reservoir. The
level should be in the “HOT” or “COLD”
range depending on the fluid temperature.
See page 384 in Section 7−2 for addition-
al information.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See “Engine exhaust cautions” on
page 290 in Section 2.)INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise.
Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraints move up and down
smoothly and that the locks hold securely
in any latched position. For folding−down
rear seatbacks, check that the latches
lock securely.Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure that the
belt webbings not cut, frayed, worn or
damaged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Clutch pedal
Check the pedal for smooth operation.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
In a safe place, check that the brakes do
not pull to one side when applied.
Parking brake
Check that the lever or pedal has the
proper travel and that, on a safe incline,
your vehicle is held securely with only the
parking brake applied.

’07Camry_U (L/O 0608)
369
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Automatic transmission “Park” mecha-
nism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in “P” position and all brakes re-
leased.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all doors including trunk lid
operate smoothly and all latches lock se-
curely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.Tire inflation pressure
Check the pressure with a gauge ev-
ery two weeks, or at least once a
month. See page 385 in Section 7−2
for additional information.
Tire surface and wheel nuts
Check the tires carefully for cuts,
damage or excessive wear. See page
388 in Section 7−2 for additional in-
formation. When checking the tires,
make sure no nuts are missing, and
check the nuts for looseness. Tighten
them if necessary.
Tire rotation
Rotate the tires according to the
maintenance schedule. (For sched-
uled maintenance information, please
refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supple-
ment”.) See page 390 in Section 7−2
for additional information.Be on the alert for changes in perfor-
mance, sounds, and visual tip−offs that
indicate service is needed. Some impor-
tant clues are as follows:
Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A leak under the vehicle (however, wa-
ter dripping from the air conditioning
after use is normal.)
Change in exhaust sound (This may
indicate a dangerous carbon monoxide
leak. Drive with the windows open and
have the exhaust system checked im-
mediately.)
Flat−looking tire; excessive tire squeal
when cornering; uneven tire wear
Vehicle pulls to one side when driving
straight on a level road
Strange noises related to suspension
movement
Loss of brake effectiveness; spongy
feeling brake or clutch pedal; pedal al-
most touches floor; vehicle pulls to one
side when braking
Engine coolant temperature continually
higher than normal
Does your vehicle need
repairing?

’07Camry_U (L/O 0608)
370
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
If you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the ve-
hicle unchecked. It could result in se-
rious vehicle damage and possibly
personal injury.
Some states have vehicle emission in-
spection programs which include OBD
(On−Board Diagnostics) checks.
The OBD system monitors the operation
of the emission control system. When the
OBD system determines that a problem
exists somewhere in the emission control
system, the malfunction indicator lamp
comes on. In this case, your vehicle may
not pass the I/M test and need to be
repaired. Contact your Toyota dealer to
service the vehicle.
Even if the malfunction indicator lamp
does not come on, your vehicle may not
pass the I/M test as readiness codes
have not been set in the OBD system.
Readiness codes are automatically set
during ordinary driving. However, when the
battery is disconnected or run down, the
codes are erased. Also, depending on
your driving habits, the codes may not be
completely set.Also, if the malfunction indicator lamp had
come on recently due to temporary mal-
function such as a loose fuel tank cap,
your vehicle may not pass the I/M test.
The malfunction indicator lamp will go off
after taking several driving trips, but the
error code in the OBD system will not be
cleared unless about 40 trips or more are
taken.
If your vehicle does not pass the I/M test
even the malfunction indicator lamp does
not come on, contact your Toyota dealer
to prepare the vehicle for re−testing.
Emissions Inspection and
Maintenance (I/M) programs

’07Camry_U (L/O 0608)
371
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
DOITYOURSELF MAINTENANCE
Introduction
Engine compartment overview372 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations374 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Do−it−yourself service precautions374 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the jack376 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools378 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7 1

’07Camry_U (L/O 0608)
372
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Power steering fluid reservoir
2. Engine oil filler cap
3. Engine oil level dipstick
4. Brake fluid reservoir
5. Fuse block
6. Battery
7. Radiator
8. Electric cooling fans
9. Condenser
10. Windshield washer fluid tank
11. Engine coolant reservoir
Engine compartment overview
2.4 L 4cylinder (2AZFE) engine
