rotation TOYOTA CAMRY 2008 XV40 / 8.G Owners Manual

7
Tires
●Rotation
● Replacement
● Inflation pressure
● Information
P. 334
P. 400
P. 436
P. 442
Trunk P. 46
Doors P. 41
Fuel filler door P. 73Rear turn signal lights P. 138
Rear window defoggerP. 199
Tail lights P. 152
: If equipped
Tail and rear side marker
lights
P. 152

334
4-3. Do-it-yourself maintenance

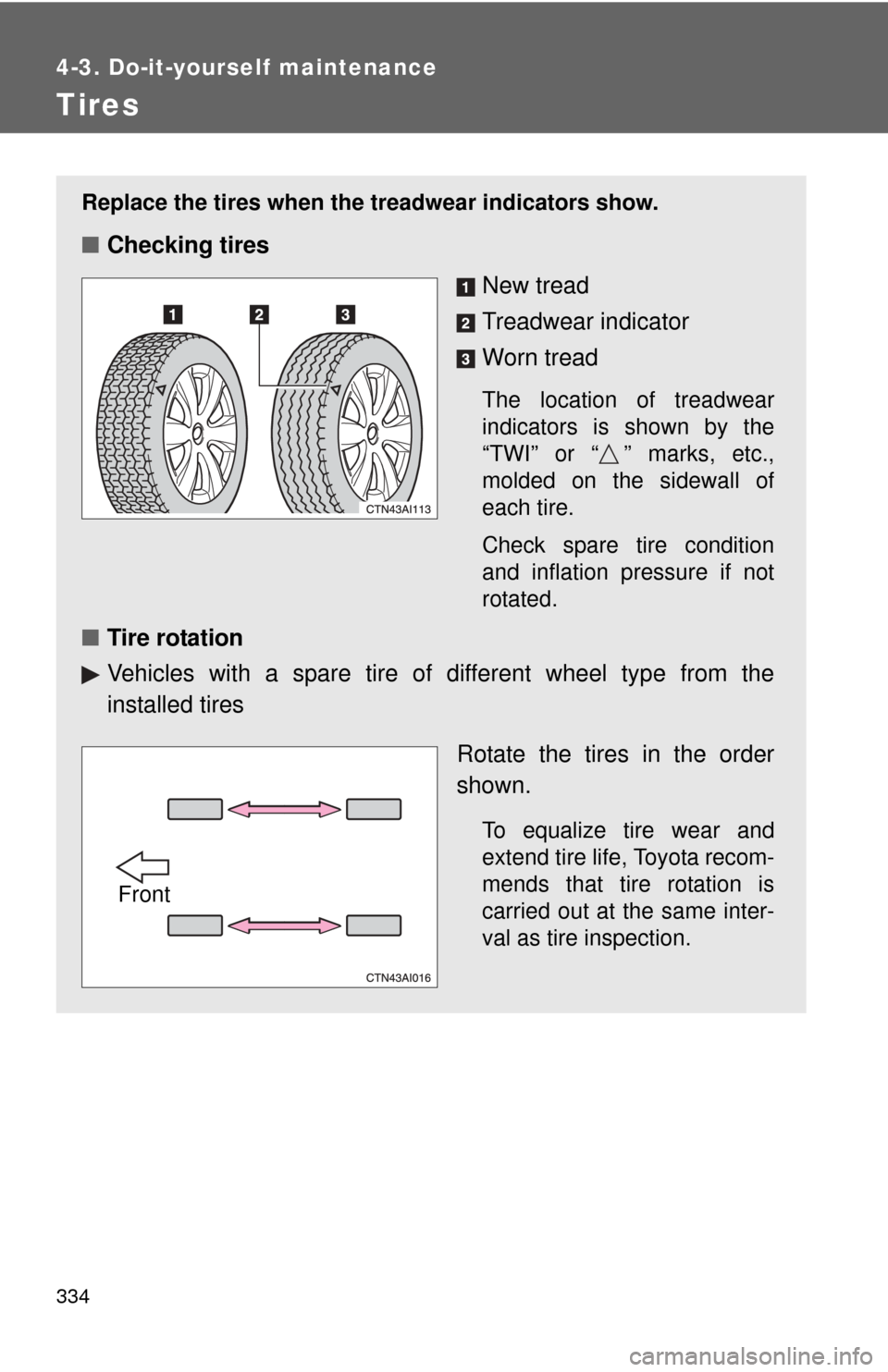

Tires
Replace the tires when the treadwear indicators show.
■Checking tires
New tread
Treadwear indicator
Worn tread
The location of treadwear
indicators is shown by the
“TWI” or “ ” marks, etc.,
molded on the sidewall of
each tire.
Check spare tire condition
and inflation pressure if not
rotated.
■Tire rotation
Vehicles with a spare tire of different wheel type from the
installed tires
Rotate the tires in the order
shown.
To equalize tire wear and
extend tire life, Toyota recom-
mends that tire rotation is
carried out at the same inter-
val as tire inspection.
Front

335
4-3. Do-it-yourself maintenance
4
Maintenance and care

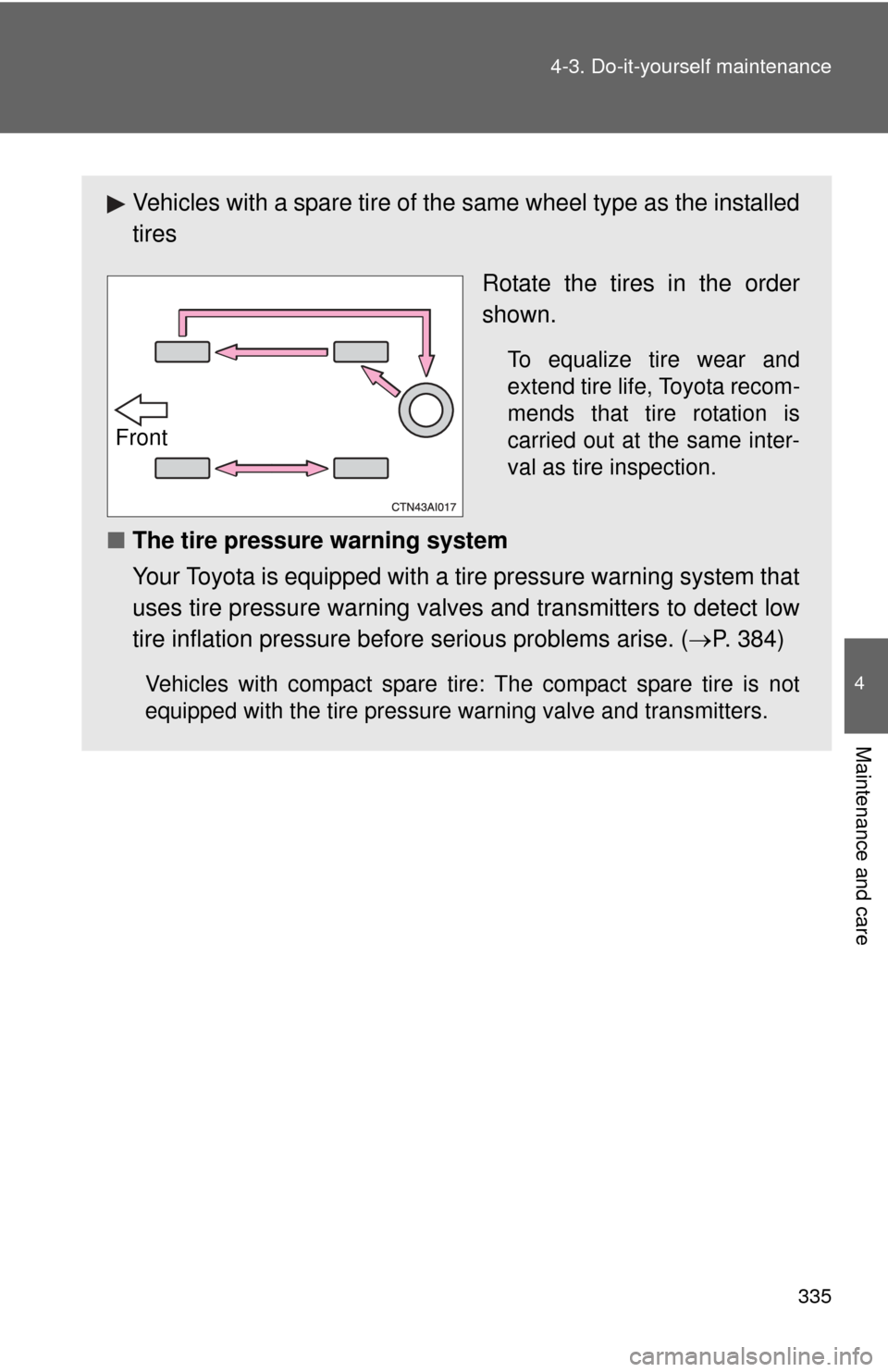

Vehicles with a spare tire of the same wheel type as the installed
tires
Rotate the tires in the order
shown.
To equalize tire wear and
extend tire life, Toyota recom-
mends that tire rotation is
carried out at the same inter-
val as tire inspection.
■The tire pressure warning system
Your Toyota is equipped with a tire pressure warning system that
uses tire pressure warning valves and transmitters to detect low
tire inflation pressure before serious problems arise. (P. 384)
Vehicles with compact spare tire: The compact spare tire is not
equipped with the tire pressure warning valve and transmitters.
Front
